LAB22 Magnetic Phone Stand with Dual Wireless Charging A. Introduction Based on electromagnetic induction technology, this product meets the Qi wireless charging protocol WPC1.2.4 released by WPC (Wireless Charging Alliance) Magnetic absorption wireless charging part with magnetic absorption function, maximum output power 7.5W, compatible with iPhone12 and above with magnetic absorption function of mobile phones. compatible with all devices that support Qi wireless charging 5W protocol charging. The product input voltage current:12V/1.67A. B. Operation instruction a. Connect the supporting charging cable to the charging base. b. Connect the charging cable to the PD adapter. c. Attach an iPhone12 series or above phone to the charging module. The charging symbol on the phone lights up, indicating that charging is underway. d. Place the iPhone or watch in the 5W wireless charging area. The charging symbol of the iPhone or watch lights up, indicating that charging is underway. e. When the phone shows charging completion, take off the phone and turn off the power supply of the charging stand. C. Appearance diagram FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - lncrease the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC's RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

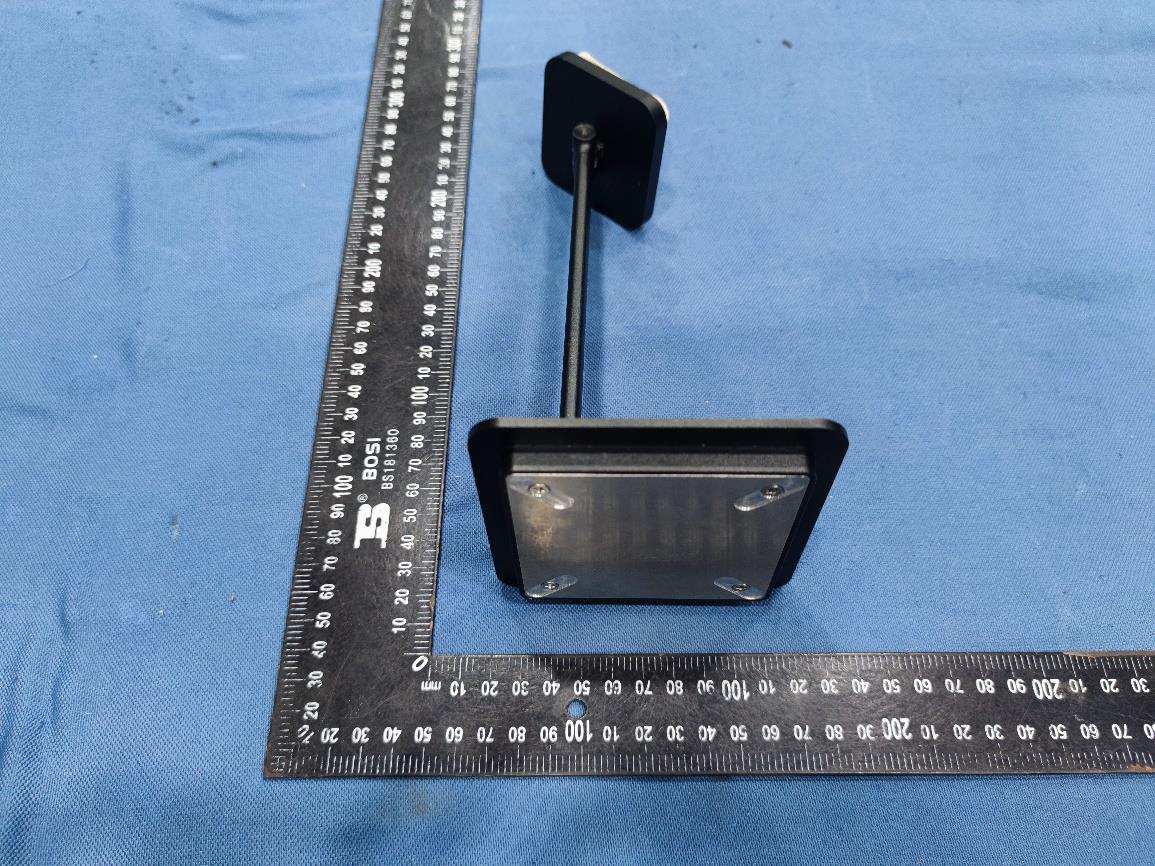

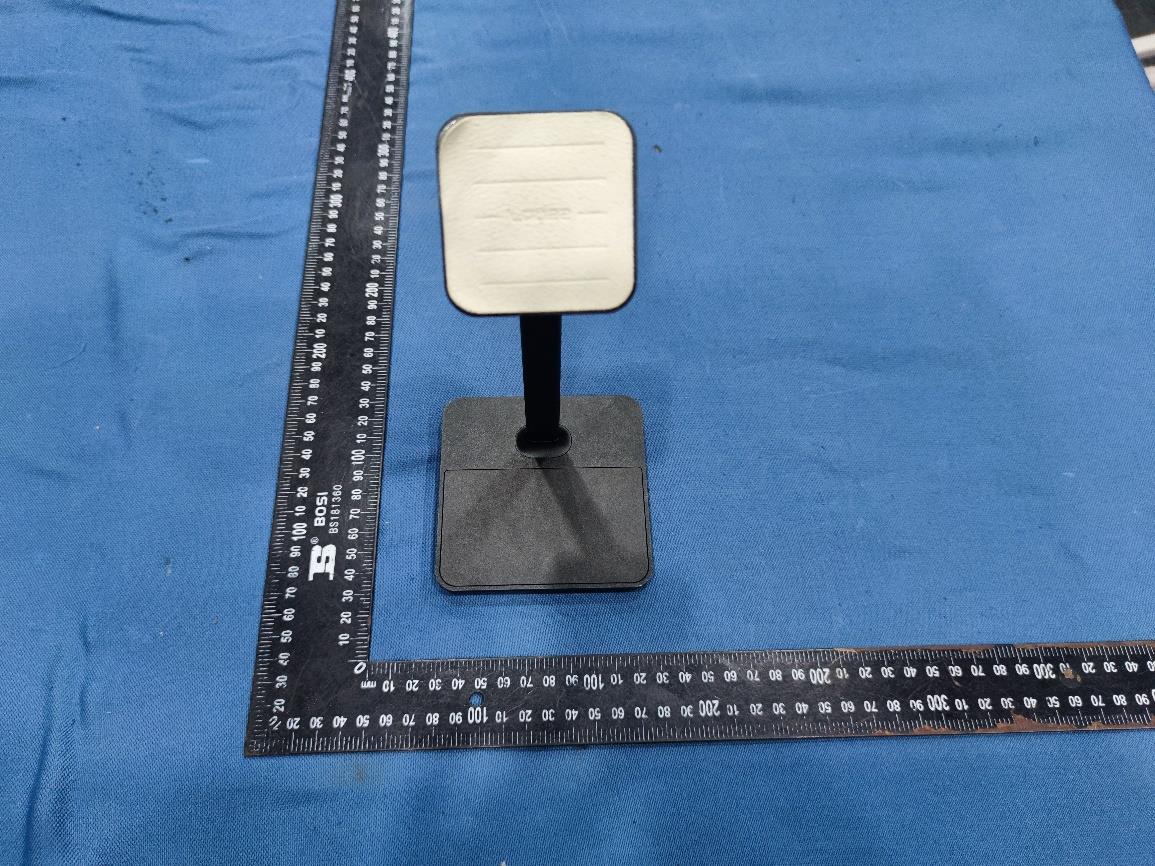

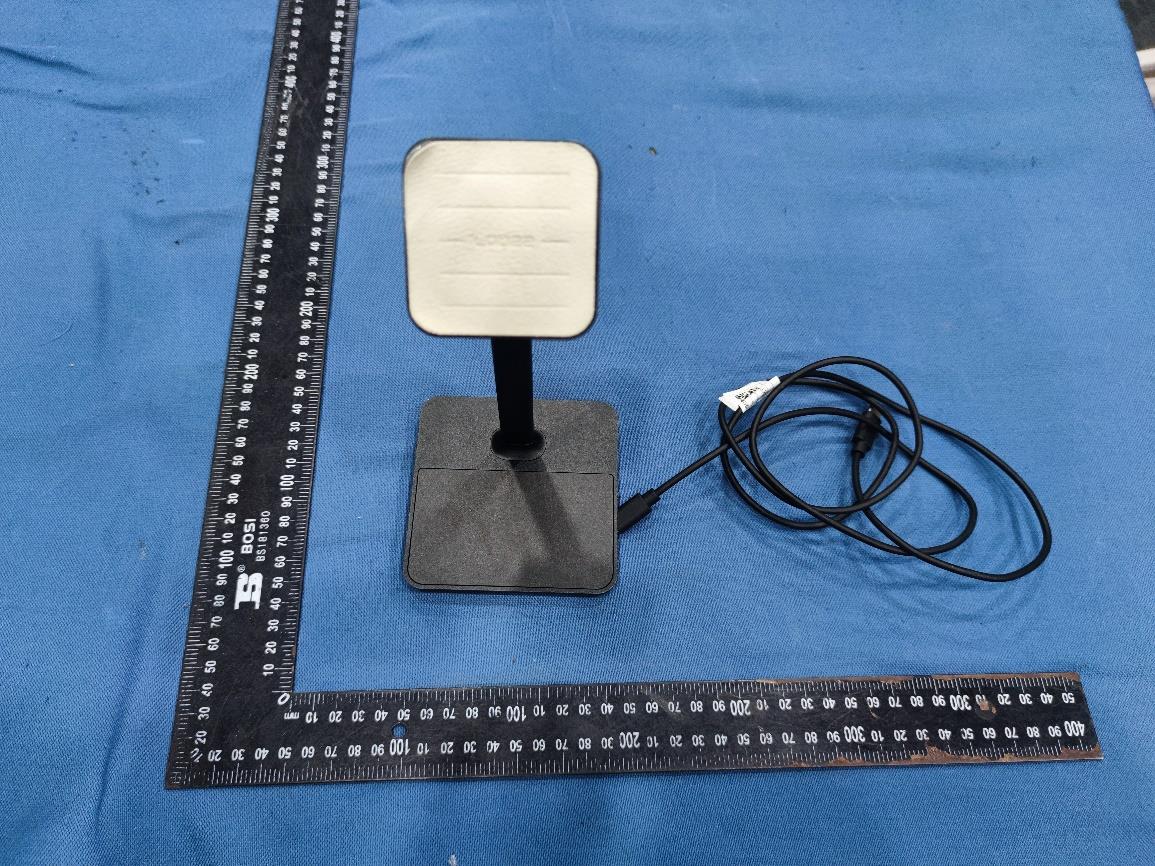

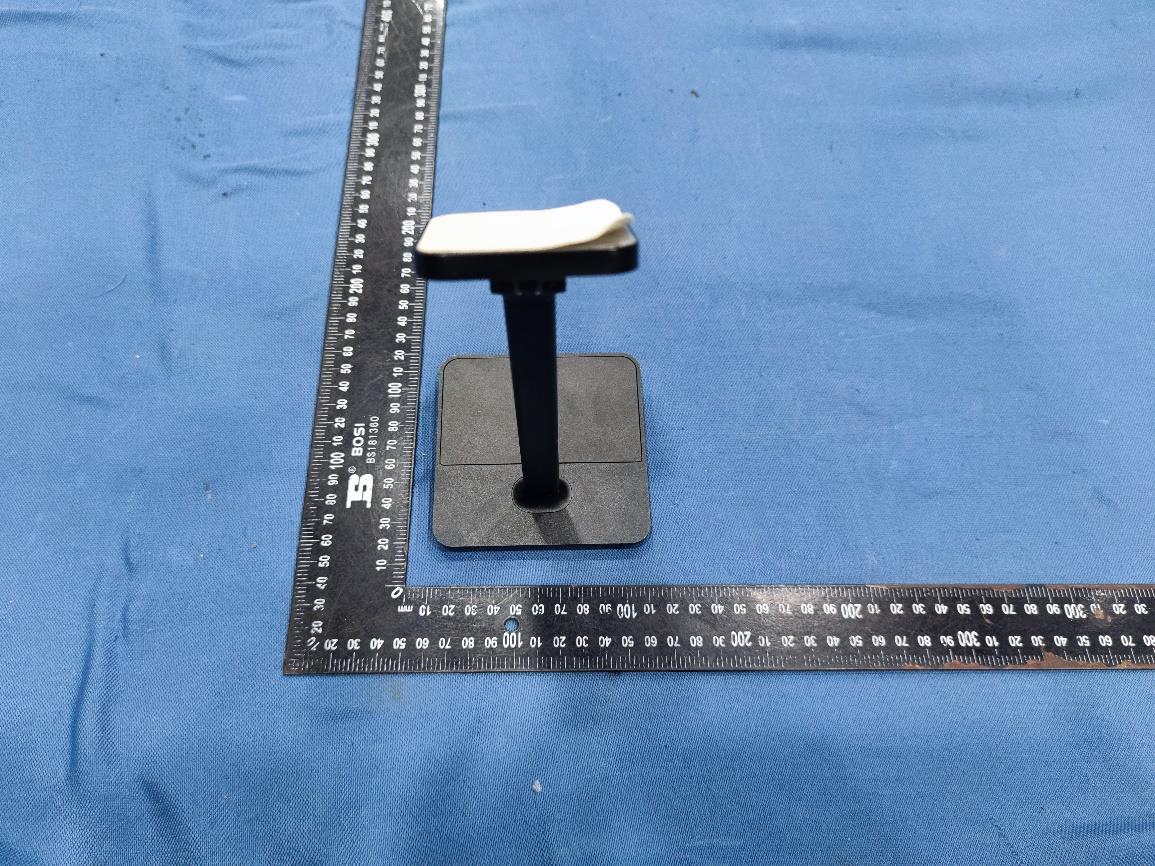

Page 1 of 4 FCC ID: 2AEZQ810-01040 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT External Photos EUT Photo EUT Photo Page 2 of 4 FCC ID: 2AEZQ810-01040 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 3 of 4 FCC ID: 2AEZQ810-01040 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo Page 4 of 4 FCC ID: 2AEZQ810-01040 Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Tel: +86 21 61278200 Fax: +86 21 54262353 EUT Photo EUT Photo
