2AF2DPTP-100Wireless Socket Speaker

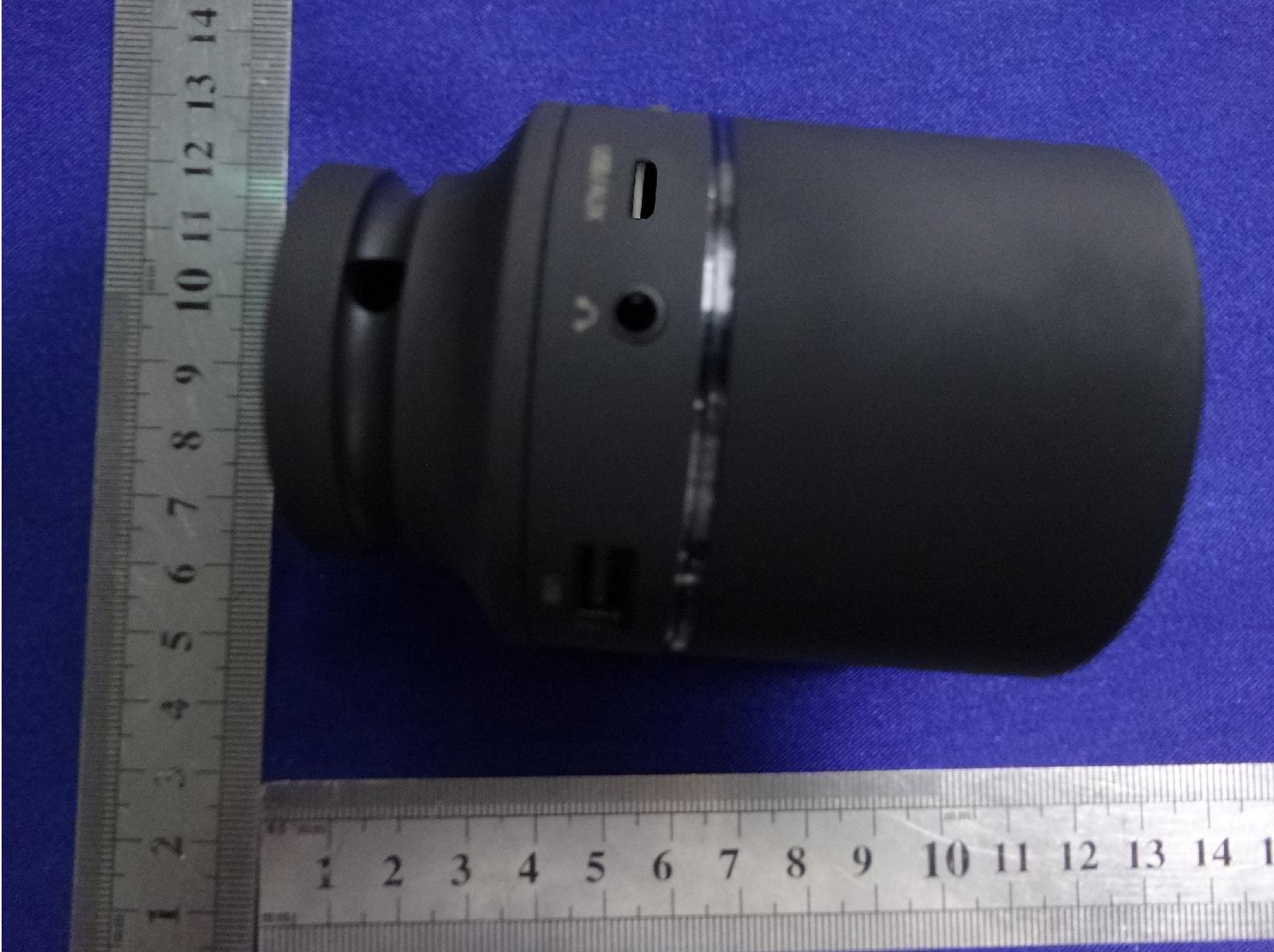

Manual Partial View 1.Indicator light. 2.short press to change the model (FM-TF-AUX-BT). 3.Short press to play previous song,long press for for volume down. 4.To play/Stop playing music; 5.Short press to play next song,long press for for volume up. 6.Mini usb Charging/AUX Port. 7.3.5DCinterface/Headphones,theplugisthreeparts 8.U Disk music to play 9.TF CARD interface. 10.Power on/off. 11.MIC Usage Most importantly,switch on the speaker. Play via Computer: Activate Computer's Bluetooth(if the computer does not built-in BT,plug on a BT adapter,also need extra BT driver.)-Turn speaker to pairing mode(Blue light flasing quickly)-Search "Matco Tools" -Pairing-Connect and Play. Play via Mode phone: Activate Mode phone's Blueth-Search Find "Matco Tools" -paring-Connect and play Parameter Battery voltage: 3.7V 550MAH Charging time:3 hours Loudspeaker size:53MM , 4Ω3W Unit weight：:245G Product size：ф62*H86mm Troubleshooting 1.Hands-free call is only available at BT connected status; Still the phone call could be interfered with high frequency electromagnetism .People should try not to use this product under high frequency environment. 2.Bluetooth is a bidirectional transmitting protocol;transmiting distance is highly related to audio player.Compatible BT players are recommended. 3.Some terminal players are without automatically switching play function.In this case,POP noise will exist in the interval of every 2 songs. 4.When BT transmitting devices cannot be connected,please delete the rest BT receiving devices name on the list.Re-activate speaker,re-searching an re-pairing. 5.ThesoundperrormancecouldalsobeaffectedwhenBTtransmittingdevicesisunder poor signal environment,or under low battery capacity. Federal Communications Commission (FCC) Statement Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay cause undesired operation. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffand on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning:Changesormodificationsmadetothisdevicenotexpresslyapprovedby ShenzhenJiLangTechnologyCo.,Ltd.mayvoidtheFCCauthorizationtooperatethis device. Note:Themanufacturerisnotresponsibleforanyradioortvinterferencecausedby unauthorizedmodificationstothisequipment.Suchmodificationscouldvoidtheuser’s authority to operate the equipment.

Shenzhen JiLang Technology Co.,Ltd 3rd Floor, C Builing, No.1 East Area of Shangxue Industrial Park, Bantian Town, Longgang District, Shenzhen City, China TEL: +86-755-84353106 FAX: +86-755-84353106 DATE 11-26-2015 FCC ID: 2AF2DPTP-100 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen POCE Technology Co.,Ltd. (Jack Kang) at Room 502, Bldg. 1, Xinghua Garden, Baoan Road Xixiang, Baoan District, Shenzhen, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by MiCOM Labs Inc, still resides with Shenzhen JiLang Technology Co.,Ltd at 3rd Floor, C Builing, No.1 East Area of Shangxue Industrial Park, Bantian Town, Longgang District, Shenzhen City, China. Dated this 11-26-2015 Agency agreement expiration date: 11-25-2016 By: Haijun Zhao Signature Printed Title: Manager On behalf of : Shenzhen JiLang Technology Co.,Ltd Telephone: +86-755-84353106

Shenzhen JiLang Technology Co.,Ltd 3rd Floor, C Builing, No.1 East Area of Shangxue Industrial Park, Bantian Town, Longgang District, Shenzhen City, China TEL: +86-755-84353106 FAX: +86-755-84353106 DATE 11-26-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AF2DPTP-100 Product Name: Wireless Socket Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11-26-2015 By: Haijun Zhao Signature Printed Title: Manager On behalf of : Shenzhen JiLang Technology Co.,Ltd Telephone: +86-755-84353106

Shenzhen JiLang Technology Co.,Ltd 3rd Floor, C Builing, No.1 East Area of Shangxue Industrial Park, Bantian Town, Longgang District, Shenzhen City, China TEL: +86-755-84353106 FAX: +86-755-84353106 USB Port Statement FCC ID: 2AF2DPTP-100 Date: Nov.26, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: PTP-100,511S) USB port only used for charge, no any data transfer to PC. Sincerely, Haijun Zhao/Manager

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: PTP-100 FCC ID:2AF2DPTP-100 FCCID Label Location

FCC RADIO TEST REPORT FCC ID: 2AF2DPTP-100 Product： Wireless Socket Speaker Trade Name： N/A Model Number： PTP-100, 511S Report No.： POCE15072232NRRF Prepared for Shenzhen JiLang Technology Co., Ltd. 3rd Floor, C Building, No.1 East Area of Shangxue Industrial Park, Bantian Town, Longgang District, Shenzhen City, China Prepared by Shenzhen POCE Technology Co.,Ltd. Room 502, Bldg. 1, Xinghua Garden, Baoan Road Xixiang, Baoan District, Shenzhen, China V1.0 Page 2 of 28 Report No.: POCE15072232NRRF TEST RESULT CERTIFICATION Applicant’s name...................... Shenzhen JiLang Technology Co., Ltd. Address....................................... 3rd Floor, C Building, No.1 East Area of Shangxue Industrial Park, Bantian Town, Longgang District, Shenzhen City, China Manufacture's Name................. Shenzhen JiLang Technology Co.,Ltd Address....................................... 3rd Floor, C Builing, No.1 East Area of Shangxue Industrial Park, Bantian Town, Longgang District, Shenzhen City, China Product description Product name.............................. Wireless Socket Speaker Model and/or type reference .................................................... PTP-100, 511S Ratings DC 3.7V from battery Standards................................ FCC Part15.249 Test procedure ............................... ANSI C63.10-2010 This device described above has been tested by POCE, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of POCE, this document may be altered or revised by POCE, personal only, and shall be noted in the revision of the document. Date of Test................................................... Date (s) of performance of tests.................... Nov. 18, 2015 ~ Nov. 26, 2015 Date of Issue.................................................. Nov. 26, 2015 Test Result..................................................... Pass Testing Engineer : (Lynn Chen) Technical Manager : (Carlen Liu) Authorized Signatory : (Tommy zhang) The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 28 Report No.: POCE15072232NRRF Contents 1 . T E S T S T A N D A R D S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..4 2 . S U M M A R Y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .5 2.1. Equipment Under Test 5 2.2. Description of the Equipment under Test (EUT) 5 2.3. EUT operation mode 6 2.4. EUT configuration 6 2.5. Related Submittal(s) / Grant (s) 6 2.6. Modifications 6 3 . T ES T E N V I R O N M E N T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 9 4 . T E S T C O N D I T I O N S A N D R E S U L T S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .1 0 4.1. Conducted Emissions Test 10 4.2. Transmitter Radiated Unwanted Emissions and Bandedge 13 4.3. Occupied Bandwidth Measurement 19 5 . A N T E N N A R E Q U I R E M E N T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . .2 3 6. T E S T S E T U P P H O T O S O F T H E E U T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .2 4 7 . E X T E R N A L A N D I N T E R N AL P H O T O S O F T H E E U T. . . . . . . . . . . . . . . . . . . . . .2 5 V1.0 Page 4 of 28 Report No.: POCE15072232NRRF 1 . T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.10-2013 V1.0 Page 5 of 28 Report No.: POCE15072232NRRF 2 . S U M M A R Y 2.1. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz ● 12 V DC o 24 V DC o Other (specified in blank below) DC 3.7V from battery 2.2. Description of the Equipment under Test (EUT) The EUT ( Wireless Socket Speaker ) support Bluetooth function. Name of EUT Wireless Socket Speaker Model Number PTP-100 Antenna Type Internal BT CE Operation frequency 2402MHz-2480MHz BT Modulation Type GFSK,8DPSK,π/4DQPSK(BT V2.1+EDR) Bluetooth BT V2.1+EDR Antenna Gain 0dBi Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 28 Report No.: POCE15072232NRRF 2.3. EUT operation mode Test Mode™ Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / TM4 Charging and keeping TX power by USB The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The fo…
