2AF2N-SNS100Simple Sense

EasySense Quick Guide Wiring diagram LED indicator The product contains two indicator LEDs for compliance with California Title 20 requirements. The LED indicator by default is enabled, and it can be disabled through the phone App. The behavior of the LED is as listed below: Yellow LED on: = Vacancy & Sensor is functional Red LED on: = Motion is detected and hold time is not expired yet Sensor Functionality The device controls the light output based on the occupancy, day light regulation and field task level. 1. Daylight based control Daylight based control is enabled by default. The light sensor is auto calibrated every time the sensor is switched on, meaning when the driver mains is switched on. The min dim level is set by Background Light Level. E.g. if Background Light Level is set to be 20%, during daylight harvesting, the light will only dim down to 20%. 2. Occupancy based control: Upon detection of occupancy, lighting system is switched on in a number of steps, summarized as the Switch On Sequence. Similarly, upon detection of vacancy, the lights are switched off in a Switch Off sequence. Both sequences are described in the next sub-requirements. If occupancy is detected, lights are dimmed up to the Switch On Light Level in 0,7 second. This is not configurable by the user. Switch On Light Level is a predefined output level that will be activated when occupancy is detected. The Switch On Light level is not configurable and is set to 100%. When occupancy is not detected anymore, following lighting Switch Off Sequence is executed as shown in the diagram above. When no more occupancy is detected, the device will wait until the hold time is expired before going to the Background Light Level. After Hold Time is expired, the light is faded to Background level in the time set by the configurable parameter Grace Fading. The light level is kept on the background level for amount of time - Prolong Time. After prolong time is expired, the light is faded from the Background level to off. The Fade Time is a fixed value of 0.7 seconds. 3. Task Tuning Field Task Tuning is a feature to reduce the maximum output of fixture to a certain percentage of the AOC current of the driver. Task light level can be adjusted into a value between 5% and 100% of the max setting through App based on occupant task requirement. Configuration The sensor can be configured through App using NFC technology. In summary, features can be configured are Occupancy based control (Enable/ Disable, Hold time, Prolong time, Background light level, Grace fading), Daylight based light control (Enable/ Disable), LED indicator (Enable/ Disable) and Task Tuning. The configuration range for each parameter are listed in the EasySense datasheet. Configuration steps: 1. Select Scan device: 2. Place the back of the smartphone onto the sensor face 3. After hearing a beep, following screen shall show up to configure parameters. After configuration, please press “Next”. 4. The App also provides an option to save this profile for future use by entering Profile name and Location. This profile will be saved. You can skip entering this information and program the EasySense sensor by press “Program EasySense”. EasySense EasySense Program EasySense Program EasySense 5. Repeat step 2. 6. After programming successfully, a green arrow shows up on the screen. More EasySense sensor can be programmed with the same setting by press “Program EasySense”. Or press “Done” to finish configuration. 7. Once a sensor is programed, its profile is automatically saved for future use. One can go to Profile from the main menu and select desired profile and program sensors. FCC/IC compliance statement This device complies with part 15 of the FCC rules for the United States and Industry Canada (IC) license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Philips could void the user’s authority to operate this equipment. This product is intended for commercial use only. DÉCLARATION DE CONFORMITÉ À LA FCC/IC Ce dispositif est conforme à la partie 15 des règles de la Federal Communications Commission (FCC) des États-Unis et d'Industrie Canada (IC) exempts de licence RSS norme(s). Son fonctionnement est assujetti aux deux conditions suivantes : (1) Ce dispositif ne doit pas provoquer de brouillage préjudiciable, et (2) il doit accepter tout brouillage reçu, y compris le brouillage pouvant entraîner un mauvais fonctionnement. Tous les changements ou modifications non expressément approuvés par Philips, sont susceptibles d’annuler le droit de l’utilisateur à se servir de cet équipement. Ce produit est exclusivement destiné à un usage commercial ©2014 Philips Lighting Electronics N.A. A Division of Philips Electronics North America Corporation All rights reserved. 4435 631 00331 REV. A Philips Lighting Electronics N.A. 10275 West Higgins Road Rosemont, IL 60018 Tel: 1-800-322-2086 Fax: 888-423-1882 Customer Support/Technical Service: 800-372-3331

PHILIPS Date: October 22, 2015 Philips Lighting North America Corp. Federal Communication Commission 10275 West Higgins Road Equipment Authorization Division Rosemont, IL 60018 Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 c.c. UL LLC. 333 Pfingsten Road Northbrook, IL 60062 To whom it may concern: I, the undersigned, hereby authorize Bart Mucha of UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Bail Mucha of UL on our behalf, shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for Examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter That contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with Specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Yours Sincerely, Philips Lighting North America Corp. Tel: 800.322.2086 Fax: 888.423.1882 www.phiiips.com/advance

PHILIPS Date: October 22, 2015 Time: 9:08 am Philips Lighting North America Corp. 10275 West Higgins Road To: UL LLC Rosemont, IL 60018 333 Pfingsten Rd. Northbrook, IL 60062 From: Ernesto Mendoza Engineering Manager Phone: 847-768-7736 Fax: 847-390-5264 [email protected] Applicant: Philips Lighting North America Corp. Subject: Request for Non-Disclosure for FCC ID: 2AF2N-SNS 100 Dear Ladies and/or Gentlemen: Pursuant to Title 47 CFR, Section 0.459, Philips Lighting North America Corp. hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: 2AF2N-SNS 100. a. Schematic Diagrams b. Operational Description c. Block Diagram d. Parts List The above materials contain trade secrets, proprietary and technical information, which would customarily be guarded from competitors under Title 47 CFR, Section 0.457(d)(2). Disclosure or publication of any portion of this company’s confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Philips Lighting North America Corp. understands that pursuant to Title 47 CFR, Section 0.457(d)(1)(ii), disclosure of the applicant and all accompanying documentation will not be made before the date of the Grant. SincerelyEmesto Mendoza Engineering Manager Philips Lighting North America Corp. Tel: 800.322.2086 Fax: 888.423.1882 www.philips.com/advance

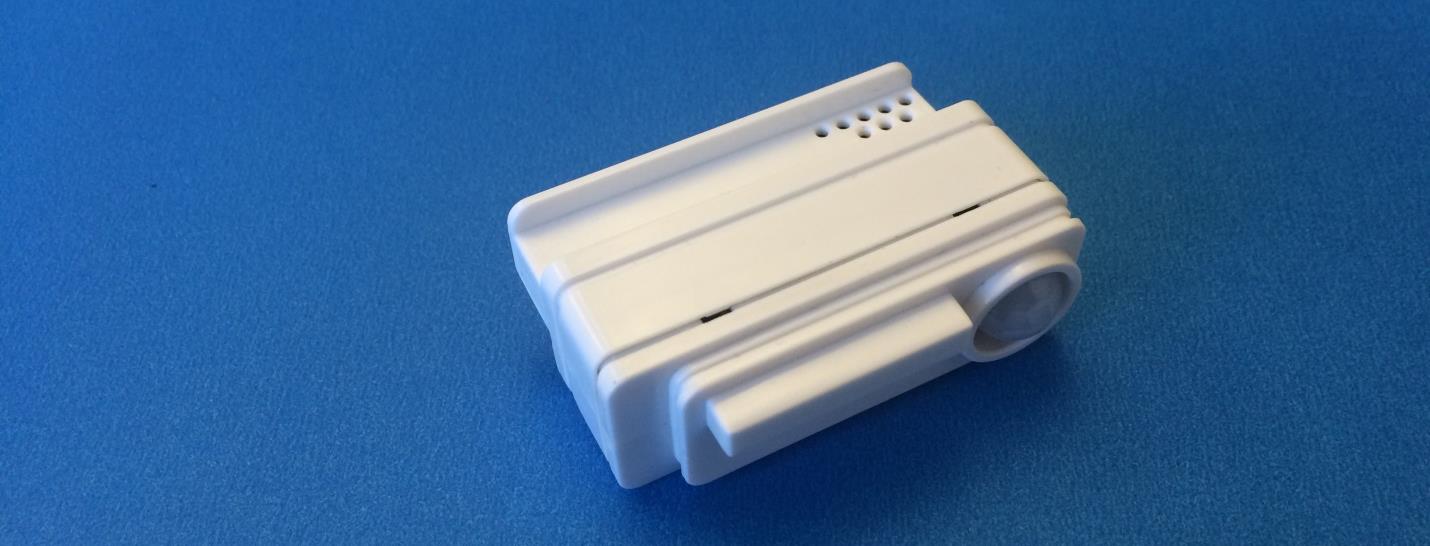

FCC ID: 2AF2N-SNS100 IC ID: 20659-SNS100 FCC ID: 2AF2N-SNS100 IC ID: 20659-SNS100

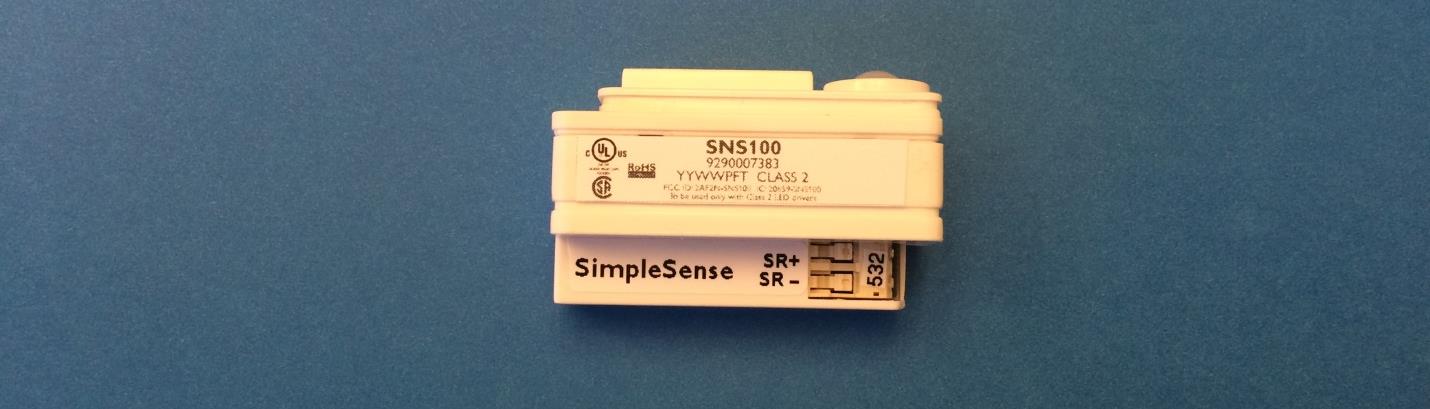

FCC ID: 2AF2N-SNS100 IC ID: 20659-SNS100

NVLAP Lab code: 100414-0 FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR Light Sensor MODEL NUMBER: SNS100 FCC ID: 2AF2N-SNS100 IC: 20659-SNS100 REPORT NUMBER: 10975967A ISSUE DATE: November 2, 2015 Prepared for Philips Lighting North America Corp. O’Hare International Center 10275 W. Higgins Rd Rosemont, IL 60018 Prepared by UL LLC 333 Pfingsten Rd. Northbrook, IL 60062 TEL: (847) 272-8800 REPORT NO: 10975967A DATE: 2015-NOV-02 FCC ID:2AF2N-SNS100 IC: 20659-SNS100 Page 2 of 49 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC Revision History Rev. Issue Date Revisions Revised By -- 02-NOV-2015 Initial Issue BM REPORT NO: 10975967A DATE: 2015-NOV-02 FCC ID:2AF2N-SNS100 IC: 20659-SNS100 Page 3 of 49 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................................................... 4 2. TEST METHODOLOGY ......................................................................................................................................... 5 3. FACILITIES AND ACCREDITATION .................................................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION .................................................................................................... 5 4.2. SAMPLE CALCULATION ................................................................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 5.6. DESCRIPTION OF TEST SETUP ....................................................................................................................... 7 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................................................... 8 7. TEST RESULTS ........................................................................................................................................................ 9 7.1.1. 99% BANDWIDTH ..................................................................................................................................... 9 7.2. RADIATED EMISSIONS .................................................................................................................................... 13 7.2.1. FUNDAMENTAL FREQUENCY RADIATED EMISSION and BANDEDGES ................................... 14 7.2.2. HARMONICS AND SPURIOUS EMISSIONS 9kHz – 30MHz .............................................................. 20 7.2.1. HARMONICS AND SPURIOUS EMISSIONS 30MHz – 1GHz ............................................................. 23 7.2.2. HARMONICS AND SPURIOUS EMISSIONS 1GHz – 25GHz .............................................................. 29 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................................................. 35 9. SETUP PHOTOS ..................................................................................................................................................... 45 REPORT NO: 10975967A DATE: 2015-NOV-02 FCC ID:2AF2N-SNS100 IC: 20659-SNS100 Page 4 of 49 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Philips Lighting Norht America Corp O’Hare Internation Center 10275 W. Higgins Rd Rosemont, IL 60018 EUT DESCRIPTION: Light Sensor MODEL: SNS100 SERIAL NUMBER: non serialized DATE TESTED: 2015-OCT-01 to 2015-OCT-30 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass INDUSTRY CANADA RSS-210 Issue 8 Annex 2 Pass INDUSTRY CANADA RSS-GEN Issue 4 Pass UL LLC tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Test Engineer: Reviewer: Bartlomiej Mucha Michael Ferrer Staff Engineer Program Manager Consumer Technology Division Consumer Technology Division REPORT NO: 10975967A DATE: 2015-NOV-02 FCC ID:2AF2N-SNS100 IC: 20659-SNS100 Page 5 of 49 UL LLC FORM NO: CCSUP4701i 333 Pfingsten Rd., Northbrook, IL 60062, USA TEL: (847) 272-8800 This report shall not be reproduced except in full, without the written approval of UL LLC 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.10-2013, FCC CFR 47 Part 2, FCC CFR 47 Part 1…
