2AF2V-MGT10110.1 inch Quad core capacitive touch tablet

1 / 13 ENGLISH Version 2012-05-02 Quick Guide Model: MGT101 2 / 13 SAFETY INSTRUCTIONS Read these instructions carefully before use Follow the instructions below to extend the service life of the mobile Internet device. • Charge the battery for 12 hours before using it for the first time. • Technical data for recommended power adapter: Input voltage 100–240 VAC, 50/60 Hz, output voltage and current 5 VDC, 2000 mA • Do not recharge the battery at too high a temperature. • Recharge the battery as soon as the battery level starts to get low. • The battery should be recharged once a fortnight if the device is not used for an extended period of time. This extends its service life. • Do not use the device at extreme temperatures. Do not use the device in damp or wet areas. Do not expose the device to water, fire or radiation. • Do not dismantle. • Do not allow children to use the device without supervision. • Never force plugs into the device or the computer. Always make sure that the plug is the right size and shape. • Always use the Safely Remove Device function on the computer to disconnect the device. Do not disconnect during data transfer. DESCRIPTION Operating system • Android OS v4.4.2, preinstalled Network interface • Built-in Wi-Fi 802.11b/g Supports USB LAN Bluetooth Version • BT 4.0 Display screen • 10.1" IPS LCD, capacitive touch screen • Resolution 1280 × 800 pixels (16:10) Camera • Front webcam 2.0 megapixel • Can be used for video conferencing via Skype, MSN Messenger and other instant messaging software. • You can easily share and take your photos and films everywhere with you. Video • Video formats supported: AVI,RM, RMVB, WMV, MOV, MP4, DAT, VOB, MPEG, MPG, FLV, ASF, TS, 3GP, 720P, 1080P, 2160P Music player • Fantastic music player • Whole new experience for music lovers • Audio formats supported: MP3, WMA, OGG, AAC, FLAC, APE, WAV Power supply and battery • Built-in 6000mAh LiPo battery • Browse the web wirelessly, watch videos or listen to music with up to 6.5 hours of battery life • The battery recharges using the DC power adapter or via a PC USB port 3 / 13 Inputs and outputs • T-Flash card slot • 5-pin mini USB port • USB OTG port • 3.5 mm mini jack for stereo earphones • DC connection • HDMI output System requirements Windows • PC with USB 2.0 port • Windows 7, Windows Vista or Windows XP Home or Professional with Service Pack 3 or higher • Internet connection Size and weight • Size: 263mm*173mm*9.5mm • Weight: 305 g OPERATION POWER ON/OFF Power on and unlock Hold the POWER button down for three seconds. The device starts and the Android picture is displayed on the screen while the system starts up. The desktop appears after approx. 20 seconds. Unlock the screen by dragging the icon to the right side ( ) on the screen. Power saving mode and screen lock • Tap the POWER button after system start-up to put the tablet into power saving mode with locked screen. • Tap the POWER button again or touch the screen. The screen reactivates after one second. • The screen is off in power saving mode but music or videos will continue to play. • Turning the device off: Hold the POWER button down for three seconds and select Power off from the menu of options that appears. The device turns off. RESET Keep pressing POWER button for around 10 seconds, the deivce will be Reset. 4 / 13 NOTE: The device will show a message if the battery is low and then automatically power down unless you recharge the battery. If the device does not start, check if the battery is low. Recharge the battery and try again. MAIN FEATURES AND ICONS Icon Feature Icon Feature To main menu Appears when the system finds a new device Battery status Set the alarm clock Current system time Lower the volume Back Increase the volume Menu View all apps Search Adjust screen brightness Clock Wireless network on/off New e-mail message USB outlet 5 / 13 Status bar USB OTG The device's mini USB port can be used as a USB host. 1. Using the USB device Insert a USB device into the USB port. Tap File Manager in the Sub-Menu and then tap USB. The USB device is now available. 2. USB connected 3G modem You can also plug a 3G modem into the USB port and use it to connect to the Internet. NETWORKS The device can be connected to a wireless or 3G network. Wireless network connection 1. Activate Wi-Fi and press Wi-Fi settings. The device automatically searches for wireless networks. 2. Select the wireless network you want to connect to. 3. Tap on Connect. You may need to enter a password for some networks. 4. To see more options, tap the MENU button when the Wi-Fi settings are displayed and tap Advanced. 3G network connection 1. Deactivate any wireless network connection. 2. Go to Mobile network under Settings and ensure that Data enabled is checked. Then go back to Wireless & Networks . 3. Plug a 3G modem into the USB host port. 4. Select Mobile network and wait for the connection to 3G to be completed. After a short while, you can browse the Internet with 3G. 6 / 13 COPYING/TRANSFERRING FILES 1. Connect the device to a computer using a USB cable. A USB connection message appears in the status bar. 2. Touch the USB connection icon. 3. Check the option for the USB connected device. Tap Turn on USB storage. The image on the left appears when files are being transferred or copied between the device and computer. The image on the right appears when the unit has finished transferring or copying files between the device and computer. 7 / 13 MUSIC 1. Start the music player. Tap twice on the song on the playlist (see illustration) that you want to listen to. 2. You can fast-forward or rewind to any point in a song by dragging the slider . 3. Music player buttons Button Feature Button Feature Artist Album Song Open the playlist Random selection Repeat Play previous song Play next song Pause Play 4. If there is no playlist, a list of all the audio files on the memory card is created when the music player is activated. File formats supported: mp3, w…

Text truncated - open the document above for the full version.

Motic China Group Co., LTD 2015-09-23 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: 2AF2V-MGT101 To Whom It May Concern: This letter is to ascertain that Motic China Group Co., LTD Product 10.1 inch Quad core capacitive touch tablet has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature : Client’s name / title : Liyang Chen/ Purchaser

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Motic China Group Co., LTD 2015-09-23 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Motic China Group Co., LTD ____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (10.1 inch Quad core capacitive touch tablet: MGT101) FCC ID: 2AF2V-MGT101 Sincerely, Client’s signature Client’s name / title: Liyang Chen / Purchaser Contact information / address Motic Building,Torch Hi-Tech Industrial Development Zone,Xiamen P.R.C

Motic China Group Co., LTD SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 Motic China Group Co., LTD SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 2015-09-23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AF2V-MGT101 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Liyang Chen / Purchaser Contact information / address: Motic Building,Torch Hi-Tech Industrial Development Zone,Xiamen P.R.C

Motic China Group Co., LTD WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : 2AF2V-MGT101 Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name: Motic China Group Co., LTD Address : Motic Building,Torch Hi-Tech Industrial Development Zone,Xiamen P.R.C Name / Title : Liyang Chen / Purchaser Signature : Motic China Group Co., LTD Phone : 0592-5698248 Email : [email protected] Date : 2015-09-23

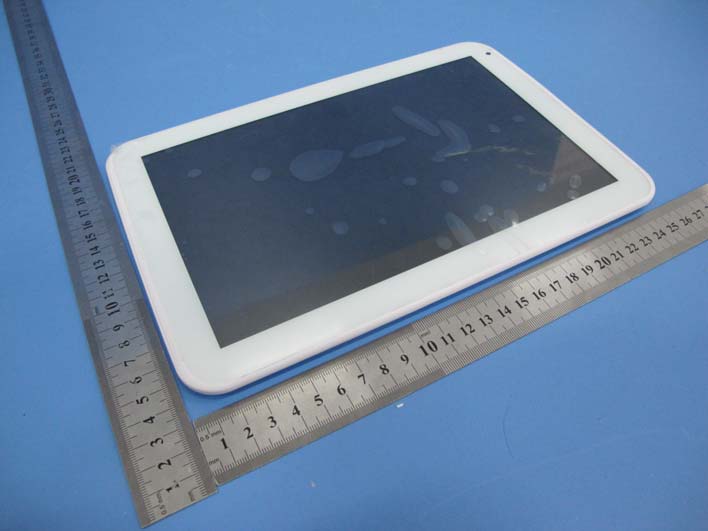

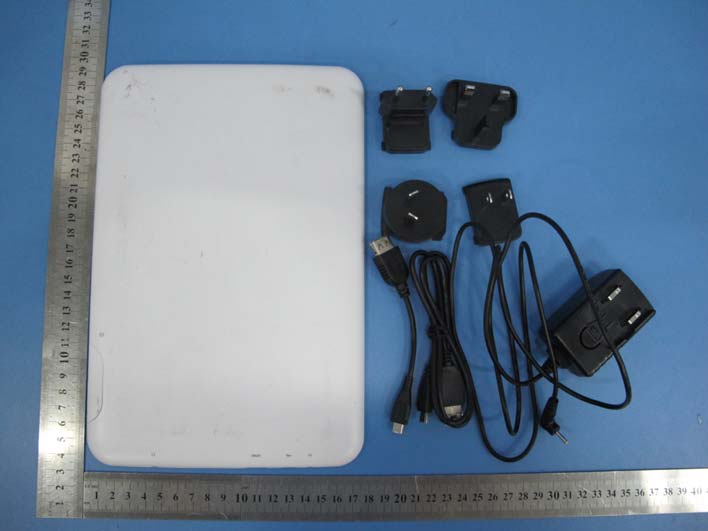

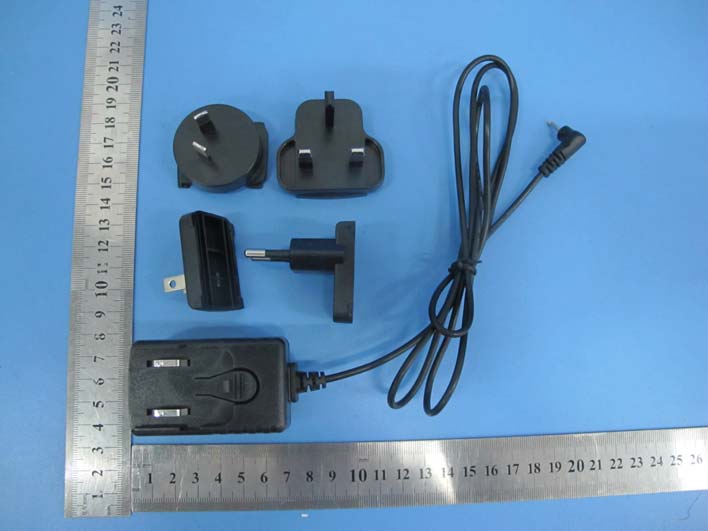

Report No.: TB-FCC145361 Page: 3 of 11 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC145361 Page: 4 of 11 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC145361 Page: 5 of 11 TB-RF-075-1.0 Photo 5 Appearance of EUT

Report No.: TB-FCC145361 Page: 1 of 11 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID : 2AF2V-MGT101 10.1 inch Quad core capacitive touch tablet Motic China Group Co., LTD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: MGT101

Report No.: TB-FCC145361 Page: 2 of 11 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC145361 Page: 6 of 11 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 6 Internal of EUT Photo 7 Internal of EUT Report No.: TB-FCC145361 Page: 7 of 11 TB-RF-075-1.0 Photo 8 Internal of EUT Photo 9 Appearance of PCB 2.4G FPC Antenna Report No.: TB-FCC145361 Page: 8 of 11 TB-RF-075-1.0 Photo 10 Appearance of PCB Photo 11 Appearance of PCB Report No.: TB-FCC145361 Page: 9 of 11 TB-RF-075-1.0 Photo 12 Appearance of PCB

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 61 SAR TEST REPORT For Motic China Group Co., LTD 10.1 inch Quad core capacitive touch tablet Model No.:MGT101 Prepared for : Motic China Group Co., LTD Address : Motic Building, Torch Hi-Tech Industrial Development Zone, Xiamen, P.R.C Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (86)755-82591330 Fax : (86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 26, 2015 Number of tested samples : 1 Serial number : Prototype Date of Test : September 26, 2015 - September 29, 2015 Date of Report : September 29, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 61 SAR TEST REPORT Report Reference No. ................ : LCS1509221225E Date Of Issue ............................... : September 29, 2015 Testing Laboratory Name ........ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ....... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ...................... : Motic China Group Co., LTD Address........................................ : Motic Building, Torch Hi-Tech Industrial Development Zone, Xiamen, P.R.C Test Specification: Scaled SAR Max. Values is ........ : Body: 0.859 W/Kg (1g). TestStandard................................ : ANSI/IEEE C95.1:2005/ANSI/IEEE C95.3 :2002 IEEE1528 :2003 Test Report Form No. ................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes noresponsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description................ : 10.1 inch Quad core capacitive touch tablet Trade Mark .................................. : Motic Model/Type Reference ................ : MGT101 Ratings ........................................ : DC 3.7V by battery(6000mAh) Adapter parameters: Input: AC 100~240V, 50/60Hz 0.4A Output: DC 5V/2A Result ......................................... : Positive Compiled by: Supervised by: Approved by: Dick Su/ File administrators Glin Lu/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 61 SAR -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1509221225E September 29, 2015 Date of issue Type / Model......................... : MGT101 EUT....................................... : 10.1 inch Quad core capacitive touch tablet Applicant.............................. : Motic China Group Co., LTD Address.................................. : Motic Building, Torch Hi-Tech Industrial Development Zone, Xiamen, P.R.C Telephone.............................. : / Fax......................................... : / Manufacturer....................... : Shenzhen Huaruian Technology Co., Ltd Address.................................. : HuaRuiAn Building, The Third Industrial Park, Gushu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Telephone.............................. : / Fax......................................... : / Factory.................................. : Shenzhen Huaruian Technology Co., Ltd Address.................................. : HuaRuiAn Building, The Third Industrial Park, Gushu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Telephone.............................. : / Fax......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 61 TABLE OF CONTENTS 1. TEST STANDARDS AND TEST DESCRIPTION .....................................................................................................................5 1.1. TEST STANDARDS ...................................................................................................................................................................5 1.2. TEST DESCRIPTION .................................................................................................................................................................5 1.3. PRODUCT DESCRIPTION ..........................................................................................................................................................6 1.4. SUMMARY SAR RESULTS .......................................................................................................................................................7 1.5. EUT OPERATION MODE ......…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 31 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 32 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 33 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 34 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 35 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 36 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 37 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 38 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 39 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 40 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 41 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 42 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 43 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 44 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 45 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 46 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 47 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 48 of 61 6.2. SID2450 Dipole Calibration Ceriticate SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 49 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 50 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 51 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 52 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 53 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 54 of 61 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AF2V-MGT101 Report No.:LCS1509221225E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compli…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC145361 Page: 1 of 78 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AF2V-MGT101 Original Grant Report No. : TB-FCC145361 Applicant : Motic China Group Co., LTD Equipment Under Test (EUT) EUT Name : 10.1 inch Quad core capacitive touch tablet Model No. : MGT101 Series Model No. : N/A Brand Name : Motic Receipt Date : 2015-09-08 Test Date : 2015-09-08 to 2015-09-29 Issue Date : 2015-09-30 Standards : FCC Part 15, Subpart C (15.247:2015) Test Method : ANSI C63.10:2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC145361 Page: 2 of 78 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 7 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST EQUIPMENT .................................................................................................................. 10 4. CONDUCTED EMISSION TEST ........................................................................................... 11 4.1 Test Standard and Limit .................................................................................................... 11 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 11 4.4 EUT Operating Mode ........................................................................................................ 12 4.5 Test Data ............................................................................................................................. 12 5. RADIATED EMISSION TEST ................................................................................................ 17 5.1 Test Standard and Limit .................................................................................................... 17 5.2 Test Setup ........................................................................................................................... 18 5.3 Test Procedure ................................................................................................................... 19 5.4 EUT Operating Condition ................................................................................................. 19 5.5 Test Data ............................................................................................................................. 20 6. RESTRICTED BANDS REQUIREMENT ............................................................................. 45 6.1 Test Standard and Limit .................................................................................................... 45 6.2 Test Setup ........................................................................................................................... 45 6.3 Test Procedure ................................................................................................................... 45 6.5 Test Data ............................................................................................................................. 46 7. BANDWIDTH TEST ................................................................................................................. 62 7.1 Test Standard and Limit .................................................................................................... 62 7.2 Test Setup ........................................................................................................................... 62 7.3 Test Procedure ................................................................................................................... 62 7.4 EUT Operating Condition ................................................................................................. 62 7.5 Test Data ............................................................................................................................. 63 8. PEAK OUTPUT POWER TEST ...............................................................…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC145360 Page: 1 of 49 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AF2V-MGT101 Original Grant Report No. : TB-FC…

Text truncated - open the document above for the full version.
