2AF52328TCD/SD/USB/RADIO

CD/SD/U SB/RADIO I NSTRUCTION MANUAL M odel：TY-CWU500 CD328BT I MPORTANT: P lease read before using and keep for future reference. 1 IMPORTANT NOTES CAUTION Use of controls or adjustment or performance of procedures other than those specified herein may result in hazardous radiation exposure. DANGER This Compact disc player is classified as a Class 1 LASER PRODUCT. THE CLASS 1 LASER PRODUCT label is located on the rear exterior. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications.  Avoid installing the unit in locations described below: 1. Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, or other equipments that radiate too much heat. 2. Places subjected to constant vibration. 3. Unventilated or dusty places. 4. Humid or moist places.  Operate buttons and switches as instructed in the manual.  Before turning on the power for the first time, make sure that the power cord is properly installed and the voltage switch is correctly set.  Store your CD or other devices in a cool area to avoid damage from heat. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO DOT REMOVE COVER (OR BACK). DO NOT OPEN THE UNIT. ANY SERVICING PLEASE REFER TO QUALIFIED SERVICE PERSONNEL. FCC Warnings Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class b digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio may cause harmful interference to radio communications. HOWEVER, there is no guarantee 2 that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. additional Warnings and Precautions • CAUTON: To PREVENT ELECTRIC SHOCK, MATCH WIDE NLADE OF PLUG TO WIDE SLOT, FULLY INSERT. • mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. • Warning: shock hazard - Do not open. • Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. • Objects filled with liquids, such as vases, shall not be placed on the apparatus. • CAUTION: use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • Warning: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining. •Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. 3 • Warning: There is a danger of explosion if you attempt to charge standard alkaline batteries in the unit. only use rechargeable NIMH batteries. • Battery shall not be exposed to excessive heat such as sunshine, fire or the like. • Caution marking is located at the rear or bottom of the apparatus. • The marking information is located at the rear or bottom of the apparatus. • Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. • If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. • Do not mix old and new batteries. • Completely replace all old batteries with new ones. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries. •Batteries should be recycled or disposed of per state and local guidelines. • WARNING: This product may contain chemicals known to the state of California to cause birth defects, or other reproductive harm (California Prop 65). Wash hands after handling. • This product meets and complies with all Federal regulations. Warning: Do NOT INGEST BSTTERY, Warning: To reduce the risk of electric shock, do not remove cover (or back). NO user-serviceable parts inside. Refer RISK servicing to qualified service personnel The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 4 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to …

Text truncated - open the document above for the full version.

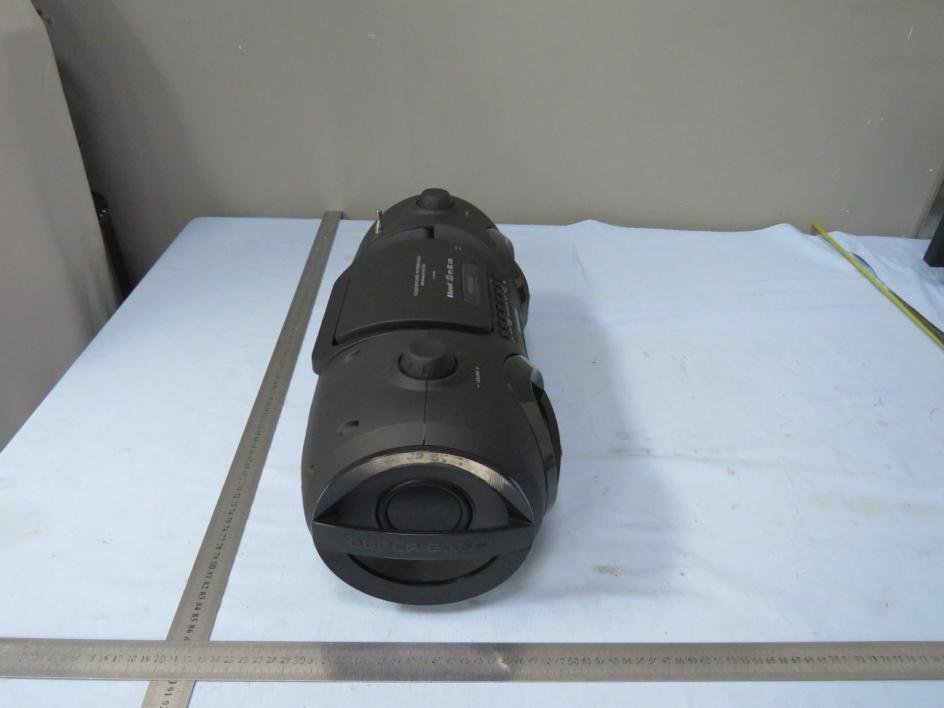

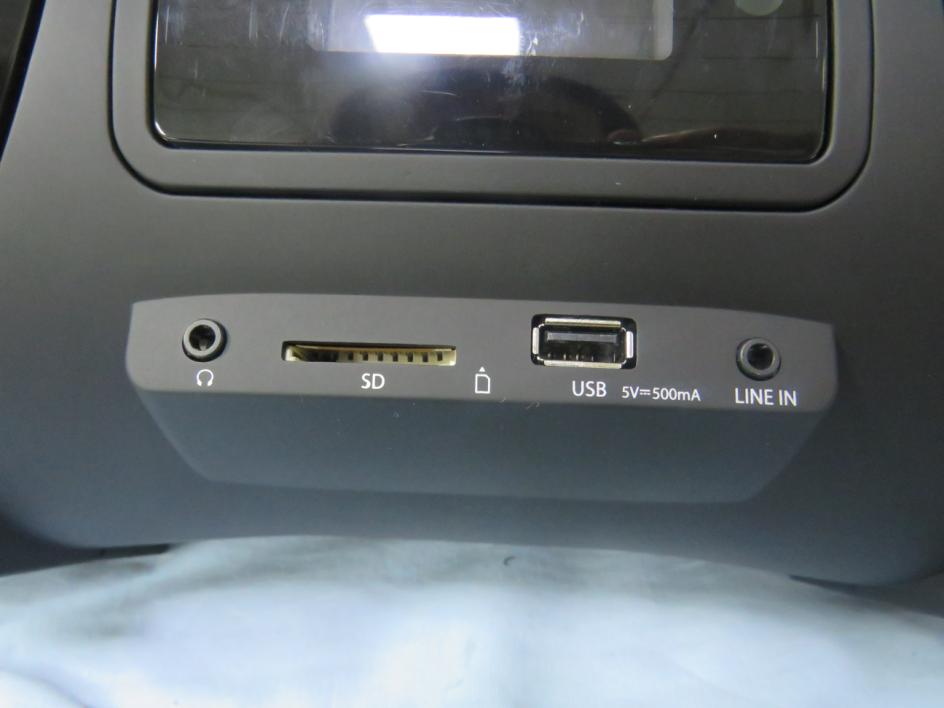

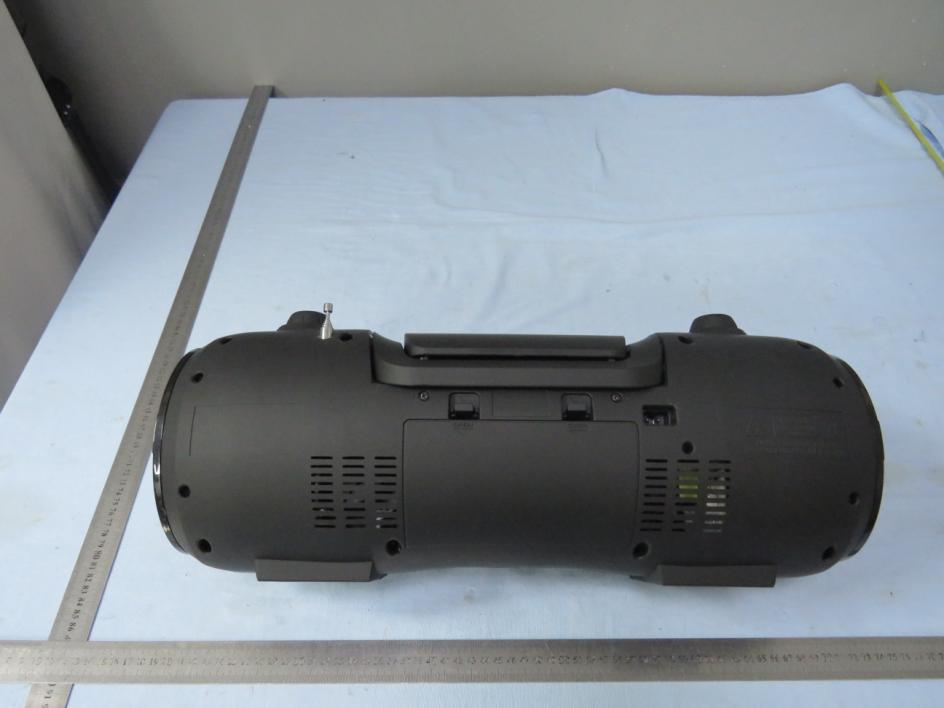

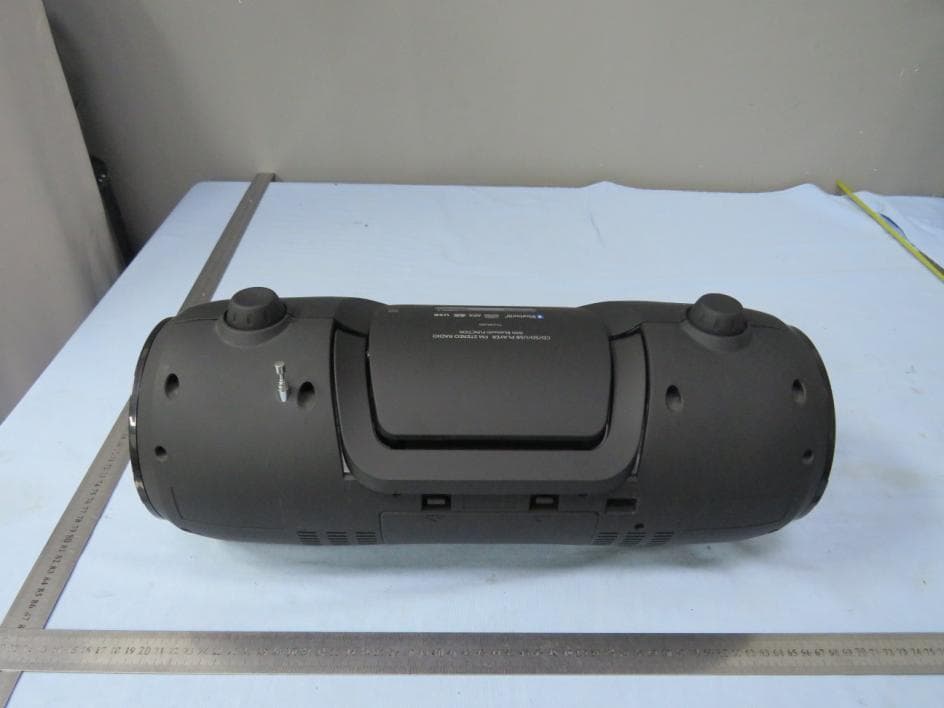

FCC ID: 2AF52328T External photo FCC ID: 2AF52328T FCC ID: 2AF52328T

CD328BT

FCC ID: 2AF52328T Internal photo FCC ID: 2AF52328T FCC ID: 2AF52328T BTChip BT antenna FCC ID: 2AF52328T FCC ID: 2AF52328T

King Profit Trading Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: CD328BT, TY-CWU500, FCC ID: 2AF52328T fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: 2.4G ANT Type of antenna: PCB antenna Gain of the antenna: -0.68 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: King Profit Trading Ltd. Address: Flat 06, 19/F, Laurels Industrial Centre, 32 Tai Yau st. City: San Po Kong, Kowloon, Hong Kong ZIP / Postal code: N/A Country: China Place: China Date: 2021-05-26 Contract name: Dava Deng Signature:

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2105191FV00 FCC ID: 2AF52328T RF EXPOSURE EVALUATION EUT Specification EUT CD/SD/USB/RADIO Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 2.401dBm(1.74mW) Antenna gain -0.68dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2105191FV00 FCC ID: 2AF52328T Measurement Result Channel Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculati on Value (Note 1) Threshold Value GFSK Low 2402 1.555 1.43 0.44 3.0 Middle 2441 1.699 1.48 0.46 3.0 High 2480 1.720 1.49 0.47 3.0 π/4-DQPSK Low 2402 2.285 1.69 0.52 3.0 Middle 2441 2.400 1.74 0.54 3.0 High 2480 2.401 1.74 0.55 3.0 Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 2.401/5*√2.480=0.55 ≤ 3.0 According to KDB447498 D01 V06, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.

Report No.: NTC2105191FV00 Page 2 of 44 Table of Contents 1. Summary of Test Result ........................................................................................................................... 4 2. General Description of EUT ...................................................................................................................... 5 3. Test Channels and Modes Detail ............................................................................................................... 8 4. Configuration of EUT ................................................................................................................................ 8 5. Modification of EUT .................................................................................................................................. 8 6. Description of Support Device ................................................................................................................... 9 7. Test Facility and Location ....................................................................................................................... 10 8. Applicable Standards and References ..................................................................................................... 11 9. Deviations and Abnormalities from Standard Conditions ........................................................................... 11 10. Test Conditions .................................................................................................................................... 12 11. Measurement Uncertainty ..................................................................................................................... 12 12. Sample Calculations ............................................................................................................................. 13 13. Test Items and Results ......................................................................................................................... 14 13.1 Conducted Emissions Measurement .................................................................................................... 14 13.2 Radiated Spurious Emissions and Restricted Bands Measurement ....................................................... 18 13.3 Channel Separation test ...................................................................................................................... 25 13.4 20dB Bandwidth ................................................................................................................................. 28 13.5 Hopping Channel Number ................................................................................................................... 31 13.6 Time of Occupancy (Dwell Time) ......................................................................................................... 33 13.7 Maximum Peak Output Power ............................................................................................................. 36 13.8 Band Edge Conducted Spurious Emission Measurement ...................................................................... 39 13.9 Antenna Requirement ......................................................................................................................... 43 14. Test Equipment List .............................................................................................................................. 44 Report No.: NTC2105191FV00 Page 3 of 44 Revision History Report Number Description Issued Date NTC2105191FV00 Initial Issue 2021-06-02 Report No.: NTC2105191FV00 Page 4 of 44 1. Summary of Test Result FCC Rules Description of Test Result Remarks §15.247(a)(1) Channel Separation test PASS --- §15.247(a)(1) 20dB Bandwidth PASS --- §15.247(a)(1)(iii) Hopping Channel Number PASS --- §15.247(a)(1)(iii) Time of Occupancy (Dwell Time) PASS --- §15.247(b) Max Peak output Power test PASS --- §15.247(d) Band edge test PASS --- §15.207 (a) AC Power Conducted Emission PASS --- §15.247(d),§15.209, §15.205 Radiated Emission PASS --- §15.203 Antenna Requirement PASS --- §15.247(d) Conducted Spurious Emission PASS --- Report No.: NTC2105191FV00 Page 5 of 44 2. General Description of EUT Product Information Product Name: CD/SD/USB/RADIO Main Model Name: CD328BT Additional Model Name: TY-CWU500 Model Difference: Both models have the same circuit schematic, construction, PCB Layout and critical components. The differences are model number and brand name only due to trading purpose. S/N: 210700001K1 Brand Name KING PROFIT, TOSHIBA Hardware Version: REV: 05 Software Version: V033 Rating: AC 100-240V 50/60Hz, 48W; 1.5V*8 UM-1/D battery Classification: Class B Typical Arrangement: Table-top I/O Port: USB port*1, Earphone port*1, SD card port*1, Line IN port*1 Accessories Information Adapter: N/A Cable: Power cord:1.41m unshielded Other: N/A Report No.: NTC2105191FV00 Page 6 of 44 Additional information Note: According to the model difference, all tests were performed on model CD328BT. Remark: All the information above are provided by the manufacturer. More detailed feature of the EUT please refers to the user manual. Technical Specification Bluetooth Version: V5.0 Frequency Range: 2402-2480MHz Modulation Type: GFSK, π/4-DQPSK Number of Channel: 79 (refer to following channel list for details) Channel Space: 1MHz Antenna Type: PCB antenna Antenna Gain: -0.68 dBi (Declared by the manufacturer) Note: The EUT does not support Bluetooth Low Energy feature in accordance with the manufacturer declaration. Report No.: NTC2105191FV00 Page 7 of 44 Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2402 21 2422 41 2442 61 2462 2 2403 22 2423 42 2443 62 2463 3 2404 23 2424 43 2444 63 2464 4 2405 24 2425 44 2445 64 2465 5 2406 25 2426 45 2446 65 2466 6 2407 26 2427 46 2447 66 2467 7 2408 27 2428 47 2448 67 2468 8 2409 28 2429 48 2449 68 2469 9 2410 29 2430 49 2450 69 2470 10 241…

Text truncated - open the document above for the full version.

FCC ID: 2AF52328T Test photos Radiated emission Below 30MHz 30MHz-1GHz FCC ID: 2AF52328T Above 1GHz Conducted emission
