2AF52818PORTABLE SOUND SYSTEM

PORTABLE SOUND SYSTEM Model No.: KP818 Read this booklet thoroughly before using and save it for future reference Unit must be fully charged before use 1 FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in mobile(min20cm) exposure condition without restriction. IC Notice: This device complies with Canada Industry licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference. and (2) this device must accept any interference. Including interference that may cause undesired operation of the device. CAN ICES-3 (B) Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. NMB-3 (B) 1. Minimum dist an ce s 30 cm around the apparatus for sufcient ventilation; 2. The ventilation should not be impeded by covering the ventilation openings wi th items, su ch as ne wspapers, table-cloths, cu rt ains, etc.; 3. No na ked flame so urces, such as lighted ca ndles, should be placed on the ap paratus; 4. Attention should be drawn to the environmental aspects of battery disposal; 5. The use of apparatus in moderate cli mates. 6. WARNING : To reduce the risk of fire or electri c sh ock, do not expose thi s ap paratus to rai n or moisture; 7. CAUTION : Danger of explosion if battery is incorrectly replaced. Replace only with the same or eq ui valent type; 8. Batterie sh all not be exposes to excessive heat such as sunshine, fre, etc. 9. Where the MAINS plug or an ap pliance coupler is used as the disconnect device, the disconne ct device shall re main re adily operable; The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presen ce of uninsul ated dangerous voltag e within the produ ct's enclosure that may be of sufficient magnitude to constitute a ri sk of electric shock. The exclamation point within an eq uilateral tria ngle is intended to alert the user to the presen ce of important operating an d maintenance (servicing) in structions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical ap pliance. It has been designed in such a way that it does not require a safety connection to electrical earth. Direct current Alternating current 1. 30cm di st ance minimale autour de l'appareil po ur une aération suffisante; 2. Il convient que l'aération ne soit pas gênée par l' ob struction de s ouverture s d' aération par des objets tels que jo urnau x, nappes, rid eaux, etc.; 3. Il convient de ne pas pl acer su r l'appareil de source s de flammes nues, telles que de s bougies allumées; 4. Il convient d'attirer l' attention su r les problèmes d' environnement dus à la mi se au déchet des pil es; 5. Si l'appareil est destiné à être utilisé sous un climat tempéré; 6. ATTENTION : Pour ré du ire le ri sque du feu et du ch oc électrique, ne pas exposer cet appareil aux pluies ou à l'h umidité; 7. ATTENTION : Danger d' explosion si la pile n'est pas remplacée correctement. Ne re mplace r que p ar le même type ou un type équivalent; 8. La batterie ne doit pas êt re exposée à une chaleur excessive telle que le soleil, le feu ou similaire. 9. Lorsque la prise du RÉSEAU D ’ ALIMENTATION ou une pri se pl acée su r l’appareil est utilisée comme dispositif de déconnexion, ce disp ositif doit demeuré aisément accessible; Le symbole en forme d'éclair avec une pointe de flè che dans un tri angle équilatéral est de stiné à alerter l'utilisateur de la présen ce dan s l'appareil d'un voltage no n-i solé dangereux po uvant être d'une puissance suffisante pour co nstituer un risque d'él ectrocution. Le point d'exclamation da ns un triangle équilatéral est destiné à alerter l'utilisateur de la présence d'instructions d'utilisation et de maintenance (entretien) importantes dans la documentation accompagnant l'appareil. Ce matériel appartient à la classe Il ou un ap pareil él ectrique à do uble isolation. Il a été conçu de telle so e qu'il ne nécessite pas de co nn exion de sécurité à la mise à la terre. Courant continu Courant alternatif 5 Instructions 6 1. Lise…

Text truncated - open the document above for the full version.

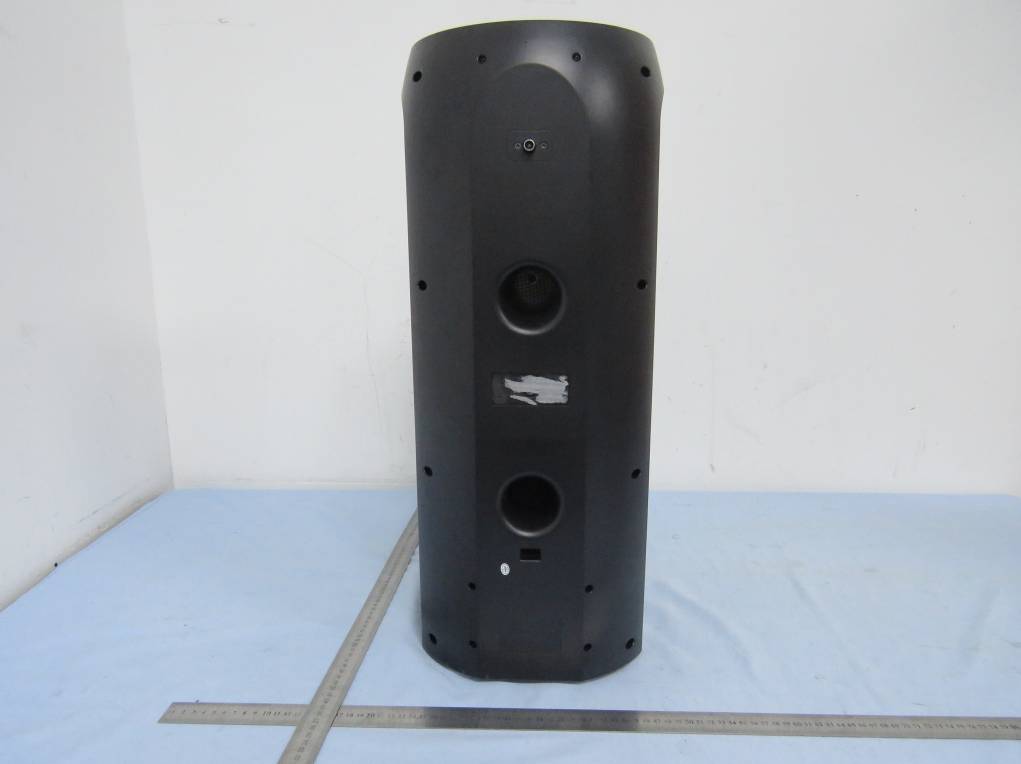

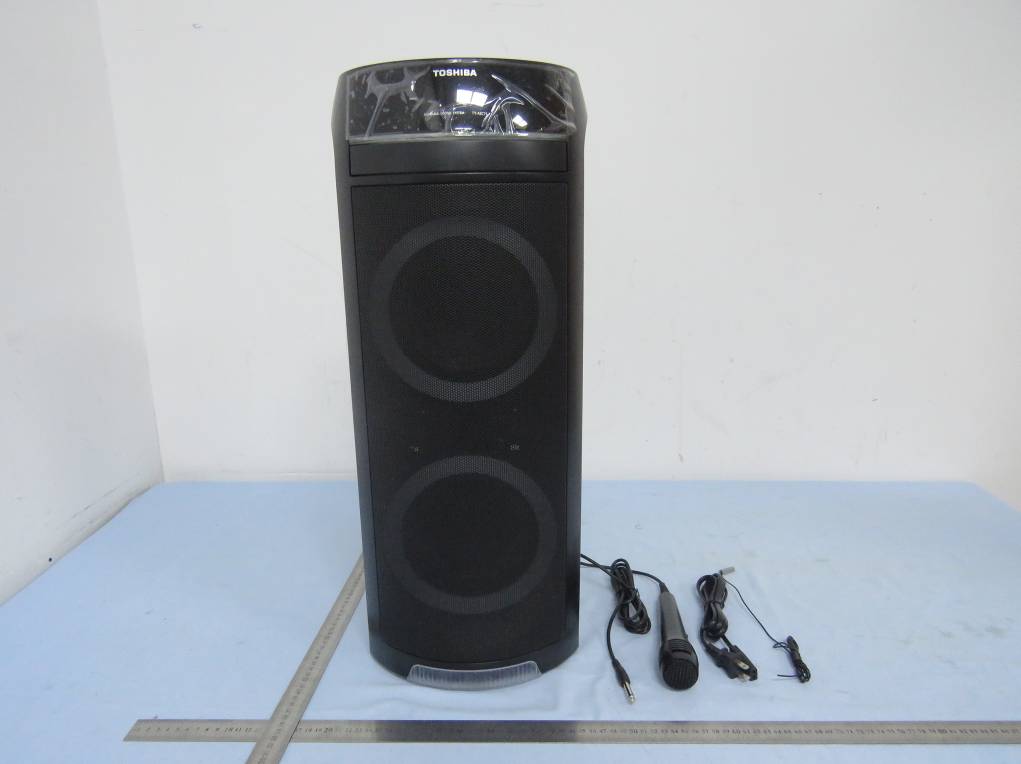

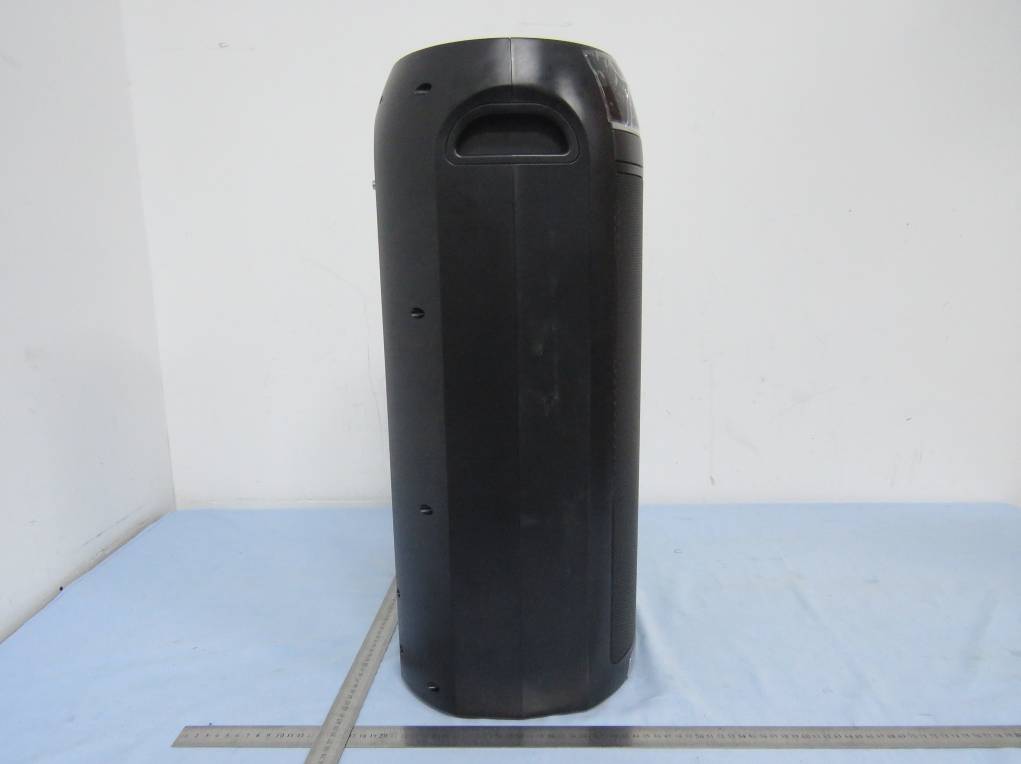

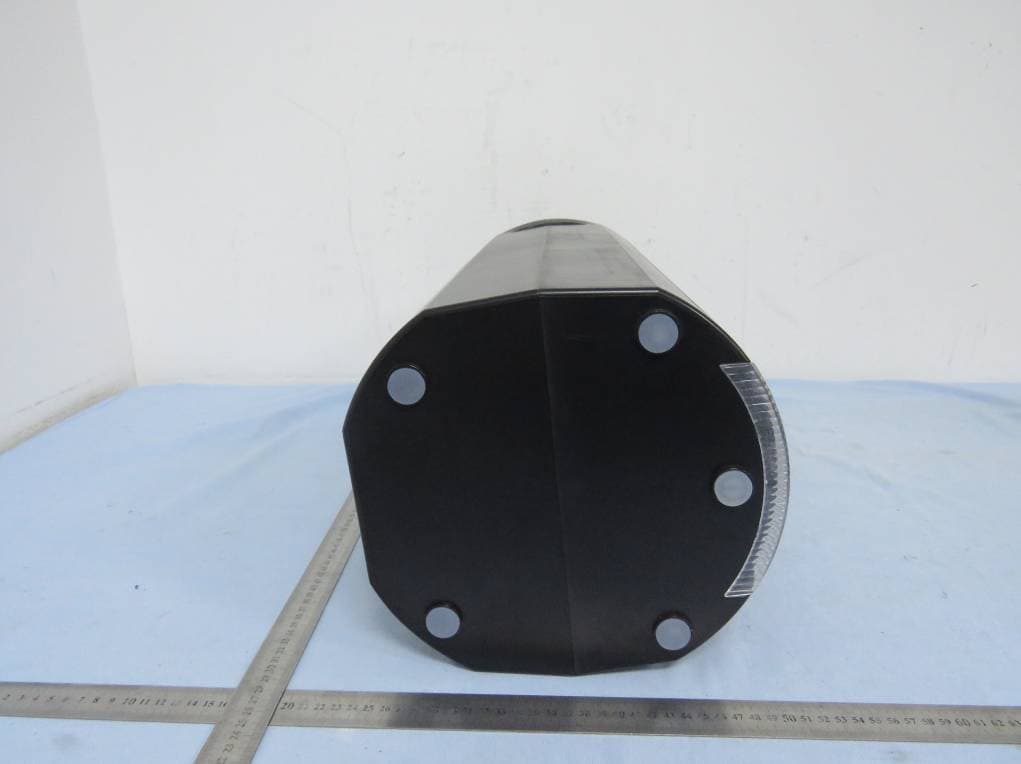

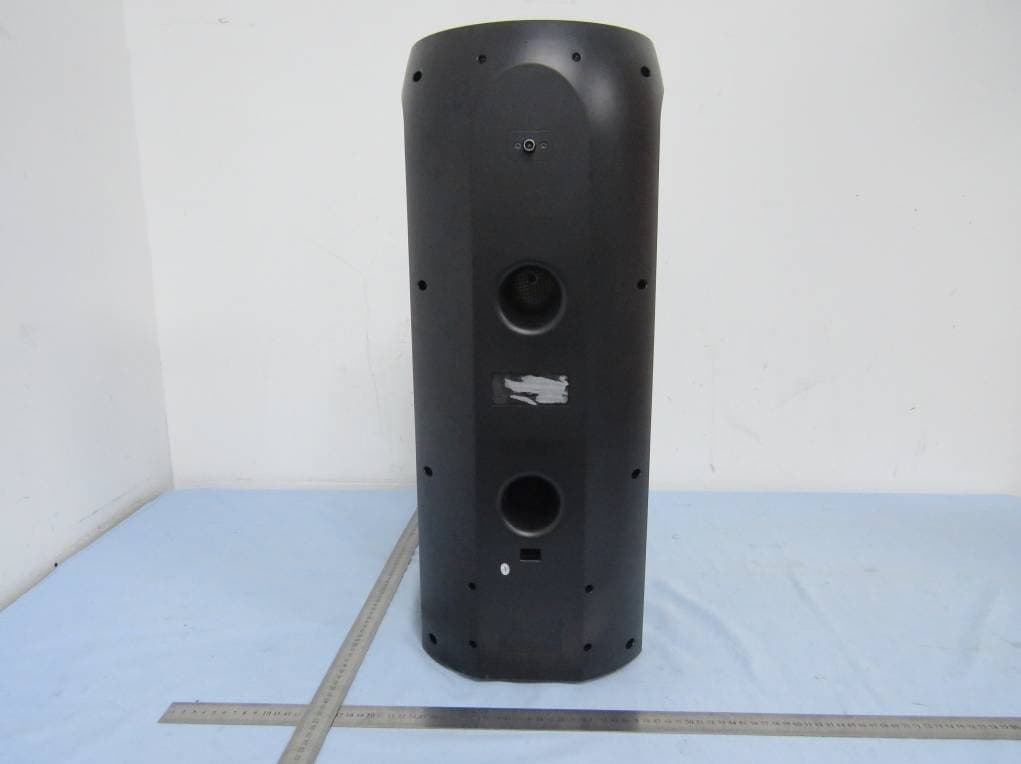

FCC ID: 2AF52818 External photo FCC ID: 2AF52818 FCC ID: 2AF52818

Nrcan Lable SIZE:25 x30mm WHITE PRINTING ON BLACK B/G FCC Lable SIZE:49.5 x23.5mm BLACK PRINTING ON WHITE B/G FCC ID: 2AF52818 IC: 22490-818 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation CAN ICES-3 (B)/CAN NMB-3 (B) CSXXXXX Energy Efficiency Verified R KING PROFIT KP818 NO.3 LIAN SHENG INDUSTEIAL AREA DENG WU VILLAGE. QIAO TOU TOWN, DONG GUAN CITY. CHINA M/D: YYMM The date code”YYMM” is included in rating label,”MM” denotes the month and ”YY” denotes the Year. M/D: YYMM 7 RISCO DE CHOQUE ELÉTRICO NÃO DESMONTE O APARELHO CUIDADO ADVERTENCIA: PELIGRO DE CHOQUE - NO ABRIR! AC~ M/D: YYMM 7 FCC ID: 2AF52818 IC: 22490-818 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation CAN ICES-3 (B)/CAN NMB-3 (B) CSXXXXX Energy Efficiency Verified R

FCC ID: 2AF52818 Internal photo FCC ID: 2AF52818 FCC ID: 2AF52818 FCC ID: 2AF52818 FCC ID: 2AF52818 FCC ID: 2AF52818 BT Chip BT Antenna FCC ID: 2AF52818 FCC ID: 2AF52818

KING PROFIT TRADING LTD. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: KP818, TY-ASC75 FCC ID: 2AF52818 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Model No. of antenna: BT Antenna Type of antenna: permanently attached (PCB antenna) Gain of the antenna: -0.58 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: KING PROFIT TRADING LTD. Address: Flat 06,19/F,Laurels Industrial Centre,32 Tai Yau st., San Po Kong, City: Kowloon ZIP / Postal code: N/A Country: Hong Kong Place: Dava Deng Date: 2020-09-25 Signature:

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008275F-1 FCC ID: 2AF52818 RF EXPOSURE EVALUATION EUT Specification EUT PORTABLE SOUND SYSTEM Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 0.111dBm(1.03mW) Antenna gain -0.58dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008275F-1 FCC ID: 2AF52818 Measurement Result Channel Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculati on Value (Note 1) Threshold Value GFSK Low 2402 -0.477 0.90 0.279 3.0 Middle 2441 -0.954 0.80 0.250 3.0 High 2480 -0.892 0.81 0.255 3.0 π/4-DQPSK Low 2402 0.111 1.03 0.319 3.0 Middle 2441 -0.216 0.95 0.297 3.0 High 2480 -0.234 0.95 0.300 3.0 Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 1.03/5*√2.402=0.319 ≤ 3.0 According to KDB447498 D01 V06, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008275FV00 FCC ID: 2AF52818 Page 2 of 49 Table of Contents 1. GENERAL INFORMATION ................................................................................................ 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST .................................................................. 5 1.2 RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................. 8 1.3 TEST METHODOLOGY .................................................................................................................... 8 1.4 EQUIPMENT MODIFICATIONS .......................................................................................................... 8 1.5 SUPPORT DEVICE ......................................................................................................................... 8 1.6 TEST FACILITY AND LOCATION ....................................................................................................... 9 1.7 DEVIATIONS AND ABNORMALITIES FROM STANDARD CONDITIONS ................................................... 9 1.8 SUMMARY OF TEST RESULTS ...................................................................................................... 10 2. SYSTEM TEST CONFIGURATION .................................................................................. 11 2.1 EUT CONFIGURATION ................................................................................................................. 11 2.2 SPECIAL ACCESSORIES ............................................................................................................... 11 2.3 DESCRIPTION OF TEST MODES ..................................................................................................... 11 2.4 EUT EXERCISE ........................................................................................................................... 11 3. CONDUCTED EMISSIONS TEST .................................................................................... 12 3.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 12 3.2 TEST CONDITION ......................................................................................................................... 12 3.3 MEASUREMENT RESULTS ............................................................................................................ 12 4. RADIATED EMISSION TEST ........................................................................................... 15 4.1 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 15 4.2 MEASUREMENT PROCEDURE ....................................................................................................... 16 4.3 LIMIT .......................................................................................................................................... 17 4.4 MEASUREMENT RESULTS .................................................................................................. 17 5. CHANNEL SEPARATION TEST ...................................................................................... 21 5.1 MEASUREMENT PROCEDURE ....................................................................................................... 21 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 21 5.3 MEASUREMENT RESULTS ............................................................................................................ 21 6. 20DB BANDWIDTH .......................................................................................................... 25 6.1 MEASUREMENT PROCEDURE ....................................................................................................... 25 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 25 6.3 MEASUREMENT RESULTS ............................................................................................................ 25 7. HOPPING CHANNEL NUMBER ...................................................................................... 29 7.1 MEASUREMENT PROCEDURE ....................................................................................................... 29 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 29 7.3 MEASUREMENT RESULTS ............................................................................................................ 29 Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2008275FV00 FCC ID: 2AF52818 Page 3 of 49 8. TIME OF OCCUPANCY (DWELL TIME) .......................................................................... 31 8.1 MEASUREMENT PROCEDURE ....................................................................................................... 31 8.2 MEASUREMENT RESULTS ............................................................................................................ 31 9. MAXIMUM PEAK OUTPUT POWER ............................................................................... 35 9.1 MEASUREMENT PROCEDURE ....................................................................................................... 35 9.2 MEASUREMENT RESULTS ............................................................................................................ 35 10. BAND EDGE AND RESTRICTION BANDS ................................................................... 39 10.1 MEASUREMENT PROCEDURE ..................................................................................................... 39 10.2 LIMIT ........................................................................................................................................ 39 10.3 MEASUREMENT RESULTS ..............................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AF52818 Test photo Radiated emission Below 30MHz 30MHz-1GHz FCC ID: 2AF52818 Above 1GHz Conducted emission
