2AF77-H1931660Blink Mini Camera

Important Product Information: SAFETY INFORMATION FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK, OR OTHER INJURY OR DAMAGE. Do not expose your device or adapter to liquids. If your device or adapter gets wet, carefully unplug all cables without getting your hands wet and wait for the device and adapter to dry completely before plugging them in again. Do not attempt to dry your device or adapter with an external heat source, such as a microwave oven or a hair dryer. If the device or adapter appear damaged, discontinue use immediately. Use only accessories supplied with the device to power your device. To avoid risk of electric shock, do not touch your device or any wires connected to your device during a lightning storm. Mini and its adapter are for indoor use only. Product Specifications Blink Mini Model Number: BCM00300U Electrical Rating: Power: 100-240V – 50/60Hz 0.15A Operating Temperature: 32 to 95 degrees Fahrenheit Adapter Model Number: FANA7R Input: 100-240V – 50/60Hz 0.15A Output 5V 1A 5W AC FCC Compliance Statement (USA) This Device (including related accessories like the adapter) complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) such Device may not cause harmful interference, and (2) such Device must accept any interference received, including interference that may cause undesired operation. The party responsible for FCC compliance is Amazon.com Services, Inc. 100 Riverpark Drive North Reading MA 01864 If you wish to contact Blink please go to this link www.blinkforhome.com/pages/ contact-us Device Name: Blink Mini Model: BCM00300U RECYCLING YOUR DEVICE PROPERLY In some areas, the disposal of certain electronic devices is regulated. Make sure you dispose of, or recycle, your device in accordance with your local laws and regulations. For information about recycling your device, go to www.amazon.com/devicesupport. Additional Safety & Compliance Information Additional safety, compliance, recycling and other important information regarding your device can be found in the Blink Home Monitor app in About Blink > Legal & Compliance. COMPLIANCE MARKINGS ON DEVICE Certification and other device compliance markings are located on the device. Remove the mount to view. Other Information For additional safety, compliance, recycling, and other important information regarding your device, please refer to the Legal and Compliance section from the “About Blink” menu in your app. Blink Terms & Policies BEFORE USING THE BLINK DEVICE, PLEASE READ THE TERMS FOUND AT HTTPS://BLINKFORHOME.COM/PAGES/ BLINK-TERMS-WARRANTIES-AND-NOTICES AND ALL RULES AND POLICIES FOR THE DEVICE AND SERVICES RELATED TO THE DEVICE (INCLUDING, BUT NOT LIMITED TO, THE APPLICABLE BLINK PRIVACY NOTICE AND ANY APPLICABLE RULES OR USAGE PROVISIONS ACCESSIBLE THROUGH THE HTTPS://BLINKFORHOME.COM/PAGES/ BLINK-TERMS-WARRANTIES-AND-NOTICES WEBSITE OR THE BLINK APP (COLLECTIVELY, THE “AGREEMENTS”). BY USING THE BLINK DEVICE, YOU AGREE TO BE BOUND BY THE TERMS OF THE AGREEMENTS. Your new or Certified Refurbished Blink Mini device is covered by a one year Limited Warranty. Details are available at https:// blinkforhome.com/pages/blink-terms-warranties-and-notices. © 2020 Amazon.com, Inc. or its affliates. Amazon, Blink, and all related logos and motion marks are trademarks of Amazon.com, Inc. or its affiliates.

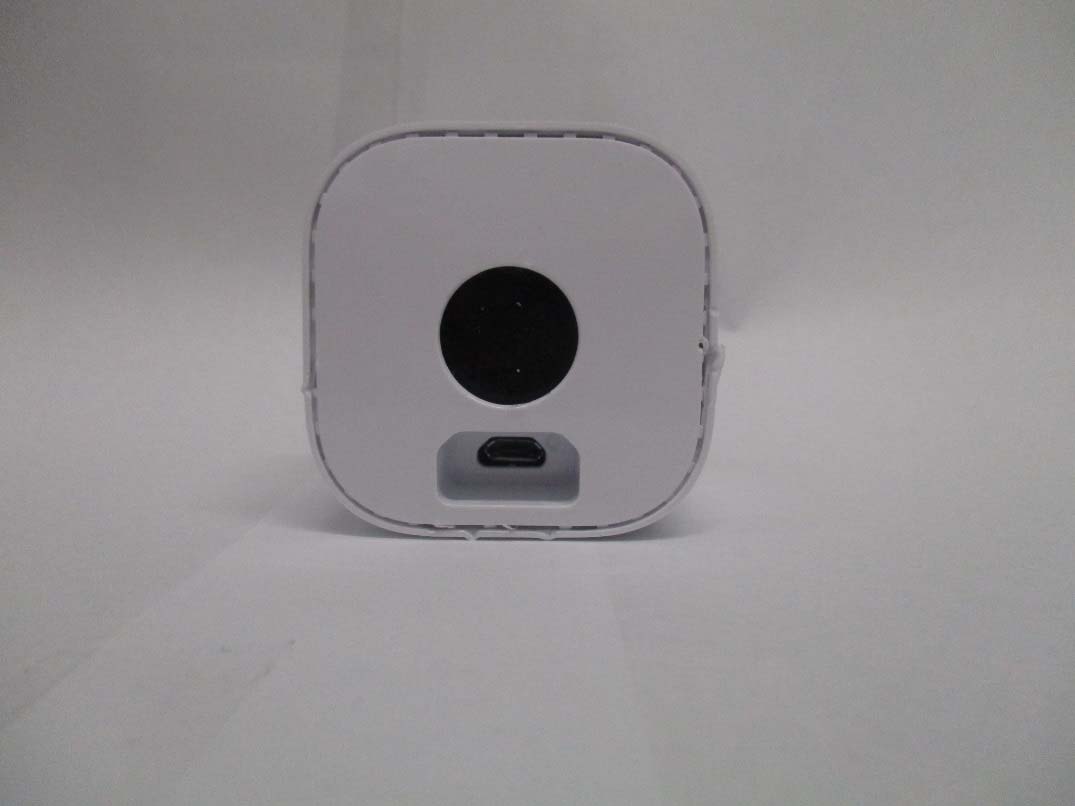

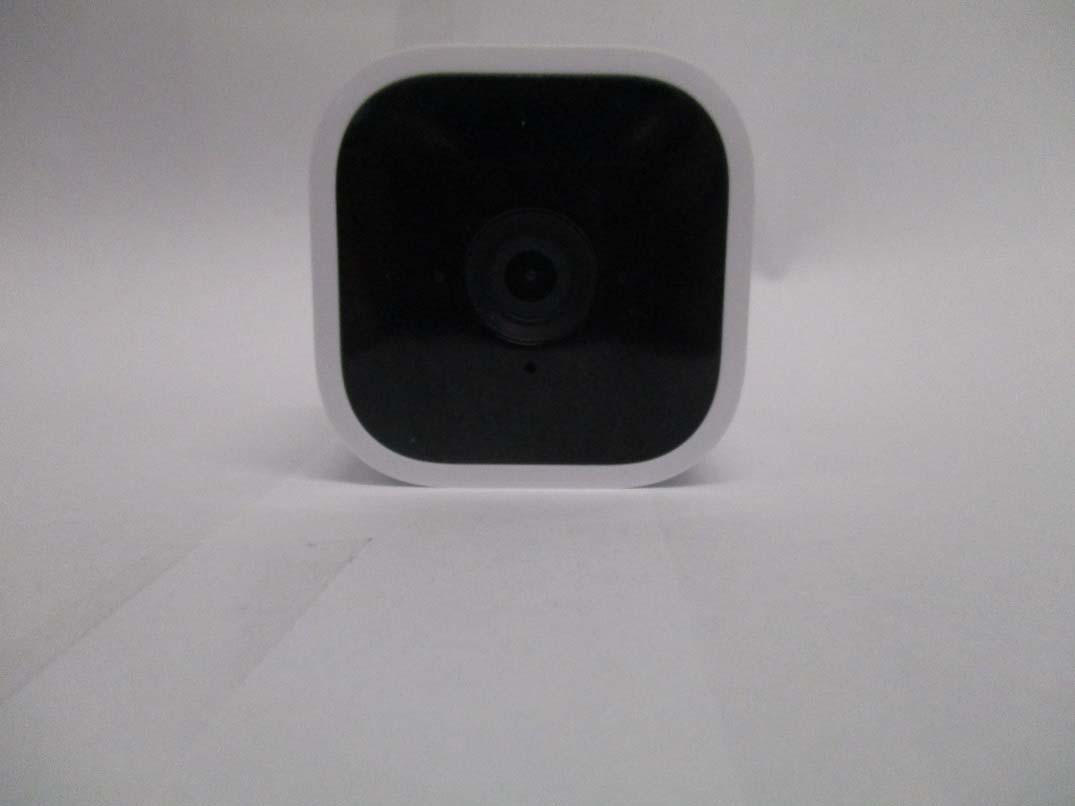

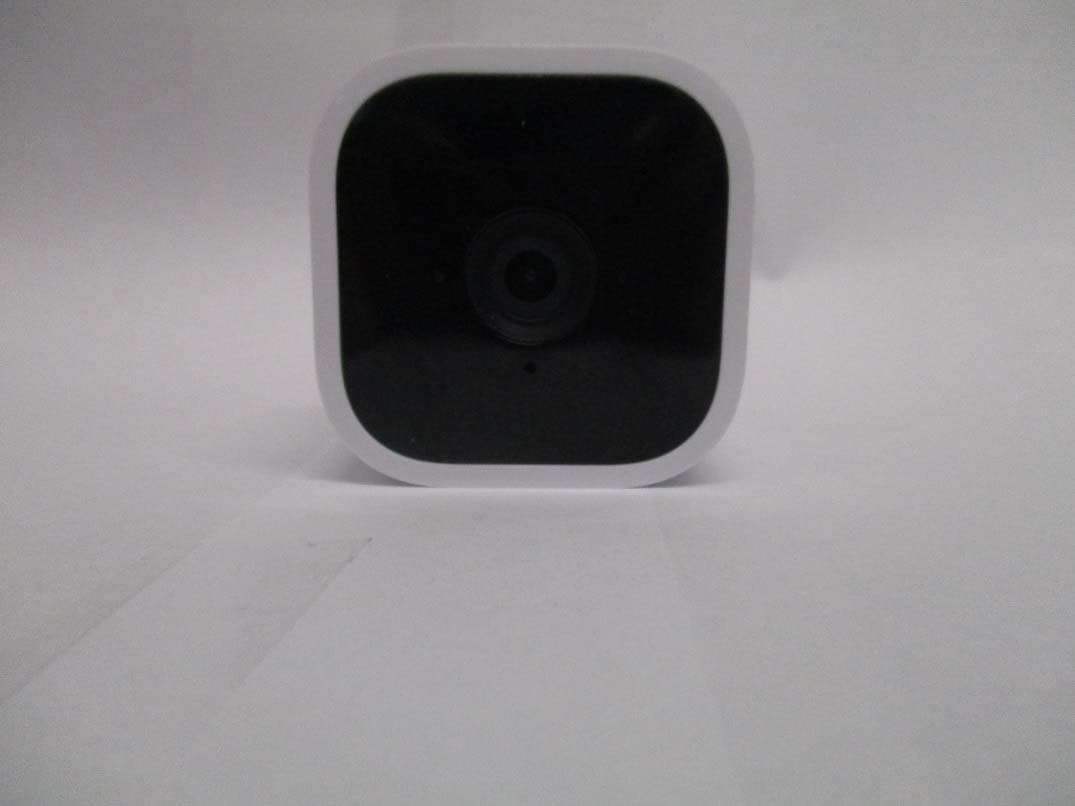

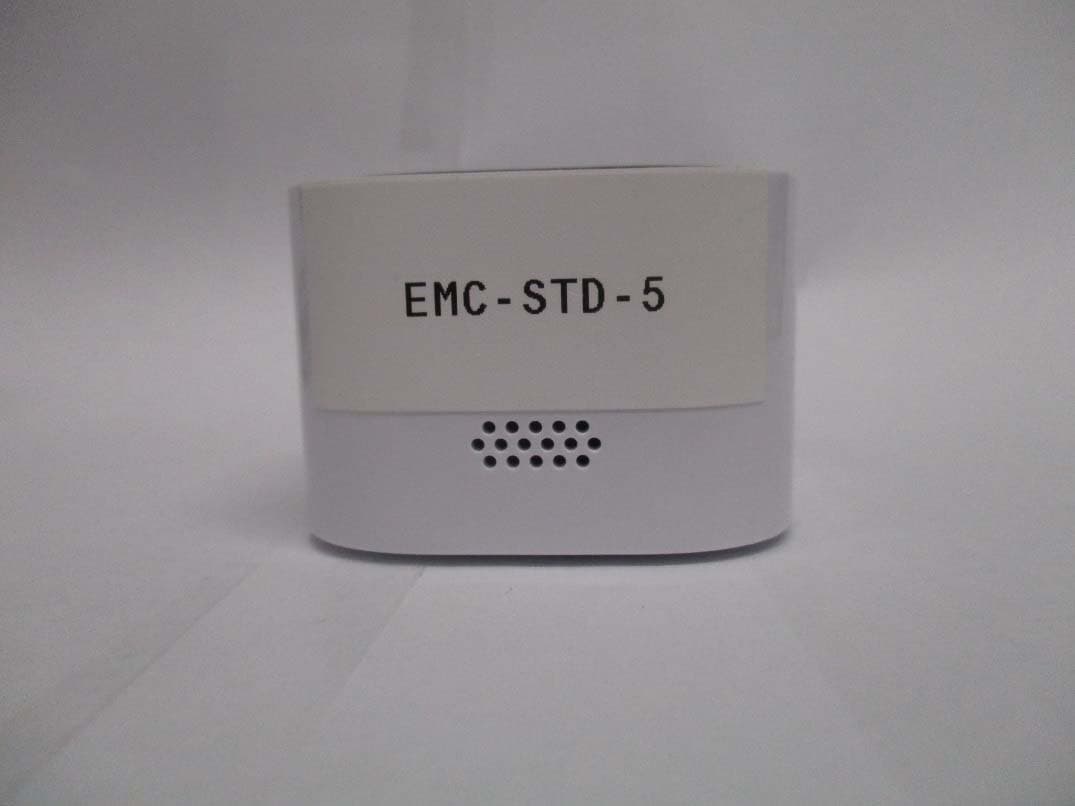

External Photographs Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 Front of Enclosure Left Side of Enclosure External Photographs Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 Rear of Enclosure Right Side of Enclosure External Photographs Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 Bottom of Enclosure Top of Enclosure

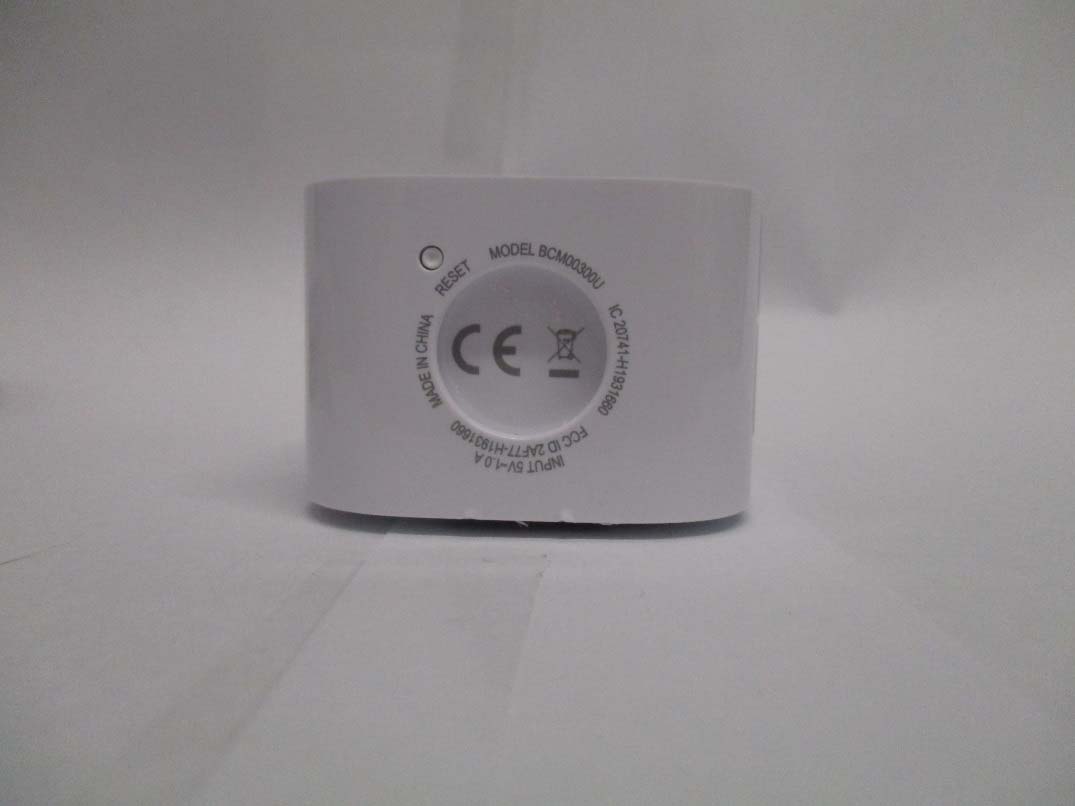

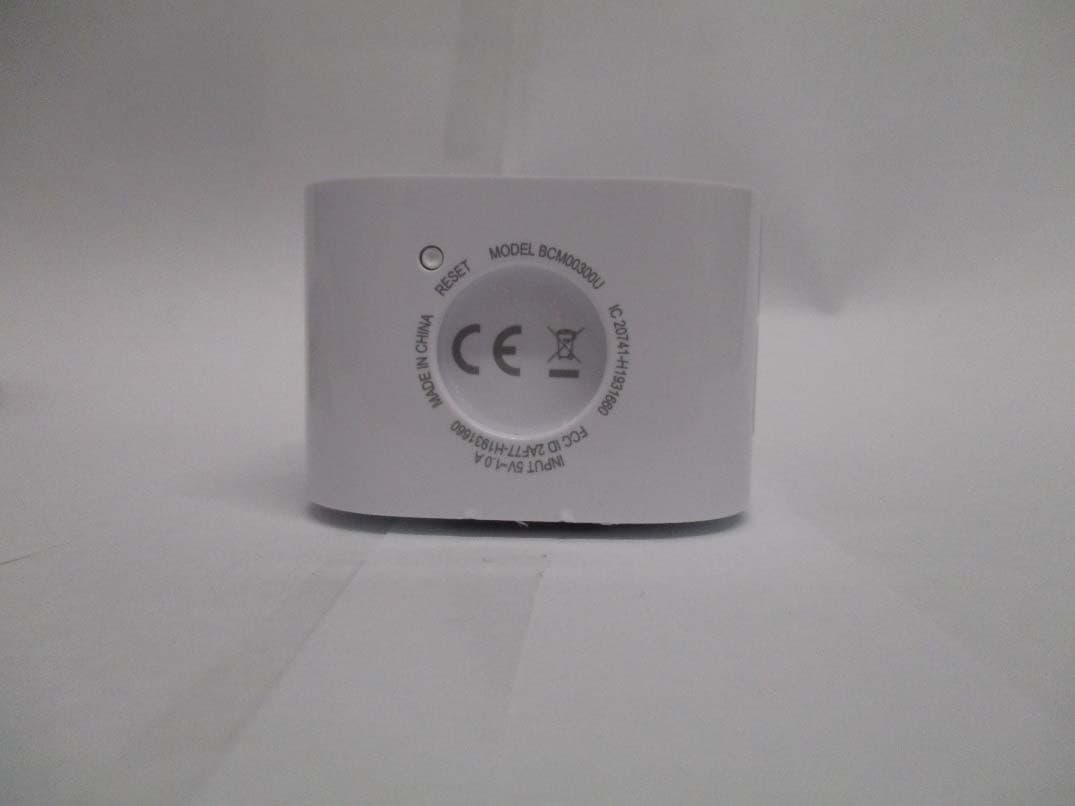

Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 ID Label Location ID Label

Internal Photographs Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 Back cover removed Inside Back Cover Removed Internal Photographs Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 Board Stack Separated Board Stack Separated (outside of Camera) Internal Photographs Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 Mezz/Antenna Board Side 1 Mezz/Antenna Board Side 2 Internal Photographs Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 Main Board Side 1 Main Board Side 2 Internal Photographs Immedia Semiconductor, LLC. Blink Mini Camera, FCC ID: 2AF77-H1931660 IC 20741-H1931660 Main Board Side 2 Camera Shutter & RF Enclosure Removed

Report No. R-6483N-1 Page 75 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz EUT Configuration Report No. R-6483N-1 Page 76 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz Horizontal Polarization, 30 to 200 MHz Vertical Polarization, 30 to 200 MHz Report No. R-6483N-1 Page 77 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz Horizontal Polarization, 200 MHz to 1 GHz Vertical Polarization, 200 MHz to 1 GHz Report No. R-6483N-1 Page 78 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz Horizontal Polarization, 1 to 18 GHz Vertical Polarization, 1 to 18 GHz Report No. R-6483N-1 Page 79 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz Horizontal Polarization, 18 to 25 GHz Vertical Polarization, 18 to 25 GHz Report No. R-6483N-1 Page 80 of 91 Retlif Testing Laboratories R FCC Part 15, Subpart B, Section 15.209(a) Spurious Radiated Emissions, 30 MHz to 25 GHz Test Data Report No. R-6483N-1 Page 81 of 91 Retlif Testing Laboratories R RETLIF TESTING LABORATORIES EMISSIONS TEST DATA SHEET Test Method Unwanted Emissions into Restricted Frequency Bands Customer Immedia Semiconductor LLC Job Number R-6483N-1 Test Sample Blink Mini Indoor Plug-In HD Smart Security Camera Model Number BCM00300U Serial Number G8T1-9000-9514-012C Test Specification FCC Part 15 Subpart C Paragraph: 15.247(d) Operating Mode Streaming video to tablet Technician M. Seamans Date February 20 th , 2020 Notes: Antenna Test Distance: 3 meters Detector: Quasi-Peak <1GHz, Average >1GHz TEST PARAMETERS Restricted Band Measured Frequency Meter Reading Correction Factor Corrected Reading Converted Reading Limit at 3M MHz MHz dBuV dB dBuV/m uV/m uV/m 37.50 - - - - - 100.00 | 38.00 7.05 12.35 19.40 * 9.33 I 38.25 - - - - - 100.00 73.00 - - - - - 100.00 | 74.00 14.27 8.63 22.90 * 13.96 I 74.60 - - - - - 100.00 74.80 - - - - - 100.00 | 75.00 11.40 8.60 20.00 * 10.00 | 75.20 - - - - - 100.00 108.00 - - - - - 150.00 | 115.00 5.34 14.56 19.90 * 9.89 | | - - - - - | 121.94 - - - - - 150.00 123.00 - - - - - 150.00 | 130.00 6.53 14.67 21.20 * 11.48 | | - - - - - | 138.00 - - - - - 150.00 No EUT emissions within 10 dB of the specified test limit were observed at the specified test distance throughout the given frequency spectrum. * This emission is not from the EUT. It is a measurement of minimum measurement system sensitivity (Noise Floor). Report No. R-6483N-1 Page 82 of 91 Retlif Testing Laboratories R RETLIF TESTING LABORATORIES EMISSIONS TEST DATA SHEET Test Method Unwanted Emissions into Restricted Frequency Bands Customer Immedia Semiconductor LLC Job Number R-6483N-1 Test Sample Blink Mini Indoor Plug-In HD Smart Security Camera Model Number BCM00300U Serial Number G8T1-9000-9514-012C Test Specification FCC Part 15 Subpart C Paragraph: 15.247(d) Operating Mode Streaming video to tablet Technician M. Seamans Date February 20 th , 2020 Notes: Antenna Test Distance: 3 meters Detector: Quasi-Peak <1GHz, Average >1GHz TEST PARAMETERS Restricted Band Measured Frequency Meter Reading Correction Factor Corrected Reading Converted Reading Limit at 3M MHz MHz dBuV dB dBuV/m uV/m uV/m 149.90 - - - - - 150.00 | 150.00 8.03 14.37 22.40 * 13.18 | 150.05 - - - - - 150.00 156.52 - - - - - 150.00 | 156.52 7.53 15.27 22.80 * 13.80 | 156.52 - - - - - 150.00 156.70 - - - - - 150.00 | 156.80 7.59 15.31 22.90 * 13.96 | 156.90 - - - - - 150.00 162.01 - - - - - 150.00 | 165.00 6.70 16.50 23.20 * 14.45 | 167.17 - - - - - 150.00 167.72 - - - - - 150.00 | 170.00 6.14 17.26 23.40 * 14.79 | 173.20 - - - - - 150.00 No EUT emissions within 10 dB of the specified test limit were observed at the specified test distance throughout the given frequency spectrum. * This emission is not from the EUT. It is a measurement of minimum measurement system sensitivity (Noise Floor). Report No. R-6483N-1 Page 83 of 91 Retlif Testing Laboratories R RETLIF TESTING LABORATORIES EMISSIONS TEST DATA SHEET Test Method Unwanted Emissions into Restricted Frequency Bands Customer Immedia Semiconductor LLC Job Number R-6483N-1 Test Sample Blink Mini Indoor Plug-In HD Smart Security Camera Model Number BCM00300U Serial Number G8T1-9000-9514-012C Test Specification FCC Part 15 Subpart C Paragraph: 15.247(d) Operating Mode Streaming video to tablet Technician M. Seamans Date February 20 th , 2020 Notes: Antenna Test Distance: 3 meters Detector: Quasi-Peak <1GHz, Average >1GHz TEST PARAMETERS Restricted Band Measured Frequency Meter Reading Correction Factor Corrected Reading Converted Reading Limit at 3M MHz MHz dBuV dB dBuV/m uV/m uV/m 240.00 - - - - - 200.00 | 260.00 9.18 15.42 24.60 * 16.98 | 285.00 - - - - - 200.00 322.80 - - - - - 200.00 | 330.00 6.77 17.63 24.40 * 16.60 | 335.40 - - - - - 200.00 399.90 - - - - - 200.00 | 405.00 7.30 19.20 26.50 * 21.13 | 410.00 - - - - - 200.00 608.00 - - - - - 200.00 | 611.00 8.05 23.65 31.70 * 38.46 | 614.00 - - - - - 200.00 960.00 - - - - - 500.00 | 975.00 8.27 29.83 38.10 * 80.35 | 1240.00 - - - - - 500.00 1300.00 - - - - - 500.00 | 1350.00 31.25 -9.14 22.11 * 12.75 | 1427.00 - - - - - 500.00 No EUT emissions within 10 dB of the specified test limit were observed at the specified test distance throughout the given frequency spectrum. * This emission is not from the EUT. It is a measurement of minimum measurement system sensitivity (Noise Floor). Report No. R-6483N-1 Page 84 of 91 Retlif Testing Laboratories R RETLIF TESTING LABORATORIES EMISSIONS TEST DATA SHEET Test Method Unwanted Emissions into Restricted Frequency Bands Customer Immedia Semiconductor LLC Job Number R-6483N-1 Test Sample Blink Mini Indoor Plug-In HD Smart Security Camera Model Number BCM00300U Serial Number G8T1-9000-9514-012C Test Specification FCC Part 15 Subpart C Paragraph: 15.247(d) Operating Mode Streaming video to tablet Technicia…

Text truncated - open the document above for the full version.

FCC Part 15, Subpart C, Section 15.247 Test Report On Blink Mini Indoor Plug-In HD Smart Security Camera FCC ID: 2AF77-H1931660 Customer Name: Immedia Semiconductor, LLC Customer P.O: 2D-02929692 Date of Report: March 4, 2020 Test Report No: R-6483N-1 Test Start Date: January 27, 2020 Test Finish Date: February 20, 2020 Test Engineer: T. Hannemann Test Technician: M. Seamans Approved By: S. Wentworth Report Prepared By: P. Harris Our letters, procedures and reports are for the exclusive use of the customer to whom they are addressed and their communication or the use of the name of Retlif Testing Laboratories must receive our prior written approval. Our letters, procedures and reports apply only to the sample tested and are not necessarily indicative of the qualities of apparently identical or similar products. The letters, procedures and reports and the name of Retlif Testing Laboratories or insignia are not to be used under any circumstances in advertising to the general public. This test report shall not be reproduced, except in full, without the written approval of Retlif Testing Laboratories. Report No. R-6483N-1 Page 2 of 91 Retlif Testing Laboratories R Technical Information Report Number: R-6483N-1 Customer: Immedia Semiconductor, LLC Address: 100 Riverpark Drive North Reading, MA 01864 Manufacturer: Immedia Semiconductor, LLC Manufacturer Address: 100 Riverpark Drive North Reading, MA 01864 Test Sample: Blink Mini Indoor Plug-In HD Smart Security Camera Model Number: BCM00300U Serial Number: G8T1-9000-9514-00K4 (Conducted Testing) G8T1-9000-9514-00BU (Conducted Testing) G8T1-9000-9514-012C (Radiated Testing) FCC ID: 2AF77-H1931660 Type: Digital Transmission - Direct Sequence Spread Spectrum Transmitter Power Requirements: 5 VDC via External 120 VAC power adapter Frequency of Operation: 2412 MHz to 2462 MHz Equipment Class: DTS Antenna Type: Internal PCB Antenna – 2.0 dBi Gain Equipment Use: Used in a Home Monitoring System Test Specification: FCC Rules and Regulations Part 15, Subpart C, Section 15.247 Test Procedure: ANSI C63.4:2014 ANSI C63.10:2013 FCC 558074 D01 15.247 Meas Guidance v05r02, April 2, 2019 Test Facility: Retlif Testing Laboratories 101 New Boston Road Goffstown, NH 03045 FCC Designation Number: US5327 Report No. R-6483N-1 Page 3 of 91 Retlif Testing Laboratories R Tests Performed FCC Part 15, Subpart C Test Method 15.247(a)(2) Occupied Bandwidth (6dB Bandwidth) 15.247(b)(3) Power Output 15.247(d) Antenna Port, Conducted Emissions 15.247(e) Antenna Port, Power Density 15.247(d) Spurious Radiated Emissions, 30 MHz to 25 GHz 15.207(a) Conducted Emissions, Power Leads, 150 kHz to 30 MHz EUT Operation: The Blink Mini Indoor Plug-In HD Smart Security Camera uses Wi-Fi to send video / audio to users via the Blink App. Features include day and night recording, two-way audio, motion detection, and works with Alexa-enabled devices. Table 1 – Support Equipment Description Manufacturer Model Number Serial Number Radiated Testing iPad Apple A1822 FNVX701HLF9 Conducted Testing Laptop PC HP Probook 450 G5 5CD08390C8N Report No. R-6483N-1 Page 4 of 91 Retlif Testing Laboratories R Certification and Signatures We certify that this report is a true representation of the results obtained from the tests of the equipment stated. We further certify that the measurements shown in this report were made in accordance with the procedures indicated and vouch for the qualifications of all Retlif Testing Laboratories personnel taking them. Scott Wentworth Branch Manager Todd Hannemann EMC Test Engineer iNARTE Certified Technician ATL-0255-T Non-Warranty Provision The testing services have been performed, findings obtained and reports prepared in accordance with generally accepted laboratory principles and practices. This warranty is in lieu of all others, either expressed or implied. Non-Endorsement This test report contains only findings and results arrived at after employing the specific test procedures and standards listed herein. It is not intended to constitute a recommendation, endorsement or certification of the product or material tested. This report must not be used by the client to claim product endorsement by ANSI National Accreditation Board (ANAB). Report No. R-6483N-1 Page 5 of 91 Retlif Testing Laboratories R Revision History Revisions to this document are listed below; the latest revised document supersedes all previous issues of this document: Revision Date Pages Affected - March 4, 2020 Original Release Report No. R-6483N-1 Page 6 of 91 Retlif Testing Laboratories R Requirements and Test Results Requirement: FCC Section 15.247(a)(2) Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz Systems using digital modulation techniques may operate in the 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz bands. The minimum 6 dB bandwidths shall be at least 500 kHz. • Results: The minimum 6 dB bandwidth measured 9,018 kHz which complies with the requirement that the Bandwidth be no less than 500 kHz. Requirement: FCC Sections 15.247(b)(3) Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz The maximum peak conducted output power of the intentional radiator shall not exceed the following: For systems using digital modulation in the 902 - 928 MHz, 2400 - 2483.5 MHz and 5725 - 5850 MHz bands: 1 Watt. As an alternative to a peak power measurement, compliance with the one Watt limit can be based on a measurement of the maximum conducted output power. Maximum Conducted Output Power is defined as the total transmit power delivered to all antenna and antenna elements averaged across all symbols in the signaling alphabet when the transmitter is operating at its maximum power control level. Power must be summed across all antenna and antenna elements. The average must not include any time intervals during which the transmitter is off or is transmitting at a reduced power level. If multiple modes of operation are possible (e.g., altern…

Text truncated - open the document above for the full version.

Report No. R-6483N-1 Page 75 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz EUT Configuration Report No. R-6483N-1 Page 76 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz Horizontal Polarization, 30 to 200 MHz Vertical Polarization, 30 to 200 MHz Report No. R-6483N-1 Page 77 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz Horizontal Polarization, 200 MHz to 1 GHz Vertical Polarization, 200 MHz to 1 GHz Report No. R-6483N-1 Page 78 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz Horizontal Polarization, 1 to 18 GHz Vertical Polarization, 1 to 18 GHz Report No. R-6483N-1 Page 79 of 91 Retlif Testing Laboratories R Test Photographs Spurious Radiated Emissions, 30 MHz to 25 GHz Horizontal Polarization, 18 to 25 GHz Vertical Polarization, 18 to 25 GHz
