2AFAZ-PX2500Time & Attendance / Access Control Terminal

1 P X2500 Time & Attendance / Access Control Terminal User Manual V1.1 2015/5/10 2 Contents I. Features ................................................................................................................................................................ 3 II. Specifications ...................................................................................................................................................... 3 III. Exterior ................................................................................................................................................................ 4 IV. Basic Settings .................................................................................................................................................... 5 Clock ..................................................................................................................................................... 5 Users .................................................................................................................................................... 5 System ................................................................................................................................................. 5 ■ Network ....................................................................................................................................................... 5 ■ Record Option .............................................................................................................................................. 5 ■ Tamper Switch ............................................................................................................................................. 5 ■ Calibration ................................................................................................................................................... 5 ■ Beep Hints ................................................................................................................................................... 5 ■ Menu Password ............................................................................................................................................ 6 ■ Security Level .............................................................................................................................................. 6 ■ Volume ......................................................................................................................................................... 6 ■ HTTP & TCP Port ........................................................................................................................................ 6 ■ FTP User Set(to be performed by professionals of your supplier only) ...................................................... 6 ■ System Maintenance .................................................................................................................................... 6 ■ Database Backup(to internal Micro SD card) — for enable/disable the function of auto database backup from system memory to the internal Micro SD card every day at the time that you set. ........ 6 ■ Language ..................................................................................................................................................... 6 ■ WiFi Setting ................................................................................................................................................. 6 ■ Camera ......................................................................................................................................................... 7 Door .................................................................................................................................................... 7 IO Port(DI/DO) .................................................................................................................................... 7 Fingerprint ........................................................................................................................................... 8 V. User Interface ...................................................................................................................................................... 8 VI. Self-contained Time & Attendance / Access Control Software ................................................................... 8 Set login password ............................................................................................................................................. 9 Database Backup(External database backup) .................................................................................................... 9 System Setting ................................................................................................................................................... 9 Clone Database(Internal database backup) ...................................................................................................... 10 System Setting - Late/Absence E-mail Notice................................................................................................. 10 System Setting – FTP Setting .......................................................................................................................... 11 Attendance Report (Detailed) – for fixed shifts users ..................................................................................... 12 Attendance Report (Total) – for fixed shifts users ........................................................................................... 12 Attendance Report (Multi Work Shift) – for multiple flexible shifts users...................................................... 13 Transactions ..................................................................................................................................................... 13 Transactions Delete ..........................…

Text truncated - open the document above for the full version.

Kizone Information Inc. 08/04/2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2AFAZ-PX2500 Product Name:Time & Attendance / Access Control Terminal Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08/04/2015 By: Jeff Lau Signature Printed Title: Director On behalf of : Kizone Information Inc. Telephone: +886-2-29991663

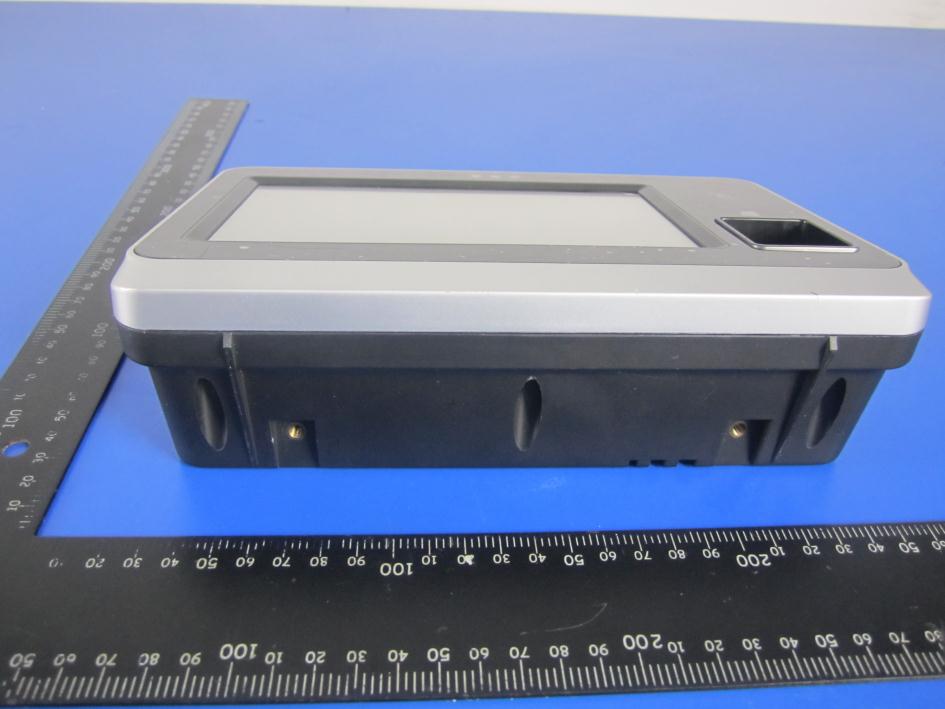

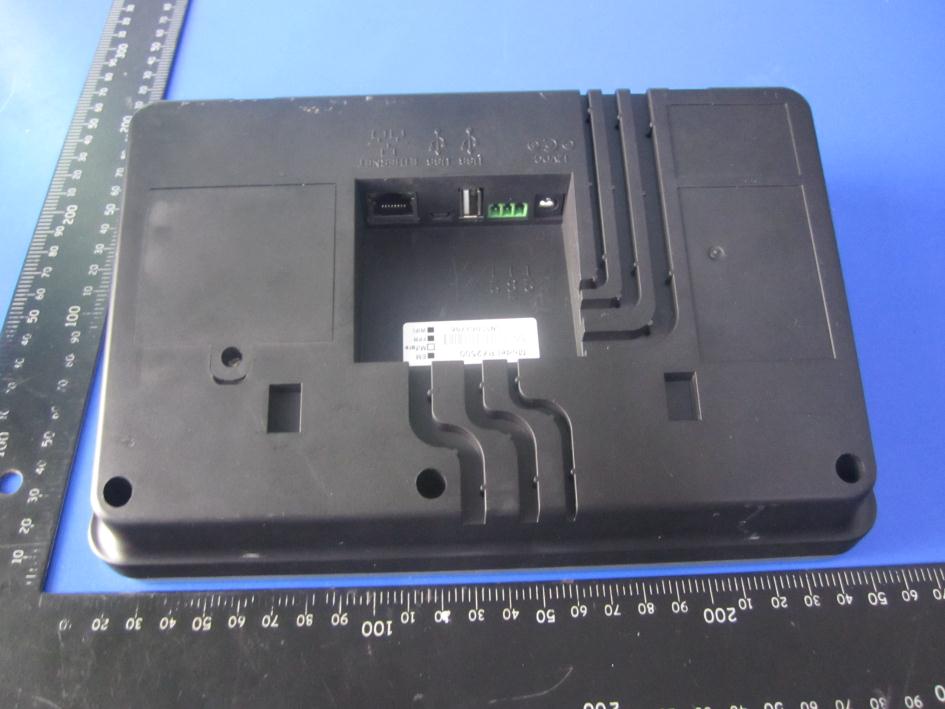

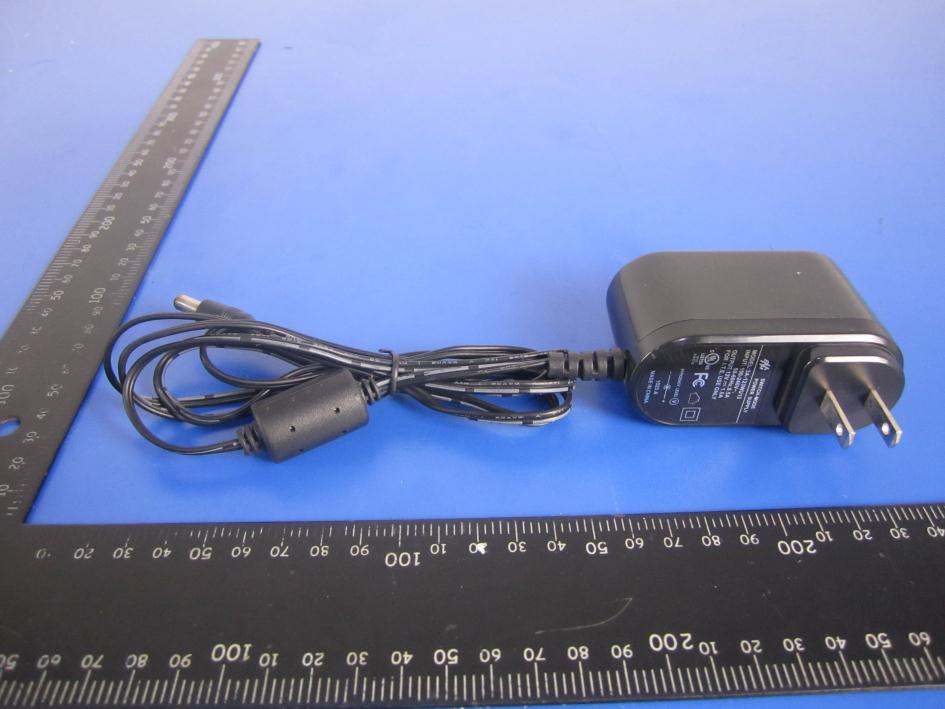

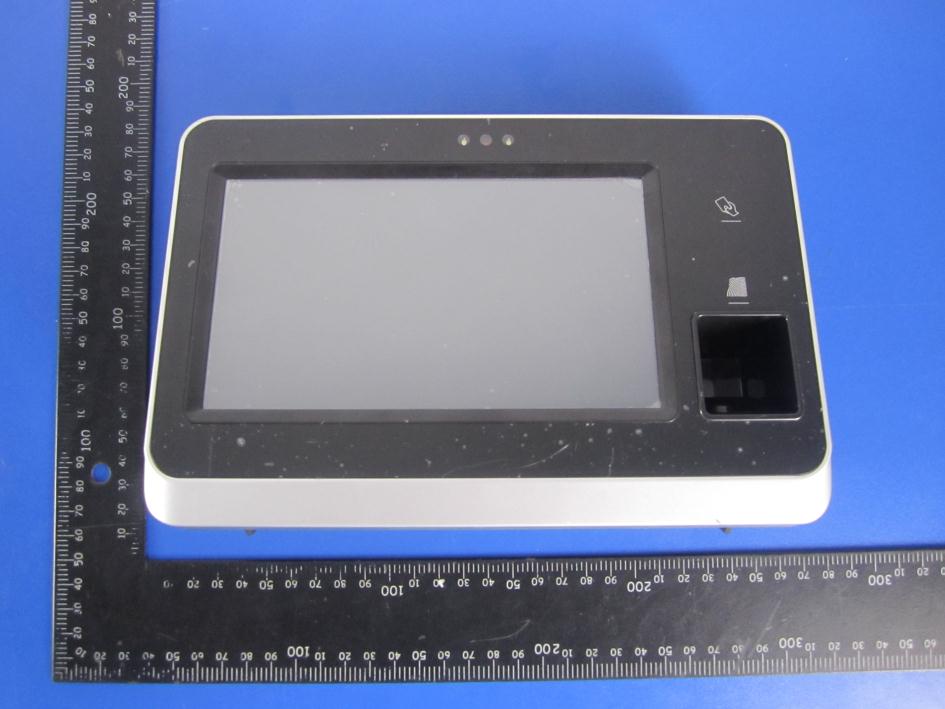

Project No: STS1507140 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1507140 Photo 3 Photo 4 Project No: STS1507140 Photo 5 Photo 6 Project No: STS1507140 Photo 7 Photo 8 Project No: STS1507140 Photo 9

Label Time & Attendance / Access Control Terminal Model name: PX2500 FCC ID: 2AFAZ-PX2500 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Project No: STS1507140 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1507140 Photo 3 Photo 4 Project No: STS1507140 Photo 5 Photo 6 Project No: STS1507140 Photo 7 Photo 8 Project No: STS1507140 Photo 9 Photo 10 Project No: STS1507140 Photo 11 Photo 12 Project No: STS1507140 Photo 13 Photo 14 WIFI ANTENNA Project No: STS1507140 Photo 15 Photo 16 Project No: STS1507140 Photo 17

MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit(WORSE CASE IS AS BELOW) Directional Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 1.07 （0.3dBi） 26.5 （14.23dBm） 0.00564 1 Compiles

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1507140F01 Issued for Kizone Information Inc. 7F., No. 20, L. 609, Sec. 5, Chongxin Rd., Sanchong, New Taipei, Taiwan. Product Name: Time & Attendance / Access Control Terminal Brand Name: N/A Model No.: PX2500 Series Model: N/A FCC ID: 2AFAZ-PX2500 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 61 Report No.: STS1507140F01 TEST RESULT CERTIFICATION Applicant’s name ................. : Kizone Information Inc. Address ................................. : 7F., No. 20, L. 609, Sec. 5, Chongxin Rd., Sanchong, New Taipei, Taiwan. Product description Product name ........................ : Time & Attendance / Access Control Terminal Model and/or type reference : PX2500 Serial Model .......................... : N/A Standards ............................. : FCC Part15.247 Test procedure............................ ANSI C63.4-2014 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 20 Aug. 2015 ~27 Aug. 2015 Date of Issue ......................................... : 28 Aug. 2015 Test Result ............................................. : Pass Testing Engineer : (Jin Ming) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 61 Report No.: STS1507140F01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TEST 11 2.4 DESCRIPTION OF SUPPORT UNITS 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST RESULT 14 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 TEST SETUP 18 3.2.4 EUT OPERATING CONDITIONS 19 3.2.5 TEST RESULT 20 4. CONDUCTED SPURIOUS EMISSIONS 26 4.1 APPLIED PROCEDURES / LIMIT 26 4.2 TEST PROCEDURE 26 4.3 DEVIATION FROM STANDARD 26 4.4 TEST SETUP 26 4.5 EUT OPERATION CONDITIONS 26 4.6 TEST RESULTS 27 5. POWER SPECTRAL DENSITY TEST 39 5.1 APPLIED PROCEDURES / LIMIT 39 5.2 TEST PROCEDURE 39 5.3 DEVIATION FROM STANDARD 39 5.4 TEST SETUP 39 5.5 EUT OPERATION CONDITIONS 39 5.6 TEST RESULTS 40 6. BANDWIDTH TEST 48 Page 4 of 61 Report No.: STS1507140F01 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 48 6.2 TEST PROCEDURE 48 6.3 DEVIATION FROM STANDARD 48 6.4 TEST SETUP 48 6.5 EUT OPERATION CONDITIONS 48 6.6 TEST RESULTS 49 7. PEAK OUTPUT POWER TEST 57 7.1 APPLIED PROCEDURES / LIMIT 57 7.2 TEST PROCEDURE 57 7.3 DEVIATION FROM STANDARD 57 7.4 TEST SETUP 57 7.5 EUT OPERATION CONDITIONS 57 7.6 TEST RESULTS 58 8. ANTENNA REQUIREMENT 59 8.1 STANDARD REQUIREMENT 59 8.2 EUT ANTENNA 59 APPENDIX - PHOTOS OF TEST SETUP 60 Page 5 of 61 Report No.: STS1507140F01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 28 Aug. 2015 STS1507140F01 ALL Initial Issue Page 6 of 61 Report No.: STS1507140F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) (reference KDB 558074 d05 v02. /9.1.2) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Conducted Spurious Emission PASS 15.247 (e) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 7 of 61 Report No.: STS1507140F01 1.1 TEST FACTORY Shenzhen STS Test Services Co., Ltd. Add. : 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China CNAS Registration No.: L7649; FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U炻where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2炻providing a level of confidence of approximately 95 %ˤ No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±2.88dB 2 Conducted Emission (150KHz-30MHz) ±2.67dB 3 RF power,conducted ±0.70dB 4 Spurious emissions,conducted ±1.19dB 5 All emissions,radiated(<1G) 30MHz-200MHz ±2.83dB 6 All emissions,radiated(<1G) 200MHz-1000MHz ±2.94dB 7 All emissions,radiated(>1G) ±3.03dB 8 Temperature ±0.5°C 9 Humidity ±2% Page 8 of 61 Report No.: STS1507140F01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Time & Attendance / Access Control Terminal Trade Name N/A Model Name PX2500 Serial Model N/A Model Difference N/A Product Description The EUT is a Time & Attendance / Access Control Terminal Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 802.11n 40: 2422~2452MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/4 8/36/24/18/12/9/6Mbps 802.11n(20/40MHz):300/150/144.44/130/ 117/115.56/104/86.67/78/52/6.5Mbps Number Of Channel 802.11b/g/n20: 11CH 802.11n 40: 7CH Antenna Designation: Please see Note 3. An…

Text truncated - open the document above for the full version.

DTS Setup photo DTS conduction DTSradiation L DTS radiation H
