2AFCS-PAL20Low power device transmitter

HIKOB AZURE LION User Documentation Version 2.0-2466 This document may not be reproduced (even partially) or com- municated to 3rd parties without the written authorization of the company’s General Management. Copyright ©HIKOB. HIKOB AZURE LION Version 2.0-2466 November 2015·Page 2/ 14 Contents 1 Introduction3 1.1 Symbols and conventions used in this guide . . . . . . . . . . . . . . . . . . . . .3 1.2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 1.3 Compliance and conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.3.1Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.3.2Electromagnetic compatibility Japan . . . . . . . . . . . . . . . . . . . . .4 1.3.3USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 1.3.4Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 1.4 WEEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 1.5 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2 General description of the HIKOB AZURE LION7 2.1 HIKOB wireless sensor network acquisition system . . . . . . . . . . . . . . . . . .7 2.2 HIKOB AZURE LION overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3 Data sheet9 4 Installation10 4.1 Overall methodology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.2 HIKOB AZURE LION Mounting procedure . . . . . . . . . . . . . . . . . . . . . . . 12 4.2.1Radio and exposure considerations: orienting well the router . . . . . . . 12 4.2.2Mounting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 HIKOB AZURE LION Version 2.0-2466 November 2015·Page 3/ 14 1 Introduction When using HIKOB AZURE LION, safety precautions must be taken to avoid injury and dam- ages. Please read this guide before installing, using the product, or performing any main- tenance operation. Failure to read, understand and follow herein instructions may result in personnal injury. In no event shall HIKOB be held liable for any damages arising out of or related to misunderstanding instructions detailed in this manual. 1.1 Symbols and conventions used in this guide Read entirely this guidebefore using the product HIKOB AZURE LION and keep it handy for reference. Caution– Indicates a potentially hazardous situation which, if instructions are not followed, may result in damage to the equipement. Electrical Hazard– Indicates a dangerous condition such that, if instruc- tions are not followed may result in electric shock and physical injury. – Carefully follow instructions and warnings given in this guide, as well as instructions indicated on the product. – Make sure you understand all instructions: refer to symbols definitions and conventions used in the documentation. – Should you have questions on using the product HIKOB AZURE LION once you have completely read this guide, contact the HIKOB suppport or your vendor. 1.2 Safety instructions It is forbidden to install the product in a location accessible to the public.Please refer to the installation section. Do not disassemble or attempt to openthe product. It does not con- tain any serviceable parts inside. Only qualified staff is allowed to perform maintenance operations on the HIKOB AZURE LION product. Opening a HIKOB AZURE LION will void the waranty. Do not attemptto change or recharge the batteries. HIKOB AZURE LION batteries are not replaceable, they are recharged automatically and exclu- sively by its embedded solar pannel. HIKOB AZURE LION Version 2.0-2466 November 2015·Page 4/ 14 Do not overheat, do not dispose in fire, do not crush. Do not heat above the product maximum operating temperature, incinerate, or expose content to water. HIKOB AZURE LION uses lithium batteries, such improper use may lead to leakage, explosion or fire. Modifications or changes on the product is stricly prohibitedif it is not expressly approved by HIKOB. Modifications or changes performed on HIKOB AZURE LION will void the user’s authority to operate the equipment. 1.3 Compliance and conformity 1.3.1 Europe The HIKOB AZURE LION product is certified to be compliant with the R&TTE 1999/5/CE directive. Electromagnetic compatibility and radio spectrum The product HIKOB AZURE LION is certified to be compliant with the following standards: – ETSI EN 301 489-1 V1.9.2 (2011-09) et ETSI EN 301 489-17 V2.2.1 (2012-09) – ETSI EN 300 328 V1.8.1 et EN 62311 (2008) – ETSI EN 300 330-1 V1.7.1 (2010/02) et ETSI EN 300 330-2 V1.5.1 (2010/02) Electrical safety: The product HIKOB AZURE LION is certified to be compliant with the following normalized standards: – IEC 60950-1:2005 + A1:2010 + A2:2013 – EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 The HIKOB AZURE LION is certified to follow the IEC 60 950-22 Am2 outdoor safety stan- dard. With exception for Finland, Norway and Sweden, countries where environment tem- perature can be far lower than the limit for operating and safety assurance temperatures the HIKOB AZURE LION. You install the HIKOB AZURE LION indoors in those geographical ar- eas. 1.3.2 Electromagnetic compatibility Japan HIKOB AZURE LION Version 2.0-2466 November 2015·Page 5/ 14 The HIKOB AZURE LION product is certified to be compliant with Japan Radio Law - Article 2 paragraph 1 Item 19. 1.3.3 USA Information to userThis device complies with part 15 of the FCC Rules. Operation is sub- ject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can rad…

Text truncated - open the document above for the full version.

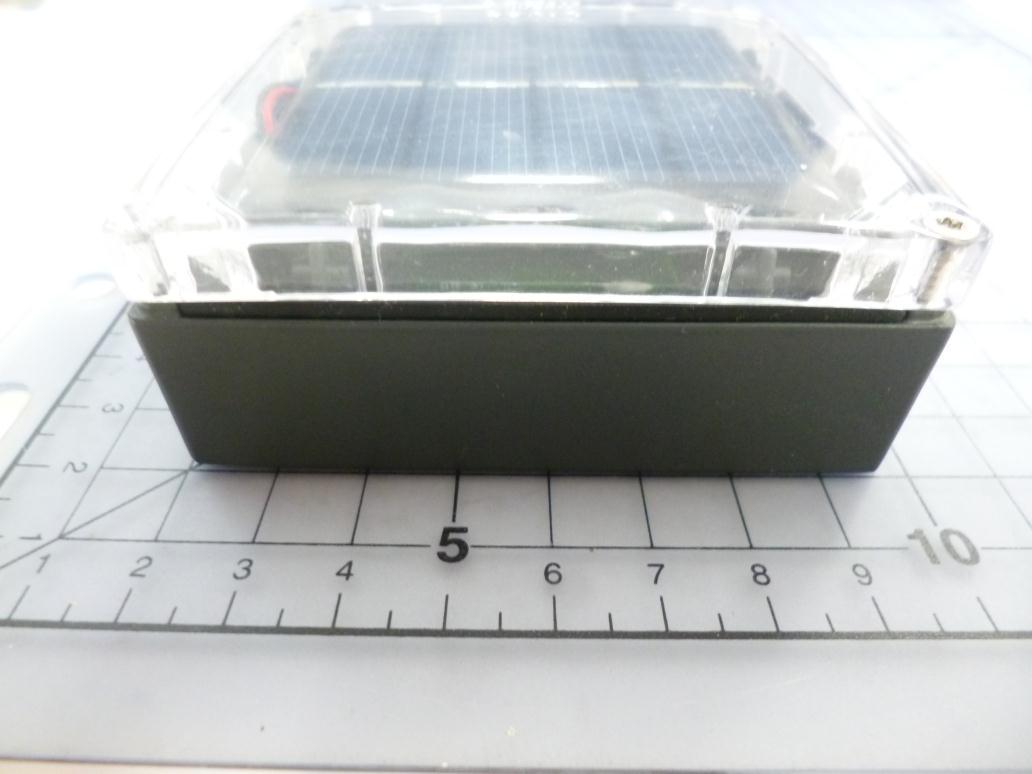

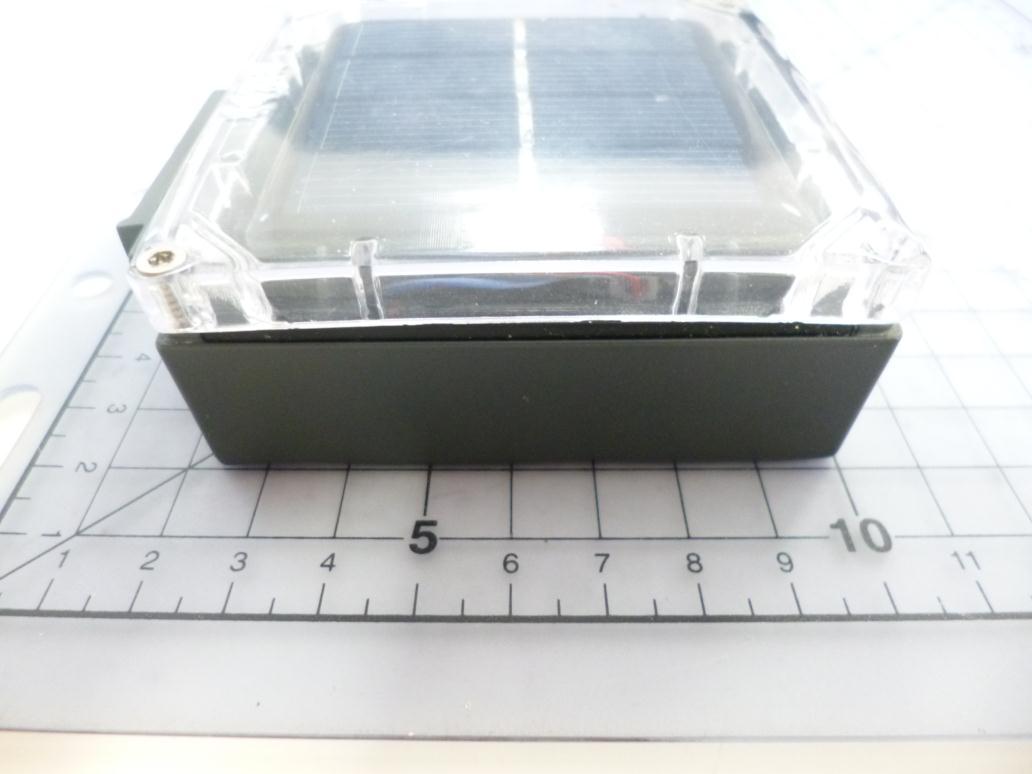

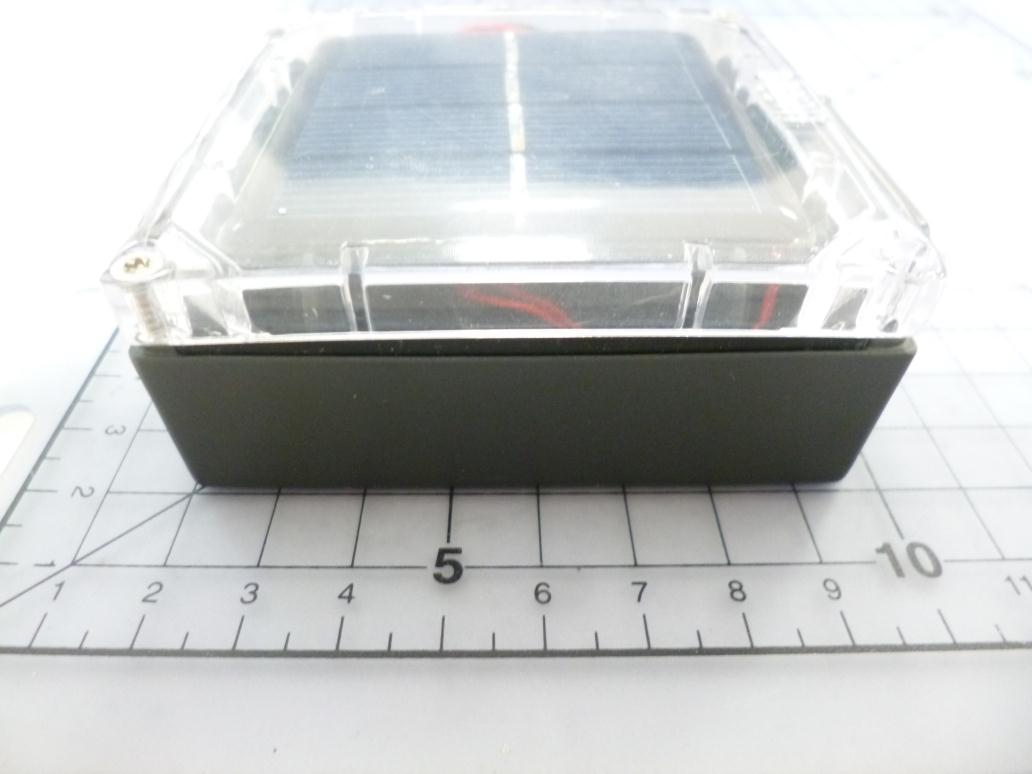

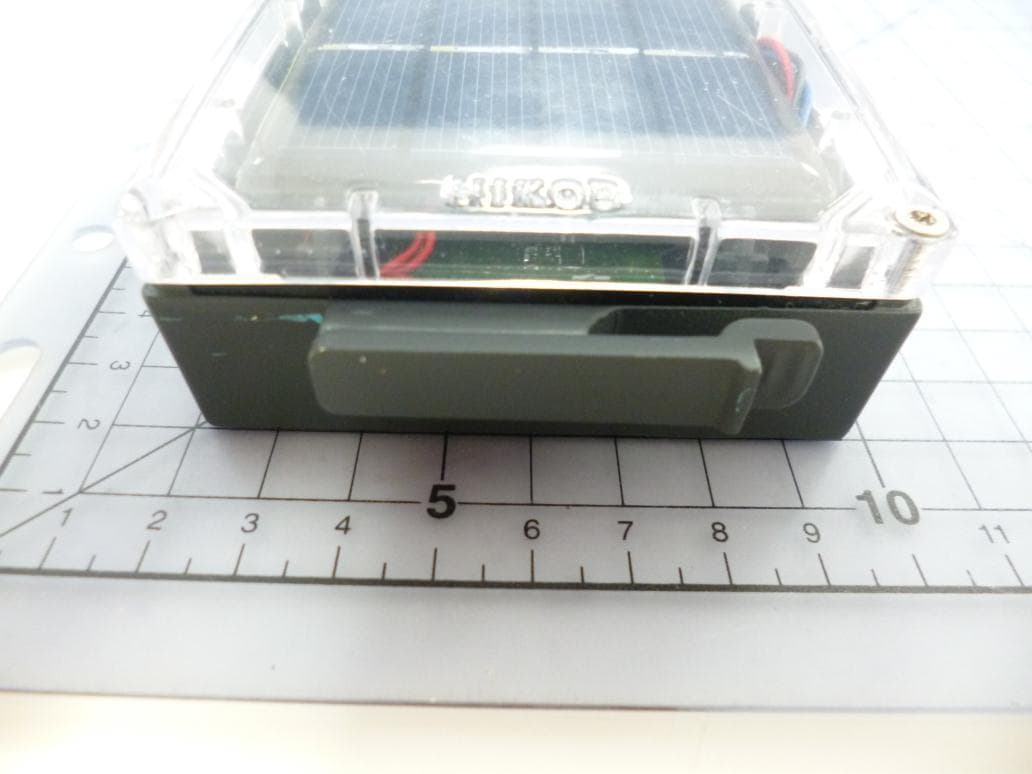

Page 1/6 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE EXTERNAL PHOTOS OF EQUIPMENT FCCID: 2AFCS-PAL20 Page 2/6 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 3/6 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 4/6 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 5/6 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 6/6 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

Page 1/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE PRODUCT LABELING FCCID: 2AFCS-PAL20 Page 2/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 3/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 4/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

Page 1/5 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE INTERNAL PHOTOS OF EQUIPMENT FCCID: 2AFCS-PAL20 Page 2/5 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 3/5 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 4/5 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 5/5 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE GENERAL INFORMATION FCCID: 2AFCS-PAL20 1.1. Product description LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Data sheet of equipment LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE 1.2. Tested System Details See test report 1.3. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.10-2013, FCC Part 15 Subpart C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.4. Test facility Tests have been performed from June 3rd to June 14th, 2015. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.10-2013 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE FCCID: 2AFCS-PAL20 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Prediction Frequency MHz Conducted Output Power dBm Max Antenna Gain dBi Distance cm Power Density mW/cm2 Limit mW/cm2 2405 10.9 3200.00491.00 2440 10.3 3200.00431.00 2475 10.4 3200.00441.00 Conclusion: Therefore our device complies with FCC’s RF radiation exposure limits for general population without SAR evaluation with at least 20cm separation from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. TEST REPORT N°: 832764-R3-E JDE : 135342 Subject Electromagnetic compatibility and Radio spectrum Matters (ERM) tests according to standards: FCC CFR 47 Part 15, Subpart B et C RSS-247 Ed 1.0 Issued to HIKOB 66 Boulevard Niels Bohr CS52132 69603 VILLEURBANNE CEDEX Apparatus under test  Product AZURE LION  Trade mark HIKOB  Manufacturer HIKOB  Model under test PAL2A  Serial number None  FCCID 2AFCS-PAL20  ICID 20474-PAL20 Test date From June 3 rd to June 14 th , 2015 Test location Moirans IC Test site 6500A-1 & 6500A-3 Test performed by J.PAUC Composition of document 28 pages Document issued on October 30th, 2015 Written by : Approved by : Jonathan PAUC Anthony MERLIN Tests operator Technical manager TEST REPORT N°832764-R3-E Page 2/28 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ..................................................................................................... 4 3. RADIATED EMISSION DATA ............................................................................................................. 7 4. BANDWIDTH (15.247) ...................................................................................................................... 11 5. MAXIMUM PEAK OUTPUT POWER (15.247) .................................................................................. 13 6. POWER SPECTRAL DENSITY (15.247) .......................................................................................... 16 7. BAND EDGE MEASUREMENT (15.247) .......................................................................................... 18 8. OCCUPIED BANDWIDTH ................................................................................................................. 22 9. ANNEX 1 (GRAPHS) ........................................................................................................................ 24 10. UNCERTAINTIES CHART ................................................................................................................ 28 TEST REPORT N°832764-R3-E Page 3/28 1. TEST PROGRAM Standard: - FCC Part 15, Subpart C 15.247 - ANSI C63.4 (2014) / ANSI C63.10 (2013) - RSS-247 Ed 1.0– Mai 2015 - RSS-Gen Issue 4 – Nov 2014 - 558074 D01 DTS Measurement Guidance v03r03 EMISSION TEST LIMITS RESULTS Limits for conducted disturbance at mains ports 150kHz-30MHz Frequency Quasi-peak value (dBμV) Average value (dBμV)  PASS  FAIL  NA  NP 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 5-30MHz 60 50 Radiated emissions 9kHz-30MHz CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-247 §5.5 Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m  PASS  FAIL  NA  NP Radiated emissions 30MHz-25GHz* CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-247 §5.5 Highest frequency : <108MHz (Declaration of provider) Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m  PASS  FAIL  NA  NP Bandwidth 6dB CFR 47 §15.247 (a) (2) RSS-247 §5.2.1 At least 500kHz  PASS  FAIL  NA  NP Power spectral Density CFR 47 §15.247 (e) RSS-247 §5.2.2 Limit: 30dBm Conducted or Radiated measurement  PASS  FAIL  NA  NP Maximum Peak Output Power CFR 47 §15.247 (b) RSS-247 §5.4.4 Limit: -20dBc or Radiated emissions limits in restricted bands  PASS  FAIL  NA  NP Band Edge Measurement CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-247 §5.5 Limit: 8dBm/3kHz  PASS  FAIL  NA  NP Occupied bandwidth RSS-Gen §4.6.1 No limit  PASS  FAIL  NA  NP Receiver Spurious Emission** RSS-Gen §4.10 See RSS-Gen §4.10  PASS  FAIL  NA  NP *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until 2GHz. - If the highest frequency of the internal sources of the testing device ranges between 500 MHz and 1 GHz, measurement must be only performed until 5GHz. If the highest frequency of the internal sources of the testing device is above 1 GHz, measurement must be only performed until 5 times the highest frequency or 40 GHz, while taking smallest of both. TEST REPORT N°832764-R3-E Page 4/28 2. SYSTEM TEST CONFIGURATION 2.1. HARDWARE IDENTIFICATION (EUT AND AUXILIARIES): Equipment under test (EUT): PAL2A Serial Number: None Photography of EUT Power supply: During all the tests, EUT is supplied by V nom : 3.6VDC For measurement with different voltage, it will be presented in test method. Name Type Rating Reference / Sn Comments Supply1  AC  DC  Battery 3.6V 6Ah Lithium 1S1P NCA103450 / Inputs/outputs - Cable: Access Type Length used (m) Declared <3m Shielded Under test Comments None Auxiliary equipment used during test: Type Reference Sn Comments Gateway Ethernet / Zigbee HIKOB GATEWAY BA:DB:0B:01:13/00:11:7B / Notebook computer W310CZ NKW310CZ0003K01978 / Antenna Extronics iANT212 133297 / Isolator Extronics ISOLATE500-2400 127026 / TEST REPORT N°832764-R3-E Page 5/28 Equipment information: Type: DTS Frequency band: [2400 – 2483.5] MHz Sub-band REC7003: Annex 3 (a) Spectrum Modulation:  DSSS Number of Channel: 15 Spacing channel: 5MHz Channel bandwidth…

Text truncated - open the document above for the full version.

Page 1/1 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE CONDUCTED AND RADIATED MEASUREMENT PHOTO FCCID: 2AFCS-PAL20 1.1 Radiated emissions Position XY Position Z Above 1GHz setup Test setup in anechoic chamber
