2AFH7TP2A1TPMS Sensor

User Manual 1、Sensor Overview The sensors use a tire pressure monitoring system (TPMS), to form a system with the car's tire pressure receiving unit, you need to install the tire wheels. 2. Instructions for use In stationary mode, the pressure and acceleration are measured about every 8 second and emission of RF frames occurs only if pressure variation, higher than a threshold, is detected (leakage detection). When the vehicle starts moving, the Tire Guard transmitter enters the driving mode. Then the wheel unit measures and transmits data every 60 seconds. If, during any measurement period in driving mode, the pressure leakage is detected (difference compared to the last transmitted pressure value), a alarm signal will occur taking in account the latest pressure value emitted as reference value. If the pressure continues changing, an additional transmission will be sent. 3. Technical Description Carrier frequency: 433.92 MHz Number of channels: 1 Method of frequency generation: PLL Type of modulation: ASK or FSK Rated Output Power: < 10 mW Antenna: Internal Voltage supply: Lithium battery 3V Voltage supply range : 2.1V up to 3.3V 4. Warning Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

QA-FR-170-B HAMATON AUTOMOTIVE TECHNOLOGY CO., LTD 12 East Zhenxing Road, Linping, Yuhang, Hangzhou, China Tel: 86-571-86159905 Fax: 86-571-86159905 FCC Authorization Date: 2015-7-28 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, HAMATON AUTOMOTIVE TECHNOLOGY CO., LTD, the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Ye Jigai Test engineer

QA-FR-171-A HAMATON AUTOMOTIVE TECHNOLOGY CO., LTD 12 East Zhenxing Road, Linping, Yuhang, Hangzhou, China Tel: 86-571-86159905 Fax: 86-571-86159905 FCC Confidential Authorization Date：2015-7-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AFH7TP2A1 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, HAMATON AUTOMOTIVE TECHNOLOGY CO., LTD Wireless Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics  Circuit Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Ye Jigai Test engineer

HAMATON AUTOMOTIVE TECHNOLOGY CO., LTD Add: 12 East Zhenxing Road, Linping, Yuhang, Hangzhou, China Tel: 0571‐86159906 Fax: 0571‐86159905 DECLARATION OF SIMILARITY Date : 2014-8-18 Dear Sir or Madam: We, HAMATON AUTOMOTIVE TECHNOLOGY CO., LTD, hereby declare that product: TPMS SENSOR, model: T-PRO1、T-PRO2、EU-PRO、U-PRO、DVT-1003A、DVT-1003B、PRO-1003A、PRO-1003B、97358、97359、 72-020-X is e lectrically i dentical wit h t he sam e elec tromagnetic e missions a nd ele ctromagnetic c ompatibility characteristics as model name: T-PRO1 that was tested by BACL, the results of which are featured in BACL project. A description of the differences between the tested model and those that are declared similar are as follows: T-PRO1、T-PRO2、EU-PRO、U-PRO、DVT-1003A、DVT-1003B、PRO-1003A、PRO-1003B、97358、97359、 72-020-X, are using different name and may use different housing color and assemble with different valves. Please contact me should there be need for any additional clarification or information. Best Regards, Ye J igai Test engineer

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT - Front View EUT - Back View

Made in China Made in China TPMS Sensor Model:T-PRO1 FCC ID:2AFH7TP2A1 IC:20466-TP2A1 TPMS Sensor Model:T-PRO2 FCC ID:2AFH7TP2A1 IC:20466-TP2A1 Made in China Made in China Model:EU-PRO FCC ID:2AFH7TP2A1 IC:20466-TP2A1 TPMS Sensor TPMS Sensor Model:U-PRO FCC ID:2AFH7TP2A1 IC:20466-TP2A1 Made in ChinaMade in China FCC ID:2AFH7TP2A1 IC:20466-TP2A1 TPMS Sensor Model:72-020-X FCC ID:2AFH7TP2A1 TPMS Sensor Model:97359 TPMS Sensor Model:DVT-1003B FCC ID:2AFH7TP2A1 IC:20466-TP2A1 TPMS Sensor Model:PRO-1003A Made in China Made in China Made in ChinaMade in China Made in China IC:20466-TP2A1 TPMS Sensor Model:DVT-1003A FCC ID:2AFH7TP2A1 IC:20466-TP2A1 FCC ID:2AFH7TP2A1 IC:20466-TP2A1 TPMS Sensor Model:PRO-1003B FCC ID:2AFH7TP2A1 IC:20466-TP2A1 TPMS Sensor Model:97358 FCC ID:2AFH7TP2A1 IC:20466-TP2A1

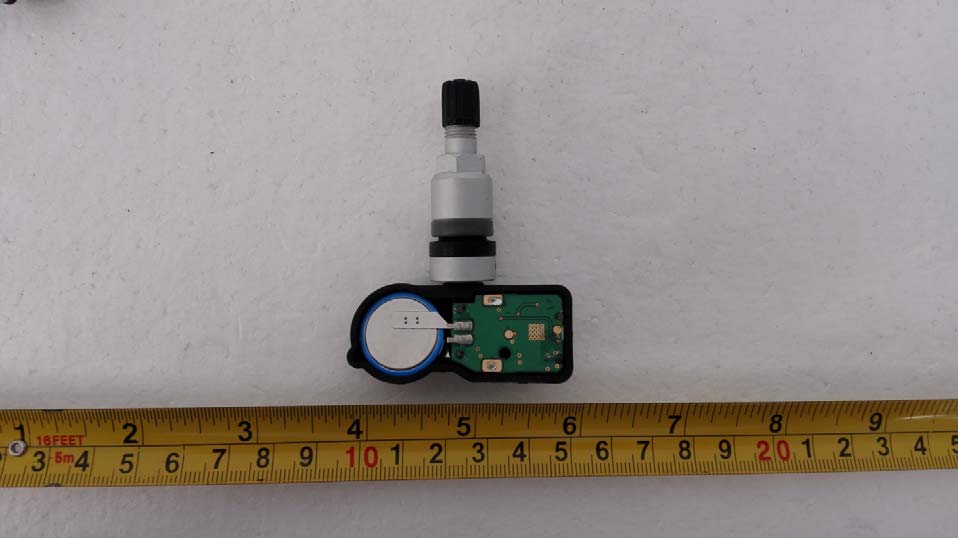

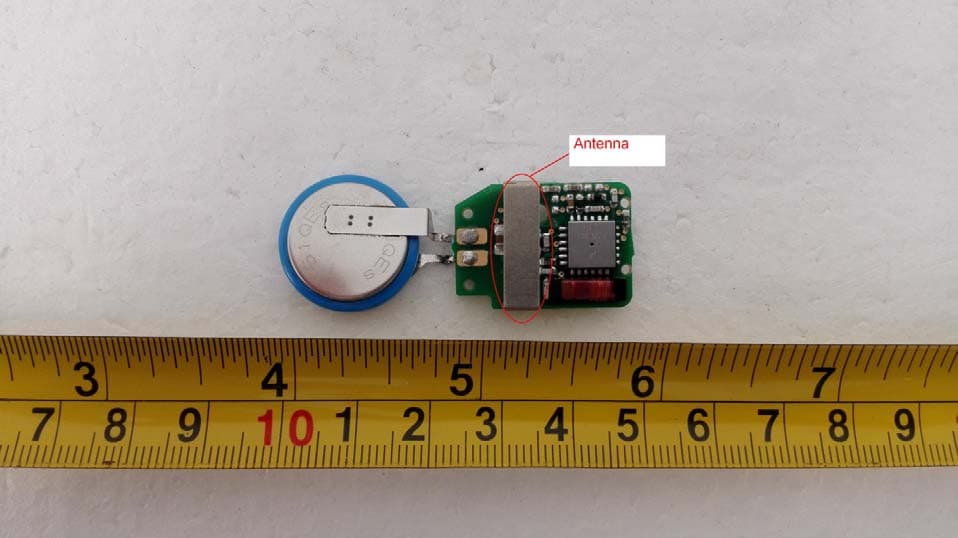

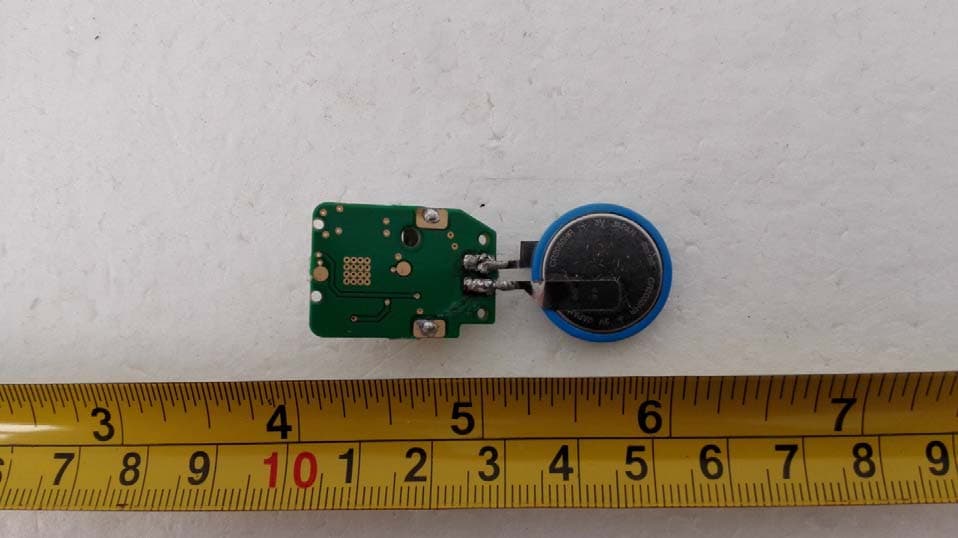

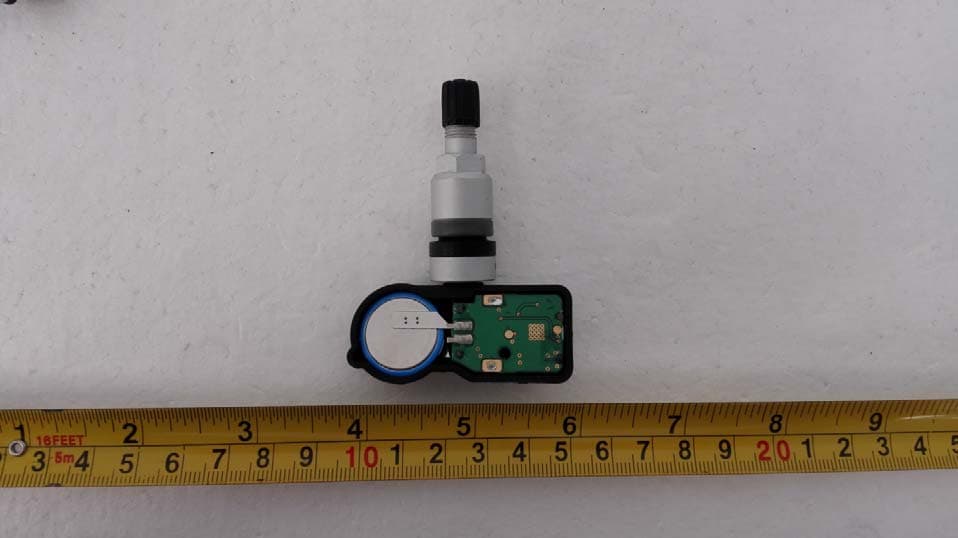

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Mainboard Top View EUT –Mainboard Bottom View

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.231 TEST REPORT For HAMATON AUTOMOTIVE TECHNOLOGY CO., LTD 12 East Zhenxing Road, Linping, Yuhang, Hangzhou, Zhejiang, China FCC ID：2AFH7TP2A1 Report Type: Original Report Product Type: TPMS Sensor Test Engineer: Matt Yao Report Number: RKS150804001-00B Report Date: 2015-08-28 Reviewed By: Jesse Huang EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) Chenghu Road,Kunshan Development Zone No.248,Kunshan, Jiangsu, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKS150804001-00B FCC Part 15.231 Page 2 of 18 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTED CONSTRUCTION ...................................................................................................................... 7 FCC §15.205, §15.209, §15.231 (E) - RADIATED EMISSIONS TEST .................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY .................................................................................................................................... 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP ......................................................................................................................................... 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST PROCEDURE ........................................................................................................................................................ 9 APPLICABLE STANDARD ............................................................................................................................................ 10 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 10 TEST RESULTS SUMMARY .......................................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 §15.231(C) - 20DB BANDWIDTH TESTING ........................................................................................................... 14 REQUIREMENT ........................................................................................................................................................... 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.231(E) - DEACTIVATION TESTING ...................................................................................................... 16 APPLICAB…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions Below 1GHz Above 1GHz
