2AFHPBR-C8Bluetooth Car Kit

4.1 Thank you for choosing Aukey BR-C8 Bluetooth car kit. Please read the user - 01 -- 02 -- 03 -- 04 -- 05 -- 06 - Introduction manual carefully and save it for future reference. If you need assistance, please contact Aukey support by email to [email protected] with details. Package Content ● 1 x Aukey BR-C8 Wireless Portable Car Audio Receiver ● 1 x Dual Port USB Car Charger ● 1 x Extra sticky gel pad ● 1 x User Manual Specifications Standard Supported Profiles Operation Range A2DP, AVRCP 33 ft / 10m Product Overview 1. Multi-function Button 2. Mic 3. Previous Track 4. Next Track 5. LED Indicator 6. Sticky Gel Pad 7. 3.5 mm Audio Output 8. USB power connector Getting Started Setting up the receiver 1. Place the receiver at desired location using the sticky gel pad. 2. Plug the car charger into your cigarette lighter and power the receiver using the USB connector. 3. Connect the receiver to your car stereo AUX port using the 3.5 mm connector. Power on/off Connect the receiver power to the cigarette lighter charger. The unit automatically power on when you start your vehicle engine and automatically power off when you turn off your vehicle. You can manually power off the receiver by disconnect the USB from the charger. Note: When the receiver is turned on, you can manually turn off the receiver by pressing and holding the multi-function for 5 seconds. If you want to restart the receiver, press and hold the multi-function for 3 seconds. Pairing to new device 1. When you start your vehicle, the receiver will automatically turn on 2. If you have not paired the receiver with any device, it will automatically go into pairing mode with white White LED flashing 3. Bring your device into pairing mode and search for connection 4. “Aukey BR-C8” should appear in the search result 5. Tap on the name to connect 6. Once pairing is successful, the white LED will stay on Note: 1. If a code or pin is required for pairing, please enter “0000”. 2. The receiver will stay in pairing mode for 10 minutes at most if no pairing device is found. Afterwards, it will power off automatically. If you want to restart the receiver, press and hold the multi-function for 3 minutes. 3. When the receiver is successfully connected with one device, simultaneously press and hold the << and >> button for 2 seconds, the receiver will switch to pairing mode. Pairing with connected devices If you have successfully paired the receiver with your device previously, simply bring your device into pairing mode. The receiver will pair to your device by itself. Streaming music Play/Pause Next / Previous Track Press the multi-function button once Press the <<or >> button once Calls Control The receiver has a built-in microphone for making/answering phone calls. Answer a call End a call Redial last number Reject an incoming call Mute / Resume a call Voice Switching Press the multi-function button once Press the multi-function button once Long press the >> button for 2 seconds Press and hold the multi-function button for 2 seconds During a call, press and hold the << button for 2 seconds During a call, Press and hold the multi-function button for 2 seconds to switch between the receiver and your phone for talking FAQ Q: The receiver does not turn on after starting my car. ● Make sure the USB cable is plugged into the car charger ● Make sure the car charger is connected to cigarette lighter Q: I am having trouble pairing and connecting to my device ● Make sure your device supports A2DP ● Check if the receiver is in pairing mode (white LED flashing) ● Take your device closer to the receiver and make sure your device is into paring mode. ● If your device is asking for a “PIN” or “Code”, please enter “0000” Q: I cannot hear any music from my sound system. ● Make sure the receiver is connected well with your car audio system via AUX input ● Check your sound system settings to ensure that you have selected “AUX” or “Line-in” setting ● Volume is at an audible level on both your audio device and on your sound system ● Please check your audio device is playing music through connection Q: The music sometimes cuts off while playing. ● Make sure your phone/music player is in direct line of sight from the receiver. Q: There is a delay in the music. ● A variable delay exists between when the music is played on your device and when you hear the sound from speakers. This is completely normal. Q: Can I power the receiver using another charger/power source? ● We recommend using the car charger inside the package to power the receiver. However, you can still use another charger / USB power source to power the receiver. Care and Maintenance ● For driving safety, we recommend place the receiver at a convenient spot where you can reach easily with your arm. ● Avoid placing the receiver in high temperature areas ● Do not use chemicals or detergents to clean the product Warranty We warrant this device for 24 MONTHS from date of the original purchase. If the device fails due to a manufacturing defect, please contact Aukey support by emailing to [email protected] with your purchase order ID and details of the problem. If you have purchased the product from a seller other than Aukey, please contact your seller for warranty cover. Contact For additional assistance or warranty cover claim, please contact us: E-mail: [email protected] (all enquires) Website: www.aukey.com Wireless Portable Car Audio Receiver AUKEY INTERNATIONAL LIMITED Web: www.aukey.com E-mail: [email protected] Add: No.102, Building P09, Electronic Trade Center Huanan City, Pinghu Town, Longgang District Shenzhen, Guangdong 518111 CN Instruction Manual Note You can't adjust the volume from the receiver when streaming music and answering a call. Please adjust the volume from your mobile phone or car audio system directly. Aukey BR-C8 FCC ID:2AFHPBR-C8 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/27/2015 Request for Confidentiality Company name: Shenzhen Aukey E Business Co., Ltd. FCC ID: 2AFHPBR-C8 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Shenzhen Aukey E Business Co., Ltd. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) parts lists. (3)block diagrams (4)operational description These documents contain detailed system and equipment description and related information about the product which Shenzhen Aukey E Business Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Shenzhen Aukey E Business Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Company Officer: Lina Shen Company address： Room 102, Bld P09, Huanan International Printing Paper Packing Logistics Zone, No.1 Huanan Rd, Pinghu Town, Longgang District ,Shenzhen City, Guangdong Province, 51800, China Email: [email protected]

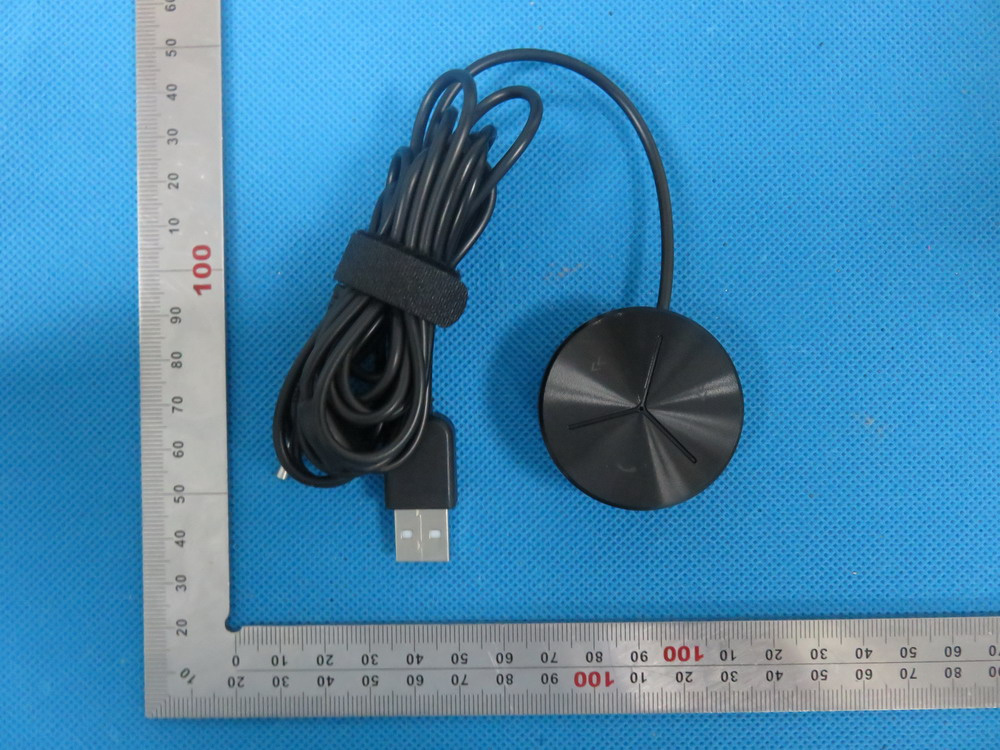

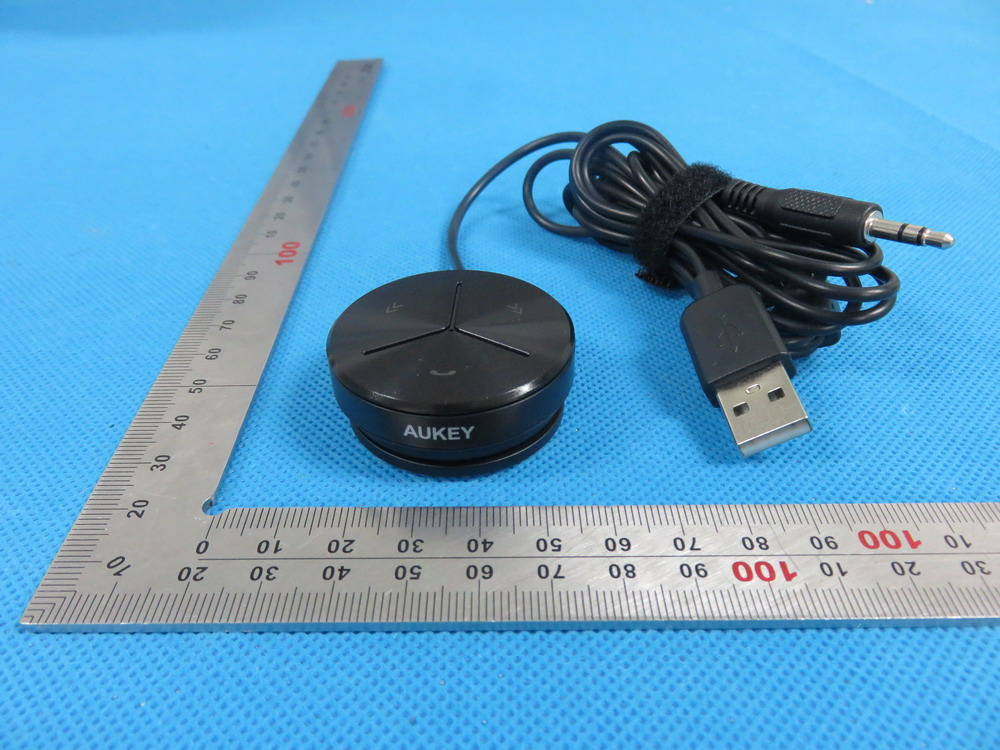

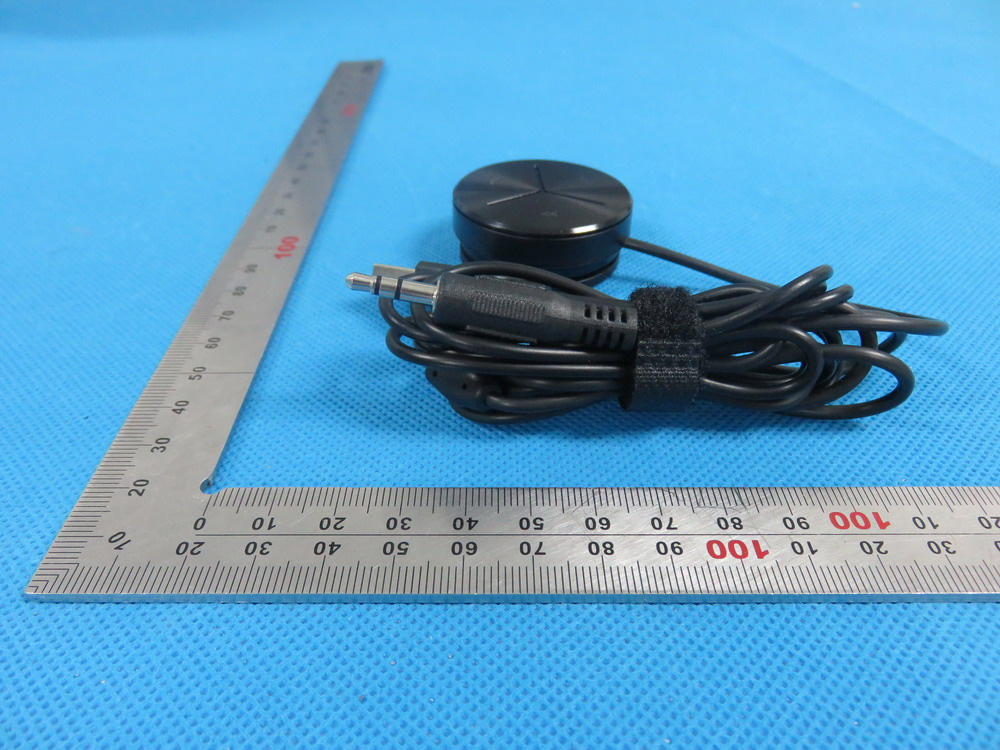

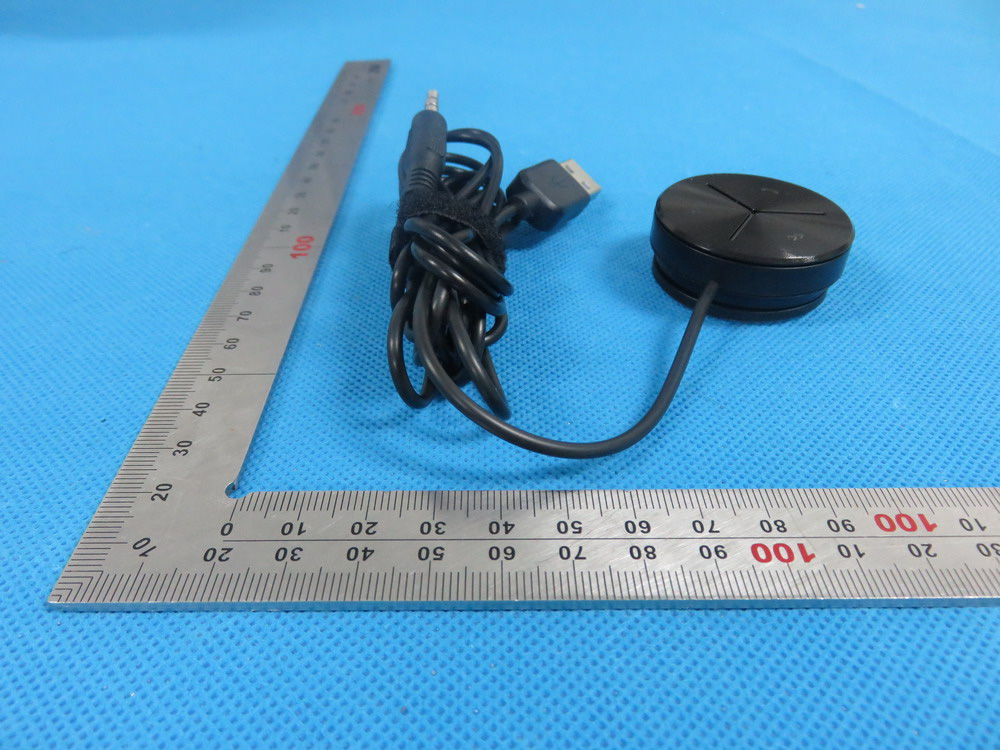

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AFHPBR‐C8 Aukey BR-C8 Label size: 2cm*0.5cm

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

RF Exposure evaluation Product Description:Bluetooth Car Kit Model Number: Aukey BR-C8 FCC ID: 2AFHPBR-C8 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=97.16dBuv/m=0.072V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.072x3) 2 /(30x1)=0.001555W=1.56mW The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz -1.56mW output power] (1.56mW /5mm) .[√2.441(GHz)]= 0.487<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 72 FCC Test Report Report No.: AGC04844150801FE03 FCC ID : 2AFHPBR-C8 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Car Kit BRAND NAME : Aukey MODEL NAME : Aukey BR-C8 CLIENT : Shenzhen Aukey E Business Co., Ltd. DATE OF ISSUE : Aug.20,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04844150801FE03 Page 2 of 72 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug.20,2015 Valid Original Report Report No.: AGC04844150801FE03 Page 3 of 72 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.2. MEASUREMENT PROCEDURE ................................................................................................ 11 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT ............................................................................................................................ 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE ................................................................................................ 41 9.2 TEST SETUP ............................................................................................................................... 41 9.3 RADIATED TEST RESULT .......................................................................................................... 42 10. 20DB BANDWIDTH .......................................................................................................... 50 10.1. MEASUREMENT PROCEDURE .............................................................................................. 50 10.2. TEST SET-UP ........................................................................................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 59 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 59 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 59 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 60 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 60 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 61 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 65 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 67 Report No.: AGC04844150801FE03 Page 4 of 72 1. VERIFICATION OF CONFORMITY Applicant Shenzhen Aukey E Business Co., Ltd. Address Room 102, Bld P09, Huanan International Printing Paper Packing Logistics Zone, No.1 Huanan Rd, Pinghu Town, Longgang District ,Shenzhen City, Guangdong Province, 51800, China Manufacturer SHENZHEN SURE THING INDUSTRY AND COMMERCE DEVELOPMENT CO., LTD. Address 2-3F, Building A, Fuxinlin Industrial Park, Hangcheng Industrial Area, Xixiang Town, Baoan District, Shenzhen Product Designation Bluetooth Car Kit Brand Name Aukey Test Model Aukey BR-C8 Date of test Aug.17,2015 to Aug.19,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part…

Text truncated - open the document above for the full version.

Test Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
