2AFJR-DOWINBZ001RF RADIO EMITTER FOR DP LUMINOUS BUZZ C1

DP LUMINOUS BUZZ (2034414) - Instruction for user 1 set: UK EU US LED charging indicator: Red: charging Green: fully charged Autonomy: 8 hours Char ging time: 6 hours Once you press on the shield, all items connected to the plugs lights up. WARNING: TECHNICAL DATA: - Not intended for use in play by children - Lithium battery - Please do not put in water - Life time: 500 charging - Do not store in a too hot or too humid place - CE agreement - Keep away from fire - Battery can’t be replaced RF radio distance: 30 meter Lighting Lighting Lighting LightingLightingLightingLightingLighting PUSH PUSH “GREEN/PINK/OFF” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference. (2) this device must accept any interferencereceived, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: □ Reorient or relocate the receiving antenna. □ Increase the separation between the equipment and receiver. □ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. □ Consult the dealer or an experienced radio/TV technician for help.

Block Diagram RF T RF TRF T RF Transmit ransmitransmit ransmit Block Diagram Block DiagramBlock Diagram Block Diagram MCU SN2711 OSC：16MHZ BATTER LED INDICATOR RF Transmit OSC: 433.92MHZ KEY 433．92MHZ Signal from U2 (SN2711) Q1 R25 Antenna 433.92MHz SW 433.92MHZ Power 3.6V

SIZE:105x68mm This device complies with Part 15 of theFCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. DooGooD Model No.: 2034414 RF Radio Emitter For DP Luminous Buzz C1 INPUT: 6VDC 1A Max.6W CONFORMS TO UL STD. 153 CERTIFIED TO CSA STD. C22.2 NO.12 CAUTION,RISK OF ELECTRIC SHOCK Non replaceable LED light sources 09/2015 MADE IN CHINA FCC ID: 2AFJR-DOWINBZ001 2015-08-19 This device complies with Part 15 of theFCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. DooGooD Model No.: 2034414 RF Radio Emitter For DP Luminous Buzz C1 INPUT: 6VDC 1A Max.6W CONFORMS TO UL STD. 153 CERTIFIED TO CSA STD. C22.2 NO.12 CAUTION,RISK OF ELECTRIC SHOCK Non replaceable LED light sources 09/2015 MADE IN CHINAFCC ID: 2AFJR-DOWINBZ001

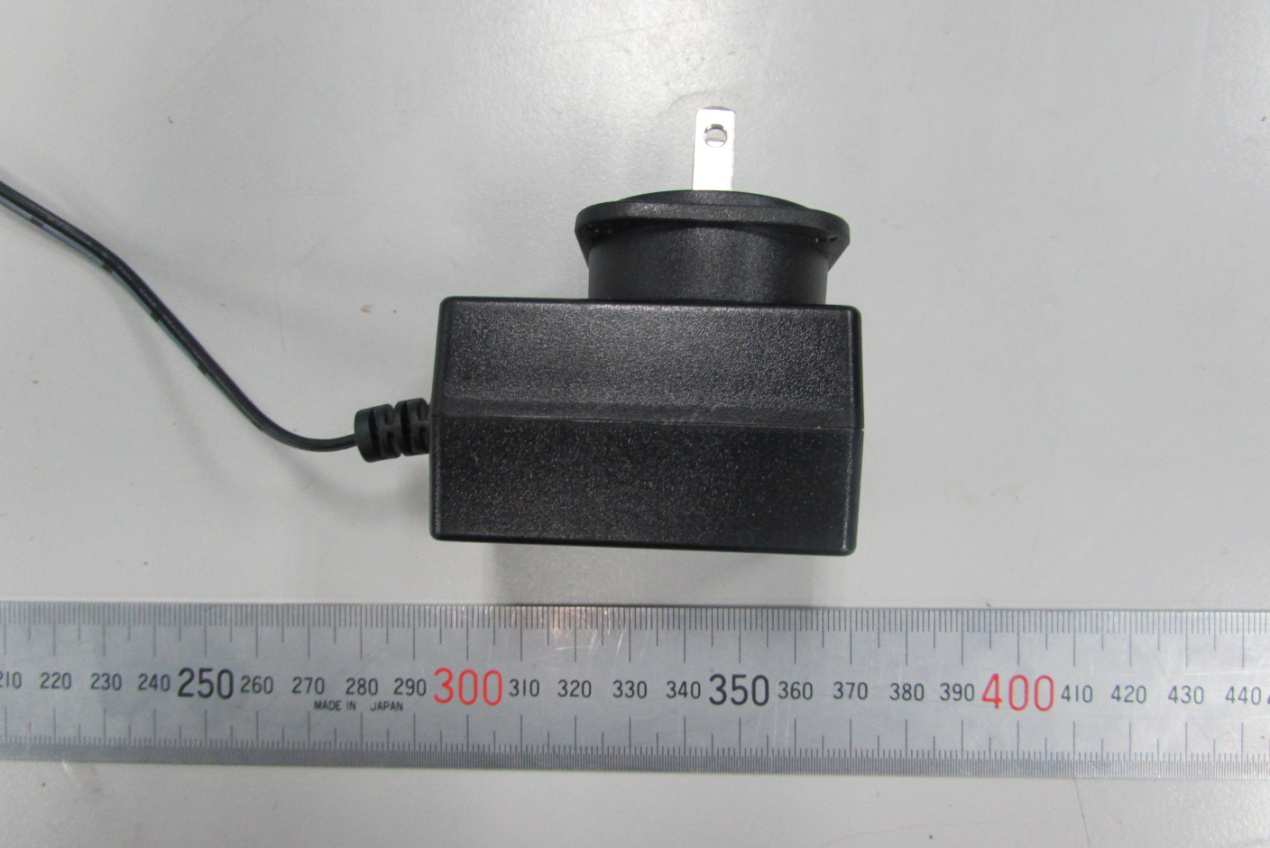

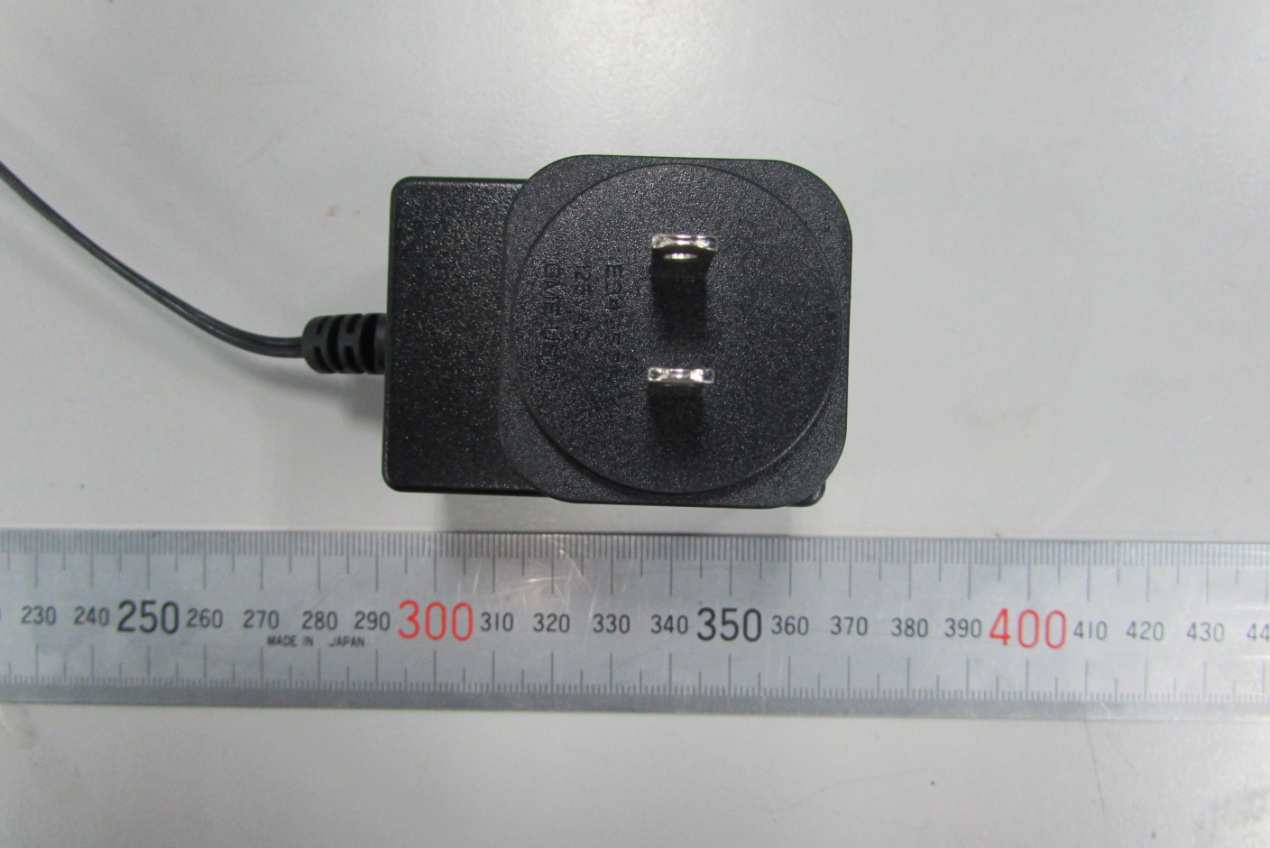

Internal view Internal view Remove battery Main PCB View Main PCB view remove RF Module Other side view of main PCB RF Module view Other side of RF Module view Adapter internal view Adapter PCB View

Circuit Description： ：： ： Part1: Antenna, Transmit the 433MHz signal Part2： High frequency module, Modulate the signal and sent to the antenna. The modulation type is ASK. The SW 433.92 provided oscillating frequency, the Q1 doing modulation. L3, L4, L5 C8, C9, C10 were the filter components. Part3：Key control)，S1: (Control emission)。S3：ON/OFF Part4：MCU Control, Part5：LED Display Part6：Battery charge Part7：Li-on battery Part8：charge induction: RED: is charging; GREEN: full charge

A B C DD C B A 1 2 3 J1 DC6V DS1 RED DS2 GREEN 3.6V BT1 3.6V R3 3.3K 3.6V TEMP 1 PROG 2 GND 3 VCC 4 BAT 5 /STDBY 6 /CHRG 7 CE 8 U1 AP5057 R22 510R D24 LED1 R19 22R D23 LED1 R18 22R C4 10uF R5 1K R4 1K S3ONOFF P2.2 1 P2.1 2 P2.0 3 VDD 4 XIN/P1.3 5 XOUT/P1.2 6 VPP/RST/P1.1 7 P5.4/PWM0/BZ0 8 P1.0 9 P0.0/INT0 10 VSS 11 P2.5 12 P2.4 13 P2.3 14 U2 S1 KEY R2 100K R1 100K 3.6V Q4 S8050 Q8 ST2300 R17 10k R20 510R D24 LED1 R16 22R D23 LED1 R17 22R 3.6V Q3 S8050 Q7 ST2300 R15 10k R14 510R D24 LED1 R50 10R D23 LED1 R11 47R 3.6V Q2 S8050 Q6 ST2300 R16 10k R12 510R D24 LED1 R7 75R D23 LED1 R8 75R 3.6V Q1 S8050 Q5 ST2300 R13 10k R3A 3.3K TEMP 1 PROG 2 GND 3 VCC 4 BAT 5 /STDBY 6 /CHRG 7 CE 8 U1A AP5057 R2A 100K R1A 100K D1 SS14 C1 102PF C2 120PF C3 5P C4 25P C5 20P C6 10P C7 2P C8 20P C9 22P C10 47P C11 100P C12 103P R23 15K R24 24K R25 RES1 SW 433.92MHZ Q1 R25 L1 27NH L3 10nH L4 20nH L5 22nH 3.6V L2 39NH R26 RES1 E1 433.92MHZ 充电控制部分 SN2711

Report No.: 150511029GZU-001 Issued: 2015-8-05 FCC ID: 2AFJR-DOWINBZ001 Page 1 of 25 TEST REPORT Applicant Name & Address : DooGooD 49 rue de Sèvres – 92100 BOULOGNE France Sample Description Product : RF RADIO EMITTER FOR DP LUMINOUS BUZZ C1 FCC ID : 2AFJR-DOWINBZ001 Model No. : 2034414 Electrical Rating : For adapter: 100-240V 50/60Hz For battery: DC 6V, 1A, Max 6w Frequency : 433.92MHz Date Received : 11 May 2015 Date Test Conducted : 11 May 2015 – 7 July 2015 Test standards : 47 CFR PART 15 Subpart C: 2014 section 15.231 Test Result : Pass Conclusion : The submitted samples complied with the above rules/standards. Remark : None. ***************************************End of Page*************************************** Prepared and Checked By: Approved By: _______________________ Signature Sky Zhu Helen Ma Engineer Team Leader Intertek Guangzhou Intertek Guangzhou 05 August 2015 Date This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. The test report only allows to be revised within three years from its original issued date unless further standard or the requirement was noticed. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Block E, No.7-2 Guang Dong Software Science Park, Caipin Road, Guangzhou Science City, GETDD Guangzhou, China Tel / Fax: 86-20-8213 9688/86-20-3205 7538 Report No.: 150511029GZU-001 Issued: 2015-8-05 FCC ID: 2AFJR-DOWINBZ001 Page 2 of 25 CONTENT TEST REPORT ........................................................................................................................................................... 1 CONTENT ................................................................................................................................................................... 2 1.0 Summary of Test ............................................................................................................................................ 3 2.0 General Description ....................................................................................................................................... 4 2.1 Product Description ........................................................................................................................ 4 2.3 Test Methodology ........................................................................................................................... 5 2.4 Test Facility .................................................................................................................................... 5 3.0 System Test Configuration ............................................................................................................................. 6 3.1 Justification .................................................................................................................................... 6 3.2 EUT Exercising Software ............................................................................................................... 7 3.3 Special Accessories ......................................................................................................................... 7 3.4 Measurement Uncertainty ............................................................................................................... 7 3.5 Equipment Modification ................................................................................................................. 7 3.6 Support Equipment List and Description ........................................................................................ 7 4.0 Measurement Results ..................................................................................................................................... 8 4.1 Antenna Requirement: .................................................................................................................... 8 4.2 Radiated Emissions......................................................................................................................... 9 4.3 Occupied Bandwidth .................................................................................................................... 17 4.4 Dwell Time: .................................................................................................................................. 19 4.5 Conducted Emission Test ............................................................................................................. 21 4.5.1. Block Diagram of Test Setup ....................................................................................................... 21 4.5.2. Test Setup and Procedure ............................................................................................................. 21 4.5.3. Limit ............................................................................................................................................. 22 4.5.4. Test Data ...................................................................................................................................... 23 4.5.5. Emission Curve.....................................................................................................…
