2AFK7-VP4501ISmartphone

FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: VP4501I (FCC ID: 2AFK7-VP4501I) has also been tested against this SAR limit. The highest SAR value reported under this standard during productcertification for use at the ear is 0.374 W/kg and when properly worn on the body is 1.147 W/kg. This device was tested for typical body-worn operations with the back of the handset kept 1.0 cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.0 cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Bluebank Communication Technology Co.Ltd. 2015-08-17 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____ Bluebank Communication Technology Co.Ltd..__ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Smartphone Trade Name： VULCAN Model Name： VP4501I Serial Model： N/A FCC ID：2AFK7-VP4501I Sincerely, Signature Client’s name / title :han ting / Director of Operations Contact information / address : No. 13-2, Jiang Ying Road, Nan An District, Chongqing, P.R. China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Bluebank Communication Technology Co.Ltd. 2015-08-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AFK7-VP4501I We hereby request confidential treatment of information accompanying this application as outlined below: - . Block Diagram - Schematics - Operational Description - - BOM - - tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Client’s name / title :han ting / Director of Operations Contact information / address : No. 13-2, Jiang Ying Road, Nan An District, Chongqing, P.R. China

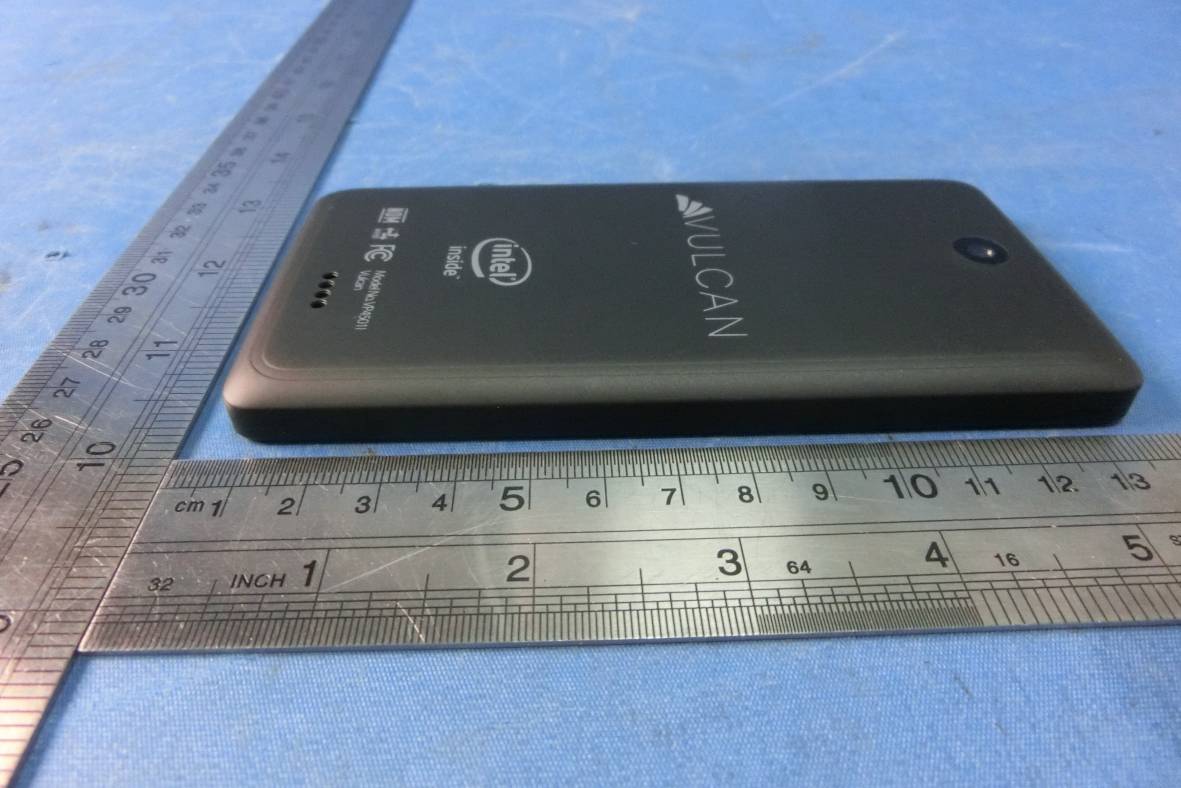

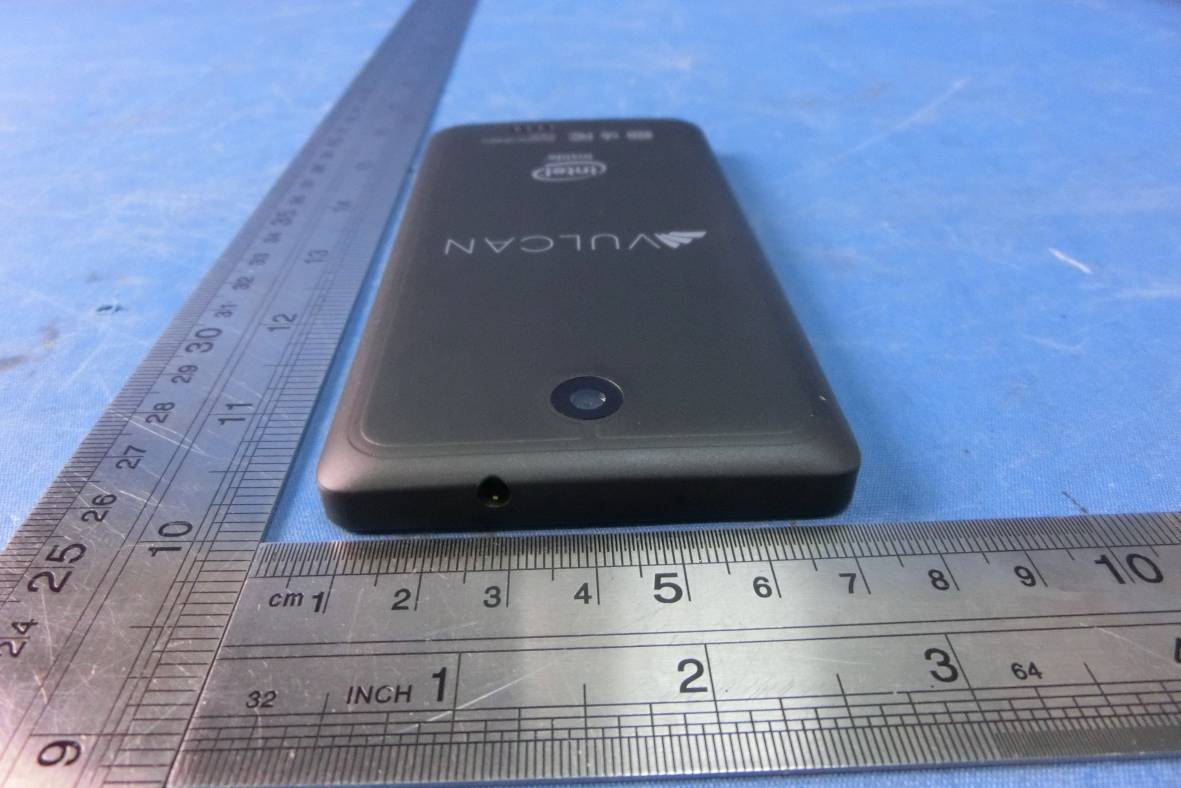

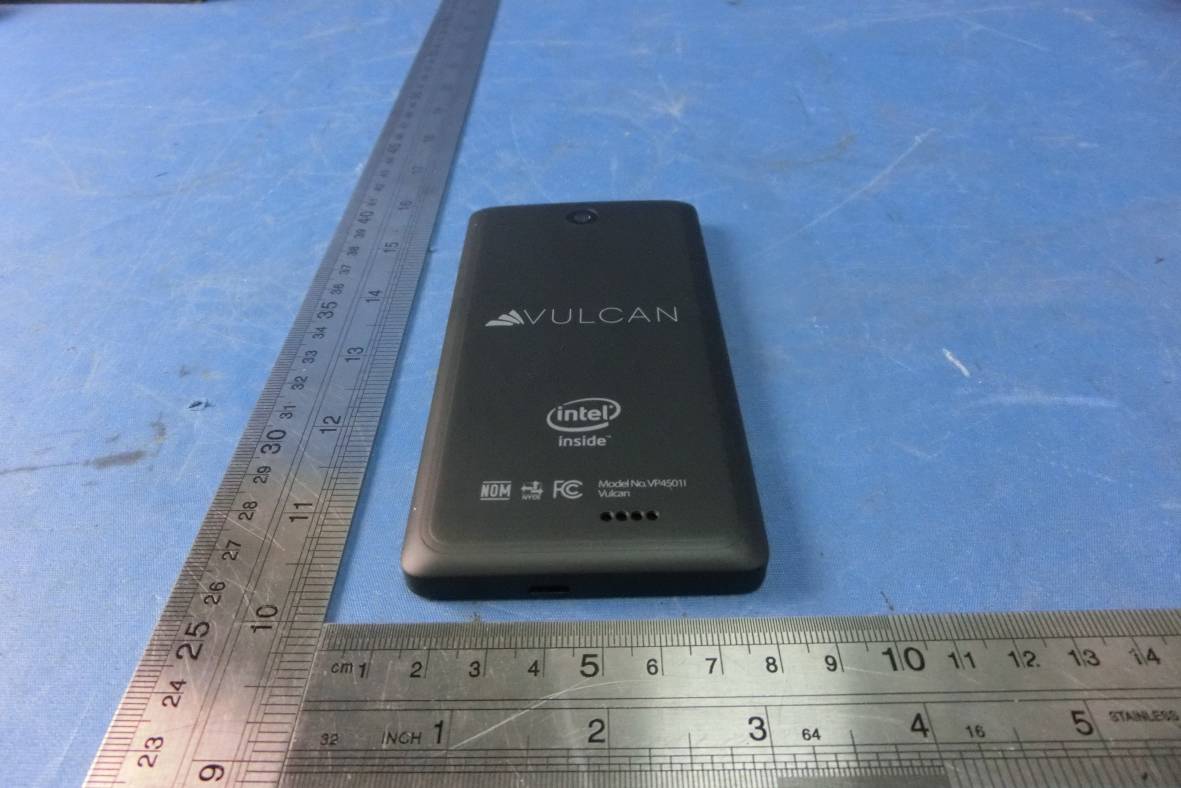

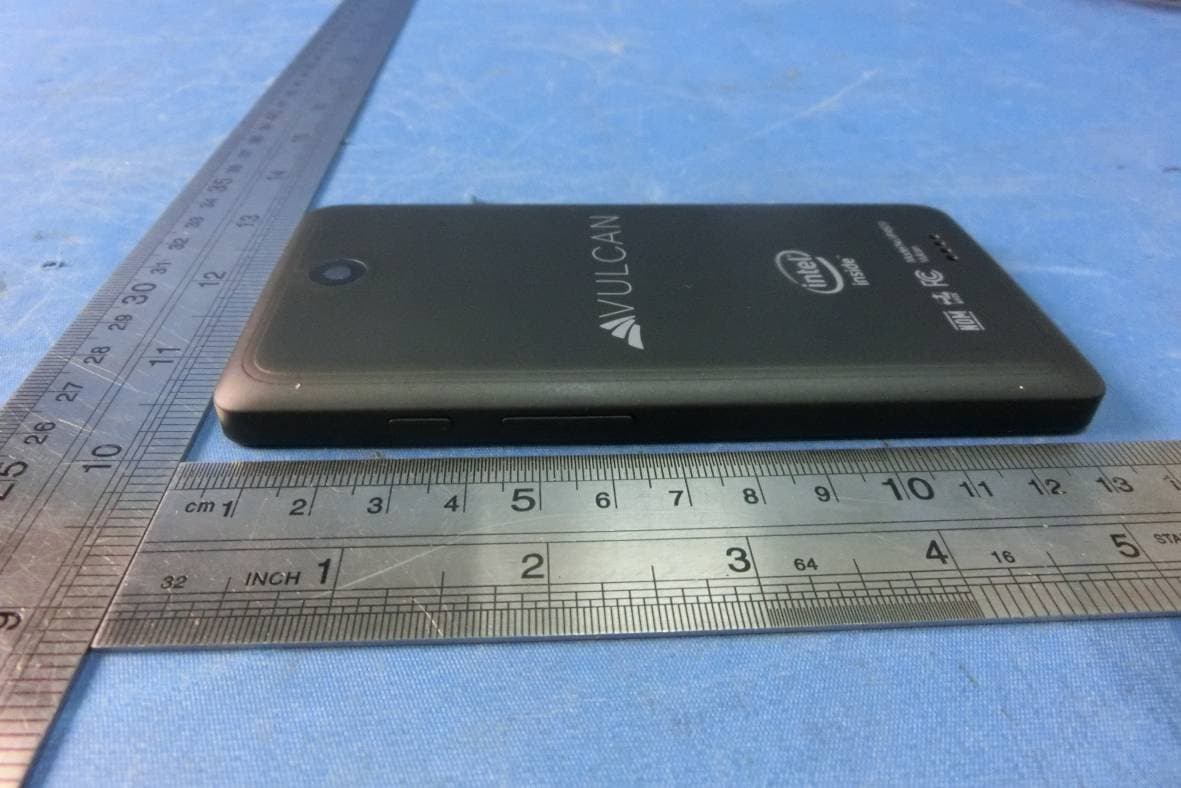

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 \ Photo 7

FCC ID LABELING AND LOCATION FCC ID Label Smartphone Model NO.: VP4501I FCC ID: 2AFK7-VP4501I Bluebank Communication Technology Co.Ltd. Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 2G/3G ANT WIFI/BT ANT Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

Compliance Certification Services Inc. Date of Issue: August 20, 2015 FCC ID: 2AFK7-VP4501IV Report No .: C150731S01-SF Page 1 of 99 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62；FCC 47 CFR Part 2 ( 2.1093) FCC SAR TEST REPORT For Product Name: Smartphone Brand Name: VULCAN Model No.: VP4501I Series Model: N/A Test Report Number: C150731S01-SF Issued for Bluebank Communication Technology Co.Ltd No. 13-2, Jiang Ying Road, Nan An District, Chongqing, P.R. China Issued by Compliance Certification Services Inc. Kun Shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Date of Issue: August 20, 2015 FCC ID: 2AFK7-VP4501IV Report No .: C150731S01-SF Page 2 of 99 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Revision REPORT NO. Date Page Revised Contents Original C150731S01-SF August 20, 2015 N/A N/A Compliance Certification Services Inc. Date of Issue: August 20, 2015 FCC ID: 2AFK7-VP4501IV Report No .: C150731S01-SF Page 3 of 99 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................... 4 2. EUT DESCRIPTION....................................................................................................................5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................ 6 4. TEST METHODOLOGY.............................................................................................................. 6 5. TEST CONFIGURATION ............................................................................................................ 6 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................ 7 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................8 6.2 SYSTEM COMPONENTS...............................................................................................................................9 7. EVALUATION PROCEDURES ................................................................................................. 12 8. MEASUREMENT UNCERTAINTY............................................................................................ 16 9. EXPOSURE LIMIT .................................................................................................................... 17 10. EUT ARRANGEMENT .............................................................................................................. 18 10.1 ANTHROPOMORPHIC HEAD PHANTOM .................................................................................................18 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................19 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................20 11. MEASUREMENT RESULTS..................................................................................................... 21 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................21 11.2 LIQUID MEASUREMENT RESULTS ..........................................................................................................22 11.3 SYSTEM PERFORMANCE CHECK...........................................................................................................23 11.4 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................26 11.5 SAR TEST CONFIGURATIONS..................................................................................................................32 11.6 ANTENNA POSITION .................................................................................................................................33 11.7 EUT SETUP PHOTOS ................................................................................................................................35 11.8 SAR MEASUREMENT RESULTS...............................................................................................................37 11.9 REPEATED SAR MEASUREMENT ............................................................................................................40 12. SAR HANDSETS MULTI XMITER ASSESSMENT................................................................... 41 13. EUT PHOTO ............................................................................................................................. 45 14. EQUIPMENT LIST & CALIBRATION STATUS........................................................................ 49 15. FACILITIES............................................................................................................................... 50 16. REFERENCES.......................................................................................................................... 50 17. ATTACHMENTS ..........................................................…
