2AFKNPF2009Spigen PowerArc ArcField Wireless Charger

Instruction US Cautions Note FCC Part 15 ComplianceISED Regulatory Compliance User Manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. •CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product. •Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device contains licence-exempt transmitter(s)/receiv- er(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102 établies pour un environnement non contrôlé. Cet émetteur ne doit pas être situé ou fonctionner conjointement avec une autre antenne ou un autre émetteur. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. IC warning Specification This device contains licence-exempt transmitter(s)/re- ceiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference; and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences et Développement économique Canada. L'exploitation est autorisée aux deux conditions suivantes : 1. l'appareil ne doit pas produire de brouillage, et 2. l'utilisateur de l'appareil doit accepter tout brouillage radio électrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." 1. Do not exert excess force on the product. 2. Do not disassemble the product or let it come into direct contact with heat or water. 3. Be careful when using the product in a hot or humid environment as it may damage the circuit. 4. Do not place magnetized chip cards (e.g. ID cards, credit cards) near the product as magnets may demagnetize the cards and cause them to malfunction. 5. Do not place a foreign object between the charger and then iPhone as the magnetic force may weaken. 6. Medical devices (e.g. pulse measuring device, hearing aid) may indirectly interfere with the product; keep them at least 20cm away from the product. 7. Keep away from children. * The product image herein is provided as an example and user's guide for the portable high-speed wireless charger and may dier from the actual product. * For smartphones that do not support wireless charging, you need to use a separate wireless charging patch or wireless charging case. • Model : PF2009 • Input : DC 5.0V1.5A, 9.0V1.67A • Output : 5.0W / 7.5W • Dimensions (Not include Cable) : 62 x 62 x 6mm / 2.44 x 2.44 x 0.24in • Weight (Include Built-in Cable) : 47g / 1.66oz B Class Equipment (Equipment for home use) * This product is mainly for home use with radio wave acceptability registration; therefore, it can be used in all areas. Spigen PowerArc ArcField™ Magnetic Wireless Charger for iPhone 12 Series PF2009 Caution 20W USB-C PD Power Adapter is Recommended for high-speed wireless charging. USB Power Adapter is not included. 20W USB-C PD Power Adapter 1 2 iPhone 12 series OX Do not pull on the built-in cable when detaching the wireless charger. Pulling hard on the cable will cause short circuits. X K Cutting Line (자르는�선) Folding Line (접는�선) PF2009_메뉴얼�수정 칼선/접선 (Cut…

Text truncated - open the document above for the full version.

Date:2020.10.18 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Tony Tang Title: EMC Engineer Company: EST Technology Co., Ltd.

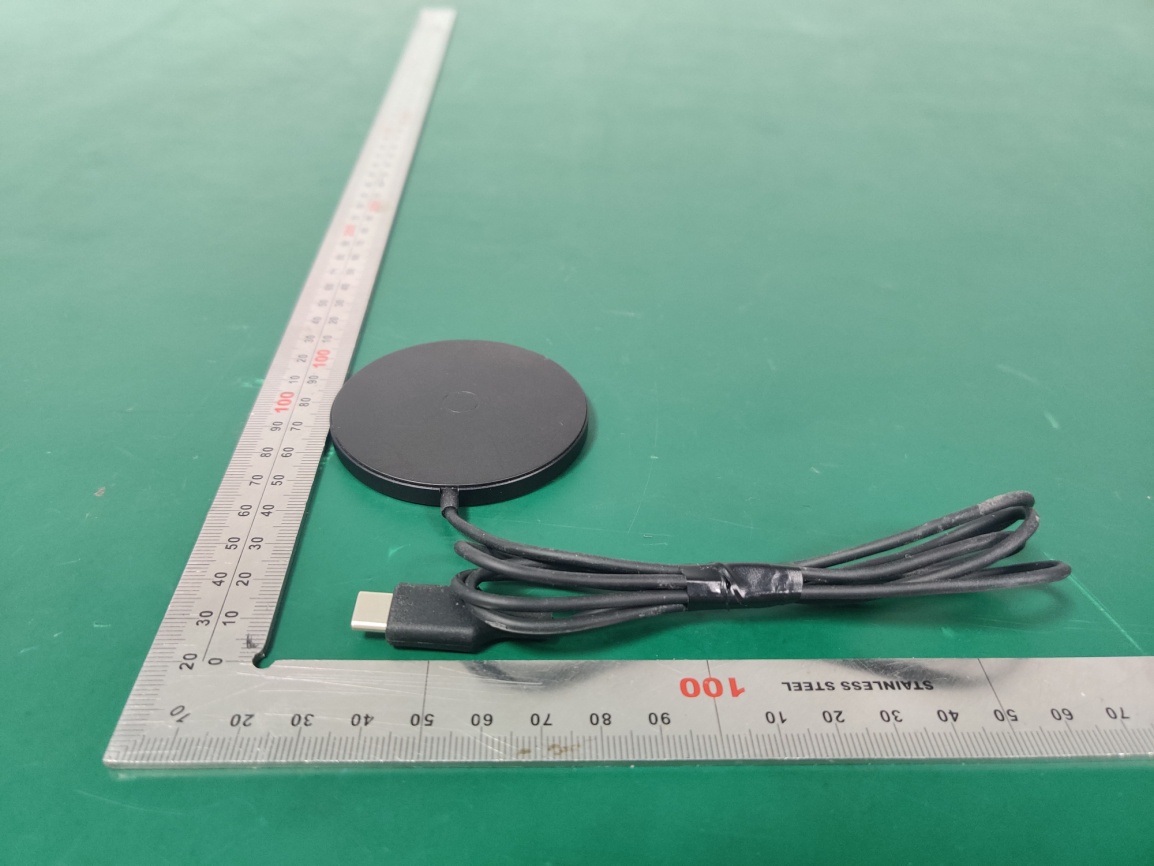

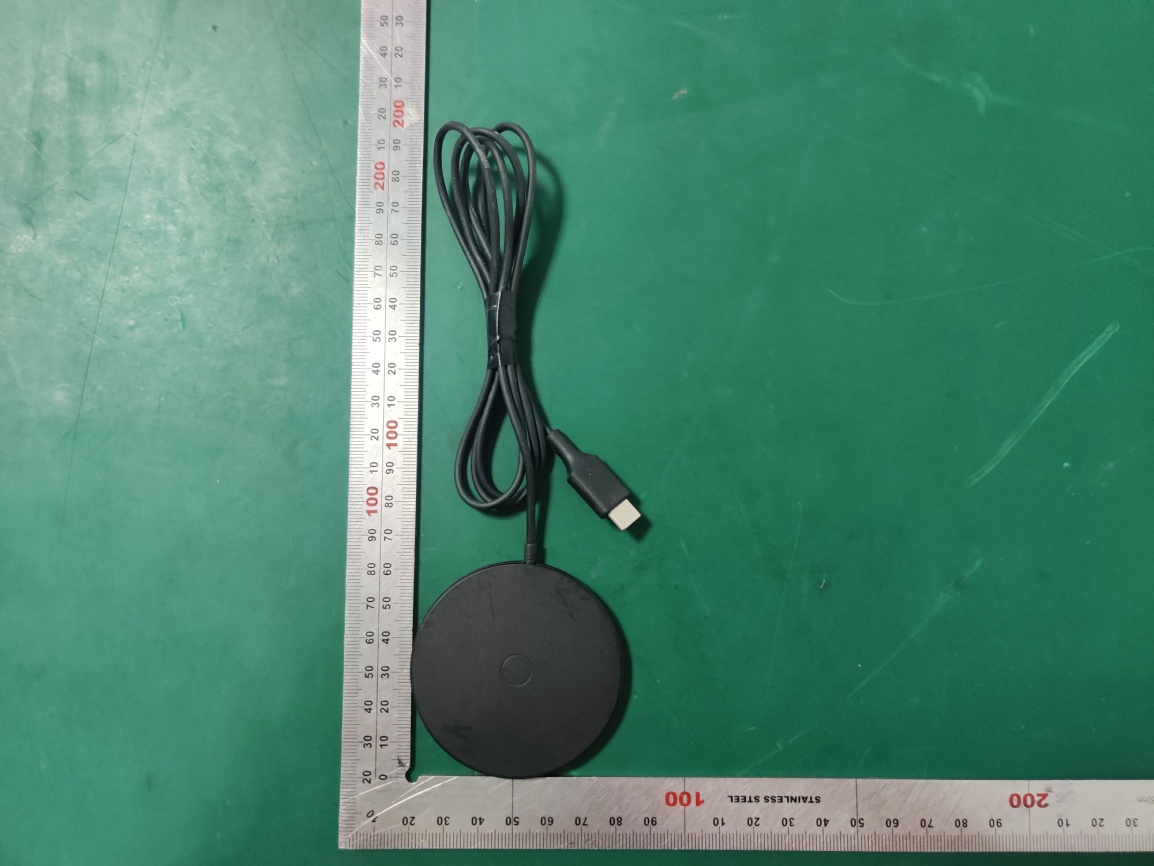

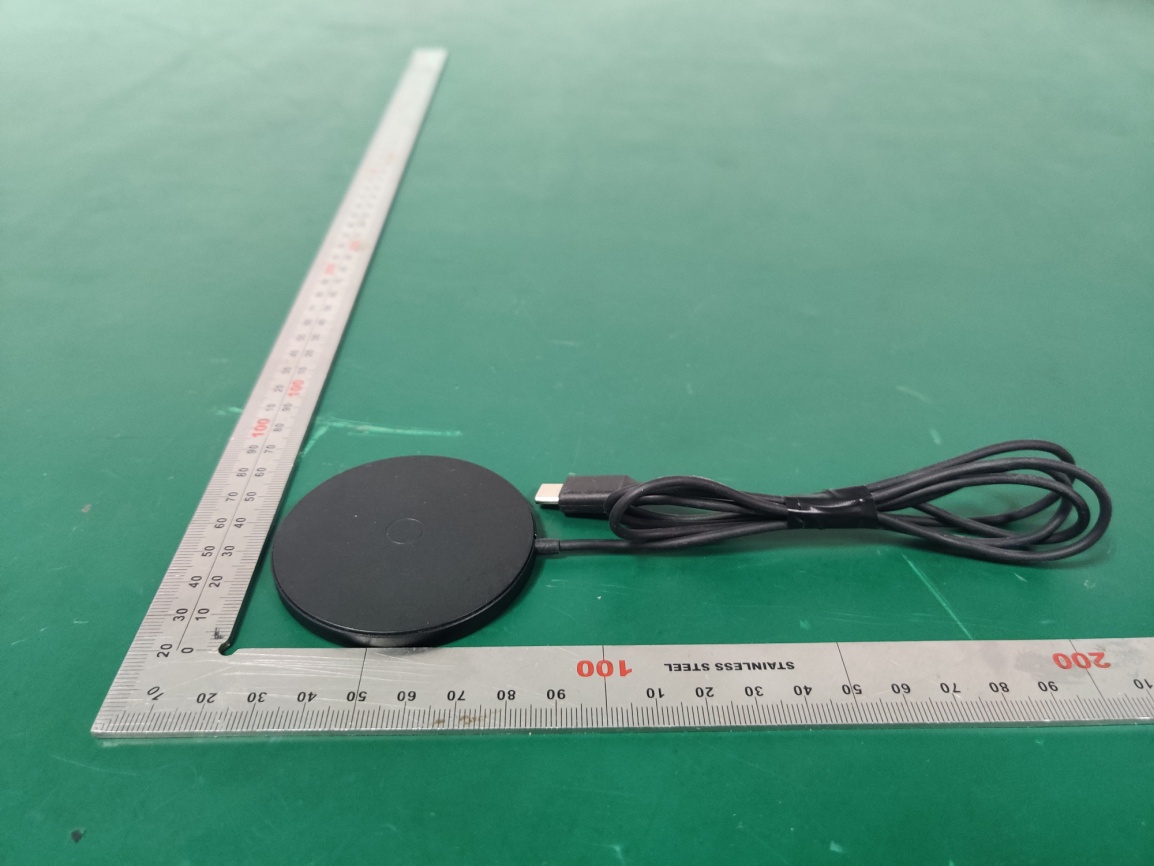

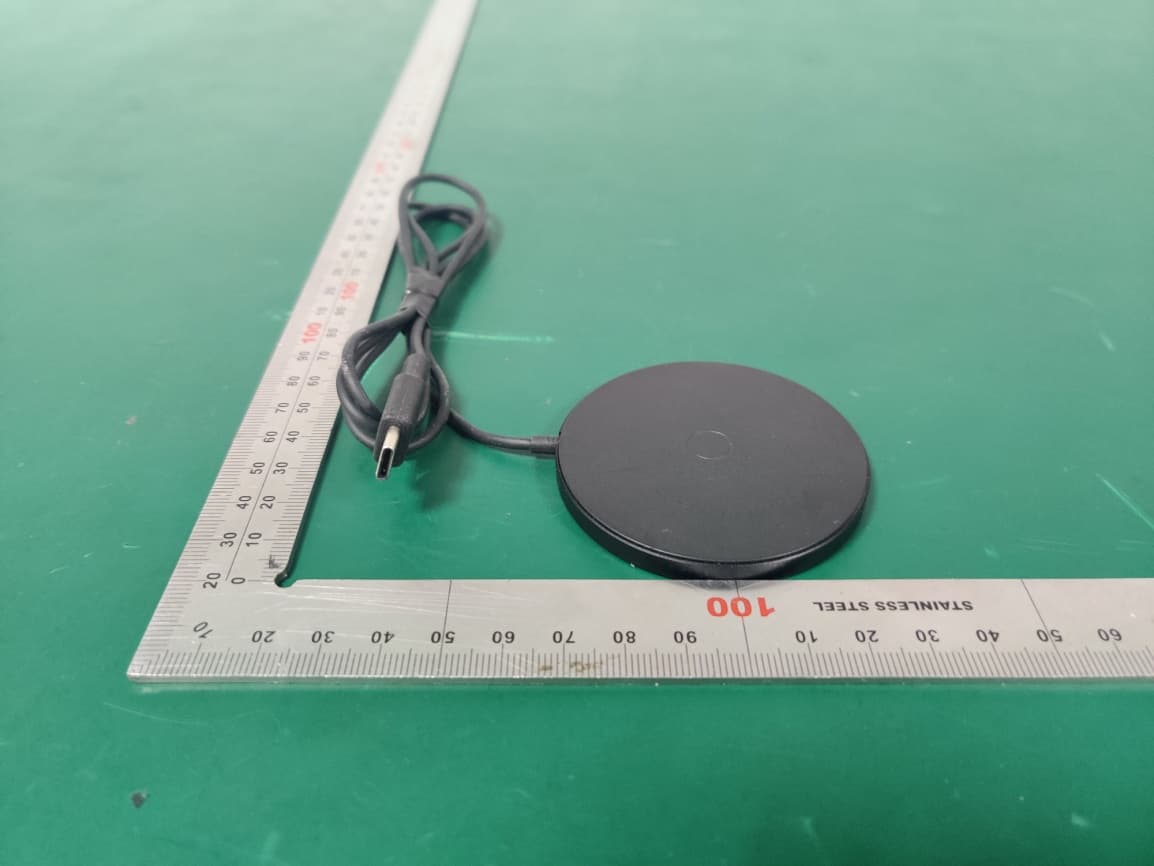

External Photos M/N: PF2009 External Photos M/N: PF2009 External Photos M/N: PF2009

Internal Photos M/N: PF2009 Coil Antenna Internal Photos M/N: PF2009 Coil Antenna Internal Photos M/N: PF2009

FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010086 Page 1 of 15 RF EXPOSURE REPORT FOR CERTIFICATION On Behalf of Spigen Korea Co., LTD. Spigen PowerArc ArcField™ Wireless Charger Model Number: PF2009 FCC ID: 2AFKNPF2009 Prepared for: Spigen Korea Co., LTD. Spigen HQ-A, 446, Bongeunsa-ro, Gangnam-gu, Seoul, 06153, South Korea Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2010086 Date of Test: Sep. 24~Oct. 14, 2020 Date of Report: Oct. 19, 2020 FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010086 Page 2 of 15 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. SUMMARY OF TEST ......................................................................................................................... 4 1.1. Summary of test result ...................................................................................................................... 4 1.2. Test Mode ......................................................................................................................................... 4 1.3. Test Equipment List ......................................................................................................................... 4 2. MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 5 2.1. Limit ................................................................................................................................................. 5 2.2. Test Setup ......................................................................................................................................... 6 2.3. Test Procedure .................................................................................................................................. 6 2.4. Equipment Approval Considerations ............................................................................................... 7 2.5. Test Result for Test setup A: ............................................................................................................ 8 2.6. Test Result for Test setup B: ............................................................................................................ 9 3. TEST SETUP PHOTO ................................................................................................................. 10 FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010086 Page 4 of 15 1. SUMMARY OF TEST 1.1. Summary of test result Report Section Description of Test Item FCC Standard Section Results 3 Maximum Permissible Exposure Part 1.1307(b)&1.1310 PASS 1.2. Test Mode 1.3. Test Equipment List Equipment ManufacturerModel No.Serial No.Last Cal. Next Cal. Electric and Magnetic Field Probe-Analyzer Narda S.T.S./PMM EHP-200A EST-E106Feb.14,20 1 Year Simulated load(Full) / / EST-306 N/A N/A Simulated load(Half) / / EST-307 N/A N/A Test Software Narda EHP200-TSRel 1.92 N/A N/A Test Item Test Mode Maximum Permissible Exposure Wireless Charging with Empty Load Wireless Charging with Half Load Wireless Charging with Full Load FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010086 Page 5 of 15 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1. Limit Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 Note: 1. f = frequency in MHz * = Plane-wave equivalent power density. 2. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010086 Page 6 of 15 2.2. Test Setup 2.3. Test Procedure a. The test was performed on turn table in anechoic chamber with a dummy load. b. The dummy load must be placed horizontal of the EUT at the top (Parallel to the coil). c. The probe was placed at 15 cm surrounding the device and 20 cm above the top of the charger and the geometric centre of the probe. d. The highest emission level was recorded and compared with limit as soon as measurement of each point; A, B, C, D, E were completed. FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010086 Page 7 of 15 2.4. Equipment Approval Considerations Inductive wireless power transfer applications with supporting field strength results and meeting all of the following requirements are not required to submit a KDB inquiry for devices approved using SDoC or a PAG for equipment approved using certification to address RF exposure compliance. 1 Power transfer frequency is less that 1 MHz YES; the device operated in the frequency range from 110.5-168KHz. 2 Output power from each primary coil is less than or equal to 15 watts. NO; the maximum output power of the primary coil is 7.5W. 3 The transfer system includes only single primary and secondary coils. This inclu…

Text truncated - open the document above for the full version.

FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010085 Page 1 of 31 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Spigen Korea Co., LTD. Spigen PowerArc ArcField™ Wireless Charger Model Number: PF2009 FCC ID: 2AFKNPF2009 Prepared for: Spigen Korea Co., LTD. Spigen HQ-A, 446, Bongeunsa-ro, Gangnam-gu, Seoul, 06153, South Korea Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2010085 Date of Test: Sep. 24~Oct. 14, 2020 Date of Report: Oct. 19, 2020 FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010085 Page 2 of 31 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 4 1.1. Description of Device (EUT) ........................................................................................................... 4 2. SUMMARY OF TEST ......................................................................................................................... 5 2.1. Summary of test result ...................................................................................................................... 5 2.2. Test Facilities ................................................................................................................................... 6 2.3. Measurement uncertainty ................................................................................................................. 7 2.4. Assistant equipment used for test ..................................................................................................... 7 2.5. Block Diagram ................................................................................................................................. 7 2.6. Test Mode ......................................................................................................................................... 8 2.7. Test Equipment List ......................................................................................................................... 8 3. RADIATED EMISSION ...................................................................................................................... 9 3.1. Limit ................................................................................................................................................. 9 3.2. Test Setup ....................................................................................................................................... 10 3.3. Spectrum Analyzer Setting ............................................................................................................. 11 3.4. Test Procedure ................................................................................................................................ 11 3.5. Test Result ...................................................................................................................................... 12 4. AC POWER LINE CONDUCTED EMISSIONS .................................................................................... 18 4.1. Limit ............................................................................................................................................... 18 4.2. Test Setup ....................................................................................................................................... 18 4.3. Spectrum Analyzer Setting ............................................................................................................. 18 4.4. Test Procedure ................................................................................................................................ 18 4.5. Test Result ...................................................................................................................................... 19 5. ANTENNA REQUIREMENTS ............................................................................................................ 23 5.1. Limit ............................................................................................................................................... 23 5.2. Test Result ...................................................................................................................................... 23 6. TEST SETUP PHOTO ................................................................................................................. 24 7. EUT PHOTO ................................................................................................................................ 26 FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010085 Page 4 of 31 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Note: For a more detailed features description, please refer to the manufacturer’s specifications or the user's manual. Product Name : Spigen PowerArc ArcField™ Wireless Charger Model Number : PF2009 Operation Frequency : 110.5KHz-168KHz Max Wireless Charge Power : 7.5W Max Field Strength of Fundamental : 65.88dBμV/m Modulation Type : FSK Antenna Type : Induction coil Sample Type : Prototype production FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010085 Page 5 of 31 2. SUMMARY OF TEST 2.1. Summary of test result Report Section Description of Test Item FCC Standard Section Results 3 Radiated Emission 15.205 15.209 PASS 4 AC Power Line Conducted Emissions 15.207 PASS 5 Antenna Requirement 15.203 PASS Note: 1. “N/A” denotes test is not applicable in this test report FCC ID: 2AFKNPF2009 EST Technology Co., Ltd Report No. ESTE-R2010085 Page 6 of 31 2.2. Test Facilities EMC Lab : Certificated by CNAS, CHINA Registration No.: L5288 This Certificate is valid until: November 12, 2023 Certificated …

Text truncated - open the document above for the full version.

Conducted Emissions Test Radiated Test (Below 30MHz) Radiated Test (Above 30MHz)
