2AFMM-ACUBF04ACTIVITY TRACKER PRO

3 APPENDIX B EHOME PRODUCTS CO., LIMITED [2015.11.2 ] To whom it may concern, Letter of Agency I, an officer of EHOME PRODUCTS CO., LIMITED do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [Name] Eyllina [Title] Sales Manager Ms Stella Yang

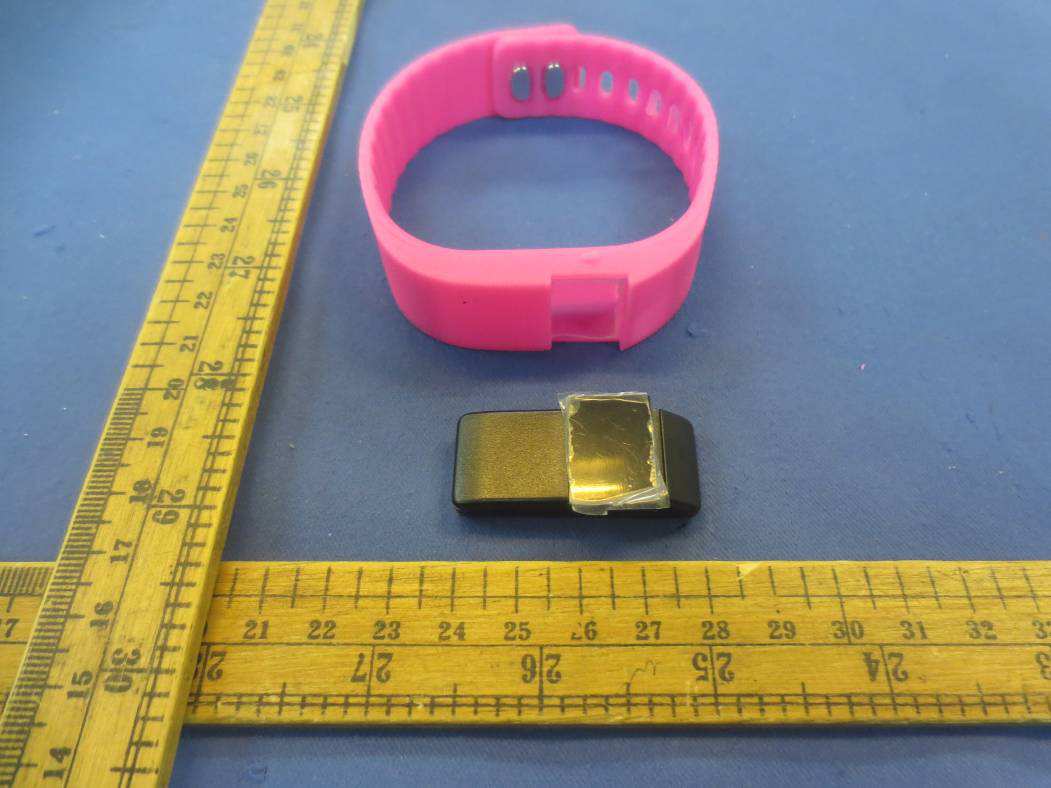

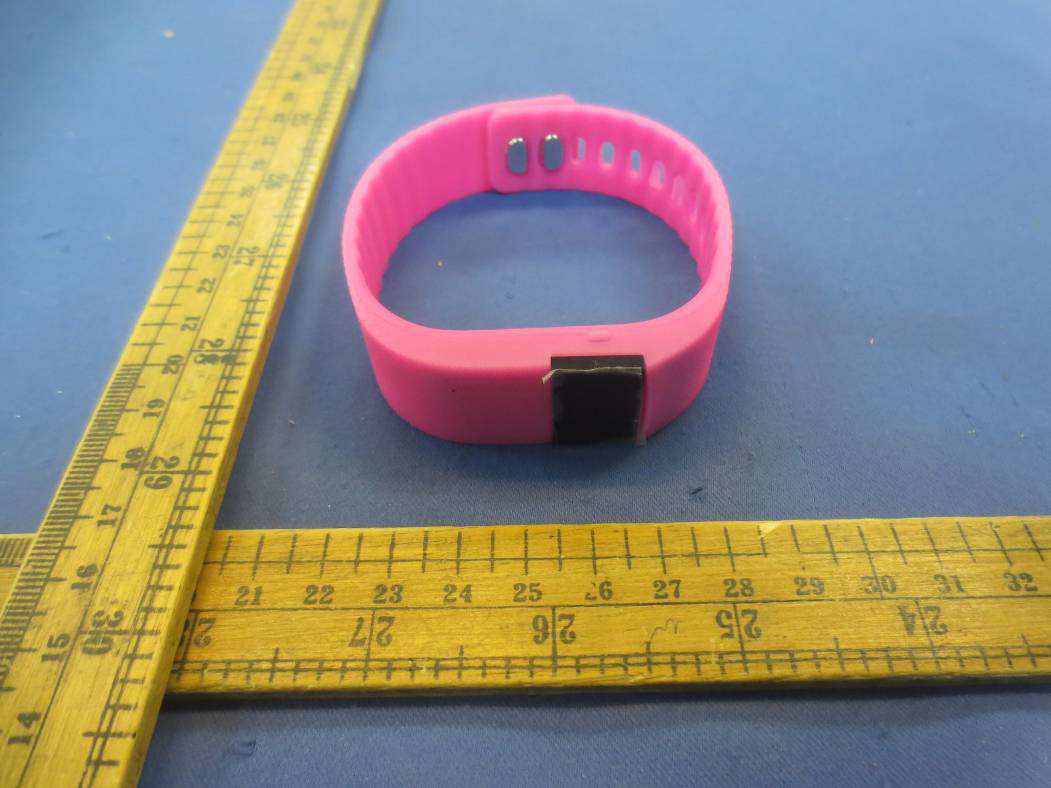

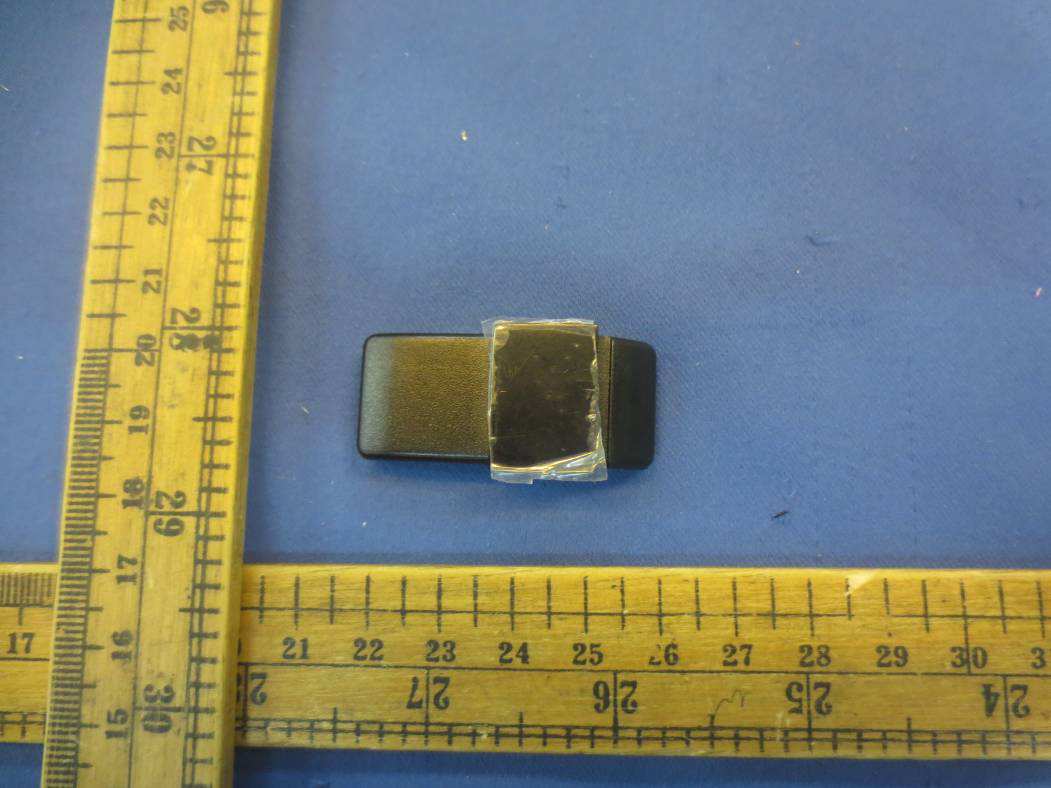

EHOME PRODUCTS CO., LIMITED UNIT 04, 7 / F BRIGHT WAY TOWER, NO.33 MONG KOK ROAD, KOWLOON, HONGKONG Telephone：15914314410 STATEMENT WE, EHOME PRODUCTS CO., LIMITED, STATES THAT OUR DEVICE, FCC ID: 2AFMM-ACUBF04 THE FCC ID IS PLACED ON THE HOST PART. THE DEVICE WILL BE MARKETED WITHOUT THE WATCHBAND INSTALLED AND NO SPECIAL TOOL IS REQUIRED TO OPEN THE WATCHBAND. Eyllina Sales Manager

Label size: 11mm(W)*23mm (L)

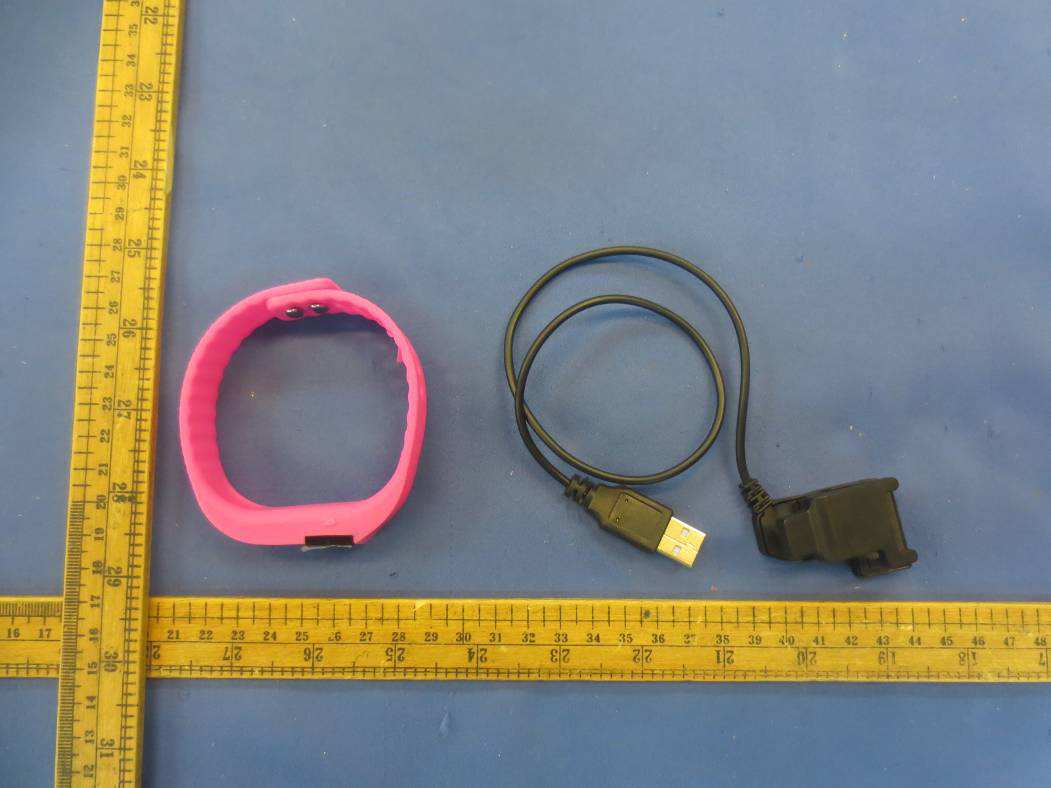

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a ACTIVITY TRACKER PRO with Bluetooth function. The EUT was powered by a 3.85 VDC Li-ion rechargeable battery which is charged by USB Power Adapter with AC 120V, 60Hz. For more detail information pls. refer to the user manual. Bluetooth Version: 4.0 (single mode) Low Energy Standard Modulation Type: GFSK Antenna Type: Integral antenna. Antenna Gain: 0dBi. The nominal conducted output power specified: -3dBm (+/-2dB) The nominal radiated output power (e.i.r.p) specified: -3dBm (+/- 2dB) According to the KDB 447498: Th e maximun peak radiated emission for the EUT is 94.0dBμV/m at 3m in the frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW =-1.3dBm which is within the production variation. The minimum peak radiated emission for the EUT is 92.0d BμV/m at 3m in the frequency 2480MHz The EIRP = [(FS*D) ^2 / 30] mW = -3.3dBm which is within the production variation. The maximun conducted output power specified is -1.0dBm = 0.8mW The source- based time-averaging conducted output power = 0.8 * Duty Cycle mW (where Duty Cycle≤1) ≤ 0.8 mW T he SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AFMM-ACUBF04

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Ehome Products Co., Limited Application For Certification FCC ID: 2AFMM-ACUBF04 ACTIVITY TRACKER PRO Model: VIP-W010 Additional models: ACUBF004B, ACUBF004E, ACUBF004I, ACUBF004K Brand Name: ACTIIV 2.4GHz Transceiver Report No.: 151029001SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-14] Prepared and Checked by: Approved by: Sign on file Jackson Yang Engineer Andy Yan Senior Project Engineer Date: 1 December 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AFMM-ACUBF04 Report No.: 151029001SZN-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AFMM-ACUBF04 Report No.: 151029001SZN-001 ii MEASUREMENT/TECHNICAL REPORT Ehome Products Co., Limited Model: VIP-W010 Additional models: ACUBF004B, ACUBF004E, ACUBF004I, ACUBF004K FCC ID: 2AFMM-ACUBF04 This report concerns (check one :) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-14 Edition] provision. Report prepared by: Jackson Yang Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8601 0680 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: 2AFMM-ACUBF04 Report No.: 151029001SZN-001 iii Table of Contents 1.0 General Description ............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology ............................................................................................... 2 1.4 Test Facility ........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 4 2.1 Justification ........................................................................................................ 4 2.2 EUT Exercising Software .................................................................................... 4 2.3 Special Accessories ........................................................................................... 4 2.4 Equipment Modification ...................................................................................... 4 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 5 3.0 Emission Results ................................................................................................ 7 3.1Radiated Test Results............................................................................ 8 3.1.1 Field Strength Calculation ................................................................................ 8 3.1.2 Radiated Emission Configuration Photograph ................................................ 10 3.1.3 Radiated Emissions ....................................................................................... 10 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 12 3.2 Conducted Emission at Mains Terminal................................................... 16 3.2.1 Conducted Emissions Configuration Photograph......................................16 3.2.2 Conducted Emissions........................................................................16 4.0 Equipment P…

Text truncated - open the document above for the full version.

Up to 1GHz Above 1GHz
