2AFOIFLDWireless flood detector

Tripleplus Ltd. | 5 Hamada St., High Tech Park, Yoqneam, 2069200, Israel | +972-(0)72-2211370 | [email protected] | www.tripleplus.io Triple+ CLM ™ Water Flood Sensor Installer Guide v3.0 P/N: CLM- FDAMAP-1-00, CLM-FDEMEA-1-00, CLM-FDAMAP-2-00 ♦ Welcome Thank you for choosing Triple+ CLM™. Triple+ CLM™ is the ultimate IoT cloud-based system for home safety. The system is managed via an App, and is designed to prevent damage due to water leakage. Triple+ offers you a total peace of mind at home or away. ♦ Please note Please read these instructions carefully and follow the system's installation and commissioning steps. Maintain this document in a safe place for future reference. Contact your authorized installer with any questions. Warning! This product was designed to prevent water leakage damages and should be used for this purpose only. ♦ Triple+ CLM™ system Triple+ CLM™ line of products includes innovative battery-operated devices which enables the automated control of water valves. This is unified under the “Smart Home” umbrella. The Triple+ CLM™ HUB serves as a Gateway that ensures a secured communication between the system devices, Triple+ cloud and App. Triple+ CLM™ integrates easily into the Smart Home IoT ecosystem, providing a unique cloud-based secured platform for Water Leak Management. ♦ Water Flood Sensor specification Part No. CLM-FDAMAP-1-00, CLM-FDEMEA-1-00, CLM-FDAMAP-2-00 Product description The wireless and battery-operated Water Flood Sensor is installed in places where high chance of water flooding may occur. Whenever water is detected, an automatic command is sent to the CLM™ HUB. Dimensions Body: 3.1 x 9.8 x 2.8 cm (1.2 x 3.8 x 1.1”) Electrodes: 34X16X11mm (1.34X0.63X0.43”) Cable length 30cm (1 ft.) Weight 75 gr (2.64 Oz) Power supply 2x AAA non-rechargeable batteries Operation voltage 3V Battery life span Up to two years Operating RF 868/915 MHz Transmission range Open space - up to 230 m (750 ft.) In enclosed space - up to 120 m (390 ft.) Avoid installing in a metal cabinet. Working temperature -20 0 C to +50 0 C (-4 to +122 0 F) Certifications FCC ID: 2AFOIFLD IC: 20798-FLD ♦ Avoid installing the Water Flood Sensor in: • Metal cabinets • Dusty places • Where the temperature exceeds -20°C and 50°C (-4 to +122 0 F). • Where it can be hit or damaged. • Outdoor, Exposed to rain and direct sunlight. • High level of humidity. ♦ Water Flood Sensor description 1. LED indicator 2. Electrodes 3. Body 4. Wall mounting fitting Flood Sensor installation 1. Open the battery housing cover by sliding it down. 2. Remove the cover and expose the battery housing to insert batteries. 3. Insert the batteries. 4. Close the battery housing cover. 5. Place the Flood Sensor at a height where only the electrodes are in contact with water during a flood. 6. Mount the Sensor to the wall using the double-sided adhesive tape. The bottom part at the electrodes may be fastened using 2 screws (not included). 7. After the installation, check that the LED indicator is clearly visible. ♦ Flood Sensor LED behaviour • RED flashes every 10 seconds – water leak detection • GREEN flashes every 30 seconds – OK • BLUE flashes every 30 seconds – communication problems • RED flashes every 30 seconds – low battery ♦ Flood Sensor Buzzer Behaviour In case of a leak, the buzzer will sound every 10 seconds ♦ System installation Triple+ CLM™ devices are installed and activated using the Triple+ CLM™ installer’s or End-User APP available on AppStore and Google Play. This Water Flood Sensor is designed for indoor use only and should be installed by an authorized plumber. Please visit www.tripleplus.io/support for warranty, technical support, terms and conditions or troubleshooting. PW000108 Tripleplus Ltd. | 5 Hamada St., High Tech Park, Yoqneam, 2069200, Israel | +972-(0)72-2211370 | [email protected] | www.tripleplus.io FCC STATEMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. WARNING – RF EXPOSURE COMPLIANCE: This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. -This Class B digital apparatus complies with Canadian ICES-003. -Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. IC STATEMENTS This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, includ…

Text truncated - open the document above for the full version.

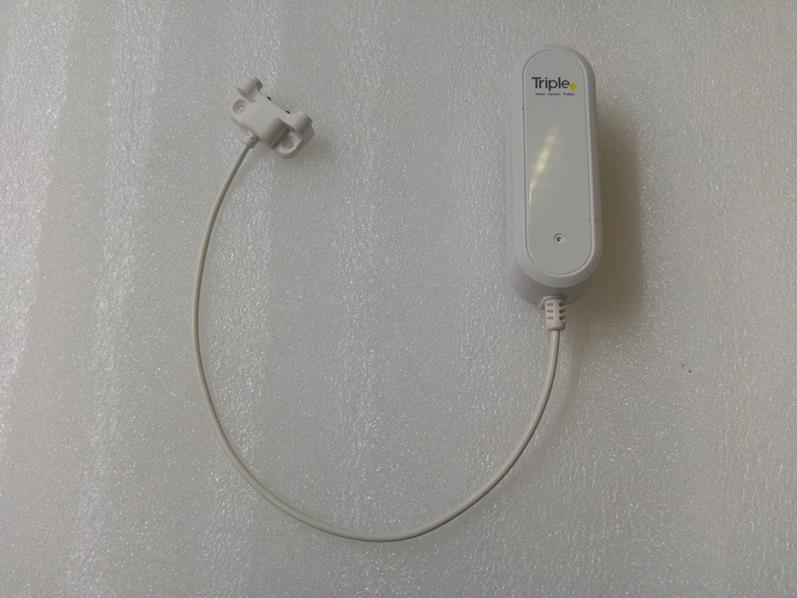

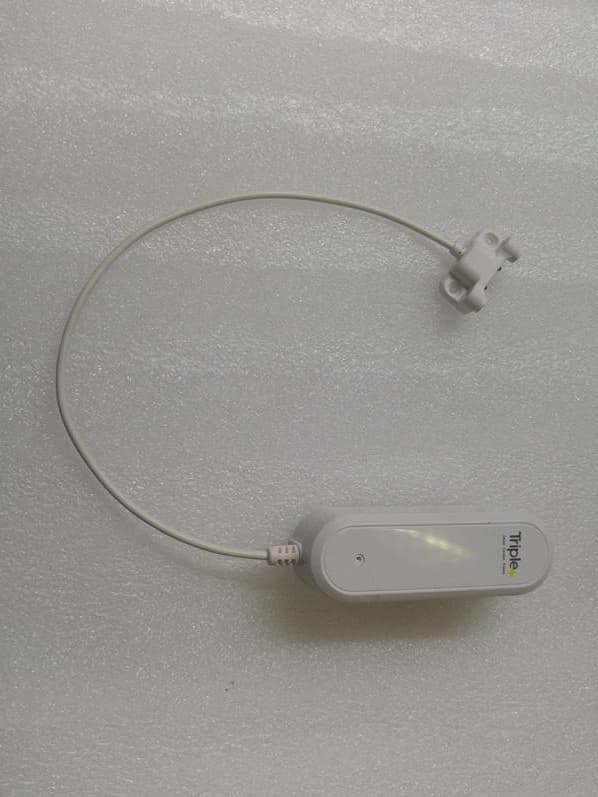

Triple Plus Ltd. FCC ID: 2AFOIFLD IC: 20798-FLD Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs Triple Plus Ltd. FCC ID: 2AFOIFLD IC: 20798-FLD Page 2 of 3 Photograph No.1 Flood detector unit front view Triple Plus Ltd. FCC ID: 2AFOIFLD IC: 20798-FLD Page 3 of 3 Photograph No.2 Flood detector unit bottom view

Triple Plus Ltd. FCC ID:2AFOIFLD IC:20798-FLD Page 1 of 2 Label Model number CLM-FDAMAP-2-00 Triple Plus Ltd. FCC ID:2AFOIFLD IC:20798-FLD Page 2 of 2 Label location Label with FCC ID:2AFOIFLD and IC:20798-FLD will be located at the bottom part of the unit’s shell. The statement according to FCC part 15 §15.19(a)(3).

Triple Plus Ltd. FCC ID: 2AFOIFLD IC: 20798-FLD Page 1 of 5 INTERNAL PHOTOGRAPHS This document contains 4 photographs Triple Plus Ltd. FCC ID: 2AFOIFLD IC: 20798-FLD Page 2 of 5 Photograph No.1 Flood Detector unit internal view Triple Plus Ltd. FCC ID: 2AFOIFLD IC: 20798-FLD Page 3 of 5 Photograph No.2 Flood Detector unit PCB front view Triple Plus Ltd. FCC ID: 2AFOIFLD IC: 20798-FLD Page 4 of 5 Photograph No.3 Print side of the main PCB Triple Plus Ltd. FCC ID: 2AFOIFLD IC: 20798-FLD Page 5 of 5 Photograph No.4 Flood Detector unit antenna

Triple+ Flood detector Product/technical description Triple+ wireless flood detector is wireless device based on AA batteries, this device mount on the wall. The device report every time it detect water to Triple+ Hub. Antenna description: 1. Antenna type: Helical 2. Gain: 2dBi 3. Triple+ production 4. Operational frequency: single channel 915MHz Power operation range: 1. From 0dBm to 10dBm Hopping Transceiver: Not Applicable

Hermon Laboratories Ltd. P.O. Box 23, Binyamina 3055001, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 34 Report ID: TRIRAD_FCC.34184.Flood_Detector_Rev1 Date of Issue: 28-Jan-20 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC CFR 47 Part 15 subpart C, section 15.231 RSS-210 issue 9 Annex A FOR: Triple Plus Ltd. CLM Water Flood Detector V2 US Model: CLM-FDAMAP-2-00 FCC ID: 2AFOIFLD IC: 20798-FLD This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: TRIRAD_FCC.34184.Flood_Detector_Rev1 Date of Issue: 28-Jan-20 Page 2 of 34 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Test configuration .......................................................................................................................................................... 5 6.3 Changes made in EUT .................................................................................................................................................. 5 6.4 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 15 subpart C requirements ........................................................................ 7 7.1 Periodic operation requirements ................................................................................................................................... 7 7.2 Field strength of emissions .......................................................................................................................................... 11 7.3 Occupied bandwidth test ............................................................................................................................................. 21 7.4 Antenna requirements ................................................................................................................................................. 23 8 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 24 9 APPENDIX B Test equipment correction factors ......................................................................................................... 25 10 APPENDIX C Test laboratory description ................................................................................................................... 31 11 APPENDIX D Measurement uncertainties .................................................................................................................. 32 12 APPENDIX E Specification references........................................................................................................................ 33 13 APPENDIX F Abbreviations and acronyms ................................................................................................................. 34 Report ID: TRIRAD_FCC.34184.Flood_Detector_Rev1 Date of Issue: 28-Jan-20 Page 3 of 34 1 Applicant information Client name: Triple Plus Ltd. Address: 5 Hamada street, Yokneam 2069200, Israel Telephone: +972-72-22-11-370 Fax: +972-4-959-3991 E-mail: [email protected] Contact name: Mr. Yuval Abraham 2 Equipment under test attributes Product name: CLM Water Flood Detector V2 US Product type: Wireless flood detector Model(s): CLM-FDAMAP-2-00 Serial number: Prototype Hardware version: 1.1 Software release: 3.0.2.0 Receipt date 15-Sep-19 3 Manufacturer information Manufacturer name: Triple Plus Ltd. Address: 5 Hamada street, Yokneam 2069200, Israel Telephone: +972-72-22-11-370 Fax: +972-4-959-3991 E-Mail: [email protected] Contact name: Mr. Yuval Abraham 4 Test details Project ID: 34184 Location: Hermon Laboratories Ltd. P.O. Box 23, Binyamina 3055001, Israel Test started: 06-Oct-19 Test completed: 15-Oct-19 Test specification(s): FCC 47CFR part 15, subpart C, §15.231; RSS-210 issue 9 Annex A Report ID: TRIRAD_FCC.34184.Flood_Detector_Rev1 Date of Issue: 28-Jan-20 Page 4 of 34 5 Tests summary Test Status Transmitter characteristics FCC Part 15, Section 231(a) / RSS-210, Section A1.1, Periodic operation requirements Pass FCC Part 15, Section 231(a) / RSS-210, Section A1.2, Field strength of emissions Pass FCC Part 15, Section 231(c) / RSS-210, Section A1.3, Occupied bandwidth Pass FCC Part 15, Section 207 / RSS-Gen, Section 8.8, Conducted emission Not required FCC Part 15, Section 203 / RSS-Gen, Se…
