2AFOZF3502MOB Safety FOB

90-8M0159024 eng DECEMBER 2019© 2019 Mercury MarinePage 1 / 8 1ST MATE KIT - MERCURY IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product. Always refer to the appropriate Mercury Marine service manual for component removal and installation instructions. NOTE: After completing installation, place these instructions with the product for the owner's future use. Components Contained in Kit 69924 a b c d e f Ref.Qty.Description a11st Mate hub b4Screw c1Hub antenna d1NFC chip e11st Mate driver fob kit f11st Mate harness Single (1 key switch drop) Dual (2 key switch drops) Triple (3 key switch drops) 4/5/6 engine (6 key switch drops) 1ST MATE KIT - MERCURY Page 2 / 8© 2019 Mercury Marine90-8M0159024 eng DECEMBER 2019 Hub Installation ! WARNING Before working around electrical system components, disconnect the battery cables from the battery to prevent injury or damage to the electrical system due to an accidental short circuit. 1. Place the hub so that the antenna is at least 50.8 mm (2.00 in.) from other electronic or magnetic equipment including Chartplotters, VHF radios, GPS receivers, and antennas. 2. Use the following dimensions to select the desired location for the hub. Mount the hub on a bulkhead or panel near the helm where it will be protected from the elements. IMPORTANT: Minimum panel depth must be greater than 20 mm (0.79 in.). Use a 1/8 bit to drill pilot holes for the fasteners. Do not drill through the panel. Drawing measurements are for reference only. Do not use for a drilling template. Not a template a - 123.75 mm (4.872 in.) b - 72 mm (2.834 in.) c - 157.60 mm (6.204 in.) d - 146.60 mm (5.771 in.) IMPORTANT: Use the supplied fasteners to mount the hub on a panel or bulkhead with the front of the hub facing forward or aft, so that it is perpendicular to the vessel's center line. Do not over tighten the mounting fasteners. UP 70268 Recommended mounting orientation 3. Connect the NMEA 2000 network connector to the hub. 4. Connect the 14‑pin harness connector to the hub. 123.75 mm (4.872 in.) 72 mm (2.834 in.) 157.60 mm (6.204 in.) 146.60 mm (5.771 in.) a b c d 69896 1ST MATE KIT - MERCURY 90-8M0159024 eng DECEMBER 2019© 2019 Mercury MarinePage 3 / 8 DRAFT COPY 5. Connect each trunk of the 14‑pin hub harness to the corresponding main station extension harness connector and its respective key switch harness connector (as equipped), i.e. single, dual, triple, quad, five, or six engine applications. The starboard key switch harness drop (labeled STBD) must be connected to the starboard engine key switch. Refer to Diagrams. Antenna Installation 1. Mount the antenna in an unobstructed location at least 30 cm (10 in.) away from other electronic equipment. 2. Connect the antenna harness to the hub. Diagrams Single Engine Applications a - Antenna b - HUB c - Driver fob d - Mobile device e - Junction box f - Key switch harness g - Starboard engine key switch h - Hub harness i - NMEA 2000 69907 STBD b c e g i d f a h 1ST MATE KIT - MERCURY Page 4 / 8© 2019 Mercury Marine90-8M0159024 eng DECEMBER 2019 Dual Engine Applications a - Antenna b - HUB c - Driver fob d - Mobile device e - Junction box f - Key switch harness g - Starboard engine key switch h - Key switch i - Hub harness j - NMEA 2000 69908 STBD b c g j i d f f h a e 1ST MATE KIT - MERCURY 90-8M0159024 eng DECEMBER 2019© 2019 Mercury MarinePage 5 / 8 Triple Engine Applications a - Antenna b - HUB c - Driver fob d - Mobile device e - Junction box f - Key switch harness g - Starboard engine key switch h - Key switch i - Hub harness j - NMEA 2000 h 69909 STBD b c g j i d f f f h a e 1ST MATE KIT - MERCURY Page 6 / 8© 2019 Mercury Marine90-8M0159024 eng DECEMBER 2019 Four, Five, and Six Engine Applications a - Antenna b - HUB c - Driver fob d - Mobile device e - Junction box f - Key switch harness g - Starboard engine key switch h - Key switch i - Hub harness j - NMEA 2000 FOB Initial Pairing a - LEDs 1. Theft deterrent system (TDS) active 2. Man overboard (MOB) active 3. NMEA network connected 4. SmartCraft network connected 5. Pairing indicator b - Button h h h h 69902 STBD b c e f g j i d f f f f f h a a b 69925 1ST MATE KIT - MERCURY 90-8M0159024 eng DECEMBER 2019© 2019 Mercury MarinePage 7 / 8 LED Indicators LEDGreenRedBlue TDS MOB NMEA SmartCraft Bluetooth System Configuration Download the app from Google Play or the Apple App Store after point of sale transaction or during the vessel delivery and sea trial. Technical Specifications Hub General Hub Operating temperature range‑10 °C–70 °C (14 F°–158 F°) Storage temperature range‑40 °C–85 °C (‑40 F°–185 F°) Operating humidity range0–100% Voltage source13.8 V Nominal Power consumption10 mA in sleep (0.138 mW) 150 mA in active mode (2 W) Frequencies WiMEA 915 MHz FCC (US/CAN) 868 MHz RED (EU) 915 MHz ACMA (AU) Bluetooth2.4 GHz NFC13.56 MHz RF Signal WiMEA10dBm max. Bluetooth5dBm max. WiFi20dBm max. NFC100mW max. Wireless peripheralsWiMEA, Bluetooth, WiFi, NFC Hardware peripherals NMEA2000 SmartCraft Antenna Item Specifications Antenna Frequency Range824~960 MHz PolarizationLinear Gain2.0dBi (Zentih) V.S.W.R.< 2.0 Impedance50Ω Mechanical CableRG174 Cable Length2 Meters ConnectorRP‑SMA Mounting methodMagnet / 3M‑tape Environmental Operating Temperature‑40 °C–85 °C (‑40 F°–185 F°) Vibration10—55 Hz with 1.5 mm amplitude 2 hours Environmentally FriendlyROHS Compliant 1ST MATE KIT - MERCURY Products of Mercury Marine © MERCURY MARINE. All rights reserved. Reproduction in whole or in part without permission is prohibited. Alpha, Axius, Bravo…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2019-12-13> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AFOZF3502F3502 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, ------------------------------------ Name:Fredrik Eriksen/CTO Company: FELL Technolog yAS Address: Gjellebekkstubben 10 Lierskogen Buskerud 3420 Norway Phone:004792412685 Fax:32828280 E-Mail:[email protected]

BT Ant Sub 1G Antenna NFC Ant(RX ONLY)

RF Exposure evaluation FCC ID: 2AFOZF3502 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance 2.1. Evaluation Result Band/ Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusi on dBm mW BT 2.402 5 2.0 1.306 0.4913 <3.0 Yes Sub 1G 0.9225 5 3.0 1.617 0.3833 <3.0 Yes Note: Result=P F /D P=Maximum turn-up power in mW F=Channel frequency in GHz D=Mininmun test separation distance in mm 2.2. Simultaneous Transmission for SAR Exclusion The sample support one BT modular and SRD modular, they supports difference antenna, need consider simultaneous transmission; ∑ of (the highest measured or estimated SAR BT +SAR SRD )/1.6 = (0.0655+0.0511)/1.6 = 0.1 < 1.0; 3.1. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 1.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 2-GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) 2.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0

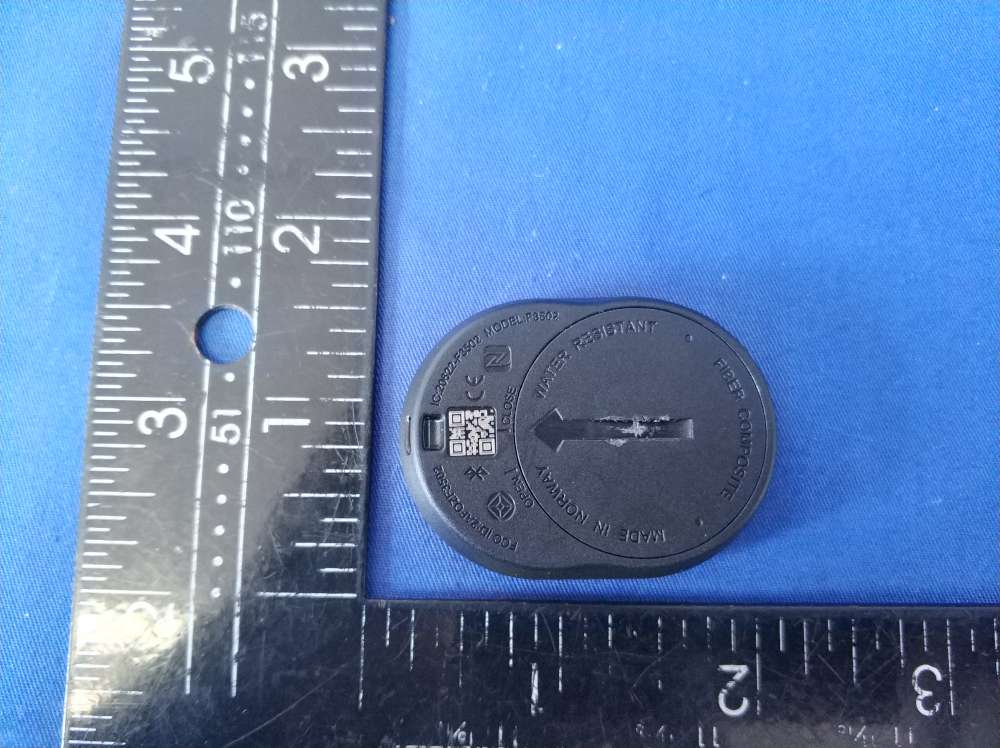

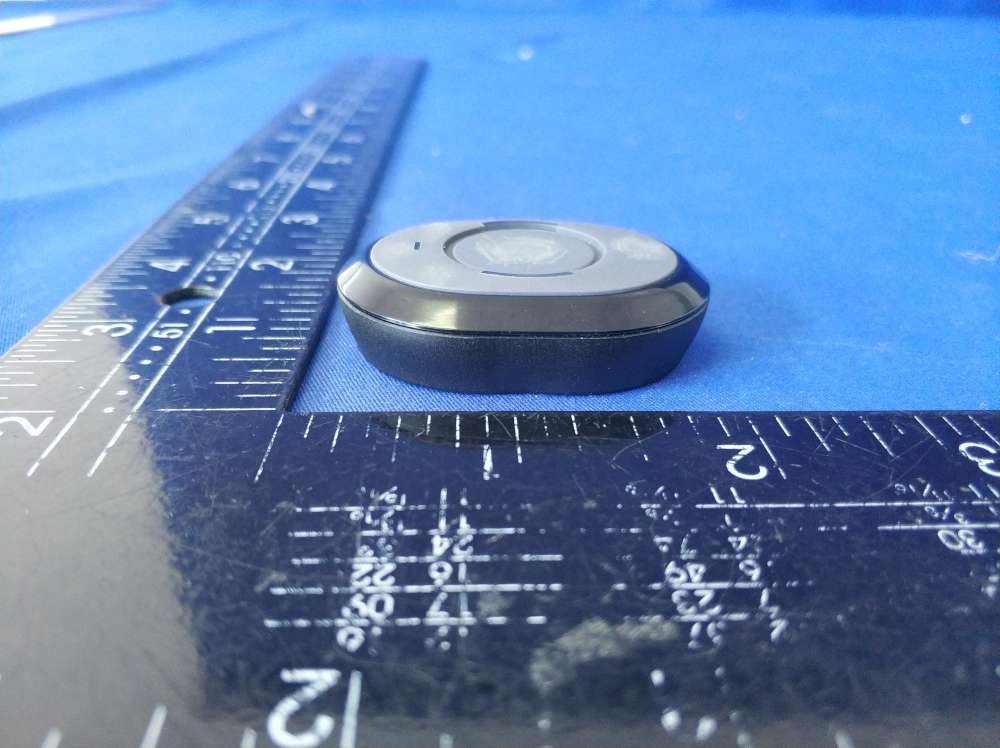

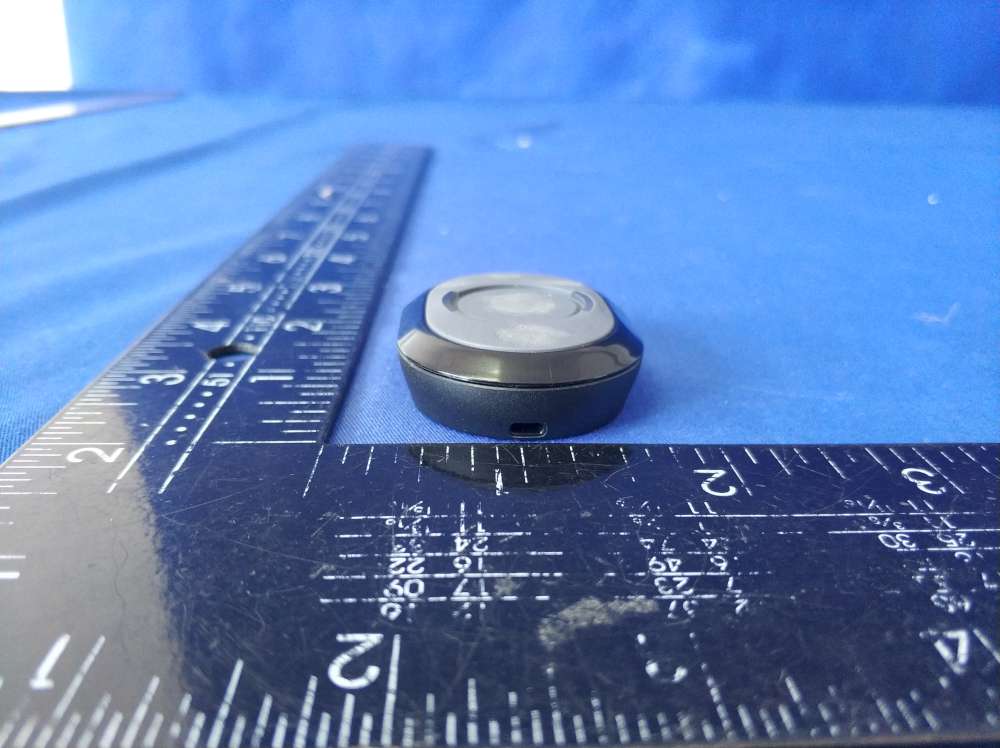

Page 1 of 35 Report No.: UNIA19121109FR-01 FCC RADIO TEST REPORT FCC ID: 2AFOZF3502 IC:20622-F3502 Product： MOB Safety FOB Trade Name： MOB Safety FOB Model Name： F3502 Serial Model： N/A Report No.： UNIA19121109FR-01 Prepared for FELL Technology AS Gjellebekkstubben 10 Lierskogen Buskerud 3420 Norway Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang Community, Xixiang Str, Bao'an District, Shenzhen, China Page 2 of 35 Report No.: UNIA19121109FR-01 TEST RESULT CERTIFICATION Applicant’s name .................... : FELL Technology AS Address ...................................... : Gjellebekkstubben 10 Lierskogen Buskerud 3420 Norway Manufacture's Name .............. : FELL Technology AS Address......................................: Gjellebekkstubben 10 Lierskogen Buskerud 3420 Norway Product description Product name ............................... : MOB Safety FOB Trade Mark ................................. : MOB Safety FOB Model and/or type reference . : F3502 Standards..................................: FCC Rules and Regulations Part 15 Subpart C Section 15.247, ANSI C63.10: 2013 RSS-247 Issue 2: February 2017, RSS-Gen Issue 5 April 2018; This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicableonly to the tested sample identified in the report. This report shall not be reproduced except infull, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test ............................................... : Date (s) of performance of tests ............... : Nov. 15 ~Dec. 06, 2019 Date of Issue .............................................. : Dec. 09, 2019 Test Result .................................................. :Pass Prepared by: Kahn yang/Editor Reviewer: Sherwin Qian/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 35 Report No.: UNIA19121109FR-01 Table of ContentsPage 1. TEST SUMMARY ................................................................................................................... 5 1.1 TEST PROCEDURES AND RESULTS .................................................................................. 5 1.2 TEST FACILITY .......................................................................................................................... 5 1.3 MEASUREMENT UNCERTAINTY .......................................................................................... 5 2. GENERAL INFORMATION ................................................................................................... 6 2.1 GENERAL DESCRIPTION OF EUT ....................................................................................... 6 2.2 Carrier Frequency of Channels ............................................................................................... 7 2.3 Operation of EUT during testing .............................................................................................. 7 2.4 DESCRIPTION OF TEST SETUP ........................................................................................... 7 2.5 MEASUREMENT INSTRUMENTS LIST ................................................................................ 8 3. CONDUCTED EMISSIONS TEST ....................................................................................... 9 3.1 Conducted Power Line Emission Limit ..................................................................................... 9 3.2 Test Setup ..................................................................................................................................... 9 3.3 Test Procedure ............................................................................................................................. 9 3.4 Test Result .................................................................................................................................... 9 4. RADIATED EMISSION TEST ............................................................................................. 10 4.1 Radiation Limit ........................................................................................................................... 10 4.2 Test Setup ................................................................................................................................... 10 4.3 Test Procedure ........................................................................................................................... 11 4.4 Test Result ................................................................................................................................... 11 5. BAND EDGE ......................................................................................................................... 17 5.1 Limits ........................................................................................................................................... 17 5.2 Test Procedure ........................................................................................................................... 17 5.3 Test Result .................................................................................................................................. 17 6. OCCUPIED BANDWIDTH MEASUREMENT .................................................................. 19 6.1 Test Limit ..................................................................................................................................... 19 6.2 Test Procedure ........................................................................................................................... 19 6.3 Measurement Equipment Used ............................................................................................... 1…

Text truncated - open the document above for the full version.

Page 1 of 31 Report No.: UNIA19121108FR-02 FCC RADIO TEST REPORT FCC ID: 2AFOZF3502 IC:20622-F3502 Product： MOB Safety FOB Trade Name： MOB Safety FOB Model Name： F3502 Serial Model： N/A Report No.： UNIA19121108FR-02 Prepared for FELL Technology AS Gjellebekkstubben 10 Lierskogen Buskerud 3420 Norway Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang Community, Xixiang Str, Bao'an District, Shenzhen, China Page 2 of 31 Report No.: UNIA19121108FR-02 TEST RESULT CERTIFICATION Applicant’s name ................. : FELL Technology AS Address ................................. : Gjellebekkstubben 10 Lierskogen Buskerud 3420 Norway Manufacture's Name ............ : FELL Technology AS Address ................................. : Gjellebekkstubben 10 Lierskogen Buskerud 3420 Norway Product description Product name............................ : MOB Safety FOB Trade Mark ............................ : MOB Safety FOB Model and/or type reference : F3502 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247, ANSI C63.10: 2013 RSS-247 Issue 2: February 2017, RSS-Gen Issue 5 April 2018; This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : Nov. 15 ~Dec. 06, 2019 Date of Issue .......................................... : Dec. 09, 2019 Test Result.............................................. : Pass Prepared by: Kahn yang/Editor Reviewer: Sherwin Qian/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 31 Report No.: UNIA19121108FR-02 Table of Contents Page 1. TEST SUMMARY ....................................................................................................... 5 1.1 TEST PROCEDURES AND RESULTS ........................................................................ 5 1.2 TEST FACILITY ........................................................................................................... 5 1.3 MEASUREMENT UNCERTAINTY ............................................................................... 5 2. GENERAL INFORMATION ........................................................................................ 6 2.1 GENERAL DESCRIPTION OF EUT ............................................................................ 6 2.2 Carrier Frequency of Channels .................................................................................... 7 2.3 Operation of EUT during testing .................................................................................. 7 2.4 DESCRIPTION OF TEST SETUP ............................................................................... 7 2.5 MEASUREMENT INSTRUMENTS LIST...................................................................... 8 3. CONDUCTED EMISSIONS TEST ............................................................................. 9 3.1 Conducted Power Line Emission Limit .......................................................................... 9 3.2 Test Setup ..................................................................................................................... 9 3.3 Test Procedure .............................................................................................................. 9 3.4 Test Result .................................................................................................................... 9 4. RADIATED EMISSION TEST ................................................................................... 10 4.1 Radiation Limit ............................................................................................................ 10 4.2 Test Setup ................................................................................................................... 10 4.3 Test Procedure ............................................................................................................ 11 4.4 Test Result .................................................................................................................. 11 5. BAND EDGE ............................................................................................................ 17 5.1 Limits .......................................................................................................................... 17 5.2 Test Procedure ............................................................................................................ 17 5.3 Test Result .................................................................................................................. 17 6. OCCUPIED BANDWIDTH MEASUREMENT ........................................................... 18 6.1 Test Limit ..................................................................................................................... 18 6.2 Test Procedure ............................................................................................................ 18 6.3 Measurement Equipment Used ................................................................................... 18 6.4 Test Result .................................................................................................................. 18 7. POWER SPECTRAL DENSITY TEST ..................................................................... 22 7.1 Test Limit ..................................................................................................................... 22 7.2 Test Procedure ...........…

Text truncated - open the document above for the full version.

Radiated Emission (Below 1G) Radiated Emission (Above 1G)
