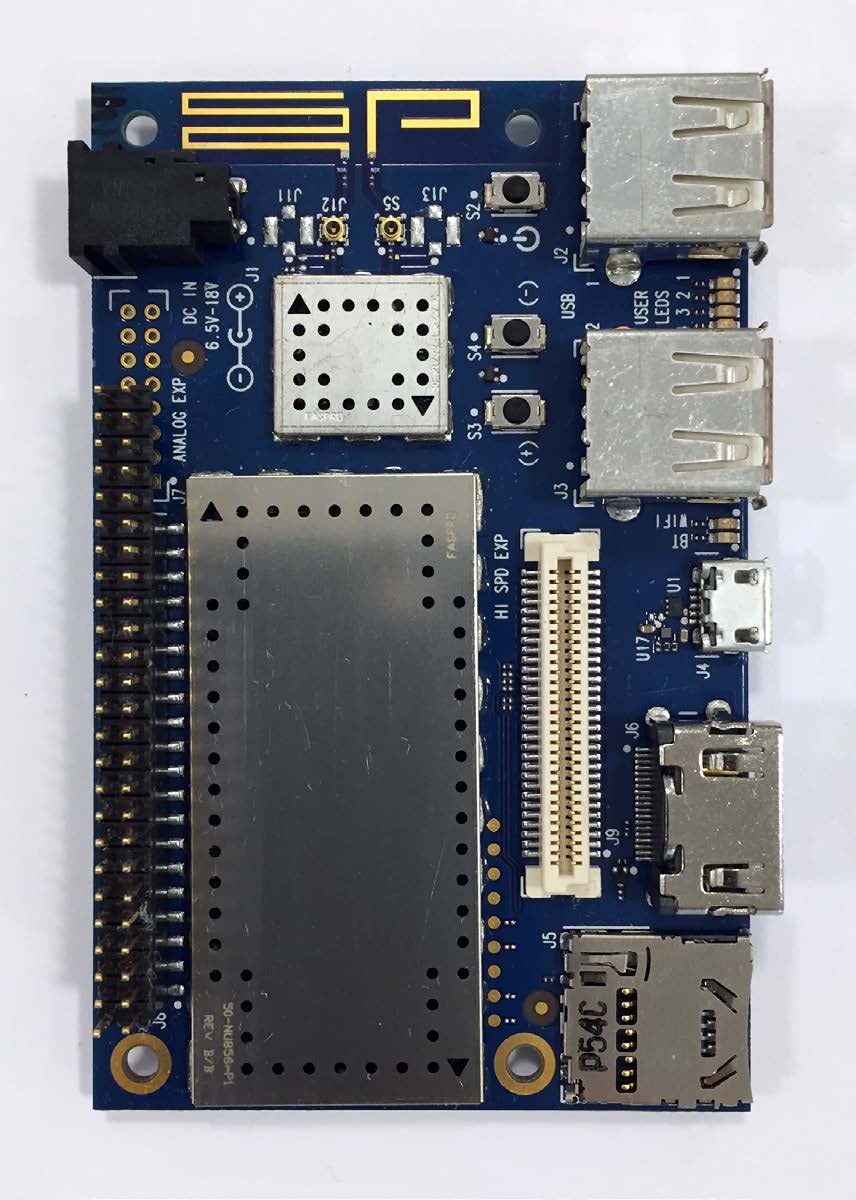

2AFQA-DB410CDragonBoard 410C

Arrow Electronics, Inc
DragonBoard 410C - FCC ID 2AFQA-DB410C - Arrow Electronics, Inc
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Nov 17, 2015
Application Purpose
Original Equipment
Date of Application
Nov 16, 2015
Equipment Note
DragonBoard 410C
Frequency Range
2402.00000000 - 2480.00000000
Company
Arrow Electronics, Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗
↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Hardware Manual Powered by: 2/28 Contents 1 Regulatory Compliance ..................................................................................................................... 5 1.1 Statements Regarding FCC ....................................................................................................................................... 5 2 Introduction ......................................................................................................................................... 6 2.1 Board overview ........................................................................................................................................................ 8 3 What’s in the Box ................................................................................................................................ 9 4 Getting started .................................................................................................................................. 10 4.1 Prerequisites .......................................................................................................................................................... 10 4.2 Starting the board for the first time ...................................................................................................................... 10 5 Dragonboard Overview ................................................................................................................. 11 5.1 System Block diagram ............................................................................................................................................ 11 5.2 Processor ............................................................................................................................................................... 11 5.3 Memory ................................................................................................................................................................. 11 5.4 MicroSDHC ............................................................................................................................................................ 11 5.5 WiFi/BT/RF ............................................................................................................................................................. 11 5.6 Display Interface .................................................................................................................................................... 12 5.6.1 HDMI ............................................................................................................................................................... 12 5.6.2 MIPI-­‐DSI ........................................................................................................................................................... 12 5.7 Camera Interfaces .................................................................................................................................................. 12 5.8 USB Ports ............................................................................................................................................................... 13 5.8.1 USB-­‐Host ports ................................................................................................................................................ 13 5.8.2 USB-­‐Device port .............................................................................................................................................. 13 5.9 Audio ..................................................................................................................................................................... 14 5.9.1 BT Audio .......................................................................................................................................................... 14 5.9.2 HDMI Audio ..................................................................................................................................................... 14 5.10 DC-­‐power and Battery Power ................................................................................................................................ 14 5.11 Measurements ...................................................................................................................................................... 14 5.12 Buttons .................................................................................................................................................................. 14 5.13 External Fan connection ........................................................................................................................................ 14 5.14 UART ...................................................................................................................................................................... 14 5.15 JTAG ....................................................................................................................................................................... 14 5.16 System and user LEDs ............................................................................................................................................ 15 5.17 Expansion Connector ............................................................................................................................................. 15 5.18 Additional Functionality ........................................................................................................................................ 15 3/28 5.18.1 GPS .............................................................................................................................................................. 15 5.18.2 On Board Analog Microphone .................................................................................................................... 15 5.18.3 Analog Connector ..............…

Text truncated - open the document above for the full version.

External Photos

External Photos FCC ID: 2AFQA-DB410C IC: 20763-DB410C

Internal Photos

Internal Photos FCC ID: 2AFQA-DB410C IC: 20763-DB410C

Operational Description

FCC ID: 2AFQA-DB410C IC: 20763-DB410C Model: DragonBoard 410c Operational Description DragonBoard™ 410c is based on the 96Boards™ specification featuring the Qualcomm ® Snapdragon™ 410 processor, a Quad-core ARM ® Cortex™ A53 at up to 1.2GHz clock speed per core, capable of 32-bit and 64-bit operations, in addition, a Qualcomm ® Adreno™ 306 400MHz GPU for PC-class graphics, which supports advanced APIs, including OpenGL ES 3.0, OpenCL, DirectX, content security, and integrated ISP with support for image sensors up to 13 MP and 1080p HD video playback and capture with H.264 AVC. This device supports Android 5.1, Windows 10 IoT, and Linux based operating systems. Connectivity is provided through USB 2.0 micro B, two USB 2.0, WLAN 802.11b/g/n 2.4GHz , Bluetooth 4.1, and GPS. Extensible with a 40-pin Low Speed (LS) expansion connector which outputs GPIO signals at +1.8V, 60-pin High Speed (HS) expansion connector, and external micro SD card slot. The user interface consists of power/reset button, and volume up and down buttons, 6 LED indicators, 4 are user controllable, and 2 are used for Bluetooth and WLAN activity. Power consumption ranges from +6.5V to +18V and should be paired with a power supply capable of 12V 2A, operates at 0°C to +70°C, and is RoHS and Reach compliant. 96Boards (http://www.96Boards.org) is a 32-bit and 64-bit ARM ® Open Platform hosted by Linaro™ intended to foster software developers, the maker, higher education, and embedded OEM communities. For other information, please have a look at the hardware manual. 2300 -3.5 -0.1 2310 - 3 .3 0 .0 2320 - 3 .2 0 .2 2330 - 3 .1 0 .4 2340 - 3 .0 0 .5 2350 - 3 .0 0 .6 2360 - 2 .9 0 .7 2370 - 2 .8 0 .7 2380 - 2 .7 0 .7 2390 - 2 .7 0 .7 2400 - 2 .8 0 .6 2410 - 2 .7 0 .6 2420 - 2 .7 0 .6 2430 - 2 .8 0 .5 2440 - 2 .8 0 .5 2450 - 2 .8 0 .4 2460 - 3 .1 0 .2 2470 - 3 .1 0 .1 2480 - 3 .2 0 .0 2490 - 3 .4 - 0 .2 2500 - 3 .4 - 0 .6 2510 - 3 .5 - 0 .8 2520 - 3 .7 - 0 .9 2530 - 3 .9 - 1 .0 2540 - 3 .9 - 1 .1 2550 - 4 .0 - 1 .1 2560 - 4 .1 - 1 .1 2570 - 4 .1 - 0 .9 2580 - 4 .0 - 0 .8 2590 - 4 .2 - 0 .9 2600 - 4 .2 - 0 .9 dBi Internal PCB antenna specification Freq MHz Efficiency Peak Gain 2 1 0 -1 -2 -3 -4 -5 -6 -7 -8 2300 2350 2400 2450 2500 2550 2600 Frequency (MHz) Efficiency Peak Gain OEM ODM Antenna Regulatory WLAN Antenna Information Wistron Neweb Corporation Quanta / Compal / Wistron EBJ Wistron NeWeb Corporation No.10-1, Li-hsin Road I, Hsinchu Science Park, Hsinchu 300, Taiwan, R.O.C. Telephone: 886-3-666-7799 Facsimile: 886-3-666-7323 http: www.wneweb.com Project CodeVendor Name Acer Incorporated Provided By Wistron NeWeb Corp Reviewed By Wistron NeWeb Corp Sophia LinEric Fang Antenna Assembly Summary: 1A1B1C Antenna Part Number ManufactureAntenna Type Main Antenna 3.00 dBi (peak) 4.15 dBi (peak) 2.0 max 1.15 dBi (peak) length:300mm 2.56 dBi (peak) 4.26 dBi (peak) 2.5 max 1.70 dBi (peak) diameter: 1.13mm Connector: IPEX 4.76 dBi (peak) 6.50 dBi (peak) 2.5 max 1.74 dBi (peak) 4.76 dBi (peak) 6.55 dBi (peak) 2.5 max 1.79 dBi (peak) AUX Antenna 3.62 dBi (peak) 4.78 dBi (peak) 2.0 max 1.15 dBi (peak) length:300mm 3.08 dBi (peak) 4.78 dBi (peak) 2.5 max 1.70 dBi (peak) diameter: 1.13mm Connector: IPEX 3.31 dBi (peak) 5.05 dBi (peak) 2.5 max 1.74 dBi (peak) 2.42 dBi (peak) 4.21 dBi (peak) 2.5 max 1.79 dBi (peak) Section 2.2 Dimensioned Drawings of Antennas Wistron Neweb Corporation PIFA 5470-5725MHz 5725-5825MHz P/N: WN-S-1.13-300W-(2-2- 1)&300B-(2-2-1) 50 ohm Coaxial.5150-5350MHz 2400-2500MHz 5725-5825MHz5725-5825MHz5725-5825MHz 5150-5350MHz5150-5350MHz5150-5350MHz 5470-5725MHz5470-5725MHz5470-5725MHz 2400-2500MHz2400-2500MHz2400-2500MHz 50 ohm Coaxial.5150-5350MHz 5470-5725MHz 5150-5350MHz 5470-5725MHz 5725-5825MHz 5470-5725MHz 5725-5825MHz5725-5825MHz 1D Cable Assembly Part Number and Information P/N: WN-S-1.13-300W-(2-2- 1)&300B-(2-2-1) 1G VSWR 2400-2500MHz 5150-5350MHz 5725-5825MHz 1H Cable Loss (dBi) 2400-2500MHz 5150-5350MHz 5470-5725MHz Wistron Neweb Corporation PIFA Section 1. Antenna Assembly Specifications Antenna Information 1F Peak Gain w/o Cable Loss (dBi) 2400-2500MHz 1E Peak Gain W/ Cable loss (dBi) 2400-2500MHz Section 2.1 Antenna Photos Main AntennaAUX Antenna (WNC P/N: 81.EBJ15.005) (WNC P/N: 81.EBJ15.005) Note: The outer circle approximately represents the 5 dBi gain circle. Each circle with 5 dBi difference (Max=5 dBi and Min=-35 dBi) Average Gain -1.35 -5.28 -4.34 Average Gain -1.39 -5.06 -4.67 Average Gain -1.53 -5.12 -4.76 Peak Gain 3.62 2.60 -0.25 Peak Gain 3.19 2.24 0.39 Peak Gain 3.35 2.30 0.30 Total H-pol V pol Total H-pol V pol Total H-pol V pol 0.97 -0.53 -1.50 -4.90 -4.88 V pol Peak Gain Average Gain 3.00 1.21 0.48 -1.47 -4.75 -5.16 2.90 Average Gain Peak Gain Total Peak Gain 1.74 0.09 -1.12 Average Gain -2.15 -5.59 -5.65 2G4 ISM (2.400 GHz - 2.4835 GHz) Antenna Radiation Patterns Total H-pol V pol H-pol V pol Total H-pol Main antenna @2.40 GHz E TotalH-pol.V-pol. Main antenna @2.45 GHz E TotalH-pol.V-pol. Aux antenna @2.40 GHz E totalH-pol.V-pol. Aux antenna @2.45 GHz E TotalH-pol.V-pol. Main antenna @2.50 GHz E TotalH-pol.V-pol. Aux antenna @2.50 GHz E TotalH-pol.V-pol. Note: The outer circle approximately represents the 5 dBi gain circle. Each circle with 5 dBi difference (Max=5 dBi and Min=-35 dBi) 0.31 -0.05 -3.31 -6.76 -6.51 -2.97 -6.43 -6.17 2.96 -4.88 -5.06 3.08 0.78 1.21 0.43 0.65 Average Gain Total UII Band (5.150 GHz - 5.350 GHz) Antenna Radiation Patterns 2.52 1.84 0.59 Total H-pol V pol H-pol V pol Average Gain -1.44 -4.68 -4.99 Peak Gain 2.56 1.82 0.70 Peak Gain Total -1.49 Total H-pol V pol Peak Gain Average Gain 1.95 0.79 0.63 -1.14 -4.22 -4.98 V pol Peak Gain Peak Gain Peak Gain H-pol V pol Total Total Average Gain Average Gain Average Gain H-pol H-pol V pol -1.97 -5.25 -5.44 2.96 Main antenna @5.15 GHz E TotalH-pol.V-pol. Main antenna @5.25 GHz E TotalH-pol.V-pol. Aux antenna @5.15 GHz E TotalH-pol.V-pol. Aux antenna @5.25 GHz E TotalH-pol.V-pol. Main antenna @5.35 GHz E TotalH-pol.V-pol. …

Text truncated - open the document above for the full version.

Schematics

11 22 33 44 55 66 77 88 A A B B C C D D DragonBoard410c TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 133 Monday, August 31, 2015 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 133 Monday, August 31, 2015 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 133 Monday, August 31, 2015 11 22 33 44 55 66 77 88 A A B B C C D D WGR7640 - GPS \ 33 WCN3620 - PWR / GND \ 32 WCN3620 - RF / CONTROL \ 31 JTAG / UART / ANALOG EXPANSION \ 30 HS / LS EXPANSION CONNECTORS \ 29 SWITCHES/LEDS \ 28 DISPLAY - DSI TO HDMI BRIDGE \ 27 DISPLAY - DSI SWITCH \ 26 USB - CONNECTORS \ 25 USB - SWITCH / HUB \ 24 MEMORY - USD CONNECTOR \ 23 MEMORY - LPDDR3 + EMMC - POWER \ 22 MEMORY - LPDDR3 + EMMC - CONTR \ 21 PM8916 - AUDIO \ 20 PM8916 - LDOS \ 19 PM8916 - SMPS \ 18 PM8916 - CHARGER/GPIOS/MPPS \ 17 PM8916 - CONTROL/CLOCKS \ 16 EXTERNAL BUCK REGULATORS \ 15 APQ8016 - DECOUPLING \ 14 APQ8016 - GND \ 13 APQ8016 - PWR3 \ 12 APQ8016 - PWR2 \ 11 APQ8016 - PWR1 \ 10 APQ8016 - RF INTERFACE \ 9 APQ8016 - MIPI CSI/DSI \ 8 APQ8016 - BOOT CONFIG SW \ 7 APQ8016 - GPIO 74-121 / DNC \ 6 APQ8016 - GPIO 0-73 \ 5 APQ8016 - EBI0-LPDDR3 \ 4 APQ8016 - CONTROL \ 3 TABLE_OF_CONTENTS \ 2 TITLE \ 1 SCHEMATIC BLOCK SHEET SCHEMATIC BLOCK SHEET SCHEMATIC BLOCK SHEET SCHEMATIC BLOCK SHEET TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 233 Monday, August 31, 2015 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 233 Monday, August 31, 2015 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 233 Monday, August 31, 2015 11 22 33 44 55 66 77 88 A A B B C C D D NC NC NC Route BBCLK1 as daisy chain.AD35 pin first and then AL34 second Install C2, C173 if SPMI_DATA/CLK signrals requires slew contro l CAD NOTE: Place R80 close to APQ pin APQ8016 - CONTROL CAD NOTE: Place R2, R3 close to APQ pin NC APQ_PS_HOLD JTAG_TDO APQ_RESOUT_N APQ_BBCLK1_EN SDC2_CLKSDC1_CMDSPMI_CLKSDC2_CMDSDC1_CLKBBCLK1 SLEEP_CLKJTAG_TDI APQ_RESIN_N JTAG_TRST_N JTAG_TMS VREF_LPDDR3JTAG_SRST_N JTAG_TCK USB_HS_D_PSDC1_DATA_0SDC2_DATA_2SDC2_DATA_0SDC2_DATA_1USB_HS_D_MSDC1_DATA_1SDC1_DATA_5SDC1_DATA_7SDC1_DATA_6SDC1_DATA_3SDC2_DATA_3SDC1_DATA_4SDC1_DATA_2SPMI_DATA BBCLK1 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 333 Monday, August 31, 2015 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 333 Monday, August 31, 2015 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 333 Monday, August 31, 2015 C233PF 5% 50V DNI TP17 R3 0 5%0.050W C17333PF5%50V DNI C1 0.1UF10%6.3V 0.050W2001%R80 R2 0 5%0.050W CONTROL U8A CD90-NN612-1 APQ8016 BA36 ATEST0 AY35 ATEST1 AL34 CXO A36 CXO_EN AU32 MODE_0 AT31 MODE_1 AN8 PLL_TEST_SE AK37 PMIC_SPMI_CLK AJ36 PMIC_SPMI_DATA E36 PS_HOLD F35 RESIN_N AV1 RESOUT_N AE36 SDC1_CLK AH35 SDC1_CMD AD37 SDC1_DATA_0 AE38 SDC1_DATA_1 AG34 SDC1_DATA_2 AH37 SDC1_DATA_3 AG40 SDC1_DATA_4 AG38 SDC1_DATA_5 AF39 SDC1_DATA_6 AF35 SDC1_DATA_7 R4 SDC2_CLK N6 SDC2_CMD P3 SDC2_DATA_0 R6 SDC2_DATA_1 T7 SDC2_DATA_2 P7 SDC2_DATA_3 G36 SLEEP_CLK K1 SRST_N M1 TCK M3 TDI J2 TDO L2 TMS K3 TRST_N AC40 USB2_HS_DM AB39 USB2_HS_DP AA40 USB2_HS_ID AD35 USB2_HS_SYSCLOCK AC38 USB2_HS_TXRTUNE J12 VREF_EBI0_CA H21 VREF_EBI0_D0_D2 J26 VREF_EBI0_D1_D3 AR8 WCSS_XO APQ_RESIN_N USB_HS_D_M USB_HS_D_P SDC2_DATA_3 SDC2_CMD SDC2_DATA_0SDC2_DATA_2SDC2_DATA_1 SDC2_CLK SDC1_CMD SLEEP_CLKAPQ_PS_HOLDJTAG_TDOAPQ_RESOUT_NAPQ_BBCLK1_ENJTAG_TCKJTAG_TDIJTAG_TRST_NJTAG_TMSJTAG_SRST_N SDC1_DATA_0SDC1_DATA_2SDC1_DATA_7SDC1_DATA_6SDC1_DATA_5SDC1_DATA_4SDC1_DATA_3SDC1_DATA_1 SPMI_CLK VREF_LPDDR3 SDC1_CLK USB2_HS_TXRTUNE $3N965$3N964 SPMI_DATA BBCLK1 AGND BBCLK1 11 22 33 44 55 66 77 88 A A B B C C D D APQ8016 - EBI0-LPDDR3 CAD NOTE: Place R4 close to APQ Pin EBI_CKE_1EBI_CKEBI_CKE_0EBI_CS1_NEBI_CS0_NEBI_CKB EBI_DQSB_2EBI_DQSB_0EBI_DQS_3EBI_DQS_0EBI_DQSB_1EBI_DQS_1EBI_DQS_2EBI_DQSB_3EBI_DM[3..0]EBI_CA[9..0] EBI_DQ[31..0] TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 433 Monday, August 31, 2015 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 433 Monday, August 31, 2015 TitleSize Document Number Rev Date: Sheet of <Doc> A DragonBoard410c D 433 Monday, August 31, 2015 EBI0 APQ8016 CD90-NN612-1 U8B F11 EBI0_CAL E10 EBI0_CA_0 E8 EBI0_CA_1 C6 EBI0_CA_2 D9 EBI0_CA_3 E6 EBI0_CA_4 B13 EBI0_CA_5 C12 EBI0_CA_6 D13 EBI0_CA_7 B11 EBI0_CA_8 E14 EBI0_CA_9 C10 EBI0_CK D11 EBI0_CKB A8 EBI0_CKE_0 A10 EBI0_CKE_1 B7 EBI0_CS_N_0 B9 EBI0_CS_N_1 F23 EBI0_DM_0 E24 EBI0_DM_1 B19 EBI0_DM_2 B31 EBI0_DM_3 B25 EBI0_DQSB_0 D25 EBI0_DQSB_1 D19 EBI0_DQSB_2 D31 EBI0_DQSB_3 C24 EBI0_DQS_0 E26 EBI0_DQS_1 E18 EBI0_DQS_2 E32 EBI0_DQS_3 E20 EBI0_DQ_0 E22 EBI0_DQ_1 A26 EBI0_DQ_10 B29 EBI0_DQ_11 D29 EBI0_DQ_12 C28 EBI0_DQ_13 A30 EBI0_DQ_14 E30 EBI0_DQ_15 B17 EBI0_DQ_16 B15 EBI0_DQ_17 A14 EBI0_DQ_18 A18 EBI0_DQ_19 A20 EBI0_DQ_2 D15 EBI0_DQ_20 C14 EBI0_DQ_21 D17 EBI0_DQ_22 E16 EBI0_DQ_23 C34 EBI0_DQ_24 F33 EBI0_DQ_25 C36 EBI0_DQ_26 D35 EBI0_DQ_27 E34 EBI0_DQ_28 B35 EBI0_DQ_29 D21 EBI0_DQ_3 A34 EBI0_DQ_30 B33 EBI0_DQ_31 B21 EBI0_DQ_4 D23 EBI0_DQ_5 B23 EBI0_DQ_6 A24 EBI0_DQ_7 E28 EBI0_DQ_8 C26 EBI0_DQ_9 R4 240 1% 0.050W EBI_DQSB_3EBI_DQSB_2EBI_DQSB_1EBI_DQSB_0EBI_DQS_3EBI_DQS_2EBI_DQS_1EBI_DQS_0 EBI_CKE_1EBI_CKE_0EBI_CKEBI_CKBEBI_CS1_NEBI_CS0_N EBI_CAL EBI_DM0EBI_DM1EBI_DM2EBI_DM3 EBI_CA0EBI_CA1EBI_CA2EBI_CA3EBI_CA4EBI_CA5EBI_CA6EBI_CA7EBI_CA8EBI_CA9 EBI_DQ0EBI_DQ1EBI_DQ2EBI_DQ3EBI_DQ4EBI_DQ5EBI_DQ6EBI_DQ7EBI_DQ8EBI_DQ9EBI_DQ10EBI_DQ11EBI_DQ12EBI_DQ13EBI_DQ14EBI_DQ15EBI_DQ16EBI_DQ17EBI_DQ18EBI_DQ19EBI_DQ20EBI_DQ21EBI_DQ22EBI_DQ23EBI_DQ24EBI_DQ25EBI_DQ26EBI_DQ27EBI_DQ28EBI_DQ29EBI_DQ30EBI_DQ31 11 22 33 44 55 66 77 88 A A B B C C D D NC (CSI0_PWDN) NCNCNC NCNCNCNCNCNCNCNCNCNCNC PM8916 CODEC SIGNALS NCNCNC (MAG_INT) WCSS (WLAN/BT/FM) SIGNALS APQ8016 - GPIO 0-73 I2C2 (HS EXP CONN)CAMERA I2C (CSI0_RST)(CSI1_RST)(APQ_INT) (DSI_RST) I2C1 (LS EXP CONN) I2C1 (LS EXP CONN) I2C0 (LS EXP CONN)SENSORS I2C I2C3 (HS EXP CONN - OPT)DSI2HDMI, U…

Text truncated - open the document above for the full version.

Test Report

EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 1 of 164 TEST REPORT Report Number: 102289738MPK-010 Project Number: G102289738 October 30, 2015 Testing performed on the DragonBoard 410C Model: DragonBoard 410C FCC ID: 2AFQA-DB410C IC: 20763-DB410C to FCC Part 15 Subpart C (15.247) Industry Canada RSS-247, Issue 1 For Arrow Electronics, Inc. Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 USA Arrow Electronics, Inc. 7459 South Lima Bldg. 1 Englewood, CO 80112, USA Prepared by: Date: October 30, 2015 Anderson Soungpanya Reviewed by: Date: October 30, 2015 Krishna K Vemuri This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are li mited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized t o copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 2 of 164 Report No. 102289738MPK-010 Equipment Under Test: DragonBoard 410C Trade Name: DragonBoard Model Number: DragonBoard 410C Serial Number: AE-3915-006048 Applicant: Arrow Electronics, Inc. Contact: Amanda Meyer Address: Arrow Electronics, Inc. 7459 South Lima Bldg. 1 Englewood, CO 80112 Country USA Tel. Number: (303) 824-1711 Email: [email protected] Applicable Regulation: FCC Part 15 Subpart C (15.247) Industry Canada RSS-247 Issue 1 Date of Test: September 25 to October 27, 2015 We attest to the accuracy of this report: Anderson Soungpanya Project Engineer Krishna K Vemuri EMC Senior Staff Engineer EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 3 of 164 TABLE OF CONTENTS 1.0 Summary of Tests .......................................................................................................................... 4 2.0 General Information ...................................................................................................................... 5 2.1 Product Description ............................................................................................................. 5 2.3 Test Methodology ............................................................................................................... 6 2.4 Test Facility ......................................................................................................................... 6 2.5 Measurement Uncertainty ................................................................................................... 6 3.0 System Test Configuration ............................................................................................................ 7 3.1 Support Equipment and description .................................................................................... 7 3.2 Block Diagram of Test Setup .............................................................................................. 7 3.3 Justification ......................................................................................................................... 8 3.4 Mode of Operation During Test .......................................................................................... 8 3.5 Modifications Required for Compliance ............................................................................. 8 3.6 Additions, Deviations and Exclusions from Standards ....................................................... 8 4.0 Measurement Results ..................................................................................................................... 9 4.1 6dB DTS Bandwidth, 6dB RSS Bandwidth and 99% Occupied Bandwidth ...................... 9 4.2 Maximum Conducted Output Power at Antenna Terminals ............................................. 47 4.3 Power Spectral Density ..................................................................................................... 65 4.4 Out-of -Band Conducted Emissions ................................................................................... 79 4.5 Transmitter Radiated Emissions & Antenna Port Emissions ............................................. 98 4.6 AC Line Conducted Emission ......................................................................................... 158 5.0 RF Exposure Evaluation ........................................................................................................... 162 6.0 List of Test Equipment .............................................................................................................. 163 7.0 Document History ...................................................................................................................... 164 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 4 of 164 1.0 Summary of Tests Test Reference FCC Reference Industry Canada Result RF Output Power 15.247(b)(3) RSS-247, 5.4 Complies 6 dB Bandwidth 15.247(a)(2) RSS-247, 5.2 Complies Power Density 15.247(e) RSS-247, 5.2 Complies Out of Band Antenna Conducted Emission 15.247(d) RSS-247, 5.5 Complies Transmitter Radiated Emissions 15.247(d), 15.209, 15.205 RSS-247, 5.5 Complies AC Line Conducted Emission 15.207 RSS-GE…

Text truncated - open the document above for the full version.

Test Report

EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 85 of 164 Plot 4.11 Tx @ 2437MHz 802.11n, 40MHz FCC P ar t 15.247 100 kHz RBW , 300 kHz V BW , P eak Detector C onducted S pur i ous 30 MH z - 26 GH z 30.0M2.6G5.2G7.8G10.4G13.0G15.6G18.2G20.8G23.4G26.0G Fr equency (H z ) -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 Amplitude (dBm) 802.11n 40MHz Mi d C hannel Plot 4.12 Tx @ 2452MHz 802.11n, 40MHz FCC P ar t 15.247 100 kHz RBW , 300 kHz V BW , P eak Detector C onducted S pur i ous 30 MH z - 26 GH z 30.0M2.6G5.2G7.8G10.4G13.0G15.6G18.2G20.8G23.4G26.0G Fr equency (H z ) -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 Amplitude (dBm) 802.11n 40MHz H i gh C hannel EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 86 of 164 Plot 4.13 Conducted Band Edge, Tx @ 2412MHz 802.11b R ef 15 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 4 G Hz Sp an 65 MH z 6.5 MHz/ -80 -70 -60 -5 0 - 40 -3 0 -20 - 10 0 10 1 Marker 1 [T1 ] 10.57 dBm 2 .4 1 14 7 25 00 GH z D 1 - 19 . 43 dBm F1 Date: 20.OCT.2015 08:32:11 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 87 of 164 Plot 4.14 Conducted Band Edge, Tx @ 2462MHz 802.11b R ef 15 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 483 5 GH z Sp an 70 MH z 7 MHz/ -80 -70 -60 -5 0 - 40 -3 0 -20 - 10 0 10 1 Marker 1 [T1 ] 10.78 dBm 2 .4 6 14 6 75 00 GH z D1 -19.22 dBm F1 Date: 20.OCT.2015 08:45:56 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 88 of 164 Plot 4.15 Conducted Band Edge, Tx @ 2412MHz 802.11g (Power 10.45dBm) R ef 12 d B m * * Of f se t 1 0 .8 dB 1 P K VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k H z VB W 3 0 0 k H z SWT 35 ms Center 2.4 GHz Sp an 60 MHz 6 MHz/ -80 -7 0 -60 - 50 -4 0 -30 -2 0 - 1 0 0 10 1 Marker 1 [T 1 ] -0.11 dBm 2 .4 1 95 0 75 00 GH z D1 -29.89 dBm F 1 Date: 20.OCT.2015 08:22:51 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 89 of 164 Plot 4.16 Conducted Band Edge, Tx @ 2417MHz 802.11g (Power 13.45dBm) R ef 12 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 4 G Hz Sp an 60 MH z 6 MHz/ -80 -7 0 -60 -5 0 -4 0 -30 - 20 - 1 0 0 10 1 Marker 1 [T1 ] 2.90 dBm 2 .4 2 20 0 50 00 GH z D 1 - 27 . 1 dB m F1 Date: 20.OCT.2015 08:17:14 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 90 of 164 Plot 4.17 Conducted Band Edge, Tx @ 2422MHz 802.11g R ef 12 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 4 G Hz Sp an 65 MH z 6.5 MHz/ -80 -7 0 -60 -5 0 -4 0 -30 - 20 - 1 0 0 101 Marker 1 [T1 ] 6.55 dBm 2 .4 2 69 9 12 50 GH z D 1 -23.45 dBm F1 Date: 20.OCT.2015 08:24:51 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 91 of 164 Plot 4.18 Conducted Band Edge, Tx @ 2462MHz 802.11g R ef 15 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 483 5 GH z Sp an 70 MH z 7 MHz/ -80 -70 -60 -5 0 - 40 -3 0 -20 - 10 0 10 1 Marker 1 [T1 ] 6.60 dBm 2 .4 6 69 8 87 50 GH z D1 -23 . 4 dB m F1 Date: 20.OCT.2015 08:47:52 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 92 of 164 Plot 4.19 Conducted Band Edge, Tx @ 2412MHz 802.11n 20MHz (Power 10.46dBm) R ef 12 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 4 G Hz Sp an 60 MH z 6 MHz/ -80 -7 0 -60 -5 0 -4 0 -30 - 20 - 1 0 0 10 1 Marker 1 [T1 ] -0.20 dBm 2 .4 1 95 0 75 00 GH z D1 -29.8 dBm F1 Date: 20.OCT.2015 08:27:02 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 93 of 164 Plot 4.20 Conducted Band Edge, Tx @ 2417MHz 802.11n 20MHz (Power 13.48dBm) R ef 12 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 4 G Hz Sp an 60 MH z 6 MHz/ -80 -7 0 -60 -5 0 -4 0 -30 - 20 - 1 0 0 10 1 Marker 1 [T1 ] 3.93 dBm 2 .4 2 19 9 00 00 GH z D1 - 2 6. 07 dBm F1 Date: 20.OCT.2015 08:28:28 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 94 of 164 Plot 4.21 Conducted Band Edge, Tx @ 2422MHz 802.11n 20MHz R ef 12 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 4 G Hz Sp an 65 MH z 6.5 MHz/ -80 -7 0 -60 -5 0 -4 0 -30 - 20 - 1 0 0 10 1 Marker 1 [T1 ] 6.49 dBm 2 .4 2 69 9 93 75 GH z D 1 -23.51 dBm F1 Date: 20.OCT.2015 08:30:23 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 95 of 164 Plot 4.22 Conducted Band Edge, Tx @ 2462MHz 802.11n 20MHz R ef 15 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 30 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 483 5 GH z Sp an 70 MH z 7 MHz/ -80 -70 -60 -5 0 - 40 -3 0 -20 - 10 0 10 1 Marker 1 [T1 ] 6.61 dBm 2 .4 6 69 9 75 00 GH z D1 -23 . 39 d B m F1 Date: 20.OCT.2015 08:49:37 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 96 of 164 Plot 4.23 Conducted Band Edge, Tx @ 2422MHz 802.11n 40MHz R ef 10 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV L 3DB Att 25 dB R B W 1 0 0 k Hz VB W 3 0 0 k Hz SWT 35 ms Center2. 4 G Hz Sp an 90 MH z 9 MHz/ -90 - 80 -70 - 60 -50 -40 - 3 0 - 20 -1 0 0 10 1 Marker 1 [T1 ] -1.42 dBm 2 .4 3 32 5 50 00 GH z D1 -31.42 dB m F1 Date: 20.OCT.2015 08:39:46 EMC Report for Arrow Electronics, Inc. on the Dragon Board 410C File: 102289738MPK-001 Page 97 of 164 Plot 4.24 Conducted Band Edge, Tx @ 2452MHz 802.11n 40MHz R ef 10 d B m * * Of f se t 1 0 .8 dB 1 PK VIEW A LV …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Todd Main
[email protected]203-910-5756Fax: 303-824-1000

Technical Contact

Arrow Electronics, Inc.Jes Lefcourt
[email protected](303) 438-8178

7459 S. Lima St · Englewood, Colorado · United States

Non-Technical Contact

Intertek Testing ServicesKrishna Vemuri
[email protected]6504632900

Test Firm

IntertekTesting Services NA Inc.Charles Parker
[email protected]650-463-2900Fax: 650 463 2910

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.30 mW
Grant Notes
Output power listed is maximum conducted. This device supports 20 MHz and 40 MHz bandwidths. This transmitter has been approved for use in mobile RF exposure configuration with the antenna(s) installed to provide a separation distance of at least 20 cm from all persons. The antennas used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter, except as described in this filing and/or in accordance with FCC multi-transmitter product procedures.
