2AFQH-AMPLIGHTWAVE LANTERN

QUICK START GUIDE LIGHTWAVE AMP LANTERN 2 IMPORTANT Changes or modifications not expressly approved by the party responsible for has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. BEFORE FIRST USE Before first and every use, charge the unit battery fully following the instructions on “HOW TO CHARGE”. When the lantern is not in use for a long period, the runtime of the light will be shortened due to the self-discharge of the battery. PRODUCT FEATURES • 2 Operating Modes • Manual Mode • High, Low, Red, BLUETOOTH® Pairing and Off • BLUETOOTH Mode • Controlled by Brunton’s B-SYNC App • Fully adjustable dimming controls (High to Low) • Full color spectrum lighting options (RGB LED) • Synchronized light and sound • Speaker function without light 1. Integrated handle with hook 2. Main Button (Power and manual mode selection) 3. Battery Power Indicator (BPI) 4. USB Cover 5. Micro-USB Charging Port 6. USB Outputs (2x) 7. Speaker 8. Micro-USB charging cable 1 2 3 4 5 6 7 8 compliance could void the user’s authority to operate the equipment. This equipment 3 SPECIFICATIONS Illumination (Lumens): High—700 Low—350 Runtime (ANSI FL-1 Standard): High—13 Hrs Low—29 Hrs Red —62 Hrs Battery Type: 3.7V 20,000mAh Lithium battery Operating Temperature: -4 ̊F to 113 ̊F (-20 ̊C to 45 ̊C) Operating Humidity: ) 90% HOW TO CHARGE Fully charge the lantern using the supplied micro-USB charging cable. 1. Connect the micro-USB charging cable into the lantern’s charging port at the back of the AMP, and the USB end of the micro-USB charging cable into your home power outlet (DC5V power sources), computer, or other USB power source. 2. Standard charging time from empty is approximately 10 hours. Charging will stop when fully charged. NOTE: The charging time and the operation time may vary depending on the use environment. A. STATUS INDICATOR: The battery power indicator light indicates how much battery life remains for the mode in use. B. Light flashing = Charging C. All lights on = Fully charged 100% battery life D. Three lights on = Around 75% battery life E. Two lights on = Around 50% battery life F. One light on = Low battery > Below 25% battery life A BCDEF OPERATING INSTRUCTIONS LIGHT FUNCTION To turn the AMP ON, press the main button. Adjust the light mode (High / Low / Red / BLUETOOTH Pairing / Off) by pressing the main button repeatedly. To turn the lantern OFF, press the main button once after BLUETOOTH pairing mode. BLUETOOTH OPERATION WITH LIGHT AND AUDIO FUNCTION The Brunton LIGHTWAVE AMP is controlled by Brunton’s B-SYNC App. Available for smartphones or tablets running iOS or Android operating systems via free download. 4 1. On your BLUETOOTH device (Smartphone or tablet), turn on BLUETOOTH. 2. Turn on BLUETOOTH pairing by pressing the main lantern button 4 times (High, Low, Red, then BLUETOOTH Pairing). The status indicator will turn BLUE and lantern will make a sound indicating it is in BLUETOOTH pairing mode and is ready for pairing. 3. The device code of this lantern “BRUNTON AMP” will appear on the device list of your smartphone or tablet. Select the lantern. The BLUETOOTH status will show on your BLUETOOTH menu after pairing is established. The lantern speaker is ready to play music. 4. Open B-SYNC App, select the menu (top left), select BLUETOOTH Connection. It will automatically search for LIGHTWAVE AMP. Press LIGHTWAVE AMP from selection list and operate according to B-SYNC App instructions. 5. Alternatively, play music from native player or streaming music service. Adjust volume using controls on your BLUETOOTH smartphone or tablet. 2 3 > > 1 PAIRED ON BRUNTON AMP Bluetooth Conn 4x If the BLUETOOTH turns off after five minutes without playing audio, it has entered power saving mode. Turn lantern off and press main button 4 more times for BLUETOOTH, and try pairing your device again following steps 2-4. The lantern speaker operates with a single pair devices mode. If you pair the speaker with another device, the device least recently connected needs to be un-paired with the speaker first. Repeat steps above. POWER BANK FUNCTION 1. Select the suitable USB charging cable (different devices require different charging cables for charging). Cable(s) not included. 2. Plug the USB cable into either lantern USB output port, then plug the other side of the cable into the charging device (phone, tablet, etc.) The device will then start charging. 3. When the lantern battery is discharged, it will stop charging device. Discharging the battery will also disable light functionality until lantern battery is recharged. INPUT OUTPUTOUTPUT 5 TROUBLE SHOOTING The BLUETOOTH function doesn’t work or it won’t pair: • Try moving your device closer. • Is the lantern turned on and charged? • Is BLUETOOTH enabled on your device or computer? • Turn the BLUETOOTH off and then on to wake it. • Try repeating the setup procedure in this guide or pair with a different BLUETOOTH device. • The speaker plays music from one device at a time. Unpair…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 10/29/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AFQH-AMP including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Company Officer: Trent Bush Company address： 1900 Taylor Ave. Louisville, CO 80027 USA Email: [email protected]

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 10/29/2015 Request for Confidentiality Company name: Brunton Outdoor Inc. FCC ID: 2AFQH-AMP FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Brunton Outdoor Inc. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) parts lists. (3)block diagrams (4)operational description These documents contain detailed system and equipment description and related information about the product which Brunton Outdoor Inc. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Brunton Outdoor Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Company Officer: Trent Bush Company address： 1900 Taylor Ave. Louisville, CO 80027 USA Email: [email protected]

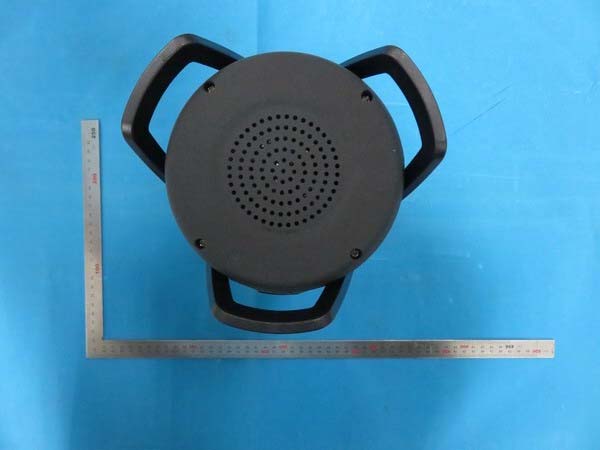

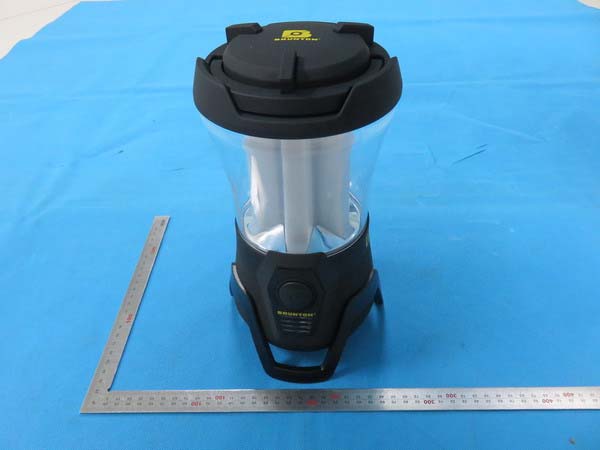

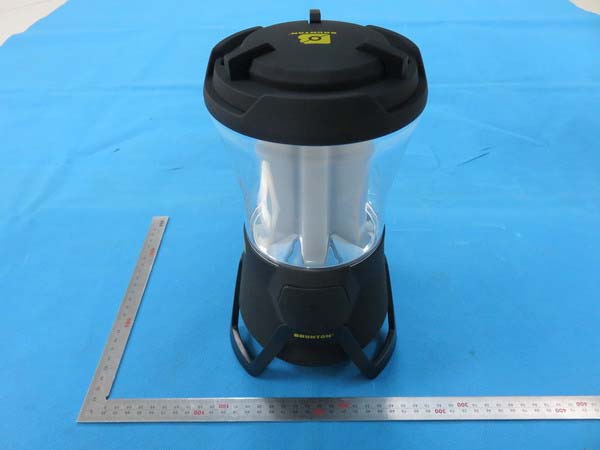

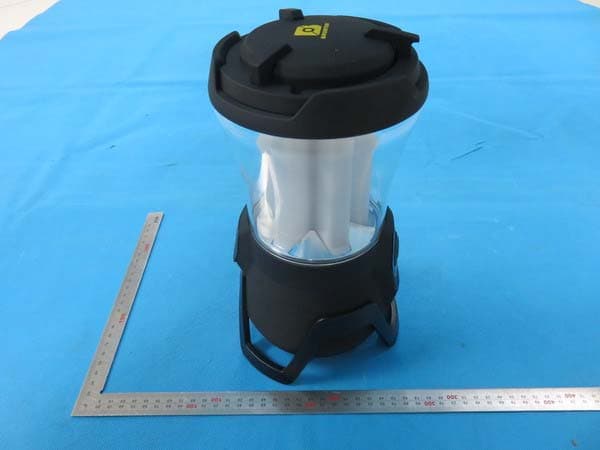

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location LIGHTWAVE LANTERN Brand: BRUNTON Model: AMP FCC ID: 2AFQH-AMP

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: AMP FCC ID: 2AFQH-AMP fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna (Permanent Antenna) Gain of the antenna: 0 dBi Frequency range: 2.402 GHz to 2.480GHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Brunton Outdoor Inc. Address: 1900 Taylor Ave. Louisville, City: CO ZIP / Postal code: 80027 Country: USA Place: Shenzhen Date: 2015-10-29 Signature:

Page 1 of 77 FCC Test Report Report No.: AGC05066150902FE03 FCC ID : 2AFQH‐AMP APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : LIGHTWAVE LANTERN BRAND NAME : BRUNTON MODEL NAME : AMP CLIENT : Brunton Outdoor Inc. DATE OF ISSUE : Oct.26,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC05066150902FE03 Page 2 of 77 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Oct.26,2015 Valid Original Report Report No.: AGC05066150902FE03 Page 3 of 77 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.2. MEASUREMENT PROCEDURE ................................................................................................ 11 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT ............................................................................................................................ 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE ................................................................................................ 41 9.2 TEST SETUP ............................................................................................................................... 41 9.3 RADIATED TEST RESULT .......................................................................................................... 42 10. 20DB BANDWIDTH .......................................................................................................... 50 10.1. MEASUREMENT PROCEDURE .............................................................................................. 50 10.2. TEST SET-UP ........................................................................................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 60 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 60 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 60 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 61 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 61 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 62 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 66 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 68 Report No.: AGC05066150902FE03 Page 4 of 77 1. VERIFICATION OF CONFORMITY Applicant Brunton Outdoor Inc. Address 1900 Taylor Ave. Louisville, CO 80027 USA Manufacturer Atoz Electronic Technology Co Ltd Address 25 Si Li Nan Rd, DaPing, Industrial District, TangXia Town, Dongguan, China Product Designation LIGHTWAVE LANTERN Brand Name BRUNTON Test Model AMP Date of test Oct.19,2015 to Oct.22,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested By Time Huang(Huang Nanhui) Oct.26,2015 Reviewed By Forrest Lei(Lei Yonggang) Oct.26,2015 Approved By Solger Zhang(Zhang Hongyi) Authorized Officer Oct.26,2015 Report No.: AGC05066150902FE03 Page 5 of 77 2. GENERAL INFORMATI…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
