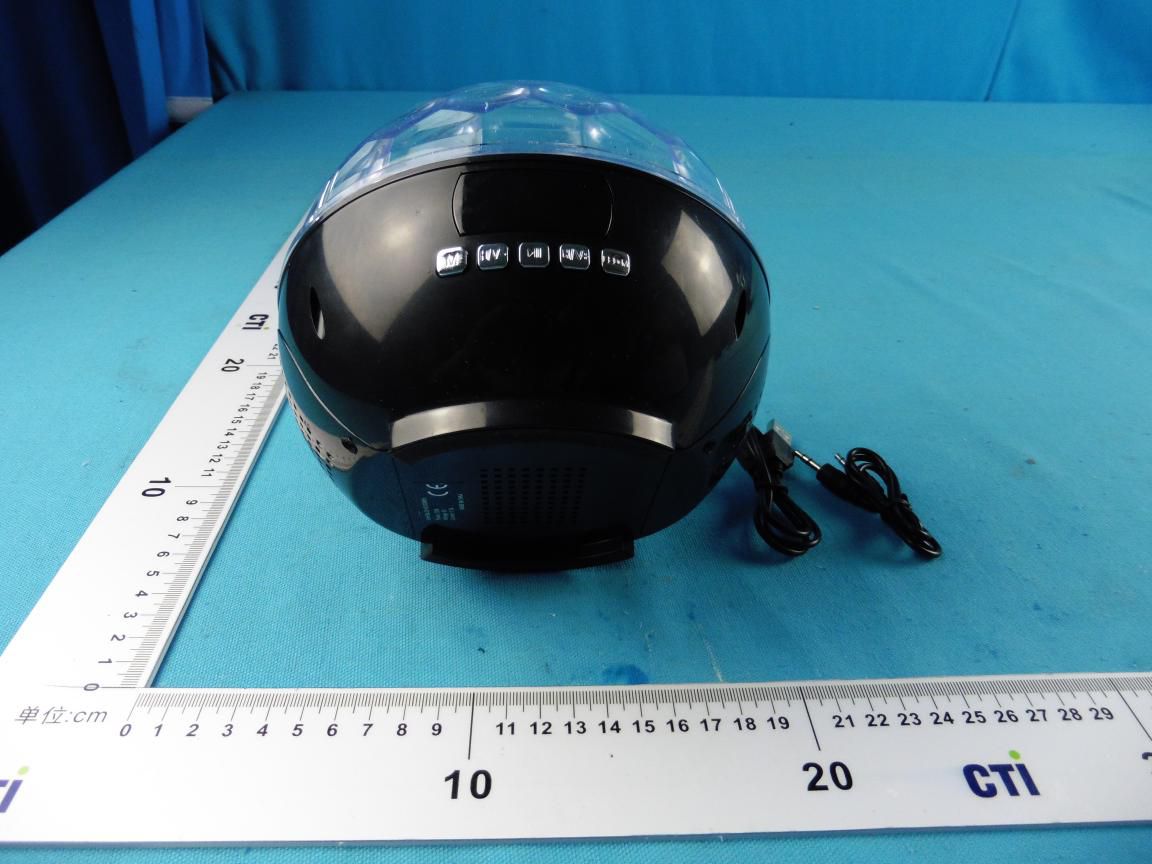

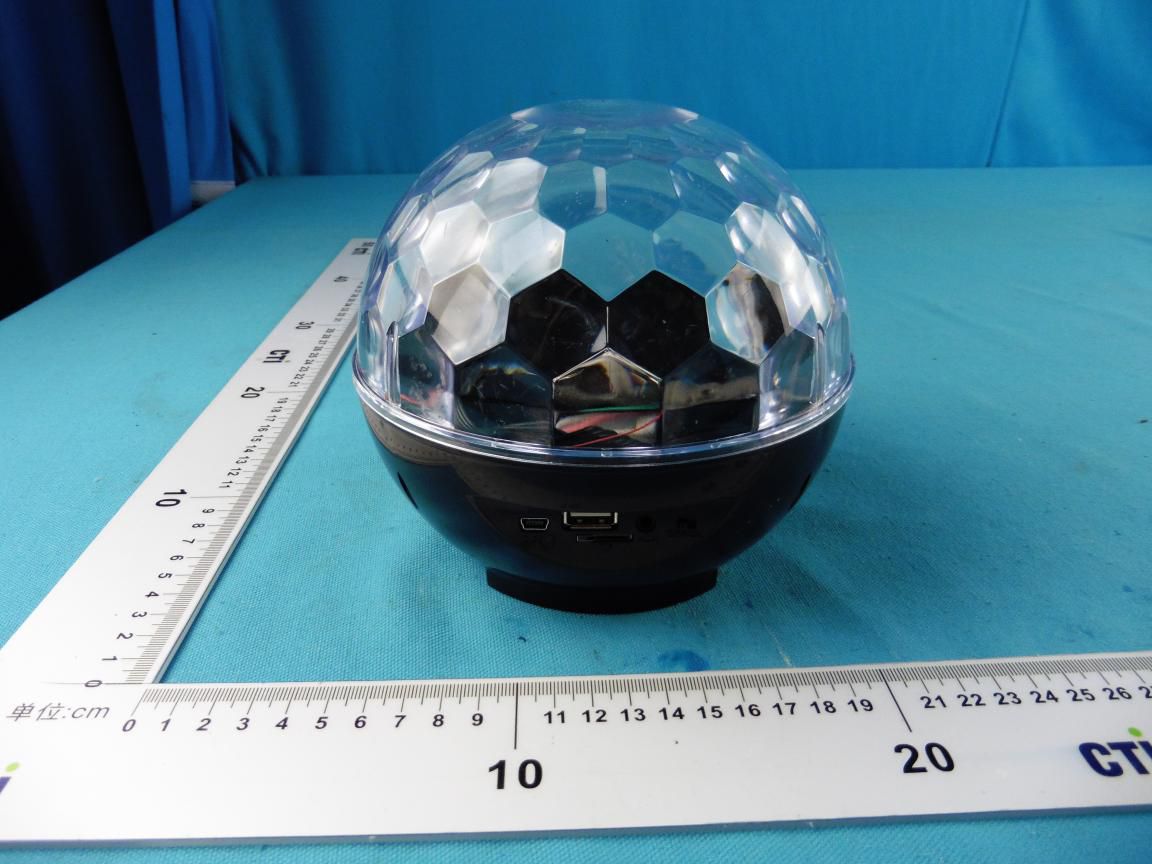

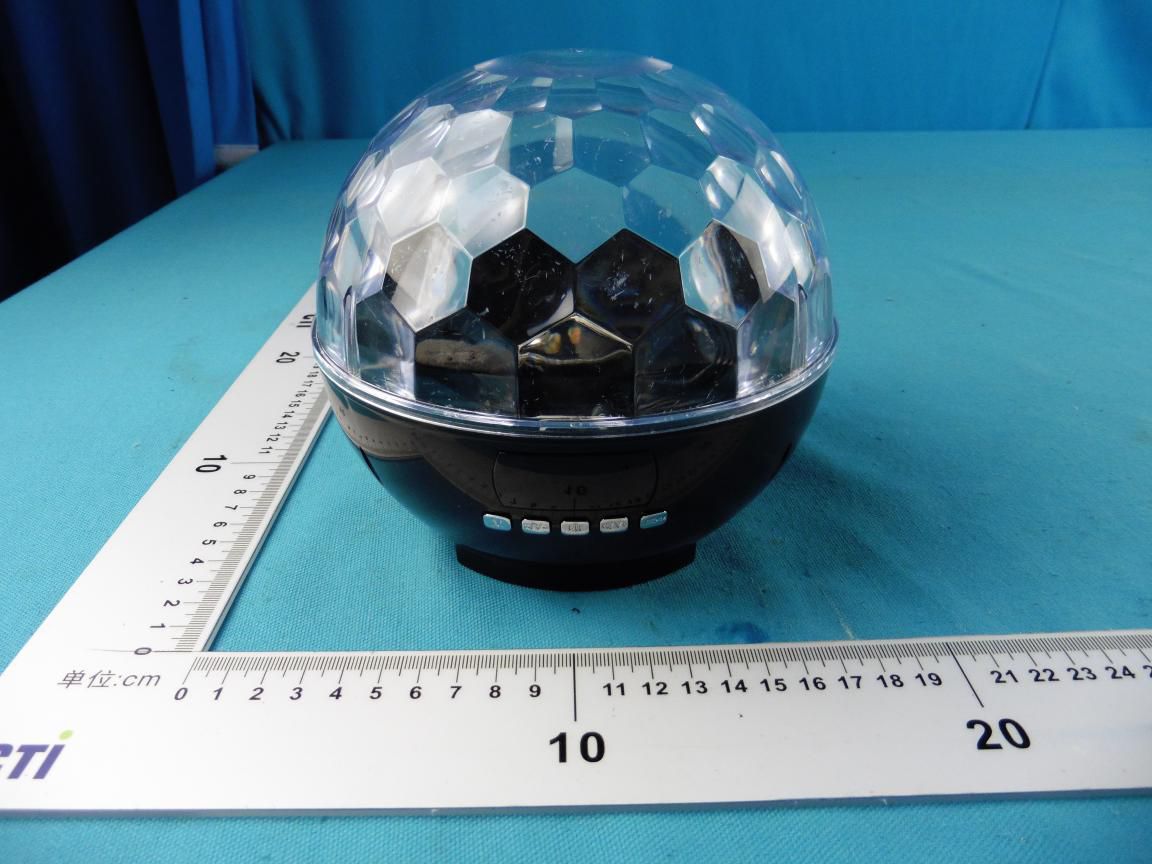

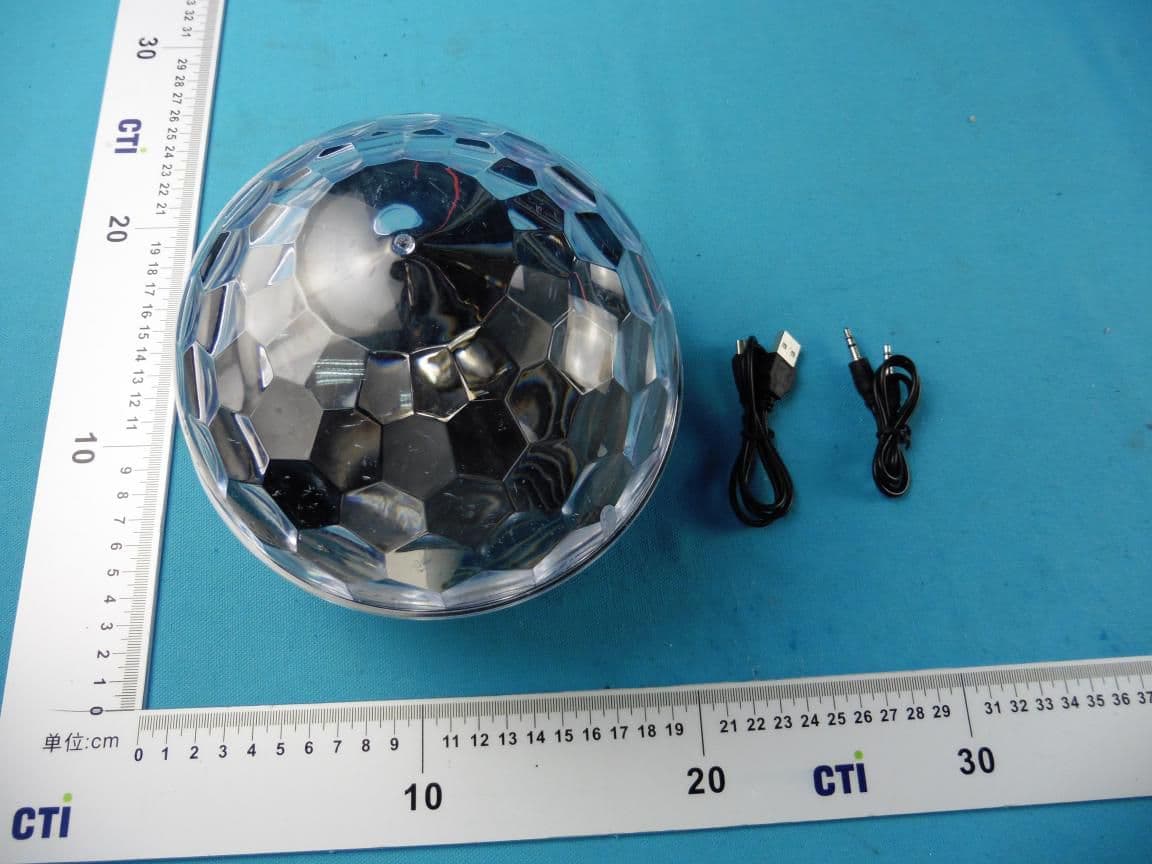

DISCO DOME PARTY LIGHT Assembly Instructions Instructions De Asamblea Instructions d’Assemblée Part # LS-HZ-DOME615-0518 w w w.LumiSource.com PARTS SET UP FrontBack AC charging cable 3.5mm audio cable Dome speaker TF/SD chip Plug AC adapter into power source Switch power to On Turn volume down before connecting to device Press mode button to choose input: - Bluetooth mode, sync to device - AUX mode, plug in 3.5mm audio cable Adjust volume level PLAY/PAUSE NEXT SONG/VOLUME INCREASE PREVIOUS SONG/VOLUME DECREASE MODE SWITCH BUTTON LED LIGHTING MODE LED SCREEN 1 2 3 4 2 5 1 3 4 5 USB PORT POWER ON/OFF 3.5 AUDIO JACK (AUX) MINI USB PORT TF CARD PORT A B C D E A B C D E AC charging cable 3.5mm audio cable Press LED mode button to choose between four LED color modes 1 3 4 2 5 6 WARNINGNOT A TOY Not for use by children. Do not open base or tamper with electrical source. No user servaceable parts inside. For indoor use only. Place on at surface and away from ammable materials. Never operate this appliance if it has a damaged cord, plug or cable. Keep cord away from heated and/or damp areas. Voltage rating: 5Vdc 1500mA USB Flash Drive - USB mode, plug in ash drive - TF mode, insert TF chip Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergy,andifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: –Reorientorrelocatethereceivingantenna. –Increasetheseparationbetweentheequipmentandreceiver. –Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. –Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Youarecautionedthatchangesormodificationsnotexpresslyapprovedbytheparty responsibleforcompliancecouldvoidyourauthoritytooperatetheequipment. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. ThisdevicecomplieswithIndustryCanada’slicence-exemptRSSs.Operationis subjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseinterference;and (2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycause undesiredoperationofthedevice.
DATE:Sept2,2015 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2AFQL-SC3002 ProductName:RAVEBALL RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. Dated this Agencyagreementexpirationdate:Sept2,2015toSept1,2016 By:BRIANCHAN SignaturePrinted Title:manager Onbehalfof:DUSTSTUDIOLTD Telephone:35684706
Label information: FCC ID: 2AFQL-SC3002 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.
RF Exposure evaluation report RF Exposure Compliance Requirement 1. Standard Requirement 15.247(b)(4) requirement: The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6dBi. 2. Limits According to KDB447498 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [ f(GHz)] 3.0 for 1-g SAR and 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 3. EUT RF Exposure The Max Conducted Peak Output Power is -6.434 dBm (0.23mW) in low channel and the Max Conducted Average Output Power is less than 0.23mW. The best case gain of the antenna is 0dBi. 0.23 /5* 2.402=0.071 3.0 Conclusion: No SAR is required.
Report No. : EED32H000895Page 1 of 58 1COVER PAGE TEST REPORT Product:RAVE BALL Trade mark:SOUNDCANDY Model/Type reference :SC3002 Serial Number:N/A Report Number:EED32H000895 FCC ID:2AFQL-SC3002 Date of Issue:Aug. 03, 2015 Test Standards: 47 CFR Part 15 Subpart C (2014) Test result:PASS Prepared for: DUST STUDIO LTD 7/f, Flat B-03, Cheong Wah Factory Building, Tokwawan, Kowloon, HK Prepared by: Centre Testing International Group Co., Ltd. Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by:Reviewed by: Approved by:Date:Aug. 03, 2015 Sheek Luo Lab supervisor Check No.: 1022581390 Report No. : EED32H000895Page 2 of 58 2 Version Version No.DateDescription 00Aug. 03, 2015Original Report No. : EED32H000895Page 3 of 58 3 Test Summary Test ItemTest RequirementTest methodResult Antenna Requirement 47 CFR Part 15 Subpart C Section 15.203/15.247 (c) ANSI C63.10-2013 PASS AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 ANSI C63.10-2013 PASS Conducted Peak Output Power 47 CFR Part 15 Subpart C Section 15.247 (b)(1) ANSI C63.10-2013 PASS 20dB Occupied Bandwidth 47 CFR Part 15 Subpart C Section 15.247 (a)(1) ANSI C63.10-2013 PASS Carrier Frequencies Separation 47 CFR Part 15 Subpart C Section 15.247 (a)(1) ANSI C63.10-2013 PASS Hopping Channel Number 47 CFR Part 15 Subpart C Section 15.247 (b) ANSI C63.10-2013 PASS Dwell Time 47 CFR Part 15 Subpart C Section 15.247 (a)(1) ANSI C63.10-2013 PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15 Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10-2013 PASS RF Conducted Spurious Emissions 47 CFR Part 15 Subpart C Section 15.247(d) ANSI C63.10-2013 PASS Radiated Spurious emissions 47 CFR Part 15 Subpart C Section 15.205/15.209 ANSI C63.10-2013 PASS Test according to ANSI C63.4-2014 & ANSI C63.10-2013. Report No. : EED32H000895Page 4 of 58 4 Content 1COVERPAGE ..................................................................................................................................................................... 1 2 VERSION .............................................................................................................................................................................. 2 3 TEST SUMMARY ................................................................................................................................................................ 3 4CONTENT ............................................................................................................................................................................ 4 5 TEST REQUIREMENT ....................................................................................................................................................... 5 5.1 T EST SETUP ................................................................................................................................................................... 5 5.1.1 For Conducted test setup ................................................................................................................................... 5 5.1.2 For Radiated Emissions test setup ................................................................................................................... 5 5.1.3 For Conducted Emissions test setup ............................................................................................................... 6 5.2 T ESTENVIRONMENT ...................................................................................................................................................... 6 5.3 T ESTCONDITION ........................................................................................................................................................... 6 6 GENERAL INFORMATION ............................................................................................................................................... 7 6.1 C LIENTINFORMATION .................................................................................................................................................... 7 6.2 G ENERALDESCRIPTION OFEUT .................................................................................................................................. 7 6.3 P RODUCTSPECIFICATION SUBJECTIVE TO THIS STANDARD ........................................................................................ 7 6.4 D ESCRIPTION OFSUPPORTUNITS ............................................................................................................................... 8 6.5 T ESTLOCATION ............................................................................................................................................................. 8 6.6 T ESTFACILITY ............................................................................................................................................................... 8 6.7 D EVIATION FROMSTANDARDS ...................................................................................................................................... 9 6.8 A BNORMALITIES FROMSTANDARDCONDITIONS .......................................................................................................... 9 6.9 O THERINFORMATIONREQUESTED BY THECUSTOMER .............................................................................................. 9 6.10 M EASUREMENTUNCERTAINTY(95%CONFIDENCE LEVELS,K=2) ......................................................................... 10 7 EQUIPMENT LIST ............................................................................................................................................................ 11 8 RADIO TECHNICAL REQUIREMENTS SPECIFICATION ....................................................................................... 14 Appendix A) 20dB Occupied Bandwidth ...................................…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 227.30 µW |

BOOM CANDY
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
BOOM TOWER
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
SOUND STORM
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
