2AFR8-P05BRLTWatch Sensor Bracelet

USER MANUAL – P05BRLT WATCH CHARGING STAND FCC: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. “Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment” “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” ISED: “This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device.” “L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : L’appareil ne doit pas produire de brouillage; L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.” “CAN ICES-3 (B)/NMB-3(B)” Please refer to the individual components, component product packaging, user manual, or company website for a comprehensive list of required and permitted compliance markings.

QA-FR-172-A To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 03-20-2024 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AFR8-P05BRLT InVue Security Products, Inc., certifies that, as of the date of the filing of the application, InVue Security Products, Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. InVue Security Products, Inc. agrees to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. InVue Security Products, Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: InVue Security Products, Inc. Address: 9201 Baybrook Lane, Charlotte, NC 28277 Contact Person: Rob Spadafore Tel.: +1 704 752 6513 Email: [email protected] FRN: 0024509010 Sincerely, Applicant name InVue Security Products, Inc. Applicant printed name Rob Spadafore Applicant signature

QA-FR-172-A Date: 03/20/2024 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) Filing Re. KDB 986446 D01 FCC ID: 2AFR8-P05BRLT Dear Sir or Madam, InVue Security Products, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please contact us. Sincerely, Contact name: Rob Spadafore Company name: InVue Address:9201 Baybrook Lane, Charlotte, NC USA E-mail: [email protected] Tel: 704-752-6513

QA-FR-189-B 2/25/2016 Agent Authorization Letter Date 03/19/2024, TUV SUD America Inc. 401 Edgewater Drive Ste 500 Wakefield MA 01880 Dear Sir or Madam, We, InVue Security Products, Inc. located at 9201 Baybrook Lane, Charlotte, North Carolina 28277, hereby authorize Rossana Sarai of TUV SUD America, 5945 Cabot Parkway, Alpharetta, GA 30005 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters for the model listed below: Product Type: Watch display and charging stand Model: P05BRLT Yours sincerely, Name: Rob Spadafore Title: Compliance Engineer

QA-FR-172-A FCC Confidential Authorization Date: 03/19/2024 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request FCC ID: 2AFR8-P05BRLT Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, InVue Security Products, Inc. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Name: Rob Spadafore Title: Compliance Engineer

© 2024 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE RF EXPOSURE & NERVE STIMULATION EVALUATION InVue Dates of Test: January 4, 2024 9201 Baybrook Lane Test Report Number: SAR.20240110 Charlotte, NC 28277 Lab Designation Number: US1195 This wireless mobile device has been shown to meet the requirements for RF exposure testing for uncontrolled environment/general exposure limits specified in above listed standards. The device has also been shown to meet the simultaneous requirements of each standard as well (See test report). I attest to the accuracy of the data. I assume full responsibility for the completeness of these calculations and vouch for the qualifications of all persons making them. Jay M. Moulton Vice President Testing Certificate # 2387.01 FCC ID: 2AFR8-P05BRLT Model(s): 2300-W Serial Number: Eng 1 Equipment Type: Wireless Power Transfer Classification: WPT Transmitter TX Frequency Range: 326.5 kHz, 1.778 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 326.5 kHz – 36.99 dBm EIRP, 1.778 MHz – 36.99 dBm EIRP Signal Modulation: FSK and ASK Antenna Type: Internal Application Type: Certification Standard(s): KDB680106 v04 Maximum E-Field: 28.50 V/m for 326.5 kHz Transmitter, 5.58 V/m for 1.778 MHz Transmitter Maximum H-Field: 0.103 A/m for 326.5 kHz Transmitter, 0.134 A/m for 1.778 MHz Transmitter Distance to Probe: 0 mm Report No.: SAR.20240110 © 2024 RF Exposure Lab, LLC Page 2 of 28 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ........................................................................................................................ 4 2. Radiation Sources .............................................................................................................. 4 3. RF Exposure Classifications ............................................................................................... 5 4. RF Exposure Limits ............................................................................................................ 6 FCC Requirements ................................................................................................................ 6 Note: For frequencies below 300 MHz, use the limits at 300 MHz. ......................................... 6 5. General Conditions ............................................................................................................. 7 6. Environmental Conditions ................................................................................................... 7 7. Test Equipment .................................................................................................................. 7 8. EUT Description ................................................................................................................. 7 9. RF exposure Evaluation Results for 362.5 kHz .................................................................. 8 10. RF exposure Evaluation Results for 1.778 MHz ............................................................10 Appendix A – Calibration Certificates ........................................................................................12 Report No.: SAR.20240110 © 2024 RF Exposure Lab, LLC Page 3 of 28 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Comment/Revision Date Original Release March 26, 2024 Note: The latest version supersedes all previous versions listed in the above table. The latest version shall be used. Report No.: SAR.20240110 © 2024 RF Exposure Lab, LLC Page 4 of 28 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 1. Introduction This report shows RF exposure evaluation of the InVue Model 2300-W Wireless Power Transfer with KDB680106 v04. 2. Radiation Sources Radio Description FSK and ASK Frequency (MHz) 326.5 kHz Maximum Power (dBm) 36.99 dBm (EIRP) Maximum Duty Cycle (%) 100% Radio Description FSK and ASK Frequency (MHz) 1.778 MHz Maximum Power (dBm) 36.99 dBm (EIRP) Maximum Duty Cycle (%) 100% Report No.: SAR.20240110 © 2024 RF Exposure Lab, LLC Page 5 of 28 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 3. RF Exposure Classifications Report No.: SAR.20240110 © 2024 RF Exposure Lab, LLC Page 6 of 28 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 4. RF Exposure Limits FCC Requirements Note: For frequencies below 300 MHz, use the limits at 300 MHz. Report No.: SAR.20240110 © 2024 RF Exposure Lab, LLC Page 7 of 28 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 5. General Conditions • This report is only in reference to the item that has undergone the assessment. • This report does not constitute or imply on its own an approval of the product by the Certification Bodies or Competent Authorities. 6. Environmental Conditions The following limits were not exceeded during the test: Temperature Min. = 15 °C Max. = 35 °C Relative Humidity Min. = 30% Max. = 60% 7. Test Equipment Serial Number Last Cal. Date Cal. Due Date • Wavecontrol SMP2 19SN1179 04/13/2022 04/13/2024 • WP400-3 19WP120054 04/13/2022 04/13/2024 • WPH60 19WP110048 04/13/2022 04/13/2024 • WPF6 19WP060233 04/13/2022 04/13/2024 • Positioning Apparatus used is a plastic tripod to hold the meter and probe at a specified position 8. EUT Description The description of the antenna is listed below • There is one antenna in the device • The element is a 9 turn coil antenna with an impedance of 4 μH • The shielding or field shaping is done with ferrite, aluminum and a copper e-shiel…

Text truncated - open the document above for the full version.

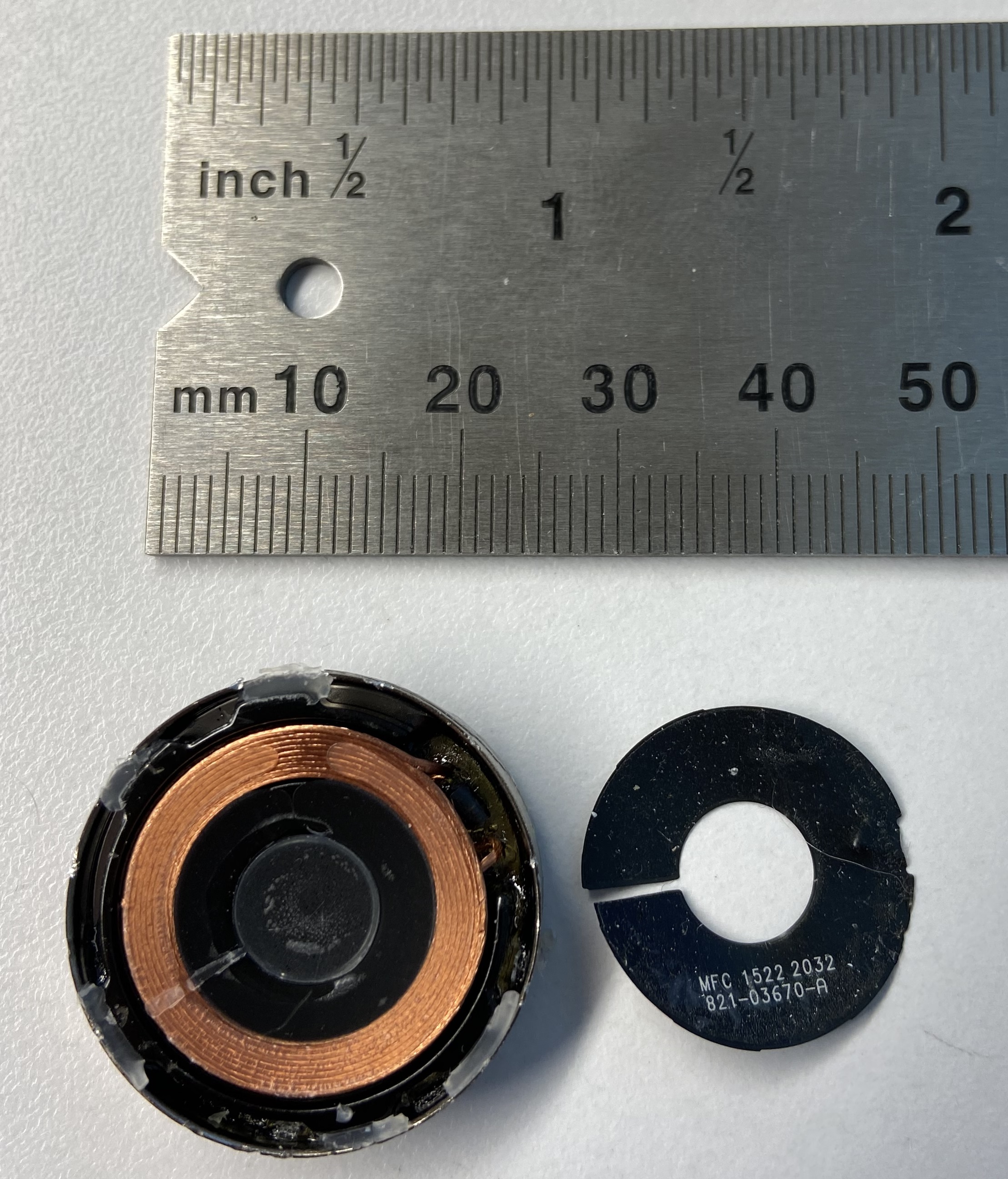

Manufacturer: MFi Approved Mfg. Model: Watch Fast Charger Inductive Coil Module (C962) = MFI631-07931 Size: 9 turn inductive coil ~21.34 mm diameter

TÜV SÜD America 5945 Cabot Parkway, Suite 100 Alpharetta, GA 3005 Phone: 678-341-5900 www.tuv-sud-america.com TÜV SÜD SIGNATURE NAME JOB TITLE RESPONSIBLE FOR ISSUE DATE Thierry Jean-Charles Senior Engineer TUV SUD America Inc. Authorized Signatory 2/21/2024 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD America, Inc. document control rules. FCC Accreditation Designation Number US1233 FCC Test Site Registration Number 967699 Innovation, Science, and Economic Development Canada Lab Code 23932 EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with the standards listed above. A2LA Cert. No. 2955.09 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD America with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD America. No part of this document may be reproduced without the prior written approval of TÜV SÜD America. © TÜV SÜD. ACCREDITATION Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. Report on the Testing of the InVue Security Products, Inc. Watch Sensor Bracelet P05BRLT In accordance with: FCC Part 15 Subpart C §15.223, §15.209 ISED RSS-210 Prepared for: InVue Security Products, Inc. 15015 Lancaster Highway Charlotte, North Carolina, 28277 USA COMMERCIAL-IN-CONFIDENCE Document Number: AT72193348.3C0 TÜV SÜD America 5945 Cabot Parkway, Suite 100 Alpharetta, GA 3005 Phone: 678-341-5900 www.tuv-sud-america.com TÜV SÜD Document Number: AT72193348.3C0 Contents Report Summary .........................................................................................................................3 Report Modification Record ...........................................................................................................3 Introduction ....................................................................................................................................3 Brief Summary of Results .............................................................................................................5 Product Information .......................................................................................................................6 Deviations from the Standard ..................................................................................................... 10 EUT Modification Record ........................................................................................................... 10 Test Location .............................................................................................................................. 10 Test Details ............................................................................................................................... 11 Antenna Requirement ................................................................................................................ 11 Power Line Conducted Emissions ............................................................................................. 12 99% Bandwidth .......................................................................................................................... 17 Radiated Spurious Emissions .................................................................................................... 19 Test Equipment Used ................................................................................................................. 24 Diagram of Test Set-ups .......................................................................................................... 25 Accreditation, Disclaimers and Copyright............................................................................. 26 TÜV SÜD America 5945 Cabot Parkway, Suite 100 Alpharetta, GA 3005 Phone: 678-341-5900 www.tuv-sud-america.com TÜV SÜD Document Number: AT72193348.3C0 Report Summary Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Table 1.1-1 – Modification Record Issue Description of Change Date of Issue 0 First Issue 2/21/2024 Introduction The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations Section 15.223 and FCC 15.209 and Innovation Science and Economic Development Canada’s Radio Standards Specification RSS-21010 for the tests documented herein. Applicant Rob Spadafore Manufacturer InVue Security Products Inc Applicant’s Email Address [email protected] Host Model Name P05BRLT Host Model Number(s): DAW700 Serial Number N/A Radio FCC ID Radio ISED ID 2AFR8-P05BRLT 23313-P05BRLT Product Marketing Name (PMN) Watch Sensor Bracelet Hardware Version(s) F2300133 Software Version(s) F2300 Number of Samples Tested 2 Test Specification/Issue/Date US Code of Federal Regulation (CFR): Title 47, Part 15, Subpart C: §15.223 - Operation in the band 1.705 - 10 MHz, 2023 US Code of Federal Regulation (CFR): Title 47, Part 15, Subpart C: §15.209 - Radiated emission limit; general requirement,2024. US Code of Federal Regulations (CFR): Title 47, Part 15, Subpart C: §15.207 Conducted limits,2024 TÜV SÜD America 5945 Cabot Parkway, Suite 100 Alpharetta, GA 3005 Phone: 678-341-5900 www.tuv-sud-america.com TÜV SÜD Document Number: AT72193348.3C0 RSS-210-License Exempt Radip Apparatus: Category I Equipment, Issue 10, Dec 2019 Order Number 72193348 Date of Receipt of EUT 12/11/2023 Start of Test 1/4/2024 Finish of Test 1/17/2024 Related Document(s) ANSI C63.10-2013: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Device. US Code of Federal Regulations (CFR): Title 47, Part 2, Subpart J: Equipment Authorization Procedures, 2024. ISED Canada Radio Standards Specification: RSS-GEN – General Requirements for Compliance of Radio Apparatus, Issue 5, Amendment 1 (March 2019), Amendment 2 (Februar…

Text truncated - open the document above for the full version.
