2AFWN-EL013H2WRDESL LABEL

NWTON S-Label Datasheet NEWTON S-Label (Electronic Label System) R E V 1 . 0 (PMN :NEWTON S-Label ) (FVIN : VISION_ 0.1) S o l u M 2020-02-25 S u m m a r y This datasheet prese nts t he g eneral performance a nd specifications of NEWTON S-Label for ESL (Electronic Shelf Label) System. © Solu-M. All rights reserved T he na m e s of a ct ua l c o m p a ni e s a n d p r o d uc t s m e nt i o ne d herein may be the trademarks of their respective owners. No p art of t hi s d ocume nt ma y b e re produce d, st or ed i n a retrieval system, or transmitted in any form or by any means without the express written consent of Solu-M This document is subject to change without notice. R E V 1 . 0 SoluM Proprietary and Confidential 1 / 2 4 Table of Contents 1 GENERAL DESCRIPTION..................................................................................................... 4 1.1 FEATURES......................................................................................................................... 5 1.2 TYPICALAPPLICATIONS......................................................................................................... 5 1.3 APPEARANCE...................................................................................................................... 5 2 SPECIFICATION .................................................................................................................. 6 2.1 PRODUCTSPECIFICATION....................................................................................................... 6 2.2 RADIO(RF) SPECIFICATION................................................................................................... 7 2.3 NFC SPECIFICATION............................................................................................................. 7 2.4 MECHANICALDRAWIN........................................................................................................... 8 2.5 LABELMARKING.................................................................................................................12 3 OPER ATI ON TEST.........................................................오류!책갈피가 정의되어 있지 않습니다. 4 PACKAGING ...................................................................................................................... 14 5 CAUTIONS FOR TREATMENT............................................................................................. 15 5.1 USAGEENVIRONMENT..........................................................................................................15 5.2 STORAGE ANDUSE..............................................................................................................15 5.3 BATTERYREPLACEMENT........................................................................................................16 5.4 FCC ...............................................................................................................................18 R E V 1 . 0 SoluM Proprietary and Confidential 2 / 2 4 Document History R E V 1 . 0 SoluM Proprietary and Confidential 3 / 2 4 Rev. Date Revision History Page 1.0 25 FEB 2020 Initial release - 2.0 23 JULY 2020 Add 1.3” Tag - 2 .4M e c h a n i c a l D r a w i n 2 . 4 . 1C a s e D i m e n s i o n Figure 3. 1.3” Mechanical Dimension Figure 3. 1.6” Mechanical Dimension Figure 4. 2.2” Mechanical Dimension R E V 1 . 0 SoluM Proprietary and Confidential 8 / 2 4 Figure 5. 2.6” Mechanical Dimension Figure 6. 2.9” Mechanical Dimension R E V 1 . 0 SoluM Proprietary and Confidential 9 / 2 4 Figure 7. 4.2” Mechanical Dimension Figure 8. 6.0” Mechanical Dimension R E V 1 . 0 SoluM Proprietary and Confidential 1 0 / 2 4 Figure 9. 7.5” Mechanical Dimension Figure 10 11.6” Mechanical Dimension R E V 1 . 0 SoluM Proprietary and Confidential 1 1 / 2 4 2 . 5L a b e l M a r k i n g 2.5.1 MAC Label Figure 7. Product and MAC Labels Product information is indicated on the sticker label of the S-Labels. The information consists of MODEL (mod el name), MFD (ma nufa cturi ng dat e), S/N (serial number), MAC (MAC ad dress), CE certification mark, FCC ID and Manufacturer (SoluM). 1) Mode l Na me : E L-①②③H3④⑤⑥(i .e . EL0 16 H3 W RA ) - TG : TAG -① ② ③: Tag Display size 0 1 6 = 1 . 6” 0 2 9 = 2 . 9” . -④: Ta g C ase C olor W - W H I TE B – B L A C K . -⑤T a g D i s p l a y-C o l o r M - Mono Tag (BW) R - Red Color Tag (BWR) Y - Yellow Color (BWY) . -⑥: Tag Type ( NFC, LED, etc) R E V 1 . 0 SoluM Proprietary and Confidential 1 2 / 2 4 2 ) MF D: (M o nt h ). (D a t e ) . (Y e a r ) i .e . J A N .2 6 .2 0 2 0 3) S/N: Serial Number Information (See Section 2.5.1) R E V 1 . 0 SoluM Proprietary and Confidential 1 3 / 2 4 Red Color Label (BWR) Yellow Color Label (BWY) WHITE BLACK WHITE BLACK 1.3” EL01 H2WRD EL01 H2BRD EL01 H2WYD EL01 H2BYD 1.6" EL016H3WRA EL016H3BRA EL016H3WYA EL016H3BYA 2.2" EL022H3WRA EL022H3BRA EL022H3WYA EL022H3BYA 2.6" EL026H3WRA EL026H3BRA EL026H3WYA EL026H3BYA 2.9" EL029H3WRA EL029H3BRA EL029H3WYA EL029H3BYA 4.2" EL042H3WRA EL042H3BRA EL042H3WYA EL042H3BYA 6.0” EL060H3WRA EL060H3BRA EL060H3WYA EL060H3BYA 7.5” EL075H3WRA EL075H3BRA EL075H3WYA EL075H3BYA 11.6” EL116H3WRA EL116H3BRA EL116H3WYA EL116H3BYA 333 3 6.0” 3P a c k a g i n g TAG P E T-T R A Y ( E A ) O U T _ B O X ( E A ) P A L L E T ( E A ) 1.6 90 270 10,800 2.2 50 150 6,000 2.9 40 80 4,480 4.2 40 40 2,240 Figure 19.” Package R E V 1 . 0 SoluM Proprietary and Confidential 1 4 / 2 4 4C a u t i o n s f o r T r e a t m e n t Provisions should be made to protect against any damage to the product caused by improper handling. The purchaser assumes any responsibility for damage to the product caused by improper h a n d l i n g . It is highly recommended that the product should be installed within 3 months from the date of arrival in the logistics hub. Recommended storage condition is -20~40 Celsius degree, 35-60% RH e n v i r o n m e n t . 4 .1U s a g e E n v i r o n m e n t Tak e extra ca uti ons whe n usi ng thi s RF d evice i n the vici nity of other el ect r…

Text truncated - open the document above for the full version.

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : 2AFWN-EL013H2WRD Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block diagram Schematics Schematics_PCB Layout Parts list Operational description Operational description_Antenna specification Block diagram(2AFWN-EL013H2WRD).pdf Schematics(2AFWN-EL013H2WRD).pdf Schematics_PCB Layout(2AFWN-EL013H2WRD).pdf Part list(2AFWN-EL013H2WRD).pdf Operational description(2AFWN-EL013H2WRD).pdf Operational description_Antenna specification (2AFWN-EL013H2WRD).pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, NAME: Ki Dong Lee Applicant: SOLUM CO.,LTD.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date : August, 4, 2020 SUBJECT: FCC Application for (FCC ID : 2AFWN-EL013H2WRD) To Whom It May Concern: We, the undersigned, hereby authorize Young-taek, Lee at CTK on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CTK on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, NAME: Ki Dong Lee Applicant: SOLUM CO.,LTD.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Label Photographs 27 mm 22 mm

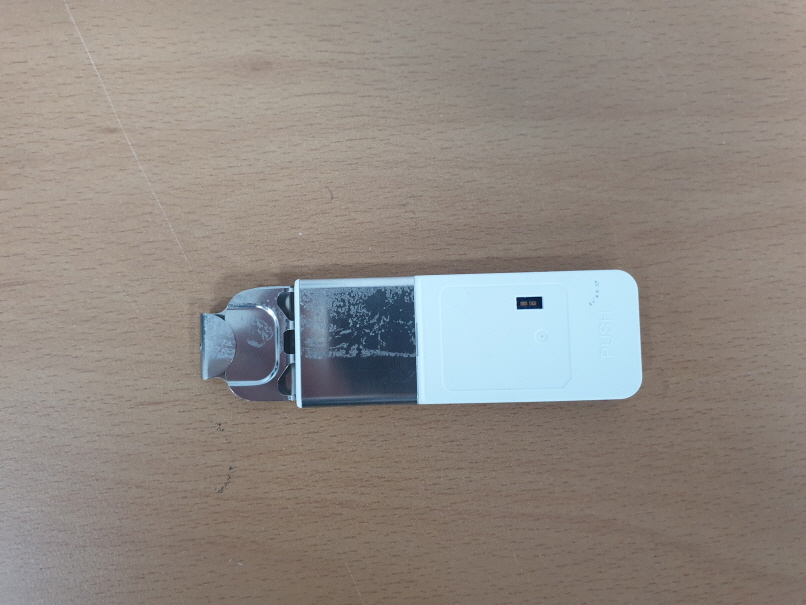

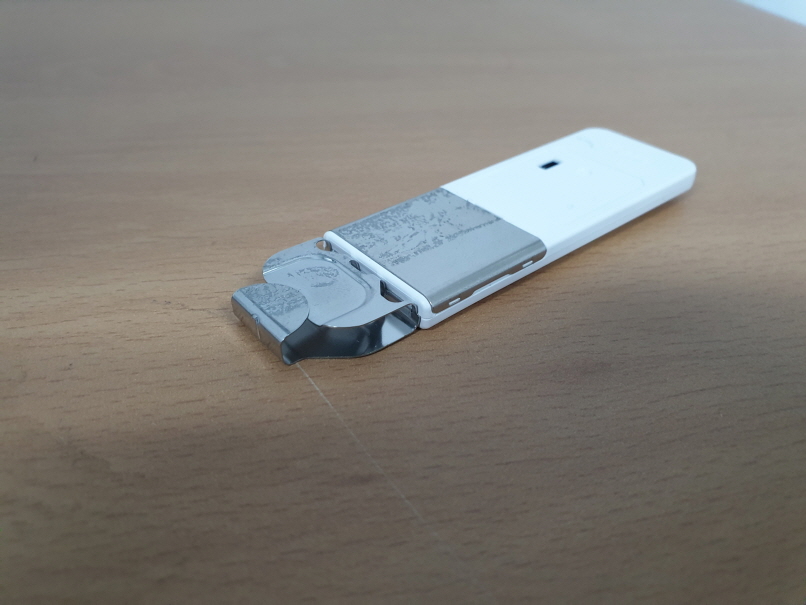

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Antenna

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 1 of 2 RF EXPOSURE EVALUATION FCC ID : 2AFWN-EL013H2WRD IC : 22800-EL013H2WRD Standard Requirement The following FCC Rule Parts and procedures are applicable : Part 1.1310 Radiofrequency radiation exposure limits Part 2.1091 Radiofrequency radiation exposure evaluation : Mobile device KDB447498 D01 v06 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies Table 1 below sets forth limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields. Table 1—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density RSS-102(Issue5) Exposure Limits Table : RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency range (MHz) Electric field strength (V/m rms) Magnetic field strength (A/m rms) Power density (W/m 2 ) Reference Period (minutes) 0.003-10 21 83 90 - Instantaneous* 0.1-10 - 0.73 / f - 6** 1.1-10 87 / f 0.5 - - 6** 10-20 27.46 0.0728 2 6 20-48 58.07 / f 0.25 0.1540 / f 0.25 8.944 / f 0.5 6 48-300 22.06 0.05852 1.291 6 300-6000 3.142 f 0.3417 0.008335 f 0.3417 0.02619 f 0.6834 6 6000-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000 / f 1.2 150000-300000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -05 f 616000 / f 1.2 f is frequency in MHz, *:Based on nerve stimulation(NS), **:Based on specific absorption rate(SAR) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 2 of 2 MPE calculation S = EIRP / (4πR 2 ) Where S : Power density EIRP : P x G P : Maximum transmitter power G : Antenna gain R : distance to the centre of radiation of the antenna Note P : 1.67 dBm (1.016 mW)(0.001 016 W) G : -1.60 dBi x(0.692)(0.692) R : 20.00 cm (20.00 cm)(0.20 m) Limits FCC MPE : 1 mW/cm 2 RSS-102 : 0.02619 f 0.6834 => 5.41 W/m 2 Test Data(Maximum RF Power) Frequency Measurement data Limit Result 2 440 MHz 0.000 2 mW/cm 2 1.00 mW/cm 2 Complies 0.002 0 W/m 2 5.41 W/m 2 Complies Conclusion This confirms compliance to the required Radio frequency radiation exposure limit.

TEST REPORT CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-03300 Page (1) / (27) Pages QF-QP15-03 R101 Rev.0 1. Client ◦ Name : SOLUM CO.,LTD. ◦ Address : 4,5,6th F, 357, Guseong-ro, Giheung-gu, Gyeonggi-do, Yongin-si, Republic of Korea ◦ Date of Receipt : 2020-07-03 2. Manufacturer ◦ Name #1 : SOLUM CO.,LTD. ◦ Address #1 : 4,5,6th F, 357, Guseong-ro, Giheung-gu, Gyeonggi-do, Yongin-si, Republic of Korea ◦ Name #2 : SOLUM VINA CO., LTD ◦ Address #2 : Plot B3, Ba Thien 2 Industrial park, Thien Ke Ward, Binh Xuyen District, Vinh Phuc Province, 281200., People's Republic of Vietnam 3. Use of Report : For FCC Certification & Canadian Certification 4. Test Sample / Model : ESL Label / EL013H2WRD 5. Date of Test : 2020-07-28 to 2020-08-19 6. Test Standard(method) used : FCC 47 CFR part 15 subpart C 15.247, ANSI C63.10-2013, RSS-Gen Issue 5, RSS-247 Issue 2 7. Testing Environment : Temp.: (23 ± 1) °C, Humidity: (51 ± 3) % R.H. 8. Test Results : Compliance The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full. Affirmation Tested by Bong-seok Kim: (Signature) Technical Manager Young-taek Lee: (Signature) 2020-08-19 Republic of KOREA CTK Co., Ltd. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-03300 Page (2) / (27) Pages QF-QP15-03 R101 Rev.0 REPORT REVISION HISTORY Date Revision Page No 2020-08-19 Issued (CTK-2020-03300) all This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-03300 Page (3) / (27) Pages QF-QP15-03 R101 Rev.0 CONTENTS 1. General Product Description ....................................................................................... 4 1.1 Client Information ............................................................................................. 4 1.2 Product Information ........................................................................................... 4 1.3 Peripheral Devices ............................................................................................. 4 2. Facility and Accreditations .......................................................................................... 5 2.1 Test Facility ...................................................................................................... 5 2.2 Laboratory Accreditations and Listings .................................................................. 5 2.3 Calibration Details of Equipment Used for Measurement .......................................... 5 3. Test Specifications .................................................................................................... 6 3.1 Standards ........................................................................................................ 6 3.2 Mode of operation during the test ........................................................................ 6 3.3 Maximum Measurement Uncertainty .................................................................... 7 4. Technical Characteristic Test ....................................................................................... 8 4.1 6dB Bandwidth & 99% Bandwidth ........................................................................ 8 4.2 Maximum peak Conducted Output Power ............................................................ 11 4.3 Power Spectral Density .................................................................................... 13 4.4 Band Edge & Conducted Spurious emission ......................................................... 15 4.5 Radiated Emission ........................................................................................... 18 APPENDIX A – Test Equipment Used For Tests ................................................................ 27 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-03300 Page (4) / (27) Pages QF-QP15-03 R101 Rev.0 1. General Product Description 1.1 Client Information Company SOLUM CO.,LTD. Contact Point 4,5,6th F, 357, Guseong-ro, Giheung-gu, Gyeonggi-do, Yongin-si, Republic of Korea Contact Person Name : Wooyoung Hu E- mail : [email protected] Tel : +82-31-8006-0968 1.2 Product Information FCC ID 2AFWN-EL013H2WRD IC 22800-EL013H2WRD Product Description ESL Label Model name EL013H2WRD Variant Model name EL013H2WYD (Variant models have no technical differences with each model except for the model name and color for marketing purposes.) Operating Frequency 2 402 MHz - 2 480 MHz RF Output Power 1.67 dBm (1.469 mW) Antenna Specification Antenna type : PCB Antenna Peak Gain : -1.6 dBi Number of channels 40 Channel Spacing 2 MHz Type of Modulation GFSK Power Source DC 3.0 V(Battery) Firmware Version Id Number(FVIN) 0.1 RF Power setting in Test SW Initial value 1.3 Peripheral Devices -For Conducted Measurement and Radiated Measurement Device Manufacturer Model No. Serial No. Notebook HP Inc. HP Probook 650 G1 5CG5114K13 AC Adapter HP Inc. PPP012D-S 677777-003 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-03300 Page (5) / (27) Pages QF-QP15-03 R101 Rev.0 2. Facility and Accreditations 2.1 Test Facility The measurement facility is located at (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yong-in-si, Gyeonggi-do, Korea. 2.2 Laboratory Ac…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Setup Photos and Configuration Radiated Electric Field Emissions 9 kHz to 30 MHz 30 MHz to 1 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com 1GHz to 18 GHz 18 GHz to 26.5 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Conducted Emissions
