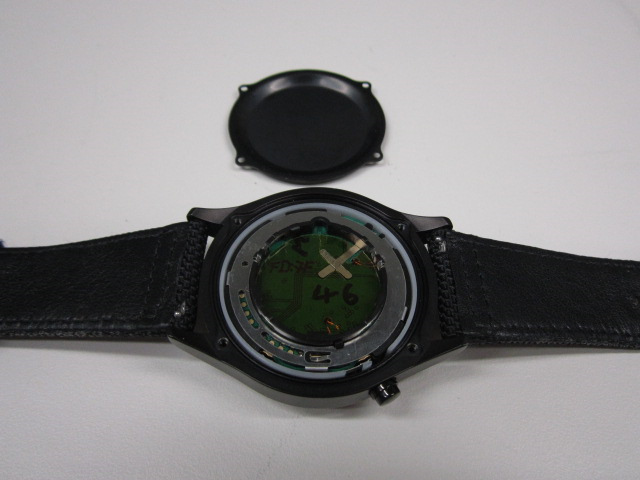

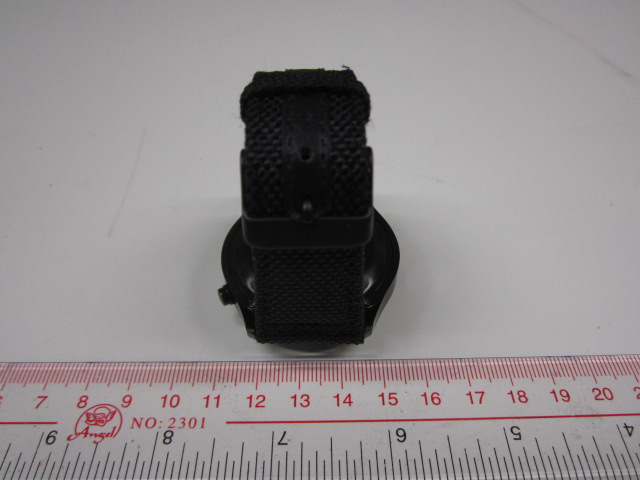

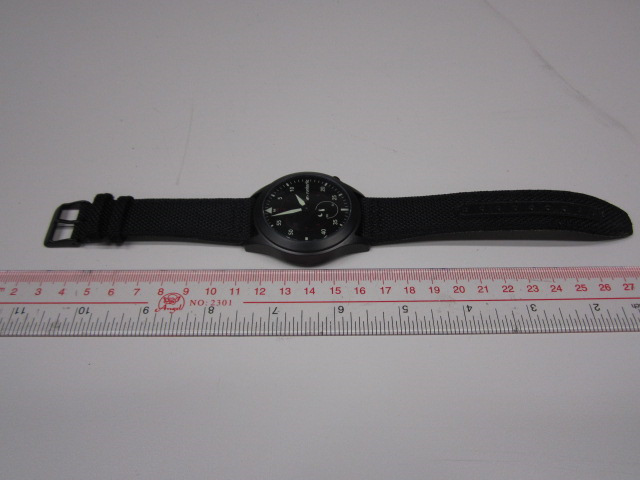

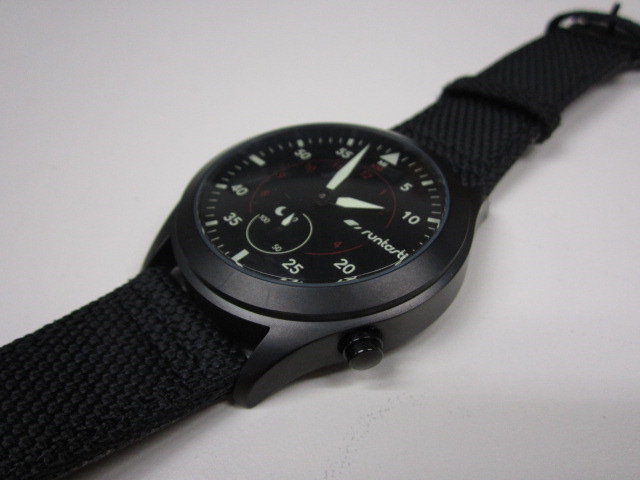

www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 2 of 9 External view Model: 7320-007 External view Model: 7320-007 www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 3 of 9 External view Model: 7320-007 External view Model: 7320-007 www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 4 of 9 External view Model: 7320-007 Internal view Model: 7320-007

www.tuv.com Test Report No.: 14041289 001 Appendix 4 page 2 of 14 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 4 of 9 External view Model: 7320-007 Internal view Model: 7320-007 www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 5 of 9 Internal view Model: 7320-007 Internal view Model: 7320-007 www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 6 of 9 Internal view Model: 7320-007 Internal view Model: 7320-007 www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 7 of 9 Internal view Model: 7320-007 Internal view Model: 7320-007 www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 8 of 9 Internal view Model: 7320-007 Internal view Model: 7320-007 www.tuv.com Test Report No.: 14041289 001 Appendix 3 page 9 of 9 Internal view Model: 7320-007

www.tuv.com Test Report No.: 14041289 001 Date: 05.11.2015 page 2 of 14 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information ...................................................................................................... 3 Manufacturers declarations ........................................................................................................................ 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 4 Remark .......................................................................................................................................................... 4 Independent Operation Modes ................................................................................................................... 5 Related Submittal(s) Grants ....................................................................................................................... 5 Test Set-up and Operation Mode .................................................................................. 6 Principle of Configuration Selection ......................................................................................................... 6 Test Operation and Test Software ............................................................................................................. 6 Special Accessories and Auxiliary Equipment ......................................................................................... 6 Countermeasures to achieve EMC Compliance ....................................................................................... 6 Test Methodology .......................................................................................................... 7 Radiated Emission ....................................................................................................................................... 7 Field Strength Calculation .......................................................................................................................... 7 List of Test and Measurement Instruments ................................................................. 8 Results FCC Part 15 – Subpart C ................................................................................. 9 Subclause 15.203 – Antenna Information ........................................................................ Pass ................. 9 Subclause 15.204 – Antenna Information ........................................................................ Pass ................. 9 Subclause 15.207 – Disturbance Voltage on AC Mains ................................................... N/A ................. 9 FCC 15.247 (a)(2) – 6dB Bandwidth Measurement ......................................................... Pass ............... 10 FCC 15.247 (b) (1), (3) – Maximum Peak Output Power ................................................. Pass ............... 10 FCC 15.247 (d) – Spurious Conducted Emissions ......................................................... Pass ............... 11 FCC 15.247 (d) – Radiated Spurious Emissions ............................................................. Pass ............... 12 FCC 15.247 (d) – Band Edge Emissions (Conducted) .................................................... Pass ............... 13 FCC 15.247 (e) – Power Spectral Density ........................................................................ Pass ............... 14 Appendix 1 – Test protocols 14 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 9 pages Appendix 4 – Product documentation 14 pages Appendix 5 – Radio Frequency Exposure 2 pages www.tuv.com Test Report No.: 14041289 001 Date: 05.11.2015 page 3 of 14 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation GFSK / FHSS Number of channels 40 Channel separation 2 MHz Type of antenna Chip antenna Antenna gain (dBi) 0.5 Power level fix Type of equipment stand alone radio device Connection to public utility power line No Nominal voltage V nor : 3.0 VDC Independent Operation Modes Bluetooth communication Product function and intended use The Equipment Under Test (EUT) is a Bluetooth Low Energy watch which is powered by battery. It can be connected to Bluetooth enabled smart phone and transfer information to smart phone for data collection. For details, please refer to the user manual. Multiple models The manufacturer declares that the EUT has 7 models as listed in the below table. They are all identical in electrical including schematics, PCB layout and components used except the model number and housing design only. Due to the manufacturer declaration of equivalence, the model 9320-007 was provided by client as a representative for testing and construction photo taking. FCCID: 2AFXM-000001 Models 9320-007 9331-008 9331-009 9316-010 9316-011 9316-012 SMARTG1 www.tuv.com Test Report No.: 14041289 001 Date: 05.11.2015 page 4 of 14 Submitted documents Circuit Diagram Block Diagram Bill of material User Manual Label Artwork Remark -- www.tuv.com Test Report No.: 14041289 001 Date: 05.11.2015 page 5 of 14 Independent Operation Modes The basic operation modes are: - Radio communication link maintained with data transfer. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14041289 001 Date: 05.11.2015 page 6 of 14 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The EUT was configured to measure its highest possible radiation l…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14041289 001 Appendix 1 page 1 of 14 Appendix 1 Test Results www.tuv.com Test Report No.: 14041289 001 Appendix 1 page 2 of 14 6 dB Bandwidth Measurement Tx frequency: 2402MHz A 2.402018 GHz * 2.402018 GHz RBW 100 kHz 2.402018 GHzVBW 300 kHz 2.402018 GHz SWT 2.5 ms 2.402018 GHz Ref 0 dBm 2.402018 GHz Att 30 dB 2.402018 GHz Center 2.402 GHz 2.402018 GHz Span 3 MHz 2.402018 GHz 300 kHz/ 2.402018 GHz 1 PK 2.402018 GHz MAXH 2.402018 GHz 2.402018 GHz 2.402018 GHz 2.402018 GHz 2.402018 GHz 2.402018 GHz 2.402018 GHz 2.402018 GHz 2.402018 GHz 2.402018 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.402018 GHz 1 Marker 1 [T1 ] -5.38 dB m 2.402018000 GHz 2 Delta 2 [T1 ] -6.36 dB -366.000000000 kHz 3 Delta 3 [T1 ] -6.38 dB 336.000000000 kHz MARKER 1 2.402018 GHz Date: 28.OCT.2015 09:35:43 Tx frequency: 2440MHz A 2.440018 GHz Ref 0 dBm 2.440018 GHz Att 30 dB 2.440018 GHz 1 PK 2.440018 GHz MAXH 2.440018 GHz 2.440018 GHz 2.440018 GHz 2.440018 GHz 2.440018 GHz 2.440018 GHz 2.440018 GHz 2.440018 GHz 2.440018 GHz 2.440018 GHz Center 2.44 GHz 2.440018 GHz Span 3 MHz 2.440018 GHz 300 kHz/ 2.440018 GHz * 2.440018 GHz RBW 100 kHz 2.440018 GHzVBW 300 kHz 2.440018 GHz SWT 2.5 ms 2.440018 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.440018 GHz 1 Marker 1 [T1 ] -6.71 dBm 2.440018000 GHz 2 Delta 2 [T1 ] -6.24 dB -354.000000000 kHz 3 Delta 3 [T1 ] -6.38 dB 324.000000000 kHz MARKER 1 2.440018 GHz Date: 28.OCT.2015 09:36:52 www.tuv.com Test Report No.: 14041289 001 Appendix 1 page 3 of 14 Tx frequency: 2480MHz A 2.480024 GHz Ref 0 dBm 2.480024 GHz Att 30 dB 2.480024 GHz 1 PK 2.480024 GHz MAXH 2.480024 GHz 2.480024 GHz 2.480024 GHz 2.480024 GHz 2.480024 GHz 2.480024 GHz 2.480024 GHz 2.480024 GHz 2.480024 GHz 2.480024 GHz Center 2.48 GHz 2.480024 GHz Span 3 MHz 2.480024 GHz 300 kHz/ 2.480024 GHz * 2.480024 GHz RBW 100 kHz 2.480024 GHzVBW 300 kHz 2.480024 GHz SWT 2.5 ms 2.480024 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.480024 GHz 1 Marker 1 [T1 ] -8.19 dBm 2.480024000 GHz 2 Delta 2 [T1 ] -6.27 dB -366.000000000 kHz 3 Delta 3 [T1 ] -6.96 dB 348.000000000 kHz MARKER 1 2.480024 GHz Date: 28.OCT.2015 09:37:48 www.tuv.com Test Report No.: 14041289 001 Appendix 1 page 4 of 14 Peak Output Power BLE Mode Tx frequency: 2402MHz A 2.4016 GHz Ref 0 dBm 2.4016 GHz 2.4016 GHz 2.4016 GHz 2.4016 GHz 2.4016 GHz 2.4016 GHz 2.4016 GHz 2.4016 GHz 2.4016 GHz 2.4016 GHz Att 30 dB 2.4016 GHz 1 PK 2.4016 GHz MAXH 2.4016 GHz Center 2.402 GHz 2.4016 GHz Span 10 MHz 2.4016 GHz 1 MHz/ 2.4016 GHz * 2.4016 GHz RBW 3 MHz 2.4016 GHzVBW 10 MHz 2.4016 GHz SWT 2.5 ms 2.4016 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.4016 GHz 1 Marker 1 [T1 ] -6.34 dBm 2.401600000 GHz MARKER 1 2.4016 GHz Date: 28.OCT.2015 09:46:38 Tx frequency: 2440MHz A 2.43992 GHz Ref 0 dBm 2.43992 GHz 2.43992 GHz 2.43992 GHz 2.43992 GHz 2.43992 GHz 2.43992 GHz 2.43992 GHz 2.43992 GHz 2.43992 GHz 2.43992 GHz Att 30 dB 2.43992 GHz 1 PK 2.43992 GHz MAXH 2.43992 GHz Center 2.44 GHz 2.43992 GHz Span 10 MHz 2.43992 GHz 1 MHz/ 2.43992 GHz * 2.43992 GHz RBW 3 MHz 2.43992 GHzVBW 10 MHz 2.43992 GHz SWT 2.5 ms 2.43992 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.43992 GHz 1 Marker 1 [T1 ] -6.58 dBm 2.439920000 GHz MARKER 1 2.43992 GHz Date: 28.OCT.2015 09:46:12 www.tuv.com Test Report No.: 14041289 001 Appendix 1 page 5 of 14 Tx frequency: 2480MHz A 2.4797 GHz Ref 0 dBm 2.4797 GHz 2.4797 GHz 2.4797 GHz 2.4797 GHz 2.4797 GHz 2.4797 GHz 2.4797 GHz 2.4797 GHz 2.4797 GHz 2.4797 GHz Att 30 dB 2.4797 GHz Center 2.48 GHz 2.4797 GHz Span 10 MHz 2.4797 GHz 1 MHz/ 2.4797 GHz * 2.4797 GHz RBW 3 MHz 2.4797 GHzVBW 10 MHz 2.4797 GHz SWT 2.5 ms 2.4797 GHz 1 PK 2.4797 GHz MAXH 2.4797 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.4797 GHz 1 Marker 1 [T1 ] -8.26 dBm 2.479700000 GHz MARKER 1 2.4797 GHz Date: 28.OCT.2015 09:45:40 www.tuv.com Test Report No.: 14041289 001 Appendix 1 page 6 of 14 Spurious Conducted Emissions BLE mode Tx frequency: 2402MHz A 9.282 kHz Ref 0 dBm 9.282 kHz Att 30 dB 9.282 kHz 9.282 kHz 9.282 kHz 9.282 kHz 9.282 kHz 9.282 kHz 9.282 kHz 9.282 kHz 9.282 kHz 9.282 kHz 1 PK 9.282 kHz MAXH 9.282 kHz 14.1 kHz/ 9.282 kHz Start 9 kHz 9.282 kHz Stop 150 kHz 9.282 kHz * 9.282 kHz RBW 300 Hz 9.282 kHzVBW 1 kHz 9.282 kHz SWT 1.6 s 9.282 kHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 9.282 kHz 1 Marker 1 [T1 ] -64.44 dBm 9.282000000 kHz D1 -6.02 dBm MARKER 1 9.282 kHz Date: 28.OCT.2015 10:02:45 A 150 kHz Ref 0 dBm 150 kHz Att 30 dB 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 1 PK 150 kHz MAXH 150 kHz 2.985 MHz/ 150 kHz Start 150 kHz 150 kHz Stop 30 MHz 150 kHz * 150 kHz RBW 10 kHz 150 kHzVBW 30 kHz 150 kHz SWT 300 ms 150 kHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 150 kHz 1 Marker 1 [T1 ] -61.78 dBm 150.000000000 kHz D1 -6.02 dBm MARKER 1 150 kHz Date: 28.OCT.2015 10:02:04 www.tuv.com Test Report No.: 14041289 001 Appendix 1 page 7 of 14 A 2.39054 GHz Ref 0 dBm 2.39054 GHz Att 30 dB 2.39054 GHz 1.297 GHz/ 2.39054 GHz Start 30 MHz 2.39054 GHz Stop 13 GHz 2.39054 GHz * 2.39054 GHz RBW 100 kHz 2.39054 GHzVBW 300 kHz 2.39054 GHz SWT 1.3 s 2.39054 GHz 1 PK 2.39054 GHz MAXH 2.39054 GHz 2.39054 GHz 2.39054 GHz 2.39054 GHz 2.39054 GHz 2.39054 GHz 2.39054 GHz 2.39054 GHz 2.39054 GHz 2.39054 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.39054 GHz 1 Marker 1 [T1 ] -7.66 dB m 2.390540000 GHz 2 Marker 2 [T1 ] -52.18 dBm 2.312720000 GHz 3 Marker 3 [T1 ] -55.19 dBm 3.039040000 GHz D1 -6.02 dBm MARKER 1 2.39054 GHz Date: 28.OCT.2015 10:00:41 A 22.696 GHz Ref 0 dBm 22.696 GHz Att 30 dB 22.696 GHz 22.696 GHz 22.696 GHz 22.696 GHz 22.696 GHz 22.696 GHz 22.696 GHz 22.696 GHz 22.696 GHz 22.696 GHz 1 PK 22.696 GHz MAXH 22.696 GHz 1.2 GHz/ 22.696 GHz Start 13 GHz 22.696 GHz Stop 25 GHz 22.696 GHz * 22.696 GHz RBW 100 kHz 22.696 GHzVBW 300 kHz 22.696 GHz SWT 1.2 s 22.696 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 22.696 GHz 1 Marker 1 [T1 ] -42.58 dBm 22.696000000 GHz D1 -6.02 dBm MARKER 1 22.696 GHz Date: 28.OCT.2015 10:03:…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14041289 001 Appendix 5 page 1 of 2 Appendix 5 Radio Frequency Exposure www.tuv.com Test Report No.: 14041289 001 Appendix 5 page 2 of 2 Safety Human Exposure – Radio Frequency Exposure Compliance Pass Test Specification : FCC KDB Publication 447498 D01 v05r02 Requirement : The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]x[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Results : max. power of channel = -6.34 + 0.5 dBm (E.I.R.P.) = 0.261 mW min. test separation distance = 3mm (a distance of 5mm is applied to determine SAR test exclusion) frequency = 2.402GHz Exclusion threshold = (3 x 5) / (√2.402) = 9.678 mW Since maximum peak output power of the transmitter is 0.261mW < 9.678 mW, the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile and Portable RF Exposure v05r02.

www.tuv.com Test Report No.: 14041289 001 Appendix 2 page 2 of 2 Setup for Radiated Emission Setup for Radiated Emission
