2AFXM-000002Bluetooth Low Energy Watch

www.tuv.com Test Report No.: 14041727 001 Appendix 4 page 10 of 14 1.5 User Manual & Datasheet Model: 9328-002 www.tuv.com Test Report No.: 14041727 001 Appendix 4 page 11 of 14 www.tuv.com Test Report No.: 14041727 001 Appendix 4 page 12 of 14 www.tuv.com Test Report No.: 14041727 001 Appendix 4 page 13 of 14 www.tuv.com Test Report No.: 14041727 001 Appendix 4 page 14 of 14

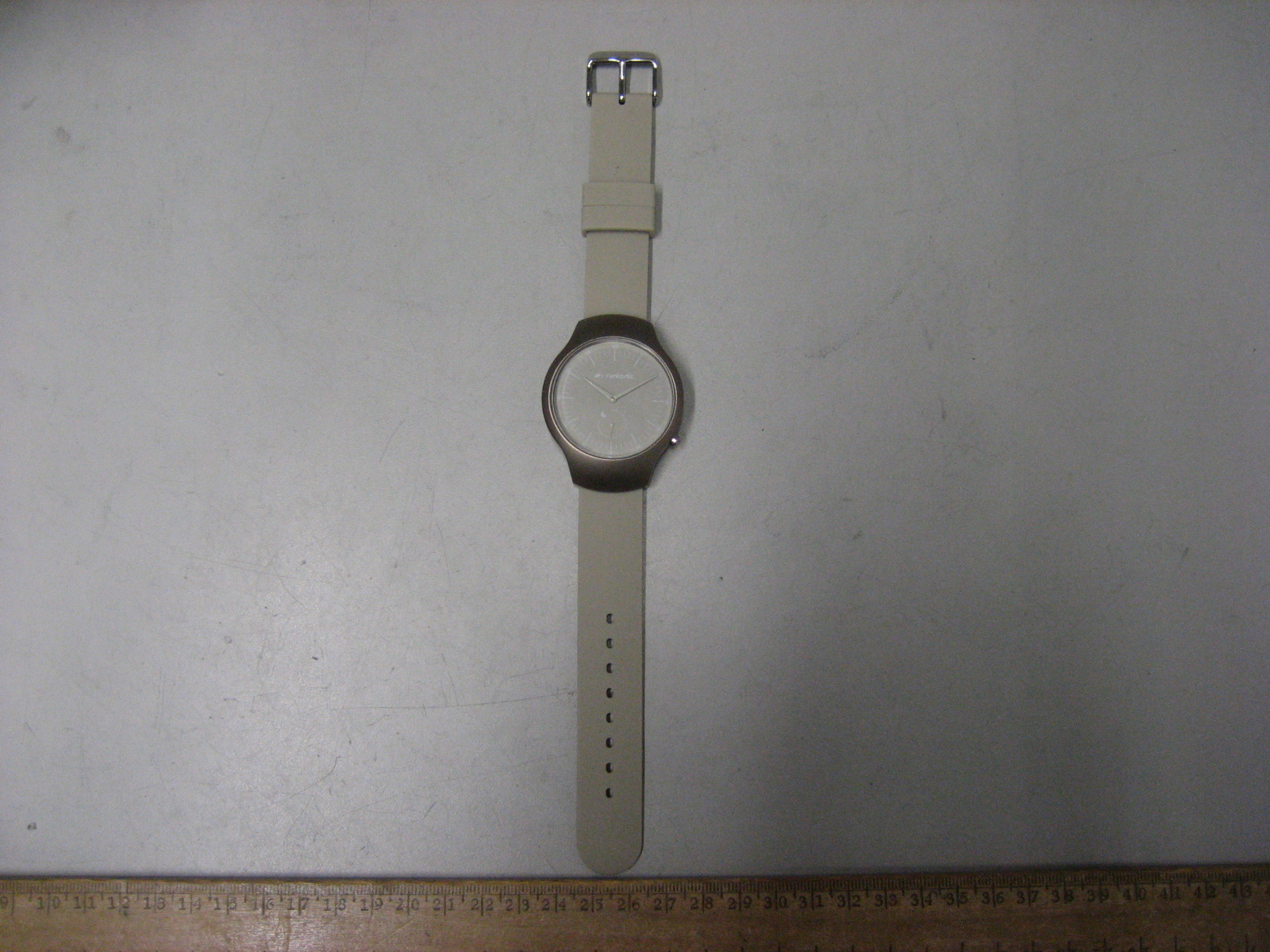

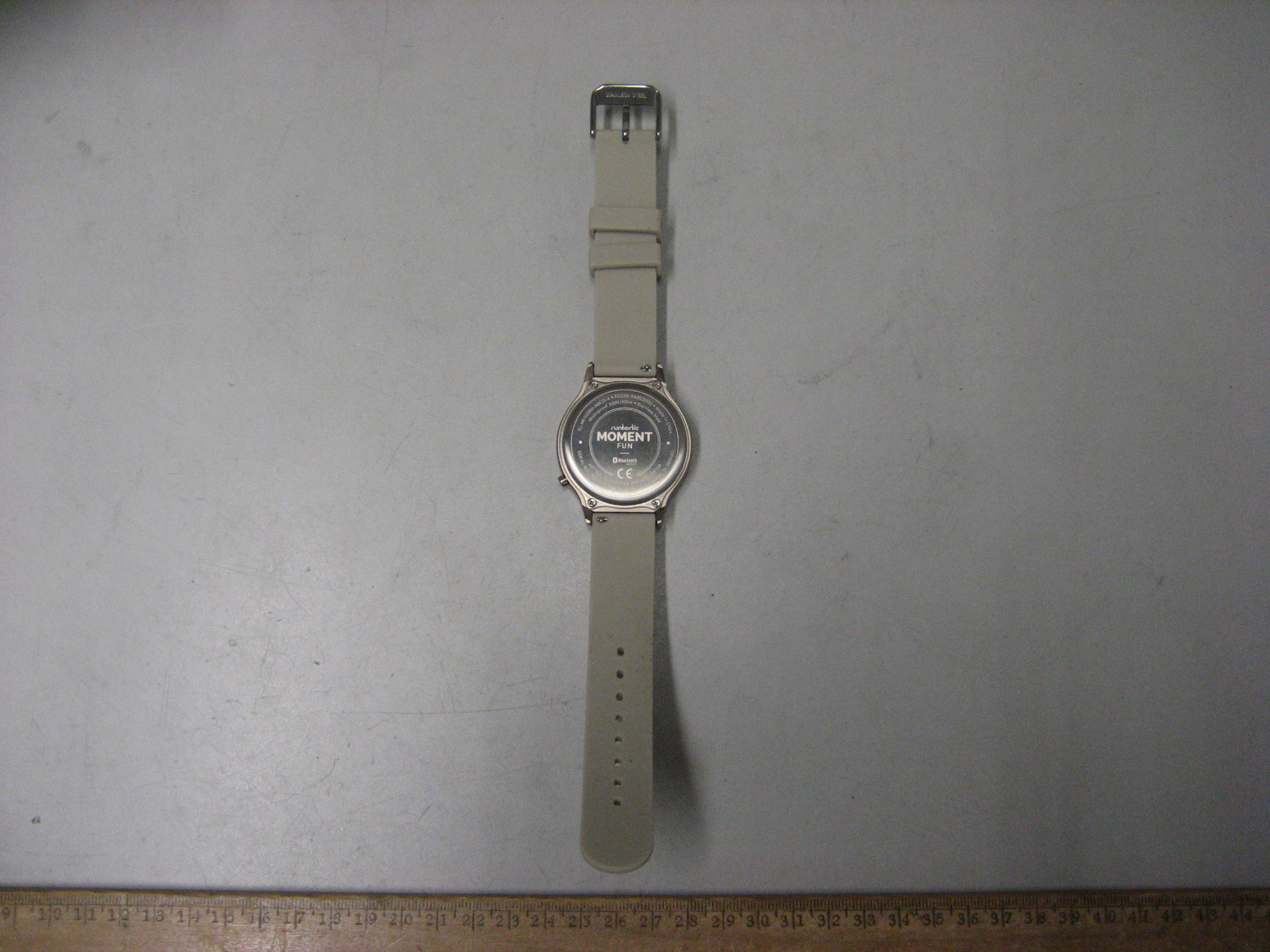

www.tuv.com Test Report No.: 14041727 001 Appendix 3 page 2 of 5 External view Model: 9328-002 External view Model: 9328-002 www.tuv.com Test Report No.: 14041727 001 Appendix 3 page 3 of 5 External view Model: 9328-002 Internal view Model: 9328-002

www.tuv.com Test Report No.: 14041727 001 Appendix 4 page 2 of 14 1.1 FCCID Label Artwork

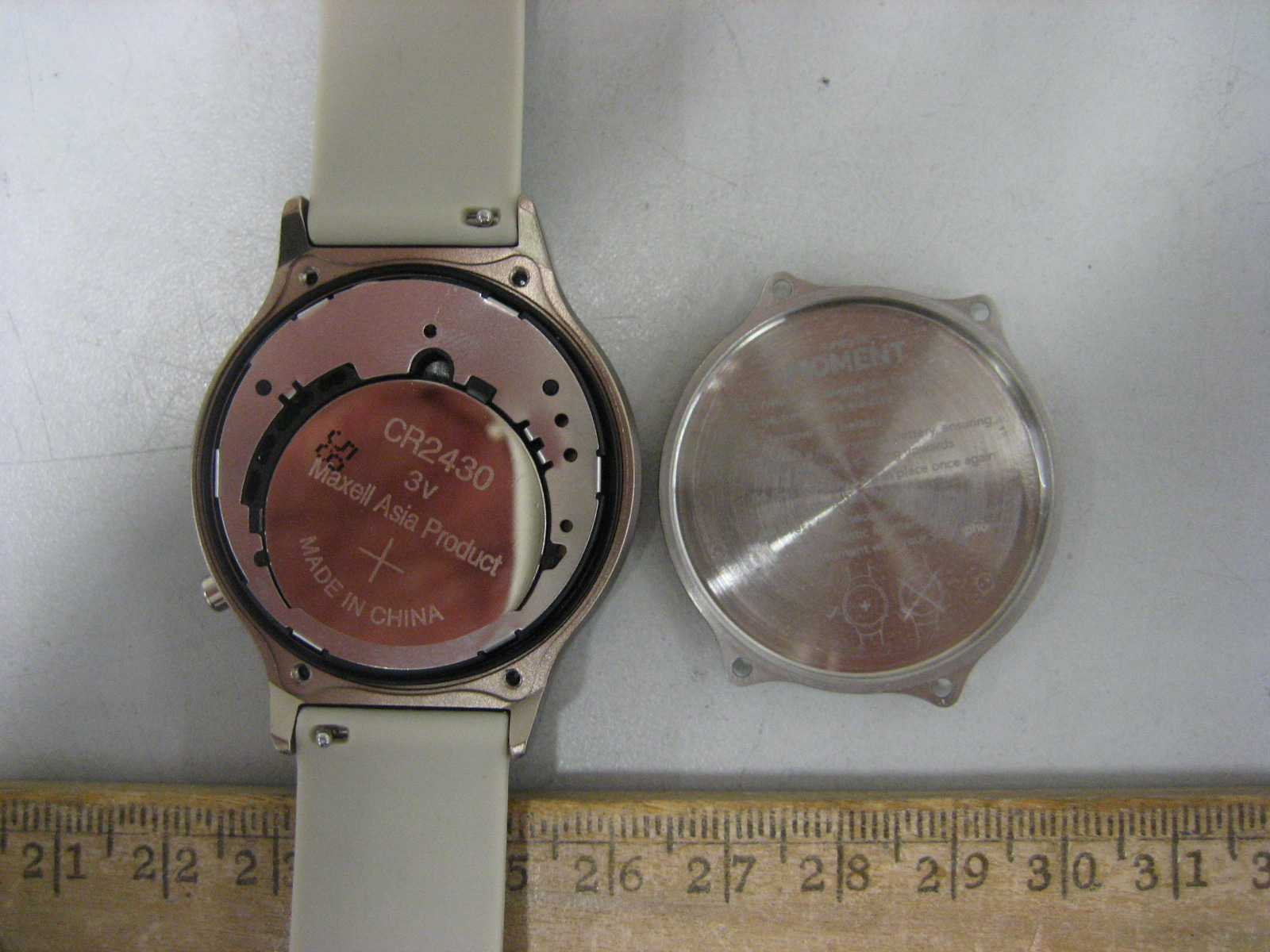

www.tuv.com Test Report No.: 14041727 001 Appendix 3 page 3 of 5 External view Model: 9328-002 Internal view Model: 9328-002 www.tuv.com Test Report No.: 14041727 001 Appendix 3 page 4 of 5 Internal view Model: 9328-002 Internal view Model: 9328-002 www.tuv.com Test Report No.: 14041727 001 Appendix 3 page 5 of 5 Internal view Model: 9328-002 Internal view Model: 9328-002

www.tuv.com Test Report No.: 14041727 001 Date: 12.11.2015 page 2 of 14 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information ...................................................................................................... 3 Manufacturers declarations ........................................................................................................................ 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 4 Remark .......................................................................................................................................................... 4 Independent Operation Modes ................................................................................................................... 5 Related Submittal(s) Grants ....................................................................................................................... 5 Test Set-up and Operation Mode .................................................................................. 6 Principle of Configuration Selection ......................................................................................................... 6 Test Operation and Test Software ............................................................................................................. 6 Special Accessories and Auxiliary Equipment ......................................................................................... 6 Countermeasures to achieve EMC Compliance ....................................................................................... 6 Test Methodology .......................................................................................................... 7 Radiated Emission ....................................................................................................................................... 7 Field Strength Calculation .......................................................................................................................... 7 List of Test and Measurement Instruments ................................................................. 8 Results FCC Part 15 – Subpart C ................................................................................. 9 Subclause 15.203 – Antenna Information ........................................................................ Pass ................. 9 Subclause 15.204 – Antenna Information ........................................................................ Pass ................. 9 Subclause 15.207 – Disturbance Voltage on AC Mains ................................................... N/A ................. 9 FCC 15.247 (a)(2) – 6dB Bandwidth Measurement ......................................................... Pass ............... 10 FCC 15.247 (b) (1), (3) – Maximum Peak Output Power ................................................. Pass ............... 10 FCC 15.247 (d) – Spurious Conducted Emissions ......................................................... Pass ............... 11 FCC 15.247 (d) – Radiated Spurious Emissions ............................................................. Pass ............... 12 FCC 15.247 (d) – Band Edge Emissions (Conducted) .................................................... Pass ............... 13 FCC 15.247 (e) – Power Spectral Density ........................................................................ Pass ............... 14 Appendix 1 – Test protocols 14 pages Appendix 2 – Test setup 2 pages Appendix 3 – Photo documentation 9 pages Appendix 4 – Product documentation 14 pages Appendix 5 – Radio Frequency Exposure 2 pages www.tuv.com Test Report No.: 14041727 001 Date: 12.11.2015 page 3 of 14 Product information Manufacturers declarations Transceiver Operating frequency range 2402 - 2480 MHz Type of modulation GFSK / FHSS Number of channels 40 Channel separation 2 MHz Type of antenna Chip antenna Antenna gain (dBi) 0.5 Power level fix Type of equipment stand alone radio device Connection to public utility power line No Nominal voltage V nor : 3.0 VDC Independent Operation Modes Bluetooth communication Product function and intended use The Equipment Under Test (EUT) is a Bluetooth Low Energy watch which is powered by battery. It can be connected to Bluetooth enabled smart phone and transfer information to smart phone for data collection. For details, please refer to the user manual. Multiple models The manufacturer declares that the EUT has 5 models as listed in the below table. They are all identical in electrical including schematics, PCB layout and components used except the model number and housing color only. Due to the manufacturer declaration of equivalence, the model 9328-002 was provided by client as a representative for testing and construction photo taking. FCCID: 2AFXM-000002 Models 9328-002 9328-004 9328-007 9328-009 SMARTL1 www.tuv.com Test Report No.: 14041727 001 Date: 12.11.2015 page 4 of 14 Submitted documents Circuit Diagram Block Diagram Bill of material User Manual Label Artwork Remark -- www.tuv.com Test Report No.: 14041727 001 Date: 12.11.2015 page 5 of 14 Independent Operation Modes The basic operation modes are: - Radio communication link maintained with data transfer. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14041727 001 Date: 12.11.2015 page 6 of 14 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The EUT was configured to measure its highest possible radiation level. The test mode…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 1 of 14 Appendix 1 Test Results www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 2 of 14 6 dB Bandwidth Measurement Tx frequency: 2402MHz Ref 0 dBmAtt 30 dB * Offset 1.5 dB 1 PK MAXH A LVL RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.402 GHzSpan 3 MHz300 kHz/ EXT -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -12.17 dBm 2.402000000 GHz 2 Delta 2 [T1 ] -6.25 dB -354.000000000 kHz 3 Delta 3 [T1 ] -6.49 dB 342.000000000 kHz Date: 26.OCT.2015 08:38:49 Tx frequency: 2440MHz Ref 0 dBmAtt 30 dB * Offset 1.5 dB 1 PK MAXH A LVL RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.44 GHzSpan 3 MHz300 kHz/ EXT -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -14.91 dBm 2.440006000 GHz 2 Delta 2 [T1 ] -6.13 dB -354.000000000 kHz 3 Delta 3 [T1 ] -6.01 dB 330.000000000 kHz Date: 26.OCT.2015 08:39:42 www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 3 of 14 Tx frequency: 2480MHz Ref 0 dBmAtt 30 dB * Offset 1.5 dB 1 PK MAXH A LVL RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.48 GHzSpan 3 MHz300 kHz/ EXT -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -17.13 dBm 2.479994000 GHz 2 Delta 2 [T1 ] -6.50 dB -348.000000000 kHz 3 Delta 3 [T1 ] -6.02 dB 342.000000000 kHz Date: 26.OCT.2015 08:40:36 www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 4 of 14 Peak Output Power BLE Mode Tx frequency: 2402MHz Ref 0 dBmAtt 30 dB * Offset 1.5 dB 1 PK MAXH A LVL RBW 3 MHz VBW 10 MHz SWT 2.5 ms Center 2.402 GHzSpan 5 MHz500 kHz/ EXT -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -11.93 dB m 2.402170000 GHz Date: 26.OCT.2015 08:50:12 Tx frequency: 2440MHz Ref 0 dBmAtt 30 dB * Offset 1.5 dB 1 PK MAXH A LVL RBW 3 MHz VBW 10 MHz SWT 2.5 ms Center 2.44 GHzSpan 5 MHz500 kHz/ EXT -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -14.71 dBm 2.439740000 GHz Date: 26.OCT.2015 08:49:46 www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 5 of 14 Tx frequency: 2480MHz Ref 0 dBmAtt 30 dB * Offset 1.5 dB 1 PK MAXH A LVL RBW 3 MHz VBW 10 MHz SWT 2.5 ms Center 2.48 GHzSpan 5 MHz500 kHz/ EXT -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -16.78 dBm 2.479890000 GHz Date: 26.OCT.2015 08:49:04 www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 6 of 14 Spurious Conducted Emissions BLE mode Tx frequency: 2402MHz A Att 30 dB Offset 1.5 dB LVL Ref 0 dBm 14.1 kHz/Start 9 kHzStop 150 kHz * RBW 300 Hz VBW 1 kHz SWT 1.6 s 1 PK MAXH -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -64.84 dB m 10.128000000 kHz D1 -12.2 dBm Date: 26.OCT.2015 09:23:19 A 150 kHz Att 30 dB 150 kHz Offset 1.5 dB 150 kHz LVL 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz Ref 0 dBm 150 kHz 1 PK 150 kHz MAXH 150 kHz 2.985 MHz/ 150 kHz Start 150 kHz 150 kHz Stop 30 MHz 150 kHz * 150 kHz RBW 10 kHz 150 kHzVBW 30 kHz 150 kHz SWT 300 ms 150 kHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 150 kHz 1 Marker 1 [T1 ] -60.01 dBm 150.000000000 kHz D1 -12.2 dBm MARKER 1 150 kHz Date: 26.OCT.2015 09:24:22 www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 7 of 14 A 3.06498 GHz Att 30 dB 3.06498 GHz Offset 1.5 dB 3.06498 GHz LVL 3.06498 GHz Ref 0 dBm 3.06498 GHz 1.297 GHz/ 3.06498 GHz Start 30 MHz 3.06498 GHz Stop 13 GHz 3.06498 GHz * 3.06498 GHz RBW 100 kHz 3.06498 GHzVBW 300 kHz 3.06498 GHz SWT 1.3 s 3.06498 GHz 1 PK 3.06498 GHz MAXH 3.06498 GHz 3.06498 GHz 3.06498 GHz 3.06498 GHz 3.06498 GHz 3.06498 GHz 3.06498 GHz 3.06498 GHz 3.06498 GHz 3.06498 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 3.06498 GHz 1 Marker 1 [T1 ] -8.39 dBm 2.390540000 GHz 2 Marker 2 [T1 ] -53.73 dBm 3.064980000 GHz D1 -12.2 dBm MARKER 2 3.06498 GHz Date: 26.OCT.2015 09:34:21 A 22.792 GHz Att 30 dB 22.792 GHz Offset 1.5 dB 22.792 GHz LVL 22.792 GHz Ref 0 dBm 22.792 GHz 1 PK 22.792 GHz MAXH 22.792 GHz 1.2 GHz/ 22.792 GHz Start 13 GHz 22.792 GHz Stop 25 GHz 22.792 GHz * 22.792 GHz RBW 100 kHz 22.792 GHzVBW 300 kHz 22.792 GHz SWT 1.2 s 22.792 GHz 22.792 GHz 22.792 GHz 22.792 GHz 22.792 GHz 22.792 GHz 22.792 GHz 22.792 GHz 22.792 GHz 22.792 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 22.792 GHz 1 Marker 1 [T1 ] -40.52 dBm 22.792000000 GHz D1 -12.2 dBm MARKER 1 22.792 GHz Date: 26.OCT.2015 09:35:09 www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 8 of 14 Tx frequency: 2440MHz A 35.508 kHz Offset 1.5 dB 35.508 kHz LVL 35.508 kHz Ref 0 dBm 35.508 kHz Att 40 dB 35.508 kHz * 35.508 kHz 1 PK 35.508 kHz MAXH 35.508 kHz 14.1 kHz/ 35.508 kHz Start 9 kHz 35.508 kHz Stop 150 kHz 35.508 kHz * 35.508 kHz RBW 300 Hz 35.508 kHzVBW 1 kHz 35.508 kHz SWT 1.6 s 35.508 kHz 35.508 kHz 35.508 kHz 35.508 kHz 35.508 kHz 35.508 kHz 35.508 kHz 35.508 kHz 35.508 kHz 35.508 kHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 35.508 kHz 1 Marker 1 [T1 ] -54.28 dBm 35.508000000 kHz D1 -14.96 dBm MARKER 1 35.508 kHz Date: 26.OCT.2015 09:43:17 A 150 kHz Offset 1.5 dB 150 kHz LVL 150 kHz Ref 0 dBm 150 kHz Att 40 dB 150 kHz * 150 kHz 2.985 MHz/ 150 kHz Start 150 kHz 150 kHz Stop 30 MHz 150 kHz * 150 kHz RBW 10 kHz 150 kHzVBW 30 kHz 150 kHz SWT 300 ms 150 kHz 1 PK 150 kHz MAXH 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz 150 kHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 150 kHz 1 Marker 1 [T1 ] -50.68 dBm 150.000000000 kHz D1 -14.96 dBm MARKER 1 150 kHz Date: 26.OCT.2015 09:42:34 www.tuv.com Test Report No.: 14041727 001 Appendix 1 page 9 of 14 A 2.44242 GHz Offset 1.5 dB 2.44242 GHz LVL 2.44242 GHz Ref 0 dBm 2.44242 GHz Start 30 MHz 2.44242 GHz Stop 13 GHz 2.44242 GHz 1.297 GHz/ 2.44242 GHz 1 PK 2.44242 GHz MAXH 2.44242 GHz * 2.44242 GHz RBW 100 kHz 2.44242 GHzVBW 300 kHz 2.44242 GHz SWT 1.3 s 2.44242 GHz Att 40 dB 2.44242 GHz * 2.44242 GHz 2.44242 GHz 2.44242 GHz 2.44242 GHz 2.44242 GHz 2.44242 GHz 2.44242 GHz 2.44242 GHz 2.44242 GHz 2.44242 GHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 2.44242 GHz 1 Marker 1 [T1 ] -10.27 dBm 2.442420000 GHz 2 Marker 2 [T1 ] -43.67 dBm 2.987160000 GHz D1 -14.96 dBm MARKER 1 2.4424…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14041727 001 Appendix 5 page 2 of 2 Safety Human Exposure – Radio Frequency Exposure Compliance Pass Test Specification : FCC KDB Publication 447498 D01 General RF Exposure Guidance v06 Requirement : The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]x[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Results : max. power of channel = -11.93 + 0.5 dBm (E.I.R.P.) = 0.072 mW min. test separation distance = 3mm (a distance of 5mm is applied to determine SAR test exclusion) frequency = 2.402GHz Exclusion threshold = (3 x 5) / (√2.402) = 9.678 mW Since maximum peak output power of the transmitter is 0.072mW < 9.678 mW, the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01 General RF Exposure Guidance v06.

www.tuv.com Test Report No.: 14041727 001 Appendix 2 page 1 of 2 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14041727 001 Appendix 2 page 2 of 2 Setup for Radiated Emission Setup for Radiated Emission
