2AG4N-WTABWTAB

2020/4/7 1 CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 iMSafe Self-Quarantine Management System 2020/4/7 2 CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 iMSafe Easy tag to cloud access via phone (app) as gateway Monitor Self-Quarantine in real-time Get wearer’s time-based locations Automatic notifications to mobile apps System generated check with acknowledgment from the user Missing, tamper, and low battery alerts to admins and users Best fit for; Hospitals Home Airports A complete solution for self-quarantine monitoring Hypoallergenic, latex-free, and skin friendly band 2020/4/7 3 CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 Quarantine User Flow Subject declares Quarantine upon reaching home or destination Admin assigns tag to the subject and scans QR code Admin registers the subject Subject installs the app or use the pre-installed app & scans QR code Periodic presence check with subject's acknowledgment Missing alerts generated if no response OR tag unreachable from phone 2020/4/7 4 CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 How it works? GPS-based tag location Time Notifications Onboarding data Secure identifier Tamper alert Low battery alert Tag location Time Notifications/alerts App for onboarding of subjects and monitoring tags Tamper proof tag assigned to subjects 3 rd Party cloud integration Cloud-to-device security ensured TraceSafe Web Application Dashboard Alerts Reports Analytics 2020/4/7 5 CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 Mobile App – Admin workflow 2020/4/7 6 CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 Mobile App – Quarantine User Workflow 2020/4/7 7 CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 Web App Workflow 2020/4/7 8 CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 TraceSafe Adult Tag WTAB Wireless ProtocolBluetooth Low Energy Maximum output power Up to 4 dBm Frequency Range2402-2480 MHz Advertising interval1 Sec Battery lifeTypical 20 days Battery typeCR1225 Range from phone15 m LED IndicatorPush ButtonElectronic anti-tamper detection Dimension 255 x 20 x 5 mm Net Weight2.5 ounce HypoallergenicHospital-gradeWaterproof 2020/4/7 9 Thank You Contact [email protected] +1949 397 9330 TraceSafe, Inc. 23282 Mill Creek Drive Laguna Hills, CA 92656 USA CONFIDENTIAL AND PROPRIETARY TO TRACESAFE, INC. 2020 FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-04-07> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AG4N-WTAB WTAB For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Dennis Kwan / CTO Company: WiSilica, Inc. Address: 23282 Mill Creek Dr #340, Laguna Hills, CA 92653, United States Phone: +1 619 665 7268 Fax: +1 619 665 7268 E-Mail: [email protected]

WiSilica, Inc. 23282 Mill Creek Dr #340, Laguna Hills, CA 92653, United States FCC ID: 2AG4N-WTAB Model Number: WTAB DATE: 2020-04-07 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, WiSilica, Inc. hereby declare that our product (WTAB) Model Number: WTAB will disable Bluetooth Classics function (Bluetooth V4.2) by software and only open Bluetooth Lower Energy (Bluetooth V4.2) although Bluetooth modular TLSR8261F128ET24 support both Bluetooth Lower Energy (Bluetooth V4.2) and Bluetooth Classics (Bluetooth V4.2) due to marketing purposes. End-user will only use Bluetooth Lower Energy (Bluetooth V4.2) in USA market. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name / Title: Dennis Kwan / CTO Company Name: WiSilica, Inc. Address: 23282 Mill Creek Dr #340, Laguna Hills, CA 92653, United States Phone: +1 619 665 7268 Fax: +1 619 665 7268 E-Mail: [email protected]

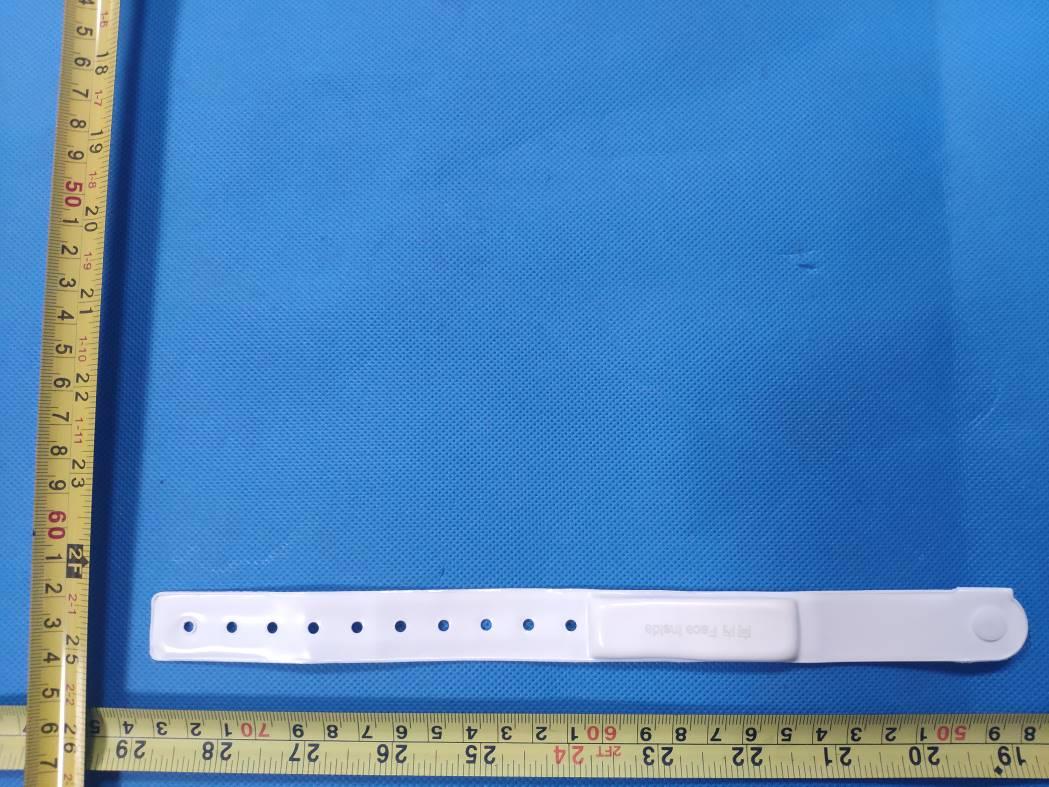

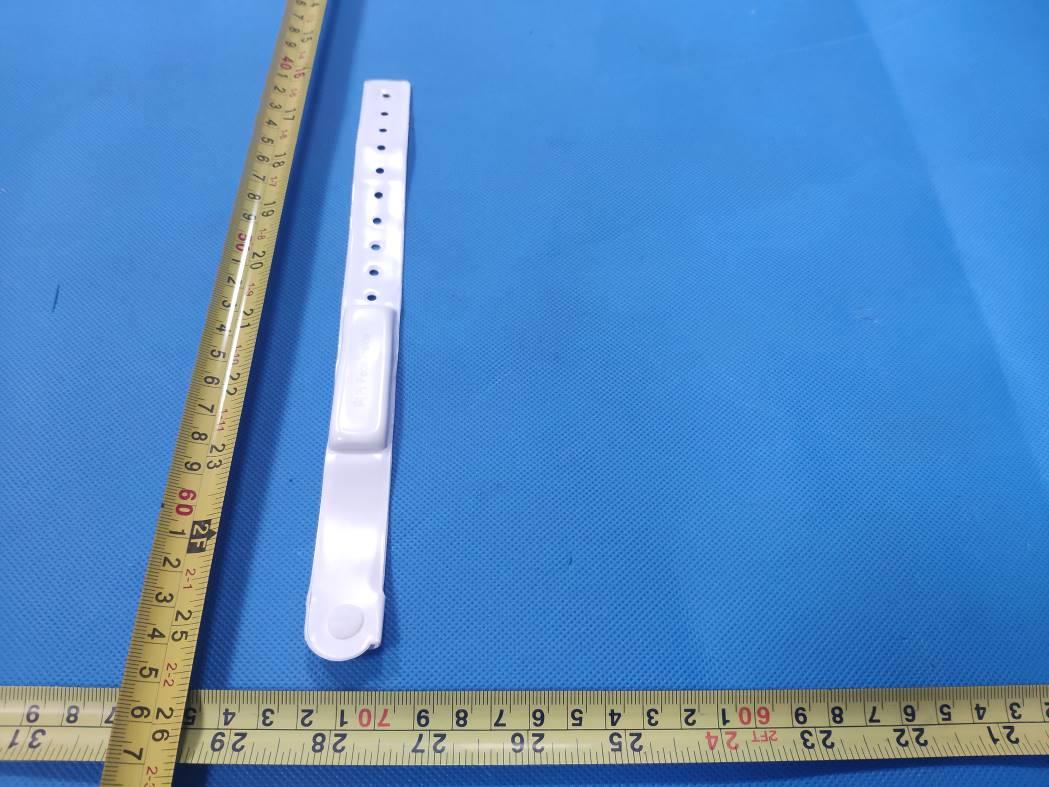

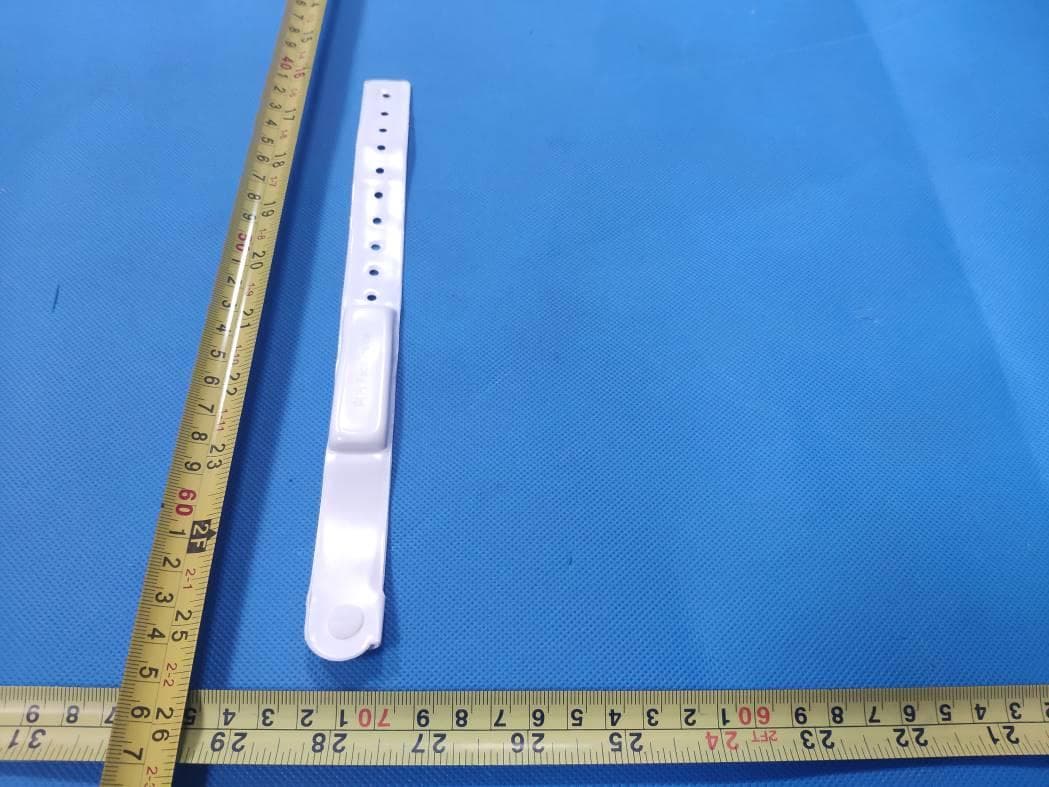

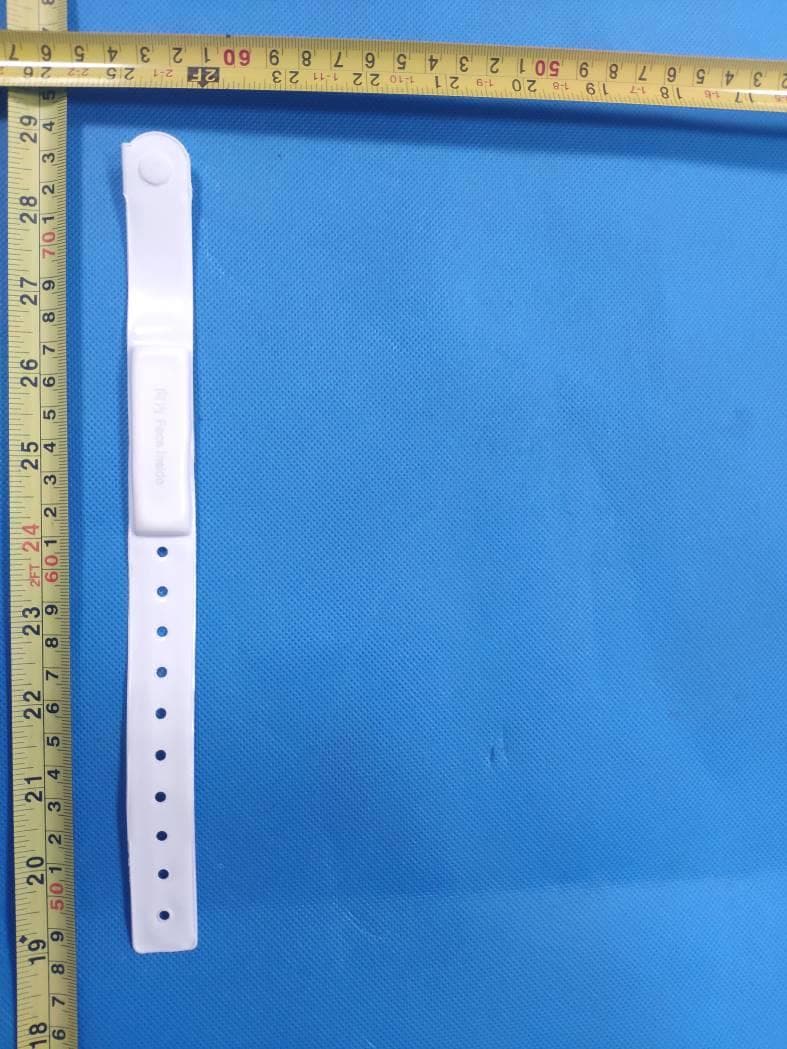

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L 1.5cm*W 0.5cm FCC ID: 2AG4N-WTAB Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig. 3 Fig. 4 BLE Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig. 5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AG4N-WTAB Product name WTAB Model number WTAB Power supply DC 3.0V By Button cell Modulation Type GFSK for Bluetooth V4.2 (BT LE) Antenna Description Internal Antenna, -1.0 dBi (Max.) Hardware version v3.2 Software version v2.3.1 Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) LE GFSK 0 2402 4.952 19 2440 4.703 39 2480 4.556 5. Manufacturing Tolerance GFSK – BT LE(Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 4.0 4.0 4.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 Standalone Evaluation Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW LE GFSK 2.450 5 5.0 3.1623 1.0 < 3.0 Yes Remark: (1). RF output power including tune up tolerance; (2). When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 of KDB 447498 is applied to determine SAR test exclusion. 6.2 Simultaneous Transmission for SAR Exclusion The sample support one BT modular and one antenna, no need consider simultaneous transmission; 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. ----------------THE END OF REPORT---------------

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 1 of 17 Appendix A RF Test Data for BT 4.2(BLE) (Conducted Measurement) Product Name: WTAB Trade Mark: WiSilica Test Model: WTAB Environmental Conditions Temperature: 23.5  C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: CHUANG WANG Supervised by: JAYDEN ZHUO A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 70.96 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 2 of 17 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 3 of 17 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 4.952 30 PASS BT LE MCH 4.703 30 PASS BT LE HCH 4.556 30 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 4 of 17 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 5 of 17 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -9.495 8 PASS BT LE MCH -9.630 8 PASS BT LE HCH -8.849 8 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 6 of 17 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 7 of 17 A.4 6dB Bandwidth and Occupied Bandwidth Mode Channel Occupied Bandwidth [MHz] 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 1.4920 0.6924 ≥0.5 PASS BT LE MCH 1.4818 0.6815 ≥0.5 PASS BT LE HCH 1.5916 0.7621 ≥0.5 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 8 of 17 MCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 9 of 17 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 4.430 -54.501 -15.57 PASS BT LE MCH 4.138 -53.059 -15.86 PASS BT LE HCH 4.057 -51.777 -15.94 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 10 of 17 BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 11 of 17 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 12 of 17 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 13 of 17 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 4.618 -52.376 -15.38 PASS BT LE HCH 4.271 -43.001 -15.73 PASS Test Graphs LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 14 of 17 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 15 of 17 A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -50.880 2.0 0 46.35 PEAK 74 PASS Ant1 2310.0 -59.239 2.0 0 37.99 AV 54 PASS Ant1 2390.0 -41.801 2.0 0 55.43 PEAK 74 PASS Ant1 2390.0 -54.549 2.0 0 42.68 AV 54 PASS 2480 Ant1 2483.5 -24.209 2.0 0 73.02 PEAK 74 PASS Ant1 2483.5 -30.506 2.0 0 38.63 AV 54 PASS Ant1 2500.0 -49.789 2.0 0 47.44 PEAK 74 PASS Ant1 2500.0 -52.961 2.0 0 36.21 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 16 of 17 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA Page 17 of 17 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 32 FCC TEST REPORT For WiSilica, Inc. WTAB Test Model: WTAB Prepared for : WiSilica, Inc. Address : 23282 Mill Creek Dr #340, Laguna Hills, CA 92653, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 28, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : March 28, 2020 ~ April 07, 2020 Date of Report : April 07, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 32 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200301030AEA Date of Issue ................................... : April 07, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : WiSilica, Inc. Address ........................................... : 23282 Mill Creek Dr #340, Laguna Hills, CA 92653, United States Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : WTAB Trade Mark ...................................... : WiSilica Model/ Type reference .................... : WTAB Ratings ............................................ : DC 3.0V By Button cell Result ............................................ : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Calvin Weng/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 32 FCC -- TEST REPORT Type / Model........................... : WTAB EUT......................................... : WTAB Applicant............................... : WiSilica, Inc. Address.................................. : 23282 Mill Creek Dr #340, Laguna Hills, CA 92653, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : 1) Longjiang Circuit International Limited 2) LangDe Electronics Ltd 3) ALLTRONICS TECH. MFTG. LTD Address................................... : 1) No 5 building, WanXia Industry Park, ShaJing Town, Bao'An District, ShenZhen, China 2) Room 502, huashang industrial and trade zone, shajing 98 industrial zone, bao'an district, shenzhen, China 3) Unit 408, 4th Floor, Citicorp Centre, 18 Whitfield Road, Causeway Bay, Hong Kong, China Telephone............................... : / Fax.......................................... : / Factory................................... : 1) Longjiang Circuit International Limited 2) LangDe Electronics Ltd 3) ALLTRONICS TECH. MFTG. LTD Address................................... : 1) No 5 building, WanXia Industry Park, ShaJing Town, Bao'An District, ShenZhen, China 2) Room 502, huashang industrial and trade zone, shajing 98 industrial zone, bao'an district, shenzhen, China 3) Unit 408, 4th Floor, Citicorp Centre, 18 Whitfield Road, Causeway Bay, Hong Kong, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200301030AEA April 07, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 32 Revision History Revision Issue Date Revisions Revised By 000 April 07, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB Report No.: LCS200301030AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ...................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AG4N-WTAB _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2
