2AG5O-PB400Stone

© PB, Inc. All rights reserved. The information available, including any text, data, artwork, video, audio, images or graphics (collectively, the "Material") may be protected by copyright and other intellectual property laws. Entities other than PB, Inc. may own copyright in the Material. *THANKYOU Offer code valid through March 1st, 2016. Other Safety Considerations: Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras blandit enim at lacus dignissim, bibendum commodo arcu sodales. Suspendisse aliquam, ipsum at dignissim consequat, velit arcu egestas massa, a lobortis enim mi et felis. Donec vel metus id lorem egestas mattis id euismod ante. Aenean non malesuada felis. Duis et lacus nec turpis efficitur condimentum at id nisi. Aliquam erat volutpat. Aenean lobortis arcu vel justo iaculis vestibulum. Integer porta, nulla et imperdiet maximus, nibh urna egestas magna, non tincidunt velit metus vitae nisi. Nullam non tellus congue, sollicitudin ante eget, aliquet magna. Bluetooth Information Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras blandit enim at lacus dignissim, bibendum commodo arcu sodales. Suspendisse aliquam, ipsum at dignissim consequat, velit arcu egestas massa, a lobortis enim mi et felis. Donec vel metus id lorem egestas mattis id euismod ante. Aenean non malesuada felis. Duis et lacus nec turpis efficitur condimentum at id nisi. Aliquam erat volutpat. Aenean lobortis arcu vel justo iaculis vestibulum. Integer porta, nulla et imperdiet maximus, nibh urna egestas magna, non tincidunt velit metus vitae nisi. Nullam non tellus congue, sollicitudin ante eget, aliquet magna. Cras ac velit nibh. Suspendisse et lorem ut risus consequat consequat. Nulla vel pulvinar diam, non aliquet orci. Fusce lacinia felis eget pharetra lacinia. Nunc rhoncus lectus vitae ornare suscipit. Duis commodo dignissim nulla, eu lacinia sem interdum egestas. In est enim, eleifend id ultricies nec, cursus eu ipsum. Nullam interdum est vel risus dapibus, id malesuada nunc efficitur. Vivamus finibus lorem turpis, non porttitor odio facilisis euismod. Sed rutrum massa nec ligula viverra, ac fermentum justo tristique. Ut mollis tellus id orci porttitor, sit amet dignissim velit luctus. Pellentesque a diam augue. Fusce congue ullamcorper nulla at tempor. Morbi sagittis nisi eget augue dapibus, vel volutpat placerat nec eget nisi. Aliquam a hendrerit metus, ut auctor ante. Duis ultrices lobortis dapibus. PEBBLEBEE TERMS & POLICIES Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras blandit enim at lacus dignissim, bibendum commodo arcu sodales. Suspendisse aliquam, ipsum at dignissim consequat, velit arcu egestas massa, a lobortis enim mi et felis. Donec vel metus id lorem egestas mattis id euismod ante. Aenean non malesuada felis. Duis et lacus nec turpis efficitur condimentum at id nisi. Aliquam erat volutpat. Aenean lobortis arcu vel justo iaculis vestibulum. Integer porta, nulla et imperdiet maximus, nibh urna egestas magna, non tincidunt velit metus vitae nisi. Nullam non tellus congue, sollicitudin ante eget, aliquet magna. SAFETY & COMPLIANCE INFORMATION Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras blandit enim at lacus dignissim, bibendum commodo arcu sodales. Suspendisse aliquam, ipsum at dignissim consequat, velit arcu egestas massa, a lobortis enim mi et felis. Donec vel metus id lorem egestas mattis id euismod ante. COMPATIBLE DEVICES iPhone 4s or newer; iOS 8.3 or newer. Android 4.4 phones or newer with Bluetooth 4.0. Caring For Your Pebblebee Stone Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras blandit enim at lacus dignissim, bibendum commodo arcu sodales. Suspendisse aliquam, ipsum at dignissim consequat, velit arcu egestas massa, a lobortis enim mi et felis. Donec vel metus id lorem egestas mattis id euismod ante. Batteries Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras blandit enim at lacus dignissim, bibendum commodo arcu sodales. Suspendisse aliquam, ipsum at dignissim consequat, velit arcu egestas massa, a lobortis enim mi et felis. Donec vel metus id lorem egestas mattis id euismod ante. Recycling Your Stone Lorem ipsum dolor sit amet, consectetur adipiscing elit. Cras blandit enim at lacus dignissim, bibendum commodo arcu sodales. Suspendisse aliquam, ipsum at dignissim consequat, velit arcu egestas massa, a lobortis enim mi et felis. Donec vel metus id lorem egestas mattis id euismod ante. How to Have Fun with Your Stone & Other Words of Practical Advice LET’S GET STARTED 1. Download the App Remember: you need a smart phone to use your Stone, otherwise it’s just a rock. Downloading the app for your iPhone or Android device is simple. Enter pebblebee.com/download in your mobile browser to download the app, or visit the App Store/Google Play Store. 2. Set Up Your Stone iOS - Connect to the Internet. Create an account and follow the on-screen prompts. Click “Add Device,” Hold your Stone close to your phone and press the button. Android - Connect to the internet. Tap "Sign up!" to create an account. Bring the Stone close to your phone and press the button. Wait 10-15 seconds. A bar will appear showing the unclaimed device. Press the button again to claim. Note: Android App must be running to experience full feature set. USING YOUR NEW STONE The Button You can assign two recipes to the button: one recipe for press and another for press-and-hold. Choose from a list of pre-made recipes, or create an account with IFTTT to make your own: https://ifttt.com/join Tracking Mode Your Stone ships with tracking mode disabled to extend battery life. Hold the button for 5 seconds to active tracking mode. 3 LED Flashed - Tracking Mode is Off 4 LED Flashes - Tracking Mode is On SPECIAL INSTRUCTIONS • Playing with your Stones does not make you go blind. • Equity should never come between friends. • Never buy a hammer from a dollar store. • Learn more at pebblebee.com/support WELCOME FRIEND! You’re looking great, I mean: you’re l…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: PB Inc Address: 4301 NE 4th St #2962 City: Renton, WA 98059 Country: United States Declare that: Name Representative of agent: Krystal.mo (1) Agent Company name: Shenzhen STS Test Services Co., Ltd. Address: 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, City: Shenzhen Guangdong Country China is authorized to apply for Certification of the following product(s): Product description: Stone Type designation: PB400 Trademark: Pebblebee on our behalf. Date: 13 Jan 2016 (1) City: Name: Renton (2) Function: CTO Signature: Nick Franks Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: PB Inc Address: 4301 NE 4th St #2962 City: Renton, WA 98059 Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AG5O-PB400 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 13Jan. 2016 Name and signature of applicant: Nick Franks/ CTO Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

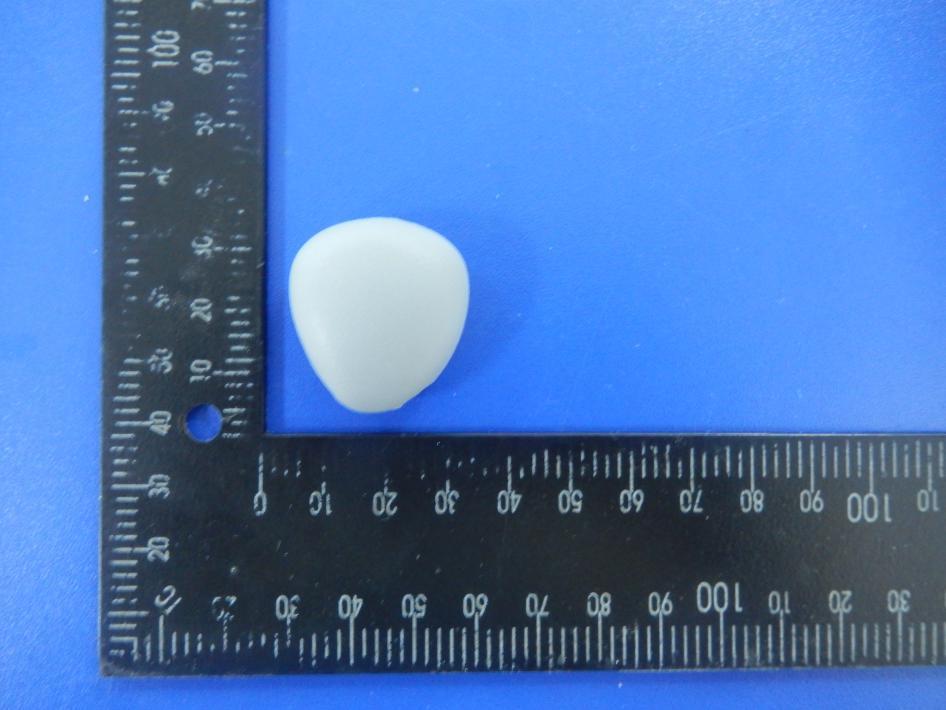

Project No: STS1512173 PB400 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1512173 Photo 3 Photo 4 Project No: STS1512173 Photo 5 Photo 6

Label Stone Model name: PB400 FCC ID: 2AG5O-PB400 label

Project No: STS1512173 PB400 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1512173 Photo 3 BT Antenna

FCC ID : 2AG5O-PB400 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : 2AG5O-PB400 Maximum measured transmitter power. BT 4.0 The Worst Case frequency Maximum Peak Conducted Output Power Tune up tolerance Max Antenna Gain GHz dBm dBm dBi 2.402 -2.972 -3±1 6 2.440 -3.107 -3±1 6 2.480 -2.308 -3±1 6 Remark: The worst case gain of the antenna is 6dBi. 6 dBi logarithmic terms convert to numeric result is nearly 3.981 Max Tune up Power(2.402GHz) = 0.6310mw Max Tune up Power (2.440GHz) = 0.6310mw Max Tune up Power (2.480GHz) = 0.6310mw BT 4.0: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.2023/5*√2.402=0.1956≤3.0 [(mid. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.6310/5*√2.440=0.1971≤3.0 [(min. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.6310/5*√2.480=0.1987≤3.0 Threshold at which no SAR required is 0.1987≤ 3.0 for 1-g SAR, Separation distance is 5mm.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS1512173F01 Issued for PB Inc 4301 NE 4th St #2962 Renton, WA 98059, USA Product Name: Stone Brand Name: Pebblebee Model No.: PB400 Series Model: N/A FCC ID: 2AG5O-PB400 Test Standard: FCC Part 15.247 S T L A B S Page 2 of 36 Report No.: STS1512173F01 TEST RESULT CERTIFICATION Applicant’s name ................. : PB Inc Address ................................. : 4301 NE 4th St #2962 Renton, WA 98059, USA Manufacture's Name ............ : Dongguan haorui electronic co,.ltd Address ................................. : Mabu AO industrial zone, zhuweitian village, fenggang, dongguan, Guangdong, China Product description Product name ............................ : Stone Model and/or type reference : PB400 Series Model ............................. : N/A Standards ............................. : FCC Part15.247 Test procedure ............................... : ANSI C63.10-2013 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, thidocument may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 30 Dec. 2015 ~10 Jan. 2016 Date of Issue .......................................... : 11 Jan. 2016 Test Result .............................................. : Pass Testing Engineer : (Jin Ming) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 36 Report No.: STS1512173F01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACTORY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3. EMC EMISSION TEST 12 3.1 CONDUCTED EMISSION MEASUREMENT 12 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 EUT OPERATING CONDITIONS 13 3.5 TEST RESULTS 14 4. RADIATED EMISSION MEASUREMENT 15 4.1 RADIATED EMISSION LIMITS 15 4.2 TEST PROCEDURE 16 4.3 TEST SETUP 17 4.4 EUT OPERATING CONDITIONS 18 4.5 TEST RESULTS 18 4.6 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 22 5. CONDUCTED SPURIOUS EMISSIONS 23 5.1 REQUIREMENT 23 5.2 TEST PROCEDURE 23 5.3 TEST SETUP 23 5.4 EUT OPERATION CONDITIONS 23 5.5 TEST RESULTS 24 6. POWER SPECTRAL DENSITY TEST 27 6.1 APPLIED PROCEDURES / LIMIT 27 6.2 TEST PROCEDURE 27 6.3 TEST SETUP 27 Page 4 of 36 Report No.: STS1512173F01 Table of Contents Page 6.4 EUT OPERATION CONDITIONS 27 6.5 TEST RESULTS 28 7. BANDWIDTH TEST 30 7.1 APPLIED PROCEDURES / LIMIT 30 7.2 TEST PROCEDURE 30 7.3 TEST SETUP 30 7.4 EUT OPERATION CONDITIONS 30 7.5 TEST RESULTS 31 8. PEAK OUTPUT POWER TEST 33 8.1 APPLIED PROCEDURES / LIMIT 33 8.2 TEST PROCEDURE 33 8.3 TEST SETUP 33 8.4 EUT OPERATION CONDITIONS 33 8.5 TEST RESULTS 34 9. ANTENNA REQUIREMENT 35 9.1 STANDARD REQUIREMENT 35 9.2 EUT ANTENNA 35 10. EUT TEST PHOTO 36 Page 5 of 36 Report No.: STS1512173F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b) Peak Output Power PASS -- 15.247 (c) Radiated Spurious Emission PASS -- 15.247 (d) Power Spectral Density PASS -- 15.205 Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 TEST FACTORY Shenzhen STS Test Services Co., Ltd. Add. : 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China CNAS Registration No.: L7649; FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission (9KHz-150KHz) ±2.88dB 2 Conducted Emission (150KHz-30MHz) ±2.67dB 3 RF power,conducted ±0.70dB 4 Spurious emissions,conducted ±1.19dB 5 All emissions,radiated(<1G) 30MHz-200MHz ±2.83dB 6 All emissions,radiated(<1G) 200MHz-1000MHz ±2.94dB 7 All emissions,radiated(>1G) ±3.03dB 8 Temperature ±0.5°C 9 Humidity ±2% Page 6 of 36 Report No.: STS1512173F01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Stone Trade Name Pebblebee Model Name PB400 Series Model N/A Model Difference N/A Product Description The EUT is a Stone Operation Frequency: 2402~2480 MHz Modulation Type: GFSK Radio Technology BLE Number Of Channel 40 Antenna Designation: Please see Note 3. Antenna Gain (dBi) 6 dbi Channel List Please refer to the Note 2. Battery Rated Voltage: 3.0V Charge Limit: 3.2V Capacity :220mAh Hardware version number N/A Software versioning number N/A Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 36 Report No.: STS1512173F01 2. Channel List Channel Frequenc y (MHz) Channel Frequenc y (MHz) Channel Frequenc y (MHz) Channel Frequency (MHz) 01 2402 11 2422 21 2442 31 2462 02 2404 12 2424 22 2444…

Text truncated - open the document above for the full version.

PB400 DTS Setup photo DTS radiation L DTS radiation H
