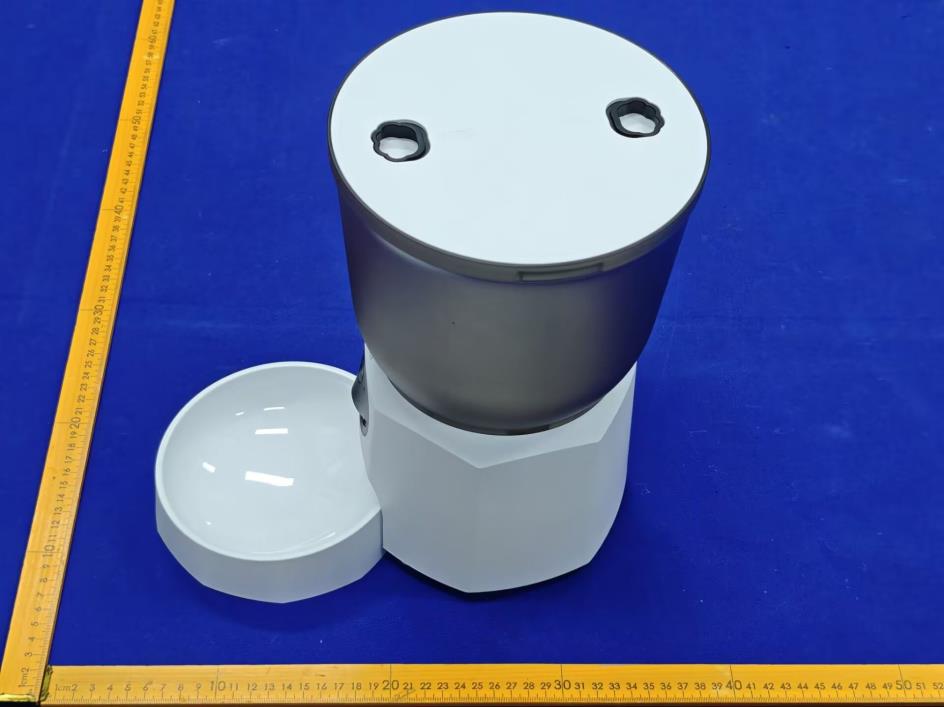

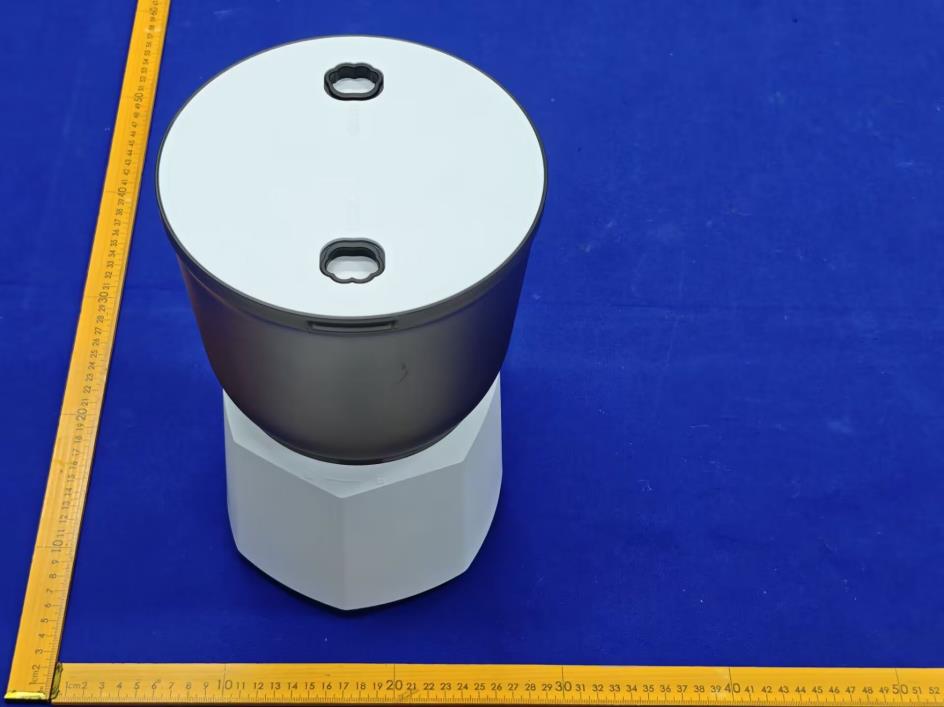

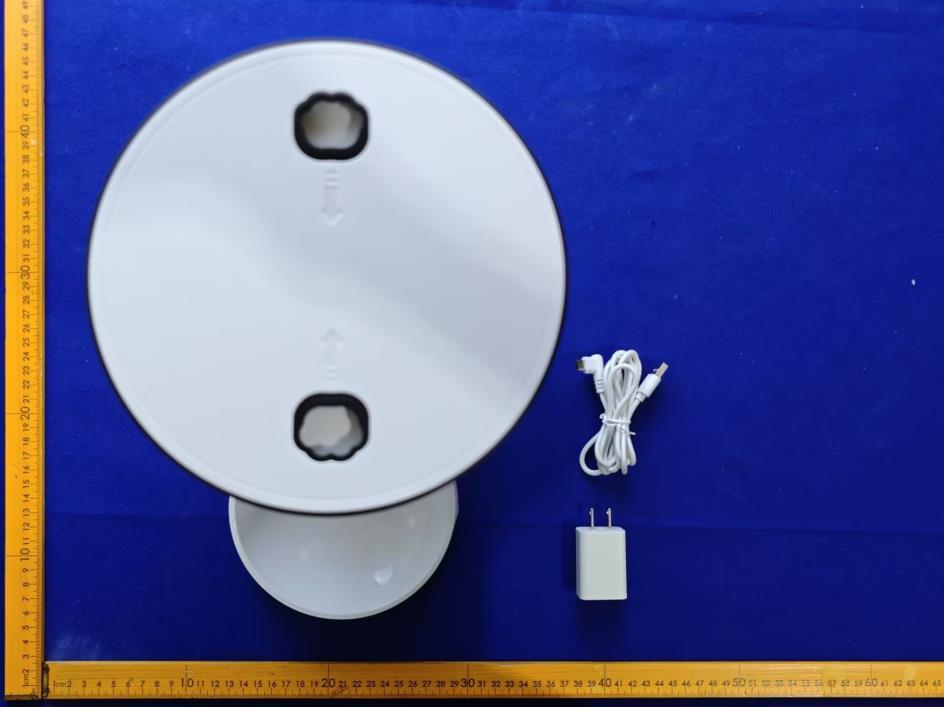

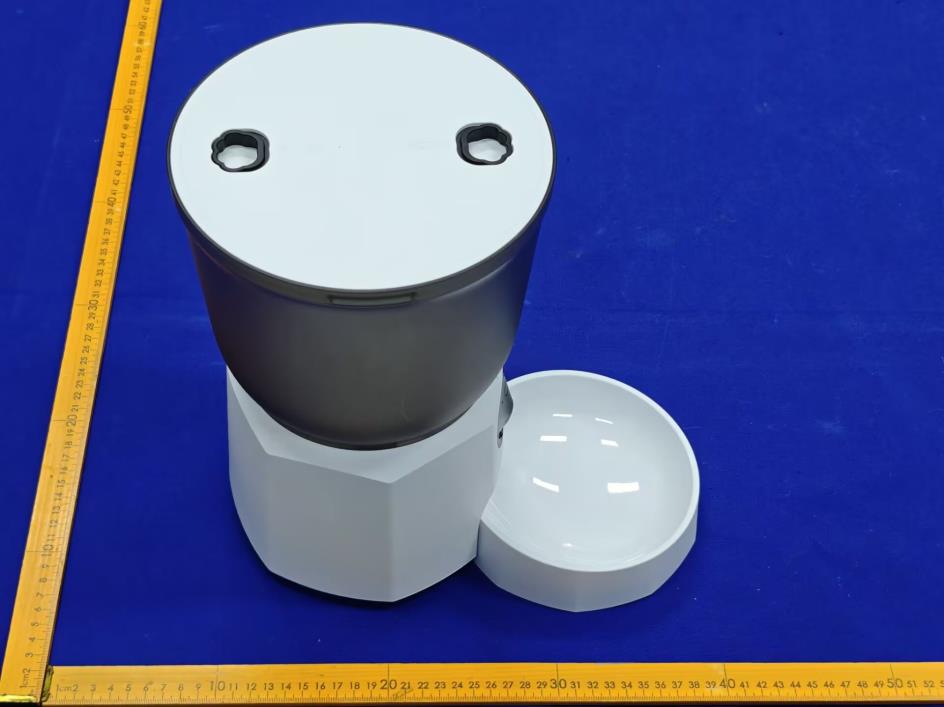

Int Photos Model: PFV3 Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 BT+2.4GHz WIFI+5GHz WIFI ANT Photo 11

- Page 1 of 2 - Photographs of the Test Setup Model: PFV3 Radiated Emission Below 1GHz Radiated Emission Above 1GHz - Page 2 of 2 - Conducted Emission

- Page 125 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com EUT: Pet Feeder Lite Model Name: PFV3 Test Mode: TX Mode(5150-5250MHz) Test Voltage: DC 5V from adapter AC 120V/60Hz Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5180MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 V nom (V) 5 5180.002 5180 0.002 0.40 V max (V) 4.5 5180.017 5180 0.017 3.24 V min (V) 5.5 5180.014 5180 0.014 2.72 Limits ± 20 ppm Result Complies Temperature vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5180MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) V nom (V) 5 T (°C) -20 5180.022 5180 0.022 4.16 T (°C) -10 5180.021 5180 0.021 4.03 T (°C) 0 5180.028 5180 0.028 5.43 T (°C) 10 5180.026 5180 0.026 5.00 T (°C) 20 5180.002 5180 0.002 0.42 T (°C) 30 5180.040 5180 0.040 7.74 T (°C) 40 5180.035 5180 0.035 6.66 T (°C) 50 5180.033 5180 0.033 6.38 T (°C) 60 5180.050 5180 0.050 9.61 T (°C) 70 5180.018 5180 0.018 3.49 Limits ± 20 ppm Result Complies - Page 126 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5200MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 V nom (V) 5 5200.038 5200 0.038 7.39 V max (V) 4.5 5200.025 5200 0.025 4.87 V min (V) 5.5 5200.047 5200 0.047 9.13 Limits ± 20 ppm Result Complies Temperature vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5200MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) V nom (V) 5 T (°C) -20 5200.016 5200 0.016 3.14 T (°C) -10 5200.009 5200 0.009 1.70 T (°C) 0 5200.030 5200 0.030 5.86 T (°C) 10 5200.024 5200 0.024 4.62 T (°C) 20 5200.011 5200 0.011 2.04 T (°C) 30 5200.032 5200 0.032 6.17 T (°C) 40 5200.019 5200 0.019 3.58 T (°C) 50 5200.030 5200 0.030 5.82 T (°C) 60 5200.039 5200 0.039 7.59 T (°C) 70 5200.036 5200 0.036 6.92 Limits ± 20 ppm Result Complies - Page 127 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5240MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 V nom (V) 5 5240.049 5240 0.049 9.31 V max (V) 4.5 5240.034 5240 0.034 6.44 V min (V) 5.5 5240.008 5240 0.008 1.52 Limits ± 20 ppm Result Complies Temperature vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5240MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) V nom (V) 5 T (°C) -20 5240.041 5240 0.041 7.80 T (°C) -10 5240.001 5240 0.001 0.11 T (°C) 0 5240.046 5240 0.046 8.86 T (°C) 10 5240.023 5240 0.023 4.42 T (°C) 20 5240.031 5240 0.031 5.94 T (°C) 30 5240.033 5240 0.033 6.30 T (°C) 40 5240.033 5240 0.033 6.29 T (°C) 50 5240.012 5240 0.012 2.23 T (°C) 60 5240.032 5240 0.032 6.14 T (°C) 70 5240.040 5240 0.040 7.67 Limits ± 20 ppm Result Complies - Page 128 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5190MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 V nom (V) 5 5190.045 5190 0.045 8.74 V max (V) 4.5 5190.036 5190 0.036 6.96 V min (V) 5.5 5190.033 5190 0.033 6.36 Limits ± 20 ppm Result Complies Temperature vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5190MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) V nom (V) 5 T (°C) -20 5190.045 5190 0.045 8.66 T (°C) -10 5190.036 5190 0.036 7.01 T (°C) 0 5190.007 5190 0.007 1.41 T (°C) 10 5190.028 5190 0.028 5.34 T (°C) 20 5190.018 5190 0.018 3.44 T (°C) 30 5190.027 5190 0.027 5.23 T (°C) 40 5190.022 5190 0.022 4.23 T (°C) 50 5190.036 5190 0.036 7.01 T (°C) 60 5190.006 5190 0.006 1.14 T (°C) 70 5190.043 5190 0.043 8.34 Limits ± 20 ppm Result Complies - Page 129 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5230MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 V nom (V) 5 5230.038 5230 0.038 7.27 V max (V) 4.5 5230.038 5230 0.038 7.24 V min (V) 5.5 5230.024 5230 0.024 4.50 Limits ± 20 ppm Result Complies Temperature vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5230MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) V nom (V) 5 T (°C) -20 5230.030 5230 0.030 5.80 T (°C) -10 5230.022 5230 0.022 4.26 T (°C) 0 5230.018 5230 0.018 3.44 T (°C) 10 5230.007 5230 0.007 1.27 T (°C) 20 5230.021 5230 0.021 4.00 T (°C) 30 5230.008 5230 0.008 1.60 T (°C) 40 5230.045 5230 0.045 8.62 T (°C) 50 5230.027 5230 0.027 5.08 T (°C) 60 5230.018 5230 0.018 3.48 T (°C) 70 5230.041 5230 0.041 7.75 Limits ± 20 ppm Result Complies - Page 130 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Voltage vs. Frequency Stability TEST CONDITIONS Reference Frequency: 5745MHz f fc Max. Deviation (MHz) Max. Deviation (ppm) T nom (°C) 20 V nom (V) 5 5745.001 5745 0.001 0.23 V max (V) 4.5 5745.046 5745 0.046 7.95 V min (V) 5.5 5…

Text truncated - open the document above for the full version.

- Page 84 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT ax20 5200MHz Ant1 Duty Cycle NVNT ax20 5240MHz Ant1 - Page 85 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT ax40 5190MHz Ant1 Duty Cycle NVNT ax40 5230MHz Ant1 - Page 86 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com For U-NII-3: Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) a 5745 Ant1 85.43 0.68 0.72 a 5785 Ant1 85.23 0.69 0.72 a 5825 Ant1 86.39 0.64 0.72 n20 5745 Ant1 95.86 0.18 0.2 n20 5785 Ant1 95.93 0.18 0.2 n20 5825 Ant1 95.86 0.18 0.2 n40 5755 Ant1 95.74 0.19 0.2 n40 5795 Ant1 95.77 0.19 0.2 ac20 5745 Ant1 95.94 0.18 0.2 ac20 5785 Ant1 95.93 0.18 0.2 ac20 5825 Ant1 95.54 0.2 0.2 ac40 5755 Ant1 95.71 0.19 0.2 ac40 5795 Ant1 95.63 0.19 0.2 ax20 5745 Ant1 94.63 0.24 0.26 ax20 5785 Ant1 94.77 0.23 0.26 ax20 5825 Ant1 94.63 0.24 0.26 ax40 5755 Ant1 94.67 0.24 0.26 ax40 5795 Ant1 94.71 0.24 0.26 - Page 87 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT a 5745MHz Ant1 Duty Cycle NVNT a 5785MHz Ant1 - Page 88 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT a 5825MHz Ant1 Duty Cycle NVNT n20 5745MHz Ant1 - Page 89 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT n20 5785MHz Ant1 Duty Cycle NVNT n20 5825MHz Ant1 - Page 90 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT n40 5755MHz Ant1 Duty Cycle NVNT n40 5795MHz Ant1 - Page 91 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT ac20 5745MHz Ant1 Duty Cycle NVNT ac20 5785MHz Ant1 - Page 92 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT ac20 5825MHz Ant1 Duty Cycle NVNT ac40 5755MHz Ant1 - Page 93 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT ac40 5795MHz Ant1 Duty Cycle NVNT ax20 5745MHz Ant1 - Page 94 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT ax20 5785MHz Ant1 Duty Cycle NVNT ax20 5825MHz Ant1 - Page 95 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Duty Cycle NVNT ax40 5755MHz Ant1 Duty Cycle NVNT ax40 5795MHz Ant1 - Page 96 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 5.9 Out Of Band Emission 5.9.1 Limit According to FCC §15.407(b). Undesirable emission limits. Except as shown in paragraph (b)(7) of this section, the maximum emissions outside of the frequency bands of operation shall be attenuated in accordance with the following limits: (1) For transmitters operating in the 5.15–5.25 GHz band: All emissions outside of the 5.15–5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (2) For transmitters operating in the 5.25–5.35 GHz band: All emissions outside of the 5.15–5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (3) For transmitters operating in the 5.47–5.725 GHz band: All emissions outside of the 5.47–5.725 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (4) For transmitters operating solely in the 5.725–5.850 GHz band: (i) All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge incre…

Text truncated - open the document above for the full version.

- Page 60 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Test plots: 11a CH36_26dB bandwidth 11a CH36_99% bandwidth 11a CH40_26dB bandwidth 11a CH40_99% bandwidth 11a CH48_26dB bandwidth 11a CH48_99% bandwidth - Page 61 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 11n (HT20) CH36_26dB bandwidth 11n (HT20) CH36_99% bandwidth 11n (HT20) CH40_26dB bandwidth 11n (HT20) CH40_99% bandwidth 11n (HT20) CH48_26dB bandwidth 11n (HT20) CH48_99% bandwidth - Page 62 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 11n (HT40) CH38_26dB bandwidth 11n (HT40) CH38_99% bandwidth 11n (HT40) CH46_26dB bandwidth 11n (HT40) CH46_99% bandwidth 11ac (HT20) CH36_26dB bandwidth 11ac (HT20) CH36_99% bandwidth - Page 63 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 11ac (HT20) CH40_26dB bandwidth 11ac (HT20) CH40_99% bandwidth 11ac (HT20) CH48_26dB bandwidth 11ac (HT20) CH48_99% bandwidth 11ac (HT40) CH38_26dB bandwidth 11ac (HT40) CH38_99% bandwidth - Page 64 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 11ac (HT40) CH46_26dB bandwidth 11ac (HT40) CH46_99% bandwidth 11ax (HT20) CH36_26dB bandwidth 11ax (HT20) CH36_99% bandwidth 11ax (HT20) CH40_26dB bandwidth 11ax (HT20) CH40_99% bandwidth - Page 65 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 11ax (HT20) CH48_26dB bandwidth 11ax (HT20) CH48_99% bandwidth 11ax (HT40) CH38_26dB bandwidth 11ax (HT40) CH38_99% bandwidth 11ax (HT40) CH46_26dB bandwidth 11ax (HT40) CH46_99% bandwidth - Page 66 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com For U-NII-3 Channel Test Channel Frequency (MHz) 99% bandwidth (MHz) Limit (kHz) Result 11a CH149 5745 16.796 / Pass 11a CH157 5785 16.793 / Pass 11a CH165 5825 16.81 / Pass 11n (HT20) CH149 5745 18.014 / Pass 11n (HT20) CH157 5785 18.041 / Pass 11n (HT20) CH165 5825 18.026 / Pass 11n (HT40) CH151 5755 36.884 / Pass 11n (HT40) CH159 5795 36.829 / Pass 11ac (HT20) CH149 5745 18.001 / Pass 11ac (HT20) CH157 5785 18.018 / Pass 11ac (HT20) CH165 5825 18.032 / Pass 11ac (HT40) CH151 5755 36.854 / Pass 11ac (HT40) CH159 5795 36.831 / Pass 11ax (HT20) CH149 5745 19.155 / Pass 11ax (HT20) CH157 5785 19.157 / Pass 11ax (HT20) CH165 5825 19.164 / Pass 11ax (HT40) CH151 5755 38.111 / Pass 11ax (HT40) CH159 5795 38.058 / Pass - Page 67 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 11a CH149 99% bandwidth 11a CH157 99% bandwidth 11a CH165 99% bandwidth 11n (HT20) CH149 99% bandwidth 11n (HT20) CH157 99% bandwidth 11n (HT20) CH165 99% bandwidth - Page 68 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 11n (HT40) CH151 99% bandwidth 11n (HT40) CH159 99% bandwidth 11ac (HT20) CH149 99% bandwidth 11ac (HT20) CH157 99% bandwidth 11ac (HT20) CH165 99% bandwidth 11ac (HT40) CH151 99% bandwidth - Page 69 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 11ac (HT40) CH159 99% bandwidth 11ax(HT20) CH149 99% bandwidth 11ax (HT20) CH157 99% bandwidth 11ax (HT20) CH165 99% bandwidth 11ax (HT40) CH151 99% bandwidth 11ax (HT40) CH159 99% bandwidth - Page 70 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 5.7 6 dB Bandwidth 5.7.1 Limit (e) Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. 5.7.2 Test Procedure 1. Set RBW= 100 kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower) that are attenuated by 26 dB relative to the maximum level measured in the fundamental emission. 5.7.3 Test Setup 5.7.4 Test Results EUT Spectrum Analyzer - Page 71 of 137 - Report No.: HB20260701005E-03 Add:Room 1…

Text truncated - open the document above for the full version.

- Page 1 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Test Report Product: Pet Feeder Lite Trade Mark: N/A Model Number: PFV3 FCC ID: 2AG7C-PET11 Prepared for Hangzhou Meari Technology Co., Ltd. Building 4,Huiding Intelligent Innovation Center,No. 825,Ruquan Road,Changhe Street,Binjiang District,Hangzhou,Zhejiang, China Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 137 - Report No.: HB20260701005E-03 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 6 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 6 1.2 TEST MODE .............................................................................................................................................................. 6 1.3 OPERATION CHANNEL LIST .......................................................................................................................................... 7 1.4 TEST SETUP .............................................................................................................................................................. 7 1.5 POWER SETTING CONFIGURATION PARAMETERS ............................................................................................................... 7 1.6 ANCILLARY EQUIPMENT .............................................................................................................................................. 8 2 SUMMARY OF TEST RESULT ............................................................................................................................... 9 3 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................10 3.1 TEST LABORATORY ................................................................................................................................................... 10 3.2 ENVIRONMENTAL CONDITIONS ................................................................................................................................... 10 3.3 MEASUREMENT UNCERTAINTY ................................................................................................................................... 10 3.4 TEST SOFTWARE ...................................................................................................................................................... 11 4 LIST OF TEST EQUIPMENT .................................................................................................................................12 5 TEST ITEM AND RESULTS ...................................................................................................................................14 5.1 ANTENNA REQUIREMENT .......................................................................................................................................... 14 5.1.1 Standard Requirement ............................................................................................................................. 14 5.1.2 Test Result ................................................................................................................................................. 14 5.2 POWER LINE CONDUCTED EMISSION ........................................................................................................................... 15 5.2.1 Limits ........................................................................................................................................................ 15 5.2.2 Test Procedures ......................................................................................................................................... 15 5.2.3 Test Setup .................................................................................................................................................. 16 5.2.4 Test Result ................................................................................................................................................. 16 5.3 RADIATED EMISSION ................................................................................................................................................ 19 5.3.1 Limits ........................................................................................................................................................ 19 5.3.2 Test Procedures ......................................................................................................................................... 20 5.3.3 Test Setup .................................................................................................................................................. 20 5.3.4 Test Result ................................................................................................................................................. 21 5.3.5 Radiated Band Edge ................................................................................................................................. 27 5.4 AVERAGE OUTPUT POWER ...........................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Yingjichuang Electronic Technology Co., Ltd. http://www.szsyjc.com Headquarters Address: Building C, Hongyu Guangming Valley, No. 11 Youmaigang Road, Ma Tian Sub-district, Guangming District, Shenzhen City Dongguan Branch Factory: No. 2, Yingshi Kou Galaxy Road, Qiao Tou Town, Dongguan City, China Hangzhou Office: Room 509, Building 1, Binrun Kechuangyuan, No. 5, Zhirong Street, Pu Yuan Sub-district, Binjiang District, Hangzhou City Mianyang Office: No. 35, Muyin East Road, High-tech Zone, Mianyang City, Sichuan Province, Wanxiang High- tech International, Floor 4F-34 Phone：0755-27810060Fax：0755-27810057Web：http://www.szsyjc.com CUSTOMER NAME 客户名称 Mi rui CUSTOMER P/N 客户料号 PART NAME 品 名 2.4G/5.8GHz Metal Antenna P/ N 料 号 YJC-6N000-B590 APPROVAL REV. 版 次 V1.0 DELIVERY DATE 送样日期 Dec. 10, 2024 PREPARED BY 承 办 Huang teng CHECKED BY 审 核 Peng huang APPROVED BY 核 准 Xiao han Customer Approved 客 户 承 认 Prepared By 承 办 Checked By 审 核 Approved By 核 准 http://www.szsyjc.com Antenna plan view: Shenzhen Yingjichuang Electronic Technology Co., Ltd. http://www.szsyjc.com Antenna physical diagram and attachment position diagram: Antenna performance test chart: module ports Version 1.0nh ANT Port N G N G Shenzhen Yingjichuang Electronic Technology Co., Ltd. http://www.szsyjc.com OTA Active Test Data Statistics: ItemMeasurementBandChannelFrequencyTotal 1TRPWIFI_B (11M)1241222.49 2TRPWIFI_B (11M)6243722.47 3TRPWIFI_B (11M)11246221.28 4TIS(EIRP)WIFI_B (11M)12412-82.94 5TIS(EIRP)WIFI_B (11M)62437-86.15 6TIS(EIRP)WIFI_B (11M)112462-86.89 7TRPWIFI_A (6M)36518018.20 8TRPWIFI_A (6M)100550019.95 9TRPWIFI_A (6M)165582518.27 10TIS(EIRP)WIFI_A (54M)365180-70.3 11TIS(EIRP)WIFI_A (54M)1005500-72.72 12TIS(EIRP)WIFI_A (54M)1655825-70.20 Shenzhen Yingjichuang Electronic Technology Co., Ltd. http://www.szsyjc.com 2D and 3D test data: FrequencyEfficiency (%)Gain.(dBi) 2400MHz 50.582.16 2410MHz 53.951.82 2420MHz 54.702.31 2430MHz 53.332.33 2440MHz 51.882.71 2450MHz 49.771.85 2460MHz 49.892.39 2470MHz 48.532.58 2480MHz 50.352.76 2490MHz 46.561.99 2500MHz 46.562.46 5150 MHz 36.26-2.14 5250 MHz37.43-2.10 5350 MHz 36.55-1.79 5450 MHz36.62-1.51 5550 MHz34.31-1.49 5650 MHz 34.24-1.31 5750 MHz 34.31-0.49 5850 MHz 34.72-0.61 Shenzhen Yingjichuang Electronic Technology Co., Ltd. http://www.szsyjc.com Phi 0 2D Image: Phi 90 2D Image: Theta 90 2D Image: Shenzhen Yingjichuang Electronic Technology Co., Ltd. http://www.szsyjc.com 3D test image (3D 2400MHz)：(3D 2450MHz)：(3D 2500MHz)： (3D 5150MHz)：(3D 5450MHz)：(3D 5850MHz)： Shenzhen Yingjichuang Electronic Technology Co., Ltd.

- Page 1 of 11 - Report No.: HB20260701005E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com RF EXPOSURE Test Report Product: Pet Feeder Lite Trade Mark: N/A Model Number: PFV3 FCC ID: 2AG7C-PET11 Prepared for Hangzhou Meari Technology Co., Ltd. Building 4,Huiding Intelligent Innovation Center,No. 825,Ruquan Road,Changhe Street,Binjiang District,Hangzhou,Zhejiang,China Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 11 - Report No.: HB20260701005E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ........................................................................…
