2AG8JTCC160Taurus-Asynchronous Control System

TCC160 Asynchronous Full-Color LED Display Control Card Specifications TCC160 Asynchronous Full-Color LED Display Control Card Specifications www.novastar.tech 1 Change History Document Version Release Date Description V1.0.0 2024-08-21 First release Introduction The TCC160 is an asynchronous full-color LED display control card from NovaStar. It integrates sending and receiving capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with cloud-based publishing and monitoring platforms, the TCC160 enables users to manage LED displays from an Internet-connected device anywhere, anytime. The TCC160 comes with 16 standard HUB75E connectors for communication. The hardware and software designs take into full consideration the on-site setup, operation and maintenance, making setup easier, operation more stable, and maintenance more efficient. Thanks to its stable and secure integrated design, the TCC160 saves space, simplifies cabling, and is suitable for the applications requiring small pixel capacity, such as storefront displays, vehicle-mounted displays, displays in communities, and lamp-post displays. Certifications CE, FCC, RoHS, TBK If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact NovaStar to confirm or address the problem. Otherwise, the customer shall be responsible for the legal risks caused or NovaStar has the right to claim compensation. Features Inputs and Outputs  Maximum capacity per TCC160: 512×512 (260,000) pixels Maximum width/height: 2048 pixels (pixel capacity not exceeding 260,000)  Maximum capacity when multiple TCC160 cascaded: 650,000 pixels Maximum width/height: 2048 pixels (pixel capacity not exceeding 650,000)  Maximum width of an ultra-long screen: 8192 pixels, Maximum height of an ultra-long screen: 2560 pixels (maximum capacity per Ethernet port: 650,000 pixels)  1x Stereo audio output Control  1x USB 2.0 (Type A) port TCC160 Asynchronous Full-Color LED Display Control Card Specifications www.novastar.tech 2 Allows for upgrade, USB playback, storage expansion, and log export.  1x USB (Type B) port Connects to the control computer for content publishing and screen control.  2x RS485 connectors Connect to light sensors, temperature and humidity sensors, or other modules to implement corresponding functions. Performance  Powerful processing capacity − Industrial-grade processor − Quad-core 1.4 GHz processor − Hardware decoding of 4K videos − 2 GB of RAM − 32 GB of internal storage  Flawless playback Support for playback of 1x 4K, 3x 1080p, 8x 720p, 10x 480p, or 16x 360p videos Functionality  All-round control plans − Allows users to publish content and control screens from a computer, mobile phone, or tablet. − Allows users to publish content and control screens from anywhere, anytime. − Allows users to monitor screens from anywhere, anytime.  Wi-Fi AP and Wi-Fi STA can be turned on at the same time − Wi-Fi AP allows the built-in Wi-Fi hotspot of the TCC160 to be connected. The default SSID is “AP+Last 8 digits of SN” and the default password is printed on the SSID label of the product. − Wi-Fi STA allows users to access the TCC160 directly and connect the TCC160 to the Internet.  Ultra-long-screen content playback  Synchronous playback across multiple screens Enabling synchronous playback halves the decoding capability of the device. − NTP time synchronization − GPS time synchronization  Support for 4G modules The TCC160 ships without a 4G module. Users have to purchase 4G modules separately if needed.  Support for GPS positioning and GPS time synchronization  Support for relay (maximum DC 30 V 3 A)  Quick adjustment of dark or bright lines TCC160 Asynchronous Full-Color LED Display Control Card Specifications www.novastar.tech 3 The different brightness of seams caused by splicing of modules or cabinets can be corrected to improve the visual experience. The correction is easy and takes effect immediately.  Temperature and voltage monitoring Real-time monitoring of the temperature and voltage of the receiving card, without the need for other external devices.  Bit error detection The Ethernet port communication quality of the receiving card can be monitored and the number of erroneous packets can be recorded to help troubleshoot network communication problems.  Firmware program readback The receiving card firmware program can be read back and saved to the local storage.  Configuration parameter readback The receiving card configuration parameters can be read back and saved to the local storage.  Mapping 1.1 (available for cascaded receiving cards) The cabinets can display the controller number, receiving card number, and Ethernet port information, allowing users to easily obtain the locations and connection topology of receiving cards.  Dual program backup (available for cascaded receiving cards) Two copies of firmware program are stored in the receiving card at the factory to avoid the problem that the receiving card may get stuck abnormally during program update. Appearance All product pictures shown in this document are for illustration purpose only. Actual product may vary. TCC160 Asynchronous Full-Color LED Display Control Card Specifications www.novastar.tech 4 Table 1-1 Connectors and buttons Name Description Power Power input connector LED Out Gigabit Ethernet port Standard RJ45 connector (with no built-in LEDs) for cascading receiving cards Multifunction cards cannot be connected. ETHERNET Fast Ethernet port Standard RJ45 connector (with built-in LEDs) connecting to a network or control computer Audio Audio output connector OMTP headphones can be connected. USB  1x USB 2.0 (Type A) port allowing for upgrade, USB playback, storage expansion (up to 128 GB), and log import and export. Only the FAT32 file system is supported and the maximum size of a single file is 4 GB.  1x USB (Type B) po…

Text truncated - open the document above for the full version.

Xi'an NovaStarTech Co., Ltd The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/29/24 U.S. Agent Designation Xi'an NovaStar Tech Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AG8JTCC160): Name and company of U.S. agent: NovaStar North America Inc. Physical U.S. address of agent:750 E Pilot Rd Suite C, Las Vegas, NV 89119, US FRN of U.S. agent:0033682485 Email address of U.S. agent: gilbert@novastar. Tech [AOCE Corp orati on Inc.] acknowledges their obligation to accept service of process on behalf of Xi'an NovaStar Tech Co., Ltd Xi'an NovaStar Tech Co., Ltd accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Kailing Xue Xi'an NovaStarTech Co., Ltd Signature [GilbertMu] [ NovaStarNorth AmericaInc.]

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Xi'an NovaStar Tech Co., Ltd Address: Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Phone: +86-29-68216000 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. FCC ID: 2AG8JTCC160 If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-08-30 Name / Title: Panpan Yang / Manager Company: Xi'an NovaStar Tech Co., Ltd Address: Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Phone: +86-29-68216000 Fax: +86-29-84507072 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AG8JTCC160 TCC160, TCC********** We, applicant Company Name: Xi'an NovaStar Tech Co., Ltd Address: Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Phone: +86-29-68216000 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-08-30 Name / Title: Panpan Yang / Manager Company: Xi'an NovaStar Tech Co., Ltd Address: Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Phone: +86-29-68216000 Fax: +86-29-84507072 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2AG8JTCC160 TCC160, TCC********** For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2024-08-30 Name / Title: Panpan Yang / Manager Company: Xi'an NovaStar Tech Co., Ltd Address: Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Phone: +86-29-68216000 Fax: +86-29-84507072 E-Mail: [email protected]

Page 1 of 1 Rev.2.0 Xi'an NovaStar Tech Co., Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AG8JTCC160 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Panpan Yang / Manager Signature: Phone: +86-29-68216000 Email: [email protected] Date: 2024-08-29

Xi'an NovaStar Tech Co., Ltd Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Date: August 29, 2024 FCC ID: 2AG8JTCC160 Model Number: TCC160, TCC********** To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Xi'an NovaStar Tech Co., Ltd hereby declare that our product (Taurus-Asynchronous Control System) Model Number: TCC160, TCC********** board, Schematic, Hardware version, Software version, structure and internal photos are same, named and appearance differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Panpan Yang / Manager Company: Xi'an NovaStar Tech Co., Ltd Address: Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Phone: +86-29-68216000 Fax: +86-29-84507072 E-Mail: [email protected]

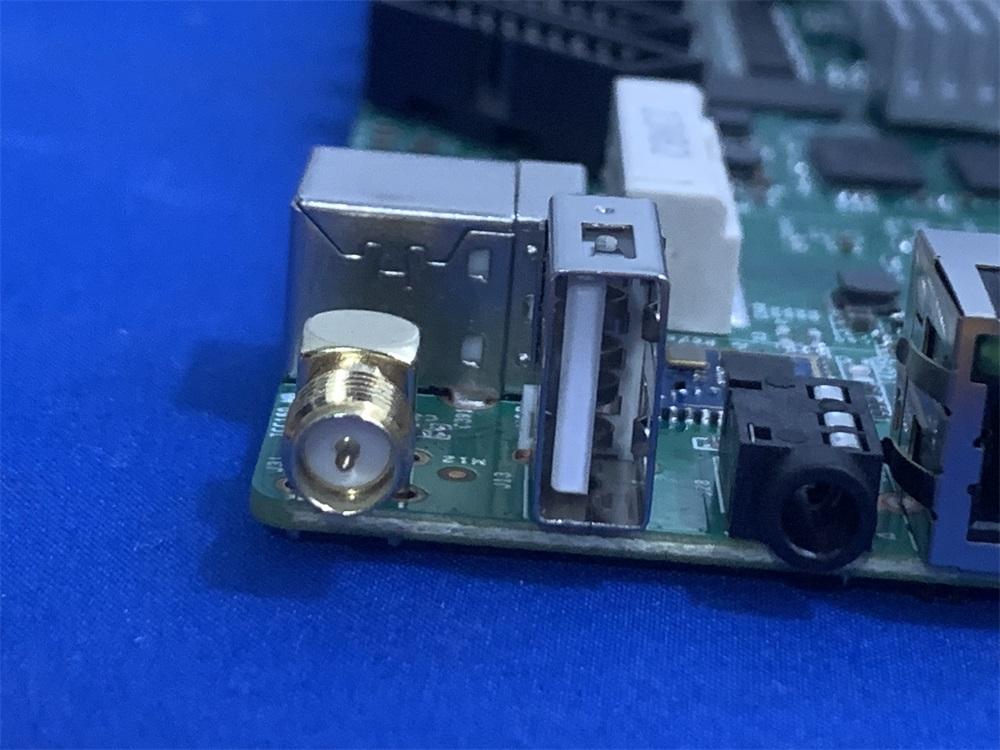

FCC ID: 2AG8JTCC160 Fig. 1 Fig. 2 WLAN Antenna FCC ID: 2AG8JTCC160 Fig. 3

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L2.0cm x 1.0cm) Label Location Module: TCC160 FCC ID: 2AG8JTCC160

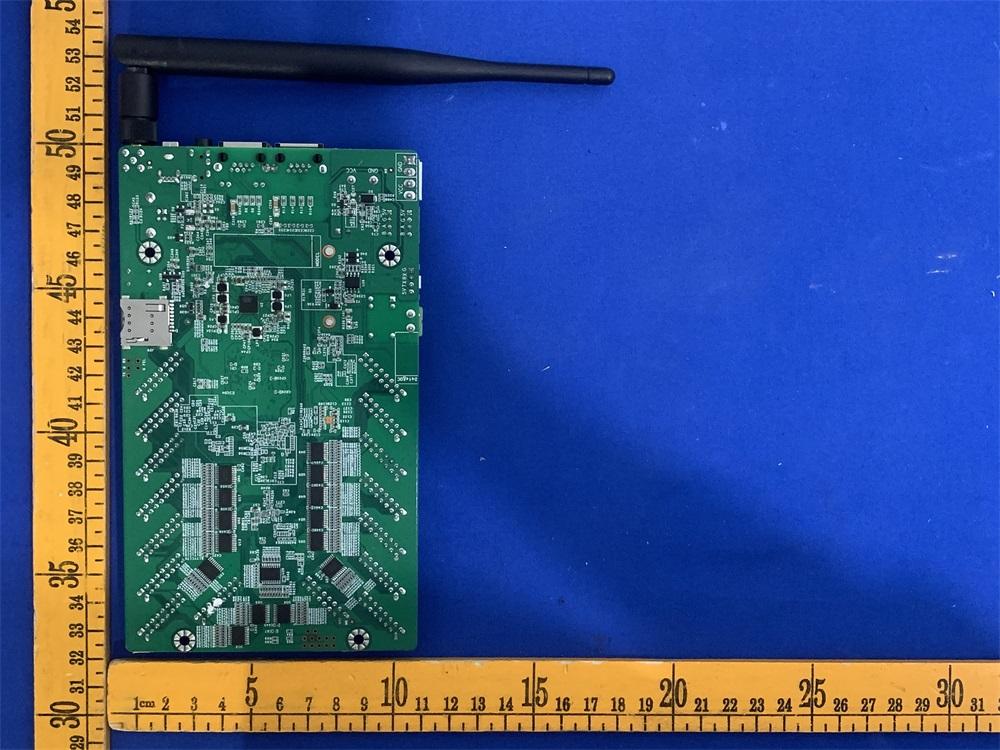

FCC ID: 2AG8JTCC160 Fig. 1 Fig. 2 FCC ID: 2AG8JTCC160 Fig. 3 Fig. 4

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‟an District, Shenzhen, China RF Exposure evaluation Report Reference No. ................. : FCC ID. ......................................... : CTA24081600502 2AG8JTCC160 Compiled by ( position+printed name+signature): File administrators Jinghua Xiao Supervised by ( position+printed name+signature): Test Engineer Lushan Kong Approved by ( position+printed name+signature) . : Manager Eric Wang Date of issue .................................... : Aug.27, 2024 Representative Laboratory Name ....................................................... : Shenzhen CTA Testing Technology Co., Ltd. Address ......................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao„an District, Shenzhen, China Applicant’s name ............................ : Xi'an NovaStar Tech Co., Ltd Address ............................................ : Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Test specification ........................ : Standard ........................................ : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices TRF Originator .............................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ................................... : Dated 2014-12 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : Taurus-Asynchronous Control System Trade Mark .................................... : N/A Manufacturer ................................. : Xi'an NovaStar Tech Co., Ltd Model/Type reference ................... : TCC160 Listed Models .............................. : TCC********** ((Where '*' can be any alphanumeric character or blank for marketing purpose.) Hardware Version ........................ : N/A Software Version ........................... : N/A Rating ............................................ : DC 5.0V Result ............................................ : PASS Report No.: CTA24081600502 Page 2 of 11 T E S T R E P O R T Test Report No. : CTA24081600502 Jul. 31, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : Taurus-Asynchronous Control System Model /Type : TCC160 Listed model : TCC********** ((Where '*' can be any alphanumeric character or blank for marketing purpose.) Applicant : Xi'an NovaStar Tech Co., Ltd Address : Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Manufacturer : Xi'an NovaStar Tech Co., Ltd Address : Building 2, NovaStar Tech Park, No. 1699, Yunshui 3rd Road, Xi'an, Shaanxi, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24081600502 Page 3 of 11 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ................................................................................................................................................... 7 4. CONDUCTED POWER RESULTS ............................................................................…

Text truncated - open the document above for the full version.

深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    1 NOVA 2.4G/5G SpecificationApproval CustomerName: NOVA STAR Antennafrequencyband ：2400-2500/5150-5850MHz Version:A0 CustomerName: NOVA STAR Antennafrequencyband ：2400-2500/5150-5850MHz Version:A0Productiondate ： 2024-08-09Productiondate ： 2024-08-09 Number ：FS-WZ-JB-094Customerpart number ：120010041Number ：FS-WZ-JB-094Customerpart number ：120010041 Researchand developmentofFeishengElectronicsCo., Ltd. Structures ：： Xu LongRF ：： Guo Xi Auditing:LI ShengAppreval :LI Sheng Customerconfirmation Customerreview ：： Customer approval: FeishengElectronicsCo., Ltd. Address:Third Floor, No. 70 BaotongSouth Road, Yungu Street, Xikeng, HenggangTown, Shenzhen Phone number ： 0755-85218289FAX ：0755-85223189 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    2 INDEX. 1) Cover cover.................................................................................1 2) Catalog........................................................................................2 3) 2D drawings ................................................................................3 4) Product specificationparameters................................................4 5) Test report ofpassive waveformloss value....... ....................5-10 6) Environmentaltest report.....................................................11-14 Modify the record VersionsDatesRFModify the content A02024-08-09Xu Long   3 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    4 Product FeaturesSpecificationTable 一、一、 Basic characteristicsofthe product ：： Producttype ：Glue stick antennaWIFI dual frequency-5DB rubber sleeve SMA male and female needle-L=195MM DESCRIPTIONVALUE FrequencyRange2400-2500/5150-5850MHz Impedance50 Ω VSWR ≤2.3 Gain2DBi RadiationOmni-directional Polarizationlinear Vertical Powers1W ConnectormodelSMA Operatingtemperature-45°C~+85°C Storage temperature-45°C~+85°C 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    5 1.Summary ：： This report toaccount for the measurementsetup and result ofthe Antenna. The measurement setup includes s-parameter,The measureddata for Antenna are presentedand analysis. 2.S-P arameterMeasurementS：： A.Reflectioncoefficient: (a) Instrument：Network Analyzer (b) Setup ： (1) Calibrate the Network Analyzer byone port calibrationusing O.S.L. calibrationkits. (2) Connect the antenna under test tothe Network Analyzer. (3) Measure the S11(reflectioncoefficient)shown inFig. 1. (4) Generally,the S11 isless than –10dB toensure the 90% VSWR 2.0:1 power into antenna and only less than 10% power back tosystem. 一 Fig.1 Antenna measuredinNetwork Analyzer 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    6 3.S-ParameterMeasurementResult S： S-Parametertest data ： S-Parametertest image ： FrequencyMHz 24002450248051005800 Loss DB value1.171.291.442.171.39 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.  7 Antennaappearance：Antennaappearance： Passivenumericalvalue：Passivenumericalvalue： 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    8 2D/3D: 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    9 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    10 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    11 Environmentaltest requirementsEnvironmentaltest requirements PrefacePrefaceTest itemsTest itemsTest methodsand conditionsTest methodsand conditionsTest equipmentTest equipmentTest resultsTest results 1 Temperature and humidity test ReferenceE1A 364-31 Method Three, Test ConditionA The purpose of this test process is to conduct detailedstandardtests.The productsused are affectedby high humidityand heat.Influencethe performanceof the materialfor evaluation. K.SON INS THS-A4L-150 Qualified Requirements: Temperature:85°C Humidity :90~95% (R.H) Time :72 hours 2 Low temperature test Refer to FeishengElectronicTest Specification The measuredsample should be traveledin atemperature-balancedenvironment,and its temperaturesetting Set at -45 °C K.SON INS THS-A4L-150 Qualified Requirements: Time :24 hours 3 High temperature test Refer to FeishengElectronicTest Specification： The measuredsample should be placed in a constanttemperatureenvironment,and the gas temperatureshould be set at 70°C. K.SON INS THS-A4L-150 Qualified Requirements: TIne :24 hours 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHENGELECTRONICSCO.,LTD.    12 4 Hot and cold tests Refer to FeishengElectronicTest Specification： The measuredsample should be placed in a fixed environment,and the temperature should be set at -45~85°C. K.SON INS THS-A4L-150 Qualified Requirements: More than 8hours .(30 minutes/time,12 cycles) 5 Salt spray test Refer to FeishengElectronicTest Specification： The tested sample should be placed in a fixed environment： NaCL Concentration：40-60g/1Kg PH value ：6.5-7.2 Test time ：24 hours Salt spray tester Qualified 1.Gold-platedproductsare not allowed to peel with rust spots. 2.Othernickel-plated,tinnedand galvanizedproductsshall not have more than two rust points on the same shaft or surface. 深 圳 市 飞 胜 电 子 有 限 公 司 SHENZHENFEISHE…

Text truncated - open the document above for the full version.

FCC ID: 2AG8JTCC160 1 Case No. : CTA24081600501 Ambient Condition: 23 °C, 51 %RH, Test Date: 2024.8.16 Test Engineer: Lushan Kong Appendix A.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.120 2407.960 2416.080 0.5 PASS 2437 8.080 2432.960 2441.040 0.5 PASS 2462 7.640 2457.960 2465.600 0.5 PASS 11G Ant1 2412 16.360 2403.840 2420.200 0.5 PASS 2437 16.360 2428.840 2445.200 0.5 PASS 2462 16.360 2453.840 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.560 2403.240 2420.800 0.5 PASS 2437 17.320 2428.480 2445.800 0.5 PASS 2462 17.560 2453.240 2470.800 0.5 PASS 11N40SISO Ant1 2422 35.440 2404.480 2439.920 0.5 PASS 2437 35.440 2419.480 2454.920 0.5 PASS 2452 35.680 2434.160 2469.840 0.5 PASS FCC ID: 2AG8JTCC160 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AG8JTCC160 3 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AG8JTCC160 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AG8JTCC160 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AG8JTCC160 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2AG8JTCC160 7 Appendix A.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.439 2405.3599 2418.7989 --- --- 2437 13.346 2430.4784 2443.8244 --- --- 2462 13.302 2455.3734 2468.6754 --- --- 11G Ant1 2412 17.088 2403.4826 2420.5706 --- --- 2437 17.032 2428.5687 2445.6007 --- --- 2462 17.178 2453.4479 2470.6259 --- --- 11N20SISO Ant1 2412 18.003 2403.0327 2421.0357 --- --- 2437 18.069 2428.0604 2446.1294 --- --- 2462 18.043 2453.0104 2471.0534 --- --- 11N40SISO Ant1 2422 36.277 2404.0108 2440.2878 --- --- 2437 36.226 2418.9918 2455.2178 --- --- 2452 36.279 2433.9344 2470.2134 --- --- FCC ID: 2AG8JTCC160 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AG8JTCC160 9 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AG8JTCC160 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AG8JTCC160 11 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AG8JTCC160 12 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2AG8JTCC160 13 Appendix A.3: Maximum conducted output power Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 18.15 ≤30.00 PASS 2437 19.62 ≤30.00 PASS 2462 20.30 ≤30.00 PASS 11G Ant1 2412 18.74 ≤30.00 PASS 2437 20.65 ≤30.00 PASS 2462 21.27 ≤30.00 PASS 11N20SISO Ant1 2412 18.62 ≤30.00 PASS 2437 20.48 ≤30.00 PASS 2462 21.15 ≤30.00 PASS 11N40SISO Ant1 2422 19.36 ≤30.00 PASS 2437 20.48 ≤30.00 PASS 2452 21.16 ≤30.00 PASS FCC ID: 2AG8JTCC160 14 Appendix A.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -8.14 ≤8.00 PASS 2437 -5.14 ≤8.00 PASS 2462 -5.35 ≤8.00 PASS 11G Ant1 2412 -13.86 ≤8.00 PASS 2437 -12.13 ≤8.00 PASS 2462 -11.13 ≤8.00 PASS 11N20SISO Ant1 2412 -13.07 ≤8.00 PASS 2437 -12.69 ≤8.00 PASS 2462 -10.98 ≤8.00 PASS 11N40SISO Ant1 2422 -16.30 ≤8.00 PASS 2437 -15.00 ≤8.00 PASS 2452 -14.22 ≤8.00 PASS FCC ID: 2AG8JTCC160 15 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AG8JTCC160 16 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AG8JTCC160 17 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AG8JTCC160 18 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AG8JTCC160 19 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 FCC ID: 2AG8JTCC160 20 Appendix A.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 6.14 -45.86 ≤-13.86 PASS High 2462 9.07 -46.54 ≤-10.93 PASS 11G Ant1 Low 2412 4.37 -29.67 ≤-15.63 PASS High 2462 4.84 -40.85 ≤-15.16 PASS 11N20SISO Ant1 Low 2412 0.30 -38.23 ≤-19.7 PASS High 2462 2.72 -44.41 ≤-17.28 PASS 11N40SISO Ant1 Low 2422 -2.18 -38.68 ≤-22.18 PASS High 2452 -0.22 -40.05 ≤-20.22 PASS FCC ID: 2AG8JTCC160 21 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_…
