2AG94C-CB2L2.4G Wifi & Bluetooth Module

SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD. C-2L (WiFi &BLE Module) C-2S integrates Bluetooth dual-mode 5.1 and Wi-Fi 802.11n chip. It integrates the hardware and software required to complete the Wi-Fi and Bluetooth applications, support AP and STA connection, as well as the classic Bluetooth and BLE connection at the same time. The 32-bit MCU with Max running speed of 120 MHz and the built-in 256 KB RAM allow it to support multi cloud connection, and the MCU can also support audio decoding. It has variety of peripherals, such as PWM, I2C, UART, SPI, SDIO and IrDA. You can download and burn the program directly through UART. Up to six channels of 32-bit high-speed PWM output make it suitable for high-quality LED control. Every 2 PWM can be configured as a phase controllable differential mode to support motor and LED strip. Priority based Wi Fi and Bluetooth coexistence control module is integrated internally to support real-time priority and transceiver scheduling. BK7231M can provide the indication of transceiver status of the current transceiver, so as to support external PA and LNA expansion. It is embedded with EFUSE and supports OTP reading and writing in flash. It can be used to provide unique serial number, code encryption and protect the security of debugging interface. The internal integration of true random number generator and security module ensures the security of communication and fast authentication and network connection. Support low-power sleep mode, MCU can enter sleep mode and only needs micro ampere current. The deep sleep mode supported by BK7231M can run a 32-bit clock under several microamps of current, and can be awakened by this clock or any GPIO. It supports not only the classic Bluetooth standard rate connection, but also all BLE 5.1 rates and functions, including Long Range、High Data Rate and AOA / AOD positioning with up to four antennas. Features: 802.11 b/g/n 1x1 Compliant 20/40 MHz bandwidth and STBC Working mode STA, AP, Direct and Repeater SGI、Green-Field Preamble and A-MPDU Support WPA, WPA2 and WAPI Support 802.11e and WMM-PS Up to 120 MHz for ARM968E-S MCU In package 2Mbyte FLASH On chip 256 Kbyte data RAM 50 MHz SDIO interface and SPI Full speed USB host and device Dual high speed UART High speed I2C Multi-channel 10bit ADC Six 16-bits timer with PWM mode Clock signal output FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 PCB antenna with antenna gain 0dBi (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. If the F CC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AG94C-CB2L Or Contains FCC ID: 2AG94C- CB2L” When the module is installed inside another device, the user manual of the host must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect…

Text truncated - open the document above for the full version.

SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD. DATE :2022-2-22 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint JianYan Testing Group Shenzhen Co., Ltd.;No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China., to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD. Block 1, Dong Huan Industrial Park, NanPu Road,ShangLiao Community,XinQiao Street, Bao’an District, Shenzhen City, Guangdong Province, China Dated this 2022-2-22 By: Lin Lu Signature Printed Title: Manager On behalf of : SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD. Telephone: 15816885497

Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction PCB antenna with antenna gain 0dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum N/A Not applicable signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements.4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and N/A Not applicable f) Production test procedures for ensuring compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions must be included as part of the information to the host product manufacturer. The antenna list shall also identify the antenna types (mo…

Text truncated - open the document above for the full version.

Modular approval Declaration letter We ，SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD. Apply modular approval for Product Name: 2.4G Wifi & Bluetooth Module Model: C-CB2L FCC ID: 2AG94C-CB2L According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer ：Yes； Shielded. 2) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Yes ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Yes ；A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Yes ；Device is equipped with PCB antenna. (5) The module must demonstrate compliance in a stand-alone configuration; Answer ：Yes；distance between modular and all AEs are bigger than 10cm ，refer to setup photo. (6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labeling requirements); Answer ：Yes ；The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCC ID of the module “Contains FCC ID: 2AG94C-CB2L” (7) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer ：Yes ；The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8) The module must comply with RF exposure requirements Answer ：Yes ；Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual Please contact me if you have any further questions. Thanks for your attention. Best Regards, Signature: Date: 2022-2-22 Name: Title: Manager Applicant: SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD.

Report No: JYTSZ-R12-2200172 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 29 of 31 8 EUT Constructional Details Report No: JYTSZ-R12-2200172 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 30 of 31

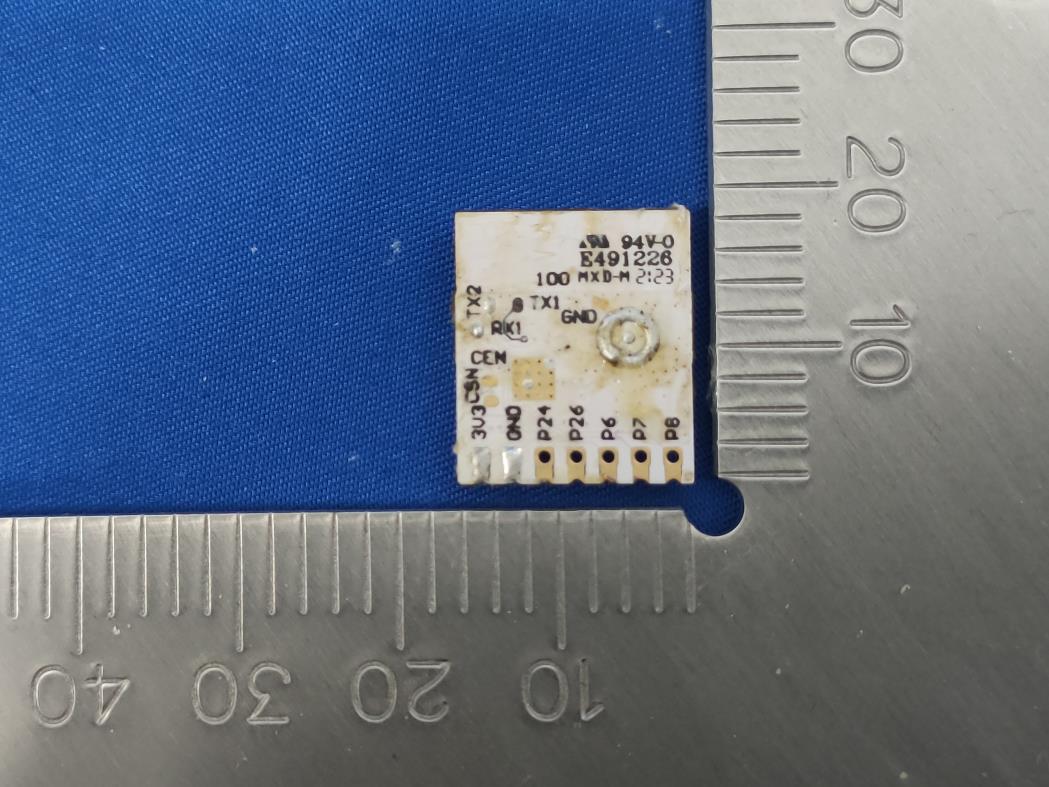

2.4G Wifi & Bluetooth Module C-Chip FCC ID：2AG94C-CB2L Model: C-CB2L Rating: 3.3Vdc Made in China SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD Address: Building A3, Donghua Industrial Zone,Nanpu Road, ShajingTown, Bao’an District,Shenzhen, China

Report No: JYTSZ-R12-2200172 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 29 of 31 8 EUT Constructional Details Report No: JYTSZ-R12-2200172 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 31 of 31 -----End of report------

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2102977-1 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page RF Exposure Evaluation Report Applicant: SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD. Address of Applicant: Block 1, Dong Huan Industrial Park, NanPu Road, ShangLiao Community, XinQiao Street, Bao’an District, Shenzhen City, Guangdong Province, China Equipment Under Test (EUT) Product Name: 2.4G Wifi & Bluetooth Module Model No.: C-CB2L Trade mark: C-Chip FCC ID: 2AG94C-CB2L Applicable standards: FCC CFR Title 47 Part 2 Subpart J Section 2.1091 Date of sample receipt: 24 Dec., 2021 Date of Test: 25 Dec., 2021 to 24 Jan., 2022 Date of report issue: 25 Jan., 2022 Test Result: PASS* Report No: JYTSZB-R12-2102977-1 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 7 2 Version Version No. Date Description 00 25 Jan., 2022 Original Tested by: Date: 25 Jan., 2022 Test Engineer Reviewed by: Date: 25 Jan., 2022 Project Engineer Report No: JYTSZB-R12-2102977-1 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 7 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 CLIENT INFORMATION ........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................... 4 4.3 OPERATING MODES .............................................................................................................................................. 4 4.4 LABORATORY FACILITY ........................................................................................................................................ 5 4.5 LABORATORY LOCATION ...................................................................................................................................... 5 5 TECHNICAL REQUIREMENTS SPECIFICATION IN FCC CFR TITLE 47 PART 2.1091 ............................ 6 5.1 LIMITS .................................................................................................................................................................... 6 5.2 TEST PROCEDURE ................................................................................................................................................. 6 5.3 RESULT .................................................................................................................................................................. 7 5.4 CONCLUSION ......................................................................................................................................................... 7 Report No: JYTSZB-R12-2102977-1 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 4 of 7 4 General Information 4.1 Client Information Applicant: SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD. Address: Block 1, Dong Huan Industrial Park, NanPu Road, ShangLiao Community, XinQiao Street, Bao’an District, Shenzhen City, Guangdong Province, China Manufacturer: SHENZHENSHI XINZHONGXIN TECHNOLOGY CO., LTD. Address: Block 1, Dong Huan Industrial Park, NanPu Road, ShangLiao Community, XinQiao Street, Bao’an District, Shenzhen City, Guangdong Province, China 4.2 General Description of E.U.T. Product Name: 2.4G Wifi & Bluetooth Module Model No.: C-CB2L Operation Frequency: 2.4G Wi-Fi: 2412MHz~2462MHz BLE: 2402MHz~2480MHz Modulation technology: 802.11b: DSSS, 802.11a/g/n/ac: OFDM BLE: GFSK Antenna Type: PCB Antenna Antenna gain: BLE: 0 dBi; 2.4GWi-Fi: 0 dBi Test Sample Conditi…

Text truncated - open the document above for the full version.

Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 1 of 38 Test Data Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT b 2412 Ant1 99.17 0.04 NVNT b 2437 Ant1 99.19 0.04 NVNT b 2462 Ant1 99.18 0.04 NVNT g 2412 Ant1 99.66 0.01 NVNT g 2437 Ant1 99.71 0.01 NVNT g 2462 Ant1 99.64 0.02 NVNT n20 2412 Ant1 99.72 0.01 NVNT n20 2437 Ant1 99.72 0.01 NVNT n20 2462 Ant1 99.72 0.01 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 38 Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 Duty Cycle NVNT b 2462MHz Ant1 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 38 Duty Cycle NVNT g 2412MHz Ant1 Duty Cycle NVNT g 2437MHz Ant1 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 4 of 38 Duty Cycle NVNT g 2462MHz Ant1 Duty Cycle NVNT n20 2412MHz Ant1 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 5 of 38 Duty Cycle NVNT n20 2437MHz Ant1 Duty Cycle NVNT n20 2462MHz Ant1 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 6 of 38 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 16.28 0.04 16.32 30 Pass NVNT b 2437 Ant1 15.45 0.04 15.49 30 Pass NVNT b 2462 Ant1 14.76 0.04 14.8 30 Pass NVNT g 2412 Ant1 13.29 0.01 13.3 30 Pass NVNT g 2437 Ant1 12.45 0.01 12.46 30 Pass NVNT g 2462 Ant1 11.73 0.02 11.75 30 Pass NVNT n20 2412 Ant1 13.59 0.01 13.6 30 Pass NVNT n20 2437 Ant1 12.71 0.01 12.72 30 Pass NVNT n20 2462 Ant1 12.06 0.01 12.07 30 Pass Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 7 of 38 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 9.072 0.5 Pass NVNT b 2437 Ant1 9.542 0.5 Pass NVNT b 2462 Ant1 9.06 0.5 Pass NVNT g 2412 Ant1 15.844 0.5 Pass NVNT g 2437 Ant1 15.305 0.5 Pass NVNT g 2462 Ant1 15.599 0.5 Pass NVNT n20 2412 Ant1 11.299 0.5 Pass NVNT n20 2437 Ant1 16.607 0.5 Pass NVNT n20 2462 Ant1 15.061 0.5 Pass Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 8 of 38 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 -6dB Bandwidth NVNT b 2462MHz Ant1 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 9 of 38 -6dB Bandwidth NVNT g 2412MHz Ant1 -6dB Bandwidth NVNT g 2437MHz Ant1 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 10 of 38 -6dB Bandwidth NVNT g 2462MHz Ant1 -6dB Bandwidth NVNT n20 2412MHz Ant1 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 11 of 38 -6dB Bandwidth NVNT n20 2437MHz Ant1 -6dB Bandwidth NVNT n20 2462MHz Ant1 Report No.:JYTSZB-R12-2102977 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2112082 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 12 of 38 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT b 2412 Ant1 14.10607636 NVNT b 2437 Ant1 14.12567464 NVNT b 2462 Ant1 14.11170124 NVNT g 2412 Ant1 17.06506787 NVNT g 2437 Ant1 17.1331…
