User Manual TYV-1930 Lamp wireless charger Production Introduction Thanks for purchasing our product Lamp wireless charger. Wireless charging desk lamp is an intelligent product. Simply designed, it gives us great light with different color temperature. Besides, with 0-300°adjustable arm, the lamp is able to reach almost every position you can imagine. Also it has built-in wireless charger which is compatible with any QI -standard phones and devices. Now enjoy a simple and free life with this multi-functional desk lamp. 1. Devices with built-in wireless charging receiver 2. Devices with reserved wireless charging interface beside its battery 3. Devices with wireless charging receiver in its protection case Wireless Charging Applicable Devices Flexible lamp-post USB Charging port Instructions 1. Connect wireless charger with AC source by power adapter, wireless charger turn on, indicator shows blue color in 3 seconds and go into green color in 15 seconds standby mode. 2. Put your phones onto the wireless charging area, phones starts to charge and indicator shows flashing blue color, once phones are full chargered, blue indicator will keep lighting on. 3. Light touch lamp switch, the lamp will lighting on, the lamp has 3 types of lighting mode, warm, cold, mixed, then touch 1 more time to turn off. Specifications 1. Total lamp's input: 5V/2A 9V/2A 2. Wireless output: 5V/1A 9V/1.1A 3. Lamp's power: 1.5W 4. Wireless charging power(Max): 5W 10W 5. Charging efficiency: 70% 6. Charging distance: 6mm 7. CRI: 80MAX 8. Type of light: Warm/ Cold/ Mixed 9. Available colors: White/Black/Blue 10. Light Source Life: 50000hours 11. With FOD function(Foreign Object Debris) 12. Operation frequency： 125KHz FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ϋϋ Reorient or relocate the receiving antenna. ϋϋ Increase the separation between the equipment and receiver. ϋϋ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ϋϋ Consult the dealer or an experienced radio/TV technician for he lp. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Tilv Technology Co., Ltd. Agent Authorization Company: Shenzhen Tilv Technology Co., Ltd. A ddress: 4/F Dongshan No.8 factory, Difu Rd., Gushu Community, Xixiang St., Baoan District, Shenzhen, China P roduct Name: Lamp wireless charger Model Number(s): TYV-1930, MI-LCH 2000 P roduct Description: Lamp wireless charger We author ize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We dec lare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 03, 2020 Name: Xiao Hui Title: Manager Company: Shenzhen Tilv Technology Co., Ltd.

Letter of Declaration Company: Shenzhen Tilv Technology Co., Ltd. Address: 4/F Dongshan No.8 factory, Difu Rd., Gushu Community, Xixiang St., Baoan District, Shenzhen, China Product Name: Lamp wireless charger Model Number: TYV-1930 FCC Identifier: 2AGAJ-TYV-1930 Compliant with KDB680106 D01 RF Exposure Wireless Charging Apps v03 section 5,b： (1) Power transfer frequency is less than 1 MHz. -The device operate in the frequency range 125KHz. (2) Output power from each primary coil is less than or equal to 15 watts. -The maximum output power of the primary coil is 10W (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. -The transfer system including a charging system with only single primary coils is to detect and allow only (4) Client device is placed directly in contact with the transmitter. -The EUT is placed directly in contact with the transmitter (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). -Yes, Mobile exposure conditions only. (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. - The EUT meet the conditions. Name: Xiao Hui Date: Jan. 03, 2020 Title: Manager Signature of applicant:

< Shenzhen Tilv Technology Co., Ltd. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Jan. 03, 2020 Subject; Request for Long Term Confidentiality FCC ID: 2AGAJ-TYV-1930 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Name: Xiao Hui Date: Jan. 03, 2020 Title: Manager Signature of applicant:

Model Difference Declaration To Whom It May Concern, We, Shenzhen Tilv Technology Co., Ltd.(Lamp wireless charger) Trademark:N/A; Model Number: TYV-1930, MI-LCH 2000; All model’s the function, software and electric circuit are the same, only with a product color and model named different for commercial purpose. Test sample model: TYV-1930 . Please contact me if you have any question. Name: Xiao Hui Date: Jan. 03, 2020 Title: Manager Signature of applicant:

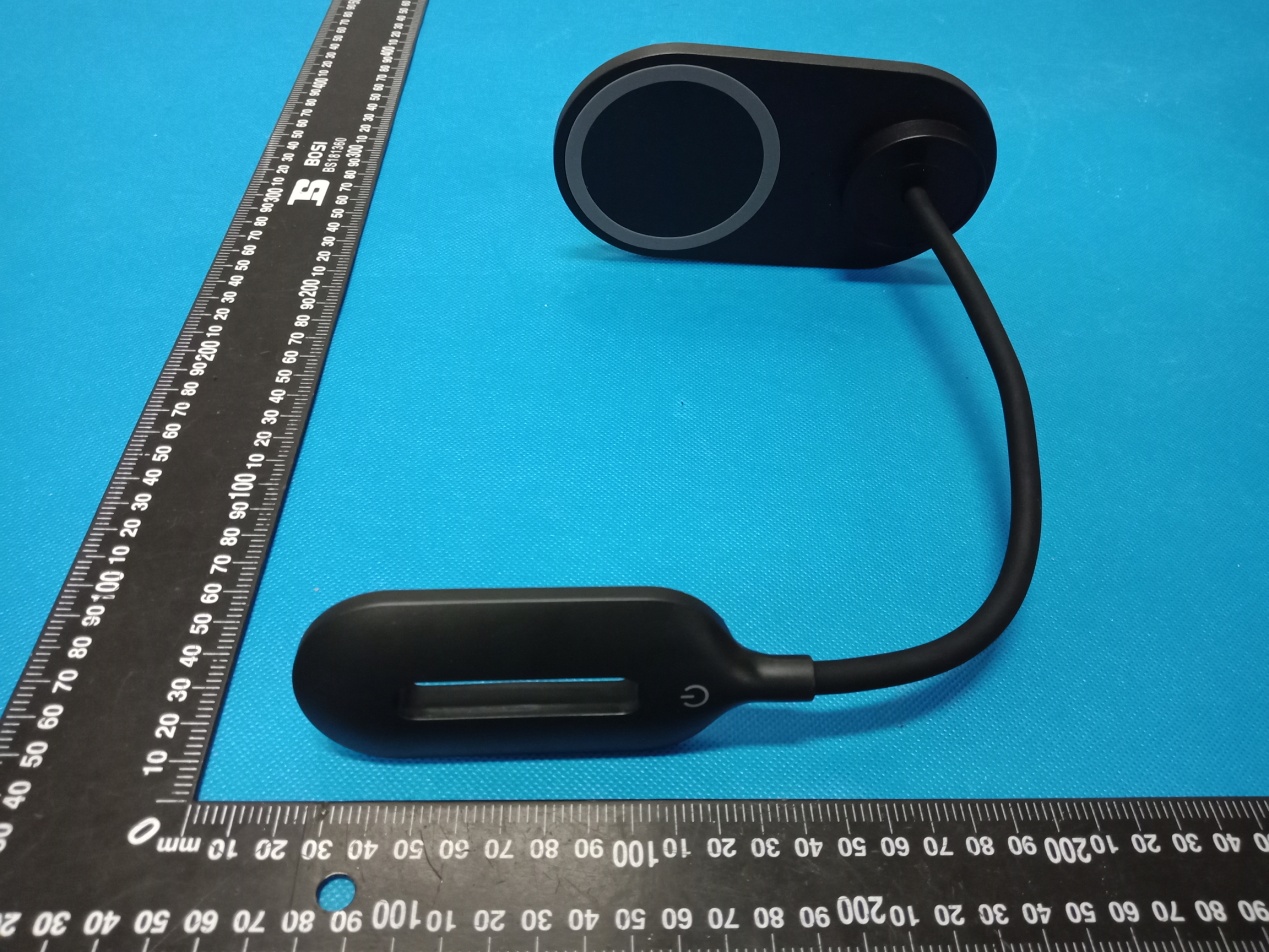

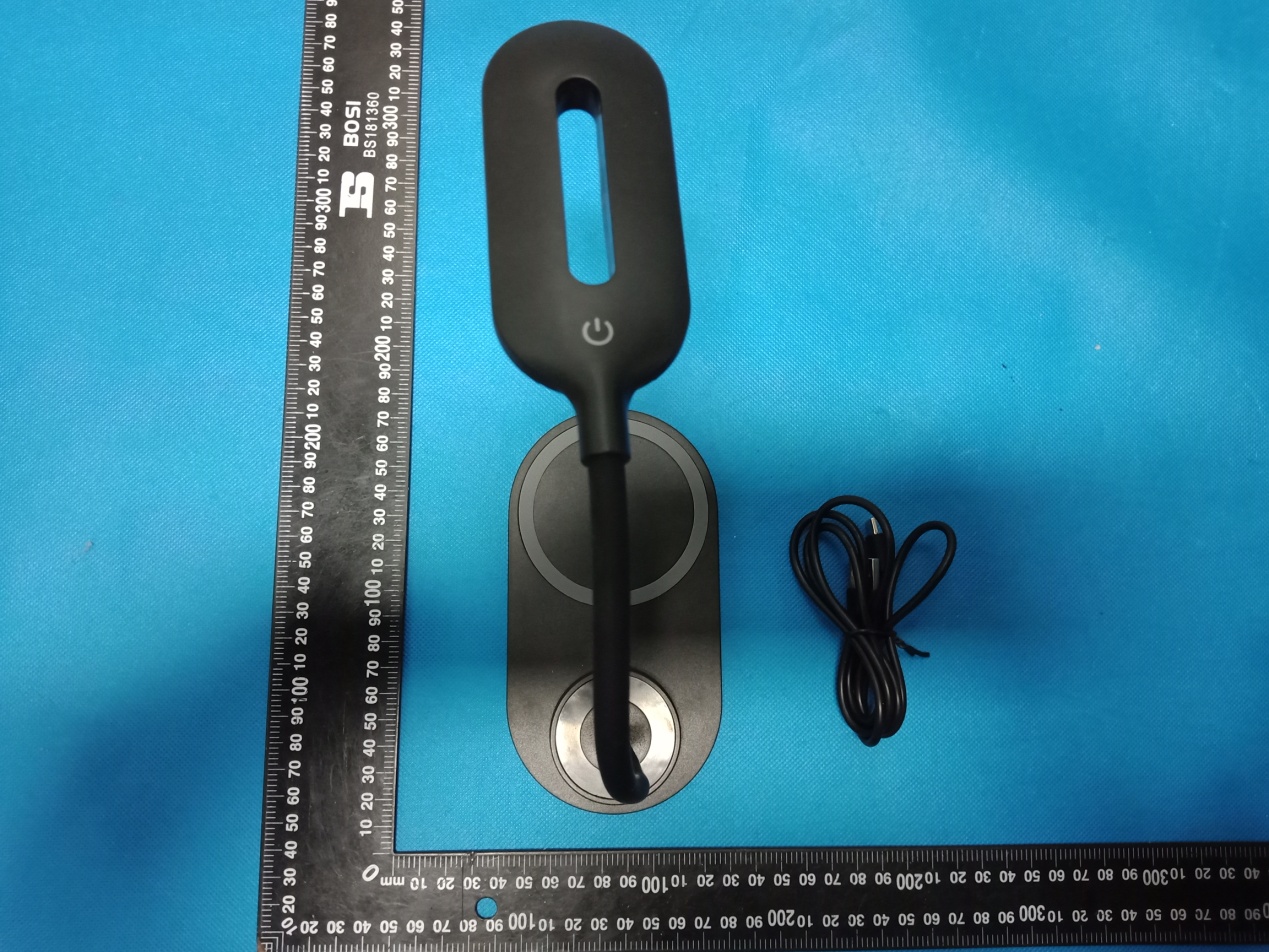

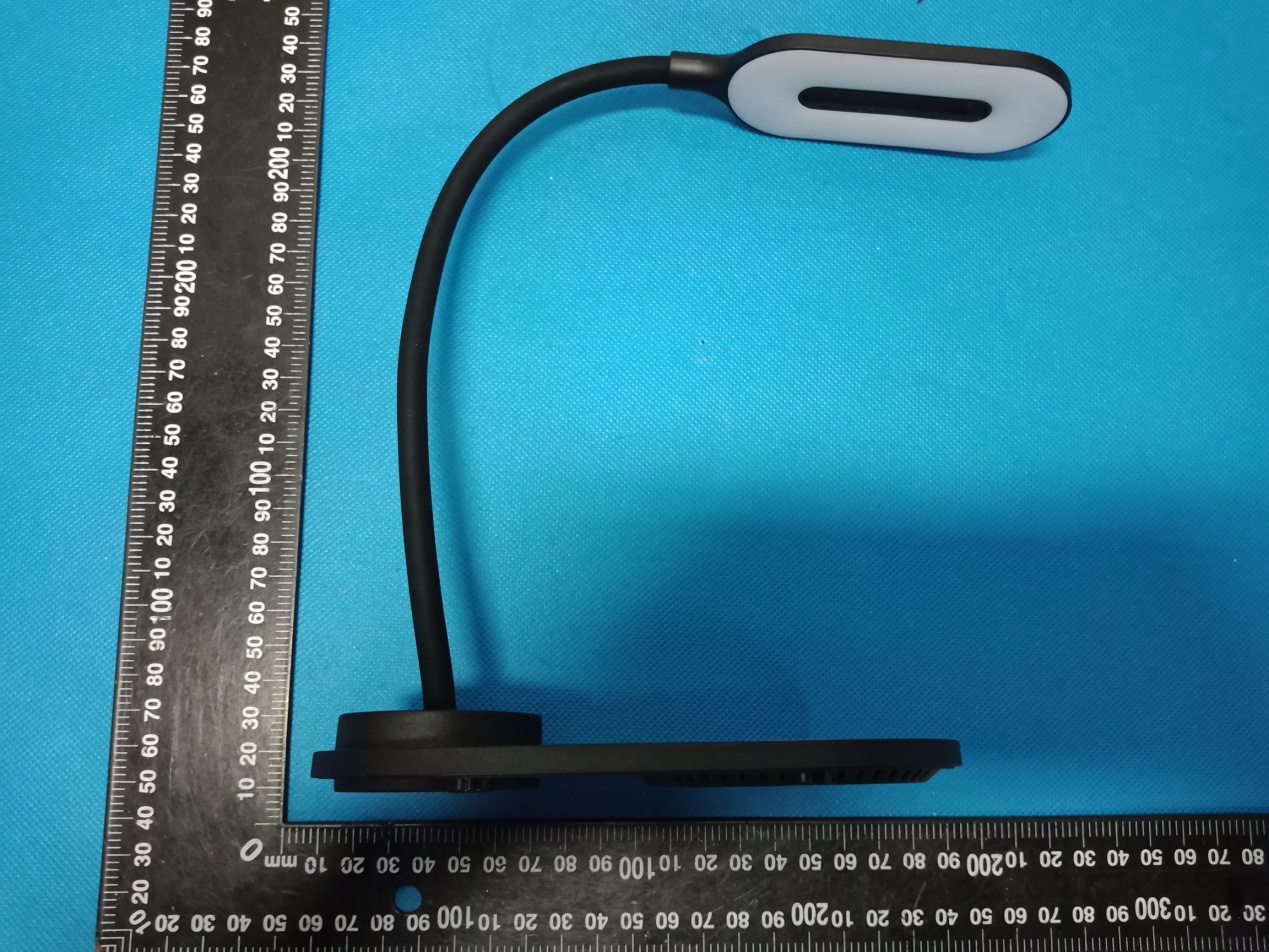

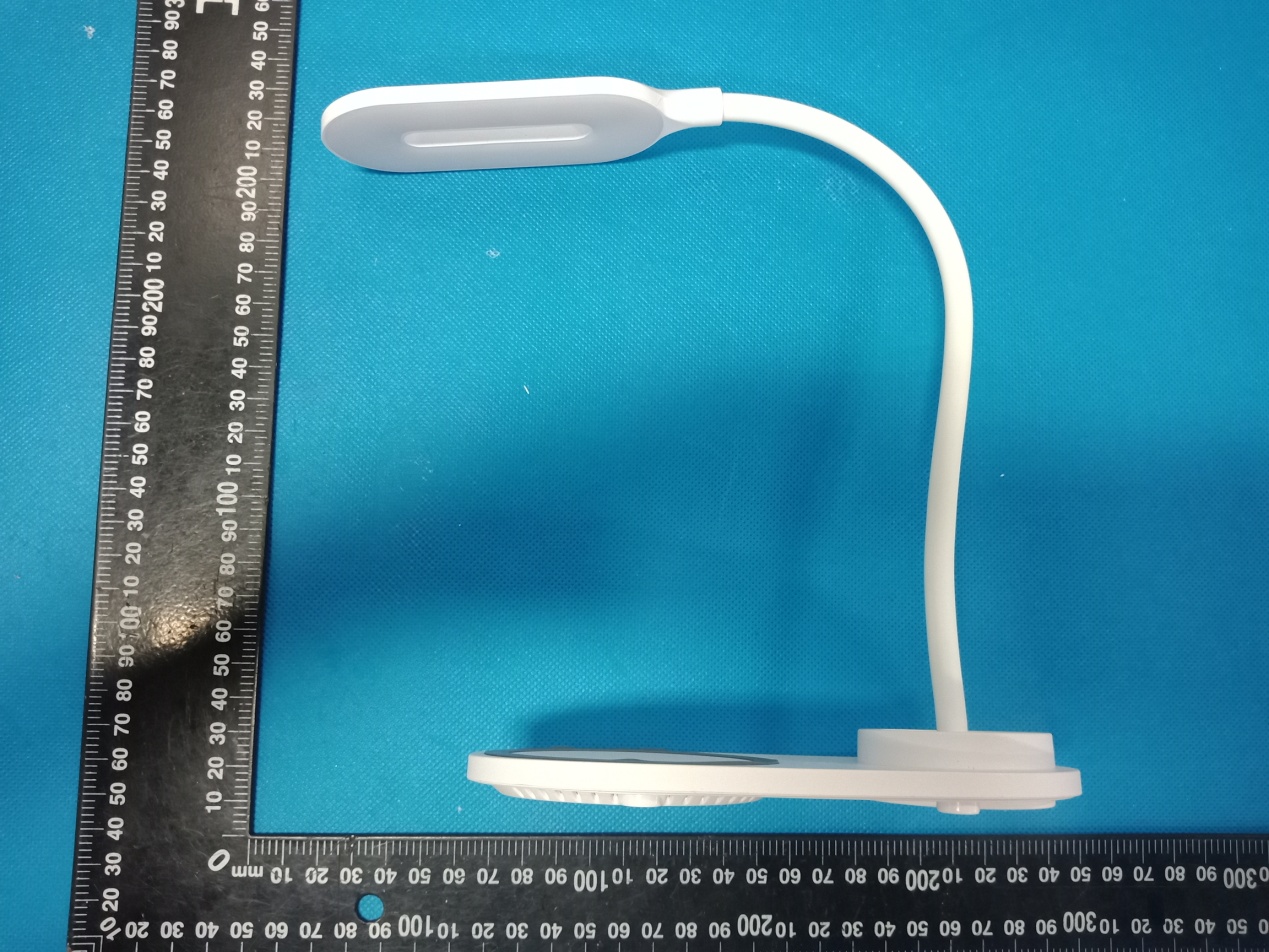

Annex A External Photos Report No.: HK1912203242-1E/2E Page 1 of 7 Report No.: HK1912203242-1E/2E Page 2 of 7 Report No.: HK1912203242-1E/2E Page 3 of 7 Report No.: HK1912203242-1E/2E Page 4 of 7 Report No.: HK1912203242-1E/2E Page 5of 7 Report No.: HK1912203242-1E/2E Page 6 of 7 Report No.: HK1912203242-1E/2E Page 7 of 7

FCC ID LABEL: Label Location FCC ID: 2AGAJ-TYV-1930 Product name: Lamp wireless charger Model No.: TYV-1930 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Width: 2cm Long: 4cm

Annex B Internal Photo Report No.: HK1912203242-1E/2E Page 1 of 4 Antenna Report No.: HK1912203242-1E/2E Page 2 of 4 Report No.: HK1912203242-1E/2E Page 3 of 4 Antenna Report No.: HK1912203242-1E/2E Page 4 of 4

Page 1 of 8 Report No.: HK1912203242-2E FCC TEST REPORT Test report On Behalf of Shenzhen Tilv Technology Co., Ltd. For Lamp wireless charger Model No.: TYV-1930, MI-LCH 2000 FCC ID: 2AGAJ-TYV-1930 Prepared for : Shenzhen Tilv Technology Co., Ltd. 4/F Dongshan No.8 factory, Difu Rd., Gushu Community, Xixiang St., Baoan District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 18, 2019 ~ Dec. 25, 2019 Date of Report: Dec. 25, 2019 Report Number: HK1912203242-2E Page 2 of 8 Report No.: HK1912203242-2E Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Channel List Channel Frequency (KHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 125 The EUT antenna is Coil Antenna. No antenna other than that furnished by the responsible party shall be used with the device. 2. SUMMARY OF TEST RESULTS 2.1 Test procedures according to the technical standards: FCC KDB680106 D01 RF Exposure Wireless Charging Apps v03 FCC CFR 47 Standard Section Test Item Judgment Remark FCC CFR 47 part1, 1.1310 KDB680106 D01v03 (3)(3) Electric Field Strength (E) (V/m) PASS Magnetic Field Strength (H) (A/m) PASS 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 All emissions,radiated(<30M)(9KHz-30MHz) ±2.45dB 2 Temperature ±0.5°C 3 Humidity ±2% Page 3 of 8 Report No.: HK1912203242-2E 2.3 Test Instruments Description Brand Model No. Frequency Range Calibrated Date Calibrated Until Broadband Field Meter NARDA NBM-550 - Dec. 26, 2019 Dec. 25,2020 Magnetic Field Meter NARDA ELT-400 1 – 400kHz Dec. 26, 2019 Dec. 25,2020 Magnetic Probe NARDA HF-3061 300kHz – 30MHz Dec. 26, 2019 Dec. 25,2020 Magnetic Probe NARDA HF-0191 27 – 1000MHz Dec. 26, 2019 Dec. 25,2020 Broadband Field Meter NARDA NBM-550 - Dec. 26, 2019 Dec. 25,2020 Electric Field Meter COMBINOVA EFM 200 5Hz – 400kHz Dec. 26, 2019 Dec. 25,2020 E-Field Probe NARDA EF-0391 100kHz – 3GHz Dec. 26, 2019 Dec. 25,2020 E-Field Probe NARDA EF-6091 100MHz – 60GHz Dec. 26, 2019 Dec. 25,2020 NOTE: 1. The calibration interval of the above test instruments is 12 months . Page 4 of 8 Report No.: HK1912203242-2E 3. MAXIMUM PERMISSIBLE EXPOSURE 3.1 MAXIMUM PERMISSIBLE EXPOSURE Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180 / f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310, 680106 D01 RF Exposure Wireless Charging Apps v03 Note 3: Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Page 5 of 8 Report No.: HK1912203242-2E 4. TEST PROCEDURE a. For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of (H-field & E- field strengths for all sides is 15cm, H-field strengths of top side is 20cm). E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. 4.1 TEST SETUP 4.2 RESULT OF MAXIMUM PERMISSIBLE EXPOSURE Page 6 of 8 Report No.: HK1912203242-2E For Full load mode: E-Field Strength at 15cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (V/m) 0.125 1.21 1.34 1.28 1.25 1.22 614 H-Field Strength at 15cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (A/m) 0.125 0.26 0.23 0.28 0.26 0.39 1.63 For Half Load mode: E-Field Strength at 15cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (V/m) 0.125 1.17 1.25 1.40 1.30 1.27 614 H-Field Strength at 15cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (A/m) 0.125 0.22 0.27 0.25 0.26 0.29 1.63 Page 7 of 8 Report No.: HK1912203242-2E For No load mode: E-Field Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (V/m) 0.125 1.27 1.16 1.17 1.23 1.14 614 H-Field Strength at 15cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E Limits Test (A/m) 0.125 0.20 0.27 0.22 0.29 0.26 1.63 Remark: According KDB 680106 D01 RF Exposure Wireless Charging App v03, section 5, b). The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmittin…

Text truncated - open the document above for the full version.

Page 1 of 20 Report No.: HK1912203242-1E FCC TEST REPORT Test report On Behalf of Shenzhen Tilv Technology Co., Ltd. For Lamp wireless charger Model No.: TYV-1930, MI-LCH 2000 FCC ID: 2AGAJ-TYV-1930 Prepared for : Shenzhen Tilv Technology Co., Ltd. 4/F Dongshan No.8 factory, Difu Rd., Gushu Community, Xixiang St., Baoan District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 18, 2019 ~ Dec. 25, 2019 Date of Report: Dec. 25, 2019 Report Number: HK1912203242-1E Page 2 of 20 Report No.: HK1912203242-1E TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Tilv Technology Co., Ltd. Address ................................. : 4/F Dongshan No.8 factory, Difu Rd., Gushu Community, Xixiang St., Baoan District, Shenzhen, China Manufacture's Name ............ : Shenzhen Tilv Technology Co., Ltd. Address ................................. : 4/F Dongshan No.8 factory, Difu Rd., Gushu Community, Xixiang St., Baoan District, Shenzhen, China Product description Trade Mark: N/A Product name ........................... : Lamp wireless charger Model and/or type reference : TYV-1930, MI-LCH 2000 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C (Section 15.209), ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 18, 2019 ~ Dec. 25, 2019 Date of Issue ........................................... : Dec. 25, 2019 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 20 Report No.: HK1912203242-1E Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST PROCEDURES AND RESULTS 4 1.2 TEST FACILITY 4 1.3 MEASUREMENT UNCERTAINTY 4 2. GENERAL INFORMATION 5 2.1 General Description of EUT 5 2.2. Carrier Frequency of Channels 6 2.3 Operation of EUT during testing 6 2.4 Description of Test Setup 6 2.5 Measurement Instruments List 7 3. CONDUCTED EMISSION TEST 8 3.1 Block Diagram of Test Setup 8 3.2 Conducted Power Line Emission Limit 8 3.3 Test Procedure 8 3.4 Test Result 8 4. Occupied Bandwidth 11 4.1 Block Diagram of Test Setup 11 4.2 Rules and specifications 11 4.3 Test Procedure 11 4.4 Test Result 11 5. RADIA TED EMISSIONS 13 5.1 Block Diagram of Test Setup 13 5.2 Rules and specifications 14 5.3 Test Procedure 15 5.4 Test Result 15 6 ANTENNA REQUIREMENT 18 7. PHOTOGRAPH OF TEST 19 7.1 Radiated Emission 19 7.2 Conducted Emission 20 8. PHOTOGRAPH OF TEST 20 Page 4 of 20 Report No.: HK1912203242-1E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST section number RESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.209 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215 COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT 1.2 TEST FACILITY Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty = 2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz) = 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 5 of 20 Report No.: HK1912203242-1E 2. GENERAL INFORMATION 2.1 General Description of EUT Equipment Lamp wireless charger Model Name TYV-1930 Serial No. MI-LCH 2000 Model Difference All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: TYV-1930 Trade Mark N/A FCC ID 2AGAJ-TYV-1930 Antenna Type Coil Antenna Antenna Gain 0dBi Operation frequency 125KHz Number of Channels 1 Modulation Type ASK Power Source Input: DC5V, 2A or DC9V, 2A; Output:DC5V, 1A or DC9V, 1.1A Power Rating Input: DC5V, 2A or DC9V, 2A; Output:DC5V, 1A or DC9V, 1.1A Page 6 of 20 Report No.: HK1912203242-1E 2.2. Carrier Frequency of Channels Operation Frequency each of channel Channel Frequency 1 125KHz 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode 2.4 Description of Test Setup Operation of EUT during testing: AC Plug ● Adapter information Model: HW-059200CHQ Input: 100-240V, 50/60Hz, 0.5A Output: 5VDC, 2A ● Mobile phones information Model: S6 Input: 5VDC The sample was placed 0.8m height above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position AC Adapter EUT Mobile phone Page 7 of 20 Report No.: HK1912203242-1E 2.5 Measurement Instruments List Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. L.I.S.N. Artificial Mains Network R&S ENV216 HKE-002 Dec. 26, 2019 1 Year 2. Receiver R&S ESCI 7 HKE-010 Dec. 26, 2019 1 Year 3. RF automatic control unit Tonscend JS0806-2 HKE-060 Dec. 26, 2019 1 Year 4. Spectrum analyzer R&S FSP40 HKE-025 Dec. 26, 2019 …
