2AGB8-0035.8G TX Camera Combo

FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. --- --- --- --- --- --- --- --- --------- ------ --- --- 25 255 5732MHz-5865MHz

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 FXT Technology Co., Limited 2015-12-01 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, FXT Technology Co., Limited hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): 5.8G TX Camera Combo MODEL No.: FX797T FCC ID: 2AGB8-003 Sincerely, Hong Hua Lv/President E-mail: [email protected] Phone: 86-755-27909433 Fax: 86-755-23009693 Address: Room1023, Tongsheng Technology Building, Huahui Road, Shanghenglang,Dalang, Longhua District, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 5.0 FXT Technology Co., Limited 2015-12-01 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AGB8-003 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hong Hua Lv/President E-mail: [email protected] Phone: 86-755-27909433 Fax: 86-755-23009693 Address: Room1023, Tongsheng Technology Building, Huahui Road, Shanghenglang,Dalang, Longhua District, Shenzhen, China

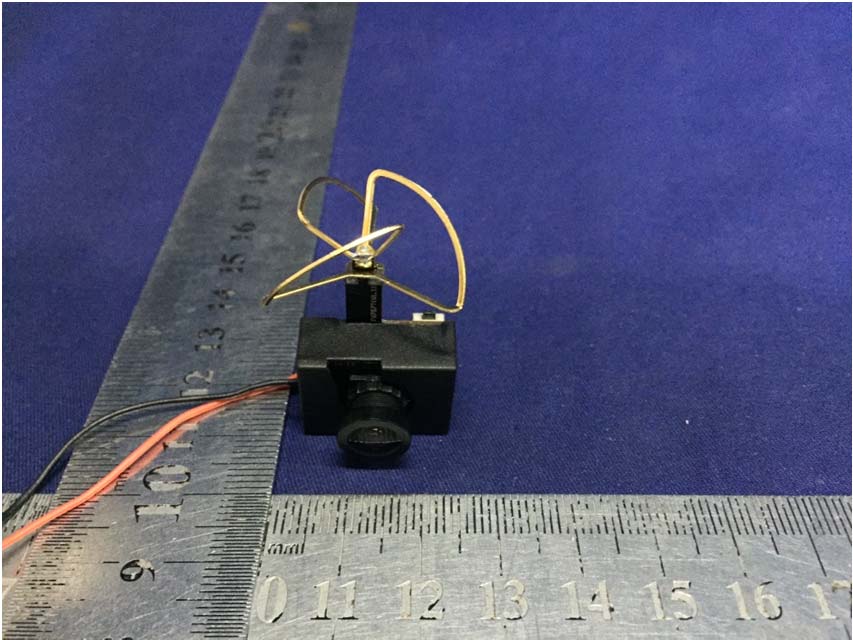

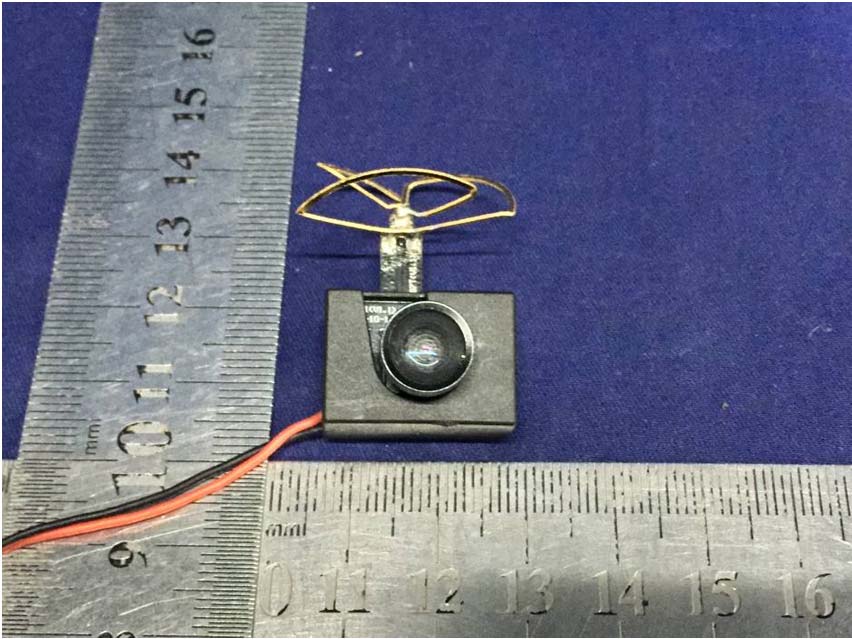

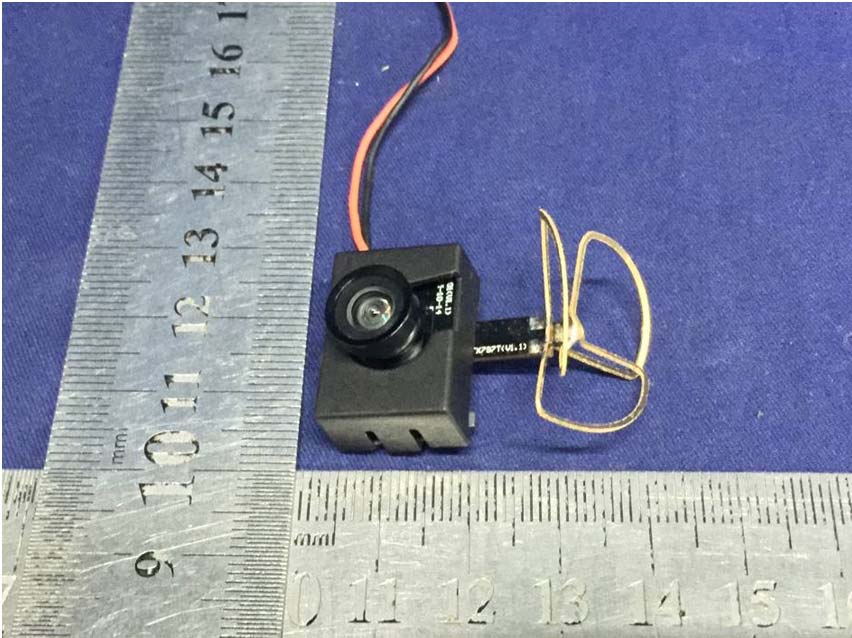

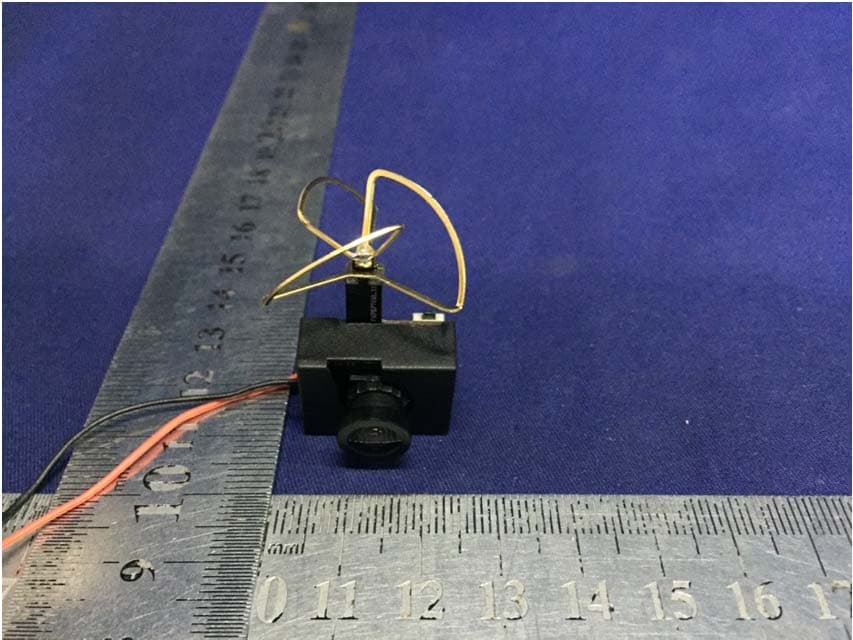

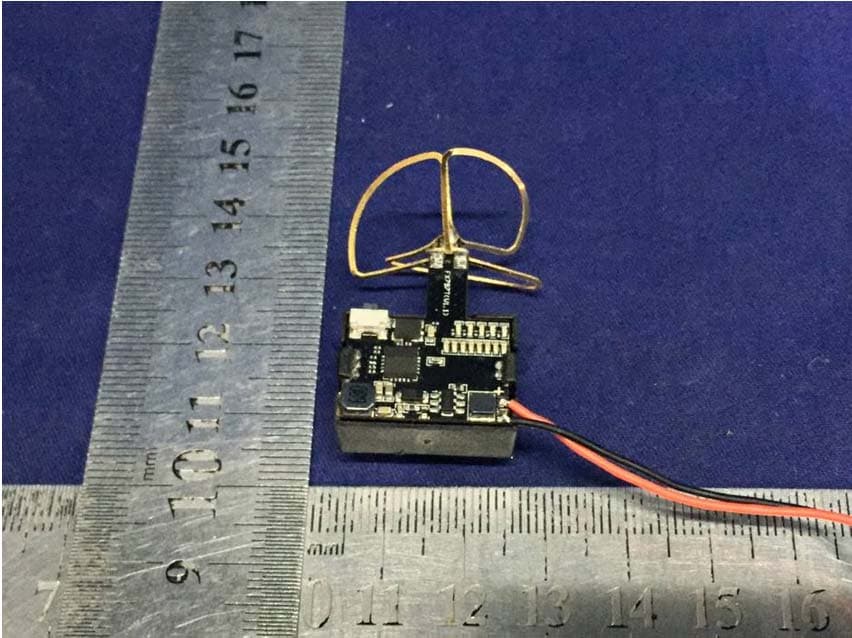

Antenna Module

TRF No：FCC 15.249/A Page 1 of 39 Report No.: ES151111003E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For 5.8G TX Camera Combo MODEL No.: FX797T FCC ID: 2AGB8-003 Trade Mark: N/A REPORT NO.: ES151111003E ISSUE DATE: November 26, 2015 Prepared for FXT Technology Co., Limited Room1023, Tongsheng Technology building, Huahui Road, Shanghenglang, Dalang, Longhua District, Shenzhen, China Prepared by SHENZHEN EMTEK CO., LTD Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No：FCC 15.249/A Page 2 of 39 Report No.: ES151111003E Ver.1.0 Access to the World TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................. 6 4.3 DESCRIPTION OF TEST MODES .................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES ....................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ........................................................................ 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ............................................................................................ 10 7.2 RADIO FREQUENCY TEST SETUP 2 ............................................................................................ 10 7.3 CONDUCTED EMISSION TEST SETUP ........................................................................................ 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ............................................................ 13 7.5 SUPPORT EQUIPMENT ................................................................................................................. 13 8 TEST REQUIREMENTS ......................................................................................................................... 14 8.1 BANDWIDTH TEST ........................................................................................................................ 14 8.2 FREQUENCY STABILITY ............................................................................................................... 17 8.3 RADIATED SPURIOUS EMISSION ................................................................................................ 19 8.4 CONDUCTED EMISSIONS TEST .................................................................................................. 38 8.5 ANTENNA APPLICATION ............................................................................................................... 39 TRF No：FCC 15.249/A Page 3 of 39 Report No.: ES151111003E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: FXT Technology Co., Limited Room1023, Tongsheng Technology building, Huahui Road, Shanghenglang, Dalang, Longhua District, Shenzhen, China Manufacturer: FXT Technology Co., Limited Room1023, Tongsheng Technology building, Huahui Road, Shanghenglang, Dalang, Longhua District, Shenzhen, China EUT Description: 5.8G TX Camera Combo Model Number: FX797T File Number: ES151111003E Date of Test: November 11, 2015 to November 26, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.249 The test results of this report relate only to the tested sample identified in this report. Date of Test : November 11, 2015 to November 26, 2015 Prepared by : Joe Xia/Editor Reviewer : Jack Li/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No：FCC 15.249/A Page 4 of 39 Report No.: ES151111003E Ver.1.0 Access to the World 2 EUT TECHNICAL DESCRIPTION Characteristics Description Modulation: FM Operating Frequency Range(s): 5732MHz-5865MHz Number of Channels: 25 channels Antenna Type : External Antenna Power supply: DC supply: DC 3.7V from Li-on battery Adapter supply: N/A Note: for more details, please refer to the User’s manual of the EUT. TRF No：FCC 15.249/A Page 5 of 39 Report No.: ES151111003E Ver.1.0 Access to the World 3 SUMMARY OF TEST RESULT FCC Part Clause Test Parameter Verdict Remark 15.207 Conducted Emission N/A 15.209 Radiated Emission PASS 15.249 Radiated Spurious Emission PASS 15.249 Band edge test PASS 15.249 20dB Bandwidth PASS NOTE1: N/A (Not Applicable) NOTE2: The report use radiated measurements in the restricted frequency bands. In addition, the radiated test is also performed to ensure the emissions emanating from …

Text truncated - open the document above for the full version.

RADIATED SPURIOUS EMISSION
