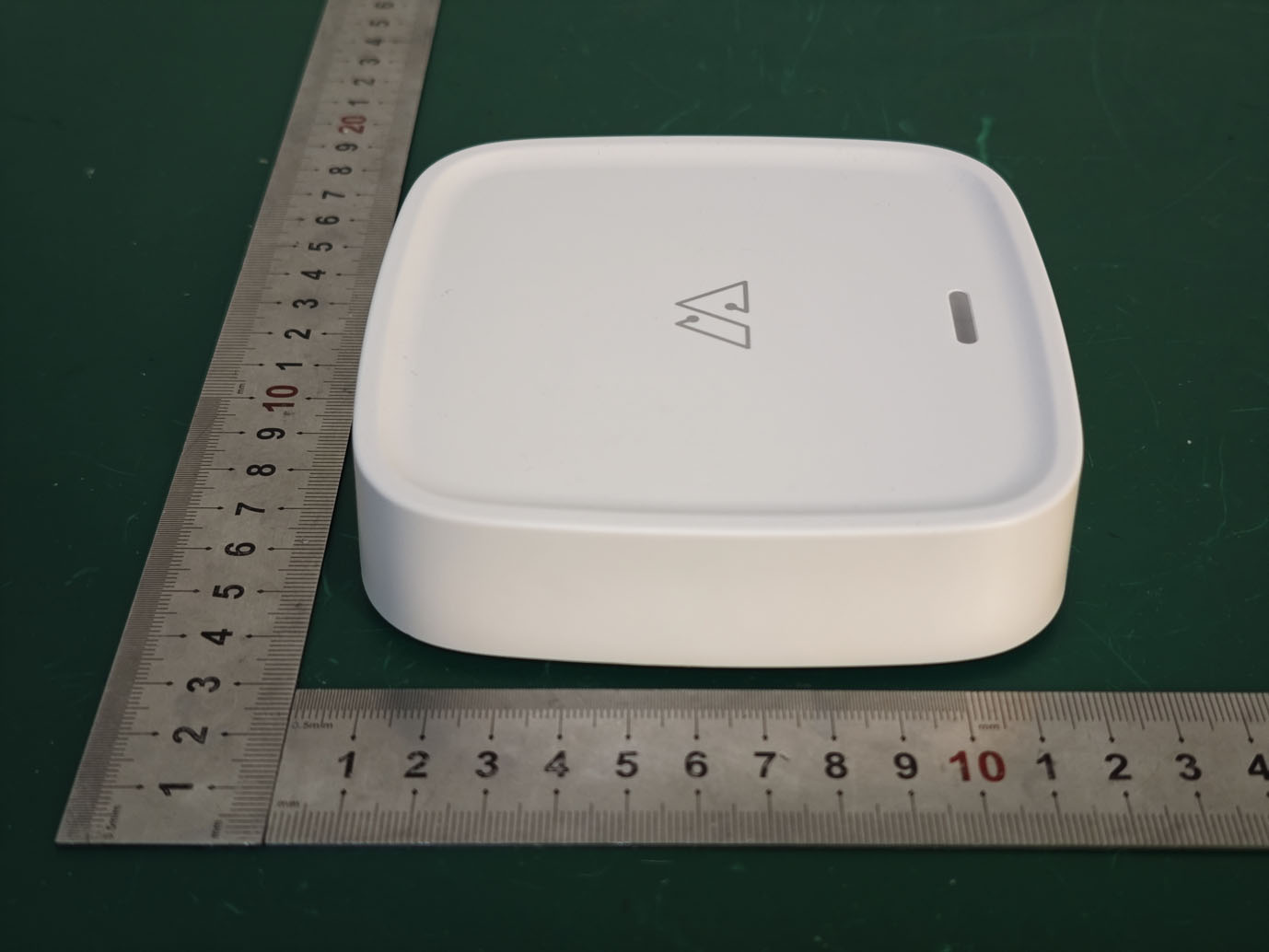

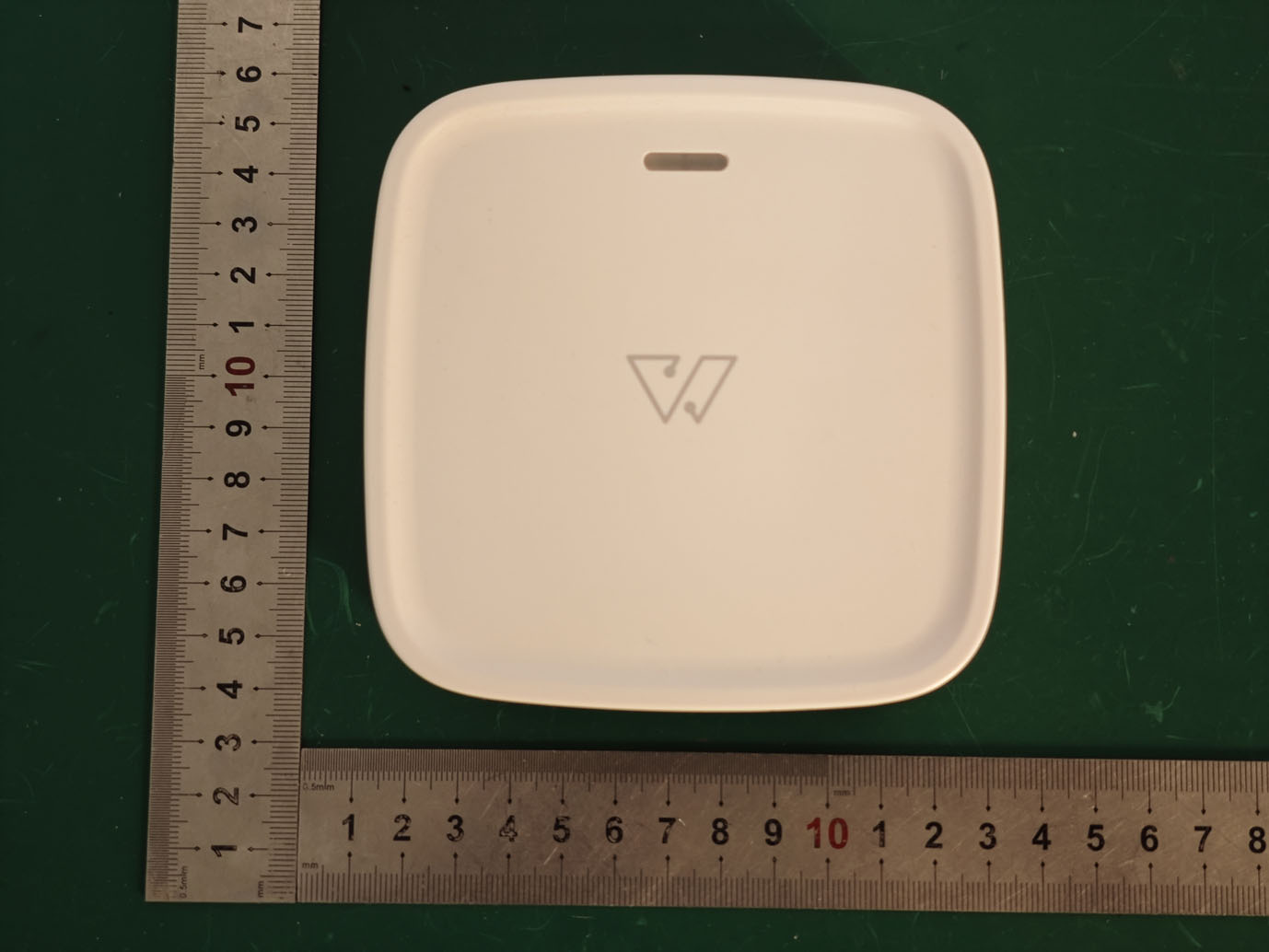

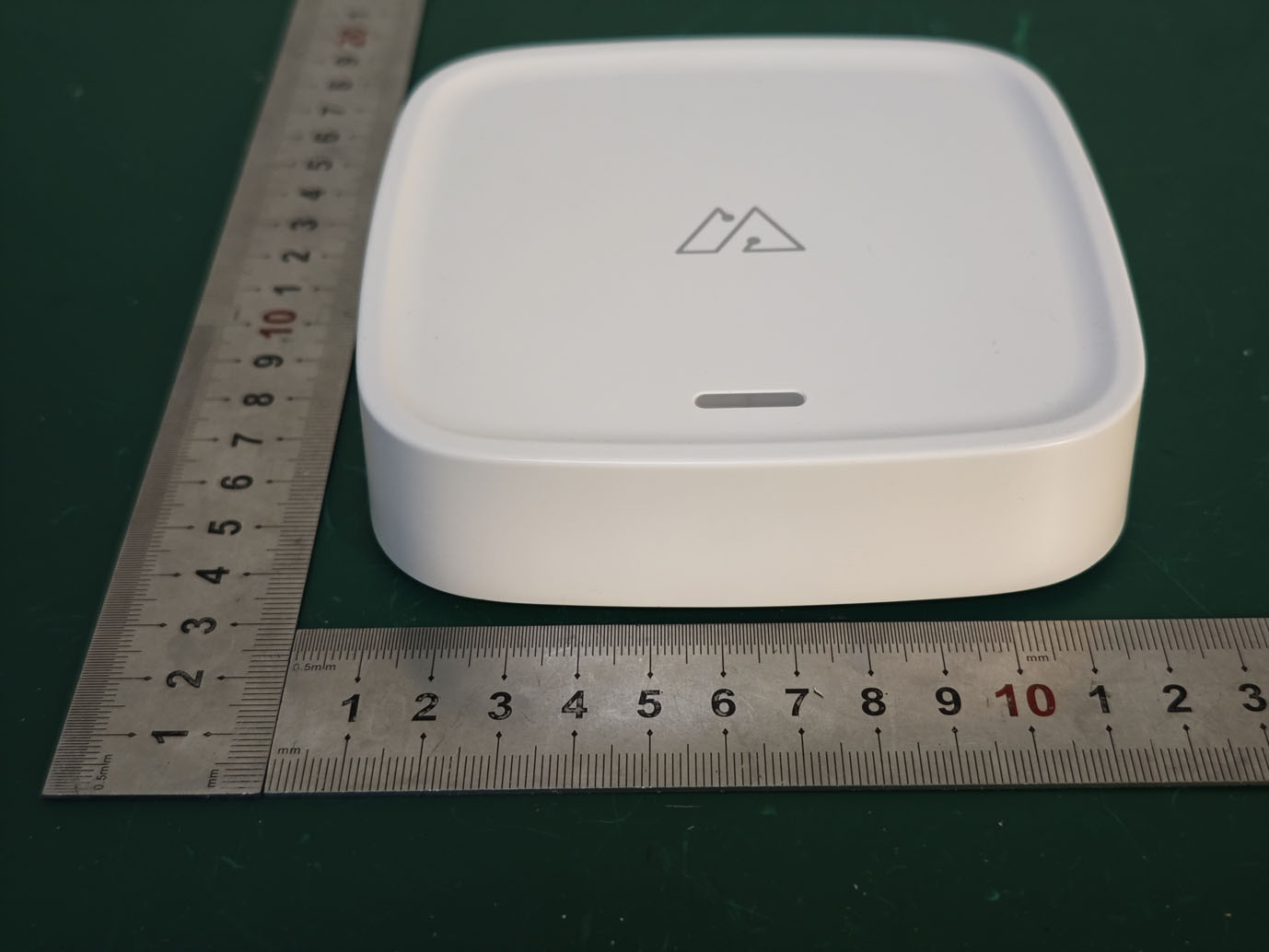

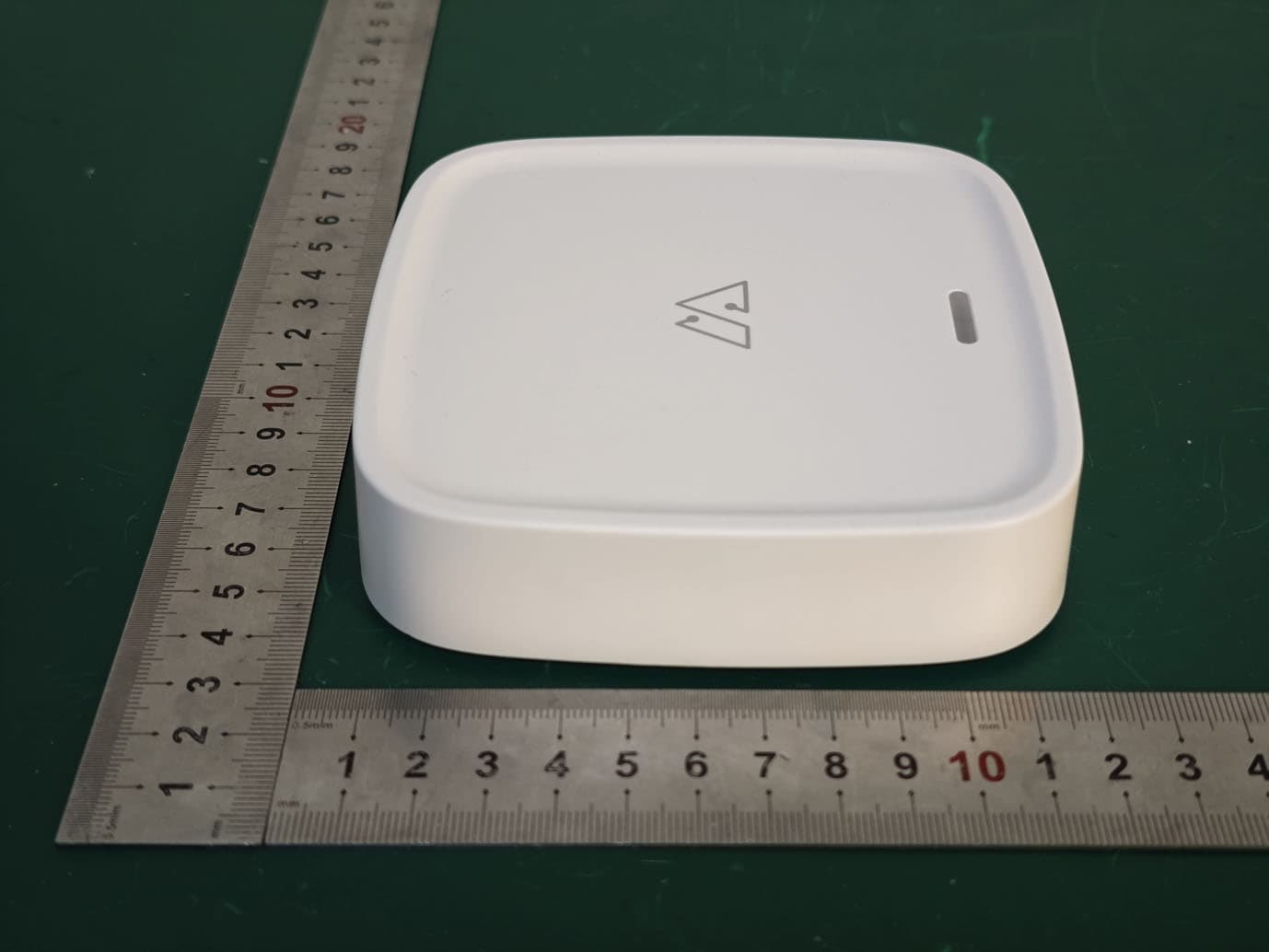

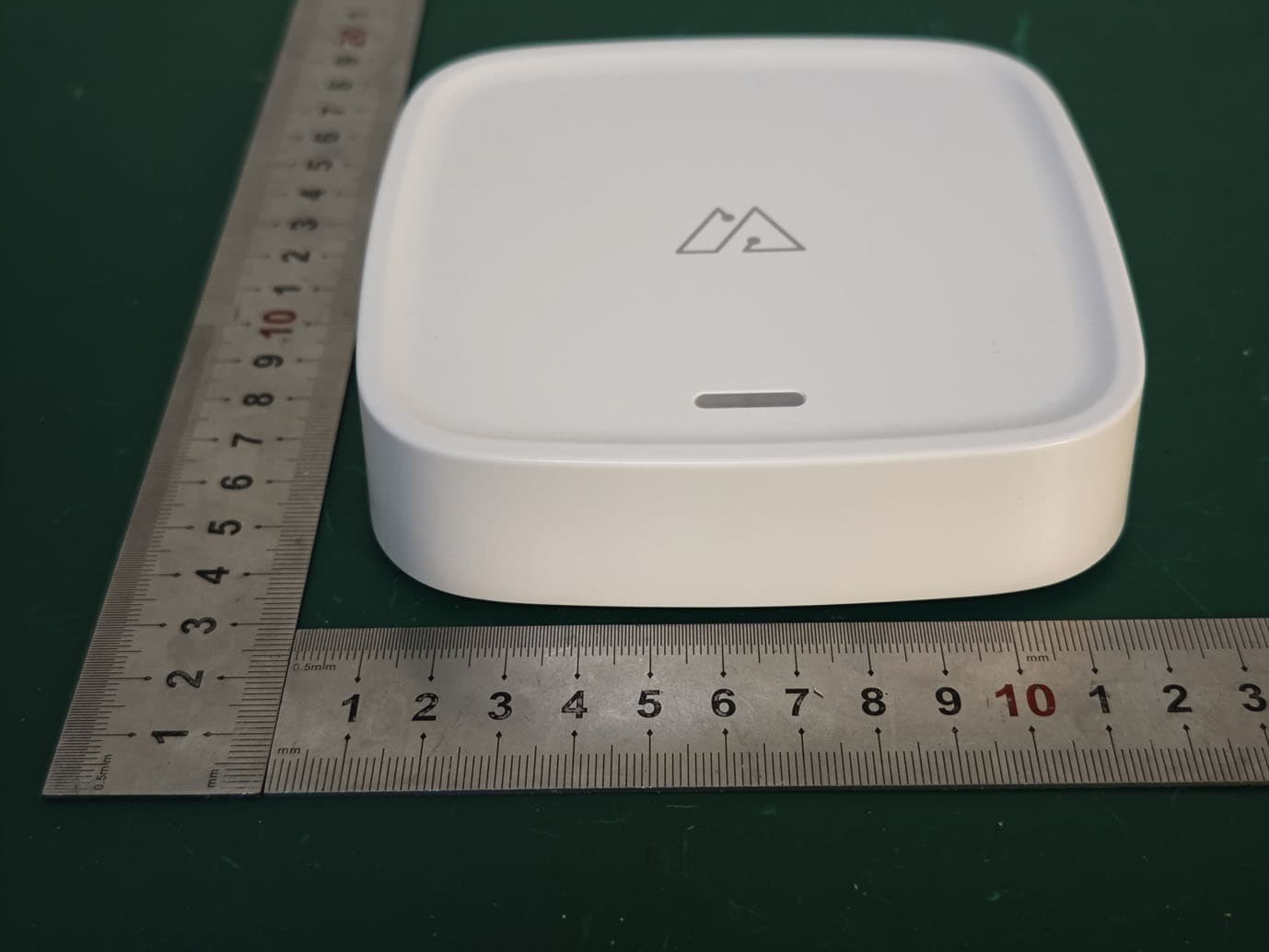

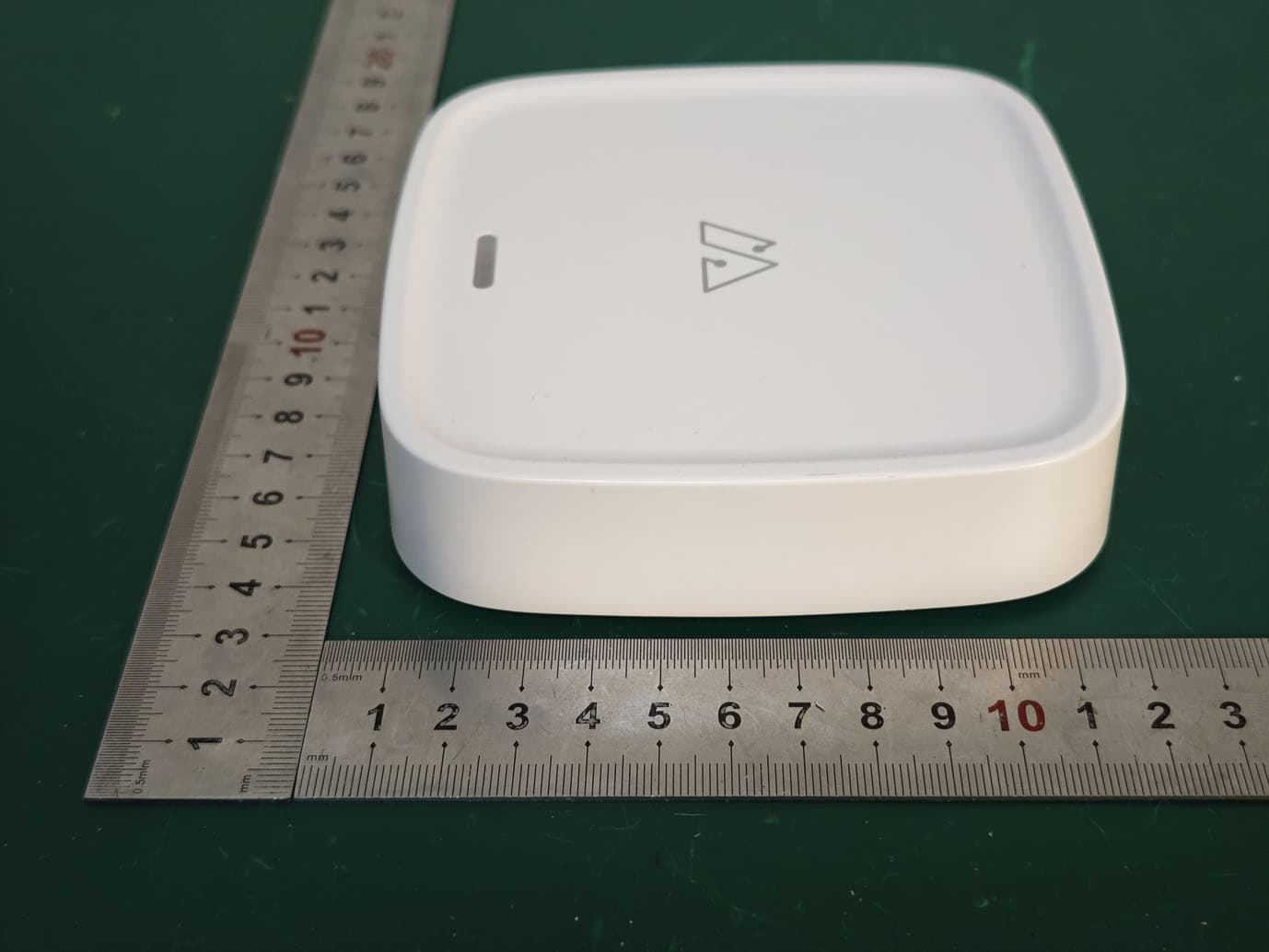

2AGBWMCGWGateway Product

Connecting 1. Connect LAN port to internet for connection to the cloud. 2. Connect the power supply. E F G H I C A)Status LED B)LAN1, for connection to cloud C)LAN2, for future features, not connected D)Reset button E)USB-C power input F) Ethernet (RJ45) port G)Ethernet cable H)Power supply I)Power socket Installation Instructions GatewayFL Mounting •Place the gateway on a horizontal surface (e.g., ceiling) •Or mount the gateway on a wall: •Use two screws at least 6 mm (0.24") long with thread diameters of no more than 4 mm (0.16") and head diameters of no more than 8 mm (0.31") to affix the gateway to the s urface. They shall be spaced 80 mm (3.15") apart. •Place the gateway onto the s crews Note: Do not place the gateway on a metal construction that can impair RF performance. Configuration of the power plug The power adapter can be used for connection to US power plugs. Slide the regional adapter into the base part. 116 mm / 4.57" 32 mm / 1.26" A B R 2 mm / R 0 .08" 80 mm / 3.15" 9 mm / 0.35" D R 4 mm / R 0.16" US Commissioning 1. 2. Download the FirstLink app from Google Play store or Apple App store and install it. Set up your FirstLink system with lights. See the Signify FirstLink app installer manual at https://www.signify.com/en-us/brands/bodine/products/firstlink 3. Add the gateway to your FirstLink project. Reset •The user can trigger a reset by using a paperclip and pressing the pinhole button on the powered device. •Soft-Reset: Reset some parameters to factory default and reboot. Press button between 2 and 5 seconds. •Hard-Reset: Reset all parameters to factory default and reboot. Press button between 10 and 20 seconds. Wireless Specifications for GatewayFL Products •Wireless RF mode frequency bands: 2400-2485.5 MHz, 5.2 GHz (5150-5250 MHz) and 5.8 GHz (5725 - 5850 MHz) •Operating channels Zigbee: channels 11-26 •Operating channels Bluetooth: channels 1-39 •Indoor use only GatewayFL 9290 048 53401 •This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful i nterference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Signify could void the user’s authority to operate this equipment. This product is intended for commercial use only. Note: This equipment has been tested and found to comply with the l imits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful i nterference to radio communications. Operation of this equipment in a residential area is likely to cause harmful i nterference in which case the user will be required to correct the interference at his own expense. Declaration of Conformity This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated with a minimum distance 20cm between the radiator and y our body. •CAN ICES-003(A)/NMB-003(A) This equipment complies with ISED RSS-102 radiation exposure limits set forth for an u ncontrolled environment. This equipment must be installed and operated with a minimum distance 20cm between the radiator and your body. Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps. This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Overview of Acknowledgements and License Texts for Open-Source Software This product contains software licensed under an open-source license. A list providing an overview of acknowledgements and license texts for the open-source software used in this product can be found at https:// w ww.signify.com/global/prof/led-electronics/masterconnect-system/ SMC_LEDELECTRCONN_CA/category. D isposal of the Product Please inform yourself about the local waste disposal, separation and collection system for electrical and electronic products and packaging. Please act according to your local rules and do not dispose your old p roduct and packaging with your normal household waste. The correct disposal of the packaging, your product and/or batteries will help prevent potential negative consequences for the environment and hu man health. Batteries should be disposed separately from the municipal waste stream via designated collection facilities. When disposing a product that contains non-user replaceable batteries, the non-user replaceable batteries shall be removed by a professional.

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B FCC Part 15.247 Page 14 of 60 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §2.1091 and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); For simultaneously transmit system, the calculated power density should comply with: Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B FCC Part 15.247 Page 15 of 60 Calculated Data: Mode Frequency Range (MHz) Antenna Gain ★Tune-up Output Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) MPE ratio (dBi) (numeric) (dBm) (mW) 2.4G Wi-Fi 2412~2462 3.55 2.26 21.50 141.25 20 0.0635 1.0 0.0635 BLE 2402-2480 3.75 2.37 15.00 31.62 20 0.0149 1.0 0.0149 Zigbee 2405-2480 3.75 2.37 7.50 5.62 20 0.0026 1.0 0.0026 5G Wi-Fi 5150~5250 6.05 4.03 10.50 11.22 20 0.0090 1.0 0.0090 5745~5825 4.45 2.79 12.50 17.78 20 0.0099 1.0 0.0099 Note: 1. For the above tune up power were declared by the manufacturer. 2. Zigbee or BLE and 2.4G Wi-Fi/5G WIFI can transmit simultaneously. = S BLE /S limitBLE + S 2.4G Wi-Fi /S limit2.4G Wi-Fi =0.0149+0.0635 =0.0784 < 1.0 Result: The device meets MPE at distance 20cm.

Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250928004 1 / 4 EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Left View Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250928004 2 / 4 Radiated Emissions-Ground-parallel View (Below 30 MHz) Radiated Emissions-Perpendicular View (Below 30 MHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250928004 3 / 4 Radiated Emissions-Parallel View (Below 30 MHz) Radiated Emissions - Front View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSB250928004 4 / 4 Radiated Emissions (1 GHz-18 GHz) Radiated Emissions (18 GHz-25 GHz)

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S.Government. FCC PART 15.247 TEST REPORT For Signify (China) Investment Co., Ltd. Building no.9, Lane 888, Tianlin Road, Minhang District, Shanghai 200233, China FCC ID: 2AGBWMCGW Report Type: Original Report Product Name: Gateway Product Report Number: RKSB250928004-00B Report Date: 2026-01-05 Reviewed By: Bard Liu Approved By: Oscar Ye Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu Province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B FCC Part 15.247 Page 2 of 81 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 6 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 EXTERNAL I/O CABLE ................................................................................................................................................ 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 12 SUMMARY OF TEST RESULTS ............................................................................................................................. 14 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................... 15 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 17 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST SYSTEM SETUP .................................................................................................................................................. 18 EMI TEST RECEIVER SETUP ....................................................................................................................................... 18 TEST PROCEDURE ...................................................................................................................................................... 19 TEST RESULTS SUMMARY .......................................................................................................................................... 19 TEST DATA: SEE APPENDIX ....................................................................................................................................... 19 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 20 APPLICABLE STANDARD ............................................................................................................................................ 20 TEST SYSTEM SETUP .................................................................................................................................................. 20 EMI TEST RECEIVER SETUP ............................................................................…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 105 of 111 802.11b_2412MHz 802.11b_2437MHz 802.11b_2462MHz 802.11g_2412MHz 802.11g_2437MHz 802.11g_2462MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 106 of 111 802.11n20_2412MHz 802.11n20_2437MHz 802.11n20_2462MHz 802.11ax20_2412MHz_RU_26/1 802.11ax20_2437MHz_RU_26/5 802.11ax20_2462MHz_RU_26/9 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 107 of 111 802.11ax20_2412MHz_RU_52/1 802.11ax20_2437MHz_RU_52/2 802.11ax20_2462MHz_RU_52/4 802.11ax20_2412MHz_RU_106/1 802.11ax20_2437MHz_RU_106/2 802.11ax20_2462MHz_RU_106/2 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 108 of 111 802.11ax20_2412MHz_RU_242/1 802.11ax20_2437MHz_RU_242/1 802.11ax20_2462MHz_RU_242/1 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 109 of 111 EUT PHOTOGRAPHS Please refer to the attachment EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS and EXHIBIT B - EUT INTERNAL PHOTOGRAPHS. Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 110 of 111 TEST SETUP PHOTOGRAPHS Please refer to the attachment EXHIBIT C - TEST SETUP PHOTOGRAPHS. Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 111 of 111 Declarations 1. The laboratory is not responsible for the authenticity of any information provided by the applicant. Information from the applicant that may affect test results is marked with “★”. 2. The test data was only valid for the test sample(s). 3. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. 4. Otherwise required by the applicant or Product Regulations, Decision Rule in this report did not consider the uncertainty. 5. The extended uncertainty given in this report is obtained by combining the standard uncertainty times the coverage factor k=2 with the 95.45% confidence interval. 6. This report may contain standards and test items that are not covered by the accreditation scope and shall be marked with an asterisk “▲”. ***** END OF REPORT *****

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 69 of 111 High Channel: 2462MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 70 of 111 802.1 ax20 RU106 Mode : Low Channel: 2412MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 71 of 111 Middle Channel: 2437MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 72 of 111 High Channel: 2462MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 73 of 111 802.1 ax20 RU242 Mode : Low Channel: 2412MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 74 of 111 Middle Channel: 2437MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 75 of 111 High Channel: 2462MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 76 of 111 Band Edge: 802.11b Mode: Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 77 of 111 High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 78 of 111 802.11g Mode : Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 79 of 111 High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 80 of 111 802.11n-HT20 Mode: Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 81 of 111 High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 82 of 111 802.11ax20 RU26- Mode: Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 83 of 111 High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 84 of 111 802.11ax20 RU52 Mode: Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 85 of 111 High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 86 of 111 802.11ax20 RU106 Mode: Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 87 of 111 High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 88 of 111 802.11ax20 RU242 Mode: Low Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 89 of 111 High Channel Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 90 of 111 18GHz-25GHz: Transmitting in maximum output power 802.11ax20 RU106 mode high channel Horizontal Vertical Ref 100 dBμVAtt 10 dB* * * * 1 PK MAXH 2 AV MAXH A TDF PS 6DB RBW 1 MHz VBW 3 MHz SWT 45 ms AC Start18 GHzStop25 GHz700 MHz/ 0 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 50.09 dBμV 20.209935897 GHz 2 Marker 2 [T2 ] 38.97 dBμV 20.198717949 GHz D1 74 dBμV D2 54 dBμV Project No :RKSB250928004 Tester :Hugh Wu Date: 15.NOV.2025 18:29:36 Ref 100 dBμVAtt 10 dB* * * * 1 PK MAXH 2 AV MAXH A TDF PS 6DB RBW 1 MHz VBW 3 MHz SWT 45 ms AC Start18 GHzStop25 GHz700 MHz/ 0 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 49.81 dBμV 19.548076923 GHz 2 Marker 2 [T2 ] 39.22 dBμV 20.209935897 GHz D1 74 dBμV D2 54 dBμV Project No :RKSB250928004 Tester :Hugh Wu Date: 15.NOV.2025 19:02:14 Frequency (GHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Pol Corr. (dB/m) 20.21 --- 39.22 54 14.78 V 12.47 19.55 49.81 --- 74 24.19 V 10.97 20.20 --- 38.97 54 15.03 H 12.46 20.21 50.09 --- 74 23.91 H 12.47 Note: The test distance is 3m. The limit is 74dBμV/m (Peak) and 54dBμV/m (Average). Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 91 of 111 6 dB EMISSION BANDWIDTH Environmental Conditions & Test Information Test Date: 2025-11-12 to 2025-11-27 Temperature: 24.1-25.2 °C Relative Humidity: 49-55 % ATM Pressure: 102.1-102.8kPa Test Result: Pass Test Engineer: Neil Zhou Test Result: Compliant. EUT operation mode: Transmitting For Wi-Fi Mode: Channel Frequency (MHz) 6 dB Emission Bandwidth (MHz) Limit (MHz) Result 802.11b Mode Low 2412 9.160 ≥0.5 Pass Middle 2437 9.160 ≥0.5 Pass High 2462 9.160 ≥0.5 Pass 802.11g Mode Low 2412 16.000 ≥0.5 Pass Middle 2437 16.000 ≥0.5 Pass High 2462 16.040 ≥0.5 Pass 802.11n-HT20 Mode Low 2412 17.320 ≥0.5 Pass Middle 2437 17.280 ≥0.5 Pass High 2462 17.320 ≥0.5 Pass 802.11ax20 RU242 Mode Low 2412 18.960 ≥0.5 Pass Middle 2437 18.880 ≥0.5 Pass High 2462 18.840 ≥0.5 Pass Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 92 of 111 802.11b_2412MHz 802.11b_2437MHz 802.11b_2462MHz 802.11g_2412MHz 802.11g_2437MHz 802.11g_2462MHz Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 93 of 111 802.11n20_2412MHz 802.11n20_2437MHz 802.11n20_2462MHz 802.11ax20_2412MHz_RU_242/1 802.11ax20_2437MHz_RU_242/1 802.11ax20_2462MHz_RU_242/1 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 94 of 111 MAXIMUM CONDUCTED OUTPUT POWER Environmental Conditions & Test Information Test Date: 2025-11-12 to 2025-11-14 Temperature: 24.1-24.7 °C Relative Humidity: 49-52 % ATM Pressure: 102.1-102.6kPa Test Result: Pass Test Engineer: Neil Zhou Test Result: Compliant. EUT operation mode: Transmitting For Wi-Fi Mode: Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Peak Output Power Limit (dBm) 802.11b Mode Low 2412 19.22 ≤30 Middle 2437 19.14 ≤30 High 2462 19.04 ≤30 802.11g Mode Low 2412 20.17 ≤30 Middle 2437 20.20 ≤30 High 2462 20.27 ≤30 802.11n-HT20 Mode Low 2412 20.13 ≤30 Middle 2437 20.16 ≤30 High 2462 20.21 ≤30 802.11ax20 RU26 Mode Low 2412 20.75 ≤30 Middle 2437 20.81 ≤30 High 2462 20.86 ≤30 802.11ax20 RU52 Mode Low 2412 20.43 ≤30 Middle 2437 20.38 ≤30 High 2462 20.51 ≤30 802.11ax20 RU106 Mode Low 2412 20.91 ≤30 Middle 2437 20.95 ≤30 High 2462 21.01 ≤30 802.11ax20 RU242 Mode Low 2412 20.40 ≤30 Middle 2437 20.48 …

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Kunshan). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, or any agency of the U.S. Government. FCC PART 15.247 TEST REPORT For Signify (China) Investment Co., Ltd. Building no.9, Lane 888, Tianlin Road, Minhang District, Shanghai 200233, China FCC ID: 2AGBWMCGW Report Type: Original Report Product Name: Gateway Product Report Number: RKSB250928004-00B Report Date: 2025-12-17 Reviewed By: Bard Liu Approved By: Oscar Ye Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu Province, China Tel: +86-512-86175000 Fax: +86-512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSB250928004-00B Page 2 of 111 TABLE OF CONTENTS REPORT REVISION HISTORY................................................................................................................................. 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 6 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 EXTERNAL I/O CABLE ................................................................................................................................................ 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 TEST EQUIPMENT LIST ......................................................................................................................................... 13 FCC §1.1310 & §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................... 15 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 17 FCC §15.207 (a) - AC LINE CONDUCTED EMISSIONS ...................................................................................... 18 APPLICABLE STANDARD ............................................................................................................................................ 18 TEST SYSTEM SETUP .................................................................................................................................................. 18 EMI TEST RECEIVER SETUP ....................................................................................................................................... 18 TEST PROCEDURE ...................................................................................................................................................... 19 TEST RESULTS SUMMARY .......................................................................................................................................... 19 TEST DATA: SEE APPENDIX ....................................................................................................................................... 19 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 20 APPLICABLE STANDARD ............................................................................................................................................ 20 TEST SYSTEM SETUP .................................................................................................................................................. 20 EMI TEST RECEIVER SETUP ....................................................................................................................................... 21 TEST PROCEDURE .....................................................................................................…

Text truncated - open the document above for the full version.

濠濖澳濚濴瀇濸瀊濴瀌澳濴瀁瀇濸瀁瀁濴澳濼瀁濹瀂瀅瀀濴瀇濼瀂瀁澳 濗濴瀇濸濍澳濅濃澳濡瀂瀉濸瀀濵濸瀅澳濅濃濅濈澳 濩濸瀅瀆濼瀂瀁濍澳濄濁濄澳 濔瀈瀇濻瀂瀅瀆濍澳濠濴瀅濾瀈瀆澳濣瀅瀂瀆濾濸澳澹澳濠濴瀈瀅濼濶濸澳濷濸澳濟濴濴瀇澳 澳 濅濁濇濚濛瀍澳濭濼濺濵濸濸澳澹澳濕濟濘澳濴瀁瀇濸瀁瀁濴瀆澳 濧瀌瀃濸濍澳瀃瀅濼瀁瀇濸濷澳濘濘濩濔澳濴瀁瀇濸瀁瀁濴澳 濕濴瀆濸澳瀀濴瀇濸瀅濼濴濿濍澳濙濥濇澿澳濇澳濿濴瀌濸瀅瀆澳 濖瀂瀃瀃濸瀅濍澳濆濈瀈澳 濧瀅濴瀁瀆瀀濼瀇澳瀃瀂瀊濸瀅澳瀆濸瀇瀇濼瀁濺濍澳澾濄濃濷濕瀀澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 濔瀁瀇濸瀁瀁濴澳濺濴濼瀁澳 濔瀁瀇濸瀁瀁濴澳濺濴濼瀁澳濼瀆澳濶濴濿濶瀈濿濴瀇濸濷澳瀊濼瀇濻澳瀅濸瀆瀃濸濶瀇澳瀇瀂澳瀅濸濹濸瀅濸瀁濶濸澳濷濼瀃瀂濿濸澳濴瀁瀇濸瀁瀁濴濁澳 濧濻濸澳濷濴瀇濴澳濼瀆澳瀇濴濾濸瀁澳濹瀅瀂瀀澳瀇濻濸澳瀅濸瀃瀂瀅瀇澳瀡濘濠濖激濅濈激濙濔濥激濉濃濅濋激濃濄濉激濗濸濟濴濴瀇濁瀃濷濹瀢濍澳 澳 澳 澳 澳 濠濴瀋濼瀀瀈瀀澳濴瀁瀇濸瀁瀁濴澳濺濴濼瀁澳澻濔瀁瀇濸瀁瀁濴澳濃澼濍澳 澳 濠濴瀋澳澻澳濘濜濥濣澳瀤澳濥濸濹濸瀅濸瀁濶濸澳濗濼瀃瀂濿濸澳瀤澳濧濥濣澳澼澳濐澳澾濊濁濄澳瀤澳濅濁濄濈澳瀤澳濅濁濉澳濐澳澾濅濁濋濈澳濷濕濼澳 濠濴瀋濼瀀瀈瀀澳濴瀁瀇濸瀁瀁濴澳濺濴濼瀁澳澻濔瀁瀇濸瀁瀁濴澳濄澼濍澳 澳 濠濴瀋澳澻澳濘濜濥濣澳瀤澳濥濸濹濸瀅濸瀁濶濸澳濗濼瀃瀂濿濸澳瀤澳濧濥濣澳澼澳濐澳澾濄濃濁濊澳瀤澳濅濁濄濈澳瀤澳濇濁濋澳濐澳澾濆濁濊濈澳濷濕濼澳 澳 澳 濥濴濷濼濴瀇濼瀂瀁澳瀃濴瀇瀇濸瀅瀁澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 濅濁濇澳濂澳濈濚濛瀍澳濪濟濔濡澳濴瀁瀇濸瀁瀁濴澳 濧瀌瀃濸濍澳瀃瀅濼瀁瀇濸濷澳濷瀈濴濿激濵濴瀁濷澳濴瀁瀇濸瀁瀁濴澳 濕濴瀆濸澳瀀濴瀇濸瀅濼濴濿濍澳濙濥濇澿澳濇澳濿濴瀌濸瀅瀆澳 濖瀂瀃瀃濸瀅濍澳濆濈瀈澳 濧瀅濴瀁瀆瀀濼瀇澳瀃瀂瀊濸瀅澳瀆濸瀇瀇濼瀁濺濍澳澾濄濃濷濕瀀澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 澳 濔瀁瀇濸瀁瀁濴澳濺濴濼瀁澳 濔瀁瀇濸瀁瀁濴澳濺濴濼瀁澳濼瀆澳濶濴濿濶瀈濿濴瀇濸濷澳瀊濼瀇濻澳瀅濸瀆瀃濸濶瀇澳瀇瀂澳瀅濸濹濸瀅濸瀁濶濸澳濷濼瀃瀂濿濸澳濴瀁瀇濸瀁瀁濴濁澳 濧濻濸澳濷濴瀇濴澳濼瀆澳瀇濴濾濸瀁澳濹瀅瀂瀀澳瀇濻濸澳瀅濸瀃瀂瀅瀇澳瀡濘濠濖激濅濈激濙濔濥激濉濃濅濋激濃濄濉激濗濸濟濴濴瀇濁瀃濷濹瀢濍澳 澳 澳 澳 澳 濠濴瀋濼瀀瀈瀀澳濴瀁瀇濸瀁瀁濴澳濺濴濼瀁澳澻濅濁濇濚濛瀍澼濍澳 澳 濠濴瀋澳澻澳濘濜濥濣澳瀤澳濥濸濹濸瀅濸瀁濶濸澳濗濼瀃瀂濿濸澳瀤澳濧濥濣澳澼澳濐澳澾濄濇濁濃澳瀤澳濅濁濄濈澳瀤澳濋濁濆澳濐澳澾濆濁濈濈澳濷濕濼澳 濠濴瀋濼瀀瀈瀀澳濴瀁瀇濸瀁瀁濴澳濺濴濼瀁澳澻濈濁濅濚濛瀍澼濍澳 澳 濠濴瀋澳澻澳濘濜濥濣澳瀤澳濥濸濹濸瀅濸瀁濶濸澳濗濼瀃瀂濿濸澳瀤澳濧濥濣澳澼澳濐澳澾濄濌濁濋澳瀤澳…

Text truncated - open the document above for the full version.
