User Manual Access Unit Wireless 3000-U981-02 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Use only the antenna and DC power supply shipped with this device. Modifications not expressly approved by this company could void the user's authority to operate the equipment. FCC ID: 2AGCT-U98102 Table of Contents Table of Contents .........................................................................................................................................3 Introduction ..................................................................................................................................................4 System Overview ..........................................................................................................................................5 Powering the Wireless Access Unit ..............................................................................................................6 Communication Ports ...................................................................................................................................6 Modes of Operation .....................................................................................................................................6 Introduction Access Unit Wireless 3000-U981-02 The Access Unit Wireless (AUW) is a module for the EMKA Electronics system and has to be controlled with a Control Unit (CU). It communicates with the wireless Agent E handle (Agent) over radio frequency (868 MHz Europe and 922 MHz USA/SGP) and can control up to 1200 Agents. Features • Wireless Unit to administer Agent E Wireless in combination with Control Unit • Administration of up to 1,200 doors in a wireless network via access units and Control Unit • Unique Network ID of each MAUW prevents cross communication between Agents of different systems • Max. 16 Access Units Wireless per Control Unit can be added to increase communication area • Frequency 868 MHz (version Europe) or 922 MHz (versions USA, Singapore) • Two Independent power inputs for redundant supply • Power distribution through CAN and RS-485 for easy installation • Configuration and monitoring is managed by the Control Unit System Overview The CU has to be connected over CAN Bus with the AUW, this AUW is the Master Access Unit Wireless (MAUW) and manages the whole information flow between handles and CU. Depending on the shape and size of the area that has to covered, the communication range can be extended, by adding additional AUWs to the MAUW. Up to 15 additional Relay Access Units Wireless (RAUWs) can be connected to the MAUW. A RAUW differs from a MAUW as it works only as range extender. Since they don't work as modules for the CU they are not connected via the CAN Bus, the MAUW connects to the RAUWs over a RS-485 cable connection. They are connected as a chain and for clear internal identification the hardware switch on the back of each AUW is set on a different position. (The MAUW has to have this switch on position 0). The whole logic about which RAUW respond to which Agent and which is accepting requests is done inside the MAUW and does not affect the CU. In addition to avoid unwanted cross communication between CU systems that are close to each other the MAUW binds each registered Agent to his Network ID. A bound Agent refuses to communicate with other CU/MAUW systems. To increase reliability an AUW is equipped with a redundant power supply, to ensure power. Powering the Wireless Access Unit  Three Power Inputs ◦ DC power adaptors ▪ Connect independent power supplies to redundant barrel connector inputs ▪ Use independent circuit breakers for DC power adaptors ◦ CAN-In ◦ RS-485  Two Power Outputs ◦ CAN-Out ◦ RS-485  Chaining via RS-485 ◦ Maximum number of Wireless Access Units? ◦ Use a 24 V supply Communication Ports  RS-485  CAN  Show pin configuration Modes of Operation  Configured by ID dial  Master ◦ Upstream connection to Control Unit via CAN ◦ Downstream connection to Relay Wireless Control Units via RS- 485 ◦ Wireless Access Units ◦ Set to ID 0  Relay ◦ Upstream connection to Master Wireless Access Unit via RS- 485 ◦ Set to IDs 1 to F ◦ Each ID may be assigned only once on the RS-485 bus

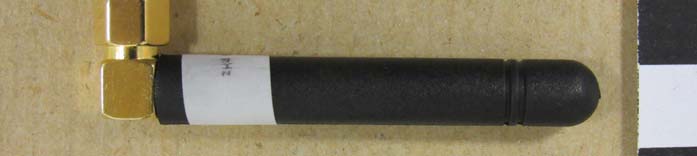

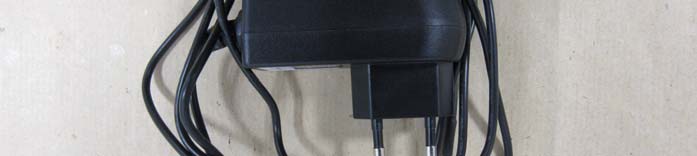

External Photos page 1 Model No.: 3000-U981-02 FCC ID: 2AGCT-U98102 Project No.: G0M-1510-5135 External Photos page 2 Model No.: 3000-U981-02 FCC ID: 2AGCT-U98102 Project No.: G0M-1510-5135 External Photos page 3 Model No.: 3000-U981-02 FCC ID: 2AGCT-U98102 Project No.: G0M-1510-5135

EUT Labeling AgentE-radino AccessPoint USA/SGP, 3000-U981-02 Bottom FCC Label Details 1/1

Internal Photos page 1 Model No.: 3000-U902-4X FCC ID: 2AGCT-U9024X Project No.: G0M-1510-5134 Internal Photos page 2 Model No.: 3000-U902-4X FCC ID: 2AGCT-U9024X Project No.: G0M-1510-5134

Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 13 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1091 Industry Canada RSS-102 RF-Exposure evaluation of mobile equipment Report Reference No. ..................... : G0M-1510-5135-TFC091ME-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : EMKA Beschlagteile GmbH & Co. KG Address............................................. : Langenberger Straße 32 42551 Velbert GERMANY Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 RSS-102, Issue 5:2015-03 Safety Code 6:2015-03 Equipment under test (EUT): Product description AgentE-radino AccessPoint USA/SGP Model No. 3000-U981-02 Additional Model(s) None Brand Name(s) EMKA Hardware version 901.355A001 Firmware / Software version 350000092 FCC-ID: N/A 2AGCT-U98102 IC: N/A Test result Passed Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 13 Version History Version Issue Date Remarks Revised by 01 2015-11-18 Initial Release Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 13 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Reference Documents 6 1.2 Standalone Radiation Sources 7 1.3 Multi-transmitter Modes 8 2 RESULT SUMMARY 9 3 RF-EXPOSURE CLASSIFICATIONS 10 4 ASSESSMENT 11 4.1 MPE Assessment Conditions – 47 CFR 2.1091 / RSS-102 11 4.2 Single-Transmitter Assessment – 47 CFR 2.1091 / RSS-102 13 Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 13 1 Equipment (Test item) Description Description AgentE-radino AccessPoint USA/SGP Model 3000-U981-02 Additional Model(s) None Brand Name(s) EMKA Serial number None Hardware version 901.355A001 Software / Firmware version 350000092 FCC-ID N/A 2AGCT-U98102 IC N/A Equipment type End product Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 13 1.1 Reference Documents Document type Document No. Issued by Date FCC 15.249 Test Report G0M-1510-1535-TFC249DT-V01 Eurofins Product Service GmbH 2015-11-18 Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 13 1.2 Standalone Radiation Sources Mode # Description 922 MHz Frequency range [MHz] 922.5 Transmission modes GFSK Maximum conducted power [dBm] -3.49 Maximum radiated power [dBm] -2.89 Maximum transmission duty cycle [%] 100 Antenna gain [dBi] 0.6 Antenna diameter [cm] 6.0 Assessment Frequency [MHz] 922.5 Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 13 1.3 Multi-transmitter Modes None Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 13 2 Result Summary FCC 47 CFR Part 2.1091, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1091 Maximum permissible exposure @ 20cm below limit PASS RSS-102 2.5.2 Maximum permissible exposure @ 20cm below limit PASS Remarks: Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 13 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1510-5135-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 13 4 Assessment 4.1 MPE Assessment Conditions – 47 CFR 2.1091 / RSS-102 MPE ASSESSMENT ACC. TO 47 CFR 2.1091 / IC RSS-102 VERDICT: PASS Assessment according to reference Reference Method FCC OET Bulletin 65 / RSS-102 & Safety Code 6 Device type mobile Exposure category General public IC Limits – Occupational / Controlled Exposure Frequency range [MHz] Electric field strength [V/M] Magnetic field strength [A/M] Power density [W/m 2 ] Averaging time [min] 0.003-10* 170 180 - Instantaneous* 0.1-10 - 1.6 / ƒ - …

Text truncated - open the document above for the full version.

Test Report No.: G0M-1510-5135-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 44 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Intentional radiator operating within the 902 – 928 MHz band Report Reference No. .................... : G0M-1510-5135-TFC249DT-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : EMKA Beschlagteile GmbH & Co. KG Address ............................................ : Langenberger Straße 32 42551 Velbert GERMANY Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 4, 2014-11 ANSI C63.4:2014 Test scope.............. ....................... : complete Radio compliance test Equipment under test (EUT): Product description AgentE-radino AccessPoint USA/SGP Model No. 3000-U981-02 Additional Model(s) None Brand Name(s) EMKA Hardware version 901.355A001 Firmware / Software version 350000092 FCC-ID: 2AGCT-U98102 IC: N/A Test result Passed Test Report No.: G0M-1510-5135-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 44 Version History Version Issue Date Remarks Revised by 01 2015-11-18 Initial Release Test Report No.: G0M-1510-5135-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 44 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 9 1.3 Photos – Test setup 12 1.4 Supporting Equipment Used During Testing 13 1.5 Test Modes 14 1.6 Test Equipment Used During Testing 15 1.7 Sample emission level calculation 16 2 RESULT SUMMARY 17 3 TEST CONDITIONS AND RESULTS 18 3.1 Test Conditions and Results – Occupied Bandwidth 18 3.2 Test Conditions and Results – Fundamental field strength emissions 20 3.3 Test Conditions and Results – Emissions radiated outside the specified frequency band 22 3.4 Test Conditions and Results – Receiver radiated emissions 24 3.5 Test Conditions and Results – AC power line conducted emissions 26 ANNEX A Transmitter radiated spurious emissions 29 ANNEX B Receiver radiated spurious emissions 37 Test Report No.: G0M-1510-5135-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 44 1 Equipment (Test item) Description Description AgentE-radino AccessPoint USA/SGP Model 3000-U981-02 Additional Model(s) None Brand Name(s) EMKA Serial number None Hardware version 901.355A001 Software / Firmware version 350000092 FCC-ID 2AGCT-U98102 IC N/A Equipment type End product Radio type Transceiver Radio technology custom Operating frequency range 922.5 MHz Assigned frequency band 902 - 928 MHz Frequency range F MID 922.5 MHz Spreading None Modulations GFSK Number of channels 1 Channel spacing None Number of antennas 1 Antenna Type external dedicated Model ANT-868-CW-RAH Manufacturer Linx Technologies Gain 0.6 (peak) dBi Manufacturer EMKA Beschlagteile GmbH & Co. KG Langenberger Straße 32 42551 Velbert GERMANY Power supply V NOM 12 - 24 VDC V MIN 12 VDC V MIN 24 VDC AC/DC-Adaptor Model SYS1308-2424-W3E (changed polarity) Vendor Sunny Input 100 - 240V AC Output 24 Test Report No.: G0M-1510-5135-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 13 of 44 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1510-5135-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 14 of 44 1.5 Test Modes Mode # Description Single General conditions: EUT powered by AC/DC - Adapter Radio conditions: Mode = standalone transmit Modulation = GFSK Power level = Maximum Receive General conditions: EUT powered by AC/DC - Adapter Radio conditions: Mode = standalone receive Modulation = GFSK Test Report No.: G0M-1510-5135-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 15 of 44 1.6 Test Equipment Used During Testing Measurement Software Description Manufacturer Name Version EMC Test Software Dare Instruments Radimation 2014.1.15 Occupied Bandwidth Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum Analyzer R&S FSP 30 EF00312 2015-02 2016-02 Field strength emissions Description Manufacturer Model Identifier Cal. Date Cal. Due Semi-anechoic chamber Frankonia AC 1 EF00062 - - Spectrum Analyzer R&S FSIQ26 EF00242 2015-04 2016-04 Biconical Antenna R&S HK 116 EF00012 2013-02 2016-02 LPD Antenna R&S HL 223 EF00187 2014-03 2017-03 LPD Antenna R&S HL 025 EF00327 2015-10 2018-10 AC powerline conducted emissions Description Manufacturer Model Identifier Cal. Date Cal. Due AMN R&S ESH2-Z5 EF00182 2014-11 2016-11 EMI Test Receiver R&S ESCS 30 EF00295 2014-10 2015-10 Test Report No.: G0M-1510-5135-TFC249DT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 16 of 44 1.7 Sample emission level calculation The following is a description of terms and a sample calculation, as appears in the radiated emissions data table. The numbers used in the calculation are for example only. There is no direct correlation to the specific data taken for the product described in this document: Reading: This is the reading obtained on the spectrum analyzer in dBμV. Any external preamplifiers used are taken into account through internal analyzer settings. A.F.: This is the antenna factor for the receiv…
