2AGE3-GR2306Angle Finder

ANGLE FINDER INSTRUCTION LCD ON/OFF button APPEARANCE Hanging hole Level Blister Moving blade ZERO button Battery Cover Fixing blade Function ON/OFF: Short press to power-on or screen-off. Long press to power-off ZERO : zero reset at any position. BLUETOOTH:Short press to send data once after successful connection of Bluetooth. Long press to turn off/on the Bluetooth function. Vertical blisters Measuring range 0.0° 225.0° ~ Resolution 0.1° Accuracy ±0.3° Battery 3V lithium battery Working temperature 0°C ~ + 40°C Working humidity ≤85%RH Temperature of transport & storage -10°C ~ +50°C 1、Angle measurement in Construction, woodworking, machining, household DIY application 2、Conversion between absolute measurement and relative measurement. Large LCD display. Easy operation.vertical and draw lines. Portable and APPLICATION OPERATION INSTRUCTION Absolute Angle Measurement 1）Move the moving blade and make it tightly lean on the xed blade. Then press ZERO to reset the device. 2）If 13°＜measured angle＜180°, use the top surface of xed blade and bottom edge of moving blade to measure target angle. The value shows on LCD. 3）If 180°≤measured angle＜225°, use the bottom surface of xed blade and top edge of moving blade to measure target angle. The value shows on LCD. Relative Angle Measurement 1）Adjust the position of xed blade and moving blade to one measure angle(13°＜measured angle＜180°). Press ZERO to reset the device. 2）Use the top surface of xed blade and bottom edge of moving blade to measure the other angle (13°＜measured angle＜180°). The difference between the two angles shows on LCD. 3）If 180°≤measured angle＜225°, please refer to the method of absolute angle measurement. Horizontal Measurement * Place xed blade on the measured surface. If the bubble inside the vial stays between the marks on the vial's surface, the measured surface is horizontal. Vertical Measurement * Place the bottom side of xed blade tightly on the measured surface. If the bubble inside the vial stays between the marks on the vial's surface, the measured surface is vertical. Bluetoothbutton Bluetooth protocol 4.0BLE Bluetooth transmission distance ≥ 10m Trouble shooting ProblemPossible causeSolution 1.No display, fuzzy display or disordered display 2.Flashing digits 3.Erractc or frozen display No battery, wrong battery installation or low battery Low battery Internal error Install battery again or replace battery Replace battery Remove battery and replace battery after waiting 1 minute 1. Automatically shuts off LCD after 5 minutes inactivity. 2. Move the scale or press ON/OFF to turn on LCD while LCD is off. 3. Same ZERO position after LCD turns on again as before LCD shuts off. 4. All data reset automatically after power off. FCC Caution: The user is cautioned that changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 1、 To install or replace battery, push the battery cover and rotate it according to the OPEN indicator by using your middle nger and index nger. Then the cover could be removed.Automatically shuts off after 1 hour inactivity. 2、 Replace or install CR2032 3V Lithium Battery. Please make sure the negative pole and positive pole in the right side. 3、 Put the battery cover back to the battery case correctly. Push and rotate the battery cover according to the CLOSE indicator. 1、Not clear the device with organic solvent. Prevent from water and corrosion. 2、This is a sensitive precision tool and should be prevented from crash. If there is any abrasion or accident during using, please reset ZERO before a new measurement. Clean the device with damp cloth. 3、The device must be stored indoor (temperature -10°C ~+50°C , humidity≤85%). ANGLE FINDER INSTRUCTION *BATTERY FUNCTION INSTRUCTION MAINTENANCE Press by middle ngerOPEN indicator Press by index nger 3V CR2032 Lithium BatteryPress by middle ngerPress by index nger Close indicator

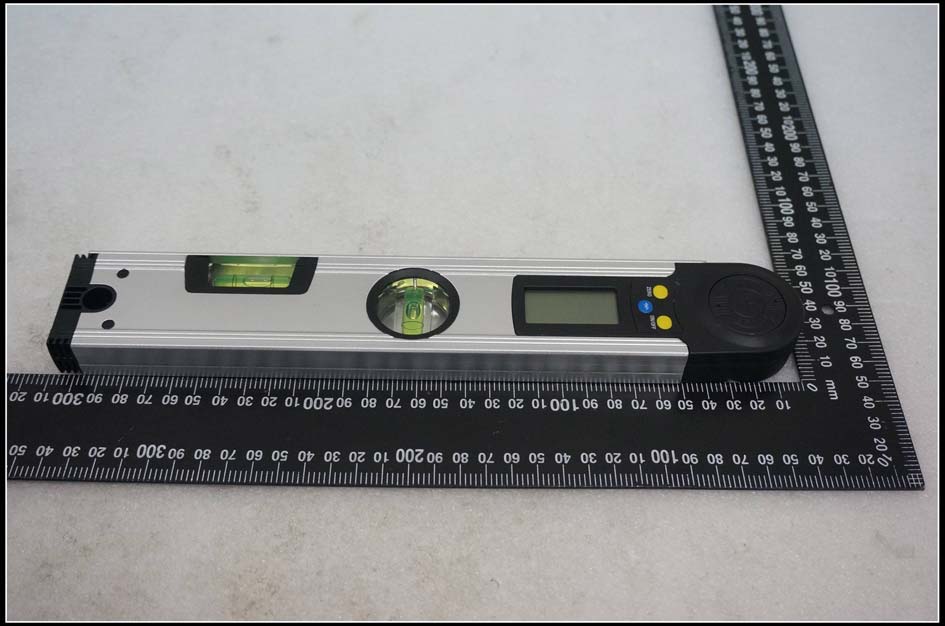

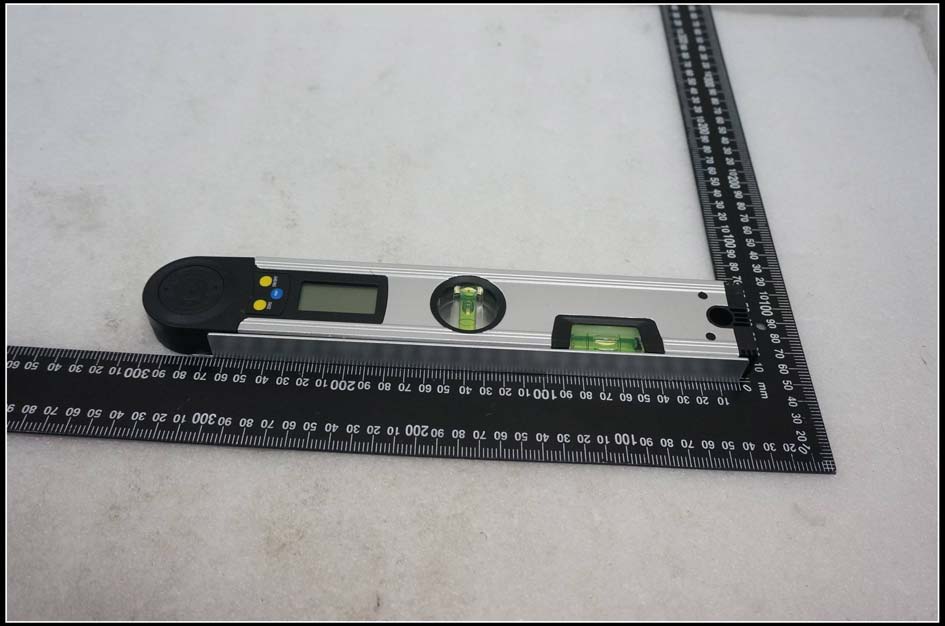

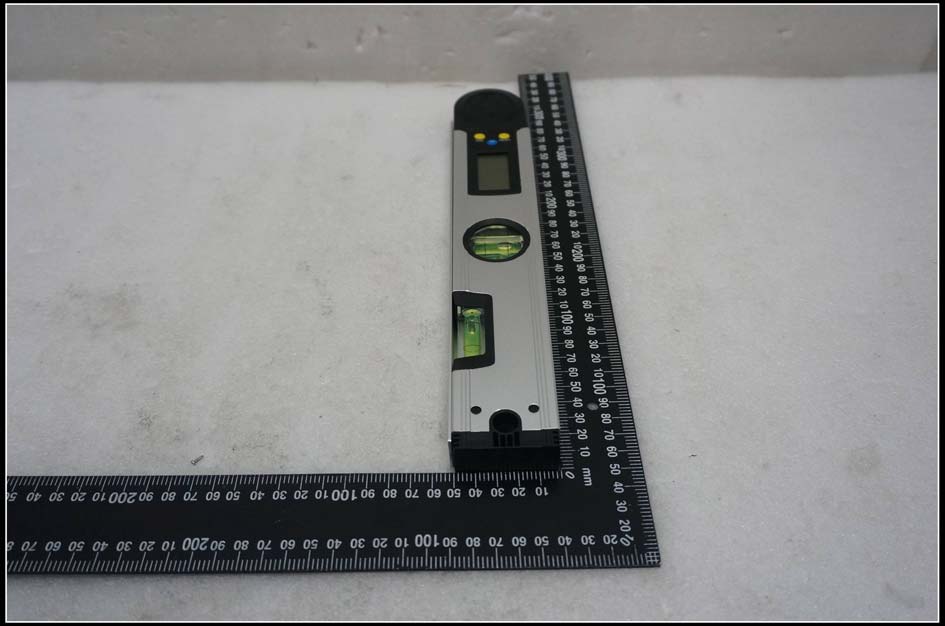

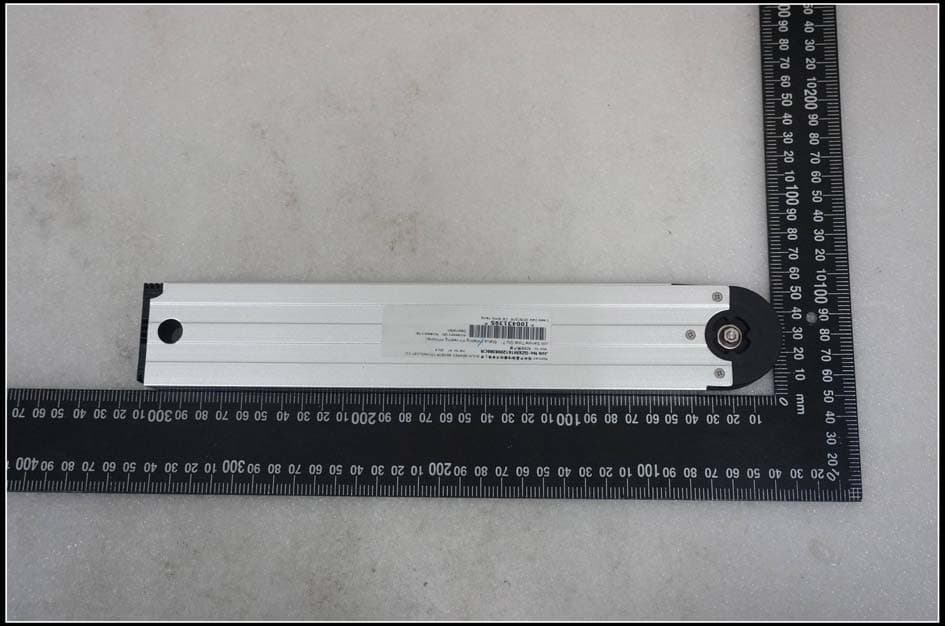

External Photo

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Application No..: GZEM1512006365CR Page: 1 of 1 FCC ID: 2AGE3-GR2306 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. RF Exposure Compliance Requirement The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Radiated Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Radiated Output Power (dBm) Max Radiated Output Power (mW) SAR Test Exclusion Threshold (mW) 2.402 0.00 1 9.7 The SAR Test Exclusion Threshold for 100 MHz to 6 GHz is calculated from: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05r02, the SAR report is not required.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM151200636501 Page: 1 of 42 FCC ID: 2AGE3-GR2306 Authorized Signature: Jerry Chan Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 1 Cover Page TEST REPORT The following sample(s) was/were submitted and identified on behalf of the client as: Application No.: GZEM1512006365CR Applicant: Guilin Gemred Sensor Technology Co., Ltd. Manufacturer: Guilin Gemred Sensor Technology Co., Ltd. Factory: Guilin Gemred Sensor Technology Co., Ltd. FCC ID: 2AGE3-GR2306 Product Description: Angle Finder Model No.: 82306 Trade Mark: GEMRED Standards: CFR 47 FCC PART 15 Subpart C: 2014 section 15.247 Date of Receipt: 2015-12-15 Date of Test: 2015-12-17 to 2015-12-23 Date of Issue: 2016-01-08 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM151200636501 Page: 2 of 42 FCC ID: 2AGE3-GR2306 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2016-01-08 Original Authorized for issue by: Tested By 2015-12-17 to 2015-12-23 (Curry Wu) /Project Engineer Date Prepared By 2015-12-28 (Millie Li) /Clerk Date Checked By 2015-12-29 (Little Xiang) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM151200636501 Page: 3 of 42 FCC ID: 2AGE3-GR2306 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 3 Test Summary Test Test Requirem…

Text truncated - open the document above for the full version.

Test Setup Photo 1.1 RADIATED SPURIOUS EMISSION TEST SETUP Below 1GHz: Above 1GHz: (full anechoic chamber)
