2AGHD-8093124True wireless earbuds

Differences Declaration To whom concern, We company ORE SMART TECHNOLOGY CO.,LTD Here by declares: The product model(s) 8093124 HRB 3033, 8093124, HRB 3033 All these models are identical in the same PCB, layout and electrical circuit, the only difference is trand mark and model number. The earbuds have right and left parts, and they are electrically identical, they share the same ID. Sincerely yours, Signature: Name: Qiaoming Huang Company: ORE SMART TECHNOLOGY CO.,LTD. Address: BAIYUNSHAN ROAD,CHENJIANG TOWN,HUIZHOU,GUANGDONG HUIZHOU China Phone: 0752­5979099 Mail: [email protected]

ORE SMART TECHNOLOGY CO.,LTD Date: 2021.05.11 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__2AGHD-8093124 ____ Product Name:__True wireless earbuds ________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block Diagram  Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Qiaoming Huang Company: ORE SMART TECHNOLOGY CO.,LTD Address: BAIYUNSHAN ROAD, CHENJIANG TOWN, HUIZHOU, GUANGDONG, CHINA Phone: 0752-5979099 Fax: 0752-5973909 Mail: [email protected]

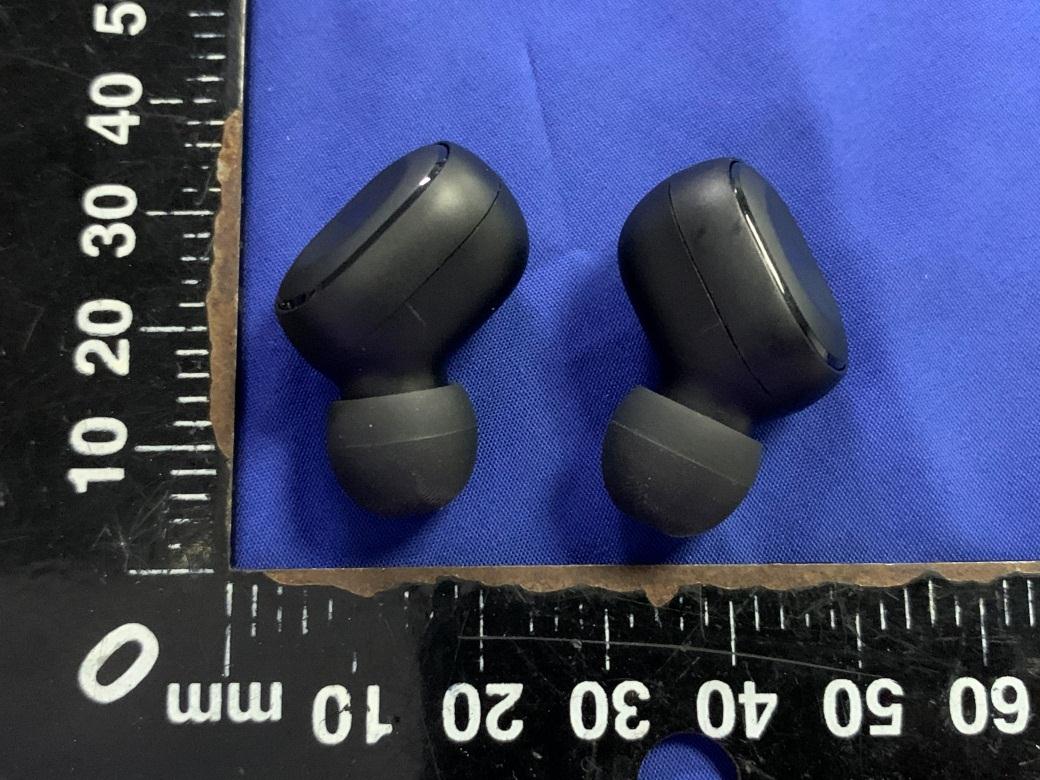

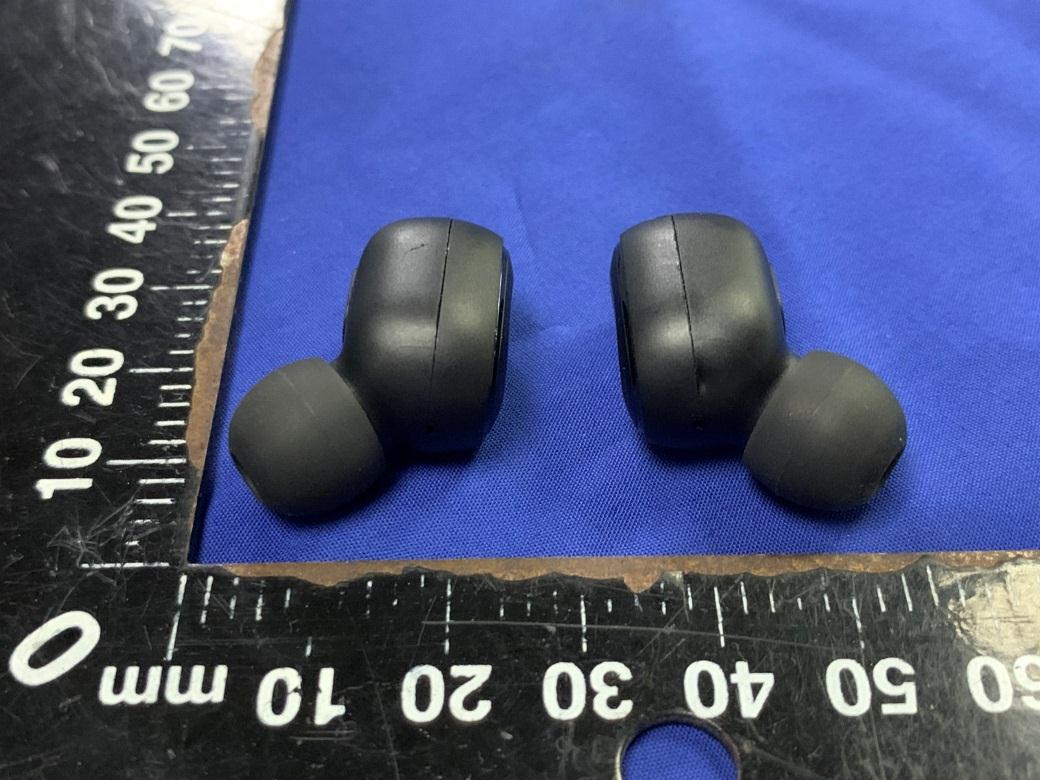

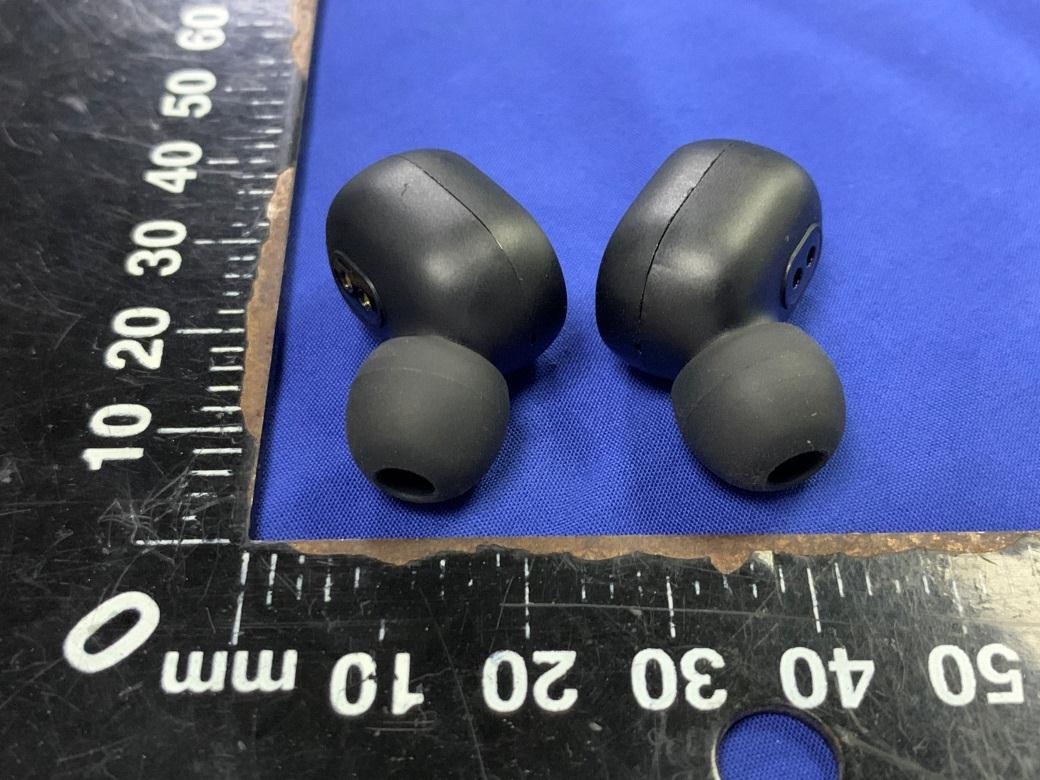

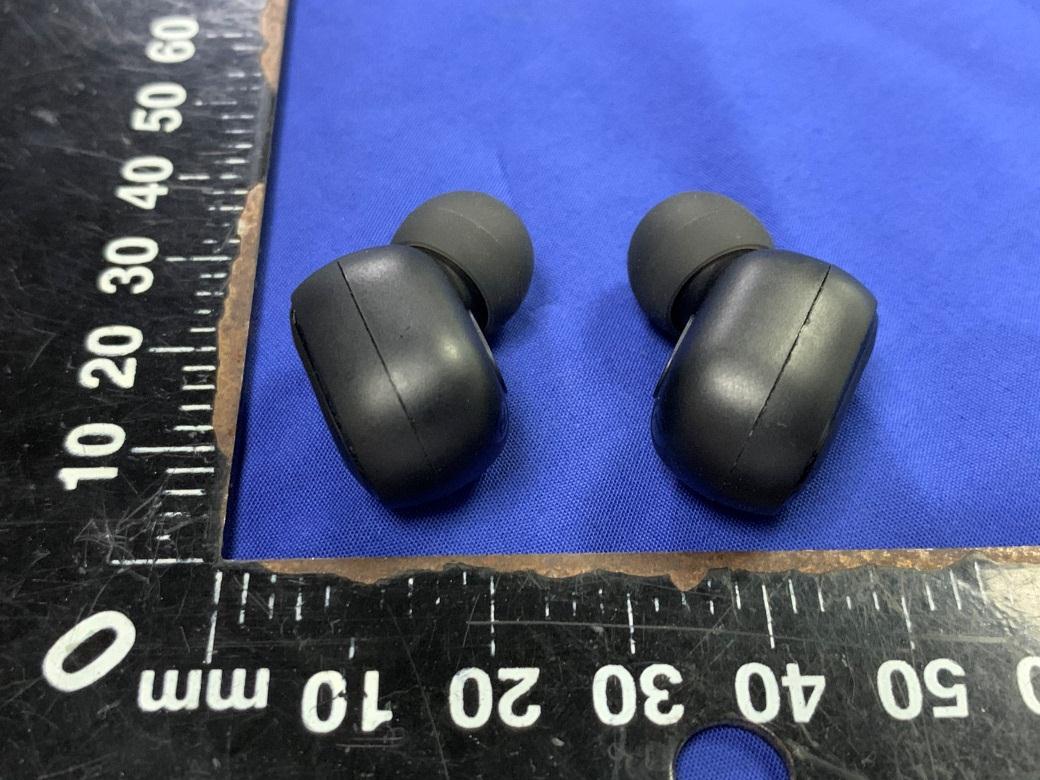

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn 1 External Photographs 2 3 4

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn Page 1 of 1 Label Label Location 1. Note: 4pt font is not achievable on 2AGHD-8093124 due to product dimension. FCC ID is on the charging case and user manual. Excerpt from user manual:

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation. The result is rounded to one decimal place for comparison. Worse case is as below: 2480MHz 2.25 dBm（1.7mW）output power (1.7mW /5mm)·[√2.480(GHz)]= 0.5 < 3.0 for 1-g SAR So SAR evaluation is not required.

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755-27521059 Fax: +86-755-27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20210761E01 FCC ID································: 2AGHD-8093124 Applicant····························: ORE SMART TECHNOLOGY CO.,LTD Address·······························: BAIYUNSHAN ROAD, CHENJIANG TOWN, HUIZHOU, GUANGDONG, CHINA Manufacturer·························: New Leader International Co.,Ltd Address·······························: NEW LEADER INDUSTRY PARK, BAIYUN ROAD, CHENJIANGTOWN, HUIZHOU, GUANGDONG, CHINA Product Name······················: True wireless earbuds Trade Mark···························: HR HEADRUSH Model/Type reference·············: 8093124 HRB 3033 Listed Model(s) ·····················: 8093124, HRB 3033 Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: Apr. 16, 2021 Date of testing.......................: Apr. 16, 2021 to Apr. 30, 2021 Date of issue.........................: May 11, 2021 Result.................................: PASS Compiled by: (Printed name+signature) Jim Jiang Supervised by: (Printed name+signature) Miller Ma Approved by: (Printed name+signature) Walter Chen $英文检测章$ $Walter$ Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ....................................................................................................................................................... 3 1.1. TEST STANDARDS .......................................................................................................................................................... 3 1.2. REPORT VERSION ......................................................................................................................................................... 3 1.3. TEST DESCRIPTION ........................................................................................................................................................ 3 1.4. TEST FACILITY .............................................................................................................................................................. 4 1.5. MEASUREMENT UNCERTAINTY ........................................................................................................................................ 4 1.6. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 5 2. GENERAL INFORMATION .......................................................................................................................................... 6 2.1. CLIENT INFORMATION ................................................................................................................................................... 6 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3. ACCESSORY EQUIPMENT INFORMATION ............................................................................................................................ 7 2.4. OPERATION STATE ........................................................................................................................................................ 8 2.5. MEASUREMENT INSTRUMENTS LIST ................................................................................................................................. 9 3. TEST ITEM AND RESULTS ........................................................................................................................................ 11 3.1. CONDUCTED EMISSION ................................................................................................................................................ 11 3.2. RADIATED EMISSION ................................................................................................................................................... 14 3.3. BAND EDGE EMISSIONS (RADIATED) .............................................................................................................................. 37 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ...................................................................................................... 50 3.5. 20DB BANDWIDTH ..................................................................................................................................................... 65 3.6. CHANNEL SEPARATION................................................................................................................................................. 73 3.7. NUMBER OF HOPPI…

Text truncated - open the document above for the full version.

Page 65 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn 3.5. 20dB Bandwidth Limit N/A Test Configuration Test Procedure 5. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 6. OCB and 20dB Spectrum Setting: (1) Set RBW = 1% ~ 5% occupied bandwidth. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. Note: The EUT was set to continuously transmitting in each mode and low, Middle and high channel for the test. Test Mode Please refer to the clause 2.4. Test Result Test Mode Frequency (MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] 20dB Bandwidth *2/3 (kHz) Verdict GFSK 2402 0.948 2401.538 2402.486 632.00 PASS 2441 0.951 2440.538 2441.489 634.00 PASS 2480 0.990 2479.502 2480.492 660.00 PASS π /4-DQPSK 2402 1.272 2401.376 2402.648 848.00 PASS 2441 1.272 2440.376 2441.648 848.00 PASS 2480 1.275 2479.376 2480.651 850.00 PASS 8-DPSK 2402 1.275 2401.364 2402.639 850.00 PASS 2441 1.269 2440.367 2441.636 846.00 PASS 2480 1.269 2479.367 2480.636 846.00 PASS Page 66 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page 67 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 68 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 69 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn Test Mode Frequency (MHz) OCB [MHz] FL[MHz] FH[MHz] Verdict GFSK 2402 0.830 2401.583 2402.414 PASS 2441 0.839 2440.580 2441.420 PASS 2480 0.851 2479.571 2480.423 PASS π/4-DQPSK 2402 1.151 2401.425 2402.575 PASS 2441 1.151 2440.425 2441.575 PASS 2480 1.154 2479.425 2480.578 PASS 8-DPSK 2402 1.157 2401.428 2402.584 PASS 2441 1.160 2440.428 2441.587 PASS 2480 1.157 2479.428 2480.584 PASS Page 70 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Page 71 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Page 72 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Page 73 of 89 Report No.: CTC20210761E01 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Ac- creditation Administration of the People’s Republic of China : yz.cnca.cn 3.6. Channel Separation Limit FCC CFR Title 47 Part 15 Subpart C Section 15.247 (a)(1)/ RSS-247 5.1 b : Test Item Limit Frequency Range(MHz) Channel Separation >25KHz or >two-thirds of the 20 dB bandwidth Which is greater 2400~2483.5 Test Configuration Test Procedure 7. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram above. 8. Spectrum Setting: (1) Set RBW = 100 kHz. (2) Set the video bandwidth (VBW) ≥ 3 RBW. (3) Detector = Peak. (4) Trace mode = Max hold. (5) Sweep = Auto couple. Test Mode Please refer to the clause 2.4. Test Result Test Mode Frequency(MHz) Result[MHz] Limit[MHz] Verdict GFSK Hop_2402 1.000 ≥0.632 PASS Hop_2441 1.000 ≥0.634 PASS Hop_2480 1.004 ≥0.660 PASS π/4-DQPSK Hop_2402 1.148 ≥0.848 PASS Hop_2441 0.996 ≥0.848 PASS Hop_2480 1.000 ≥0.850 PASS 8-DPSK Hop_2402 1.000 ≥0.850 PASS Ho…
