Water Resistant Shower Bluetooth Speaker USER MANUAL Thank you for choosing our Water Resistant Shower Bluetooth Speaker. Sincerely hope you will enjoy your music and phone call freely. Safety Instructions Read this manual carefully before you use our Water Resistant Shower Bluetooth Speaker and keep this manual for future reference. z Keep the device away from heat, direct sunlight and sharp edges. z Keep the device away from naked flames. z Do not insert any metal objects into the device in case of short circuit! z To avoid a static charge, please do not use the device in an extremely dry climate. z Do not repair the unit by yourself but contact an authorized specialist to help you. Product overview Accessories included 1pc USB charging cable Charging Integrated Battery This Bluetooth speaker is powered support by integrated rechargeable Lithium Battery. Charge the battery as follows: 1.Insert the charging cable into the DC 5V socket on the unit. Connect the USB plug into a PC or AC/DC adapter. The LED indicator turns red and the battery is being charged. 2.When the battery is fully charged, the red LED indicator goes out. Pairing 2681 to Mobile phone or other device Active the Bluetooth speaker pairing mode by button and then there has a voice reminder says: Enter to Bluetooth. the blue LED is flashing ,means the speaker is ready for pairing. Switch off the mobile phone Bluetooth, the speaker will say: Bluetooth canceled. Tips: Please make sure the speaker is in power off mode when you are trying to activate the pairing mode. 1.Turn on your mobile Phone and activate the Bluetooth function. 2.Search for Bluetooth devices, 2681 will show up. 3.Pair your device with 2681. If password is needed, type in “0000”,after 2681 is paired with your device, voice reminder says; Bluetooth connected, means the speaker had connected with your device. Tips: Once this speaker is paired and connected to your mobile phone, next time when you switch on this speaker, it will connect to your mobile phone automatically as long as the Bluetooth in your mobile phone is on. Button description On/Off : To switch on or off the device Short press for the previous song, long press for turning down the volume. Short press for the next song, long press for turning up the volume. Phone: To pick up or hang up a phone call. Play/pause the music . RESET button: Press the button heavily to reset the speaker Notes & tips: 1.You can press Phone Button twice quickly to redial the last phone No. Call. Long press the Phone answering Button 3 seconds, disconnected from the connection between phone and Bluetooth speaker Troubleshooting: Symptoms Causes Solutions Can not switch the speaker on Battery empty Charge the battery Unable to pair the speaker Speaker is already switched on, and it is not in pairing mode Refer to he section of “Pairing 2681 to mobile phone or other device” during working no sound suddenly Battery out of charge Charge the battery Buttons can not work or strange sound occured suddenly Product need to be reset Press the RESET button Technical Specifications Bluetooth support: 3.0+EDR Maximum RF Range: 10 meters Transmitting frequency: 2.4G HZ Power supply: DC 5 V/100-120mA Battery: 3 .7V 400mA lithium Charging time: Approx. 3 hours Operating time: Approx.6 hours IP grade: IPX4 Unit weight: Approx. 95.5g FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 ORE SMART TECHNOLOGY CO.,LIMITED 2015-11-14 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ ORE SMART TECHNOLOGY CO.,LIMITED _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Water Resistant Shower Bluetooth Speaker: LSP-298) FCC ID: 2AGHDLSP-298 Sincerely, Client’s signature Client’s name / title: Qiaoming Huang / Vice Sales Manager Contact information / address BAIYUNSHAN ROAD,CHENJIANG TOWN,HUIZHOU,GUANGDONG,CHINA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 ORE SMART TECHNOLOGY CO.,LIMITED 2015-11-14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AGHDLSP-298 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title: Qiaoming Huang / Vice Sales Manager Contact information / address BAIYUNSHAN ROAD,CHENJIANG TOWN,HUIZHOU,GUANGDONG,CHINA

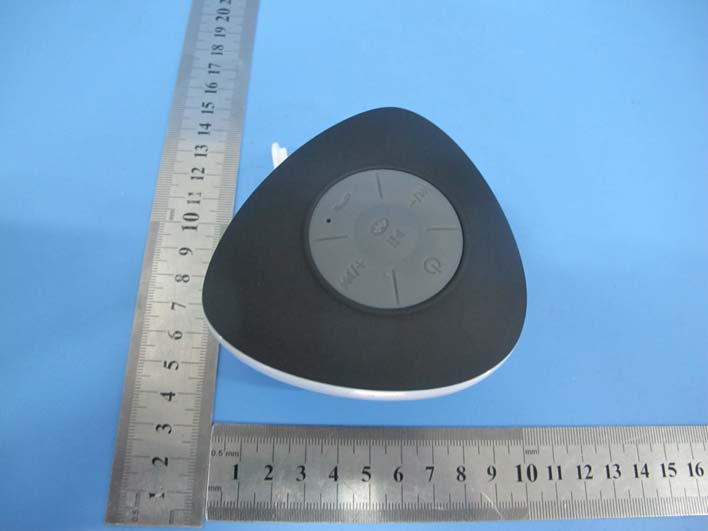

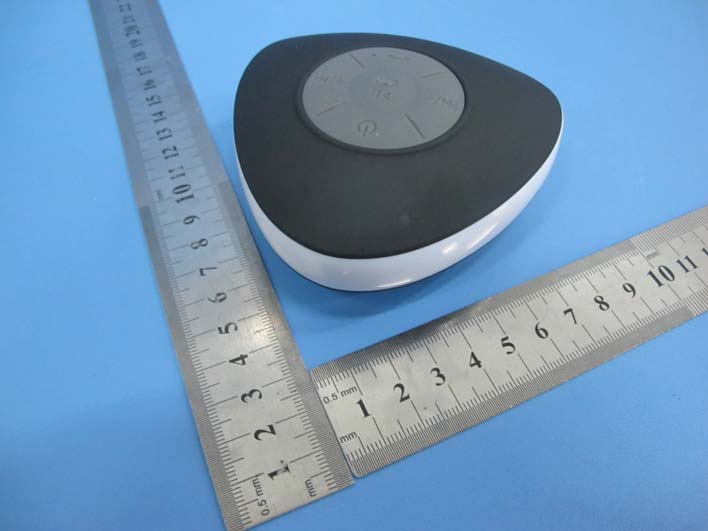

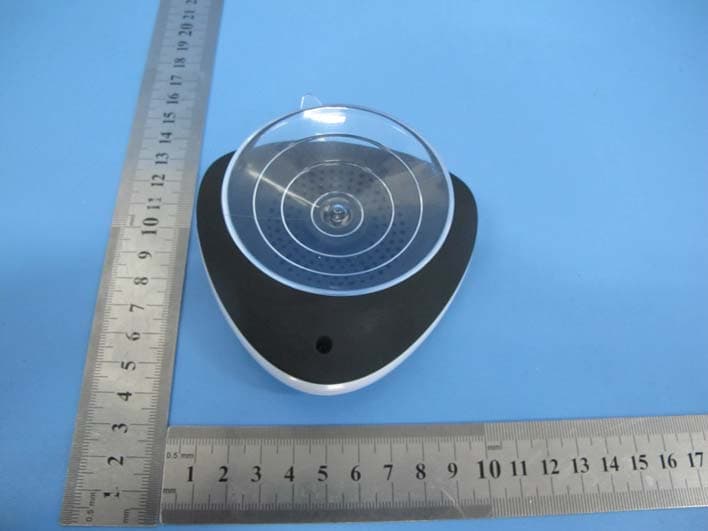

Report No.: TB-FCC145948 Page: 3 of 9 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC145948 Page: 4 of 9 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC145948 Page: 1 of 9 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID : 2AGHDLSP-298 Water Resistant Shower Bluetooth Speaker ORE SMART TECHNOLOGY CO.,LIMITED This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: LSP-298

Report No.: TB-FCC145948 Page: 2 of 9 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

Report No.: TB-FCC145948 Page: 5 of 9 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Report No.: TB-FCC145948 Page: 6 of 9 TB-RF-075-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB 2.4G PCB Antenna Report No.: TB-FCC145948 Page: 7 of 9 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE145949 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AGHDLSP-298 1. Client Information Applicant : ORE SMART TECHNOLOGY CO.,LIMITED Address : BAIYUNSHAN ROAD,CHENJIANG TOWN, HUIZHOU, GUANGDONG, CHINA Manufacturer : ORE SMART TECHNOLOGY CO.,LIMITED Address : BAIYUNSHAN ROAD,CHENJIANG TOWN, HUIZHOU, GUANGDONG, CHINA 2. General Description of EUT EUT Name : Water Resistant Shower Bluetooth Speaker Models No. : LSP-298 Model difference : N/A Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power: Bluetooth: 4.826 dBm(π/4-DQPSK) Antenna Gain: -0.68 dBi PCB Antenna Modulation Type: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC Voltage supplied from Host System by USB cable. DC power by Li-ion Battery. Power Rating : DC 5.0V by USB cable. DC 3.7V 400mAh Li-ion Battery. Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE145949 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE145949 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 4.209 ±0.5 2.957 0.917 3.0 2.441 4.319 ±0.5 3.033 0.948 3.0 2.480 4.587 ±0.5 3.226 1.016 3.0 Bluetooth Mode (π/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.569 ±0.5 2.552 0.791 3.0 2.441 4.513 ±0.5 3.172 0.991 3.0 2.480 4.826 ±0.5 3.409 1.074 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.506 ±0.5 2.515 0.780 3.0 2.441 4.519 ±0.5 3.176 0.992 3.0 2.480 4.771 ±0.5 3.366 1.060 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC145948 Page: 1 of 94 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AGHDLSP-298 Original Grant Report No. : TB-FCC145948 Applicant : ORE SMART TECHNOLOGY CO.,LIMITED Equipment Under Test (EUT) EUT Name : Water Resistant Shower Bluetooth Speaker Model No. : LSP-298 Series Model No. : N/A Brand Name : N/A Receipt Date : 2015-11-11 Test Date : 2015-11-12 to 2015-11-16 Issue Date : 2015-11-17 Standards : FCC Part 15: 2015, Subpart C(15.247) Test Method : ANSI C63.10:2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC145948 Page: 2 of 94 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST EQUIPMENT .................................................................................................................. 11 4. CONDUCTED EMISSION TEST ........................................................................................... 12 4.1 Test Standard and Limit .................................................................................................... 12 4.2 Test Setup ........................................................................................................................... 12 4.3 Test Procedure ................................................................................................................... 12 4.4 EUT Operating Mode ........................................................................................................ 13 4.5 Test Data ............................................................................................................................. 13 5. RADIATED EMISSION TEST ................................................................................................ 18 5.1 Test Standard and Limit .................................................................................................... 18 5.2 Test Setup ........................................................................................................................... 19 5.3 Test Procedure ................................................................................................................... 20 5.4 EUT Operating Condition ................................................................................................. 20 6. RESTRICTED BANDS REQUIREMENT ............................................................................. 39 6.1 Test Standard and Limit .................................................................................................... 39 6.2 Test Setup ........................................................................................................................... 39 6.3 Test Procedure ................................................................................................................... 39 6.4 EUT Operating Condition ................................................................................................. 40 6.4 Test Data ............................................................................................................................. 40 7. NUMBER OF HOPPING CHANNEL .................................................................................... 53 7.1 Test Standard and Limit .................................................................................................... 53 7.2 Test Setup ........................................................................................................................... 53 7.3 Test Procedure ................................................................................................................... 53 7.4 EUT Operating Condition ................................................................................................. 53 7.5 Test Data ............................................................................................................................. 53 8. AVERAGE TIME OF OCCUPANCY ..................................................................................... 55 8.1 Test …

Text truncated - open the document above for the full version.

Report No.: TB-FCC145948 Page: 8 of 9 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC145948 Page: 9 of 9 TB-RF-075-1.0 Photo of Setup for Conducted Emission
