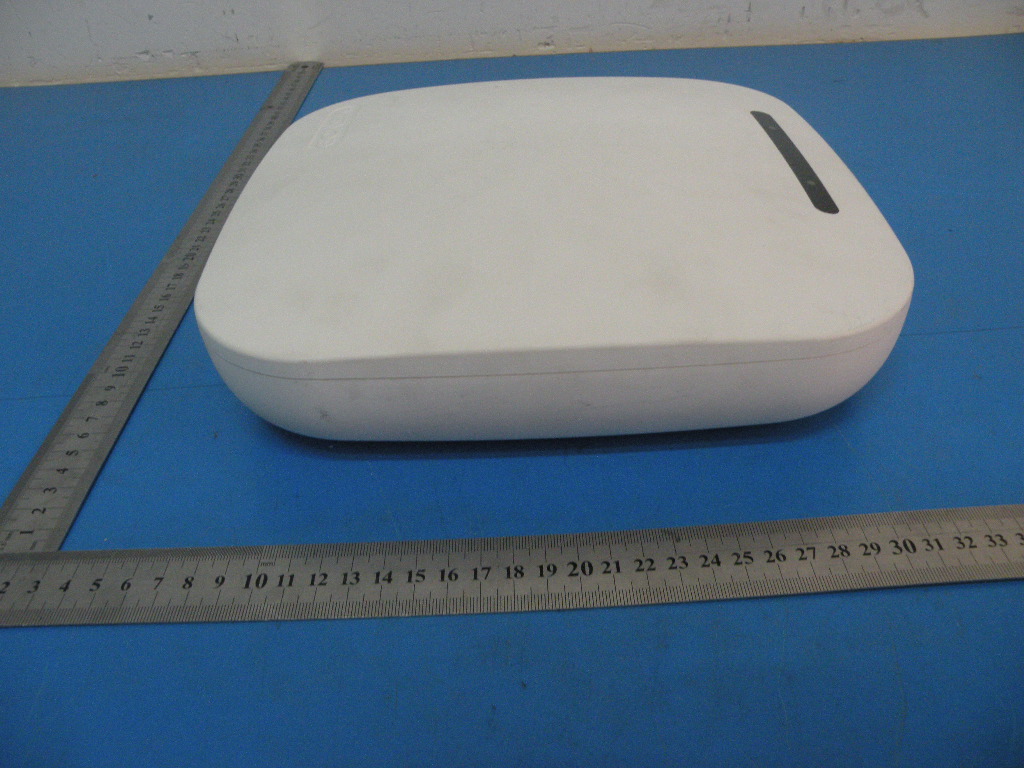

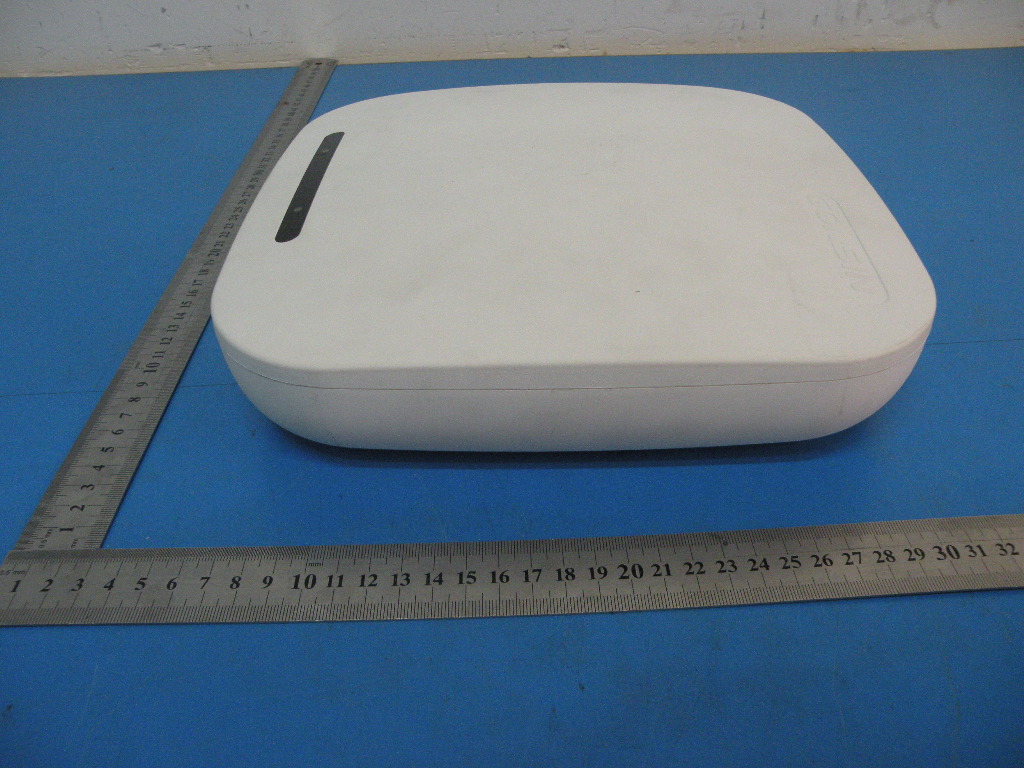

2AGJ5WAP-30IWireless AP

0 Contents Chapter 1FS-FHSS System ......................................................................... 3 System connection diagram ............................................................................................................................... 3 Chapter 2 FS-FHSS Wireless Congress Server ........................................... 4 2.1 FS-FHSS Wireless Congress Server GONSIN30000I ................................................................................. 4 2.1.1GONSIN30000I Indicators ............................................................................................................. 4 2.1.2 Installation ........................................................................................................................................ 5 2.1.3 Connection ........................................................................................................................................ 5 2.1.3.1 Connect to Simultaneous wireless access point ............................................................................. 5 2.1.3.2 connect to Interpreter terminal ............................................................................................... 6 Chapter3 Component of Wireless transmission system .............................. 7 3.1.2 Structure TC-RFJ04S/08S/12S/16S .................................................................................................. 8 3.2.1 WAP-30I Function and Introduction ............................................................................................... 10 3.2.2.1 WAP-30I Wireless Conference AP Installation .................................................................... 10 3.2.2.2 WAP-30I Wireless Conference AP Installation .....................................................................11 Chapter 4 Wireless Network Design ......................................................... 12 4.1 Introduction ............................................................................................................................................... 12 4.2 Control Rules ............................................................................................................................................. 12 4.3 Frequency Band ...................................................................................................................................... 12 4.4 Installation Rules ....................................................................................................................................... 14 Chapter 5 FS-FHSS Technical Indicators ................................................. 15 5.1 Congress Server GONSIN30000I .............................................................................................................. 15 5.2 TC-RFJ04S/08S/12S/16S parameters ................................................................................................ 17 5.3 WAP-30I technical parameters of Simultaneous wireless access point ............................................. 18 WAP-30I Simultaneous wireless access point ......................................................................................... 18 Chapter 6 Interpreter Console ................................................................... 18 6.1 Overview ................................................................................................................................................... 18 6.2 Functions and Instructions of TC-F06 ....................................................................................................... 19 Input channel setting area: ..................................................................... 19 Speaking area: ......................................................................................... 20 Interface area: ......................................................................................... 20 Volume adjustment area: ........................................................................ 20 6.3 Connect ...................................................................................................................................................... 21 6.3.1 Connection with Central Control Unit ............................................................................................ 21 6.3.2 TC-F06 Connection ........................................................................................................................ 21 2 6.3.3 Connection with Headset ................................................................................................................ 21 6.4 译员终端LCD功能与显示 .................................................................................................................... 22 6.5 Direct Interpretation and Indirect Interpretation ................................................................................ 22 6.5.2 Listening Area Setting .................................................................................................................... 23 6.5.3 Speaking Area Setting ..................................................................................................................... 23 6.6 About the 25P Cable of TC-F06 ........................................................................................................ 25 6.7 Parameter of Interpreter terminal ............................................................................................................... 25 Chapter 7 Cables and Configuration ......................................................... 26 7.1 Accessory ................................................................................................................................................... 26 7.1.1 HC-S612 ......................................................................................................................................... 26 5.4.2 TC-D1 ........................................................................…

Text truncated - open the document above for the full version.

Nov.-30-15 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AGJ5WAP-30I Product Name: Wireless AP Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Liu Jiwu Position Manager Company Name Gonsin Conference Equipment Co., Ltd Address No.401-406, Block C, Idea Industry Park, No.41 Fengxiang Road, Shunde, Foshan, Guangdong, China Tel 0757‐22360953 Fax 0757‐22382396 Email [email protected]

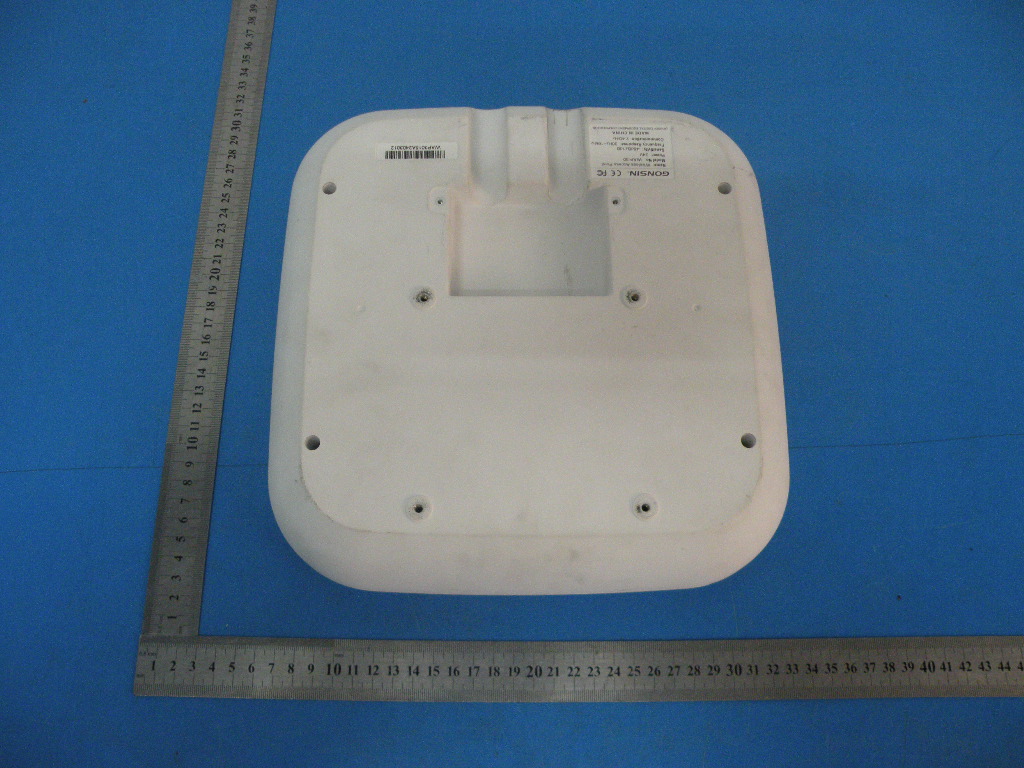

Label 30mm 15mm Label FCC ID: 2AGJ5WAP-30I Gonsin Conference Equipment Co., Ltd Model name: Wireless AP Model No.: WAP‐30I This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.

ANT1 ANT2 ANT3

MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit(WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 12.59 （11dBi） 114.29 （ 20.58dBm） 0.29 1 Compiles

Page 1 of 50 Report No.: T1851826 01 TEST REPORT FCC ID: 2AGJ5WAP-30I Applicant : Gonsin Conference Equipment Co., Ltd Address : No.401-406,Block C, Idea Industry Park, No.41 Fengxiang Road, Shunde, Foshan, Guangdong, China Equipment Under Test (EUT): Name : Wireless AP Model : WAP-30I In Accordance with: FCC PART 15, SUBPART C : 2015 (Section 15.247) Report No: T1851826 01 Date of Test : November 27-30, 2015 Date of Issue : November 30, 2015 Test Result: PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Alpha Product Testing Co., Ltd Or test done by Shenzhen Alpha Product Testing Co., Ltd Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Alpha Product Testing Co., Ltd Approvals in writing . Page 2 of 50 Report No.: T1851826 01 Contents 1.General Information ............................................................................................................... 4 1.1.Description of Device (EUT) ...............................................................................4 1.2.Accessories of device (EUT) ...............................................................................5 1.3.Test Lab information ............................................................................................5 2.Summary of test ...................................................................................................................... 6 2.1.Summary of test result .........................................................................................6 2.2.Assistant equipment used for test .........................................................................6 2.3.Block Diagram .....................................................................................................7 2.4.Test mode .............................................................................................................8 2.5.Test Conditions .....................................................................................................9 2.6.Measurement Uncertainty (95% confidence levels, k=2) ....................................9 2.7.Test Equipment ...................................................................................................10 3.Maximum Peak Output power ............................................................................................ 11 3.1.Limit ................................................................................................................... 11 3.2.Test Procedure .................................................................................................... 11 3.3.Test Setup ........................................................................................................... 11 3.4.Test Result .......................................................................................................... 11 4.Bandwidth ............................................................................................................................. 12 4.1.Limit ...................................................................................................................12 4.2.Test Procedure ....................................................................................................12 4.3.Test Result ..........................................................................................................12 5.Carrier Frequency Separation ............................................................................................. 15 5.1.Limit ...................................................................................................................15 5.2.Test Procedure ....................................................................................................15 5.3.Test Result ..........................................................................................................15 6.Number Of Hopping Channel ............................................................................................. 17 6.1.Limit ...................................................................................................................17 6.2.Test Procedure ....................................................................................................17 6.3.Test Result ..........................................................................................................17 7.Dwell Time ............................................................................................................................. 19 7.1.Test limit ............................................................................................................19 7.2.Test Procedure ....................................................................................................19 7.3.Test Results ........................................................................................................19 8.Radiated emissions ................................................................................................................ 22 8.1.Limit ...................................................................................................................22 8.2.Block Diagram of Test setup ..............................................................................23 8.3.Test Procedure ....................................................................................................23 8.4.Test Result .....................................…

Text truncated - open the document above for the full version.

Photos of Radiated emission Photos of Conducted Emission test
