2AGKTEJ80Electric Jukebox

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. 14 USB Port Note: The TV stick is only used on TV.

MAGIC MEDIA WORKS LIMITED Family models declaration letter. 2015-12-08 We MAGIC MEDIA WORKS LIMITED Of One West Smithfield London EC1A 9JU UK. Product: Electric Jukebox FCC ID: 2AGKTEJ80 Model Name: EJ80, EJ81 These models are identical in circuitry and electrical, mechanical and physical construction; the only differences are the silk-screen, color and model no. for trading purpose. Thanks Sincerely, Signature William Morgan/Chief Operations Officer E-mail: [email protected] Phone: +44 (0) 20 7099 2750 Fax: +44 (0) 20 7099 2750 Address: One West Smithfield London EC1A 9JU UK.

RF_160, Issue 03 Declaration of Authorization We Name: Magic Media Works Limited Address: One West Smithfield London EC1A 9JU City: London Country: United Kingdom Declare that: Name Representative of agent: 406365 Agent Company name: EMTEK (SHENZHEN) CO., LTD. Address: Bldg 69,Majialong Industry Zone,Nanshan District City: Shenzhen Country: China is authorized to apply for Certification of the following product(s): Product description: Electric Jukebox Type designation: EJ80, EJ81 Trademark: Electric Jukebox on our behalf. Date: January 26, 2016 City: London Name: William Morgan Function: Chief Operations Officer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 19-Oct-10 RF_501, Issue 7 Page 1 of 1 Company Name: Magic Media Works Limited Address : One West Smithfield London EC1A 9JU City: London Country: United Kingdom To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AGKTEJ80 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date: December 4, 2015 Name and signature of applicant: William Morgan/Chief Operations Officer Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

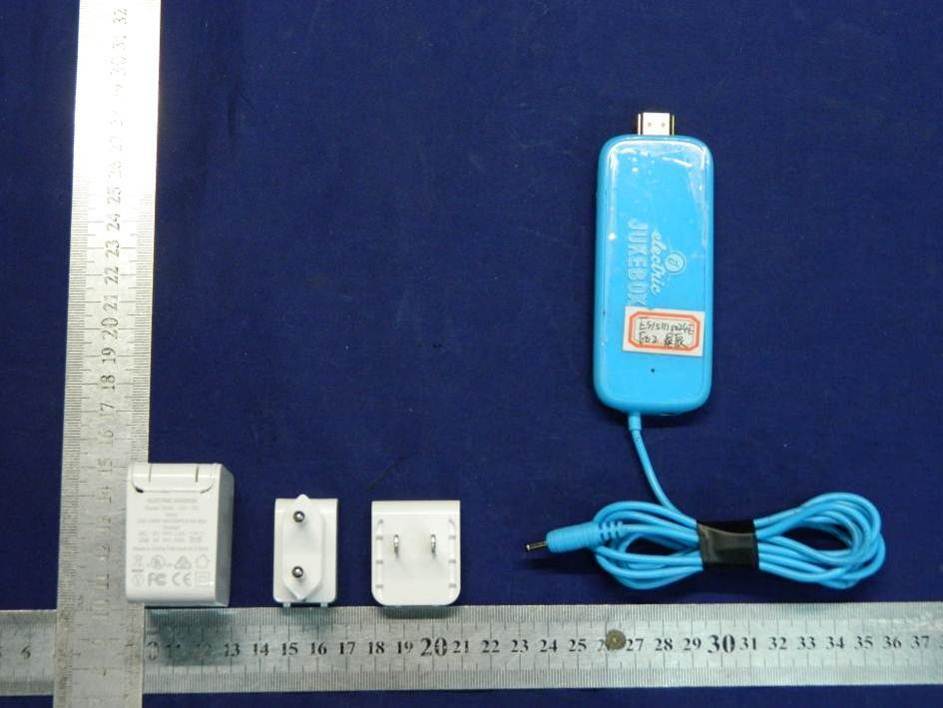

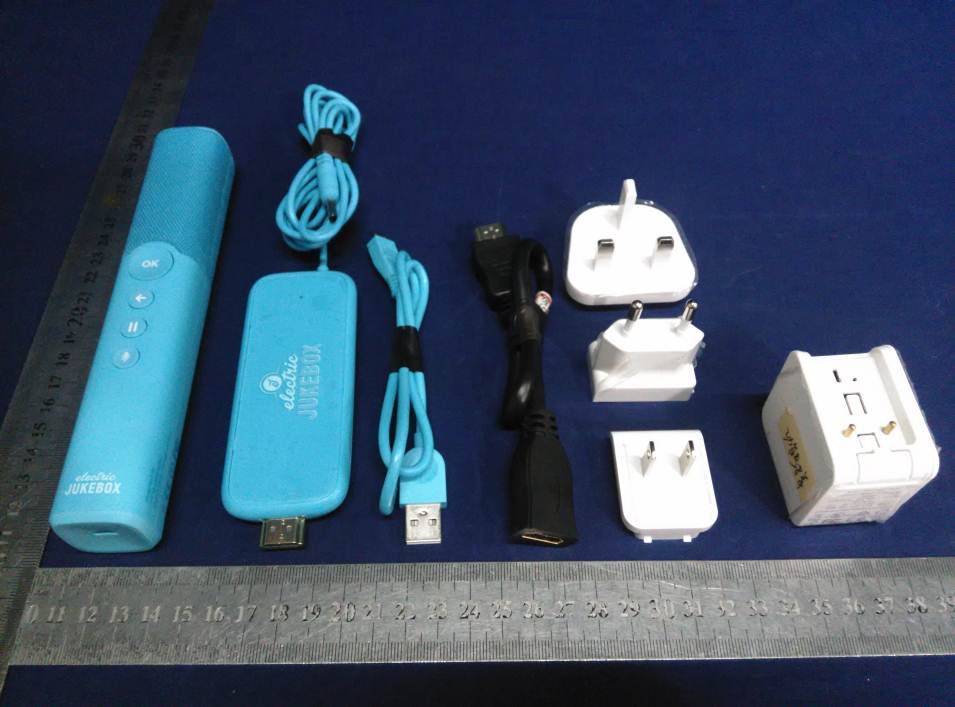

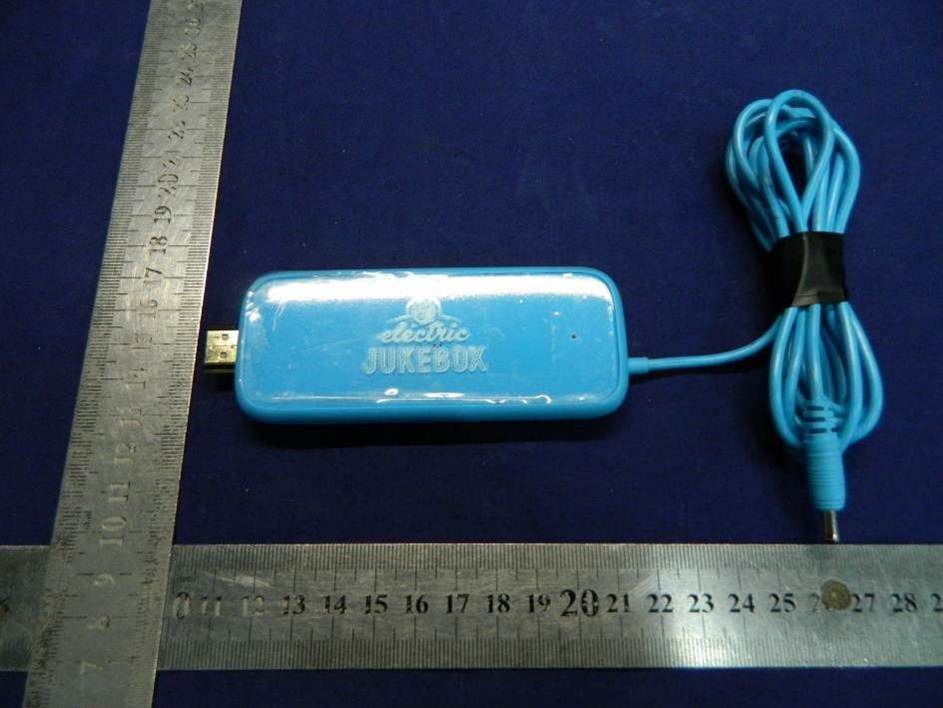

PHOTOGRAPHS OF EUT (EXTERNAL PHOTO) Electric Jukebox-TV stick

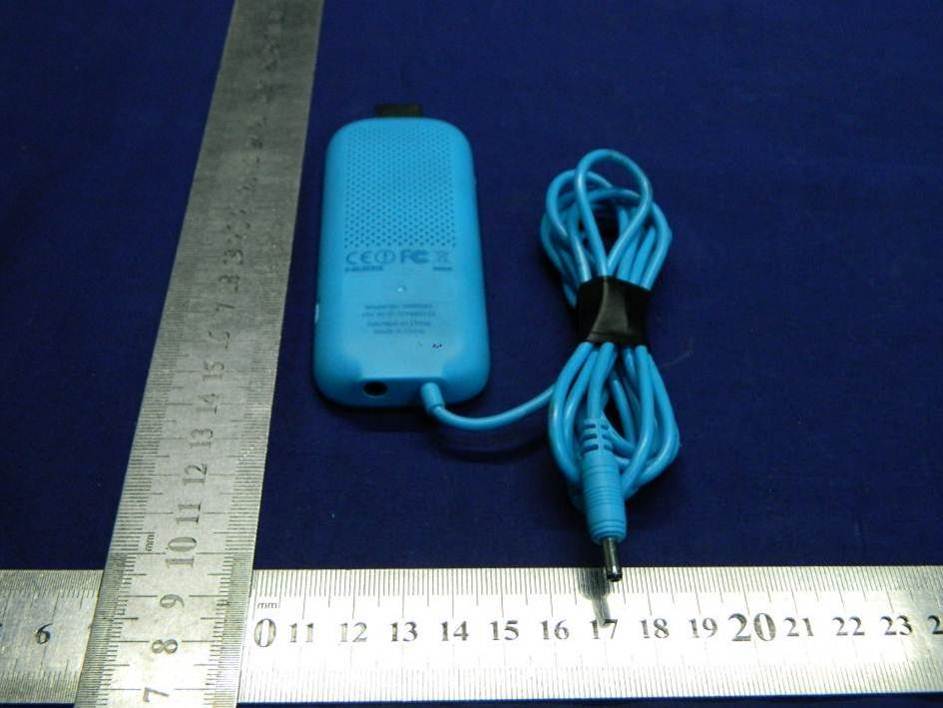

Electric Jukebox-TV stick Label Location

Electric Jukebox-TV stick BT/Wifi Antenna BT/Wifi Module 2.4G RX Antenna 2.4G RX Module

FCC ID: 2AGKTEJ80 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE,1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. mW = 10^( dBm/10) 11.2 Measurement Result Operation Frequency: 2402MHz-2480MHz; 2412MHz~2462MHz Power density limited: 1mW/ cm 2; Antenna gain: PCB Antenna 2dBi ; Bluetooth DSS &DTS: Channel Freq. (MHz) modulation conducted power (mW) conducted power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Power density at 20cm (mW/cm2) Power density Limits (mW/cm2 ) 2402 GFSK 0.39 -4.066 -5±1 -4 1.58 0.000126 1 2441 0.34 -4.710 -5±1 -4 1.58 0.000126 1 2480 0.28 -5.508 -5±1 -4 1.58 0.000126 1 2402 pi/4- DQPSK 0.14 -8.464 -8±1 -7 1.58 0.000063 1 2441 0.18 -7.462 -8±1 -7 1.58 0.000063 1 2480 0.13 -8.710 -8±1 -7 1.58 0.000063 1 2402 8DPSK 0.17 -7.767 -8.6±1 -7.6 1.58 0.000055 1 2441 0.14 -8.504 -8.6±1 -7.6 1.58 0.000055 1 2480 0.11 -9.578 -8.6±1 -7.6 1.58 0.000055 1 2402 GFSK (BLE) 0.16 -8.017 8±1 -7 1.58 0.000063 1 2440 0.15 -8.118 8±1 -7 1.58 0.000063 1 2480 0.15 -8.333 8±1 -7 1.58 0.000063 1 802.11b: Channel Frequency (MHz) Output power (mW) Output power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Power density at 20cm(mW/cm2) Power density Limits (mW/cm2 ) 2412 35.1615.46 15±1 16 1.58 0.0126 1 2437 28.5814.56 15±1 16 1.58 0.0126 1 2462 28.9714.62 15±1 16 1.58 0.0126 1 802.11g: Channel Frequency (MHz) Output power (mW) Output power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Power density at 20cm(mW/cm2) Power density Limits (mW/cm2 ) 2412 39.2615.94 15±1 16 1.58 0.0126 1 2437 33.3415.23 15±1 16 1.58 0.0126 1 2462 34.9915.44 15±1 16 1.58 0.0126 1 802.11n HT20: Channel Frequency (MHz) Output power (mW) Output power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Power density at 20cm(mW/cm2) Power density Limits (mW/cm2 ) 2412 31.4814.98 15±1 16 1.58 0.0126 1 2437 26.3614.21 15±1 16 1.58 0.0126 1 2462 29.1114.64 15±1 16 1.58 0.0126 1 802.11n HT40: Channel Frequency (MHz) Output power (mW) Output power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Power density at 20cm(mW/cm2) Power density Limits (mW/cm2 ) 2422 23.3313.68 14±1 15 1.58 0.0100 1 2437 26.9214.3 14±1 15 1.58 0.0100 1 2452 27.1614.34 14±1 15 1.58 0.0100 1

TRF No.:FCC 15.247/A Page 1 of 75 Report No.: ES151110025E1 Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For Electric Jukebox Model No.: EJ80, EJ81 FCC ID: 2AGKTEJ80 Trademark: Electric Jukebox REPORT NO.: ES151110025E1 ISSUE DATE: December 14, 2015 Prepared for MAGIC MEDIA WORKS LIMITED One West Smithfield London EC1A 9JU UK. Prepared by EMTEK (SHENZHEN) CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 75 Report No.: ES151110025E1 Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION .......................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................................ 4 3 SUMMARY OF TEST RESULT ............................................................................................................................. 6 4 TEST METHODOLOGY ........................................................................................................................................ 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED ..................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ................................................................................................................. 9 5.1 FACILITIES ................................................................................................................................................. 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .............................................................................. 9 6 TEST SYSTEM UNCERTAINTY ......................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................................. 11 7.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................. 13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ................................................................. 13 7.5 SUPPORT EQUIPMENT ........................................................................................................................... 13 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ..................................................................................... 14 8.1 STANDARD APPLICABLE .............................................................................................................................. 14 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................... 14 8.3 EQUAL HOPPING FREQUENCY USE .............................................................................................................. 15 8.4 FREQUENCY HOPPING SYSTEM .................................................................................................................... 15 9 TEST REQUIREMENTS ...................................................................................................................................... 16 9.1 20DB BANDWIDTH ................................................................................................................................. 16 9.2 CARRIER FREQUENCY SEPARATION .................................................................................................. 22 9.3 NUMBER OF HOPPING FREQUENCIES ............................................................................................... 28 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ............................................................................. 30 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................ 33 9.6 CONDUCTED SUPRIOUS EMISSION .................................................................................................... 39 9.7 RADIATED SPURIOUS EMISSION ......................................................................................................... 46 9.8 CONDUCTED EMISSION TEST .............................................................................................................. 70 9.9 ANTENNA APPLICATION ....................................................................................................................... 75 TRF No.:FCC 15.247/A Page 3 of 75 Report No.: ES151110025E1 Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: MAGIC MEDIA WORKS LIMITED One West Smithfield London EC1A 9JU UK. Manufacturer: LITE STAR ELECTRONICS TECHNOLOGY CO., LTD. Xingchen Science & Technology Park, Lianbi Road, Wulian Industry Area, Fenggang Town, Dongguan, China. Product Description: Electric Jukebox Model Number: EJ80, EJ81 File Number: ES151110025E1 Date of Test: November 11, 2015 to November 30, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J:2014 FCC 47 CFR Part 15, Subpart C:2014 PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in A…

Text truncated - open the document above for the full version.

Conducted Measurement Photo Electric Jukebox-TV stick Radiated Emission Test Electric Jukebox-TV stick
