2AGPMHJ-840Bluetooth 5.1 ultra-low power module

HJ-840 TangShan HongJia Electronic Technology Co., Ltd. http://www.tshjdz.com HJ-840 Chip-level High Performance Ultra-small (6.2mmx7mmx0.9mm Ultra-thin, Built-in Long-distance antenna) Ultra-low Power BLE5.2 Module Data Sheet V1.3 Module model: HJ-840 (based on NRF52840) HJ-840 TangShan HongJia Electronic Technology Co., Ltd. http://www.tshjdz.com CATALOG 1、Characteristics ................................................................................................................................................ - 1 - 2、Part Number ................................................................................................................................................... - 2 - 3、 Internal Structure ......................................................................................................................................... - 2 - 4、Electrical Parameters ...................................................................................................................................... - 3 - 4.1、Absolute Maximum Range ................................................................................................................... - 3 - 4.2、Recommended Operating Conditions ................................................................................................. - 3 - 4.3、I/O DC Characteristics .......................................................................................................................... - 3 - 4.4、RF Features .......................................................................................................................................... - 4 - 4.5、Power Dissipation ................................................................................................................................ - 4 - 5、Hardware specification ................................................................................................................................... - 5 - Package and dimensions（Scale 1:1） ........................................................................................................ - 5 - Pin correspondence table ......................................................................................................................... - 6 - 6、 Notice for Hardware Design ......................................................................................................................... - 7 - 7、Reflow Soldering Information ......................................................................................................................... - 8 - 8、 Packaging method ........................................................................................................................................ - 9 - 9、FCC Warning ................................................................................................................................................. - 10 - HJ-840 TangShan HongJia Electronic Technology Co., Ltd. http://www.tshjdz.com - 1 - 1、Characteristics  Operating Frequency: 2.4GHz, Support ISM free Frequency band  Support BLE 5.2, embedded low energy Bluetooth protocol stack and GATT service  Transmitting Power: -20 - +8dBm  Receiver sensitivity: -96dBm  Transmit peak current < 4.8mA @0dBm  Built-in long-distance high-performance antenna (can also be connected externally)  Supply voltage range: 1.7V-5.5V  Support BLE master-slave integration (Master and slave work at the same time without affecting each other)  Ultra-low power consumption：  Sleep current < 2μA  1Second broadcast current: 12uA  2Second broadcast current: 7uA  GPIO max: 48  On-board long-distance high-performance antenna Open ground distance: 50-80 meters @ 0dBm  Support connect to an external antenna  Size: 6.2mm * 7mm * 0.9mm (Ultra-thin, built-in antenna inside) ,Weight:0.3g， Comply with ROHS standards  Pad pitch: 0.65mm，Package: LGA64  Automotive grade operating temperature range: -40 - +105°C (Maximum limit stable temperature +120°C HJ-840 TangShan HongJia Electronic Technology Co., Ltd. http://www.tshjdz.com - 2 - 2、Part Number Type Model Description Standard Edition HJ-840 Standard bare modules, customers need to use Nordic SDK for development and use. 3、 Internal Structure HJ-840 TangShan HongJia Electronic Technology Co., Ltd. http://www.tshjdz.com - 3 - 4、Electrical Parameters 4.1、Absolute Maximum Range Table 4-1 Absolute maximum ratings Parameter MIN MAX Unit Power Supply Voltage (VCC) 1.7 5.5 V IO Supply Voltage 0 VCC V Operating Temperature -45 +120 °C Storage Temperature -55 +150 °C 4.2、Recommended Operating Conditions Table 4-2 Recommended operating conditions Parameter MIN TYP MAX Unit Power Supply Voltage (VCC) 1.8 3.3 5.5 V IO Supply Voltage 0 3.3 VCC V Dormant working current <2.0 μA Maximum Operating Current 6.0 mA Operating Temperature -40 +25 +105 °C 4.3、I/O DC Characteristics Table 4-3 I/O DC Characteristics I/O Pin Driving Capability MIN MAX Unit Input low voltage 0 0.4 V Input high voltage 0.7 VCC V Output low voltage 5mA 0 0.6 V Output high voltage 5mA 3.3 VCC V HJ-840 TangShan HongJia Electronic Technology Co., Ltd. http://www.tshjdz.com - 4 - 4.4、RF Features Table 4-4 RF Features Attribute Value Remarks Modulation GFSK Frequency range 2.402 ~ 2.480Ghz Bandwidth: 2Mhz Number of channels 40 Air speed 1Mbps、2Mbps、125Kbps RF Port Impedance 50Ω Transmit Power MAX: +8 dbm TX Current consumption TYP: 4.8 mA RX Current consumption TYP: 4.6 mA Receive sensitivity TYP: -95dbm, MAX: -96dbm Antenna Onboard long distance Antenna External antenna can be used 4.5、Power Dissipation Table 4-5 Power Dissipation Test conditions @0dBm TYP Unit Dormancy mode 2.0 μA 20ms Interval Broadcasting in Slave Mode 55 μA 1S Interval Broadcasting in Slave Mode 12 μA 20ms Connection Gap Holding Connection in Slave Mode 190 μA Scanning in Host Mode 4.5 mA 20ms Connection Gap Holding Connection in Host Mode 180 μA HJ-840 TangShan HongJia Electronic Technology Co., Ltd. http://www.tshjdz.com - 5 - 5、Hardware specificat…

Text truncated - open the document above for the full version.

Tangshan HongJia electronic technology co., LTD. Mar.04, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AGPMHJ-840 Model Number: HJ-840, HJ-841,HJ-842,HJ-843,HJ-845 To Whom It May Concern: We, The Tangshan HongJia electronic technology co., LTD. hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Tangshan HongJia electronic technology co., LTD. Contact person: Liu Ying

Tangshan HongJia electronic technology co., LTD. Agent Authorization Company: Tangshan HongJia electronic technology co., LTD. Address: 352 No. 2 # building power springs in Qianxi County, Tangshan City, Hebei Province, China Product Name: Bluetooth 5.1 ultra-low power module Model Number(s): HJ-840, HJ-841, HJ-842, HJ-843, HJ-845 Product Description: Bluetooth 5.1 ultra-low power module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-04 Name: Liu Ying Company: Tangshan HongJia electronic technology co., LTD.

Tangshan HongJia electronic technology co., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-04 Subject; Request for Confidentiality FCC ID: 2AGPMHJ-840 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Tangshan HongJia electronic technology co., LTD. Contact person: Liu Ying

Tangshan HongJia electronic technology co., LTD. RE FCC ID: 2AGPMHJ-840 To the certification reviewer: We are hereby applying for full modular approval of the above-referenced FCC ID, based on compliance with all of the criteria as detailed below. Sincerely, Liu Ying Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Shielding is provided by a metal cover over the circuitry. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna is permanently attached. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed with the module extended outside of the host on a special extender board, as shown in the test setup photos. / Testing was performed in a stand-alone configuration as shown in the test setup photos. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. A sample of the host label is provided as an exhibit, showing the FCC identifier of the module. Tangshan HongJia electronic technology co., LTD. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The module complies fully with the operating requirements of Part 15 section [...] as demonstrated in the test report exhibit. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This module operates under Part 15 section [15.247], compliance with RF Exposure， please refer to MPE Report.

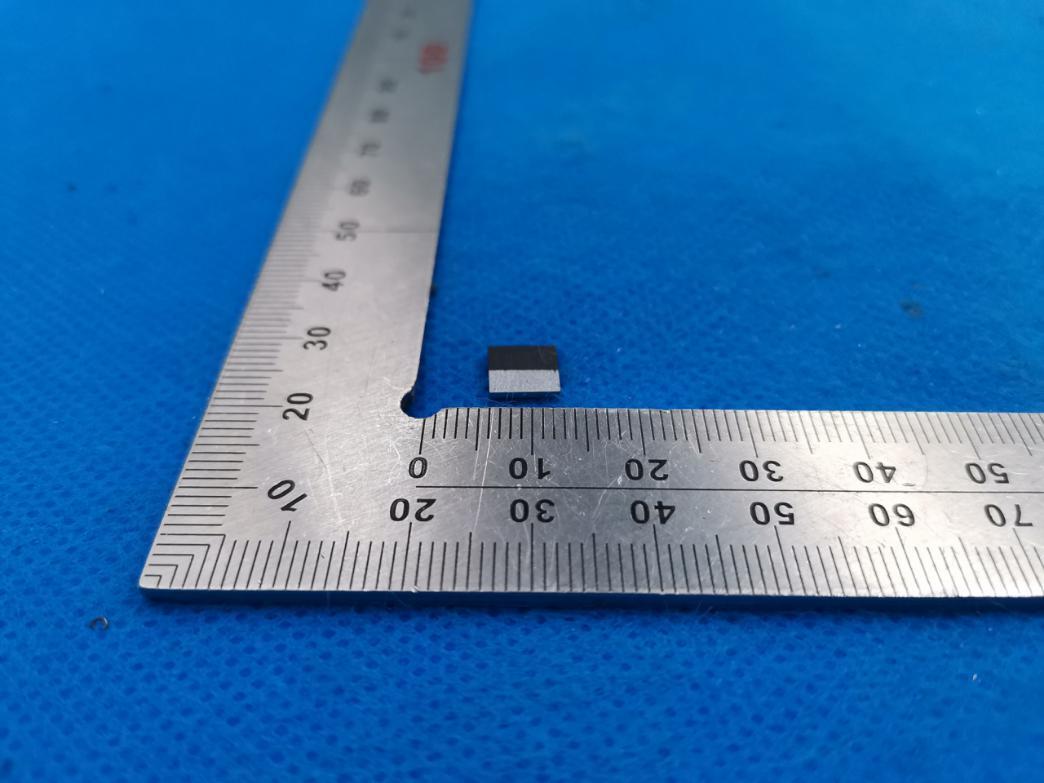

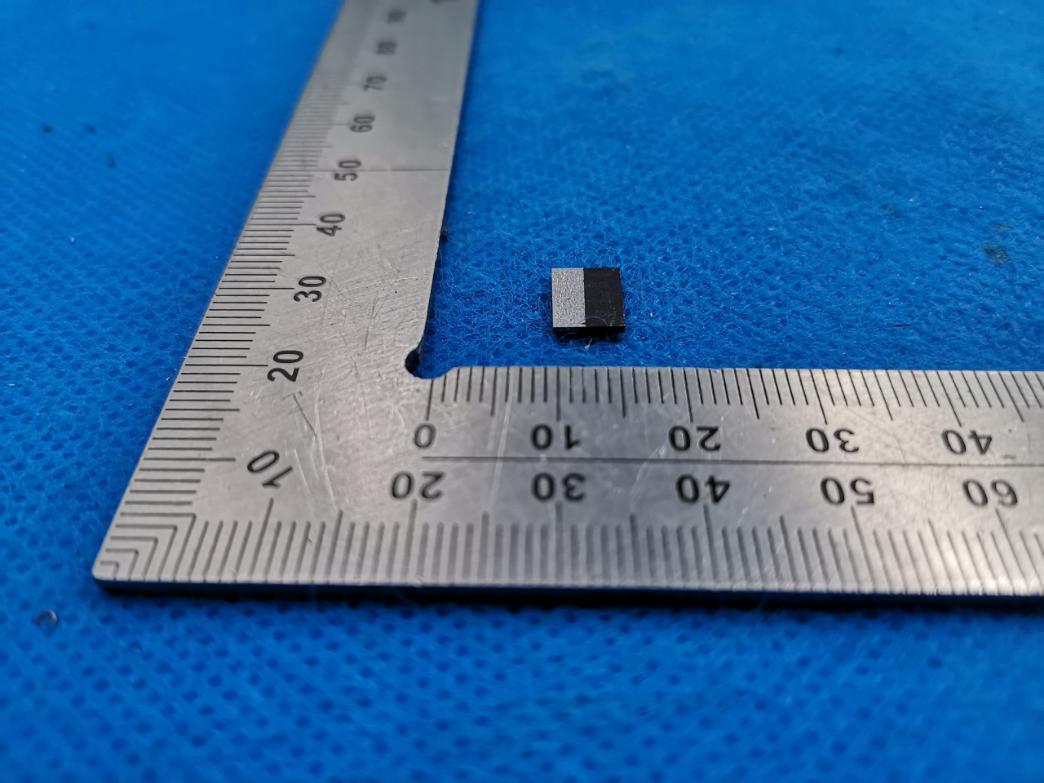

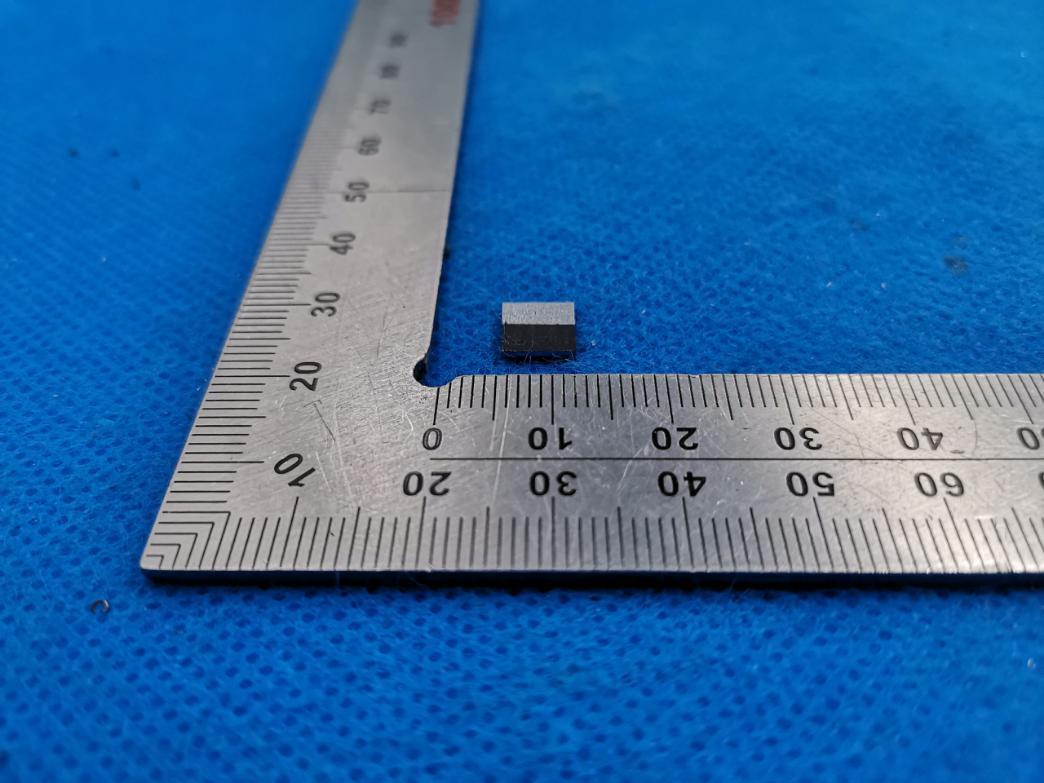

External Photos EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT

FCC ID Label Location FCC ID: 2AGPMHJ-840

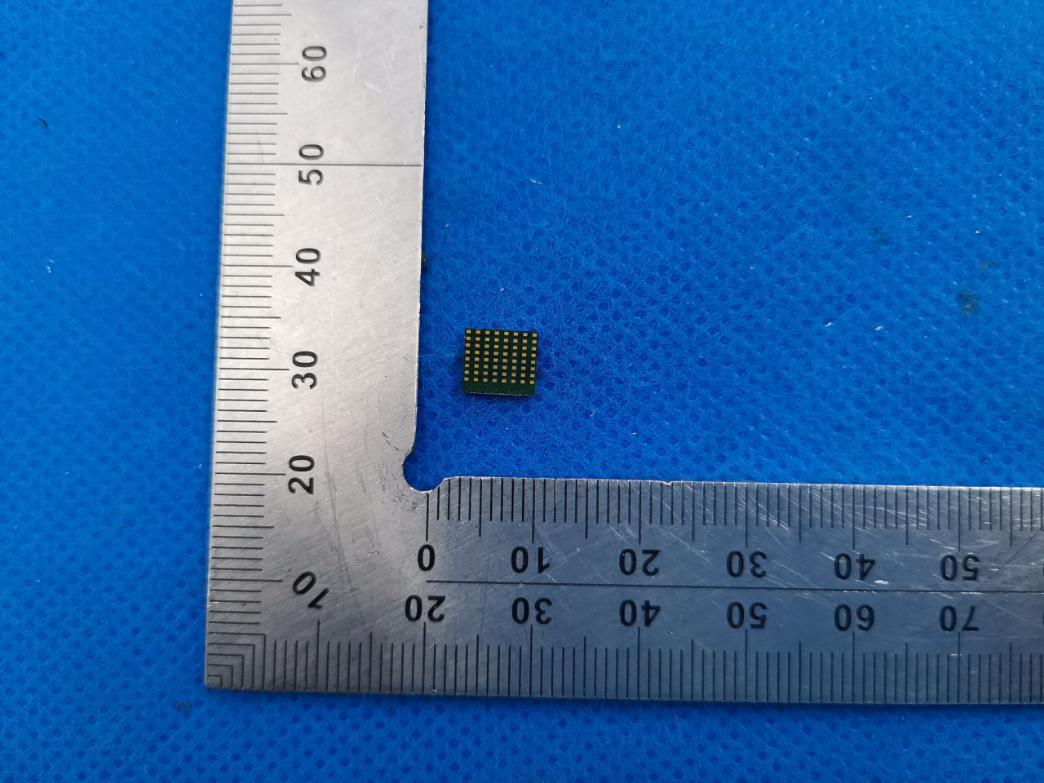

Internal Photos Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Bluetooth 5.1 ultra-low power module Model Name HJ-840 FCC ID 2AGPMHJ-840 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. BT Antenna Gain=3.2dBi (Numeric 2.09), π=3.14 Note: 1. Only the worst case recorded. 3. conclusion Compliance the RF exposure requirement Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2480 -4.910 0.32 0.0001 1

Page 1 of 43 FCC Test Report Report No.: AGC00806201008FE02 FCC ID : 2AGPMHJ-840 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth 5.1 ultra-low power module BRAND NAME : HongJia MODEL NAME : HJ-840, HJ-841,HJ-842,HJ-843,HJ-845 APPLICANT : Tangshan HongJia electronic technology co., LTD. DATE OF ISSUE : Dec. 01, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00806201008FE02 Page 2 of 43 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Dec. 01, 2020 Valid Initial Release Report No.: AGC00806201008FE02 Page 3 of 43 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ...................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................... 7 2.4. TEST METHODOLOGY ........................................................................................................................... 7 2.5. SPECIAL ACCESSORIES ....................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS .............................................................................................................. 7 2.7. ANTENNA REQUIREMENT ..................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................. 10 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................ 10 5.3. SUMMARY OF TEST RESULTS ............................................................................................................ 10 6. TEST FACILITY ........................................................................................................................................... 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 13 8. 6 DB BANDWIDTH ...................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 17 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 17 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 25 Report No.: AGC00806201008FE02 Page 4 of 43 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 25 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 25 10.3. MEASUREMENT EQUIPMENT USED ................................................................................................ 25 10.4. LIMITS AND MEASUREMENT RESULT ............................................................................................. 25 11. RADIATED EMISSION ............................................................................................................................... 27 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 27 11.2. TEST SETUP ....................................................................................................................................... 28 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 29 11.4. TEST RESULT ..…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ LINE CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
