SAR limit of 1.6W/kg-1g is applied for this product. For close to body operation condition, this device has been tested and meets the FCC RF exposure guidelines, when used with an accessory, the accessory should not contain any metal element and positioned minimum of 5 mm from the body. RF exposure compliance with any accessory that contains metal was not tested and certified, and use of such accessory should be avoided. 成品尺寸：120*70mm | 成品材质：128g 铜版纸 | 出血：3mm | 成品折法：风琴折 | 注意：线框不要印出 封面 封底 70mm 120mm FCC Regulations ⚫ This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ⚫ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. ⚫ Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Radio Frequency (RF) Energy This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. The exposure standard for wireless devices employing a unit of measurement is known as the Specific Absorption Rate, or SAR. The SAR limit recommended by the general public is 1.6W/kg Averaged over one gram of tissue by IEEE Std 1528. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirements. SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit and the human body. Carry this device at least 10 mm away from your body to ensure RF exposure level compliant or lower to the reported level.

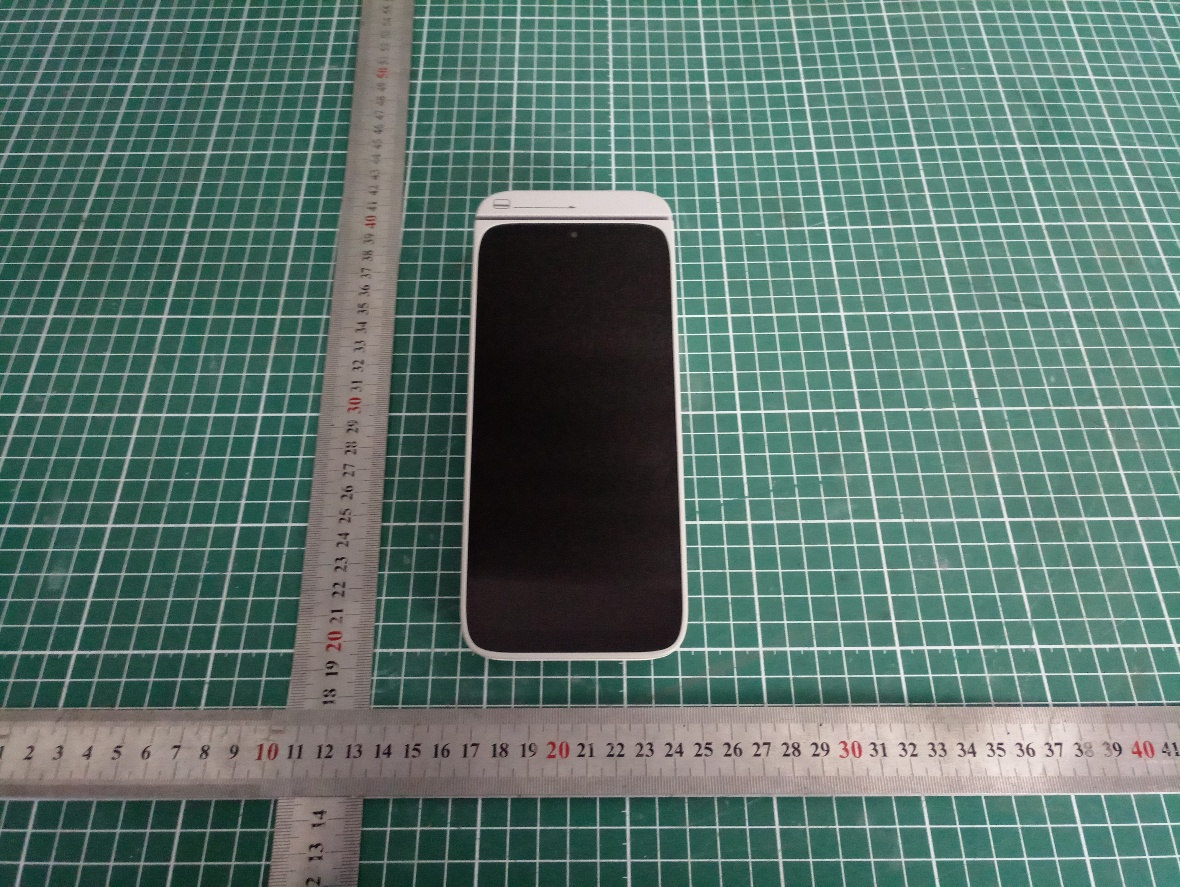

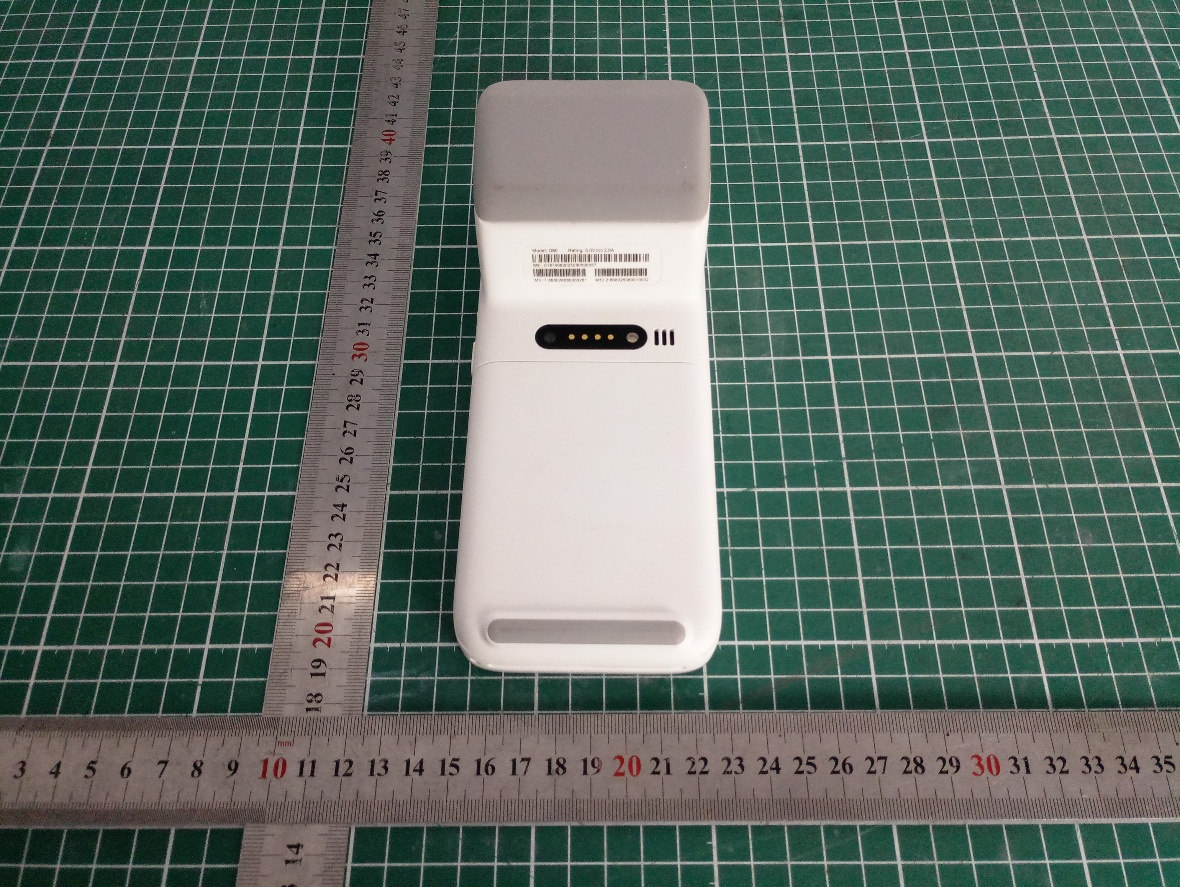

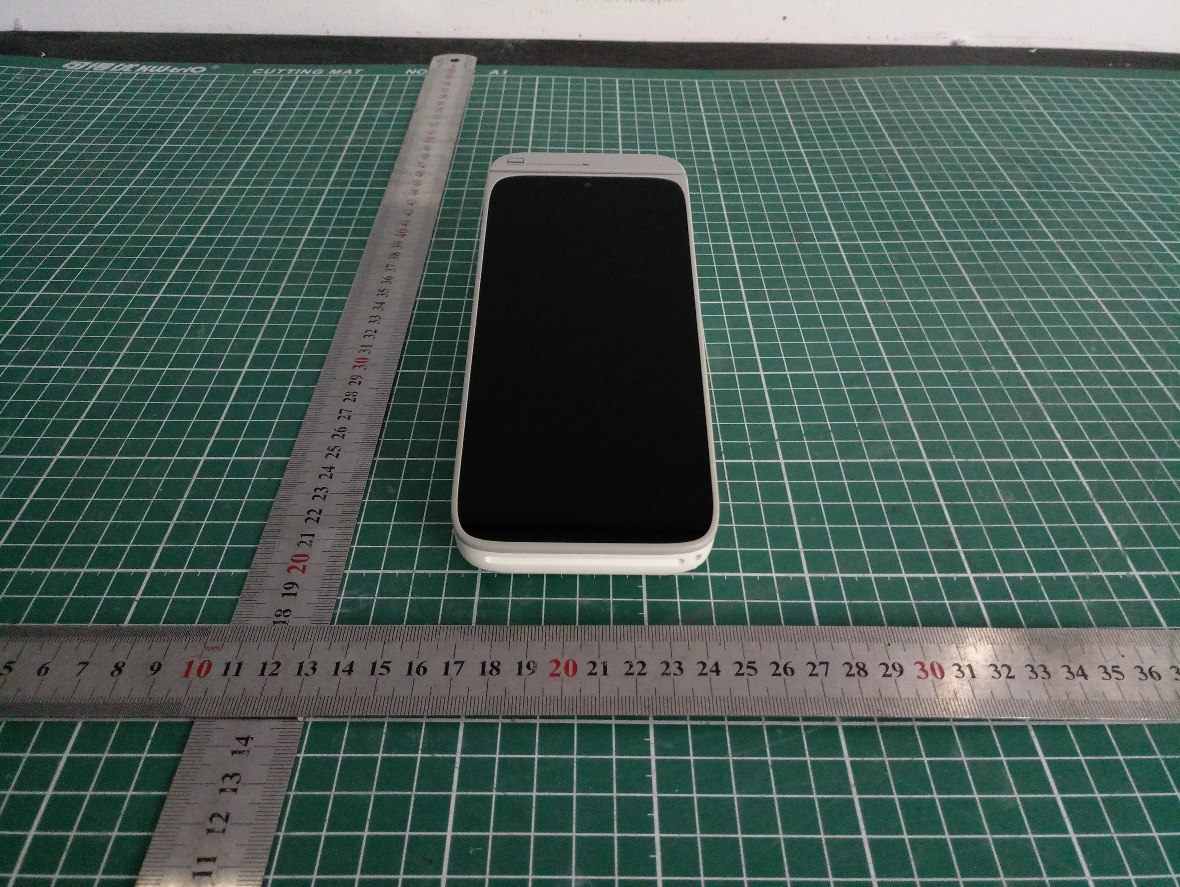

Prepared by: Wei Fangying Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 SAR TEST REPORT Applicant Dspread Technology (Beijing) Inc FCC ID 2AGQ6-D80 Product Product: Smart POS Brand Brand: Dspread Model D80 Report No. EFTA25090408-IE-08-S1 Issue Date December 19, 2025 Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in IEEE 1528-2013, ANSI C95.1: 1992, IEEE C95.1: 1991. The test results show that the equipment tested can demonstrate compliance with the requirements as documented in this report. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 2 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ................................................................................................................................. 4 1.1 Notes of the Test Report ............................................................................................................ 4 1.2 Test Facility ................................................................................................................................ 4 1.3 Testing Location......................................................................................................................... 4 1.4 Laboratory Environment ............................................................................................................ 4 2 Statement of Compliance .................................................................................................................. 5 3 Description of Equipment Under Test ............................................................................................... 7 4 Test Specification, Methods and Procedures ................................................................................... 9 5 Operational Conditions during Test ................................................................................................. 10 5.1 Test Positions .......................................................................................................................... 10 5.1.1 Body SAR Configuration ................................................................................................. 10 5.1.2 Extremity exposure conditions ....................................................................................... 10 5.2 Measurement Variability .......................................................................................................... 11 5.3 Test Configuration ................................................................................................................... 12 5.3.1 GSM Test Configuration ................................................................................................. 12 5.3.2 WCDMA Test Configuration ........................................................................................... 12 5.3.3 LTE Test Configuration ................................................................................................... 17 5.3.4 Additional Requirements for TDD LTE Specification .................................................. 18 5.3.5 Wi-Fi Test Configuration ................................................................................................. 20 5.3.6 Bluetooth Test Configuration .......................................................................................... 21 5.3.7 SAR Detection Mechanism Specification ..................................................................... 22 6 SAR Measurements System Configuration .................................................................................... 23 6.1 SAR Measurement Set-up ....................................................................................................... 23 6.2 DASY5 E-field Probe System .................................................................................................. 24 6.3 SAR Measurement Procedure ................................................................................................. 25 7 Main Test Equipment ....................................................................................................................... 27 8 Tissue Dielectric Parameter Measurements & System Check ....................................................... 28 8.1 Tissue Verification ................................................................................................................... 28 8.2 System Check .......................................................................................................................... 30 8.3 SAR System Validation ............................................................................................................ 33 9 Normal and Maximum Output Power .............................................................................................. 34 9.1 GSM Mode ............................................................................................................................... 34 9.2 WCDMA Mode ......................................................................................................................... 36 9.3 LTE Mode ................................................................................................................................ 38 9.4 WLAN Mode ............................................................................................................................. 88 9.5 Bluetooth Mode ........................................................................................................................ 91 9.6 NFC Mode ................................................................................................................................ 92 10 Measure…

Text truncated - open the document above for the full version.

SAR Test Setup Report No.: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030S Page 1 of 7 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Setup Picture 1: Antenna 0 Back Side, the distance from EUT to the bottom of the Phantom is 10mm Picture 1: Antenna 0 Back Side2, the distance from EUT to the bottom of the Phantom is 10mm SAR Test Setup Report No.: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030S Page 2 of 7 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 2: Antenna 2 Back Side, the distance from EUT to the bottom of the Phantom is 10mm Picture 2: Antenna 0 and Antenna 2 Front Side, the distance from EUT to the bottom of the Phantom is 10mm SAR Test Setup Report No.: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030S Page 3 of 7 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 3: Antenna 0 and Antenna 2 Left Edge, the distance from EUT to the bottom of the Phantom is 10mm Picture 4: Antenna 0 and Antenna 2 Right Edge, the distance from EUT to the bottom of the Phantom is 10mm SAR Test Setup Report No.: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030S Page 4 of 7 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 5: Antenna 0 and Antenna 2 Top Edge, the distance from EUT to the bottom of the Phantom is 10mm Picture 6: Antenna 0 Back Side, the distance from EUT to the bottom of the Phantom is 0mm SAR Test Setup Report No.: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030S Page 5 of 7 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 6: Antenna 0 Back Side2, the distance from EUT to the bottom of the Phantom is 0mm Picture 6: Antenna 2 Back Side, the distance from EUT to the bottom of the Phantom is 0mm SAR Test Setup Report No.: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030S Page 6 of 7 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 7: Antenna 0 and Antenna 2 Front Side, the distance from EUT to the bottom of the Phantom is 0mm Picture 8: Antenna 0 and Antenna 2 Left Edge, the distance from EUT to the bottom of the Phantom is 0mm SAR Test Setup Report No.: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-030S Page 7 of 7 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 9: Antenna 0 and Antenna 2 Right Edge, the distance from EUT to the bottom of the Phantom is 0mm Picture 10: Antenna 0 and Antenna 2 Top Edge, the distance from EUT to the bottom of the Phantom is 0mm

RF Test Setup Report No: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-107R Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Part 15C & 15E Test Setup 9kHz-30MHz 30MHz-1GHz RF Test Setup Report No: EFTA25090408-IE-08 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-107R Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 1GHz-18GHz Picture 1 Radiated Emission Test Setup Picture 2 Conducted Emission Test Setup

AntennaReports Issuedate:2025/08/21 Documentedby: AntennaSummaryTable CheckitemsInformation ProvidedbylabTinnointernallab(GTS) Manufacturer/Brand name ShenzhenHamyweMicroTechnologyCo.,Ltd. hanghaiDemanElectronicsTechnologyCo.,Ltd. Manufactureraddress 4thFloor,BuildingD,AimetElectricApplianceCompany,No.4Huangfengling IndustrialAvenue,ShiyanStreet,Bao'anDistrict,ShenzhenCity,Guangdong Province,China No.58,ShenxueRoad,XinzhuangIndustrialPark,MinhangDistrict,Shanghai Modelname(Part number) X3322-N280A-MIAN-V0.4YYWW X3322-N280A-DIV-V0.2YYWW X3322-N280A-GWB-V0.3YYWW TestenvironmentTinnoXI’AnRDteamLabwithGTS2800 chamber TestequipmentsoftwareGTSMaxSign-Libra Listofcalibratedtest equipment GTS2800withcalibrateddate: 2024/10/26,Duedate:2025/10/25 Antennadetailinfo.ShowWLAN/BT/WWAN ANT0:LMBantenna(699~960MHz,1.7~2.7GHz),Monopole typeantenna. ANT1:LMBantenna(699~960MHz,1.7~2.7GHz),PIFA typeantenna. ANT2:GPS1575MHz+WiFi2.4G+5Gantenna (2.4~2.5GHz ， 5.15~5.8GHz),Monopoletypeantenna. NFCAntenna:NFCantennawithdimension66.1mm *37mm AntennagaintestdataIncludedantennafrequency,gainpattern Note:Antennagainwasmeasuredintheanechoicchamber,3Dscanwasexercised,andthehighest numbersarereportedinthisdocument. TableofContents 1.AntennaPlacement-----------------------------------------------------------------------------------------------------------------------4 2.PeakGain----------------------------------------------------------------------------------------------------------------------------------5 3.GainPlots-----------------------------------------------------------------------------------------------------------------------------------6 4.testsetup-----------------------------------------------------------------------------------------------------------------------------------11 1. AntennaPlacement USEU ANTbandbanddetailbanddetailfunction ANT0 LB G850/G900G850/G900 TX&RX0 WB5/WB8WB5/WB8 LTEB5/B8/B12/B17/B19/B26/B28LTEB5/B8/B19/B20/B26 MB G1800/G1900G1800/G1900 WB1/B2/B4WB1 LTEB1/2/3/4/25/66LTEB1/3 HBLTEB7/B38/B41LTEB7/B38/B40/B41 ANT1 LB G850/G900G850/G900 RX1 WB5/WB8WB5/WB8 LTEB5/B8/B12/B17/B19/B26/B28LTEB5/B8/B19/B20/B26 MB G1800/G1900G1800/G1900 WB1/B2/B4WB1 LTEB1/2/3/4/25/66LTEB1/3 HBLTEB7/B38/B41LTEB7/B38/B40/B41 ANT2 WIFI/GPS L1/BT 2.4G+5GWIFITRX/GPSL1/BT 2.4G+5GWIFITRX/GPS L1/BT TRX NFCNFC13.56MHz13.56MHz 2.TXAntennaPeakGain Test/PositionFreeSpace bandsFrequency TXAntenna PeakGain Ant0 GSM850 824-849MHz1.99 GSM900 880-915MHz1.3 DCS1800 1710-1785MHz0.74 PCS1900 1850-1910MHz0.8 WCDMABand1 1920-1980MHz1.82 WCDMABand2 1850-1910MHz0.8 WCDMABand4 1710-1755MHz0.74 WCDMABand5 824-849MHz1.99 WCDMABand8 880-915MHz1.3 LTEBand1 1920-1980MHz1.82 LTEBand2 1850-1910MHz0.8 LTEBand3 1710-1785MHz0.74 LTEBand4 1710-1755MHz0.74 LTEBand5 824-849MHz1.99 LTEBand7 2500-2570MHz2.7 LTEBand8 880-915MHz1.3 LTEBand12 699-716MHz0.14 LTEBand17 704-716MHz0.14 LTEBand19 830-845MHz1.99 LTEBand20 832-862MHz 1.99 LTEBand25 1850-1915MHz0.8 LTEBand26 814-849MHz1.99 LTEBand28 703-748MHz0.14 LTEBand38 2570-2620MHz2.7 LTEBand40 2300-2400MHz0.91 LTEBand41 2496-2690MHz2.7 LTEBand66 1710-1780MHz0.74 Test/PositionFreeSpace bandsFrequency TXAntennaPeak Gain ANT6 WiFi2.4G 2400-2500MHz0.46 WiFi5G 5150~5250MHz-0.31 WiFi5G 5250~5350MHz-0.14 WiFi5G 5470~5725MHz-0.12 WiFi5G 5725~5850MHz-0.63 3.GainPlots ANT2 WIFI2.4G(2450MHz) WIFI5G(5200MHz) WIFI5G(5350MHz) WIFI5G(5500MHz) WIFI5G(5800MHz) ANT0 850/W5/B5/B19/B20/B26 900/W8/B8 B12/B17/B28 B3/B4/B66/G1800/W4 B2/B25/G1900/W2 W1/B1 B40 B7/B38/B41 4.Testsetup

Test Result Report No.: EFTA25090408-IE-08-R6-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 1 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. ANNEX A: Test Result 1. Radiates Emission The field strength of spurious emission was measured in the following position: EUT stand-up position (Z axis), lie-down position (X, Y axis). The worst emission was found in lie-down position (X axis) and the loop antenna is vertical, the other antennas are vertical and horizontal. A symbol ( ) in the test plot below means (dBμV/m) In-band 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 13.11 13.2 13.3 13.4 13.5 13.6 13.7 13.8 13.9 14.01 Level in dB 礦 /m Frequency in MHz 13.559241 MHz 48.036 dB礦/m Radiates Emission from 13.11MHz to 14.01MHz Note: This graph displays the maximum values of horizontal and vertical by software Test Result Report No.: EFTA25090408-IE-08-R6-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 2 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Out-of-band The following graphs display the maximum values of horizontal and vertical by software. For above 1GHz, Blue trace uses the peak detection, Green trace uses the average detection. Radiates Emission from 9kHz to 30MHz Test Result Report No.: EFTA25090408-IE-08-R6-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 3 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Radiates Emission from 30MHz to 1GHz Remark: 1. Correction Factor = Antenna factor + Insertion loss (cable loss + amplifier gain) 2. Margin = Limit – Quasi-Peak Test Result Report No.: EFTA25090408-IE-08-R6-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 4 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 2. Conducted Emission During the test, the Conducted Emission was performed in all modes with all channel. The test data of the worst-case condition was recorded in this report. Frequency [MHz] QPK Level [dBμV] QPK Limit [dBμV] QPK Margin [dB] AVG Level [dBμV] AVG: CAV Limit [dBμV] AVG Margin [dB] Correction [dB] Line Meas. BW [kHz] Meas. Time [s] 0.184 52.07 64.31 12.25 38.19 54.31 16.12 21.03 L1 9.000 1.000 0.422 36.67 57.40 20.73 20.57 47.40 26.83 20.85 L1 9.000 1.000 1.295 24.08 56.00 31.92 15.46 46.00 30.54 19.96 L1 9.000 1.000 3.667 21.92 56.00 34.08 15.03 46.00 30.97 19.44 L1 9.000 1.000 8.457 26.68 60.00 33.32 16.28 50.00 33.72 19.41 L1 9.000 1.000 27.119 55.38 60.00 4.62 42.36 50.00 7.64 19.81 L1 9.000 1.000 Remark: Correct factor=cable loss + LISN factor L line Conducted Emission from 150 kHz to 30 MHz Test Result Report No.: EFTA25090408-IE-08-R6-ANNEX A Eurofins TA Technology (Shanghai) Co., Ltd. Page 5 of 5 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Frequency [MHz] QPK Level [dBμV] QPK Limit [dBμV] QPK Margin [dB] AVG Level [dBμV] AVG: CAV Limit [dBμV] AVG Margin [dB] Correction [dB] Line Meas. BW [kHz] Meas. Time [s] 0.184 42.98 64.31 21.34 27.03 54.31 27.29 21.04 N 9.000 1.000 0.418 34.08 57.49 23.41 20.88 47.49 26.61 20.87 N 9.000 1.000 1.032 25.69 56.00 30.31 19.17 46.00 26.83 20.15 N 9.000 1.000 2.216 21.16 56.00 34.84 13.86 46.00 32.14 19.61 N 9.000 1.000 5.172 19.38 60.00 40.62 13.23 50.00 36.77 19.41 N 9.000 1.000 27.121 55.85 60.00 4.15 43.45 50.00 6.55 19.88 N 9.000 1.000 Remark: Correct factor=cable loss + LISN factor N line Conducted Emission from 150 kHz to 30 MHz

Prepared by: Xu Ying Approved by: Xu Kai Eurofins TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 RF TEST REPORT Applicant Dspread Technology (Beijing) Inc FCC ID 2AGQ6-D80 Product Smart POS Brand Dspread Model D80 Report No. EFTA25090408-IE-08-R6 Issue Date December 18, 2025 Eurofins TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 15C (2025). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. RF Test Report Report No.: EFTA25090408-IE-08-R6 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008R Page 2 of 23 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ............................................................................................................................... 4 1.1. Notes of the Test Report ......................................................................................................... 4 1.2. Test Facility ............................................................................................................................. 4 1.3. Testing Location...................................................................................................................... 4 2. General Description of Equipment Under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ................................................................................ 5 2.2. General Information ................................................................................................................ 5 3. Applied Standards ........................................................................................................................... 6 4. Test Configuration ........................................................................................................................... 7 5. Test Case ........................................................................................................................................ 8 5.1. 20dB Bandwidth ...................................................................................................................... 8 5.2. Frequency Stability ................................................................................................................. 9 5.3. Radiates Emission ................................................................................................................ 11 5.4. Conducted Emission ............................................................................................................. 14 6. Test Results .................................................................................................................................. 16 6.1. 20dB Bandwidth .................................................................................................................... 16 6.2. Frequency Stability ............................................................................................................... 17 6.3. Radiates Emission ................................................................................................................ 17 6.4. Conducted Emission ............................................................................................................. 20 7. Main Test Instruments .................................................................................................................. 21 8. The EUT Appearance ................................................................................................................... 22 9. Test Setup Photos ......................................................................................................................... 23 RF Test Report Report No.: EFTA25090408-IE-08-R6 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008R Page 3 of 23 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Summary of Measurement Results Number Test Case Clause in FCC rules Verdict 1 20 dB Bandwidth 2.1049 PASS 2 Frequency Stability Tolerance 15.225(e) PASS 3 Radiated Emissions 15.225 (a) (b) (c) (d) and 15.209 PASS 4 Conducted Emissions 15.207 PASS Date of Testing: November 11, 2025 ~ November 14, 2025 Date of Sample Received: September 30, 2025 Note: PASS: The EUT complies with the essential requirements in the standard. FAIL: The EUT does not comply with the essential requirements in the standard. All indications of Pass/Fail in this report are opinions expressed by Eurofins TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. RF Test Report Report No.: EFTA25090408-IE-08-R6 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-04-008R Page 4 of 23 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of Eurofins TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. This report must not be used by the client to claim product certification, approval, or endorsement by any government agencies. 1.2. Test Facility FCC (Designation nu…

Text truncated - open the document above for the full version.

© TINNO Proprietary and Confidential 进取 2024 Enterprising 担当 Accountable 客户导向 Customer Centric Antenna position Antenna position ANT0 天线位于纸 仓侧立面 ANT1 ANT2 天线位于纸 仓侧立面 USEU ANTbandband detailband detailfunction ANT0 (CR2114GL A) LB G850/G900G850/G900 TX&RX0 WB5/WB8WB5/WB8 LTE B5/B8/B12/B17/B19/B26/B28LTE B5/B8/B19/B20/B26 MB G1800/G1900G1800/G1900 WB1/B2/B4WB1 LTEB1/2/3/4/25/66LTEB1/3 HBLTEB7/B38/B41LTEB7/B38/B40/B41 ANT1 (CR2114GL A) LB G850/G900G850/G900 RX1 WB5/WB8WB5/WB8 LTE B5/B8/B12/B17/B19/B26/B28LTE B5/B8/B19/B20/B26 MB G1800/G1900G1800/G1900 WB1/B2/B4WB1 LTEB1/2/3/4/25/66LTEB1/3 HBLTEB7/B38/B41LTEB7/B38/B40/B41 ANT2 WIFI/GPS L1/BT 2.4G+5GWIFI TRX/GPS L1/BT 2.4G+5GWIFI TRX/GPS L1/BT TRX NFC:天线位于纸仓顶部立面 THINK INNOVATIVE © TINNO Proprietary and Confidential 广东省深圳市南山区西丽仙洞路33号天珑大厦23楼 2024 www.tinno.com 23/F,TINNO Building, No.33, Xiandong Rd. Xili, Nanshan District, Shenzhen, Guangdong Province, PRC 进取 Enterprising 担当 Accountable 客户导向 Customer Centric

SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 167 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. ANNEX E: D750V3 Dipole Calibration Certificate SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 168 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 169 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 170 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 171 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 172 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 173 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. ANNEX F: D835V2 Dipole Calibration Certificate SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 174 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 175 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 176 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 177 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: EFTA25090408-IE-08-S1 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 178 of 216 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Sh…
