2AGR4-101792AUDEN ALUMINUM WIRELESS SPEAKER-SILVER

1. Power On: Press and hold the Power On/Off button for more than 3 seconds to turn on the speaker. The indicator light will turn blue and you will hear a beep. 2. Pairing: Once speaker is turned on, using your mobile device, search for Bluetooth devices and select Bluetooth ID 'GEMLINE SPKR'. The speaker will pair automatically. 3. Power Off: Press and hold the Power On/Off button for more than 3 seconds to turn off the speaker. 4. Play/Pause: When listening to music, press once to play/ pause music. 5. Next track/Vol +: Press and hold to change music to the next track. Quickly press to increase volume. 6. Previous track/Vol -: Press and hold to change music to the previous track. Quickly press to decrease volume. 7. AUX: Plug a 3.5mm audio cable into the back of the speaker in order to play music from a non-Bluetooth enabled device. 3.5mm audio cable not included. 8. Charging: To charge the speaker, plug the included USB cable into an adapter (adapter not included). The LED indicator light will display a solid red light when charging. When fully charged, the red indicator light will turn off. Operation Instructions Product dimensions:87*87*80mm Battery capacity: 3.7V/1800mAh 6.66Wh Input: DC 5V / 1A Speaker power4Ω 5W*1 Frequency80-18KHZ Input5V / 1A Playback time4 Hours Charging time2.5 Hours Bluetooth specifications : Bluetooth version 5.0 Transmission distance: up to 10m (This may vary based on environmental factors or the type of Bluetooth device being used ) Attention: 1. Please enjoy music with an appropriate volume, which will avoid to damage your hearing and sound system. 2. Please avoid exposure, rain, water droplets, avoid prolonged exposure to high temperature, high humidity environment. 3. During use, please make it away from heat, high pressure, and prevent children from playing with this product. 4. When the music volume becoming smaller or distorted, slow, silent, may indicate that the lithium battery power is shortages, need to be charged. 5. Please use the power which meets the requirements. 6. Do not drop or bump and applied heavy pressure to avoid damage to the product. 7. Please do not disassemble the product to avoid danger. 8. Long-term not using, please turn off the power and unplug the charger power cable. AUDEN ALUMINUM WIRELESS SPEAKER-SILVER IC ID: 2AGR4-101792 FCC ID: 21530-101792 1. Power ON/OFF / Play/pause 2. Next track/Vol + 3. Previous track/ Vol- 4. Charging and Bluetooth LED indicator 5. Type C input 6. RESET 7. Aux input 123 Speaker Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with I ndustry Canada licence-exempt RSS standard(s). Operation is subject to the foll owing two conditions: (1)this device may not cause interference, and(2) this device must accept any interference, includinginterference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver.. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help 456 DC-5VRESETAUX IN 2 1 3 4 567 说明书要求：4C印刷 1.印刷方式：折页 2.尺寸：76.2X76.2mm 3.材质：90g铜版纸 4.请按照页数正确排版（如123...） 5.双面印刷 Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used installed and operated with minimum distance 0mm between the radiator and your body. L'appareil a été évalué pour répondre aux exigences générales d'exposition aux RF.Cet équipement doit être installé et utilisé avec une distance minimale de 0 mm entre le radiateur et votre corps.

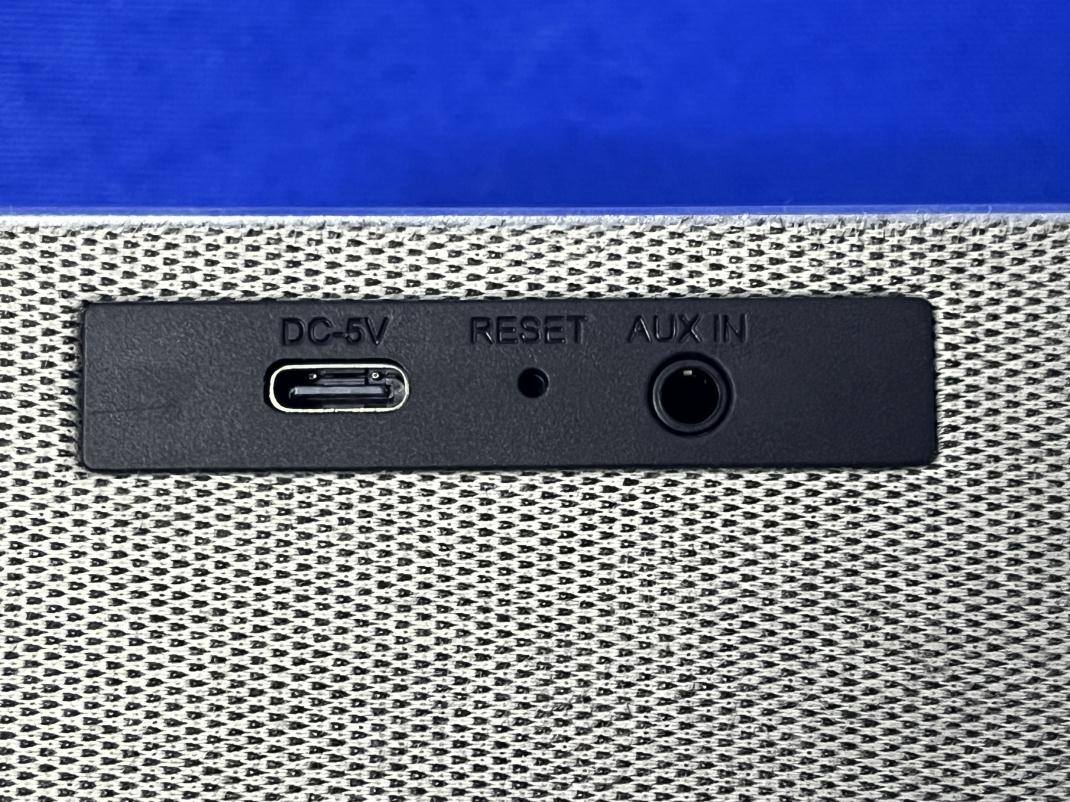

Page 1 of 4 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8

Page 1 of 1 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Label and Location Size: L: 4.0cm*W: 5.0cm Label Location AUDEN ALUMINUM WIRELESS SPEAKER-SILVER Model No.: 101792-128B FCC ID: 2AGR4-101792 IC:21530-101792 HVIN: 101792-128B

Page 1 of 5 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 5 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Antenna Page 3 of 5 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 5 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 5 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9

Page 1 of 4 FCC ID: 2AGR4-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information Product name : AUDEN ALUMINUM WIRELESS SPEAKER-SILVER Test Model : 101792-128B Power Supply : Input: DC 5V, 1A DC 3.7V by Rechargeable Li-ion Battery(1800mAh) Hardware Version : 1.0 Software Version : 1.0 Frequency Range : 2402MHz ~ 2480MHz Channel Number : 79 channels for Bluetooth V5.3(DSS) Channel Spacing : 1MHz for Bluetooth V5.3(DSS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.3(DSS) Bluetooth Version : V5.3 Antenna Description : PCB Antenna, -0.58dBi(Max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison Page 2 of 4 FCC ID: 2AGR4-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices Page 3 of 4 FCC ID: 2AGR4-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 4. Conducted Power Results <BT> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 1.33 39 2441 1.54 78 2480 1.54 π/4DQPSK 0 2402 1.07 39 2441 1.2 78 2480 1.33 8-DPSK 0 2402 1.14 39 2441 1.34 78 2480 1.41 5. Manufacturing Tolerance <BT> GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 π…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date Antenna module on the system board Frequenc Range 2400 ~ 2500MHz Ant. Port Input Pwr. (dBm) 0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm) -1.2 (Input pwr – loss pwr) Peak EIRP(d Bm) 1.2 Directivity (dBi) 1 (all direction antenna) Efficiency (dB) 6 0.2 % Gain (dBi) -0.58dBi Maximum Power (dBm) 1.7 (XY-plane) Minimum Power (dBm) -4(XY-plane) Avg. Power (dBm) -0.5(XY-plane) Input Impendence(ohm) 50 Polarization Type V ertical & Horizontal V . S .W . R < 1.4 All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHz XY-plane XZ-plane YZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board -3.32-1.68 -4.6-1.11 -3.566 0.2 % -0.58 Retum Loss PIFA The Environment of Antenna Radiation Pattem 3D radiation pattern diagram XY-plane XZ-plane YZ-plane

Page 1 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Appendix A RF Test Data for BT (Conducted Measurement) Product Name: AUDEN ALUMINUM WIRELESS SPEAKER-SILVER Test Model: 101792-128B Environmental Conditions Temperature: 23.1 C Relative Humidity: 52.3% ATM Pressure: 100.0 kPa Test Engineer: Nick Peng Supervised by: Ling Zhu Page 2 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.1 -20dB Bandwidth Condition Mode Frequency (MHz) Antenna -20 dB Bandwidth (MHz) Limit -20 dB Bandwidth (MHz) Verdict NVNT 1-DH5 2402 Ant 1.026 N/A Pass NVNT 1-DH5 2441 Ant 1.019 N/A Pass NVNT 1-DH5 2480 Ant 1.033 N/A Pass NVNT 2-DH5 2402 Ant 1.282 N/A Pass NVNT 2-DH5 2441 Ant 1.28 N/A Pass NVNT 2-DH5 2480 Ant 1.312 N/A Pass NVNT 3-DH5 2402 Ant 1.291 N/A Pass NVNT 3-DH5 2441 Ant 1.273 N/A Pass NVNT 3-DH5 2480 Ant 1.281 N/A Pass Page 3 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -20dB Bandwidth NVNT 1-DH5 2402MHz Ant -20dB Bandwidth NVNT 1-DH5 2441MHz Ant Page 4 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -20dB Bandwidth NVNT 1-DH5 2480MHz Ant -20dB Bandwidth NVNT 2-DH5 2402MHz Ant Page 5 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -20dB Bandwidth NVNT 2-DH5 2441MHz Ant -20dB Bandwidth NVNT 2-DH5 2480MHz Ant Page 6 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -20dB Bandwidth NVNT 3-DH5 2402MHz Ant -20dB Bandwidth NVNT 3-DH5 2441MHz Ant Page 7 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity -20dB Bandwidth NVNT 3-DH5 2480MHz Ant Page 8 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity A.2 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT 1-DH5 2402 Ant 0.882 NVNT 1-DH5 2441 Ant 0.903 NVNT 1-DH5 2480 Ant 0.903 NVNT 2-DH5 2402 Ant 1.185 NVNT 2-DH5 2441 Ant 1.173 NVNT 2-DH5 2480 Ant 1.183 NVNT 3-DH5 2402 Ant 1.18 NVNT 3-DH5 2441 Ant 1.194 NVNT 3-DH5 2480 Ant 1.199 Page 9 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Graphs OBW NVNT 1-DH5 2402MHz Ant OBW NVNT 1-DH5 2441MHz Ant Page 10 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity OBW NVNT 1-DH5 2480MHz Ant OBW NVNT 2-DH5 2402MHz Ant Page 11 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity OBW NVNT 2-DH5 2441MHz Ant OBW NVNT 2-DH5 2480MHz Ant Page 12 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity OBW NVNT 3-DH5 2402MHz Ant OBW NVNT 3-DH5 2441MHz Ant Page 13 of 60 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-…

Text truncated - open the document above for the full version.

Page 1 of 36 FCC ID: 2AGR4-101792 Report No.: LCSA051723004EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FOR The Gem Group, Inc. AUDEN ALUMINUM WIRELESS SPEAKER-SILVER Test Model: 101792-128B Prepared for : The Gem Group, Inc. Address : 9 International Way, Lawrence, MA 01843, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : May 18, 2023 Number of tested samples : 2 Sample No. ： A051723004-1, A051723004-2 Serial number : Prototype Date of Test : May 18, 2023 ~ May 26, 2023 Date of Report : May 26, 2023 Page 2 of 36 FCC ID: 2AGR4-101792 Report No.: LCSA051723004EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCSA051723004EA Date of Issue ................................... : May 26, 2023 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : The Gem Group, Inc. Address ........................................... : 9 International Way, Lawrence, MA 01843, USA Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : AUDEN ALUMINUM WIRELESS SPEAKER-SILVER Trade Mark ...................................... : Gemline Test Model ...................................... : 101792-128B Ratings ............................................ : Input: DC 5V,1A DC 3.7V by Rechargeable Li-ion Battery(1800mAh) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jack Liu/Administrator Cary Luo/ Technique principal Gavin Liang / Manager Page 3 of 36 FCC ID: 2AGR4-101792 Report No.: LCSA051723004EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCSA051723004EA May 26, 2023 Date of issue Test Model.............................. : 101792-128B EUT......................................... : AUDEN ALUMINUM WIRELESS SPEAKER-SILVER Applicant............................... : The Gem Group, Inc. Address................................... : 9 International Way, Lawrence, MA 01843, USA Telephone............................... : / Fax.......................................... : / Manufacturer......................... : Shenzhen Cstar Electronic Tech.co.,Ltd Address................................... : 3/F, building B, Bada Industrial Park, Yongfu Road, Heping Community, Fuyong Town, Baoan District, Shenzhen City, China (518103) Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Cstar Electronic Tech.co.,Ltd Address................................... : 3/F, building B, Bada Industrial Park, Yongfu Road, Heping Community, Fuyong Town, Baoan District, Shenzhen City, China (518103) Telephone............................... : / Fax.......................................... : / Page 4 of 36 FCC ID: 2AGR4-101792 Report No.: LCSA051723004EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Revision History Report Version Issue Date Revision Content Revised By 000 May 26, 2023 Initial Issue --- Page 5 of 36 FCC ID: 2AGR4-101792 Report No.: LCSA051723004EA Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check …

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 Page 2 of 2 FCC ID: 2AGR4-101792 IC:21530-101792 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3
