2AGV2PIXOPLUSPortable Lamp

[email protected] [email protected] 888 MARIN STREET SAN FRANCISCO, CA 94124 PABLODESIGNS.COM PABLODESIGNS.EU ASSEMBLY & INSTALLATION INSTRUCTIONSMONTAGE- & INSTALLATIONSANLEITUNGINSTRUCTIONS D’ASSEMBLAGE ET D’INSTALLATIONINSTRUCCIONES DE MONTAJE E INSTALACIÓNISTRUZIONI PER L’ASSEMBLAGGIO E L’INSTALLAZIONE EN:DE:FR:ES:IT: pg. 2 pg. 11 pg. 10 1 1 2 C. D. 1 1 2 1 1 2 1 1 2 1 1 2 PUSH AND TWIST PLUG INTO POWER SUPPLY(PUSH BUTTON TO REMOVE PLUG)CONNECT LAMP CORD TO POWER SUPPLYSPINGERE E SPOSTARE LA PRESA DI ALIMENTAZIONE(PULSANTE PER RIMUOVERE LA SPINA)COLLEGARE IL CAVO DELLA LAMPADA ALL'ALIMENTAZIONEEMPUJE Y GIRE EL ENCHUFE AL SUMINISTRO DE ENERGÍA (PULSAR EL BOTÓN PARA RETIRAR EL ENCHUFE)CONECTE EL CABLE DE LA LÁMPARA A LA FUENTE DE ALIMENTACIÓNPUSH ET TWIST FICHE EN ALIMENTATION ÉLECTRIQUE(BOUTON-POUSSOIR POUR RETIRER LA FICHE)CONNECTER LE CORDON DE LA LAMPE À L’ALIMENTATION ÉLECTRIQUEDRÜCKEN UND STECKEN SIE DEN STECKER IN DIE STROMVERSORGUNG.(TASTE ZUM ABNEHMEN DES STECKERS DRÜCKEN)VERBINDEN SIE DAS LEUCHTENKABEL MIT DER STROMVERSORGUNG pg. 3 pg. 4 pg. 9 pg. 8 L’USCITA USB SINGOLA DA 5.0 V SUPPORTA LA RICARICA PER SMARTPHONE, TABLET E ALTRI DISPOSITIVI MOBILI. È RICHIESTO UN CAVO USB 2.0 O 1.1 STANDARD (CAVO NON INCLUSO) TENSIONE D’USCITA: 5 VCC + - 5% CORRENTE D’USCITA: 1 A MAX NOTA: PIXO SEGUIRÁ CARGANDO SU DISPOSITIVO MÓVIL INCLUSO SI LA LÁMPARA ESTÁ EN POSICIÓN APAGADA. CONSULTARE IL MANUALE D’USO DEL DISPOSITIVO MOBILE PER VERIFICARE COMPATIBILITÀ E TEMPI DI RICARICA. NON LASCIARE IL DISPOSITIVO INSERITO PIÙ A LUNGO DI QUANTO RACCOMANDATO PER NON SOVRACCARICARLO. SALIDA SIMPLE DE USB 5.0 V COMPATIBLE CON LA CARGA DE SMARTPHONES, TABLETAS Y OTROS DISPOSITIVOS MÓVILES. SE REQUIERE UN CABLE USB 2.0 O 1.1 ESTÁNDAR (NO INCLUIDO EN EL SUMINISTRO) CORRIENTE DE SALIDA: 1 A MÁX NOTA: PIXO SEGUIRÁ CARGANDO SU DISPOSITIVO MÓVIL INCLUSO SI LA LÁMPARA ESTÁ EN POSICIÓN APAGADA. DIRÍJASE AL MANUAL DE SU DISPOSITIVO MÓVIL PARA CONSULTAR EL TIEMPO DE CARGA Y LA COMPATIBILIDAD. NO DEJE SU DISPOSITIVO CONECTADO DURANTE MÁS TIEMPO DEL RECOMENDADO; DE LO CONTRARIO, PUEDE PRODUCIRSE UNA SOBRECARGA. UNE PRISE USB DE 5,0 V PERMET DE RECHARGER DES SMARTPHONES, TABLETTES ET AUTRES APPAREILS MOBILES. CORDON STANDARD USB 2.0 OU 1.1 NÉCESSAIRE (CORDON NON FOURNI) TENSION DE SORTIE : 5 V C.C. + - 5% COURANT DE SORTIE : 1 A MAX REMARQUE: LA LAMPE PIXO CONTINUERA À RECHARGER VOTRE APPAREIL MOBILE MÊME SI ELLE EST ÉTEINTE. EUILLEZ CONSULTER LE MODE D’EMPLOI DE VOTRE APPAREIL MOBILE POUR LES QUESTIONS DE COMPATIBILITÉ ET DE TEMPS DE RECHARGE. VEUILLEZ ÉVITER DE LAISSER VOTRE APPAREIL EN CHARGE PLUS LONGTEMPS QUE NÉCESSAIRE. DANS LE CAS CONTRAIRE, UNE SURCHARGE POURRAIT SURVENIR. USB SPECIFICATIONS SINGLE 5.0V USB OUTPUT SUPPORTS CHARGING FOR SMARTPHONES, TABLETS AND OTHER MOBILE DEVICES. USB 2.0 OR 1.1 STANDARD CORD REQUIRED (CORD NOT INCLUDED) OUTPUT VOLTAGE: 5VDC + - 5% OUTPUT CURRENT: 1A MAX NOTE: PIXO WILL CONTINUE TO CHARGE YOUR MOBILE DEVICE EVEN WHEN LAMP IS IN THE “OFF” POSITION. PLEASE RE- FER TO YOUR MOBILE DEVICE’S USER MANUAL FOR COMPATIBILITY AND CHARGING TIME. PLEASE REFRAIN FROM LEAVING YOUR DEVICE PLUGGED IN FOR LONGER THAN THE RECOMMENDED TIME, OTHERWISE IT MAY RESULT IN OVER CHARGING. EN: DE: SPÉCIFICATIONS USB FR: ESPECIFICACIONES DEL USB ES: SPECIFICHE USB IT: USB 2.0 ODER 1.1 STANDARDKABEL ERFORDERLICH (KABEL NICHT IM LIEFERUMFANG ENTHALTEN) AUSGANGSSTROM: 1A MAX HINWEIS: PIXO SETZT DEN LADEVORGANG AUCH NACH DEM AUSSCHALTEN DER LAMPE FORT. ANGABEN ZUR KOMPATIBIL- ITÄT UND LADEZEIT ENTNEHMEN SIE BITTE DEM BENUTZERHANDBUCH IHRES MOBILGERÄTS. BITTE LASSEN SIE IHR GERÄT NICHT LÄNGER ALS DIE EMPFOHLENE ZEIT AN DER LADESTATION, UM ÜBERLADEN ZU VERMEIDEN. !! ! ! ! pg. 5 pg. 6 OUTPUT CURRENT: 5V 1A COURANT DE SORTIE: 5V 1A CORRIENTE DE SALIDA: 5V 1A CORRENTE DI USCITA: 5V 1A AUSGANGSSTROM: 5V 1A LANGSAM BLINKEN pg. 7

Cover Letter for Wireless Charger Data:2019-11-12 Dear Sir/Madam, There’s a ___Portable Lamp__that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below Wireless Charger with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5 b) requirements. Applicant: Pablo Inc Product Description: Portable Lamp Model No: Pixo plus FCC ID: 2AGV2PIXOPLUS Requirement Technical Result 1) Power transfer frequency is less than 1 MHz 110-205kHz Complied 2) Output power from each primary coil is less than 15 watts 5W Complied 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils Only one coil Complied 4) Client device is inserted in or placed directly in contact with the transmitter Placed directly in transmitter Complied 5) Mobile exposure conditions only Mobile Complied 6) Aggregate leakage fields at 15 cm surrounding the device and 20cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. / Complied Sincerely, By:

rao10 Request for Confidentiality Date: _11/6/2019 __ Subject: Confidentiality Request for: --� F __,, C '-" C�I '-" D ::._,_ : ---==2 '-'-' A """ G -'-' V2 ::'..! P --" I "-! X ""- OP ,_, L�U '""' S-- Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested D Short Term IZl Permanent D Short Term D Short Term D Permanent * 1 D Short Term IZl Permanent D Short Term D Permanent D Short Term D Permanent D Short Term IZl Permanent D Short Term D Short Term D Permanent * 3 Exhibit Block Diagrams External Photos Internal Photos Oper ation Description/Theory of Operation Parts List & Placement/BOM Tune-Up Procedure Schematics Test Setup Photos User's Manual Pablo Inc has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from p.ublic _ review due to mate1ra'ls that contain trade secrets and proprietary information not customarily released�o the public. Short-Term Confidentiality: The applicant requ�s the exhibits selected above as short term confidential be withheld from public view for a period of c'rnys from the date of the Grant of Equipment Authorization and prior to marketing. This i s to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not consi dered applicable to IC applications. Sincerely, B y : James Bolton _____ _ (Print name) - The asterisked items (*) require further inform ation to be provided to ACB before permanent confid entiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for DOI found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSear chResultPage.cfm?switch=P&id=4 l 73 l and review section II, 3) regarding specific information that must accomp any these requests. 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterh ead.

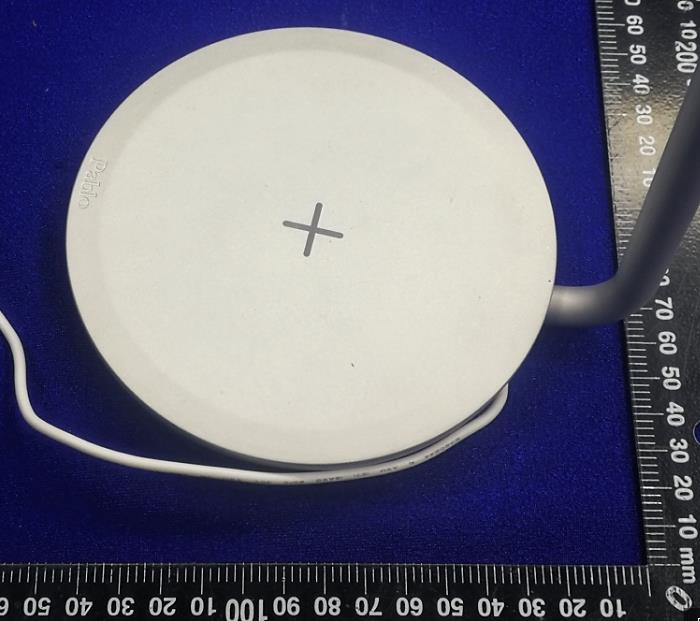

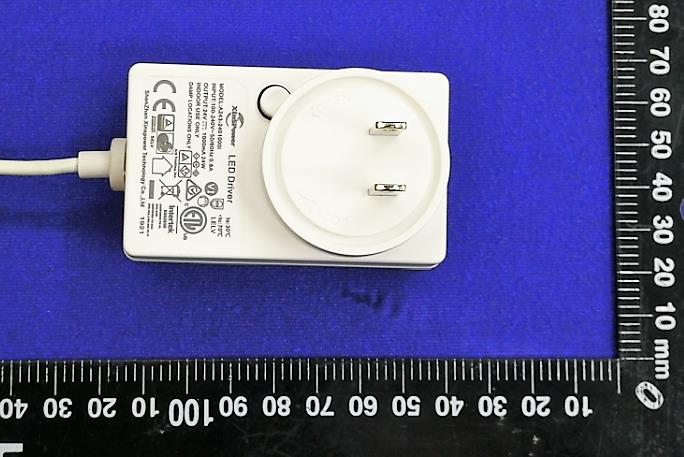

External Photo

Label Size: Length 79 mm * width 19mm Location

Internal Photo

Pablo Inc MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: Pixo plus REPORT NUMBER: 190902511SHA-002 ISSUE DATE: November 8, 2019 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-02_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-02_V1© 2018 Intertek Page 2 of 10 Report no.: 190902511SHA-002 Applicant : Pablo Inc 888 Marin Street San Francisco, CA Manufacturer : Pablo Inc 888 Marin Street San Francisco, CA Factory : Shanghai Arex Electronics Co., Ltd. No.789 Subway, Jia-xin Road, Jiading FCC ID : 2AGV2PIXOPLUS SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: FCC PART 1 SECTION 1.1310 PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Daniel Zhao Report No.: 190902511SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 10 Revision History Report No. Version Description Issued Date 190902511SHA-002 Rev. 01 Initial issue of report November 8, 2019 Report No.: 190902511SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 10 Measurement result summary TEST ITEM FCC REFERANCE TEST RESULT NOTE RF Exposure 1.1310 Pass - Notes: 1: NA =Not Applicable 2. Determination of the test conclusion is based on IEC Guide 115 in consideration of measurement uncertainty. Report No.: 190902511SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 10 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Portable Lamp Type/Model: Pixo plus Description of EUT: EUT is a wireless charger Portable Lamp. We test it and list the worst results in this report. Rating: 120V, 60Hz, 24W Category of EUT: Class B EUT type: Table top Floor standing Software Version: / Hardware Version: / Sample received date: October 24, 2019 Date of test: October 26, 2019~ October 26, 2019 1.2 Technical Specification Frequency Range: 110kHz – 205kHz Report No.: 190902511SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 10 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab Registration code No.: 2042B-1 VCCI Registration Lab Registration No.: R-4243, G-845, C-4723, T-2252 NVLAP Accreditation Lab NVLAP LAB CODE: 200849-0 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 190902511SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 10 2 TEST SPECIFICATIONS 2.1 Standards or specification FCC PART 1 SECTION 1.1310 KDB 680106 D01 RF Exposure Wireless Charging App v03 2.2 Mode of operation during the test Within this test report, EUT was tested under all modes and tested under its rating voltage and frequency. Other voltage and frequency are specified if used. The worst data was listed in the report. 2.3 Test peripherals list Item No. Name Band and Model Description 1 Wireless load KjB/ZS3012 100% power level 2 Wireless load KjB/ZS3012 50% power level 3 Wireless load KjB/ZS3012 0% power level 4 USB load RX21 Used for PL-0170UQ 2.4 Record of climatic conditions Test Item Temperature (°C) Relative Humidity (%) Pressure (kPa) RF Exposure 24 53 101 Report No.: 190902511SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 10 2.5 Instrument list Used Equipment Manufacturer Type Internal no. Due date Exposure Level Tester Narda ELT-400 EC 2928 2020-08-15 Field sensor & Field meter AR FL17000 EC 5818-1 2020-05-21 Report No.: 190902511SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 9 of 10 3 RF Exposure Assessment Test result: Pass 3.1 Assessment Limit 3.2 Assessment Configuration Report No.: 190902511SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 10 of 10 3.3 Assessment Results Test result of Magnetic Field Strength: Test Position Test distance (cm) Test result (A/m) Limit (A/m) Result (Pass/Fail) A: Right 15 0.036 1.63 *0.5 Pass B: Left 15 0.031 1.63 *0.5 Pass C: Front 15 0.033 1.63 *0.5 Pass D: Back 15 0.041 1.63 *0.5 Pass E: Top 20 0.038 1.63 *0.5 Pass Test result of Electric Field Strength: Test Position Test distance (cm) Test result (V/m) Limit (V/m) Result (Pass/Fail) A: Right 15 0.81 614 *0.5 Pass B: Left 15 0.77 614 *0.5 Pass C: Front 15 0.79 614 *0.5 Pass D: Back 15 0.95 614 *0.5 Pass E: Top 20 0.83 614 *0.5 Pass ******************************************* END ************************************

Pablo Inc RF TEST REPORT Report Type: FCC Part 15C RF report Model: Pixo plus REPORT NUMBER: 190902511SHA-001 ISSUE DATE: November 8, 2019 DOCUMENT CONTROL NUMBER: TTRFFCCPART15C_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCPART15C_V1 © 2018 Intertek Page 2 of 20 Report no.: 190902511SHA-001 Applicant : Pablo Inc 888 Marin Street San Francisco, CA Manufacturer : Pablo Inc 888 Marin Street San Francisco, CA Factory : Shanghai Arex Electronics Co., Ltd. No.789 Subway, Jia-xin Road, Jiading FCC ID : 2AGV2PIXOPLUS SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2018): Radio Frequency Devices (Subpart C) ANSI C63.10 (2014): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices PREPARED BY: REVIEWED BY: Project Engineer Eric Li Reviewer Daniel Zhao Report No.: 190902511SHA-001 TEST REPORT TTRFFCCPART15C_V1 © 2018 Intertek Page 3 of 20 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 6 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 7 2 TEST SPECIFICATIONS ................................................................................................................................... 8 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................... 8 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................... 8 2.3 TEST SOFTWARE LIST ............................................................................................................................................ 8 2.4 TEST PERIPHERALS LIST ......................................................................................................................................... 8 2.5 TEST ENVIRONMENT CONDITION: ............................................................................................................................ 8 2.6 INSTRUMENT LIST ................................................................................................................................................ 9 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 10 3 RADIATED EMISSIONS ............................................................................................................................... 11 3.1 LIMIT .............................................................................................................................................................. 11 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 11 3.3 TEST CONFIGURATION ........................................................................................................................................ 12 3.4 TEST RESULTS OF RADIATED EMISSIONS ................................................................................................................. 14 4 CONDUCTED EMISSIONS ........................................................................................................................... 16 4.1 LIMIT .............................................................................................................................................................. 16 4.2 TEST CONFIGURATION ........................................................................................................................................ 16 4.3 MEASUREMENT PROCEDURE ............................................................................................................................... 17 4.4 TEST RESULTS OF CONDUCTED EMISSIONS .............................................................................................................. 18 Report No.: 190902511SHA-001 TEST REPORT TTRFFCCPART15C_V1 © 2018 Intertek Page 4 of 20 Revision History Report No. Version Description Issue…

Text truncated - open the document above for the full version.

Test Setup RF Exposure for IC RF Exposure for FCC
