2AGV2TALTILPortable Lamp

TALIA pg. 3 ADJUSTABILITY TALIA TABLE & FLOOR ASSEMBLY INSTRUCTIONS AND USER GUIDE [email protected] 888 MARIN STREET SAN FRANCISCO, CA 94124 PABLODESIGNS.COM SINGLE 5.0V USB OUTPUT SUPPORTS CHARGING FOR SMARTPHONES, TABLETS AND OTHER MOBILE DEVICES. CORD REQUIRED (CORD NOT INCLUDED) OUTPUT VOLTAGE: 5VDC + - 5% OUTPUT CURRENT: 1A MAX TALIA WILL CONTINUE TO CHARGE YOUR MOBILE DEVICE EVEN WHEN LAMP IS IN THE ‘OFF’ POSITION. PLEASE REFER TO YOUR MOBILE DEVICE’S USER MANUAL FOR COMPATIBILITY AND CHARGING TIME. PLEASE REFRAIN FROM LEAVING YOUR DEVICE PLUGGES IN FOR LONGER THAN THE RECOMMENDED TIME, OTHERWISE IS MAY RESULT IN OVER CHARGING. WIPE CLEAN WITH A SOFT DAMP CLOTH. AVOID AMMONIABASED CLEANERS [email protected] 888 MARIN STREET, SAN FRANCISCO, CA 94124 PABLODESIGNS.COM USB SPECIFICATIONS CARE INSTRUCTIONS USB TALIA pg. 1 ASSEMBLY TALIA pg. 2 FEATURES WIRELESS CHARGING ZONE NOTE: TABLE MODEL ONLY LOCATING FEATURE FULL RANGE OPTICAL SWITCH TAP OPTICAL SWITCH BRIEFLY TO CYCLE THROUGH HIGH (100%), LOW (40%), AND OFF. PRESS AND HOLD OPTICAL SWITCH TO ACTIVATE FULL RANGE DIM CONTROL (RELEASE WHEN DESIRED LEVEL IS REACHED). 6 HOUR AUTO OFF SETTING WHILE LIGHT IS TURNED OFF, PRESS AND HOLD SWITCH FOR 6 SECONDS UNTIL THE LIGHT FLASHES ONCE. THEN PRESS THE SWITCH AGAIN TO TURN ON. THE LIGHT POWERS OFF AFTER 6 HOURS. NOTE: TO DISABLE AUTOSHUTOFF, REVERSE PROCEDURE. PUSH AND TWIST PLUG INTO POWER SUPPLY. PUSH BUTTON TO REMOVE PLUG. CONNECT LAMP CORD TO POWER SUPPLY. NOTE: CENTER DEVICE CHARGE COIL OVER LINE SYMBOL FOR BEST RESULT.

TILE pg. 3 FEATURES CONT’D TILE ASSEMBLY INSTRUCTIONS AND USER GUIDE [email protected] 888 MARIN STREET SAN FRANCISCO, CA 94124 PABLODESIGNS.COM SINGLE 5.0V USB OUTPUT SUPPORTS CHARGING FOR SMARTPHONES, TABLETS AND OTHER MOBILE DEVICES. CORD REQUIRED (CORD NOT INCLUDED) OUTPUT VOLTAGE: 5VDC + - 5% OUTPUT CURRENT: 1A MAX TILE WILL CONTINUE TO CHARGE YOUR MOBILE DEVICE EVEN WHEN LAMP IS IN THE ‘OFF’ POSITION. PLEASE REFER TO YOUR MOBILE DEVICE’S USER MANUAL FOR COMPATIBILITY AND CHARGING TIME. PLEASE REFRAIN FROM LEAVING YOUR DEVICE PLUGGES IN FOR LONGER THAN THE RECOMMENDED TIME, OTHERWISE IS MAY RESULT IN OVER CHARGING. WIPE CLEAN WITH A SOFT DAMP CLOTH. AVOID AMMONIABASED CLEANERS [email protected] 888 MARIN STREET, SAN FRANCISCO, CA 94124 PABLODESIGNS.COM USB SPECIFICATIONS CARE INSTRUCTIONS USB TILE pg. 1 ASSEMBLY ADJUSTABILITY TILE pg. 2 FEATURES PUSH AND TWIST PLUG INTO POWER SUPPLY. PUSH BUTTON TO REMOVE PLUG. CONNECT LAMP CORD TO POWER SUPPLY. FULL RANGE OPTICAL SWITCH TAP OPTICAL SWITCH BRIEFLY TO CYCLE THROUGH HIGH (100%), LOW (50%), AND OFF. PRESS AND HOLD OPTICAL SWITCH TO ACTIVATE FULL RANGE DIM CONTROL (RELEASE WHEN DESIRED LEVEL IS REACHED). WIRELESS CHARGING ZONES NOTE: CENTER DEVICE CHARGE COIL OVER LINE SYMBOL FOR BEST RESULT. 6 HOUR AUTO OFF SETTING WHILE LIGHT IS TURNED OFF, PRESS AND HOLD SWITCH FOR 6 SECONDS UNTIL THE LIGHT FLASHES ONCE. THEN PRESS THE SWITCH AGAIN TO TURN ON. THE LIGHT POWERS OFF AFTER 6 HOURS. NOTE: TO DISABLE AUTOSHUTOFF, REVERSE PROCEDURE.

Cover Letter for Wireless Charger Data:2020-7-8 Dear Sir/Madam, There’s a ___Portable Lamp__that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below Wireless Charger with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5 b) requirements. Applicant: Pablo Inc Product Description: Portable Lamp Model No: Talia, Tile FCC ID: 2AGV2TALTIL Requirement Technical Result 1) Power transfer frequency is less than 1 MHz 110-205kHz Complied 2) Output power from each primary coil is less than 15 watts 5W Complied 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils Model “Talia” contains one wireless charging module, while model “Tile” contains two wireless charging modules. Each module contains only one coil. Complied 4) Client device is inserted in or placed directly in contact with the transmitter Placed directly in transmitter Complied 5) Mobile exposure conditions only Mobile Complied 6) Aggregate leakage fields at 15 cm surrounding the device and 20cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. / Complied Sincerely, By:

Pablo Inc Declaration of Model Difference We Pablo Inc hereby certify that: Talia, Tile has the same wireless charging module and USB connector, Talia has one wireless charging module and Tile has two wireless charging modules. By:

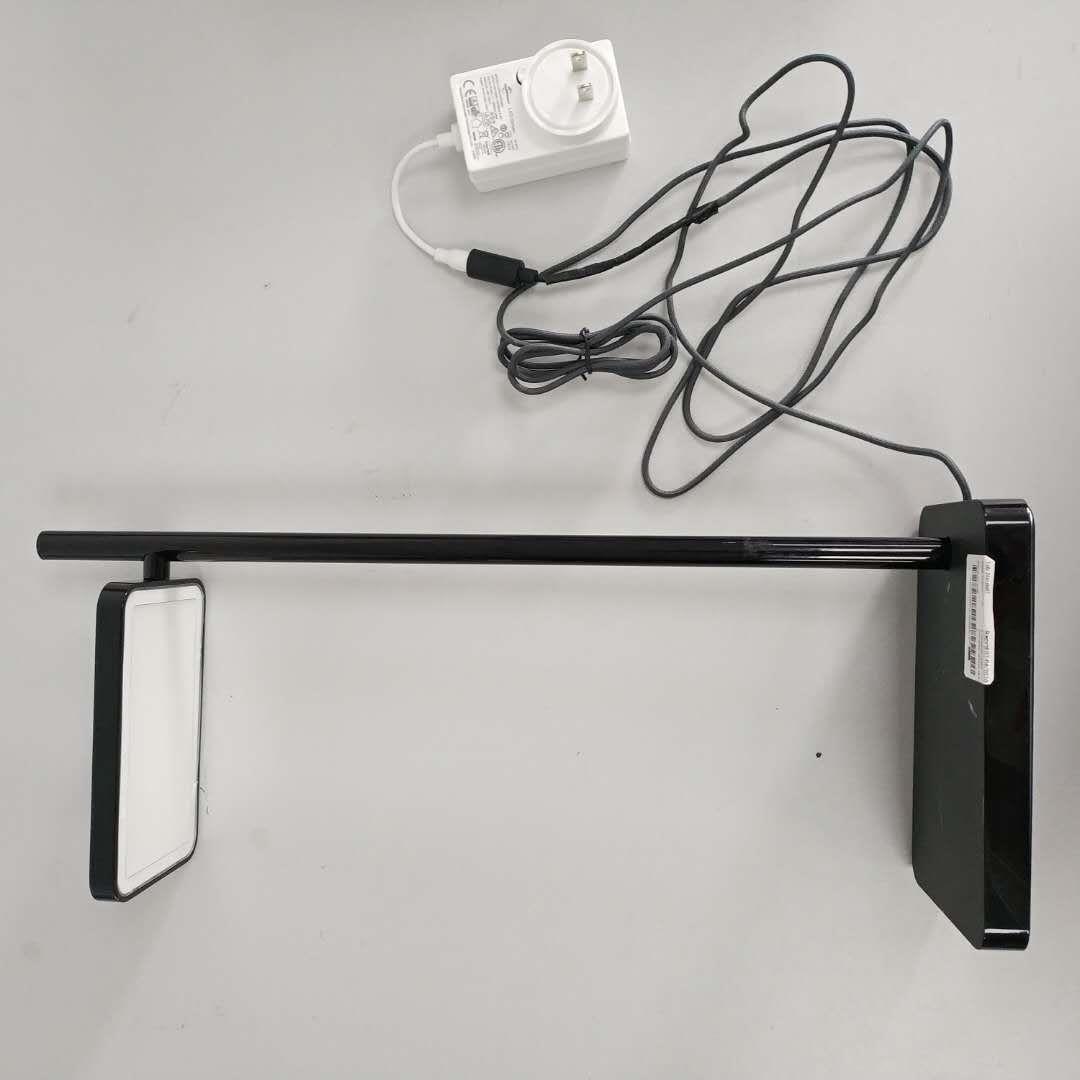

FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 1 of 3 External Picture FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 2 of 3 External view of Tile FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 3 of 3 External view of Talia External view of Talia

USB Output: 5V/1A MAX alia 7- Label USB Output: 5V/1A MAX ile -

FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 1 of 5 Internal Picture FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 2 of 5 Internal view of Tile Internal view of Tile FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 3 of 5 Internal view of Tile FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 4 of 5 Internal view of Talia Internal view of Talia FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 5 of 5 Internal view of Talia

Pablo Inc MPE ASSESSMENT REPORT Report Type: FCC MPE assessment report Model: Talia, Tile REPORT NUMBER: 200600311SHA-002 ISSUE DATE: August 11, 2020 DOCUMENT CONTROL NUMBER: TTRFFCCMPE-02_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCMPE-02_V1© 2018 Intertek Page 2 of 11 Report no.: 200600311SHA-002 Applicant : Pablo Inc 888 Marin Street San Francisco, CA Manufacturer : Pablo Inc 888 Marin Street San Francisco, CA Factory : Shanghai Arex Electronics Co., Ltd. No.789 Subway, Jia-xin Road, Jiading FCC ID : 2AGV2TALTIL SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: FCC PART 1 SECTION 1.1310 PREPARED BY: REVIEWED BY: Project Engineer Erick Liu Reviewer Daniel Zhao Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 3 of 11 Revision History Report No. Version Description Issued Date 200600311SHA-002 Rev. 01 Initial issue of report August 11, 2020 Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 4 of 11 Measurement result summary TEST ITEM FCC REFERANCE TEST RESULT NOTE RF Exposure 1.1310 Pass - Notes: 1: NA =Not Applicable 2: Determination of the test conclusion is based on IEC Guide 115 in consideration of measurement uncertainty. 3: Additions, Deviations and Exclusions from Standards: None. Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 5 of 11 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Portable Lamp Type/Model: Talia, Tile Description of EUT: EUT is a wireless charger Portable Lamp. Model “Talia” contains one wireless charging module, while model “Tile” contains two wireless charging modules. We test all two models and list the results in this report. Rating: 120V, 60Hz, 24W Category of EUT: Class B EUT type: Table top Floor standing Software Version: / Hardware Version: / Sample received date: June 11, 2020 Date of test: June 13, 2020 ~ July 28, 2020 1.2 Technical Specification Frequency Range: 110kHz – 205kHz Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 6 of 11 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN1175 IC Registration Lab CAB identifier.: CN0051 VCCI Registration Lab Registration No.: R-14243, G-10845, C-14723, T-12252 A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 7 of 11 2 TEST SPECIFICATIONS 2.1 Standards or specification FCC PART 1 SECTION 1.1310 KDB 680106 D01 RF Exposure Wireless Charging App v03 2.2 Mode of operation during the test Within this test report, EUT was tested under all modes and tested under its rating voltage and frequency. Other voltage and frequency are specified if used. The worst data was listed in the report. 2.3 Test peripherals list Item No. Name Band and Model Description 1 Wireless load KjB/ZS3012 100% power level 2 Wireless load KjB/ZS3012 50% power level 3 Wireless load KjB/ZS3012 0% power level 4 USB load RX21 Used for PL-0170UQ 2.4 Record of climatic conditions Test Item Temperature (°C) Relative Humidity (%) Pressure (kPa) RF Exposure 24 53 101 Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 8 of 11 2.5 Instrument list Used Equipment Manufacturer Type Internal no. Due date Exposure Level Tester Narda ELT-400 EC 2928 2021-08-15 Field sensor & Field meter AR FL17000 EC 5818-1 2021-05-21 Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 9 of 11 3 RF Exposure Assessment Test result: Pass 3.1 Assessment Limit 3.2 Assessment Configuration Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 10 of 11 3.3 Assessment Results Model Name: Talia Test result of Magnetic Field Strength: Test Position Test distance (cm) Test result (A/m) Limit (A/m) Result (Pass/Fail) A: Right 15 0.043 1.63 *0.5 Pass B: Left 15 0.042 1.63 *0.5 Pass C: Front 15 0.035 1.63 *0.5 Pass D: Back 15 0.038 1.63 *0.5 Pass E: Top 20 0.041 1.63 *0.5 Pass Test result of Electric Field Strength: Test Position Test distance (cm) Test result (V/m) Limit (V/m) Result (Pass/Fail) A: Right 15 0.74 614 *0.5 Pass B: Left 15 0.84 614 *0.5 Pass C: Front 15 0.93 614 *0.5 Pass D: Back 15 0.83 614 *0.5 Pass E: Top 20 0.86 614 *0.5 Pass Report No.: 200600311SHA-002 TEST REPORT TTRFFCCMPE-01_V1© 2018 Intertek Page 11 of 11 Model Name: Tile Test result of Magnetic Field Strength: Test Position Test distance (cm) Test result (A/m) Limit (A/m) Result (Pass/Fail) A: Right 15 0.053 1.63 *0.5 Pass B: Left 15 0.052 1.63 *0.5 Pass C: Front 15 0.049 1.63 …

Text truncated - open the document above for the full version.

Pablo Inc RF TEST REPORT Report Type: FCC Part 15C RF report Model: Talia, Tile REPORT NUMBER: 200600311SHA-001 ISSUE DATE: August 11, 2020 DOCUMENT CONTROL NUMBER: TTRFFCCPART15C_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCPART15C_V1 © 2018 Intertek Page 2 of 21 Report no.: 200600311SHA-001 Applicant : Pablo Inc 888 Marin Street San Francisco, CA Manufacturer : Pablo Inc 888 Marin Street San Francisco, CA Factory : Shanghai Arex Electronics Co., Ltd. No.789 Subway, Jia-xin Road, Jiading FCC ID : 2AGV2TALTIL SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2019): Radio Frequency Devices (Subpart C) ANSI C63.10 (2014): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices PREPARED BY: REVIEWED BY: Project Engineer Erick Liu Reviewer Daniel Zhao Report No.: 200600311SHA-001 TEST REPORT TTRFFCCPART15C_V1 © 2018 Intertek Page 3 of 21 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 6 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 7 2 TEST SPECIFICATIONS ................................................................................................................................... 8 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................... 8 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................... 8 2.3 TEST SOFTWARE LIST ............................................................................................................................................ 8 2.4 TEST PERIPHERALS LIST ......................................................................................................................................... 8 2.5 TEST ENVIRONMENT CONDITION: ............................................................................................................................ 8 2.6 INSTRUMENT LIST ................................................................................................................................................ 9 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 10 3 RADIATED EMISSIONS ............................................................................................................................... 11 3.1 LIMIT .............................................................................................................................................................. 11 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 11 3.3 TEST CONFIGURATION ........................................................................................................................................ 12 3.4 TEST RESULTS OF RADIATED EMISSIONS ................................................................................................................. 14 4 CONDUCTED EMISSIONS ........................................................................................................................... 16 4.1 LIMIT .............................................................................................................................................................. 16 4.2 TEST CONFIGURATION ........................................................................................................................................ 16 4.3 MEASUREMENT PROCEDURE ............................................................................................................................... 17 4.4 TEST RESULTS OF CONDUCTED EMISSIONS .............................................................................................................. 18 Report No.: 200600311SHA-001 TEST REPORT TTRFFCCPART15C_V1 © 2018 Intertek Page 4 of 21 Revision History Report No. Version Description Issu…

Text truncated - open the document above for the full version.

FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 1 of 7 Test Setup FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 2 of 7 Conducted Emission FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 3 of 7 Radiated Emission Below 30MHz FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 4 of 7 FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 5 of 7 30MHz-1GHz FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 6 of 7 FCC ID: 2AGV2TALTIL IC: 20979-TALTIL Page 7 of 7 RF Exposure for FCC RF Exposure for IC
