2AH25NT313Cloud POS Printer

Precautions Table of Toxic and Hazardous Substances and Content in the Product Toxic or harmful substances or elements PbHgCdCr(VI)PBBPBDE Circuit board assembly Print head assembly Structural part Package Part Name 80mm Kitchen Cloud Printer QUICK START GUIDE Security Warning · Please insert the AC plug into the AC socket corresponding to the identification input on the printer; · It is strictly prohibited to use it in the presence of any potentially explosive gas. · Non-professionals should not disassemble the printer at will to avoid danger. · This is a Class A product. In the living environment, this product may cause radio interference. In this case, the user may be required to take practical measures against interference. Important Safety Instructions · Avoid installation or use during lightning, otherwise there is a risk of lightning strike; · When you find abnormal smell, overheating or smoke, please cut off the power supply immediately. · The paper tearing knife is sharp, please do not touch it! · Avoid using in humid environment; Avoid using in dusty or inflammable and explosive occasions. Recommendations · Do not use it near water or humid environment to prevent liquid from falling into the terminal. · Do not use in extremely cold and hot environments, such as cigarettes close to fire sources or ignited; · Try to use it in a clean and dust-free environment to prevent small items from falling into the terminal. · Do not use in the vicinity of medical equipment without permission. Statement The Company is not responsible for the following situations: Damage caused by use and maintenance not under the conditions described in this Guide; Damage or problems caused by options or consumables (not the original products or approved products provided by the Company). (the user has no right to modify or change the product without the consent of the Company) Disclaimer Due to the update of the product, some details of this Guide may not be in conformity with the product. Please refer to the actual product. The right to interpret this Guide belongs to the Company. We reserve the right to amend this Guide without prior notice. Usage Scenarios It is mainly used in such commercial scenarios as food delivery, scan-to-order, and order broadcasting. Target customers: restaurants, bakeries, retail stores. Available functions: order printing, order and payment information broadcasting. indicates that the content of the toxic and hazardous substance in all homogeneous materials of the component is below the limit specified in SJ/T 11363-2006. indicates that the content of the toxic and hazardous substance in at least one homogeneous material of the component exceeds the limit stipulated in SJ/T 11363-2006. However, as for the reason, because there is no mature and replaceable technology in the industry at present. The products that have reached or exceeded environmental protection service life should be recycled and reused according to the Regulations on Control and Manage- ment of Electronic Information Products, and should not be discarded randomly. : : FCC Statement Please take attention that Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. NT310&NT311&NT312&NT313 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Printer ProfilePaper Loading Instructions Door Cover Door Cover Button It is used to open the door cover and install/replace the printing roll paper. Press the door cover button and the door cover will pop open automatically. Power Button Used for controlling the printer power; Press "|" to turn on the printer, and press "No ID" to turn off the printer. Paper Feed Button Long press the paper feed button to start blank paper feed, and release to stop paper feed. Volume Adjustment Button “ ”means volume up,，“ ”means volume down. Abnormality Indicator The red light is on, indicating that the printer is short of paper, blocked with paper or with abnormal voltage. The red light flashes, indicating that the print head is overheated. The red light goes out, indicating that the printer is normal. Network Indicator The blue light is on, indicating that the device is connected to the server. The blue light goes out, indicating that the device is disconnected from the server. Power Indicator The green light is on, indicating the startup state; The green light goes off, indicating the shutdown state. Reminder Indicator The white light flashes, indicating that there is paper to be taken away or the paper is blocked. The white light is on, indicating that the paper roll is about to run out (only the sensor with paper will be equipped with this function); The white light goes out, indicating that there is no reminder. Cash Box Port Connect the cash box and drive the cash box to unlock. This equipment only supports external 24V/1A cash box. Please pay attention to the electrical performance parameters of the cash box. When connecting the cash box, ensure that it is shut down. USB Port Connect POS machines and other equipment to realize USB printing; Ensure that the printer is shut down when connecting the data cable. DC Power Port Connect 24V/2.5A DC to supply power to the printer; When connecting the power cord, ensure that the printer power button is in the off position Lan Network Port Connect the LAN to complete the printing of issued orders from other devices in the LAN; Connect to the WAN to complete the pri…

Text truncated - open the document above for the full version.

<Shanghai Sunmi Technology Co.,Ltd.> To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Shanghai Sunmi Technology Co.,Ltd. Room 605, Block 7, KIC Plaza, No.388 Song Hu Road Yang Pu District Shanghai, 20043 China Regarding: Confidentiality Request regarding application for FCC ID: 2AH25NT313 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Tune-up BOM The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Zhang Wentang Manager Shanghai Sunmi Technology Co.,Ltd.

FCC Reference Data Declaration Letter Federal Communications Commission Office of Engineering and Technology Laboratory Division 445 12TH ST SW Washington DC 20554 United Stated Reference data declaration letter regarding application for FCC ID: 2AH25NT313 Dear Sir/Madam, We hereby declare that the reference data for the new application for FCC ID: 2AH25NT313 are documented in the test report KSEM2008000932CR(NT312),we will takes full responsibility for below statements Details of NT312/NT313 Item/Model NT313 NT312 FCC ID 2AH25NT313 2AH25NT312 Equipment Class PCB DTS/DSS/PCB Rule Parts 47 CFR Part 2 47 CFR Part 22 47 CFR Part 24 47 CFR Part 27 47 CFR Part 15 47 CFR Part 2 47 CFR Part 22 47 CFR Part 24 47 CFR Part 27 Support Frequency band WCDMA: Band2/5 LTE Band 2/4/5/12/13 WCDMA: Band2/5 LTE Band 2/4/5/12/13 2.4 G WIFI BT/BLE Spot check measurements for FCC ID: 2AH25NT313 can be found in test report. KSEM2008000933CR (Appendix A) We declare that the test report for NT312 is also valid and representative for NT313 because Electrical principle difference Comparing NT313 and NT312 , they has the same circuit design and LTE modular and antenna, the main difference is that NT313 has less WiFi &BT modules than NT312 NT313 NT312 N/A WIFI&BT modular (K016-CW43-SW) Test data compared NT313 NT313 NT312 NT312 Max EIRP (dBm) WCDMA Band 2 21.00 21.62 WCDMA Band 5 19.55 20.10 LTE Band 2 21.42 21.83 LTE Band 4 20.27 20.91 LTE Band 5 18.30 18.50 LTE Band 12 19.85 19.97 LTE Band 13 16.91 17.08 Cross references LTE: Test Item/Report No NT313 NT312 Effective (Isotropic) Radiated Power Output Data KSEM2008000932CR KSEM2008000932CR Peak-Average Ratio KSEM2008000932CR KSEM2008000932CR Modulation Characteristics KSEM2008000932CR KSEM2008000932CR Bandwidth KSEM2008000932CR KSEM2008000932CR Band Edge Compliance KSEM2008000932CR KSEM2008000932CR Spurious emissions at antenna terminals KSEM2008000932CR KSEM2008000932CR Field strength of spurious radiation KSEM2008000933CR KSEM2008000932CR Frequency stability KSEM2008000932CR KSEM2008000932CR WCDMA Test Item/Report No NT313 NT312 Effective (Isotropic) Radiated Power Output Data KSEM2008000932CR KSEM2008000932CR Peak-Average Ratio KSEM2008000932CR KSEM2008000932CR Modulation Characteristics KSEM2008000932CR KSEM2008000932CR Bandwidth KSEM2008000932CR KSEM2008000932CR Band Edge Compliance KSEM2008000932CR KSEM2008000932CR Spurious emissions at antenna terminals KSEM2008000932CR KSEM2008000932CR Field strength of spurious radiation KSEM2008000933CR KSEM2008000932CR Frequency stability KSEM2008000932CR KSEM2008000932CR The following table lists the relationship between our products : FCC ID Product model Report number 2AH25NT312 NT312 KSEM2008000932CR 2AH25NT313 NT313 KSEM2008000933CR If you have any questions regarding this application, please free to contact me Yours Sincerely Name: Zhang Wentang On Behalf of Company: Shanghai Sunmi Technology Co.,Ltd.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Shanghai Sunmi Technology Co.,Ltd. Address Room 605, Block 7, KIC Plaza, No.388 Song Hu Road Yang Pu District Shanghai, 200433 China Grantee Code 2AH25 FCC ID 2AH25NT313 Authorized Contact Name Zhang Wentang Contact Email [email protected] Contact Phone 021-61079307 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2020/9/28 Print Name: Zhang Wentang Title: Manager Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

<Shanghai Sunmi Technology Co.,Ltd.> Date: 2020/9/28 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID:2AH25NT313 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with <<Shanghai Sunmi Technology Co.,Ltd.>>. This authorization is valid until further written notice from the applicant. Name (Printed):Zhang Wentang Title:Manager Signature: On behalf of Company: Shanghai Sunmi Technology Co.,Ltd. Telephone: 18721763396

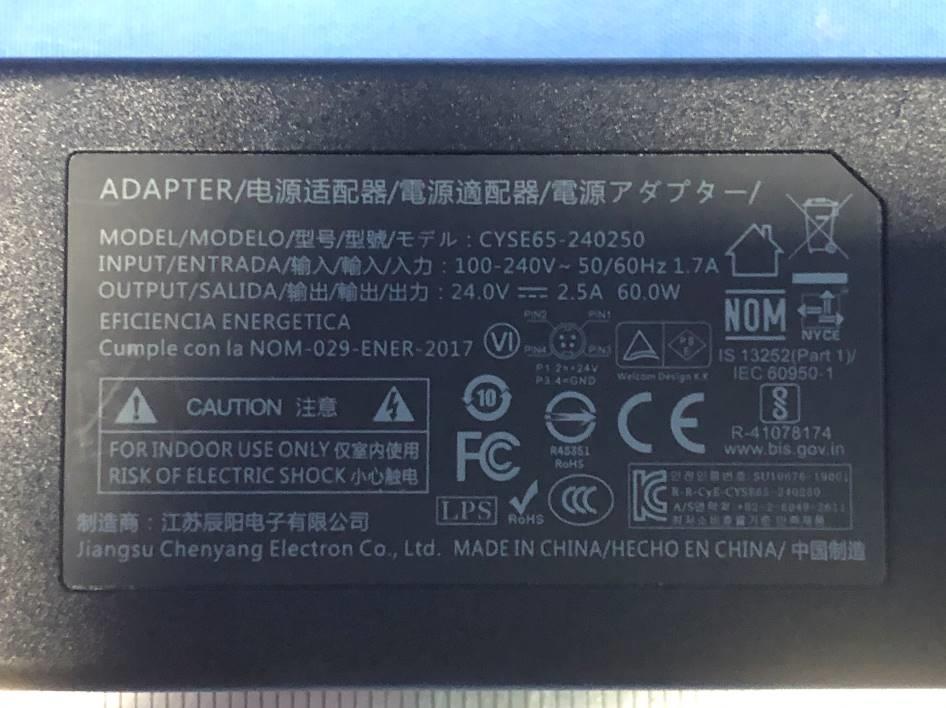

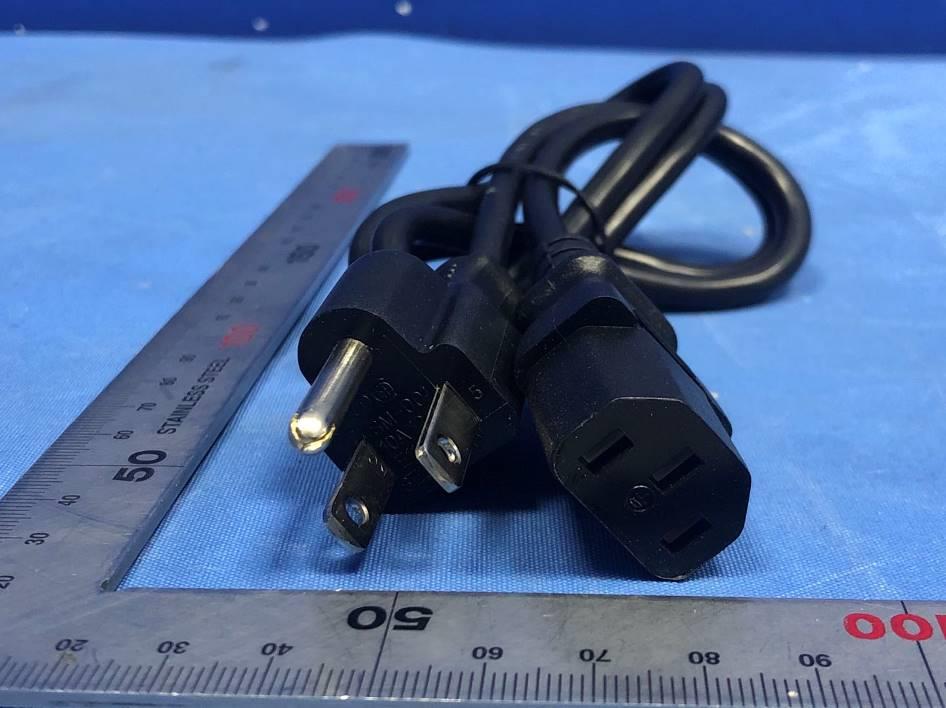

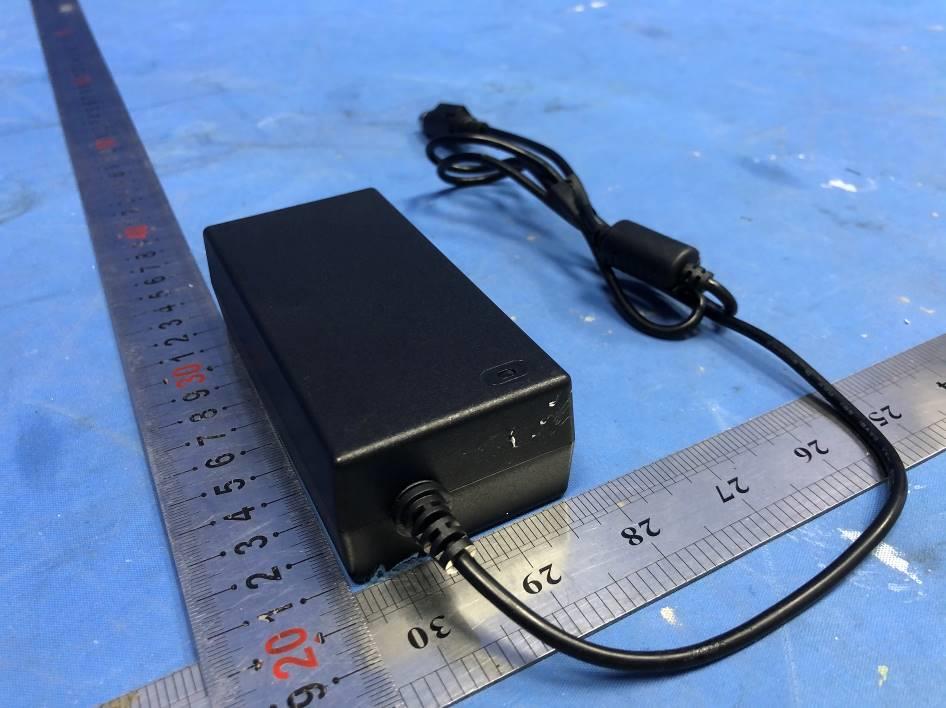

Compliance Certification Services (Kunshan) Inc. Page: 1 of 7 Page 1 of 7 External Photos Applicant: Shanghai Sunmi Technology Co.,Ltd. Address of Applicant: Room 605,Block 7,KIC Plaza,No.388 Song Hu Road Yang Pu District,Shanghai,China Equipment Under Test (EUT): Product Name: Cloud POS Printer Model No.: NT313 Compliance Certification Services (Kunshan) Inc. Page: 2 of 7 Page 2 of 7 Compliance Certification Services (Kunshan) Inc. Page: 3 of 7 Page 3 of 7 Compliance Certification Services (Kunshan) Inc. Page: 4 of 7 Page 4 of 7 Compliance Certification Services (Kunshan) Inc. Page: 5 of 7 Page 5 of 7 Compliance Certification Services (Kunshan) Inc. Page: 6 of 7 Page 6 of 7 Compliance Certification Services (Kunshan) Inc. Page: 7 of 7 Page 7 of 7 End

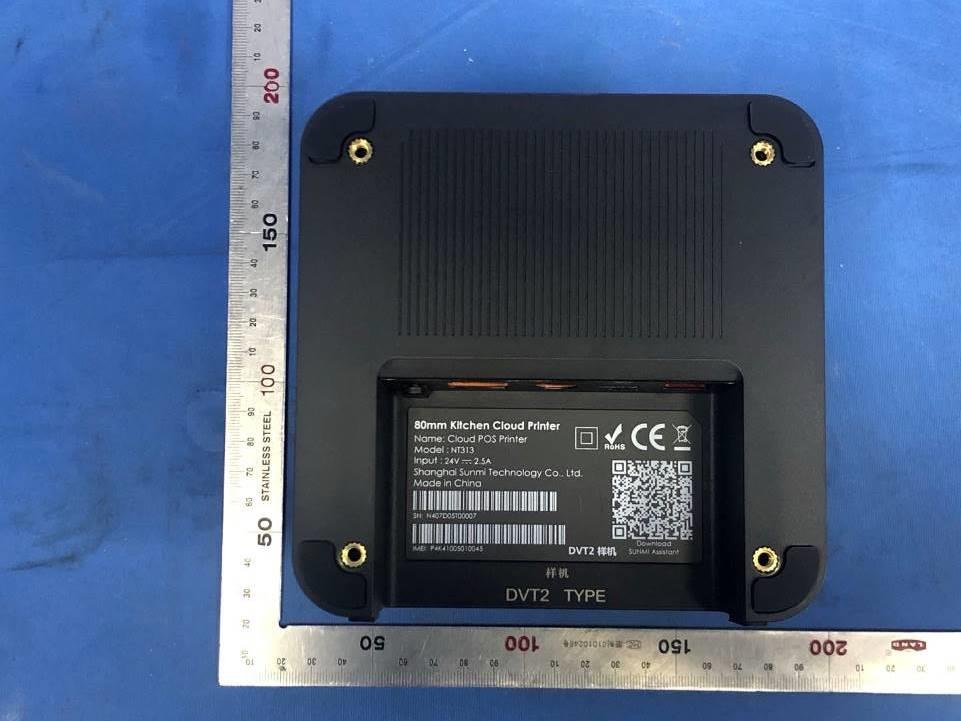

Label location FCC Warning

Compliance Certification Services (Kunshan) Inc. Page: 1 of 12 Page 1 of 12 Internal Photos Applicant: Shanghai Sunmi Technology Co.,Ltd. Address of Applicant: Room 605,Block 7,KIC Plaza,No.388 Song Hu Road Yang Pu District,Shanghai,China Equipment Under Test (EUT): Product Name: Cloud POS Printer Model No.: NT313 Compliance Certification Services (Kunshan) Inc. Page: 2 of 12 Page 2 of 12 Compliance Certification Services (Kunshan) Inc. Page: 3 of 12 Page 3 of 12 Compliance Certification Services (Kunshan) Inc. Page: 4 of 12 Page 4 of 12 Compliance Certification Services (Kunshan) Inc. Page: 5 of 12 Page 5 of 12 Compliance Certification Services (Kunshan) Inc. Page: 6 of 12 Page 6 of 12 Compliance Certification Services (Kunshan) Inc. Page: 7 of 12 Page 7 of 12 Compliance Certification Services (Kunshan) Inc. Page: 8 of 12 Page 8 of 12 Compliance Certification Services (Kunshan) Inc. Page: 9 of 12 Page 9 of 12 Compliance Certification Services (Kunshan) Inc. Page: 10 of 12 Page 10 of 12 Compliance Certification Services (Kunshan) Inc. Page: 11 of 12 Page 11 of 12 Compliance Certification Services (Kunshan) Inc. Page: 12 of 12 Page 12 of 12 End

Compliance Certification Services (Kunshan) Inc. Report No.: KSEM200800093303 Page: 1 of 18 Eric Lin EMC Lab Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF MPE REPORT Application No.: KSEM20080000933CR FCC ID: 2AH25NT313 Applicant: Shanghai Sunmi Technology Co.,Ltd. Address of Applicant: Room 605,Block 7,KIC Plaza,No.388 Song Hu Road Yang Pu District,Shanghai,China Manufacturer: Shanghai Sunmi Technology Co.,Ltd. Address of Manufacturer: Room 605,Block 7,KIC Plaza,No.388 Song Hu Road Yang Pu District,Shanghai,China Equipment Under Test (EUT): EUT Name: Cloud POS Printer Model No.: NT313 Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2020-08-03 Date of Test: 2020-08-14 to 2020-09-14 Date of Issue: 2020-09-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSEM200800093303 Page: 2 of 18 Revision Record Version Description Date Remark 00 Original 2020-09-16 / Authorized for issue by: Damon Zhou / Project Engineer Eric Lin / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: KSEM200800093206 Page: 3 of 18 2 Contents Page 1 COVER PAGE................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION .......................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 4 3.3 TEST LOCATION ....................................................................................................................................... 5 3.4 TEST FACILITY .......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ................................................................................ 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 6 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 6 5.2 MPE CALCULATION ............................................................................................................................... 18 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: KSEM200800093206 Page: 4 of 18 3 General Information 3.1 General Description of E.U.T. Power supply: DC 24V by Adapter Adapter Model:CYSE65-240250 INPUT:100-240V,50/60Hz 1.7A OUTPUT:24V,2.5A 3.2 Technical Specifications 3G Operation Frequency Band: UMTS Band2,Band5 Operation Frequenncy Band 2 TX: 1852.4~1907.6MHz; RX 1932.4~1987.6MHz Band 5 TX:826.4-846.6MHz;RX 871.4~891.6MHz Modulation Type: QPSK Antenna Type: PIFA Antenna Gain: UMTS Band 2: 0.96dBi UMTS Band 5: -0.63dBi 4G LTE Operation Frequency Band: LTE FDD Band 2, 4, 5, 12,13 Modulation Type: QPSK, 16QAM Antenna Type: PIFA Antenna Gain: Band 2: 0.96dBi Band 4:-0.39dBi Band 5:-0.63dBi Band 12:-0.89dBi Band 13:-2.33dBi SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: KSEM200800093206 Page: 5 of 18 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L4354) CNAS has accredited Compliance Certification Services (Kunshan) Inc. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). Certificate No. 2541.01. • FCC (Designation Number: CN1172) Compliance Certification Services Inc. has been recognized as an accredited testing laboratory. Designation Number: CN1172. • ISED (CAB identifier: CN0072) Compliance Certification Services (Kunshan) Inc. has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. CAB Identifier: CN0072. • VCCI (Member No.: 1938) The 3m and 10m Semi-anechoic chamber and Shielded Room of Compliance Certification Services (Kunshan) Inc. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-1600, C-1707, T-1499, G-10216 respectively. …

Text truncated - open the document above for the full version.

1. Effective (Isotropic) Radiated Power Output Data LTE Band 2 Test Band: 2 _ 10MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP(dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 1 0 20.46 20.18 20.19 / 0.96 21.42 21.14 21.15 33.01 PASS 25 20.27 20.32 20.42 / 0.96 21.23 21.28 21.38 33.01 PASS 49 20.3 20.27 20.38 / 0.96 21.26 21.23 21.34 33.01 PASS 25 0 19.54 19.45 19.29 / 0.96 20.5 20.41 20.25 33.01 PASS 13 19.48 19.48 19.32 / 0.96 20.44 20.44 20.28 33.01 PASS 25 19.43 19.35 19.27 / 0.96 20.39 20.31 20.23 33.01 PASS 50 0 19.48 19.35 19.18 / 0.96 20.44 20.31 20.14 33.01 PASS 16QAM 1 19.32 19.28 19.13 / 0.96 20.28 20.24 20.09 33.01 PASS 25 19.21 18.89 18.89 / 0.96 20.17 19.85 19.85 33.01 PASS 49 18.87 18.95 18.97 / 0.96 19.83 19.91 19.93 33.01 PASS 25 0 18.53 18.43 18.19 / 0.96 19.49 19.39 19.15 33.01 PASS 13 18.46 18.53 18.46 / 0.96 19.42 19.49 19.42 33.01 PASS 25 18.47 18.43 18.56 / 0.96 19.43 19.39 19.52 33.01 PASS 50 0 18.49 18.48 18.57 / 0.96 19.45 19.44 19.53 33.01 PASS Note: 1) dBd = dBi - 2.15 2) EIRP = Conducted output power + Antenna gain (dBi) LTE Band 4 Test Band: 4 _ 15MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain EIRP(dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 1 0 20.66 20.19 20.53 / -0.39 20.27 19.80 20.14 30.00 PASS 38 20.47 20.25 20.21 / -0.39 20.08 19.86 19.82 30.00 PASS 74 20.30 20.33 20.28 / -0.39 19.91 19.94 19.89 30.00 PASS 36 0 19.68 19.23 19.51 / -0.39 19.29 18.84 19.12 30.00 PASS 18 19.64 19.19 19.62 / -0.39 19.25 18.8 19.23 30.00 PASS 39 19.41 19.36 19.57 / -0.39 19.02 18.97 19.18 30.00 PASS 75 0 19.59 19.28 19.50 / -0.39 19.20 18.89 19.11 30.00 PASS 16QAM 1 19.92 19.84 19.25 / -0.39 19.53 19.45 18.86 30.00 PASS 38 19.75 19.78 18.87 / -0.39 19.36 19.39 18.48 30.00 PASS 74 19.42 19.92 18.99 / -0.39 19.03 19.53 18.60 30.00 PASS 36 0 18.55 18.25 18.52 / -0.39 18.16 17.86 18.13 30.00 PASS 18 18.63 18.26 18.29 / -0.39 18.24 17.87 17.90 30.00 PASS 39 18.46 18.40 18.12 / -0.39 18.07 18.01 17.73 30.00 PASS 75 0 18.63 18.24 18.54 / -0.39 18.24 17.85 18.15 30.00 PASS Note: 1) dBd = dBi - 2.15 2) EIRP = Conducted output power + Antenna gain (dBi) LTE Band 5 Test Band: 5 _ 10MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain ERP(dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 1 0 20.64 20.87 20.98 -2.78 -0.63 17.86 18.09 18.20 38.45 PASS 25 20.78 20.91 20.87 -2.78 -0.63 18.00 18.13 18.09 38.45 PASS 49 20.89 20.89 21.08 -2.78 -0.63 18.11 18.11 18.30 38.45 PASS 25 0 19.59 20.01 20.41 -2.78 -0.63 16.81 17.23 17.63 38.45 PASS 13 20.21 20.13 20.14 -2.78 -0.63 17.43 17.35 17.36 38.45 PASS 25 19.58 20.48 19.99 -2.78 -0.63 16.80 17.70 17.21 38.45 PASS 50 0 20.38 20.80 20.41 -2.78 -0.63 17.60 18.02 17.63 38.45 PASS 16QAM 1 20.40 19.88 20.13 -2.78 -0.63 17.62 17.10 17.35 38.45 PASS 25 20.48 19.87 20.82 -2.78 -0.63 17.70 17.09 18.04 38.45 PASS 49 20.82 19.78 20.64 -2.78 -0.63 18.04 17.00 17.86 38.45 PASS 25 0 19.29 18.99 19.58 -2.78 -0.63 16.51 16.21 16.80 38.45 PASS 13 19.52 19.35 19.99 -2.78 -0.63 16.74 16.57 17.21 38.45 PASS 25 19.31 19.78 19.58 -2.78 -0.63 16.53 17.00 16.80 38.45 PASS 50 0 18.59 19.82 19.90 -2.78 -0.63 15.81 17.04 17.12 38.45 PASS Note: 1) dBd = dBi - 2.15 2) EIRP = Conducted output power + Antenna gain (dBi) 3) ERP = Conducted output power + Antenna gain (dBd) LTE Band 12 Test Band: 12 _ 3MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain ERP(dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 1 0 21.76 21.22 21.35 -3.04 -0.89 18.72 18.18 18.31 34.77 PASS 7 22.89 21.18 21.36 -3.04 -0.89 19.85 18.14 18.32 34.77 PASS 14 21.53 21.17 21.44 -3.04 -0.89 18.49 18.13 18.40 34.77 PASS 8 0 20.76 20.27 20.36 -3.04 -0.89 17.72 17.23 17.32 34.77 PASS 4 20.67 20.29 20.48 -3.04 -0.89 17.63 17.25 17.44 34.77 PASS 7 20.61 20.26 20.46 -3.04 -0.89 17.57 17.22 17.42 34.77 PASS 15 0 20.66 20.32 20.41 -3.04 -0.89 17.62 17.28 17.37 34.77 PASS 16QAM 1 20.86 20.47 20.92 -3.04 -0.89 17.82 17.43 17.88 34.77 PASS 7 20.62 20.37 20.97 -3.04 -0.89 17.58 17.33 17.93 34.77 PASS 14 20.56 20.41 21.02 -3.04 -0.89 17.52 17.37 17.98 34.77 PASS 8 0 19.80 19.28 19.58 -3.04 -0.89 16.76 16.24 16.54 34.77 PASS 4 19.73 19.32 19.66 -3.04 -0.89 16.69 16.28 16.62 34.77 PASS 7 19.68 19.23 19.64 -3.04 -0.89 16.64 16.19 16.60 34.77 PASS 15 0 20.12 19.29 19.51 -3.04 -0.89 17.08 16.25 16.47 34.77 PASS Note: 1) dBd = dBi - 2.15 2) EIRP = Conducted output power + Antenna gain (dBi) 3) ERP = Conducted output power + Antenna gain (dBd) LTE Band 13 Test Band: 13 _ 10MHz Bandwidth Modulation RB Allocation Conducted Power (dBm) Antenna gain ERP(dBm) Limit (dBm) Verdict Size Offset LCH MCH HCH (dBd) (dBi) LCH MCH HCH QPSK 1 0 / 21.39 / -4.48 -2.33 / 16.91 / 34.77 PASS 25 / 21.14 / -4.48 -2.33 / 16.66 / 34.77 PASS 49 / 19.98 / -4.48 -2.33 / 15.50 / 34.77 PASS 25 0 / 20.13 / -4.48 -2.33 / 15.65 / 34.77 PASS 13 / 20.47 / -4.48 -2.33 / 15.99 / 34.77 PASS 25 / 20.32 / -4.48 -2.33 / 15.84 / 34.77 PASS 50 0 / 20.59 / -4.48 -2.33 / 16.11 / 34.77 PASS 16QAM 1 / 20.18 / -4.48 -2.33 / 15.70 / 34.77 PASS 25 / 19.53 / -4.48 -2.33 / 15.05 / 34.77 PASS 49 / 20.17 / -4.48 -2.33 / 15.69 / 34.77 PASS 25 0 / 18.97 / -4.48 -2.33 / 14.49 / 34.77 PASS 13 / 19.28 / -4.48 -2.33 / 14.80 / 34.77 PASS 25 / 19.18 / -4.48 -2.33 / 14.70 / 34.77 PASS 50 0 / 19.73 / -4.48 -2.33 / 15.25 / 34.77 PASS Note: 1) dBd = dBi - 2.15 2) EIRP = Conducted output power + Antenna gain (dBi) 3) ERP = Conducted output power + Antenna gain (dBd) 2. Band Edge LTE Band 2(10M) LTE Band 4(15M) LTE Band 5(10M) LTE Band 12(3M) LTE Band 13(5M) 3. Spurious Emission LTE Band 2(10M) LTE Band 4(15M) LTE Band 5(10M) LTE Band 12(3M) LTE Band 13(10M)

1. Effective (Isotropic) Radiated Power Output Data WCDMA Band 2 Test Band: 2 Test Mode Conducted Power (dBm) Antenna gain EIRP(dBm) Limit (dBm) Verdict LCH MCH HCH (dBd) (dBi) LCH MCH HCH HSUPA Subtest 1 15.94 15.24 15.99 / 0.96 16.90 16.20 16.95 33.01 PASS Subtest 2 15.74 15.82 16.40 / 0.96 16.70 16.78 17.36 33.01 PASS Subtest 3 15.57 16.35 16.46 / 0.96 16.53 17.31 17.42 33.01 PASS Subtest 4 16.29 16.47 16.16 / 0.96 17.25 17.43 17.12 33.01 PASS Subtest 5 15.02 15.90 15.20 / 0.96 15.98 16.86 16.16 33.01 PASS HSDPA Subtest 1 15.64 15.76 16.10 / 0.96 16.60 16.72 17.06 33.01 PASS Subtest 2 16.53 16.09 16.37 / 0.96 17.49 17.05 17.33 33.01 PASS Subtest 3 15.69 15.64 15.86 / 0.96 16.65 16.60 16.82 33.01 PASS Subtest 4 15.63 15.74 16.28 / 0.96 16.59 16.70 17.24 33.01 PASS RMC 12.2kbps RMC 19.89 19.86 20.04 / 0.96 20.85 20.82 21.00 33.01 PASS Note: 1) dBd = dBi - 2.15 2) EIRP = Conducted output power + Antenna gain (dBi) WCDMA Band 5 Test Band: 5 Test Mode Conducted Power (dBm) Antenna gain ERP(dBm) Limit (dBm) Verdict LCH MCH HCH (dBd) (dBi) LCH MCH HCH HSUPA Subtest 1 17.98 18.70 18.71 -2.78 -0.63 15.20 15.92 15.93 38.45 PASS Subtest 2 17.99 17.60 17.29 -2.78 -0.63 15.21 14.82 14.51 38.45 PASS Subtest 3 18.21 18.89 19.15 -2.78 -0.63 15.43 16.11 16.37 38.45 PASS Subtest 4 18.21 18.42 19.51 -2.78 -0.63 15.43 15.64 16.73 38.45 PASS Subtest 5 18.85 19.17 18.47 -2.78 -0.63 16.07 16.39 15.69 38.45 PASS HSDPA Subtest 1 18.09 18.54 18.16 -2.78 -0.63 15.31 15.76 15.38 38.45 PASS Subtest 2 18.26 19.04 19.00 -2.78 -0.63 15.48 16.26 16.22 38.45 PASS Subtest 3 18.29 18.39 18.68 -2.78 -0.63 15.51 15.61 15.90 38.45 PASS Subtest 4 18.10 18.18 18.16 -2.78 -0.63 15.32 15.40 15.38 38.45 PASS RMC 12.2kbps RMC 21.82 22…

Text truncated - open the document above for the full version.
