2AH25T5940Wireless Data POS System

SIM2 SIM1 SD PSAM2 PSAM1 Quick Start NFC Reader (optional) For reading NFC cards, like loyalty cards. Printer For printing receipts when the device is on. Front Camera (optional) For video conference, or photo/video taking. Audio Jack For a 3.5mm earphone or interface module. Scan Button (optional) Short press to enable barcode scanning function. Type-C For device charging and developer debugging. Power Button Short press: wake up the screen, lock the screen. Long press: long press for 2-3 seconds to turn on the device when it is off. Long press for 2-3 seconds to select to power off or reboot the device when it is on. Long press for 11 seconds to reboot a device when the system is frozen. Volume Button For volume adjustment. Scanner (optional) For barcode data collection. Rear Camera For photo taking and quick 1D/2D barcode reading. Pogo pin For connecting a barcode scanning accessory, or a cradle for communication and charging. Nano SIM Card Slot For installing the Nano SIM card. PSAM Card Slot (optional) For installing the PSAM cards. Micro SD Card Slot/Nano SIM Card Slot For installing the Micro SD card and Nano SIM card. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 5 4 6 9 11 12 13 5 7 8 10 14 1 2 3 Printing Instructions This device can load a 58mm thermal receipt or label paper roll. The paper roll spec is 57±0.5mm×Ø40mm. · Please open the printer by lifting the lid (see ①). Please do not force open the printer to avoid printhead gear wear; · Load the paper into the printer and pull some paper outside the cutter following the direction shown in ②; · Close the cover to complete paper loading (see ③). Notice: If the printer prints blank paper, please check whether the paper roll has been loaded in the correct direction. Tips: To clean a label printhead, it is recommended to use a cotton swab dipped in alcohol or a alcohol prep pad (75% isopropyl alcohol) to wipe the printhead. Notices Safety Warning Connect the AC plug to the AC socket corresponding to the marked input of the power adapter; To avoid injury, unauthorized persons shall not open the power adapter; This is a Class A product. This product may cause radio interference in living environments. In that case, the user may be required to take adequate measures against interference. Battery replacement: 1.Explosion danger may arise if replacing with the wrong battery! 2.The replaced battery shall be disposed of by maintenance personnel, and please do not throw it into fire! Significant Safety Instructions Do not install or use the device during lightning storms to avoid the potential risks of lightning shock; Please turn off the power immediately if you notice abnormal odor, heat or smoke; The paper cutter is sharp, please do not touch! Suggestions · Do not use the terminal near water or moisture to prevent liquid from falling into the terminal; Do not use the terminal in extremely cold or hot environments, such as near flames or lit cigarettes; Do not drop, throw or bend the device; Use the terminal in a clean and dust-free environ- ment if possible to prevent small items from falling into the terminal; Please do not use the terminal near medical equipment without permission. Statements The Company does not assume responsibilities for the following actions: Damages caused by use and maintenance without complying with the conditions specified in this guide; The Company will not assume any responsibilities for the damages or problemscaused by optional items or consumables (rather than the initial products or approvedproducts of the Company). The customer is not entitled to change or modify the product without our consent. The product’s operating system supports official systemupdates, but if you change the operating system into a third party ROM system or alter the system files by system cracking, it may cause system instability and security risks and threats. Disclaimer As a result of product upgrading, some details in this document may not match the product, and the actual product shall govern. The Company reserves the right of interpretation of this document. The Company also reserves the right toalter this specification without prior notice. Table for Names and Content Identification of Toxic and Hazardous Substances in this Product indicates that the content of the toxic and hazardous substance in all homogeneous materials of the component is below the limit specified in SJ/T 11363-2006. indicates that the content of the toxic and hazardous substance in at least one homogeneous material of the component exceeds the limit stipulated in SJ/T 11363-2006. However, as for the reason, because there is no mature and replaceable technology in the industry at present. ： ： The products that have reached or exceeded environmental protection service life should be recycled and reused according to the Regulations on Control and Management of Electronic Information Products, and should not be discarded randomly. Part Name Toxic or Hazardous Substances and Elements Circuit Board Component Structural Component DBP Packaging Component Pb Cd Cr(VI) PBB PBDEDEHPBBPDIBPHg T GUIDE T5921 T5940 QUICK STAR FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfere…

Text truncated - open the document above for the full version.

Attestation Letter Date: 2021-04-22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern, The chip MT8766V installed in our product Wireless data POS System (model name: T5940. FCC ID: 2AH25T5940), which supports GSM, WCDMA, LTE, NFC, Bluetooth, BLE, 2.4G WiFi, 5G WiFi (Band1: 5150-5250MHz, Band2: 5250 -5350MHz, Band3: 5470-5725MHz, Band4: 5725-5850MHz). But for this product, it only activates NFC, Bluetooth, BLE, 2.4G WiFi, 5G WiFi(Band1: 5150-5250MHz, Band4: 5725-5850MHz), GSM850, PCS1900, WCDMA Band II, WCDMA Band IV,WCDMA Band V, LTE Band 2/4/5/7/12/17/25/26/40/41/66 functions, the other bands are disabled by using the software. Please contact me if there is need for an y additional clarification or information. Best Regards, Sincerely Yours, Signature: Typed o r Printed Name:Wentang Zhang Title: Manager Company: Shanghai Sunmi Technology Co.,Ltd. Add: Room 505, KIC Plaza, No.388 Song Hu Road, Yang Pu District, Shanghai, China Tel: +8618721763396 Fax: +8618721763396 E-mail: [email protected]

Date: 2021-04-22 DECLARATION OF SIMILARITY Dear Sir or Madam: We, Shanghai Sunmi Technology Co.,Ltd., h ereby declare that product: Wireless data POS System (model name: T5940. FCC ID: 2AH25T5940). This model includes three kinds of configuration (with scan code function Version: B-B , Version: B-A and without scan code function). Best Regards, Signature: Contact Person: Zhang Wentang Title: Manager The d etail differences as below: 1. i T5 940 includes three kinds of configuration,only the scan code are different. Please contact me if there is need for any add itional clarification or information. with scan code Version: B-B with scan code Version: B-A 2. The RF boards, the appearance dimension and other PCB board are all the same .so the radio parameters of them are the same. Please refer to EUT photos for more details. Company: Shanghai Sunmi Technology Co.,Ltd. Add: Room 505, KIC Plaza, No.388 Song Hu Road, Yang Pu District, Shanghai, China Tel: +8618721763396 Fax: +8618721763396 E-mail: [email protected] FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Co lumbia, MD 21046Co without scan code

QA-FR-171-A Company: Shanghai Sunmi Technology Co.,Ltd. Add: Room 505, KIC Plaza, No.388 Song Hu Road, Yang Pu District, Shanghai, China Tel: +8618721763396 Fax: +8618721763396 E-mail: [email protected] FCC Confidential Authorization Date: 2021-4-22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AH25T5940 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Shanghai Sunmi Technology Co.,Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description •BOM •Tune up •U-NII Device Security Declaration The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Print Name: Wentang Zhang Title: Manager

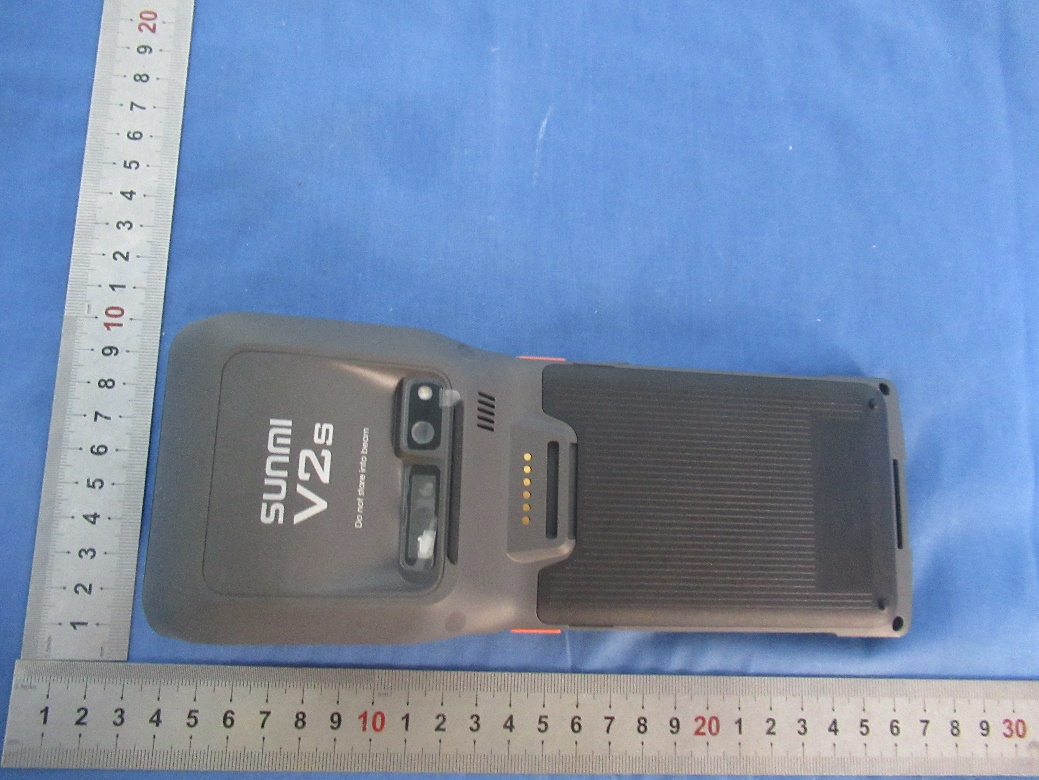

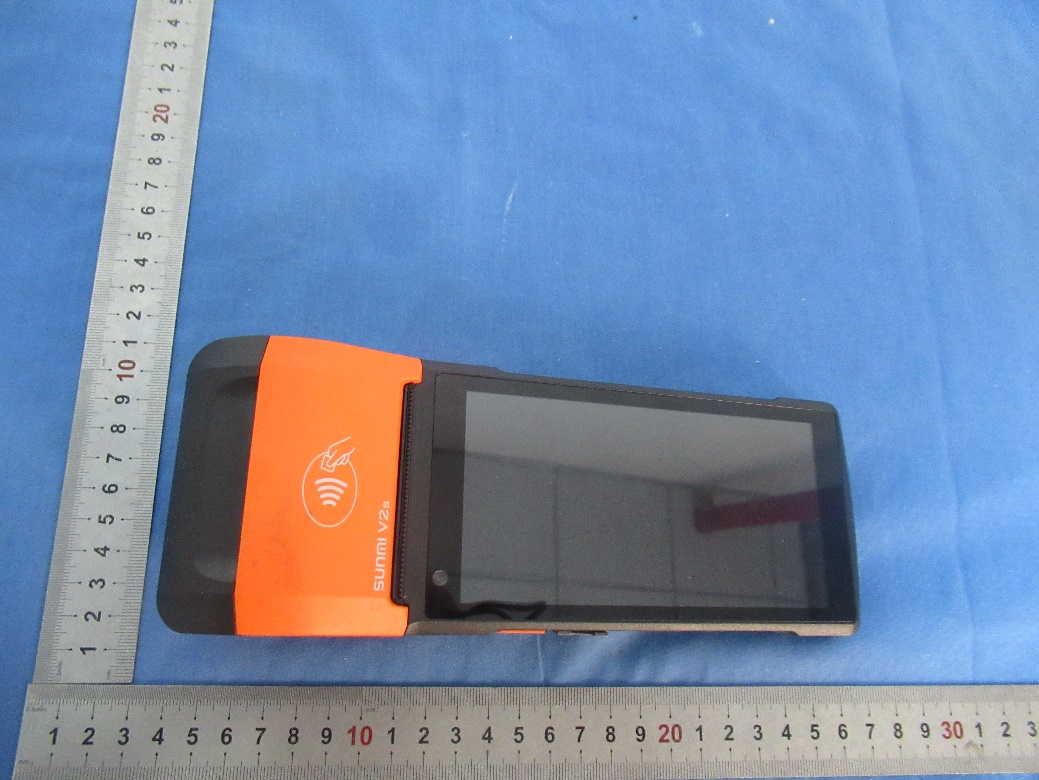

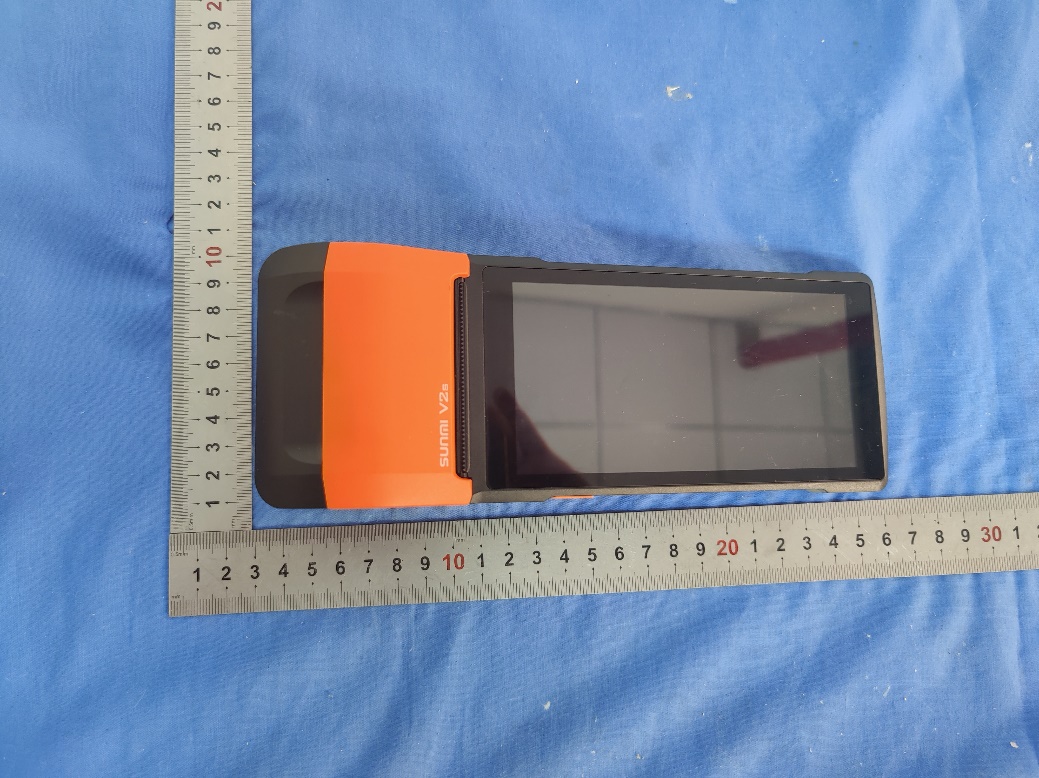

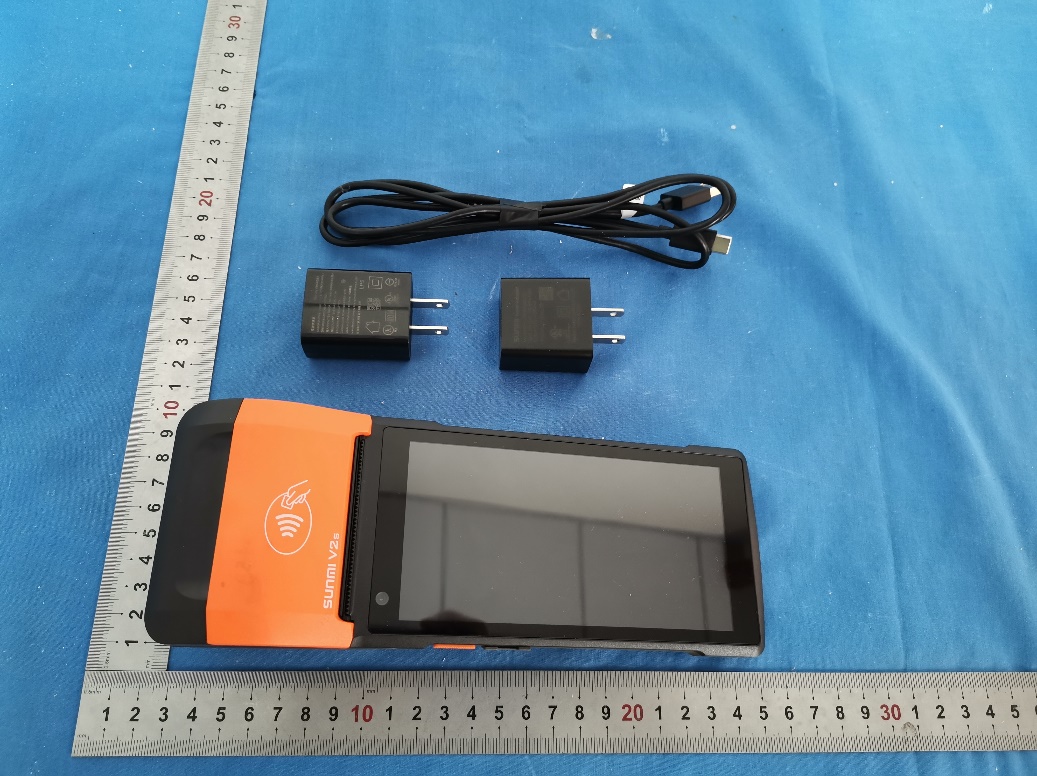

EXHIBIT A- EUT EXTERNAL PHOTOGRAPHS With Scan code (Version: B-B) Adapter-1 Adapter-2 With Scan code (Version: B-A) Without Scan code

粘贴位置

EXHIBIT B - EUT INTERNAL PHOTOGRAPHS With Scan code (Version: B-B) GPRS/EGPRS/WCDMA LTE Main Antenna LTE Diversity Antenna NFC Antenna WiFi/BT Antenna With Scan code (Version: B-A) Without Scan code

SAR EVALUATION REPORT For Shanghai Sunmi Technology Co.,Ltd. Room 505, KIC Plaza, No.388 Song Hu Road, Yang Pu District, Shanghai, China FCC ID: 2AH25T5940 IC:22621-T5940 Report Type: Original Report Product Type: Wireless data POS System Pro ject Engineer: Bard Liu Re port Number: RKSA210422002-20A Re port Date: 2021-06-21 Reviewed By: Oscar Ye EMC Mana ger Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road,Kunshan,Jiangsu province,China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan ) Report No.: RKSA210422002-20A SAR Evaluation Report 2 of 141 Attestation of Test Results EUT Information EUT Description Wireless data POS System Tested Model T5940 FCC ID 2AH25T5940 Serial Number RKSA210422002 Test Date 2021-04-23~ 2021-04-30 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM850 1g Body SAR 0.86 1.6 GSM1900 1g Body SAR 1.42 WCDMA II 1g Body SAR 1.10 WCDMA IV 1g Body SAR 1.15 WCDMA V 1g Body SAR 0.93 LTE Band 7 1g Body SAR 1.14 LTE Band 12&LTE Band 17 1g Body SAR 0.77 LTE Band 25&LTE Band 2 1g Body SAR 1.19 LTE Band 26&LTE Band 5 1g Body SAR 0.70 LTE Band 66&LTE Band 4 1g Body SAR 1.26 LTE Band 40-low 1g Body SAR 1.12 LTE Band 40-upper 1g Body SAR 1.32 LTE Band 41 1g Body SAR 1.12 Bluetooth 1g Body SAR 0.25 2.4GHz WLAN 1g Body SAR 0.52 5.2GHz WLAN 1g Body SAR 1.20 5.8GHz WLAN 1g Body SAR 1.01 Simultaneous 1g Body SAR 1.43 (Hotspot) 1g Body SAR 1.43 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RSS-102 Issue 5 March 2015 Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands). RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximit y to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 Bay Area Compliance Laboratories Corp. (Kunshan ) Report No.: RKSA210422002-20A SAR Evaluation Report 3 of 141 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Kunshan ) Report No.: RKSA210422002-20A SAR Evaluation Report 4 of 141 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 8 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 17 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 17 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 18 LIQUID VERIFICATION ............................................................................................................................................... 18 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 21 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 22 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 31 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 31 CHEEK/TOUCH POSITION ........................................................................................................................................... 32 EAR/TILT …

Text truncated - open the document above for the full version.

1_GSM850_GPRS 4 Tx slots_Front_0mm_Ch190 Communication System: UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.192; ρ = 1000 kg/m 3 DASY5 Configuration:  Probe: EX3DV4 - SN7557;ConvF(10.05, 10.05, 10.05); Calibrated: 11/5/2020,  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn527; Calibrated: 7/9/2020  Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095  Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (81x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.750 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.54 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.876 W/kg SAR(1 g) = 0.543 W/kg; SAR(10 g) = 0.345 W/kg Maximum value of SAR (measured) = 0.741 W/kg 0 dB = 0.750 W/kg = -1.25 dBW/kg 2_GSM850_GPRS 4 Tx slots_Back_0mm_Ch190 Communication System: UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.192; ρ = 1000 kg/m 3 DASY5 Configuration:  Probe: EX3DV4 - SN7557;ConvF(10.05, 10.05, 10.05); Calibrated: 11/5/2020,  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn527; Calibrated: 7/9/2020  Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095  Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.442 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.545 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.536 W/kg SAR(1 g) = 0.299 W/kg; SAR(10 g) = 0.180 W/kg Maximum value of SAR (measured) = 0.444 W/kg 0 dB = 0.442 W/kg = -3.55 dBW/kg 3_GSM850_GPRS 4 Tx slots_Left Side_0mm_Ch190 Communication System: UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.192; ρ = 1000 kg/m 3 DASY5 Configuration:  Probe: EX3DV4 - SN7557;ConvF(10.05, 10.05, 10.05); Calibrated: 11/5/2020,  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn527; Calibrated: 7/9/2020  Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095  Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (51x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.12 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.30 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.60 W/kg SAR(1 g) = 0.732 W/kg; SAR(10 g) = 0.425 W/kg Maximum value of SAR (measured) = 1.11 W/kg 0 dB = 1.12 W/kg = 0.49 dBW/kg 3-A_GSM850_GPRS 4 Tx slots_Left Side_0mm_Ch128 Communication System: UID 0, GSM850 (0); Frequency: 824.2 MHz;Duty Cycle: 1:2 Medium parameters used: f = 824.2 MHz; σ = 0.901 S/m; ε r = 42.351; ρ = 1000 kg/m 3 DASY5 Configuration:  Probe: EX3DV4 - SN7557;ConvF(10.05, 10.05, 10.05); Calibrated: 11/5/2020,  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn527; Calibrated: 7/9/2020  Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095  Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (51x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.07 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.68 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.53 W/kg SAR(1 g) = 0.716 W/kg; SAR(10 g) = 0.416 W/kg Maximum value of SAR (measured) = 1.06 W/kg 0 dB = 1.07 W/kg = 0.29 dBW/kg 4_GSM850_GPRS 4 Tx slots_Right Side_0mm_Ch190 Communication System: UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.192; ρ = 1000 kg/m 3 DASY5 Configuration:  Probe: EX3DV4 - SN7557;ConvF(10.05, 10.05, 10.05); Calibrated: 11/5/2020,  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn527; Calibrated: 7/9/2020  Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095  Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (41x51x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.223 W/kg Zoom Scan (6x8x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.38 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.334 W/kg SAR(1 g) = 0.159 W/kg; SAR(10 g) = 0.100 W/kg Maximum value of SAR (measured) = 0.248 W/kg 0 dB = 0.223 W/kg = -6.52 dBW/kg 5_GSM850_GPRS 4 Tx slots_Top_0mm_Ch190 Communication System: UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.192; ρ = 1000 kg/m 3 DASY5 Configuration:  Probe: EX3DV4 - SN7557;ConvF(10.05, 10.05, 10.05); Calibrated: 11/5/2020,  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn527; Calibrated: 7/9/2020  Phantom: ELI V8.0; Type: QD OVA 004 Ax; Serial: 2095  Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7437) Area Scan (61x71x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0583 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.765 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.0630 W/kg SAR(1 g) = 0.041 W/kg; SAR(10 g) = 0.029 W/kg Maximum value of SAR (measured) = 0.0541 W/kg 0 dB = 0.0583 W/kg = -12.34 dBW/kg 5_GSM850_GPRS 4 Tx slots_Bottom_0mm_Ch190 Communication System : UID 0, GSM850 (0); Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.192; ρ = 1000 kg/m 3 DASY5 Configuration: Probe: EX3DV4 - SN7557;ConvF(10.05, 10.05, 10.05); Calibrated: 11/5/2020, Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn527; Calibrated: 7/9/2020 Phantom: ELI V8.0; Type: QD…

Text truncated - open the document above for the full version.

Liquid depth ≥ 15cm Test Photo Front (0mm) Back (0mm) Left (0mm) Right (0mm) Top (0mm) Bottom (0mm) Front(4mm) Back(4mm) Left (19mm)

FCC PART 15.407 TEST REPORT For Shanghai Sunmi Technology Co.,Ltd. Room 505, KIC Plaza, No.388 Song Hu Road, Yang Pu District, Shanghai, China FCC ID: 2AH25T5940 Report Type: Original Report Product Type: Wireless data POS System Project Engineer: Tyrone Wang Re port Number: RKSA210422002-00C Re port Date:2021-05-28 Reviewed By: Oscar Ye EMC Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA210422002-00C FCC Part 15.407 Page 2 of 108 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 5 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ..................................................................................................................................... 13 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 13 EXTERNAL I/O CABLE ................................................................................................................................................ 13 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 14 SUMMARY OF TEST RESULTS ............................................................................................................................. 16 TEST EQUIPMENT LIST ......................................................................................................................................... 17 FCC §1.1307(b) & §2.1093 - RF EXPOSURE INFORMATION ............................................................................ 18 TEST RESULT ............................................................................................................................................................. 18 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 19 APPLICABLE STANDARD ............................................................................................................................................ 19 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 19 FCC §15.407 (b) (8) §15.207 (a) – AC POWER LINE CONDUCTED EMISSIONS ............................................ 20 APPLICABLE STANDARD ............................................................................................................................................ 20 EUT SETUP ................................................................................................................................................................ 20 EMI TEST RECEIVER SETUP ....................................................................................................................................... 20 TEST PROCEDURE ...................................................................................................................................................... 21 FACTOR & OVER LIMIT CALCULATION – FOR BELOW 1GHZ ..................................................................................... 21 CORRECTED AMPLITUDE & MARGIN CALCULATION – FOR ABOVE 1GHZ ................................................................. 21 TEST RESULTS SUMMARY .......................................................................................................................................... 21 TEST DATA ................................................................................................................................................................ 21 §15.205 & §15.209 & §15.407(B)(1)(4) (8)(9) – UNDESIRABLE EMISSION & RESTRICTED BANDS .......... 26 APPLICABLE STANDARD ............................................................................................................................................ 26 EUT SETUP ................................................................................................................................................................ 26 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 27 TEST PROCEDURE .....................................…

Text truncated - open the document above for the full version.

EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (1GHz-18GHz) Radiated Emissions View (18GHz-40GHz)
