2AH25T6900P2Smart POS system (T6900)

1 7 8 9 2 3 4 5 6 1 2 3 11 12 13 14 15 16 17 NFC 读卡器 用于感应闪付卡。 磁卡读卡器 用于刷银行卡磁条信息。 前置摄像头(可选) 支持拍照及1D/2D快速扫码。 Type-C 接口 可用于给设备充电和开发者调试使用。 功能定义键 快捷进入相应功能。 电源键 短按：点亮屏幕，锁定屏幕。 长按：关机状态下，长按 2-3 秒开机； 使用状态下，长按 2-3 秒，可选择关机或重启； 死机状态下，长按 11 秒，自动重启。 打印机 用于开机状态下打印单据。 指示灯 用于提示刷卡业务步骤。 IC卡读卡器 用于插入银行芯片卡。 二维码扫码头(选配) 用于读取商品码和手机支付码。 注意：禁止直视扫描头，避免对眼睛造成损伤。 后置摄像头 支持拍照及1D/2D快速扫码。 扩展接口 用于链接底座。 向下滑动金属扣，取出Nano SIM PSAM卡槽（SIM卡可选） 用于插入PSAM卡（SIM卡可选)。 PSAM卡槽 用于插入PSAM卡。 Micro SD卡槽 扩展SD卡接口。 Nano SIM卡槽 打开电池盖，取出电池，按图示方向插入SIM卡。 (SIM卡支持移动:2G/4G、联通:2G/3G/4G、电信:4G) 快速入门指南 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 本机支持 58mm 热敏打印纸，规格为 57±0.5mm×Ø40mm ·请通过开盖提手开启打印纸仓(图示①)，勿强行打开纸仓，防止打印头齿 轮磨损； ·按照图示方向，将打印纸正确放入纸仓，并拉出部分纸至切刀外(图示 ②)； ·盖好纸仓盖，打印纸安装完成(图示③)。 注意：如果打印内容空白，请检查纸卷方向是否放反。 打印说明 · 应用市场 · 推送服务 · 用户反馈 · 数据服务 · 启动器 · 硬件管家 · 功能键自定义 · BaseService · 定制服务(壁纸、开机动画) · 开发者指南(调试小助手) · 使用指南 · 开机指导 · 远程协助 · OTA 2 1 以上软件详细信息查询方法：选择“设置->应用”，选择相应软件名称 进行查看信息；软件卸载方法：选择“设置->应用->管理应用->卸载” 卸载应用；或长按图标，拖曳到垃圾桶卸载。 系统预置软件列表 安全警告 · 请将交流电插头插入与配件电源适配器上标识输入相对应的交流电插 座中； · 此为A级产品。在生活环境中，该产品可能会造成无线电干扰。 在这种情况下，可能需要用户对于干扰采取切实可行的措施。 · 不能在非安全区域打开设备。 · 请勿在危险场所充电。 · 关于电池的更换： ① 用错误型号电池更换会有爆炸危险！ ② 更换后的旧电池应交维修人员处置，切勿把它投入火中！ 重要安全说明 · 避免在雷电期间安装或使用，否则有被雷电电击的危险； · 当您发现有异常气味，过热或烟雾情形下，请立刻切断电源； · 撕纸刀较锋利，请勿触碰！ 建议 · 不要在极端冷、热环境中使用，例如靠近火源或点燃的香烟； · 不要摔、投掷或弯折； · 尽量在清洁无尘环境中使用，避免细小物品落入终端中； · 在未获允许的情况下，不要在医疗设备附近使用。 声明 本公司不对以下行为负责 · 不在本指南说明的条件下使用和维护所造成的损坏； · 对于因选件或耗材(非本公司提供之最初产品或认可产品)造成的损坏 或问题；(未经本公司同意，无权进行产品修改或变动) · 本产品的操作系统支持官方的系统更新，如果用户刷了第三方的ROM 系统或者采用破解方式修改了系统文件，可能会导致系统不稳定，以 及带来安全风险和安全威胁。 免责申明 由于产品的更新，此文档的某些细节可能与产品不符，请以实物为准， 此文档的解释权归本公司。保留不预先通知的情况下，修改本说明书的 权利。 警告标志 警告：仅使用原装电池 警告：可能存在爆炸性气体时请勿更换电池 警告：请勿在危险场所充电 注意事项 本产品有毒有害物质名称及含量标识表 部件名称 有毒有害物质或元素 铅 （Pb） 汞 (Hg) 镉 (Cd) 六价铬 (Cr(VI) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 电路板组件 结构件 包装件 ○：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006规定的限量要求以下。 X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006规定的限量要求；但是上表中打“×”的部件，其含 量超出是因为目前业界还没有成熟的可替代的技术。 对达到或超出环保使用年限的产品，应依据《电子信息产品控制管理办 法》规定进行回收再利用，不应随意丢弃。 产品保修卡 产品名称： 产品型号： 产品编号： 购买日期： 保修期限：自购买之日起，我公司提供 天保修服务。 以下情况恕不提供免费保修： · 未经允许擅自拆卸修理的产品。 · 产品条码、易碎贴破损及保修卡涂改、残缺的。 · 未按照说明书的要求操作设备所引起的故障。 · 因进水或跌落而造成的故障、划伤或破损的人为损坏。 · 因不可抗拒因素造成的故障或损坏。 · 保修期限外。 联系方式： · 公司地址： · 联系电话： 产品合格证 检验合格 产品合格证 制造商：上海商米科技集团股份有限公司 地 址：上海市杨浦区淞沪路388号创智天地7号楼505室 封面封底 T6900_CN_EU_01 T6900 QUICK START GUIDE M05054306 10 17 NFC reader Used for sensing Quick Pass Card. Magnetic card reader Used for reading the information stored in the magnetic stripe of bank card. Front-facing camera (optional) Supports photographing and 1D/2D code quick scanning. Type-C USB Used for charging equipment and debugging by developers. Do not charge the battery in hazardous location. Function Key Used for customized function. Power button Short press: wake up the screen, lock the screen. Long press: long press for 2-3 seconds in power off mode to switch on the device. Long press for 2-3 seconds in normal operation mode to select power off or reboot. Long press for 11 seconds when system is frozen for automatic reboot. Printer For printing sales slips in power on mode. Indicator lamp Used for indicating the steps for swiping card. IC Card socket Used for inserting the bank chip card. Two dimensional code scanner(optional) Used to read commodity code and mobile payment code. Attention: do not look directly into the eyes. Rear camera Supports photographing and 1D/2D code quick scanning. Extend pins To connect to dock.(Need to buy dock separately) Do not use dock in hazardous location. Slide down the metal buckle and take out the Nano SIM SIM card slot (PSAM optional) Used for inserting the SIM Card(PSAM optional) Do not open and insert SIM card when an explosive atmosphere is present. PSAM card slot Used for inserting the PSAM Card. Do not open and insert PSAM card when an explosive atmosphere is present Micro SD card slot Used for inserting extend SD card. Nano SIM card slot Used for inserting Nano SIM card. Quick start 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 This device supports 58mm thermal paper with the specifications of 57±0.5mm*Ø40mm. ① Please open the paper container with the uncovering handl ， Please do not force open the paper container to avoid print head gear wear; ② Feed the paper correctly into the paper container in the direction as shown, and pull some paper outside the cutter; ③ Close the cover of the paper container to finish printing paper feeding . Note: If the printed paper is blank, please check whether the paper roll has been installed in the correct direction. Do not open paper container when an explosive atmosphere is present. Printing instructions Lector NFC Se utiliza para detectar tarjetas Quick Pass. Lector de tarjetas magnéticas Se utiliza para leer la información almacenada en la banda magnética de tarjetas bancarias. Cámara frontal (opcional) Para fotografiar y escanear códigos 1D/2D de forma rápida. USB Tipo C Se utiliza para cargar equipos y para la depuración por parte de desarrolladores. No cargue la batería en lugares peligrosos. Teclas de Función Se utiliza para la función personalizada. Botón de encendido Pulsación corta: activa la pantalla, bloquea la pantalla. Pulsación larga: cuando el dispositivo está apagado, presione durante 2-3 segundos para encenderlo. En funcionamiento normal, presione durante 2-3 segundos y seleccione apagar o reiniciar. Mantenga presionado durante 11 segundos cuando el sistema esté bloqueado para realizar un reinicio automático. Impresora Para imprimir comprobantes de venta en modo encendido. Indicador luminoso Se utiliza para indicar los pasos para pasar la tarjeta. Receptor de Tarjetas IC Se utiliza para insertar tarjetas bancarias con chip. Escáner bidimensional de códigos (opcional) Se utiliza para leer códigos de productos y códigos de pagos móviles. Atención: no lo mire directamente con los ojos. Cámara trasera Para fotografiar y escanear códigos 1D/2D de forma rápida. Pines de extensión Para conectar a la base (es necesario comprar la base por separado) No utilice la base en lugares peligrosos. Deslice hacia abajo la hebilla de met…

Text truncated - open the document above for the full version.

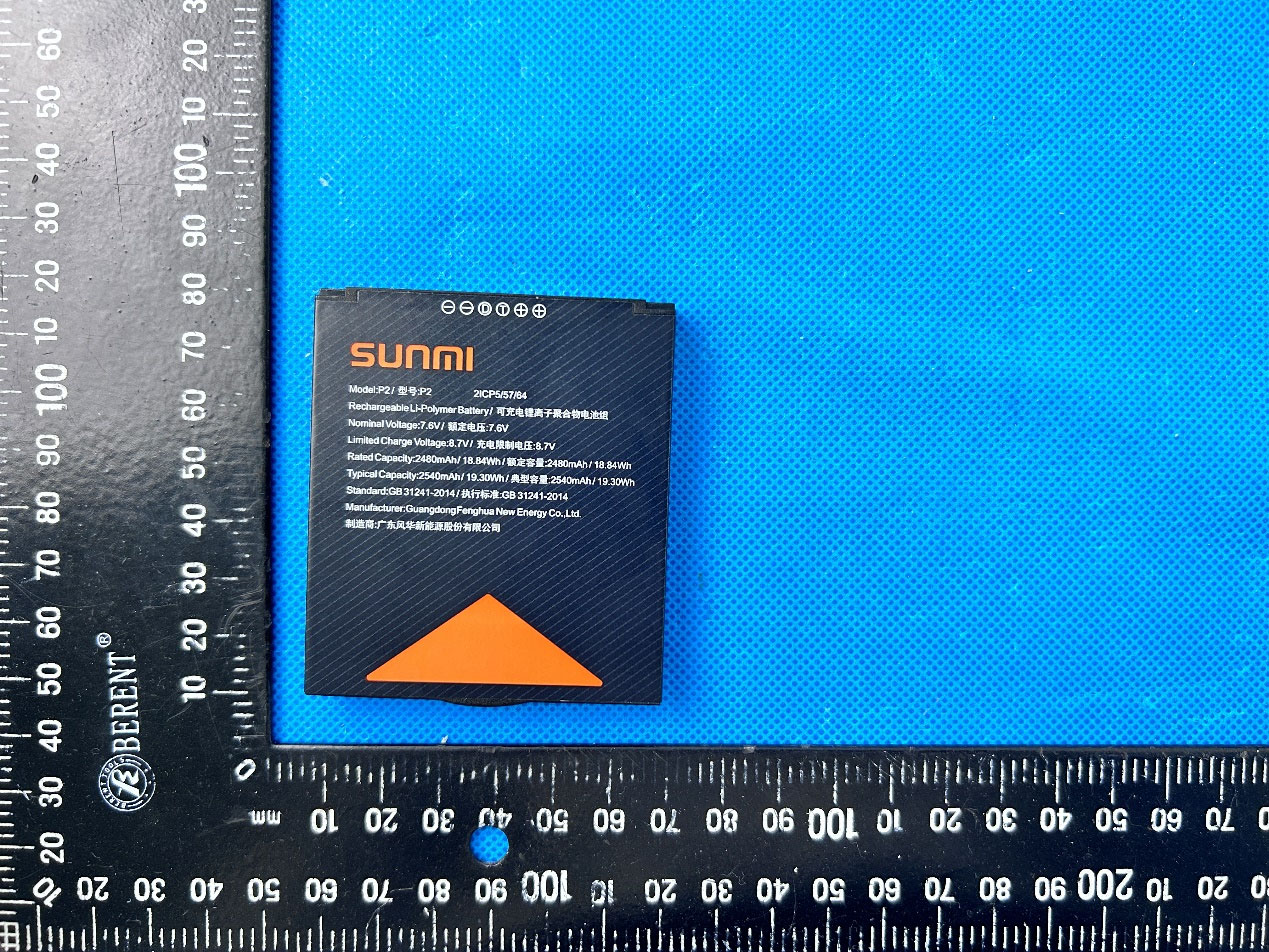

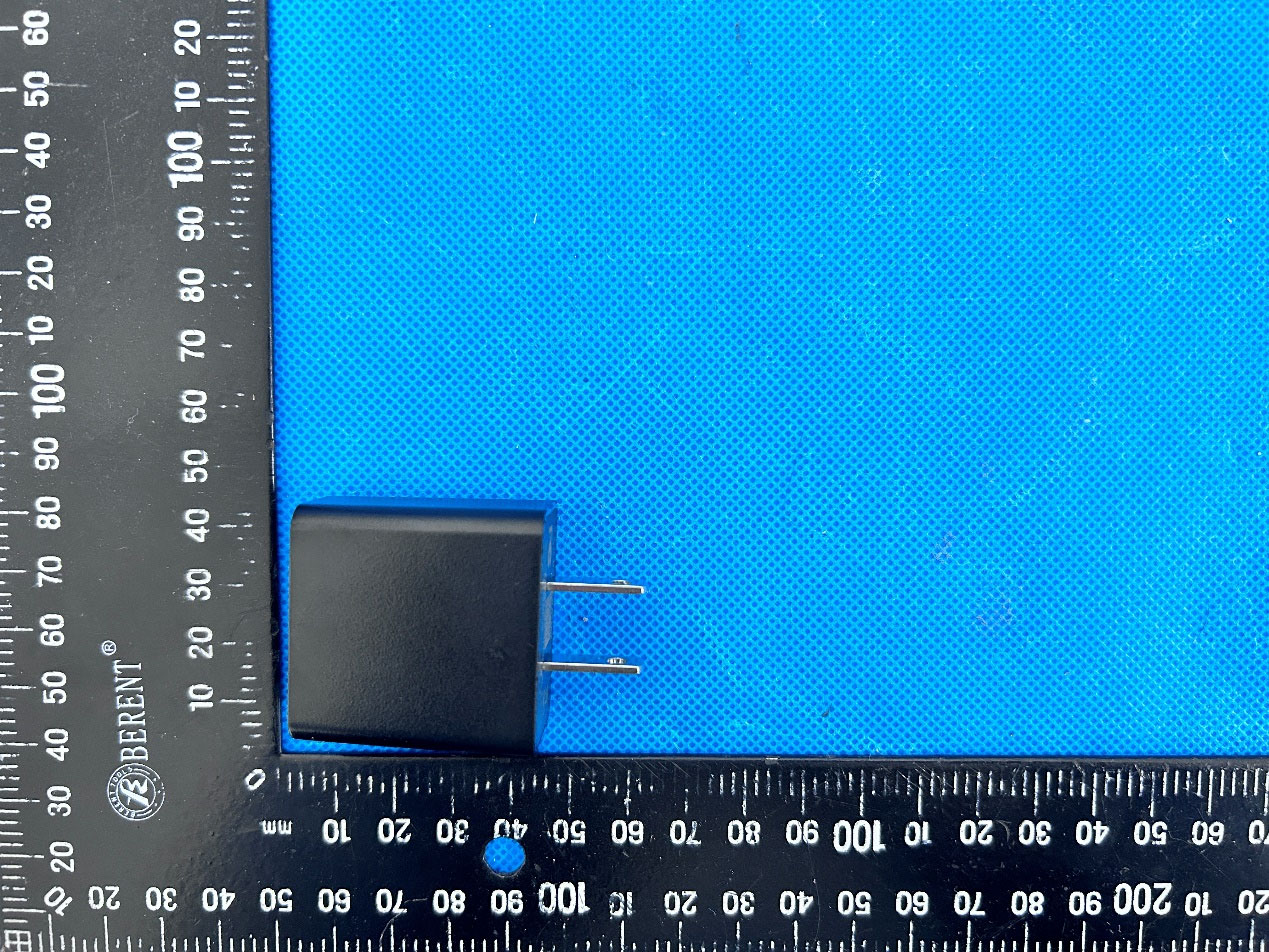

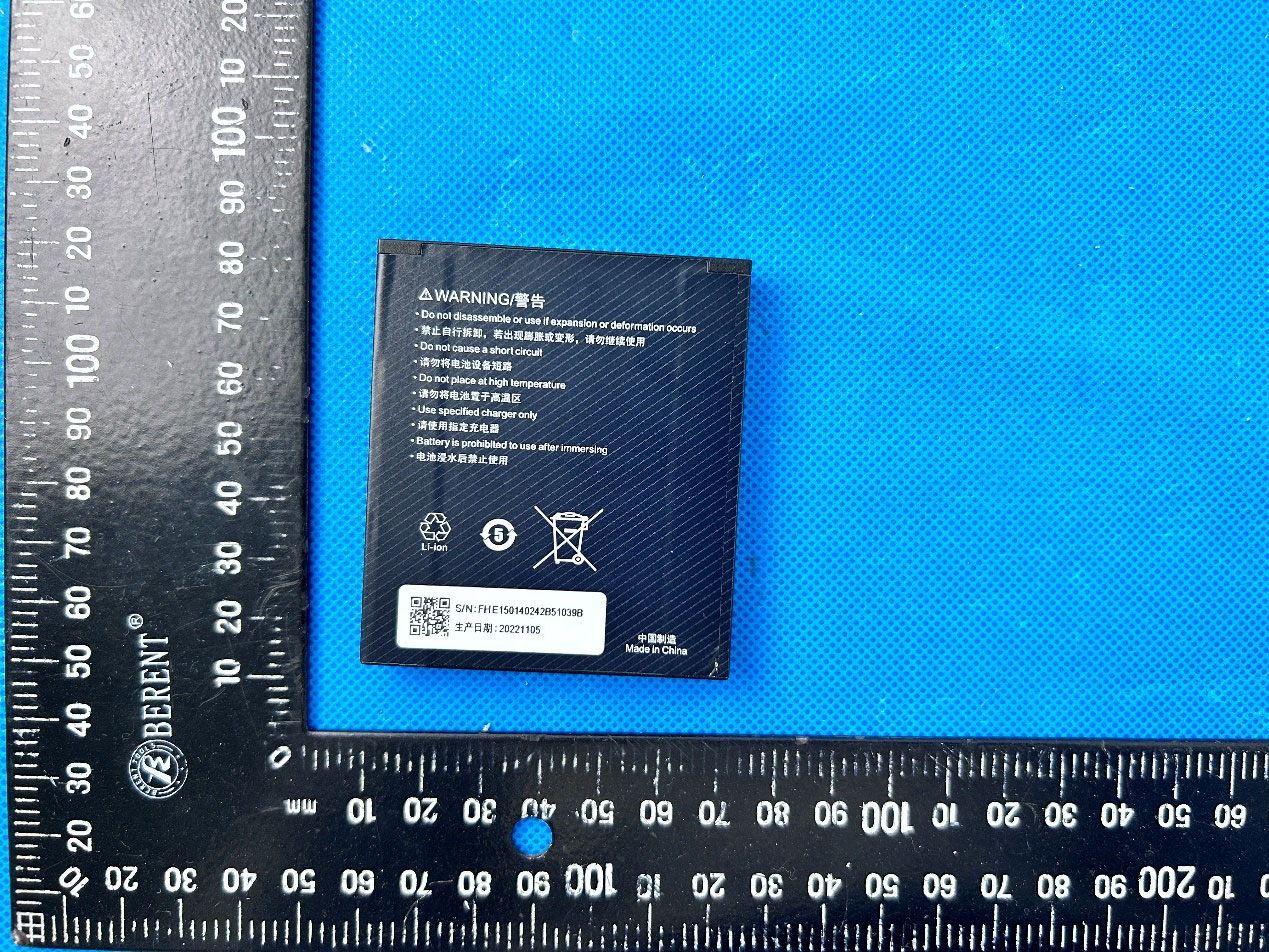

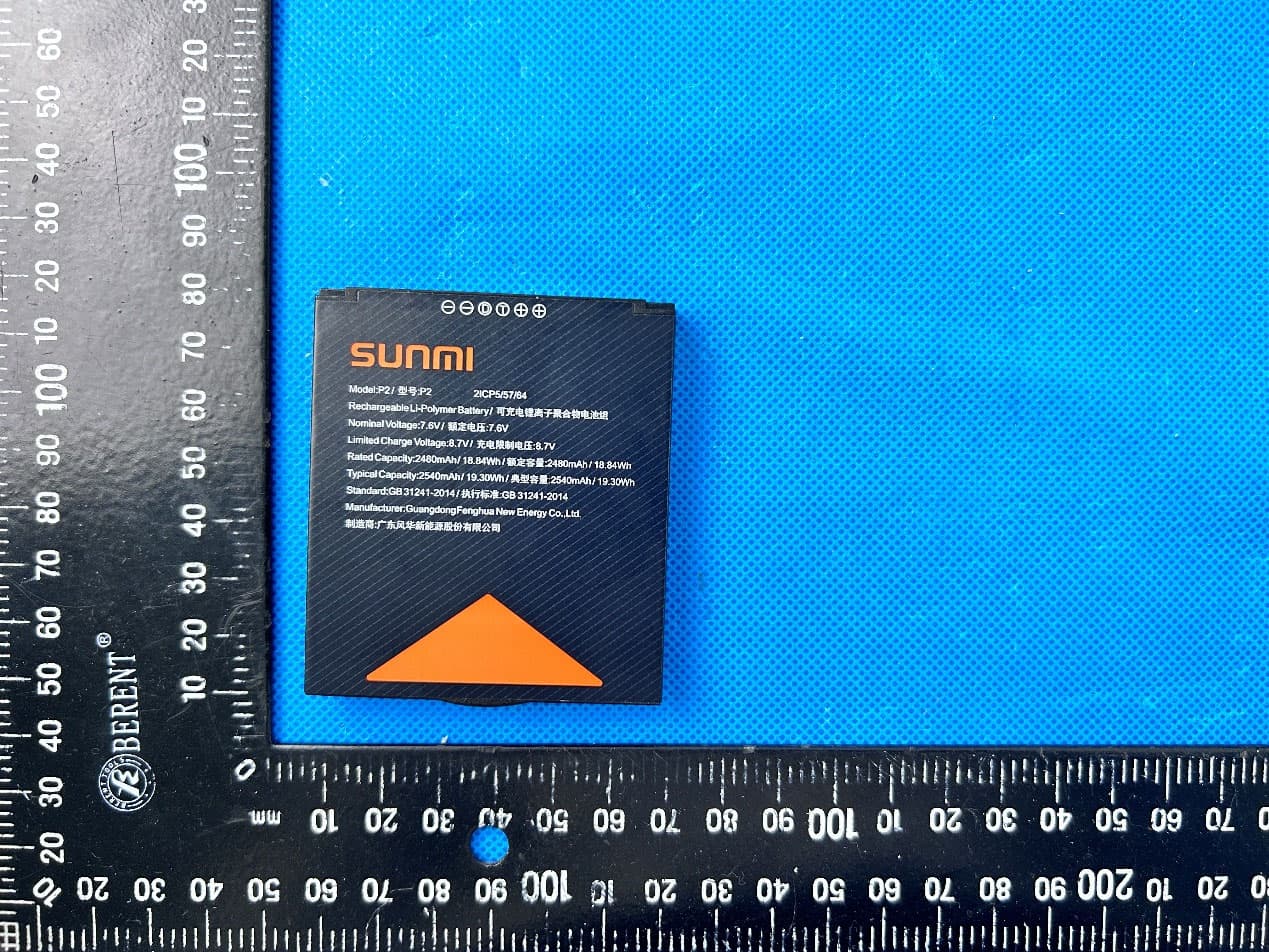

Company: Shanghai Sunmi Technology Co.,Ltd. Add: Room 505, No.388 Song Hu Road, Yang Pu District, Shanghai, China Tel: 17302160204 Fax: 021-61079331 Email: [email protected] Date: 2022-10-20 Declaration of Difference Dear Sir or Madam: We, Shanghai Sunmi Technology Co.,Ltd., hereby declare that product: Smart POS System, model name: T6900 the detail differences description as below, others are the same. T6900 Configuration1(fingerprint &scanner&standard) Name Model Manufacturer Spec PCB STM-5 SHENZHEN SUNTAK MULTILAYER PCB CO LTD V-0 130°C LCD HS55ET10P63B Huashi Opto-Electronic Co., Ltd. 720X (RGB)(H) X 1440(V) dots TFT Type 3.25mm thickness Rear camera HNO0458 Holitech science Technology Co., Ltd. Sensor:Hi556 1/5" Lens:DULE DL5280 VCM:RuienPF8526-44 F.NO:2.2 FOV:>77° Connection method: BTB Battery P2 Guangdong Fenghua New Energy Co,.Ltd. 2480mAh/7.6V Printer ATP2XEP6RTW ENA Xiamen Pinnacle Electrical Co.,Ltd Thermal dot printing print 4.0-9.5V，384dot， Dimension 67.3*18.25*30.0mm Button cell CR2032 Yichang Power Glory Technology Co.,Ltd. Nominal Discharge current 0.2mA Nominal Voltage 3V Nominal Capacity 245(mAh) Adapter TPA- 46050200VU SHENZHEN TIANYIN ELECTRONICS CO.,LTD. 5V 2A Configuration2(fingerprint & standard) Name Model Manufacturer Spec PCB HF01 JIANGXI ZHIBOXIN TECHNOLOGY CO LTD V-0 130°C LCD JL-P055H030-05 SICHUAN JINGLONG PHOTOELECTRIC SCIENCE AND TECHNOLOGY CO.,LTD 720X (RGB)(H) X 1440(V) dots TFT Type 3.25mm thickness Rear camera VM25C27 Shenzhen Chengxiangtong technology Co.,Ltd. Sensor: GC05A2 1/5" Lens: Horui TR0517B VCM: Hozel VA26F502 F.NO:2.2 FOV:>77° Connection method: BTB Battery P2 DongGuan Veken Battery Co.,Ltd. 2480mAh/7.6V Printer LTP02-245-G2 Seiko Instruments Inc. Thermal line dot printing print 5.5-9.5V，384dot， Dimension 67.3*18.1*30.0mm Button cell CR2032 SHANGHAI LONGYOUNG CORPORATION. Nominal Discharge current 0.2mA Nominal Voltage 3V Nominal Capacity 220(mAh) Adapter UC13EU Jiangsu Chenyang Electron Co.,Ltd. 5V2A Configuration3(Based on configuration 1）(fingerprint & standard) Name Model Manufacturer Spec PCB LCD Rear camera Battery P2 Max Guangdong Fenghua New Energy Co,.Ltd. 3000mAh/7.6V Printer Button cell Adapter NOTE: 1)Configuration name difference：different suppliers and(or) models 2)Fingerprint ,scanner, standard difference: only the Mechanical shell is different, refer to the picture below： Fingerprint: scanner Standard * Note: Hardware Version Id Number (HVIN): 1)T6900P2-1:Configuration1-fingerprint 2)T6900P2-2:Configuration1-scanner 3)T6900P2-3:Configuration1-standard 4)T6900P2-4:Configuration2-fingerprint 5)T6900P2-5:Configuration2-standard The above material differences and the differences between the fingerprint mode and the scanner mode do not affect the RF performance. Please contact me if there is need for any additional clarification or information. Best Regards, Signature: Contact Person: Chen Minfei Title: Certification Engineer

Request for Confidentiality Date: 2023/01/04 Subject: Confidentiality Request for: 2AH25T6900P2 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent BOM Short Term Permanent Tune up Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual Short Term Permanent Software Security Info *Note: (Insert Explanation as Necessary) Shanghai Sunmi Technology Co.,Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (180) 2 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TIMCO in the event information regarding the product or the product is made available to the public. TIMCO will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Fang Lu (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Authority to Act as Agent TCF: T6900 FCC ID: 2AH25T6900P2 IC ID: 22621-T6900P2 To Whom It May Concern: We, the undersigned, hereby authorize Gao Hongning of Industrial Internet Innovation Center (Shanghai) Co.,Ltd. to act on our behalf as our agent in the following matters related to the FCC/IC request: testing report submittal, related technological documents submittal. This authorization shall expire 6 months from original date, if you have any question regarding the authorization, please don’t hesitate to contact us, thank you. By: Fang Lu (Signature) (Print Name) On behalf of: Shanghai Sunmi Technology Co.,Ltd. (Company Name) Telephone: +86 18501703215 Date: 2022.12.17

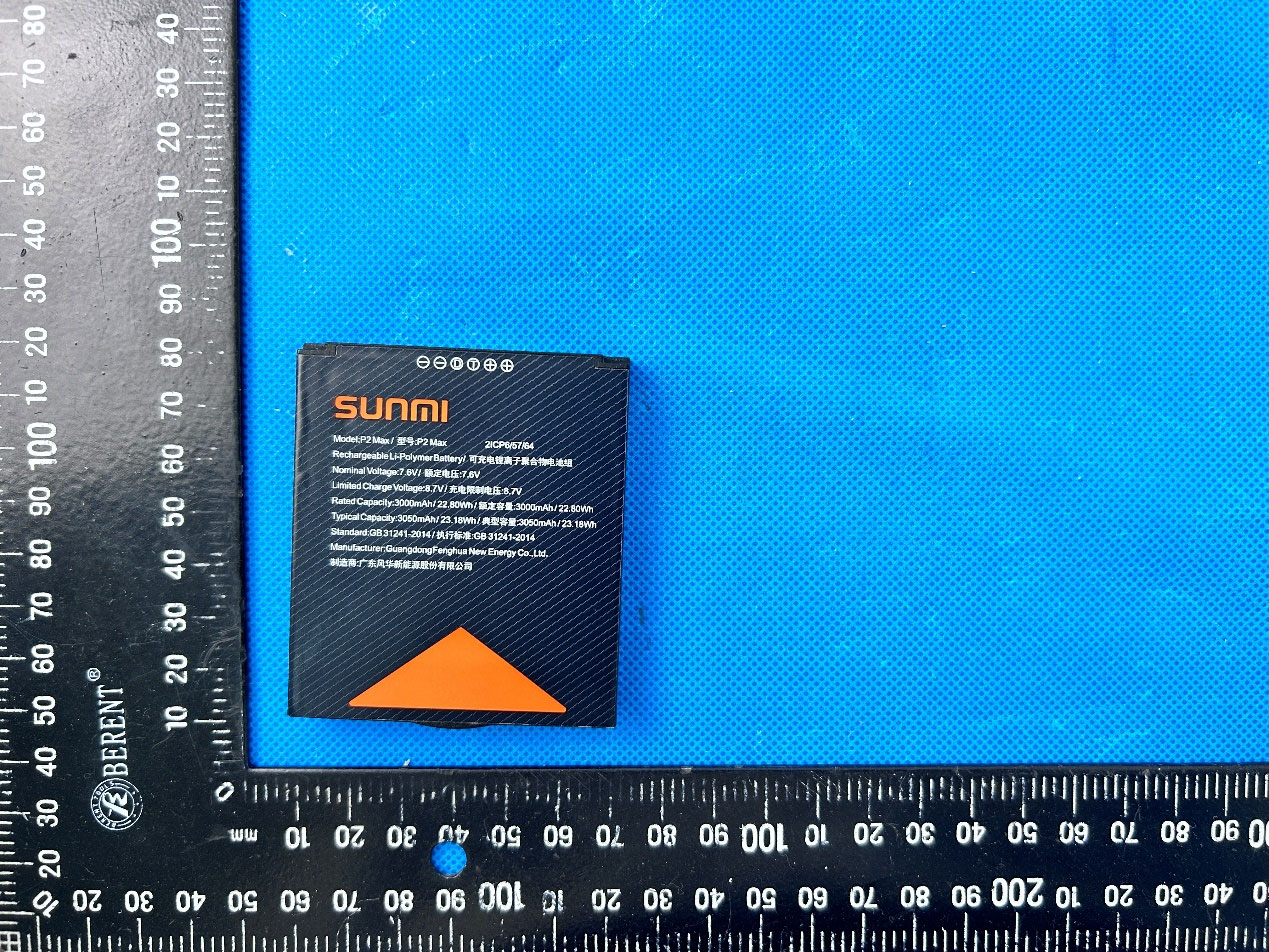

Note: Hardware Version Id Number (HVIN): 1)T6900P2-1:Configuration1-fingerprint ;2)T6900P2-2:Configuration1-scanner; 3)T6900P2-3:Configuration1-standard;4)T6900P2-4:Configuration2-fingerprint 5)T6900P2-5:Configuration2-standard Charger： TPA-23A050200UU01： UC13US： USB cable： Battery（Fenghua-2480mAh）: Battery（Fenghua-3000mAh）:

Label Location

FCC /IC 2 1 PSAM 1 PSAM 2/SIM 2Micro SD Nano SIM 1 SN:1234567890123 IMEI1:123456789012345 IMEI2:1234567890123 HW:XXX HVIN:T6900P2-1 Shanghai Sunmi Technology Co., Ltd. Room 505 No.388 Song Hu Road Shanghai, China FCC ID:2AH25T6900P2 IC:22621-T6900P2 Th is device complies with pa rt 15 of the FCC Rules. Operation is subject to the following two conditions: (1) Th is device ma y not cause harmf ul interference, and (2) this device must accept a ny interference received, includin g interferen ce tha t ma y cause undesired opera tion. Model:T6900 Input:5V 2A P2 Smart Payment Terminal Name: Smart POS system 2 1 PSAM 1 PSAM 2/SIM 2Micro SD Nano SIM 1 SN:1234567890123 IMEI1:123456789012345 IMEI2:1234567890123 HW:XXX HVIN:T6900P2-2 Shanghai Sunmi Technology Co., Ltd. Room 505 No.388 Song Hu Road Shanghai, China FCC ID:2AH25T6900P2 IC:22621-T6900P2 Th is device complies with pa rt 15 of the FCC Rules. Operation is subject to the following two conditions: (1) Th is device ma y not cause harmf ul interference, and (2) this device must accept a ny interference received, includin g interferen ce tha t ma y cause undesired opera tion. Model:T6900 Input:5V 2A P2 Smart Payment Terminal Name: Smart POS system 2 1 PSAM 1 PSAM 2/SIM 2Micro SD Nano SIM 1 SN:1234567890123 IMEI1:123456789012345 IMEI2:1234567890123 HW:XXX HVIN:T6900P2-3 Shanghai Sunmi Technology Co., Ltd. Room 505 No.388 Song Hu Road Shanghai, China FCC ID:2AH25T6900P2 IC:22621-T6900P2 Th is device complies with pa rt 15 of the FCC Rules. Operation is subject to the following two conditions: (1) Th is device ma y not cause harmf ul interference, and (2) this device must accept a ny interference received, includin g interferen ce tha t ma y cause undesired opera tion. Model:T6900 Input:5V 2A P2 Smart Payment Terminal Name: Smart POS system 2 1 PSAM 1 PSAM 2/SIM 2Micro SD Nano SIM 1 SN:1234567890123 IMEI1:123456789012345 IMEI2:1234567890123 HW:XXX HVIN:T6900P2-4 Shanghai Sunmi Technology Co., Ltd. Room 505 No.388 Song Hu Road Shanghai, China FCC ID:2AH25T6900P2 IC:22621-T6900P2 Th is device complies with pa rt 15 of the FCC Rules. Operation is subject to the following two conditions: (1) Th is device ma y not cause harmf ul interference, and (2) this device must accept a ny interference received, includin g interferen ce tha t ma y cause undesired opera tion. Model:T6900 Input:5V 2A P2 Smart Payment Terminal Name: Smart POS system 2 1 PSAM 1 PSAM 2/SIM 2Micro SD Nano SIM 1 SN:1234567890123 IMEI1:123456789012345 IMEI2:1234567890123 HW:XXX HVIN:T6900P2-5 Shanghai Sunmi Technology Co., Ltd. Room 505 No.388 Song Hu Road Shanghai, China FCC ID:2AH25T6900P2 IC:22621-T6900P2 Th is device complies with pa rt 15 of the FCC Rules. Operation is subject to the following two conditions: (1) Th is device ma y not cause harmf ul interference, and (2) this device must accept a ny interference received, includin g interferen ce tha t ma y cause undesired opera tion. Model:T6900 Input:5V 2A P2 Smart Payment Terminal Name: Smart POS system

Fingerprint（Configuration1:T6900P2‐1; Configuration 2: T6900P2‐4 ; Configuration 3） Scanner（Configuration1: T6900P2‐2）： Standard（Configuration1: T6900P2‐3 ; Configuration 2: T6900P2‐5; Configuration 3）: fingerprint &scanner&standard（Configuration1: T6900P2‐1& T6900P2‐2& T6900P2‐ 3）; fingerprint &scanner&standard（Configuration3）： fingerprint & standard（Configuration2）： Note: Hardware Version Id Number (HVIN): 1)T6900P2-1:Configuration1-fingerprint 2)T6900P2-2:Configuration1-scanner 3)T6900P2-3:Configuration1-standard 4)T6900P2-4:Configuration2-fingerprint 5)T6900P2-5:Configuration2-standard

Report No: I22I30110-EMC01-V02 Industrial Internet Innovation Center (Shanghai) Co.,Ltd. EMC TEST R EPORT PRODUCT Smart POS system BRAND SUNMI MODEL T6900 APPLICANT Shanghai Sunmi Technology Co.,Ltd. FCC ID 2AH25T6900P2 IC 22621-T6900P2 ISSUE DATE January 11, 2023 STANDARD(S) FCC Part 15, Subpart B, ANSI C63.4-2014, ICES-003 Issue 7. Prepared by: Li Liukai Reviewed by: Qin Yabin Approved by: Zhang Min CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No: I22I30110-EMC01-V02 Industrial Internet Innovation Center (Shanghai) Co.,Ltd. Page 2 of 55 CONTENTS 1 SUMMARY OF TEST REPORT ................................................................................................................................ 3 1.1 TEST STANDARD (S) ............................................................................................................................................................ 3 1.2 SUMMARY OF TEST RES U LTS ............................................................................................................................................... 3 2 GENERAL INFORMATION OF THE LABORATORY ................................................................................................ 7 2.1 TESTING LABORATORY ........................................................................................................................................................ 7 2.2 LABORATORY ENVIRONMENTAL REQUIREMENTS ................................................................................................................. 7 2.3 PROJECT INFORMATION ...................................................................................................................................................... 7 3 GENERAL INFORMATION OF THE CUSTOMER .................................................................................................... 8 3.1 APPLICANT ......................................................................................................................................................................... 8 3.2 MANUFACTURER ................................................................................................................................................................ 8 3.3 FACTORY............................................................................................................................................................................. 8 4 GENERAL INFORMATION OF THE PRODUCT....................................................................................................... 9 4.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................................ 9 4.2 DESCRIPTION FOR AUXILIARY EQUIPMENT (AE) ................................................................................................................. 9 5 TEST CONFIGURATION INFORMATION ............................................................................................................. 11 5.1 LABORATORY ENVIRONMENTAL CONDITIONS .................................................................................................................... 11 5.2 DECISION OF FINAL TEST MODE ......................................................................................................................................... 12 5.3 EUT SYSTEM OP E RATI ON ................................................................................................................................................. 16 5.4 EUT CONNECTION DIAGRAM OF TEST SYSTEM ................................................................................................................ 17 5.5 TEST EQUIPMENT UTILIZED .............................................................................................................................................. 18 5.6 MEASUREMENT UNCERTAINTY ......................................................................................................................................... 18 6 TEST RESULTS ....................................................................................................................................................... 19 6.1 RADIATED EMISSION ......................................................................................................................................................... 19 6.2 CONDUCTED EMISSION .................................................................................................................................................... 23 ANNEX A: MEASUREMENT DATA ................................................................................................................................ 26 ANNEX B: REVISED HISTORY ....................................................................................................................................... 54 ANNEX C: ACCREDITATION CERTIFICATE .................................................................................................................... 55 Report No: I22I30110-EMC01-V02 Industrial Internet Innovation Center (Shanghai) Co.,Ltd. Page 3 of 55 1 Summary of Test Report 1.1 Test Standard (s) No. Test Standard(s) Title Version 1 FCC Part 15, Subpart B Radio frequency devices 2021/10/1 2 ANSI C63.4 Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 2014 3 ICES-003 Information Technology Equipment (Including Digital Apparatus)-Limits and Methods of Measurement Issue 7 NOTE: 1. According to customer requirements, test and report using the latest version of the standard. 1.2 Summary of Test Results No. Item(s) Standard(s) Verdicts for Single Item Detaied Results 1 Radiated Emission 15.109(a) Pass See section 6.1 2 AC Conducted Emission 15.107(a) Pass See section 6.2 Report No: I22I30110-EMC01-V02 Industrial Interne…

Text truncated - open the document above for the full version.

Test Photograph Description: Front View of Conducted Emission Test Setup Description: Side View of Conducted Emission Test Setup Description: Front view of Radiated Emission Test Setup (Below 1GHz) Description: Back view of Radiated Emission Test Setup (Below 1GHz) Description: Front view of Radiated Emission Test Setup (Above 1GHz) Description: Back view of Radiated Emission Test Setup (Above 1GHz)
