Shenzhen Kexin Wireless Technology Co., Ltd. Product Number: AN2458-1395L120 Product Name: WIFI 2.4/5.8GHZ ANT Antenna type: FPC Antenna Index: 1. Specification 2. Characteristics and Reliability Test 3. Antenna - S Parameter Test Data 4. Mechanical and Packing Drawing 5. Material Description and RoHS Test Report 1. Specification A. Electrical Characteristics Frequency天线频率 2400-2500MHZ /4900-5900MHZ S.W.R.驻波比＜1.5 Antenna Gain天线增益5dBi±0.7 Polarization极化方式 Linear polarization Test ItemsTest Condition and ProcedureRequirements C1S.W.R.Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification C2Antenna Gain Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification M1VibrationGB / T2423 . 48-1997 Amplitude: 0.03 inch (1.5mm); Freq: 20 to 80 to 20 Hz 3 directions; 2 hours for each direction 1. No Visual Damage 2. Frequency Tol.<= 5% M2Random Drop GB / T2423.8-1995 Height: 1.0 Meter; 3 directions; 1 time for each direction 1. No parts separated 2. Frequency Tol.<= 5% M3SolderabilityGB 2423 . 28- 82 Solder iron: 260±5°C; Duration: 5 seconds 1. Mounted on PCB 2. No Visual Damage M4Terminal-Holding with individual specification; force applied1. Directive DUT specification Impedance阻抗 50 Ohm B. Material& MechanicalCharacteristics Materialof Radiator材质 FR-4 CableType线材类型 RG-1.13 ConnectorType天线接口 1 Generation IPEX Cablelength天线长度 From the solder joints, it measures 12 centimeters. C. Environmental OperationTemperature- 40 ̊C ~ + 65 ̊C StorageTemperature- 40 ̊C ~ + 80 ̊C AntennaColorStoragelife < 2year 2. Characteristicsand ReliabilityTest Pull Testto axis of terminal2. FrequencyTol.<=5% M5Terminal- TorqueTest Holdingwith individualspecification;appliedclockwiseand counterclockwiseto the axis of terminal 1. DirectiveDUTspecification 2. FrequencyTol.<=5% M6DimensionInspectionof dimension,color,material,package,surface process DirectiveDUTspecification E1Salt SprayGB / T 2423. 17- 93 Temp:35 °C; RH: >= 95%;NaClsolution:>= 5%; Time:24 hours After2 HoursRecovery 1. No VisualDamage 2. FrequencyTol.<=5% E2HumidityGB / T 2423. 4 - 93 Temp:80 °C / 12 H; -40 °C / 12H RH: >= 90%; Time:24 hours After2 HoursRecovery 1. No VisualDamage 2. FrequencyTol.<=5% E3Thermal Shock GB / T 2423. 22 - 87 1 Cycle:- 40 °C (30 minutes)to + 80 °C (30 minutes) Cycles:24 After2 HoursRecovery 1. No VisualDamage 2. FrequencyTol.<=5% E4Life (High Temp.) GB /T 2423. 2 - 89 Temp:80 °C; Time:24 hours After2 HoursRecovery 1. No VisualDamage 2. FrequencyTol.<=5% R1RoHSWithReferenceto IEC 62321:2008with flow chartDirectiveRoHS2002/95/EC R2PFOSWithReferenceto USAEPA 3540C:1996by LC/MSDirectiveRoHS2006/122/EC R3PFOAWithReferenceto USAEPA 3540C:1996by LC/MSDirectiveRoHS2006/122/EC 3. Antenna- S ParameterTest Data 5.7 0 -4 2400MHz 2480 MHz 2500MHz 5150MHz5850MHz 2440MHZ 4. Test Result： Frequency(MHz) Efficiency(%) Max GAIN(dBi) 2400 8.52 5.14 2410 8.48 5.18 2420 8.53 5.35 2430 8.31 5.26 2440 8.47 5.7 2450 8.25 5.65 2460 8.02 5.52 2470 7.45 5.38 2480 6.96 5.47 Frequency(MHz) Efficiency(%) Max GAIN(dBi) 5150 15.68 5.7 5250 16.11 5.47 5350 17.02 5.28 5450 18.74 5.36 5550 20.42 5.44 5650 20.14 5.25 5750 17.52 5.14 5850 14.85 5.06 ADD: Building H, 301, Hongyingyilin Industrial Park, Shaibailai, Longxin Community, Longgang District, Shenzhen City

- Page 1 of 2 - Photographs of the Test Setup Model: MLM2.0XP Radiated Emission Below 1GHz Radiated Emission Above 1GHz - Page 2 of 2 - Conducted emission DFS

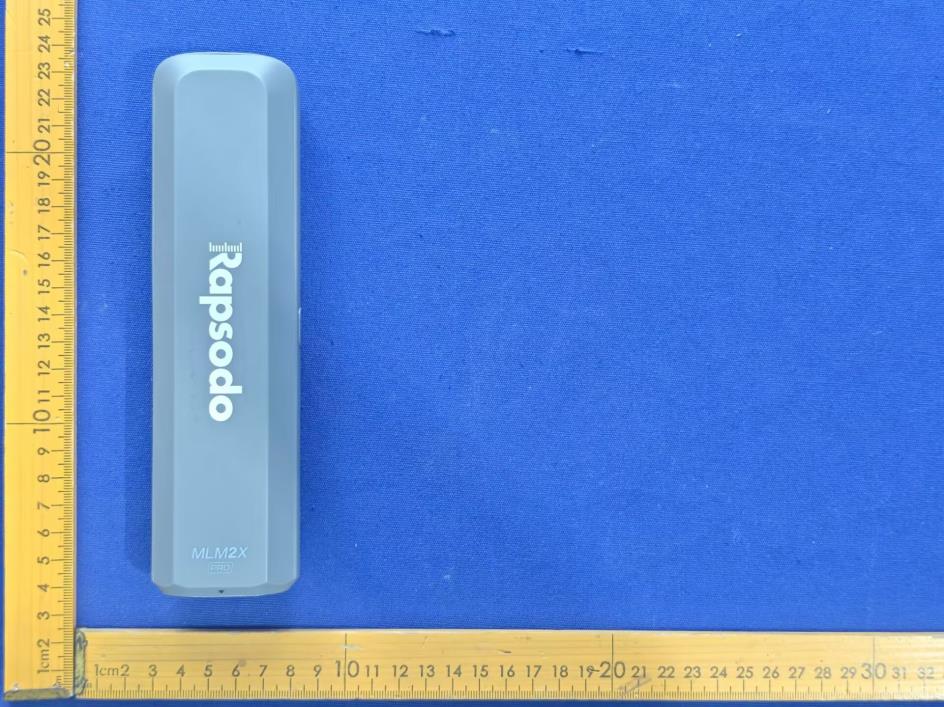

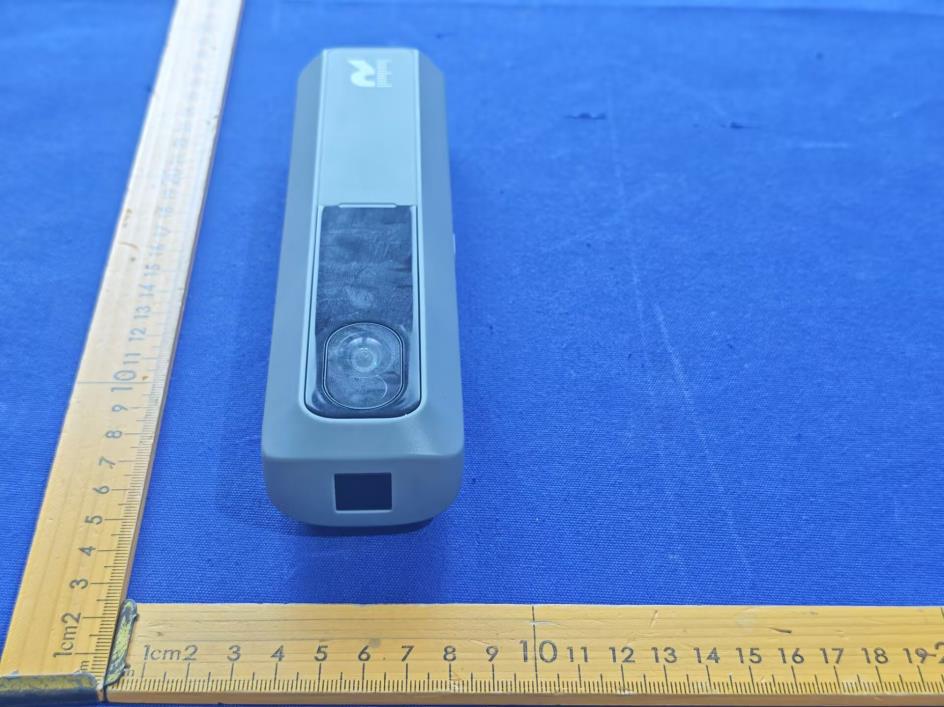

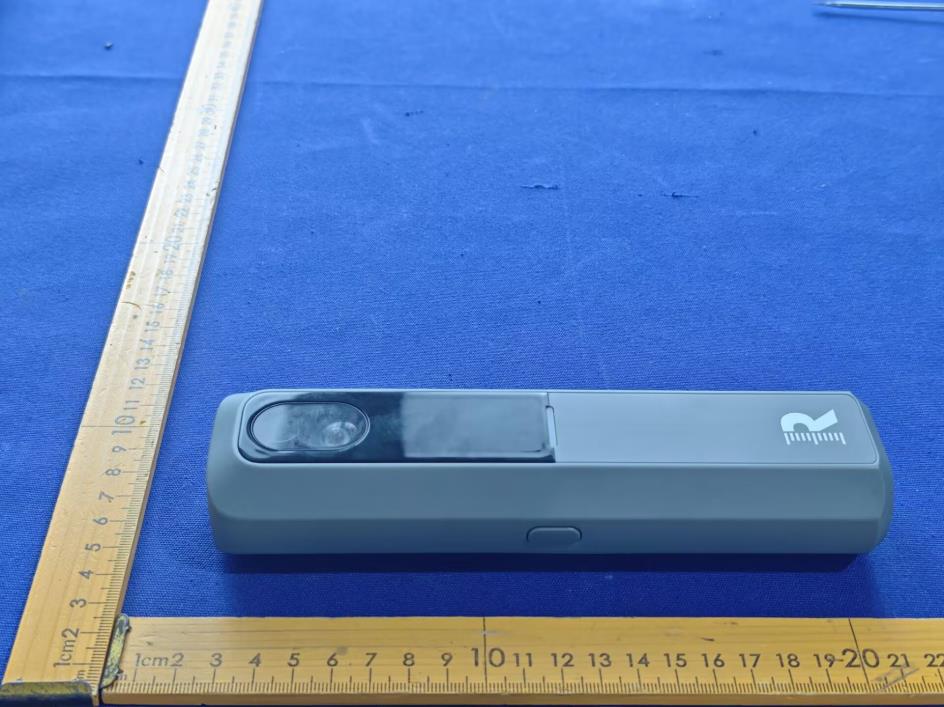

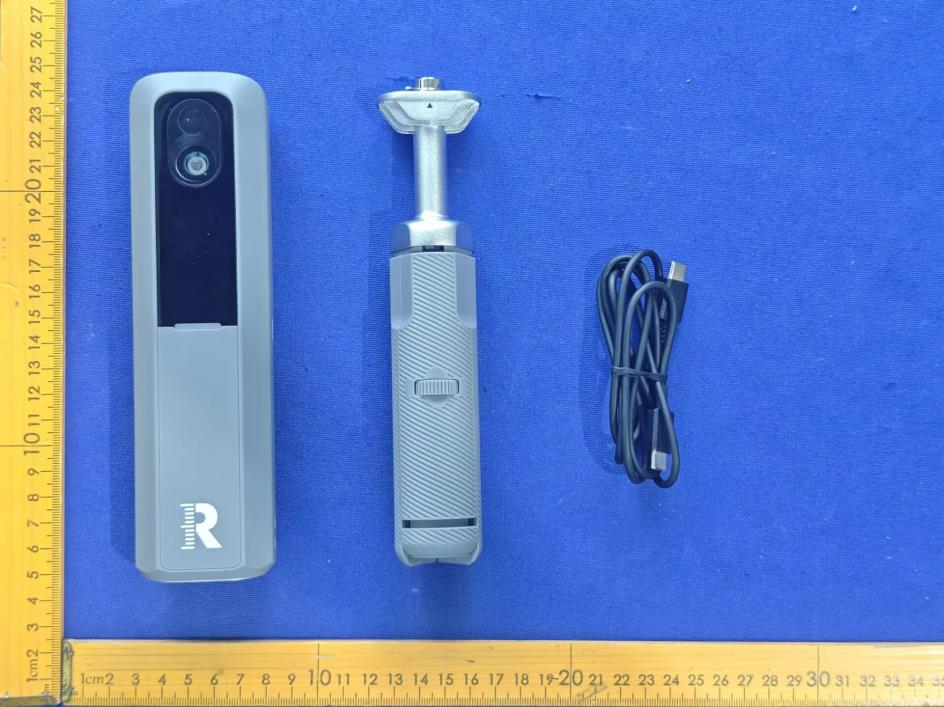

- Page 1 of 25 - Report No.: HB20260713014E-05 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Test Report Product: MLM2XPro Trade Mark: Rapsodo Model Number: MLM2.0XP FCC ID: 2AH3O-MLM2XPRO Prepared for Rapsodo Pte Ltd Blk 20 Ayer Rajah Crescent, #08-05 Singapore 139964 Prepared by Shenzhen HongBiao Certification& Testing Co., Ltd Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, China Tel.: +86-755-2998 9321 Fax.: +86-755-2998 5110 Website: http://www.sz-hongbiao.com - Page 2 of 25 - Report No.: HB20260713014E-05 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Table of Contents 1 GENERAL DESCRIPTION ..................................................................................................................................... 5 1.1 DESCRIPTION OF EUT ................................................................................................................................................ 5 1.2 OPERATION CHANNEL LIST .......................................................................................................................................... 6 1.3 TEST MODE .............................................................................................................................................................. 6 1.4 TEST SETUP .............................................................................................................................................................. 7 1.5 ANCILLARY EQUIPMENT .............................................................................................................................................. 7 2 SUMMARY OF TEST RESULT ............................................................................................................................... 8 3 TEST FACILITIES AND ACCREDITATIONS .............................................................................................................. 9 3.1 TEST LABORATORY ..................................................................................................................................................... 9 3.2 ENVIRONMENTAL CONDITIONS ..................................................................................................................................... 9 3.3 MEASUREMENT UNCERTAINTY ..................................................................................................................................... 9 3.4 TEST SOFTWARE ...................................................................................................................................................... 10 4 LIST OF TEST EQUIPMENT .................................................................................................................................11 5 TEST ITEM AND RESULTS ...................................................................................................................................12 5.1 DYNAMIC FREQUENCY SELECTION ............................................................................................................................... 12 5.1.1 Limits ........................................................................................................................................................ 12 5.1.2 Test Procedures ......................................................................................................................................... 14 5.1.3 Test Setup .................................................................................................................................................. 15 5.1.4 Test Result ................................................................................................................................................. 16 6 PHOTOGRAPHS OF THE TEST SETUP ..................................................................................................................25 - Page 3 of 25 - Report No.: HB20260713014E-05 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com TEST RESULT CERTIFICATION Applicant’s Name ................. : Rapsodo Pte Ltd Address ................................. : Blk 20 Ayer Rajah Crescent, #08-05 Singapore 139964 Manufacturer's Name .......... : Rapsodo Pte Ltd Address ................................. : Blk 20 Ayer Rajah Crescent, #08-05 Singapore 139964 Product description Product name ........................ : MLM2XPro Model Number ....................... : MLM2.0XP Standards ............................. : FCC Part 15.407 Test procedure ....................... : IEEE/ANSI C63.10-2020 + Cor. 1-2023 + C63.10a-2024 + Errata to C63.10a-2024 KDB 905462 D06 802.11 Channel Plans New Rules v02 KDB 905462 D02 UNII DFS Compliance Procedures New Rules v02 KDB 905462 D04 Test Mode New Rules v01 This device described above has been tested by Shenzhen HongBiao Certification& Testing Co., Ltd and the test results show that the equipment under test (EUT) is in compliance with the EMC requirements. And it is applicable only to the tested sample identified in the report. Date of Test Date (s) of performance of tests ............. : July 13, 2026~July 27, 2026 Test Result .............................................. : Pass Testing Engineer : ( Z o e Su) Technical Manager : (M i n g L i u) Authorized Signatory : (L e o S u) - Page 4 of 25 - Report No.: HB20260713014E-05 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianlia…

Text truncated - open the document above for the full version.

- Page 479 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT a 5320MHz Ant1 Emission Tx. Spurious NVNT a 5260MHz Ant2 Emission - Page 480 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT a 5280MHz Ant2 Emission Tx. Spurious NVNT a 5320MHz Ant2 Emission - Page 481 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT n20 5260MHz Ant1 Emission Tx. Spurious NVNT n20 5260MHz Ant2 Emission - Page 482 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT n20 5280MHz Ant1 Emission Tx. Spurious NVNT n20 5280MHz Ant2 Emission - Page 483 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT n20 5320MHz Ant1 Emission Tx. Spurious NVNT n20 5320MHz Ant2 Emission - Page 484 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT n40 5270MHz Ant1 Emission Tx. Spurious NVNT n40 5270MHz Ant2 Emission - Page 485 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT n40 5310MHz Ant1 Emission Tx. Spurious NVNT n40 5310MHz Ant2 Emission - Page 486 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ac20 5260MHz Ant1 Emission Tx. Spurious NVNT ac20 5260MHz Ant2 Emission - Page 487 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ac20 5280MHz Ant1 Emission Tx. Spurious NVNT ac20 5280MHz Ant2 Emission - Page 488 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ac20 5320MHz Ant1 Emission Tx. Spurious NVNT ac20 5320MHz Ant2 Emission - Page 489 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ac40 5270MHz Ant1 Emission Tx. Spurious NVNT ac40 5270MHz Ant2 Emission - Page 490 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ac40 5310MHz Ant1 Emission Tx. Spurious NVNT ac40 5310MHz Ant2 Emission - Page 491 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ac80 5290MHz Ant1 Emission Tx. Spurious NVNT ac80 5290MHz Ant2 Emission - Page 492 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ax20 5260MHz Ant1 Emission Tx. Spurious NVNT ax20 5260MHz Ant2 Emission - Page 493 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ax20 5280MHz Ant1 Emission Tx. Spurious NVNT ax20 5280MHz Ant2 Emission - Page 494 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ax20 5320MHz Ant1 Emission Tx. Spurious NVNT ax20 5320MHz Ant2 Emission - Page 495 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Tx. Spurious NVNT ax40 527…

Text truncated - open the document above for the full version.

- Page 394 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT n20 5240MHz High Ant1 Band Edge NVNT n20 5240MHz High Ant2 - Page 395 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT n40 5190MHz Low Ant1 Band Edge NVNT n40 5190MHz Low Ant2 - Page 396 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT n40 5230MHz High Ant1 Band Edge NVNT n40 5230MHz High Ant2 - Page 397 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ac20 5180MHz Low Ant1 Band Edge NVNT ac20 5180MHz Low Ant2 - Page 398 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ac20 5240MHz High Ant1 Band Edge NVNT ac20 5240MHz High Ant2 - Page 399 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ac40 5190MHz Low Ant1 Band Edge NVNT ac40 5190MHz Low Ant2 - Page 400 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ac40 5230MHz High Ant1 Band Edge NVNT ac40 5230MHz High Ant2 - Page 401 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ac80 5210MHz Low Ant1 Band Edge NVNT ac80 5210MHz Low Ant2 - Page 402 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ax20 5180MHz Low Ant1 Band Edge NVNT ax20 5180MHz Low Ant2 - Page 403 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ax20 5240MHz High Ant1 Band Edge NVNT ax20 5240MHz High Ant2 - Page 404 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ax40 5190MHz Low Ant1 Band Edge NVNT ax40 5190MHz Low Ant2 - Page 405 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ax40 5230MHz High Ant1 Band Edge NVNT ax40 5230MHz High Ant2 - Page 406 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT ax80 5210MHz Low Ant1 Band Edge NVNT ax80 5210MHz Low Ant2 - Page 407 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com For U-NII-2A Band Edge NVNT a 5260MHz Low Ant1 Band Edge NVNT a 5320MHz High Ant1 - Page 408 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT a 5260MHz Low Ant2 Band Edge NVNT a 5320MHz High Ant2 - Page 409 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT n20 5260MHz Low Ant1 Band Edge NVNT n20 5260MHz Low Ant2 - Page 410 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com Band Edge NVNT n20 5320MHz High Ant1 Band Edge NVNT n20 5320MHz High Ant2 - Page 411 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming Distri…

Text truncated - open the document above for the full version.

- Page 310 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com OBW NVNT ax80 5775MHz Ant1 OBW NVNT ax80 5775MHz Ant2 - Page 311 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com 5.7 6 dB Bandwidth 5.7.1 Limit (e) Within the 5.725-5.85 GHz band, the minimum 6 dB bandwidth of U-NII devices shall be at least 500 kHz. 5.7.2 Test Procedure 1. Set RBW= 100 kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower) that are attenuated by 26 dB relative to the maximum level measured in the fundamental emission. 5.7.3 Test Setup 5.7.4 Test Results EUT Spectrum Analyzer - Page 312 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com EUT: MLM2XPro Model Name: MLM2.0XP Test Mode: TX Test Voltage: DC 7.4V from battery For U-NII-3 ANT1: Channel Test Channel Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 11a CH149 5745 15.62 500 Pass 11a CH157 5785 15.432 500 Pass 11a CH165 5825 16.028 500 Pass 11n (HT20) CH149 5745 16.552 500 Pass 11n (HT20) CH157 5785 16.552 500 Pass 11n (HT20) CH165 5825 16.548 500 Pass 11n (HT40) CH151 5755 35.44 500 Pass 11n (HT40) CH159 5795 35.344 500 Pass 11ac (HT20) CH149 5745 16.912 500 Pass 11ac (HT20) CH157 5785 16.9 500 Pass 11ac (HT20) CH165 5825 17.252 500 Pass 11ac (HT40) CH151 5755 35.136 500 Pass 11ac (HT40) CH159 5795 35.136 500 Pass 11ac (HT80) CH155 5775 75.952 500 Pass 11ax (HT20) CH149 5745 17.996 500 Pass 11ax (HT20) CH157 5785 17.776 500 Pass 11ax (HT20) CH165 5825 17.744 500 Pass 11ax (HT40) CH151 5755 37.528 500 Pass 11ax (HT40) CH159 5795 37.488 500 Pass 11ax (HT80) CH155 5775 77.264 500 Pass - Page 313 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com ANT2: Channel Test Channel Frequency (MHz) 6dB bandwidth (MHz) Limit (kHz) Result 11a CH149 5745 16.048 500 Pass 11a CH157 5785 15.944 500 Pass 11a CH165 5825 16.264 500 Pass 11n (HT20) CH149 5745 17.5 500 Pass 11n (HT20) CH157 5785 17.14 500 Pass 11n (HT20) CH165 5825 17.548 500 Pass 11n (HT40) CH151 5755 36.28 500 Pass 11n (HT40) CH159 5795 35.576 500 Pass 11ac (HT20) CH149 5745 17.176 500 Pass 11ac (HT20) CH157 5785 16.808 500 Pass 11ac (HT20) CH165 5825 16.92 500 Pass 11ac (HT40) CH151 5755 35.728 500 Pass 11ac (HT40) CH159 5795 35.704 500 Pass 11ac (HT80) CH155 5775 75.104 500 Pass 11ax (HT20) CH149 5745 18.268 500 Pass 11ax (HT20) CH157 5785 18.148 500 Pass 11ax (HT20) CH165 5825 18.12 500 Pass 11ax (HT40) CH151 5755 36.976 500 Pass 11ax (HT40) CH159 5795 36.712 500 Pass 11ax (HT80) CH155 5775 75.088 500 Pass - Page 314 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5785MHz Ant1 - Page 315 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com -6dB Bandwidth NVNT a 5825MHz Ant1 -6dB Bandwidth NVNT a 5745MHz Ant2 - Page 316 of 572 - Report No. HB20260713014E-04 Add:Room 102, 201, Building 2, Yuanwanggu RFID Industrial Park, Tongguan Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen,China Tel: (86-755) 29989321 Fax: (86-755) 29985110 Web:www.sz-hongbiao.com -6dB Bandwidth NVNT a 5785MHz Ant2 -6dB Bandwidth NVNT a 5825MHz Ant2 - Page 317 of 572 - Report No. HB20260713014E-04 Add:Room 102, 2…

Text truncated - open the document above for the full version.
