2AHFT508Smart Watch
Shenzhen DO Intelligent Technology Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DTS - Digital Transmission System
- Date of Grant
- May 26, 2023
- Application Purpose
- Original Equipment
- Date of Application
- May 24, 2023
- Equipment Note
- Smart Watch
- Frequency Range
- 2402.00000000 - 2480.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Model Battery capacity Charging Time Waterproof level Operating Temperature Product Frequency IDW18 3.8V/300mAh 2.5hours IP68 0°C-60°C 2402-2480MHz Screen Type Charging Voltage Battery Life Weight of Product Bluetooth Version Max. transmission Power Consumption 1.38"-inch color screen 5V±0.2v 7Day 45.9g BLE5.3 dBm Turn on VeryFit app -> Activate Bluetooth connection on your phone -> Search on the app for the device to pair with (or scan the QR code on the device) -> Finish binding on the app (or on the device). EN 2. Turning on/off 1. Product overview Turning on Whilst the watch is off, it automatically turns on when you put it on charge. Swipe up/down 1. To toggle through menu. 2. To view long text/details. Swipe left/right 1. To toggle through menu. Physical button operation Short press 1. To return. 2. To wake the screen when it is off. Long press 1. To turn on the watch. 2. Under the power on state, long press for 8s to restart. Note: Charge the watch to activate it before first use. The original power adapter must be used for charging. Turning off To turn off the watch: go to Settings -> Turning off menu. Rotate the encoder crown up and down to realize the slide switch of the watch interface. Long press the button to turn on the watch. 1. App downloads Download and install the "VeryFit" app on the App Store, Google Play or by scanning the QR code below. 2. Pairing IDW18 has features such as IP68 water resistance, ultra-long battery life, full-screen touch control, low latency, 100 workout modes and multiple cloud watch faces. It supports heart rate monitoring and stress detection throughout the day, blood oxygen detection and sleep monitoring, etc. For operating instructions and FAQs on these features, please turn on the app and go to “User Guide” section. Three suggestions for use and maintenance: 1. Keep the product clean; 2. Keep the product dry; 3. Do not wear the product too tight; * Do not use household cleansers when cleaning the product. Use soap-free cleansers instead. * For stubborn stains, it is recommended to remove by scrubbing with alcohol. Waterproof: Not suitable for use while diving, swimming in the sea, or in a sauna. Suitable for use in swimming pools, showers (cold water) and shallows. Tap the screen 1. To enter the menu. 2. To operate according to the prompts. Tap and hold on the screen 1. To switch between watch faces. Do not place the product and its accessories at extreme temperatures, otherwise it may cause hazards such as product failure, fire or explosion. Protect the product from strong impacts or jolts, so as not to damage the product and its accessories, thus avoiding product failures. Do not disassemble or modify the product and its accessories by yourself. Contact us for after-sales service when the product fails. Quick start guide App downloads and pairing Screen operation Features Safety instructions Care and maintenance VeryFitアプリをオンにする -> スマホでBluetooth接続を有効にする -> アプリでペアリングするデバイスを検索する（またはデバイスの QRコドをスキャンする） -> アプリ（またはデバイス）でバイン ディングを完了します。 JP 2. 電源オン/オフ 物理ボタンの操作 1. 製品概要 短く押す 1. 戻ります。 2. 画面がオフの時、画面を起動します。 電源オン ウォッチがオフになっている間、充電を開始すると自動的にオンに なります。 上方向/下方向にスワイプ 1. メニュを切り替えます。 2. 長いテキスト/詳細を表示します。 右方向/左方向にスワイプ 1. メニュを切り替えます。 長く押す 1. ウォッチの電源をオンにします。 2. 電源オン状態で、8秒長押しすると再起動します。 注意: 初回使用前にウォッチを充電してから起動してください。充電には必ず純正 の電源アダプタを使用してください。 電源オフ ウォッチの電源を切るには：[設定] -> [電源オ フ]メニュに移動します。 エンコダクラウンを上下に回転させると、 時計インタフェスのスライドスイッチが実 現します。 ボタンを長押ししてウォッチをオンにします。 1. アプリのダウンロド App Store、Google Playから、または下のQRコド をスキャンして「VeryFit」アプリをダウンロドし てインストルしてください。 2. ペアリング IDW18には、IP68耐水性、超長寿命バッテリ、全画面タッチコン トロル、低レイテンシ、100種類のワクアウトモド、複数 のクラウドウォッチフェイスなどの特徴があります。1日中の心拍 数モニタリングやストレス検出、血中酸素の検出、睡眠モニタリン グなどに対応しています。これらの機能の操作方法やFAQ（よくあ る質問）については、アプリをオンにして「ユザガイド」のセ クションに進んでください。 使用方法とメンテナンスについての3つのアドバイス: 1. 清潔に保つってください; 2. 乾燥した状態で保管してください; 3. バンドを締め付けすぎないようにしてください; * お手入れの際には、家庭用クレンザを使用しないでください。代 わりに石けん成分不使用の洗浄剤を使用してください。 * 頑固な汚れには、アルコルでアルコルでこすり洗いするのをお 勧めします。 防水: ダイビング、海での水泳、またはサウナでの使用には適していま せん。スイミングプル、シャワ（冷水）、浅瀬での使用に適して います。 画面をタップする 1. メニュを表示します。 2. プロンプトに従って操作します。 画面をタップして長押しする 1. ウォッチフェイスを切り替えます。 本製品および付属品を極端な温度の場所に置かないでください。製 品の故障、火災、爆発などの危険を引き起こす原因になります。 強い衝撃や震動から本製品を保護し、本製品や付属品を損傷させな いようにして、製品の故障を回避してください。 本製品および付属品の分解改造は、お客様ご自身で行わないでく ださい。製品が故障した時のアフタサビスは弊社までお問い合 わせください。 クイックスタトガイド アプリのダウンロドとペアリング 画面の操作 機能 安全のための注意事項 お手入れとメンテナンス Schalten Sie die VeryFit-App ein -> Aktivieren Sie die Bluetooth-Verbindung auf Ihrem Handy -> Suchen Sie in der App nach dem Gerät, mit dem Sie koppeln möchten (oder scannen Sie den QR-Code auf dem Gerät) -> Schließen Sie die Kopplung in der App (oder auf dem Gerät) ab. DE 2. Einschalten/Ausschalten Tastenfunktion 1. Produktübersicht Kurz drücken 1. um zurückzukehren. 2. um den Bildschirm aufzuwecken, wenn er ausgeschaltet ist. Einschalten Solange die Uhr ausgeschaltet ist, schaltet sie sich automatisch ein, wenn Sie aufgeladen wird. Aufwärts/abwärts wischen 1. um das Menü zu durchlaufen. 2. um lange Texte/Details anzuzeigen. Nach links/rechts wischen 1. um das Menü zu durchlaufen. Gedrückt halten 1. um die Uhr einzuschalten. 2. drücken Sie im anschaltenden Zustand 8 Sekunden lang auf, um das Gerät neu zu starten. Hinweis: Laden Sie die Uhr auf, um sie vor Erstgebrauch zu aktivieren. Zum Laden muss das Original-Netzteil verwendet werden. Ausschalten Uhr ausschalten: Navigieren Sie im Menü zu Einstellungen -> Ausschalten. Drehen Sie die Geberkrone nach oben und unten, um den Schiebeschalter der Uhrenschnittstelle zu aktivieren. Halten Sie die Taste gedrückt, um die Uhr einzuschalten. 1. App herunterladen Laden Sie die App „VeryFit“ im App Store, bei Google Play oder durch Scannen des nachstehenden QR-Codes herunter und installieren Sie sie. 2. Koppeln Die IDW18 verfügt über Funktionen wie IP68 Wasserbeständigkeit, ultralange Akkulaufzeit, Vollbild-Touch-Bedienung, geringe Latenz, 100 Trainingsmodi und mehrere Cloud-basierte Zifferblätter. Sie unterstützt Herzfrequenzüberwachung und Stresserkennung während des Tages, Blutsauerstofferkennung und Schlafüberwachung usw. Für…
Text truncated - open the document above for the full version.
Attestation Statements
ShenzhenDOIntelligentTechnologyCo.,Ltd FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023-5-23 FCCID:2AHFT508 Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing ShenzhenDOIntelligentTechnologyCo.,Ltdcertifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing ShenzhenDOIntelligentTechnologyCo.,Ltdcertifiesthat,asofthedateofthefiling oftheapplication,theapplicantisnotidentifiedontheCoveredListasanentity producing“covered”equipment. Applicant:ShenzhenDOIntelligentTechnologyCo.,Ltd Address:11thFloor,3#Building,GuoleTechPark,LirongRoad,Dalang,LonghuaDistrict, Shenzhen,China ContactPerson: WuDajun Tel.:0755-82529675 Email:[email protected] Sincerely, Signature:
Attestation Statements
EffectiveDate:April2,2020QSF7.6.4-8–AgentAuthorizationLetterTemplatePage1of1 RevisionDate:Revision:0 ShenzhenDOIntelligentTechnologyCo.,Ltd Date：2023-5-23 ProductModelNumber: FCCID：2AHFT508 Towhomitmayconcern, Re:ProductCertificationRepresentativeAuthorizationLetter WeauthorizeQAILaboratoriesLtd.3980NorthFraserWay,BurnabyB.C.CanadaV5J5K5to actonourbehalfonallmattersconcerningtheabovenamedequipment. Thisshallincludethefollowing: Testing Approvalapplicationsandprocedures WedeclarethatORGANIZATION.isallowedtoforwardallinformationrelatedtotheapproval projecttotheappliedcertificationbodyandtothenotificationentitiesandtodiscussanyissues concerningtheapprovalapplication.AnyandallactscarriedoutbyORGANIZATION.onour behalfshallhavethesameeffectasactsofourown. By:WuDajun ContactListedonFCCWesbite Title: GeneralManager Email:[email protected] Telephone:0755-82529675 Onbehalfof:ShenzhenDOIntelligentTechnologyCo.,Ltd
Attestation Statements
Shenzhen DO Intelligent Technology Co., Ltd Address：11th Floor, 3# Building, Guole Tech Park, Lirong Road, Dalang, Longhua District, Shenzhen, China FRN: 0025289893 Date: 2023-05-23 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing SUBJECT: FCC Application for FCC ID: 2AHFT508 Shenzhen DO Intelligent Technology Co., Ltd certifies that, as of the date of the filing of the application, Cleveland International Trade Agency. is our designated U.S. agent for service of process for the above referenced FCC ID. Shenzhen DO Intelligent Technology Co., Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Cleveland International Trade Agency accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Cleveland International Trade Agency Address: 4033 ST Clair Ave, Cleveland, OH 44103, USA FRN: 0033401837 Contact Person: Becky Deng Tel.: 216-600-0606 Email: [email protected] Sincerely, Signed on behalf of Shenzhen DO Intelligent Technology Co., Ltd Signed on behalf of Cleveland International Trade Agency signature Signature Name: Wu Dajun Name: Becky Deng Title: General manager Title: Manager Date: 2023-5-23 Date:2023-5-23
Attestation Statements
ShenzhenDOIntelligentTechnologyCo.,Ltd FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2023-5-23 FCCID:2AHFT508 Ref.#1:AttestationStatementsPart2.911(d)(5)(i)Filing ShenzhenDOIntelligentTechnologyCo.,Ltdcertifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Ref.#2:AttestationStatementsPart2.911(d)(5)(ii)Filing ShenzhenDOIntelligentTechnologyCo.,Ltdcertifiesthat,asofthedateofthefiling oftheapplication,theapplicantisnotidentifiedontheCoveredListasanentity producing“covered”equipment. Applicant:ShenzhenDOIntelligentTechnologyCo.,Ltd Address:11thFloor,3#Building,GuoleTechPark,LirongRoad,Dalang,LonghuaDistrict, Shenzhen,China ContactPerson: WuDajun Tel.:0755-82529675 Email:[email protected] Sincerely, Signature:
Cover Letter(s)
ShenzhenYushengCommunicationEquipmentCo.,LTD 1/13 IDW18ProjectAntennaMaterialRequirementsSpecification Customername:ShenzhenAiduTechnologyCo.,LTD Customername:IDW18 Productname:BluetoothRFantenna sizeofproduct:FPCantenna22.00*5.35*0.11MMblackgilt ChangeContentCV: NOeditionstateStartandenddatepersonliablepagenumberremarks 1T:aT:a2023-03-23 YuanShujun 13 TheSupplieracknowledgesthesignatureofthefollowingdocuments: Responsibleperson/dateIQC/dateReview/DateApproval/Date MD FengJiwuYiguanfaChenKehong RF ZengXiangHao TheDemanderacknowledgesthesignature(pleasesenditbackaftertheconfirmation): Thedemander'sjudgmentresult:□qualified□unqualified Development&Design Engineer/Date SQEEngineer/DatePurchasingLeader/ Date DevelopmentManager approval/date ShenzhenYushengCommunicationEquipmentCo.,LTD 2 / 13 catalogue 1.OVERVIEW......................................................................................................................................................3 1.1SCOPEOFAPPLICATION......................................................................................................................................3 1.2P ROJECTBASICINFORMATION...........................................................................................................................3 2.TECHNICALINDEXREQUIREMENTS.....................................................................................................4 2.1INTRODUCTIONOFTESTITEMSANDEQUIPMENT.............................................................................................4 2.2.1T ESTINSTRUCTIONS........................................................................................................................................4 2.2.2ANTENNAPASSIVEPARAMETERS.....................................................................................................................5 2.2.3A PPLEGRAPHOFTHEANTENNA....................................................................................................................5 2.2.4, THEANTENNAORIENTATIONDIAGRAM.........................................................................................................6 2.3THEANTENNAHASNOPASSIVEPARAMETERS...................................................................................................7 2.4A NTENNAACTIVEPARAMETERS -1# ..................................................................................................................8 2.5ANTENNAACTIVEPARAMETERS-2#..................................................................................................................9 2.6T HEANTENNATESTENVIRONMENT.................................................................................................................10 2.7P ICTUREOFTHEANTENNAPROTOTYPE...........................................................................................................10 3.ENGINEERINGDRAWINGS.....................................................................................................................11 4.LISTOFMATERIALS...................................................................................................................................12 5.PACKAGESCHEMATICDIAGRAM........................................................................................................13 ShenzhenYushengCommunicationEquipmentCo.,LTD 3/13 1.Overview 1.1Scopeofapplication Thisrequirement,providedAntennatechnicalrequirementsandmaterialrequirementsspecificationsforIDW 18products. ThisrequirementappliestoIDW18Antennaselection,testingandacceptanceoftheproducts. 1.2Projectbasicinformation Antennaname: IDW18 Antennaband: BT：2400-2500MHZ Antennamaterial:FPCantenna Antennaversion:V2 ShenzhenYushengCommunicationEquipmentCo.,LTD 4/13 2.Technicalindexrequirements 2.1Introductionoftestitemsandequipment inventorytestitem equipment S11 parameter Standingwaveratio,echolossnetworkanalyzer ActivetestTRP,TISIntegratedtester,microwavedarkroom PassivetestGain,efficiencynetworkanalyzer 2.2.1Testinstructions Testtools:Agilent8960instrument,R&SCMW500,fullwavefarfieldETSdarkroom,high precisionpositioningsystemanditscontrollerandcomputerwithautomatictestprogram Testenvironment:temperature22°C±3°C,humidity50%±15% Testmethod:DUTisfixedinthecenteroftheturntableonthesamehorizontallineasth ecenterofthehornantenna.ThepositioningsystemenablestheDUTtorotateinthewhol espheretosatisfythehigh-precision3Dpositioning.EachRFinstrumentandturntablec ontrollercommunicatewiththePCwithautomatictestsoftwarethroughtheGPIBinterface ShenzhenYushengCommunicationEquipmentCo.,LTD 5/13 2.2.2Antennapassiveparameters 2.2.3Applegraphoftheantenna ShenzhenYushengCommunicationEquipmentCo.,LTD 6/13 2.2.4,theantennaorientationdiagram ShenzhenYushengCommunicationEquipmentCo.,LTD 7/13 2.3Theantennahasnopassiveparameters TestFree-space TestPointID123456789 Freq.(MHz)240024102420243024402450246024702480 Efficiency(%) 26.227.328.229.129.629.229.028.427.9 productivene ss(dB) -5.8-5.6-5.5-5.4-5.3-5.4-5.4-5.5-5.5 gain(dBi) -1.6-1.3-0.9-0.7-0.2-0.5-0.8-1.1-1.4 TestARM TestPointID 123456789 Freq.(MHz)240024102420243024402450246024702480 Efficiency(%) 11.411.611.812.112.312.612.411.911.5 productivene ss(dB) -9.4-9.4-9.3-9.2-9.1-9.0-9.1-9.2-9.4 gain(dBi) -6.1-5.8-5.7-5.5-5.3-4.7-4.9-5.2-5.9 ShenzhenYushengCommunicationEquipmentCo.,LTD 8/13 2.4Antennaactiveparameters-1# TestMainboardconductiondata Channel 03978 TRP(dBm) 8.48.68.6 TIS(dBm) -90.2-90.2-91.1 TestantennaOTA-FS Channel 03978 TRP(dBm) 2.72.72.6 TIS(dBm) -84.8-84.6-84.7 TestAntennaOTA-ARM Channel 03978 TRP(dBm) -2.6-2.7-2.6 TIS(dBm) -80.2-80.3-80.1 ShenzhenYushengCommunicationEquipmentCo.,LTD 9/13 2.5Antennaactiveparameters-2# TestMainboardconductiondata Channel03978 TRP(dBm) 8.58.68.6 TIS(dBm) -90.5-90.7-90.8 TestantennaOTA-FS Channel 03978 TRP(dBm) 2.42.62.5 TIS(dBm) -85.2-85.5-85.3 TestAntennaOTA-ARM Channel03978 TRP(dBm) -2.4-2.4-2.5 TIS(dBm) -80.2-80.3-80.2 ShenzhenYushengCommunicationEquipmentCo.,LTD 10/13 2.6Theantennatestenvironment 2.7Pictureoftheantennaprototyp…
Text truncated - open the document above for the full version.
Cover Letter(s)
ShenzhenDOIntelligentTechnologyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:May23,2023 Subject;RequestforConfidentiality FCCID:2AHFT508 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthese documentsmightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantage inthemarket. SchematicDiagram BlockDiagram OperationalDescription Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:WuDajun Title:GeneralManager
External Photos

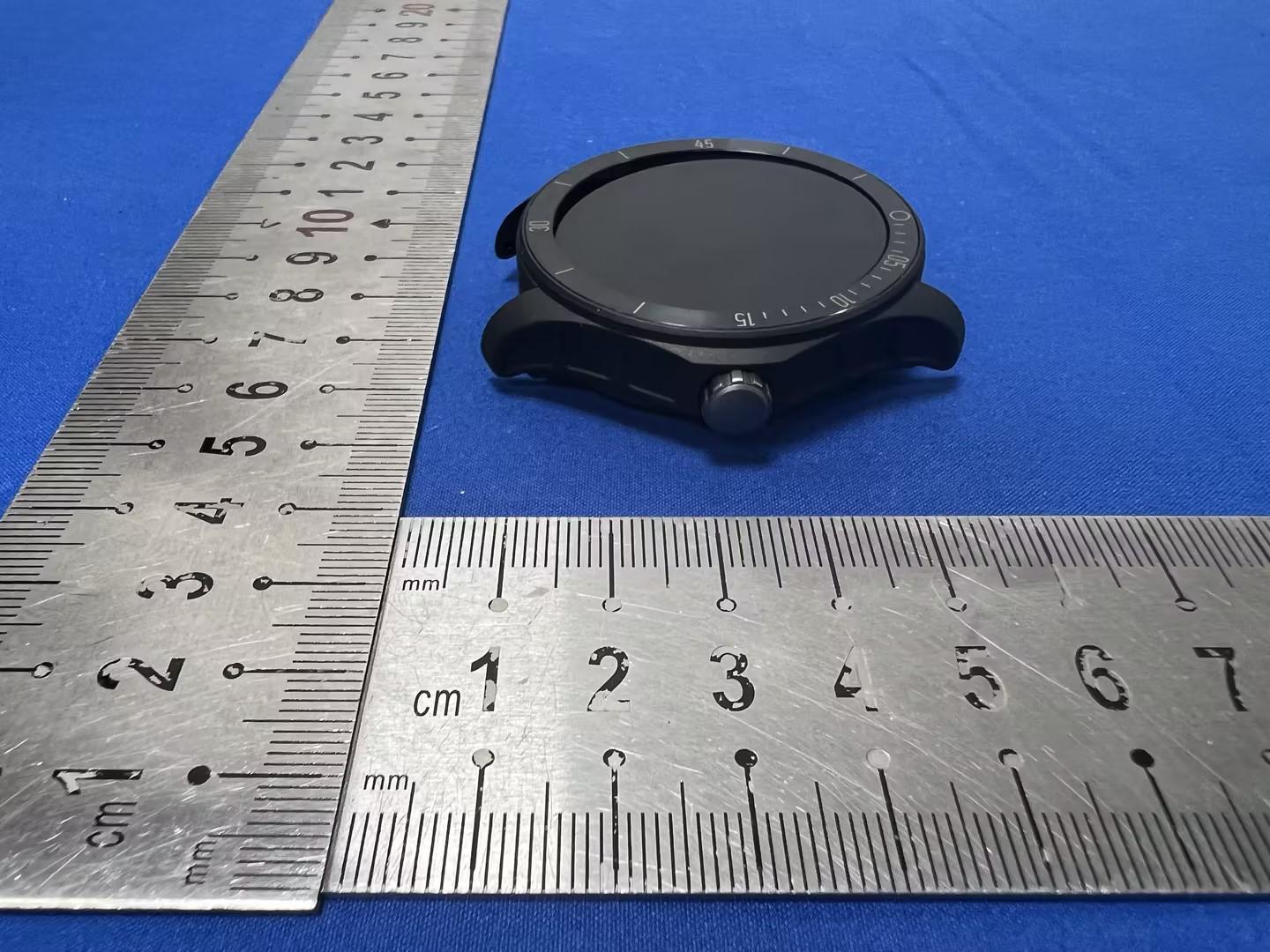

ExternalPhotos 1#
ID Label/Location Info
F C C I D : 2 A H F T 5 0 8 I C : 2 3 0 2 3 - 2 A H F T 5 0 8 IDW18 底壳 23.65X10.59mm 7X5mm 5.5X7mm 5X5mm 11.27X3mm
Internal Photos

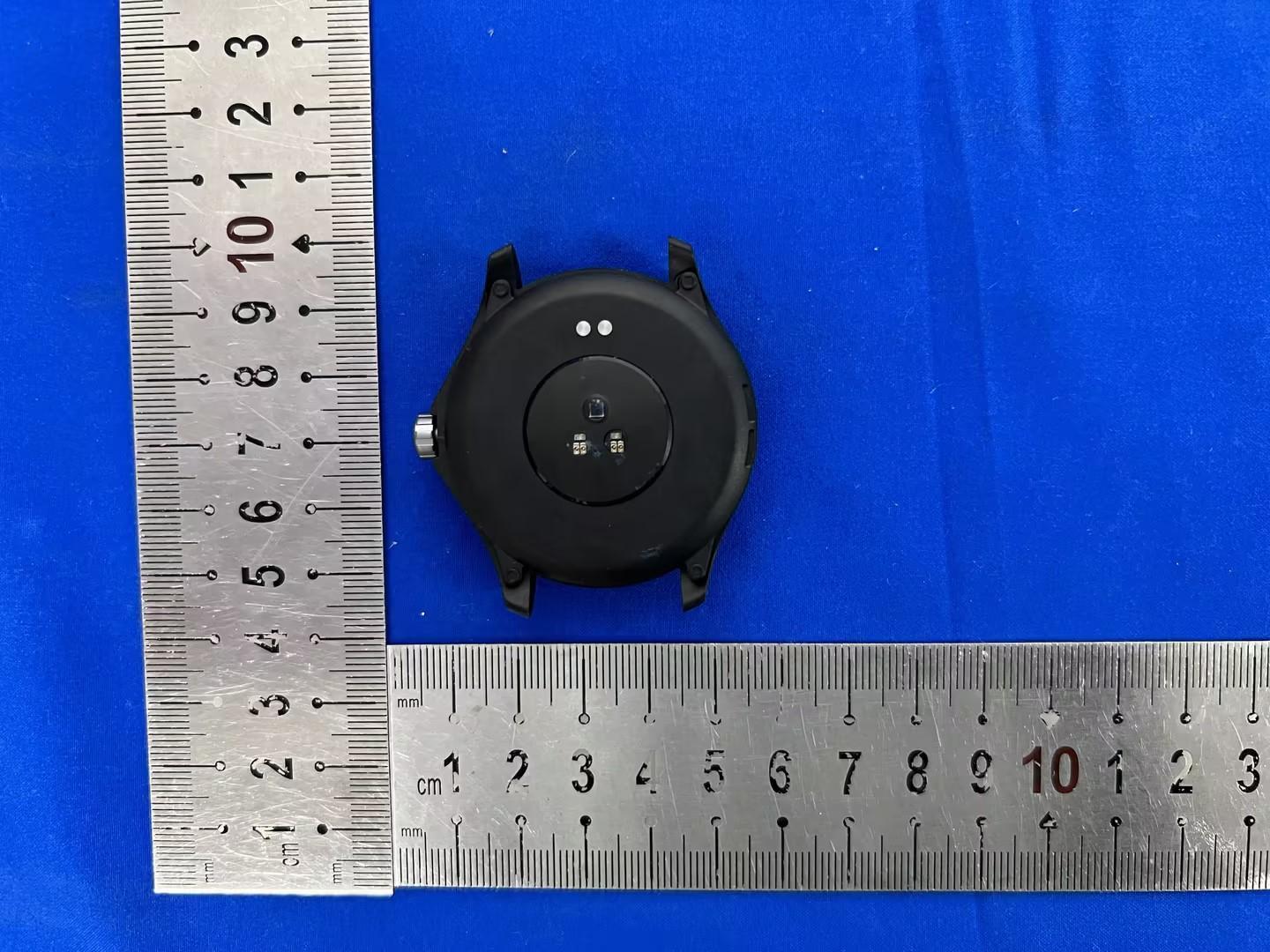

InternalPhotos ANT 2#
RF Exposure Info
ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20230400456E-03 Applicant: ShenzhenDOIntelligentTechnologyCo.,Ltd AddressofApplicant: 11thFloor,3#Building,GuoleTechPark,LirongRoad,Dalang,Longhua District,Shenzhen,China EquipmentUnderTest(EUT): EUTName:SmartWatch ModelNo.: IDW18 TestModelNo.: IDW18 BrandName:IDO FCCID:2AHFT508 Standards: 47CFRPart1.1307 47CFRPart2.1093 KDB447498D04InterimGeneralRFExposureGuidancev01 DateofReceipt:2023-04-03 DateofTest: 2023-04-03to2023-04-14 DateofIssue:2023-05-23 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230400456E-03 Page:2of8 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20230400456E-03Rev.01 Initialreport 2023-05-23 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230400456E-03 Page:3of8 2Contents Page 1VERSION............................................................................................................................................................................2 2CONTENTS........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION...................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT...................................................................................................................................4 3.3GENERALDESCRIPTIONOFBLE...................................................................................................................................4 3.4GENERALDESCRIPTIONOFBT......................................................................................................................................4 4RFEXPOSUREEVALUATION.......................................................................................................................................5 4.1SAREVALUATIONFORPORTABLECONDITION...........................................................................................................5 4.1.1StandardRequirement......................................................................................................................................5 4.1.2Limits....................................................................................................................................................................5 4.1.3SARExclusionEvaluationResult...................................................................................................................7 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230400456E-03 Page:4of8 3GeneralInformation 3.1ClientInformation Applicant: ShenzhenDOIntelligentTechnologyCo.,Ltd AddressofApplicant: 11thFloor,3#Building,GuoleTechPark,LirongRoad,Dalang,Longhua District,Shenzhen,China Manufacturer: ShenzhenDOIntelligentTechnologyCo.,Ltd AddressofManufacturer: 11thFloor,3#Building,GuoleTechPark,LirongRoad,Dalang,Longhua District,Shenzhen,China Factory: ShenzhenDOIntelligentTechnologyCo.,Ltd AddressofFactory: 11thFloor,3#Building,GuoleTechPark,LirongRoad,Dalang,Longhua District,Shenzhen,China 3.2GeneralDescriptionofEUT ProductName: SmartWatch ModelNo.: IDW18 TestModelNo.: IDW18 TradeMark: IDO SoftwareVersion: V1.01.00 HardwareVersion: V1.2 PowerSupply: Li-ionbatteryDC3.8V300mAh,ChargebyDC5Vforadapter SimultaneousTransmissionSimultaneousTXissupportedandevaluatedinthisreport. SimultaneousTXisnotsupported. 3.3GeneralDescriptionofBLE OperationFrequency:2402MHz~2480MHz ModulationType:GFSK TransferRate:1Mbps NumberofChannel:40 ProductType:MobilePortable AntennaType: FPCantenna AntennaGain: -0.2dBi 3.4GeneralDescriptionofBT OperationFrequency:2402MHz~2480MHz ModulationType:GFSK,π/4DQPSK,8DPSK TransferRate:1Mbps/2Mbps/3Mbps NumberofChannel:79 ProductType:MobilePortable AntennaType: FPCantenna AntennaGain: -0.2dBi ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230400456E-03 Page:5of8 4RFExposureEvaluation 4.1 SAREvaluationforPortablecondition 4.1.1StandardRequirement 447498D04InterimGeneralRFExposureGuidancev01 3.2.SARTestReductionGuidance SARtestreductionprocedures[Glossary]allowusingaparticularsetoftestdataasrepresentative ofother,similar,testconditions.Thismaybeappliedfordatawithindifferenttestpositions(e.g.body, head,extremity),wirelessmodes(e.g.Wi-Fi,cellular),andfrequencybands.Thistestreductionprocess providesfortheuseoftestdataforonespecificchannel,whilereferencingtothosedatafordemonstrating complianceinotherrequiredchannelsforeachtestpositionofanexposurecondition,withintheoperating modeofafrequencyband.Thisislimitedspecificallytowhenthereported1-gor10-gSARforthemid- bandorhighestoutputpowerchannelmeetsanyofthefollowingconditions. 4.1.2Limits SAR-basedthresholdsarederivedbasedonfrequency,power,andseparationdistanceoftheRF source.Theformuladefinesthethresholdsingeneralforeitheravailablemaximumtimeaveragedpoweror maximumtime-averagedERP,whicheverisgreater. IftheERPofadeviceisnoteasilydet…
Text truncated - open the document above for the full version.
Test Report
ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20230400456E-01 Applicant: ShenzhenDOIntelligentTechnologyCo.,Ltd AddressofApplicant: 11thFloor,3#Building,GuoleTechPark,LirongRoad,Dalang,Longhua District,Shenzhen,China EquipmentUnderTest(EUT): Product: SmartWatch ModelNo.: IDW18 TestModelNo.: IDW18 BrandName: IDO FCCID: 2AHFT508 Standards:47CFRPart15,SubpartC DateofReceipt:2023-04-03 DateofTest: 2023-04-03to2023-04-14 DateofIssue:2023-05-23 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (TimoLei) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230400456E-01 Page:2of95 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20230400456E-01Rev.01 Initialreport 2023-05-23 Note: Thedifferencebetweenthe1#prototypeandthe2#prototypeisthatthebatterysupplieris differentandthescreensupplierisdifferent ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230400456E-01 Page:3of95 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement47CFRPart15.203/PASS ACPowerLineConducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10-2013PASS ConductedPeakOutput Power 47CFRPart15.207ANSIC63.10-2013PASS 20dBOccupiedBandwidth47CFRPart15.247ANSIC63.10-2013PASS CarrierFrequencies Separation 47CFRPart15.247ANSIC63.10-2013PASS HoppingChannelNumber47CFRPart15.247ANSIC63.10-2013PASS DwellTime47CFRPart15.247ANSIC63.10-2013PASS PseudorandomFrequency HoppingSequence 47CFRPart15.247ANSIC63.10-2013PASS Band-edgeforRF ConductedEmissions 47CFRPart15.247ANSIC63.10-2013PASS RFConductedSpurious Emissions 47CFRPart15.247ANSIC63.10-2013PASS RadiatedSpurious emissions 47CFRPart15.209ANSIC63.10-2013PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15.205/15.209ANSIC63.10-2013PASS Remark: Thetestedsample(s)andthesampleinformationareprovidedbytheclient. Tx:InthiswholereportTx(ortx)meansTransmitter. Rx:InthiswholereportRx(orrx)meansReceiver. RF:InthiswholereportRFmeansRadiatedFrequency. CH:InthiswholereportCHmeanschannel. Volt:InthiswholereportVoltmeansVoltage. Temp:InthiswholereportTempmeansTemperature. Humid:InthiswholereportHumidmeanshumidity. Press:InthiswholereportPressmeansPressure. N/A:Inthiswholereportnotapplication ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230400456E-01 Page:4of95 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.7TESTLOCATION........................................................................................................................................................10 4.8TESTFACILITY..........................................................................................................................................................10 4.9ABNORMALITIESFROMSTANDARDCONDITIONS......................................................................................................10 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.11EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER.........................................................................................................................19 5.420DBOCCUPIEDBANDWIDTH......................................................................................................…
Text truncated - open the document above for the full version.
Test Report
ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20230400456E-01 Page:64of95 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Wu Dajun
Technical Contact
Test Firm
Shenzhen Huaxia Testing Technology Co., LtdJack Ai
[email protected]+8613902988375
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 1.60 mW |
