2AHGJJMSDB2111-49-1RC Flamingo Unicorn Boat 49 MHz Remote Controller

Pool Party Animal Amphibious User Manual Battery installation For Animal Amphibious: Remove the screw and open the battery cover. Insert 3x 1.5V AAA Alkaline batteries and close the battery cover. Put the screw back and lock the battery cover. For Remote Controller: Remove the screw and open the battery cover. Insert 2x 1.5V AAA Alkaline batteries and close the battery cover. Put the screw back and lock the battery cover. Operation procedure Put the animal amphibious on the water and make sure the frequency docking successfully when the animal amphibious and the controller are turned on. The animal amphibious can also be played on land. Use the remote controller to control the animal amphibious. The animal amphibious will move forward when you press the button in left side. The amphibious will turn left and move backward when you press the button in right side. Pool Party Animal Amphibious User Manual Notes: Please make sure the animal amphibious and remote controller within 4-6 meter range. Age Recommendation: 10+ years and adult supervision required. If you do not play the animal amphibious, you must remove the batteries from both of the remote controller and the animal amphibious Packaging includes: Animal amphibious unit 1pc (2 assortment – Flamingo / Unicorn) Remote controller unit 1pc Product dimension: Flamingo unit: 5.5”W x 3”D x 5”H / Unicorn unit: 6.75”W x 3”D x 6”H Remote controller unit: 3.5”W x 2.5”D x 1.25”H Description: Remote controller batteries: 2 x 1.5V AAA Alkaline batteries are not included Animal Amphibious batteries: 3 x 1.5V AAA Alkaline batteries are not included Range: 4-6 meters Duration: about 12mins Suitable for children of 10 years old or above Place the animal amphibious on the water before playing. The animal amphibious will malfunction if submerged underwater. For safety, do not touch the propeller when the animal amphibious is on the water. Pool Party Animal Amphibious User Manual FCC ID on 27 MHZ frequency: 2AHGJJMSDB2111-27-1 (Flamingo) FCC ID on 49 MHZ frequency: 2AHGJJMSDB2111-49-1 (Unicorn) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changers or modifications to this unit not expressly approved by the party responsible for the compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part, 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF Warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Conforms to ASTM F963-17

A B C D 6 54321 D C B A POWER AMPLIFICATION CONTROL CIRCUIT LOCAL OSCILLATOR MODULATION 49.86MHz 49.86MHz TX-3

JM Manufacturing (HK) Ltd. Unit G, 4/F Kaiser Estate, Phase 2, No. 47-53 Man Yue Street, Hung Hom, Kowloon, Hong Kong Tel: (852) 2770 2712 Fax: (852) 2385 8073 E-Mail：[email protected] FCC Authorization 05/03/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, JM Manufacturing (HK) Ltd., the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Sam Leung Title: Merchandising Manager QA-FR-170-B

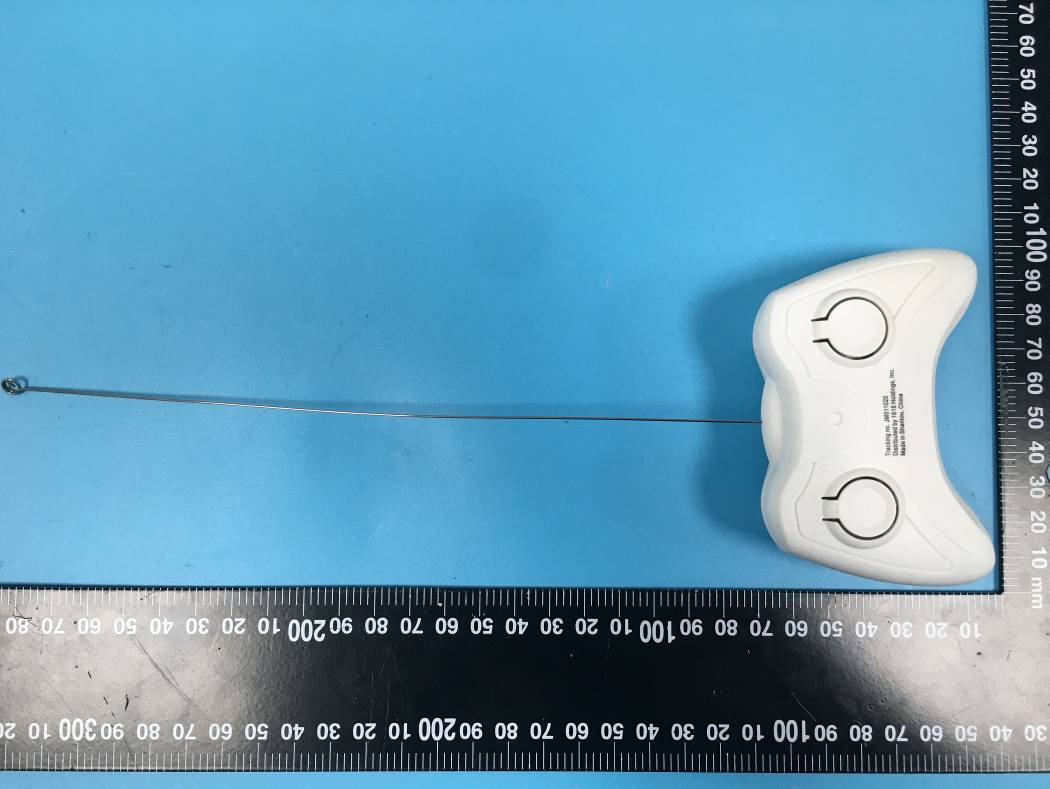

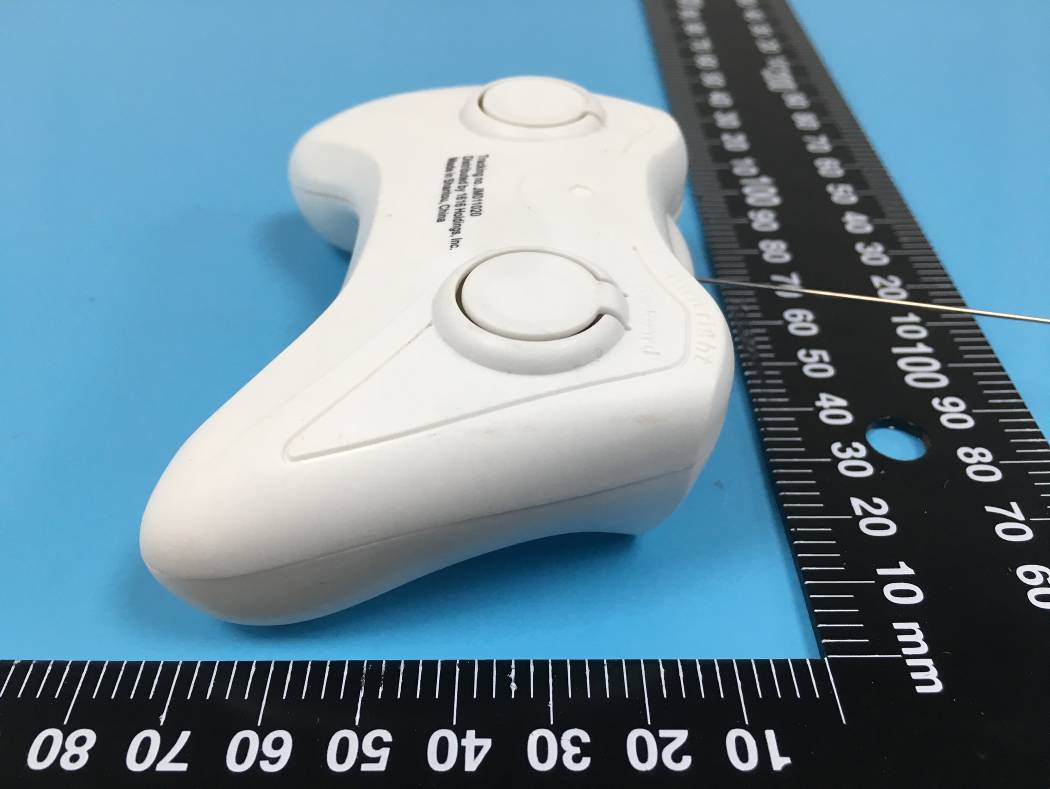

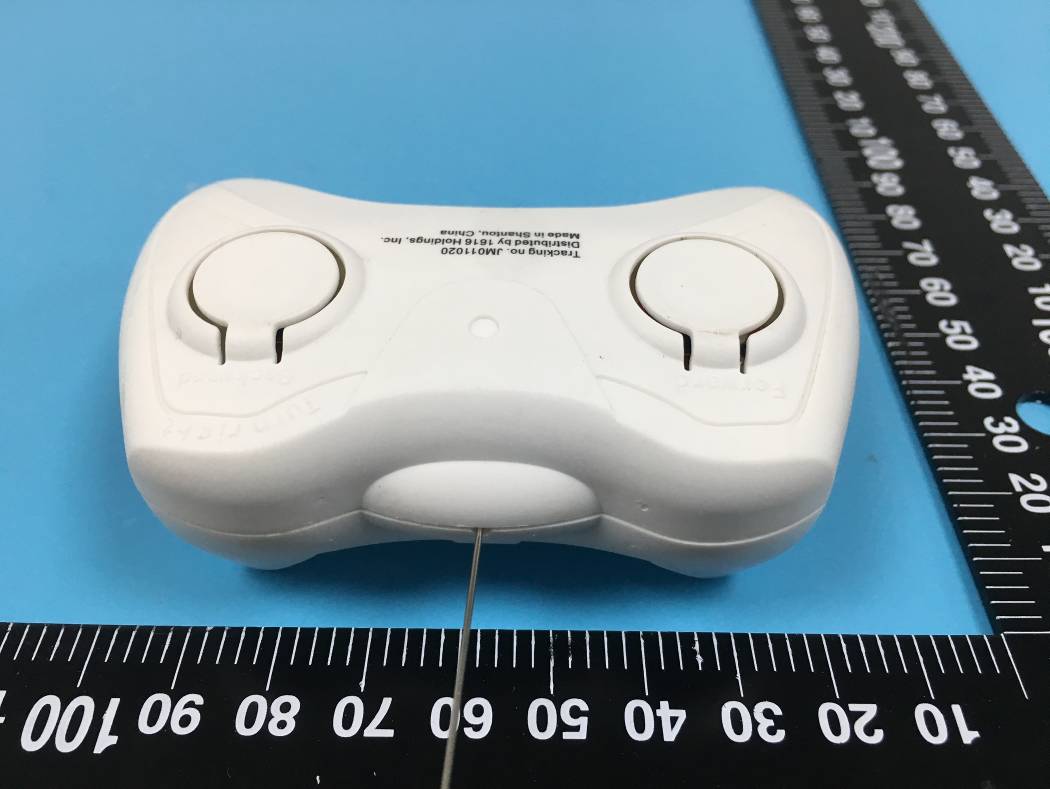

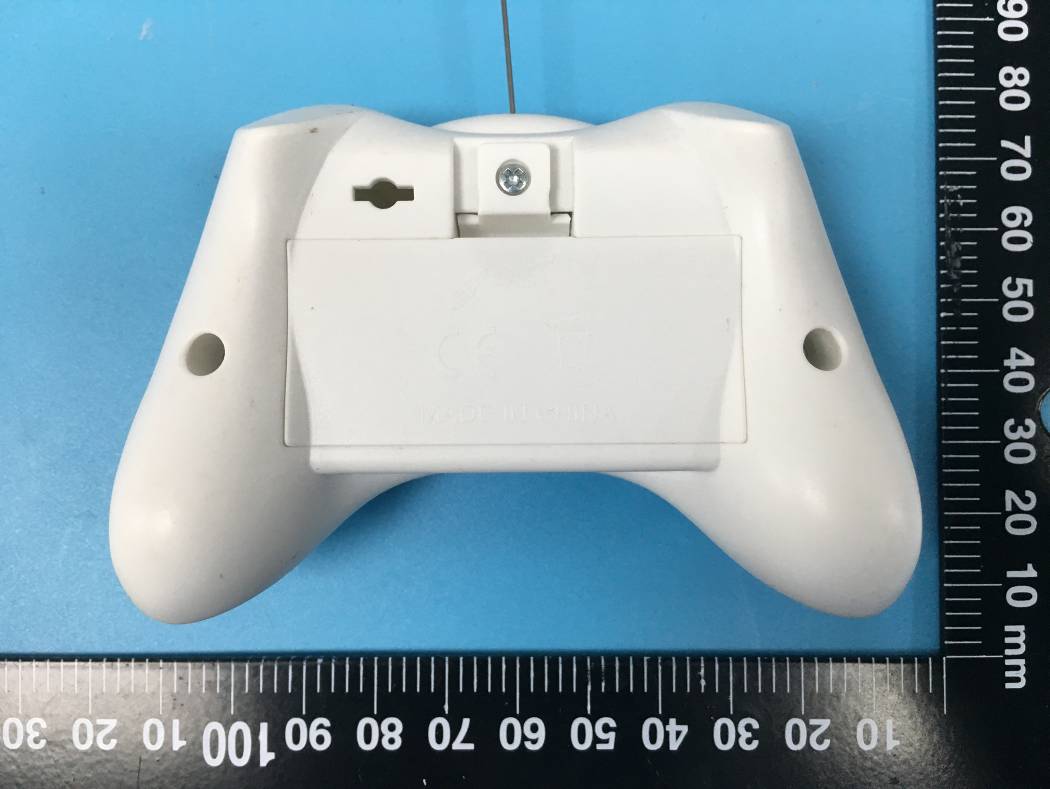

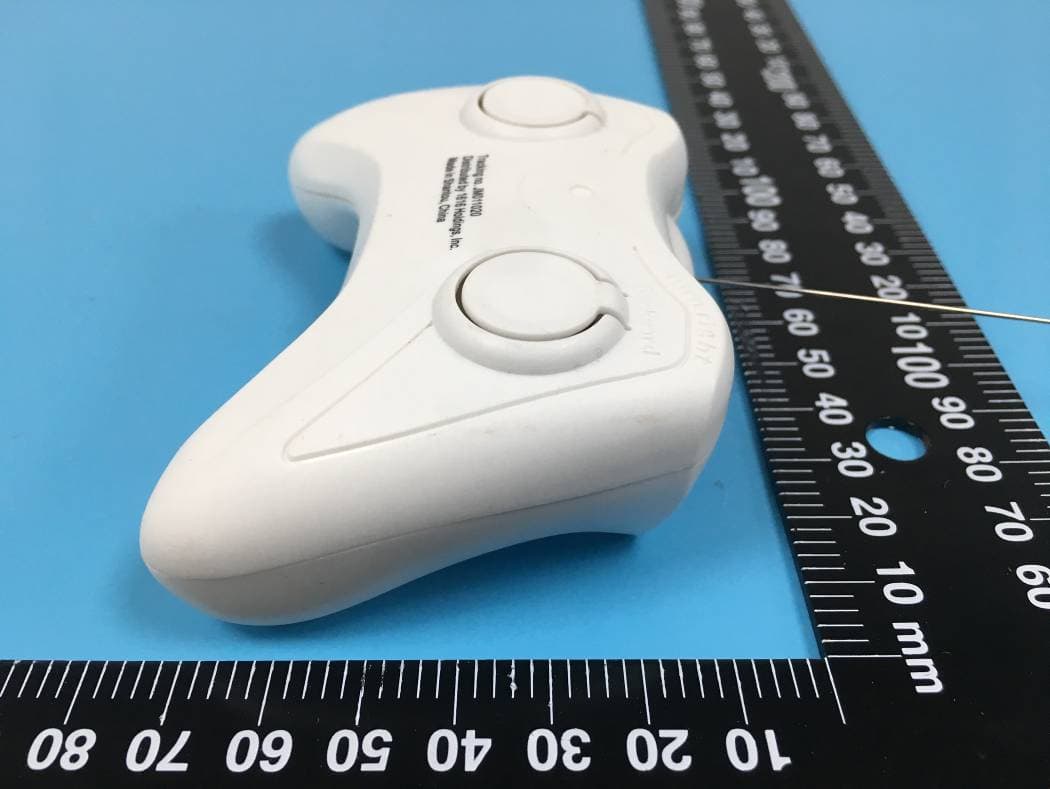

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Antenna

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information = The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Circuit Description When the remote control forward, backward, left, right, each function by pressing the corresponding encoding chip function pin high level, after IC internal A/D conversion circuit, reduction of each func tion signal. After reduction each function signal, the IC internal to encode their corresponding instructions, encoded output PC and IC at the same time in the encoding of the output pin part control high frequency oscillation output level work, high-frequency oscillation signal and coding signal in some form of modulated wave modulation circuit, output circuit, the antenna output The working frequency is 49.860MHz.

1234 A B C D 4 321 D C B A S1 S W -P B S2 S W -P B B+ D1 IN4 148 A NT L2 2.2u H Q1 c94 5 Q2 94 5 R2 18 0K C1 22 P VCC C3 10 4P C2 15 P L1 2.2u H R1 10 K Y1 49 .8 60MHz L3 2.2u H U1 TX - 3 R2 15 K 49.86MHz

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.235 TEST REPORT For JM Manufacturing (HK) Ltd. Unit G, 4/F Kaiser Estate, Phase 2, No. 47-53 Man Yue Street, Hung Hom, Kowloon, Hong Kong FCC ID: 2AHGJJMSDB2111-49-1 Report Type: Original Report Product Type: RC Flamingo unicorn boat 49MHz remote controller Report Number: RSZ200303833-00 Report Date: 2020-04-21 Reviewed By: Jimmy Xiao RF En gineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200303833-00 FCC Part 15.235 Page 2 of 14 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 SPECIAL ACCESSORIES ................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 TEST EQUIPMENT LIST ........................................................................................................................................... 6 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 7 FCC §15.235(A) & 15.235 (B)&15.209 - RADIATED EMISSIONS AND BAND EDGES .................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY .................................................................................................................................... 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP ......................................................................................................................................... 9 TEST PROCEDURE ........................................................................................................................................................ 9 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 9 TEST RESULTS SUMMARY ............................................................................................................................................ 9 TEST DATA ................................................................................................................................................................ 10 FCC§15.215(C) - 20DB EMISSION BANDWIDTH ................................................................................................ 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST PROCEDURE ................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View
