2AHGJJMSXL0812-49-1RC PET PLUSH 2 0 (49MHz remote controller)

RC Plush Animal User Manual Battery installation For Animal Car Remove the screw and open the batteries cover. Insert 3*AAA batteries (1.5V) and close the batteries cover. Put the screw back and lock the batteries cover. For Remote Controller: Remove the screw and open the batteries cover. Insert 2*AAA batteries (1.5V) and close the batteries cover. Put the screw back and lock the batteries cover. Operation procedure Put the Animal car on the floor and make sure the frequency docking successfully when the car and the controller are turned on. Use the remote controller to control the Animal Car. The animal car will move forward when you press the forward button in left side. The animal car will rotate backward when you press the backward button in right side. Notes: Please make sure the car and remote controller within 5 meter range. Age Recommendation: 10+ years and adult supervision required. If you do not play the car, you must remove the batteries from both of the remote controller and the car. Packaging includes: Animal car unit 1pc Remote controller unit 1pc Product dimension: Animal car unit: 4.6”W*3”D*6”H Remote controller unit: 2.55”W*2.65”D*0.85”H Description: Remote controller batteries: 2*AAA (1.5V) batteries are not included. Animal car batteries: 3*AAA (1.5V) batteries are not included. Range: 5 meters Duration: about 15mins Suitable for children of 10 years old or above User Manual This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changers or modifications to this unit not expressly approved by the party responsible for the compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part, 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. RF Warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Conforms to ASTM F963-17

49.86MHz 49.86MHz

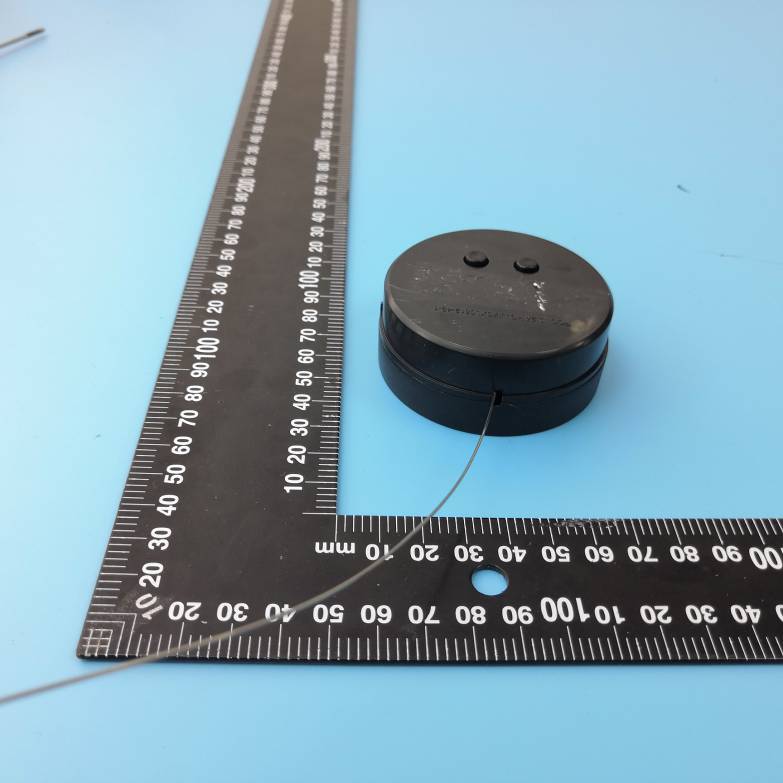

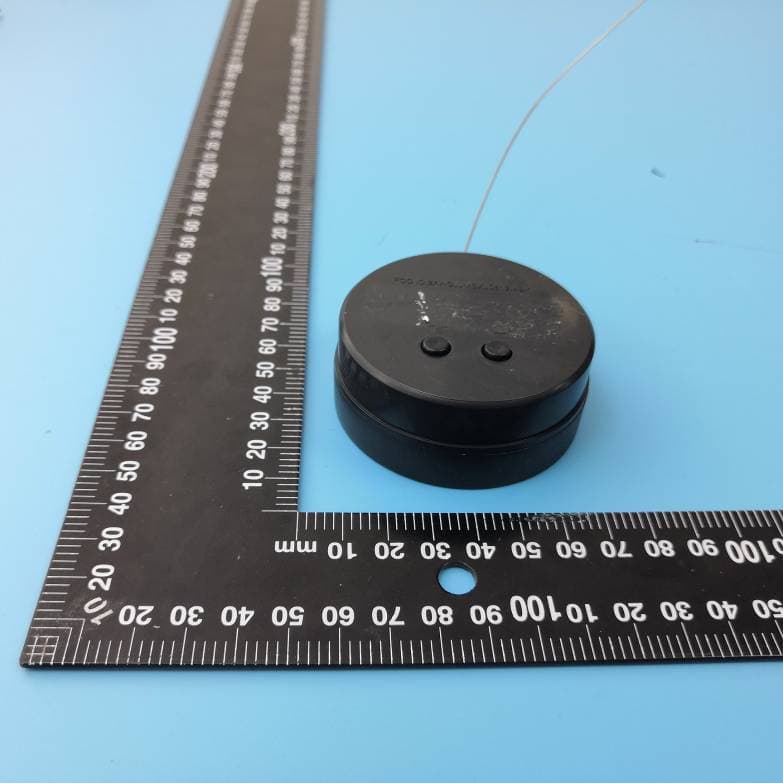

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Antenna

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Circuit Description When the remote control forward ,backward each function by pressing the corresponding key. And transfer signal to encode chip IC .IC internal to encode their corresponding instructions. And with carrier frequency 49.86 MHz to modulation and amplify. Finally output to antenna. The working frequency is 49.86MHz.

49.86MHz

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.235 TEST REPORT For JM Manufacturing (HK) Ltd. Unit G, 4/F Kaiser Estate, Phase 2, No. 47-53 Man Yue Street, Hung Hom, Kowloon, Hong Kong FCC ID: 2AHGJJMSXL0812-49-1 Report Type: Original Report Product Type: RC PET PLUSH 2 0 (49MHz remote controller) Report Number: RSZ191204833-00 Report Date: 2019-12-18 Reviewed By: Nancy Wang RF En gineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ191204833-00 FCC Part 15.235 Page 2 of 14 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 3 SYSTEM TEST CONFIGURATION .......................................................................................................................... 4 JUSTIFICATION ............................................................................................................................................................. 4 SPECIAL ACCESSORIES ................................................................................................................................................. 4 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 4 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 4 SUMMARY OF TEST RESULTS ............................................................................................................................... 5 TEST EQUIPMENT LIST ........................................................................................................................................... 6 FCC §15.203 - ANTENNA REQUIREMENT ............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 7 FCC §15.235(A) & 15.235 (B)&15.209 - RADIATED EMISSIONS AND BAND EDGES .................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY .................................................................................................................................... 8 EUT SETUP .................................................................................................................................................................. 8 EMI TEST RECEIVER SETUP ......................................................................................................................................... 9 TEST PROCEDURE ........................................................................................................................................................ 9 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................... 9 TEST RESULTS SUMMARY ............................................................................................................................................ 9 TEST DATA ................................................................................................................................................................ 10 FCC§15.215(C) - 20DB EMISSION BANDWIDTH ................................................................................................ 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST PROCEDURE ......................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions View (30 MHz~1 GHz)
